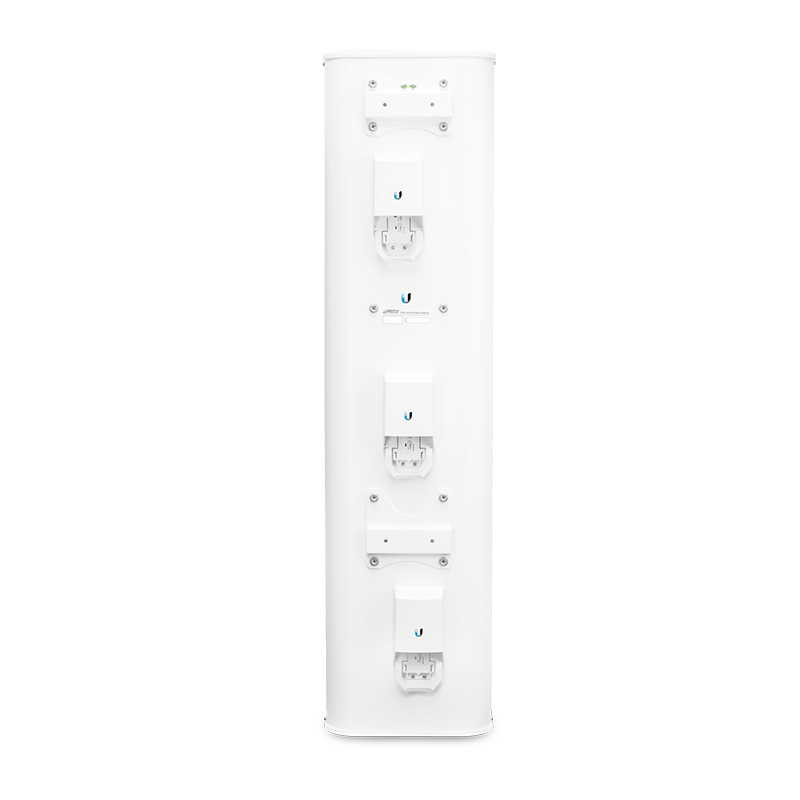

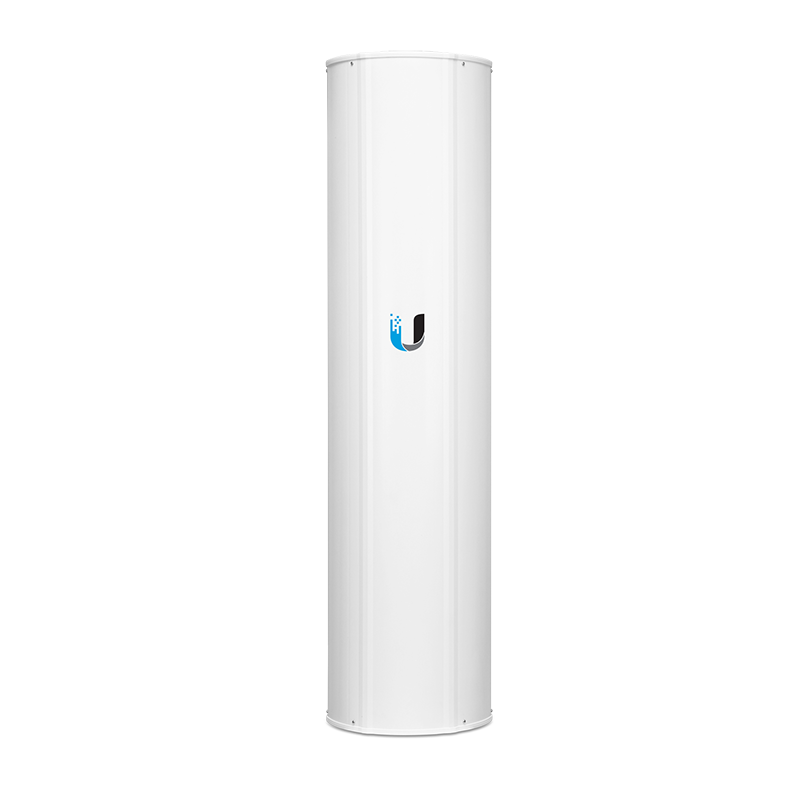

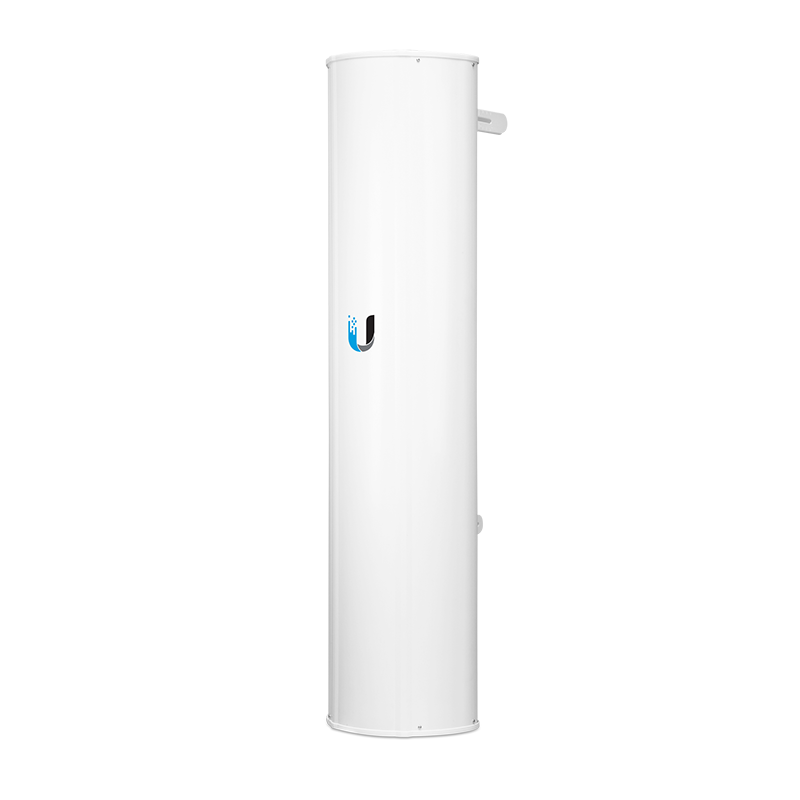

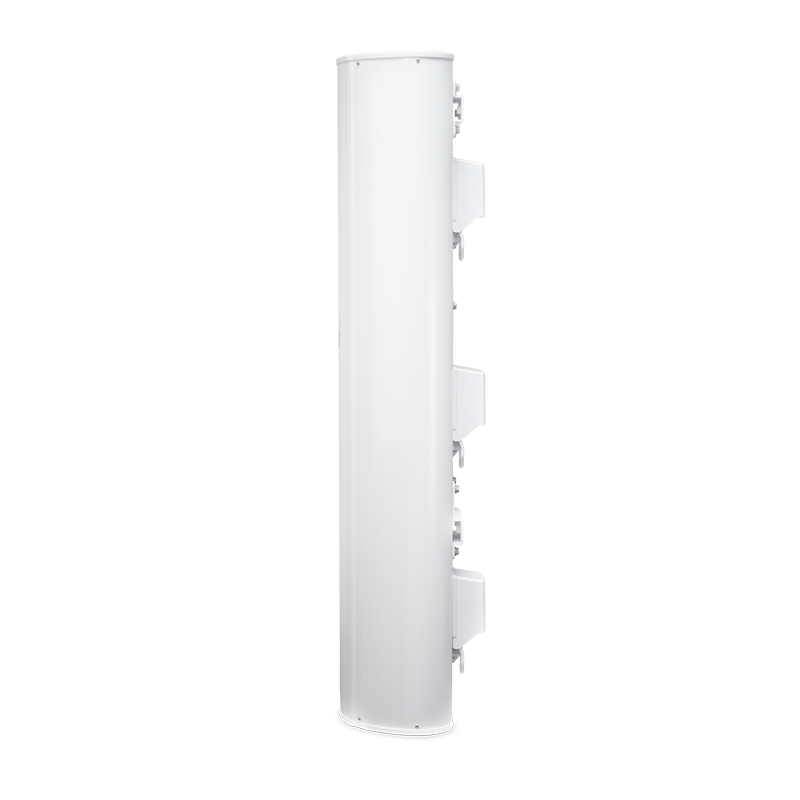

airPRISM 3x30° HD Sector Antenna
Ubiquiti AP-5AC-90-HD airPRISM 3x30° HD Sector Antenna
SKU:AP-5AC-90-HD
Regular price
$783.00
Regular price
$836.00
Sale price
$783.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-year warranty coverage (12 months extended)
Learn more
Sale ending soon! Limited promotional stock available — don’t miss out!
30 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Buying for your business? Earn Store Credits
5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications.
- Powerful performance for high-density areas.
- Efficient footprint for reduced tower costs.
- Compatible with Rocket Prism 5AC.
| AP-5AC-90-HD | |
|---|---|
| Dimensions | With Mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18") |
| Weight | With Mount: 13.1 kg (28.9 lb) |
| Frequency Range | 5.15 - 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 3 x 30° (6 dB) |
| VPOL Beamwidth | 3 x 30° (6 dB) |
| Elevation Beamwidth | 8° |
| Electrical Downtilt | 2° |
| Polarization | Dual-Linear |
| Max. VSWR | 1.75:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 534 N @ 200 km/h (120 lbf @ 125 mph) |
| Interfaces | (6) RP-SMA Connectors (Weatherproof) |
| Compatible Radio | Rocket5ac Prism |
| Mounting | Pole Mount (Kit Included) |
| ETSI Specification | EN 302 326 DN2 |
| Certifications | CE, FCC, IC |
Visit Ubiquiti for more information.
