Ubiquiti

EdgeSwitch PoE 16 (150W) — Wired UISP EdgeMAX Switching

EdgeSwitch PoE 16 (150W) — Wired UISP EdgeMAX Switching

Regular price $542.00
Regular price $542.00 Sale price $542.00
0% Off | Save $0.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:ES-16-150W

Out of stock

View full details

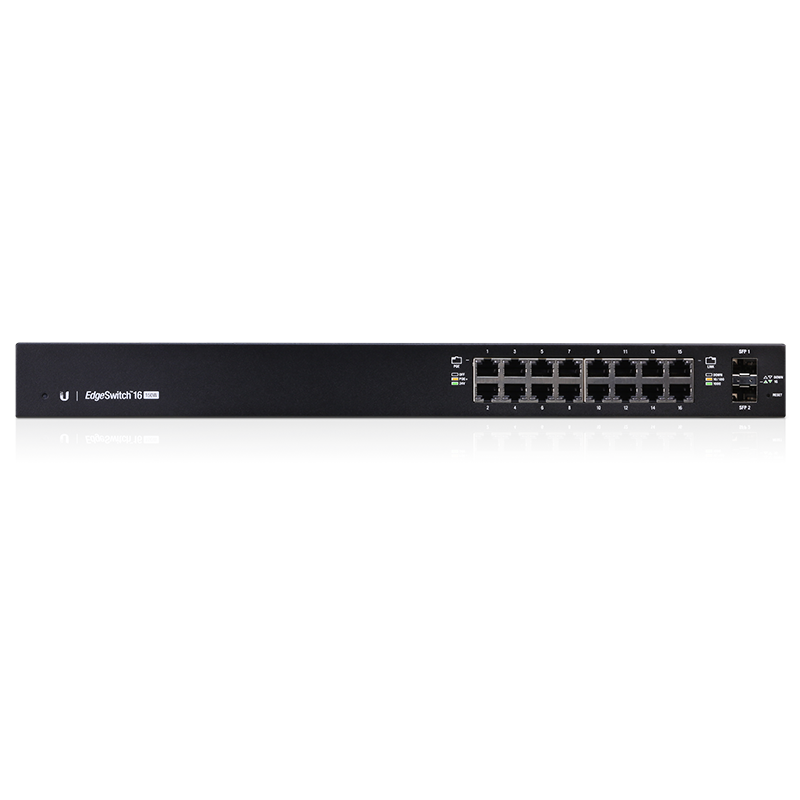

Experience top-notch network management with the Ubiquiti EdgeSwitch PoE 16 (150W), a fully managed Gigabit PoE+ switch. It features (16) high-speed Gigabit RJ45 ports and (2) versatile SFP ports, perfect for a wide range of networking applications.

  • (16) High-Speed GbE RJ45 Ports for robust, reliable connections
  • (2) SFP Ports, offering expanded network capacity
  • 150W Total Power Over Ethernet (PoE) availability, ideal for powering multiple devices
  • Rack-mountable, 1U size, suitable for standardised server racks
Mechanical
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight Without Mount Brackets :2.80 kg (6.17 lb)
With Mount Brackets: 2.89 kg (6.37 lb)
Hardware
Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface UART Console Out-of-Band,
Ethernet In-Band
PoE Interfaces PoE/PoE+ (pins 1, 2+; 3, 6-), 24VDC Passive PoE (pins 4, 5+; 7, 8-)
Total Non-Blocking Line Rate 18 Gbps
Max. Power Consumption 150W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
LEDs Per Port
RJ45 Data Ports
SFP Data Ports

PoE, Speed/Link/Activity
Speed/Link/Activity
Voltage Range
PoE+ Mode
24V Passive PoE

50-57V
20-27V
Max. Wattage per Port
PoE+
Passive PoE

34.2W
17W
Rack-Mount Yes, 1U High
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
