LTU Extreme-Range — UISP 5 GHz Wireless
LTU Extreme-Range — UISP 5 GHz Wireless
SKU:LTU-XR
Regular price
$428.00
Regular price
$530.00
Sale price
$428.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low stock
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

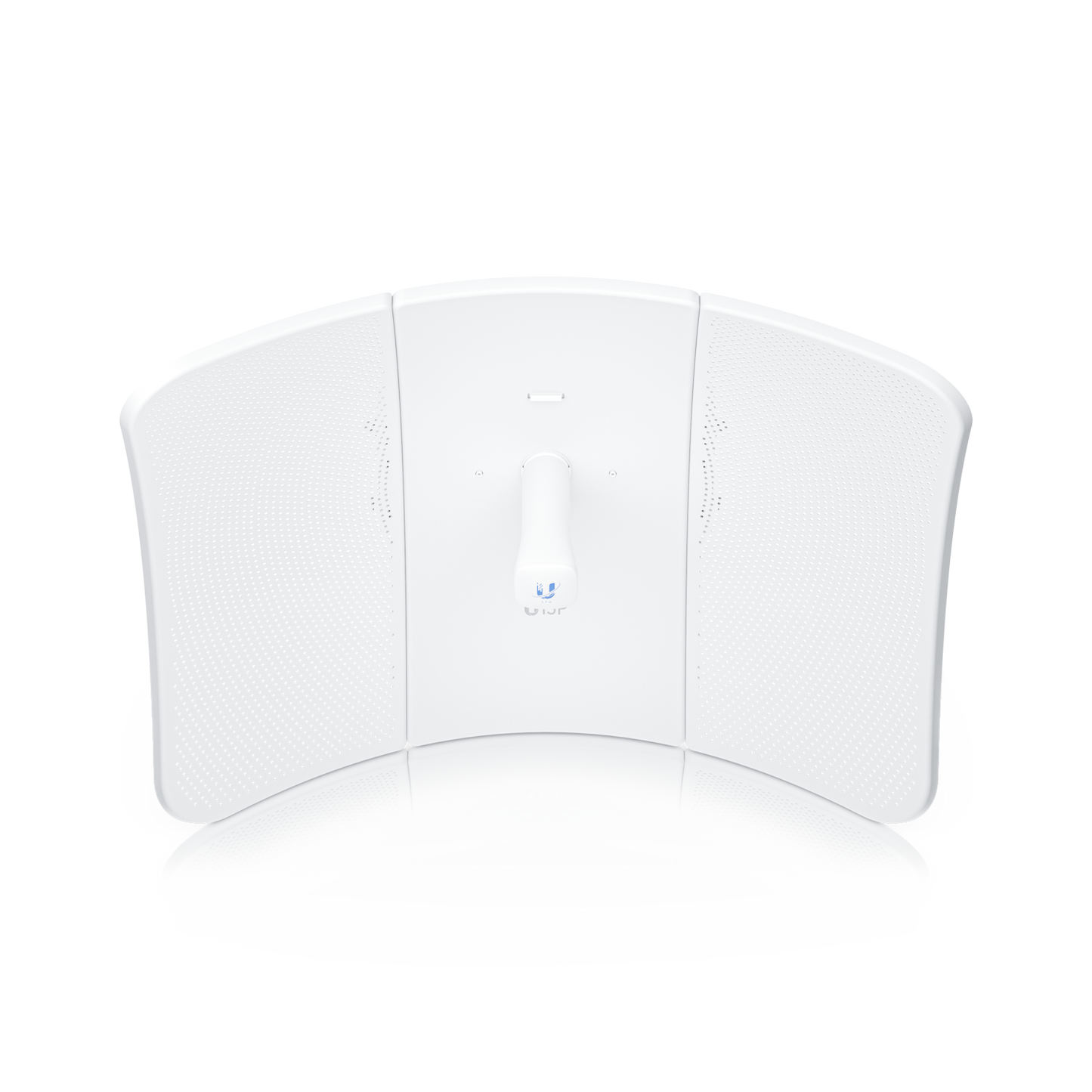

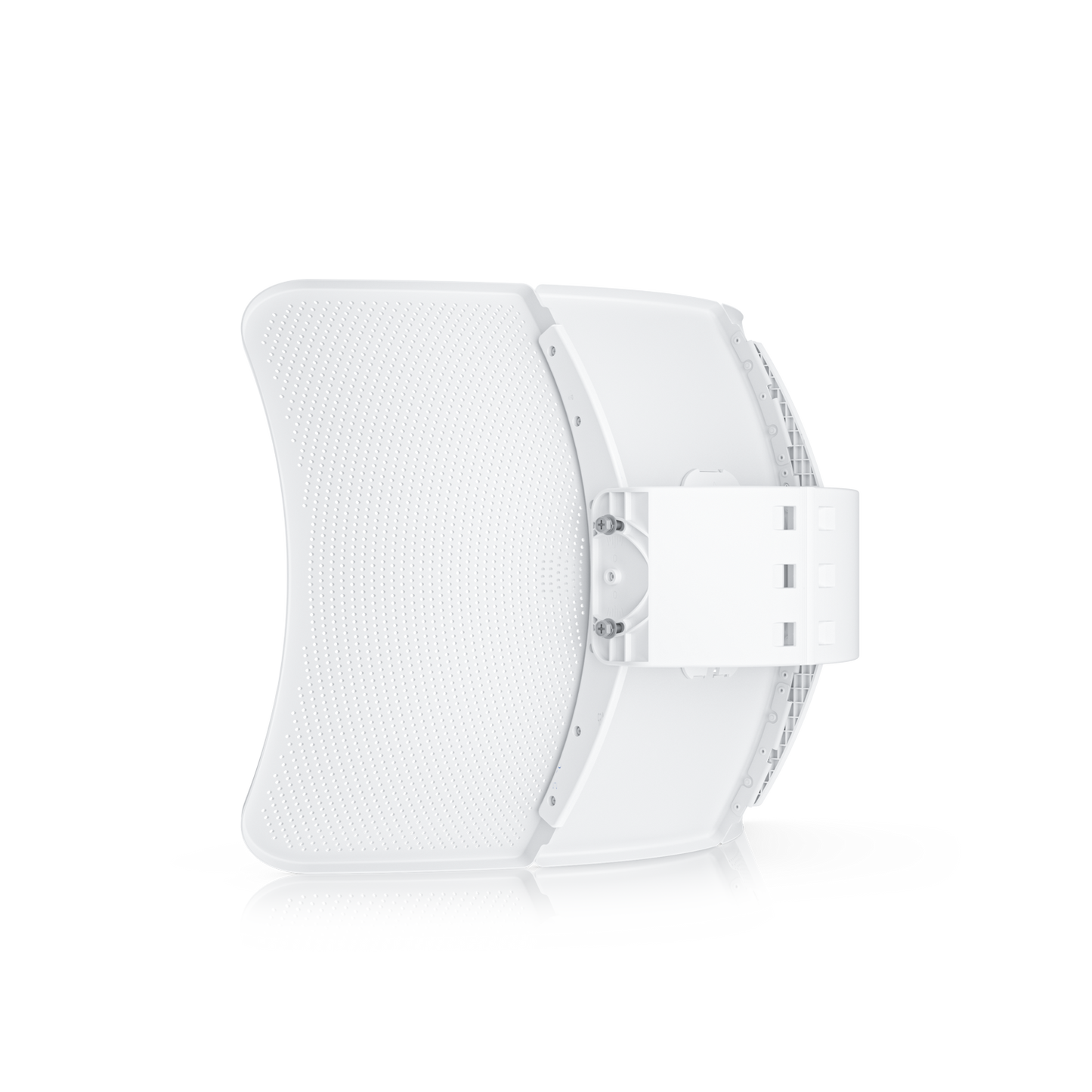

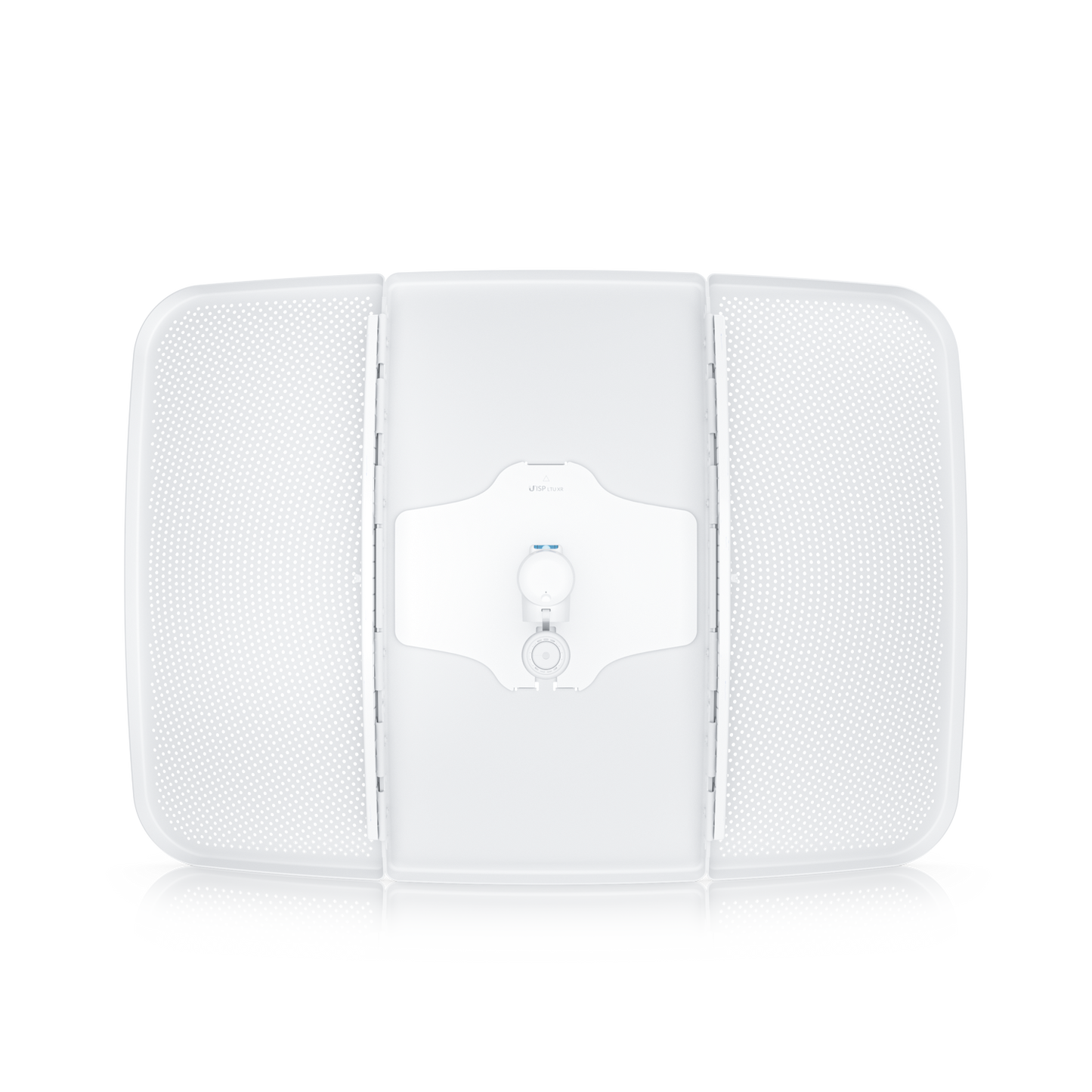

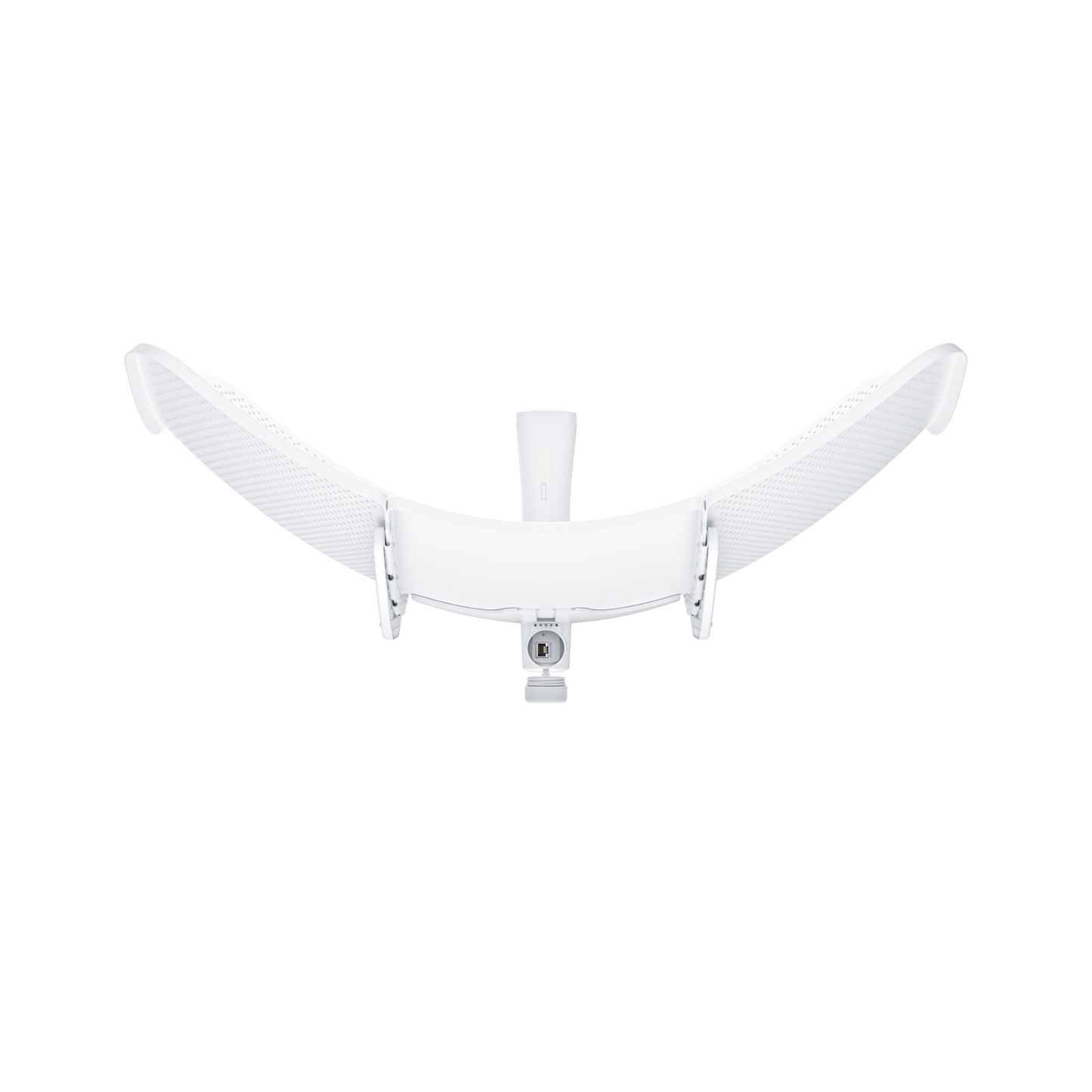

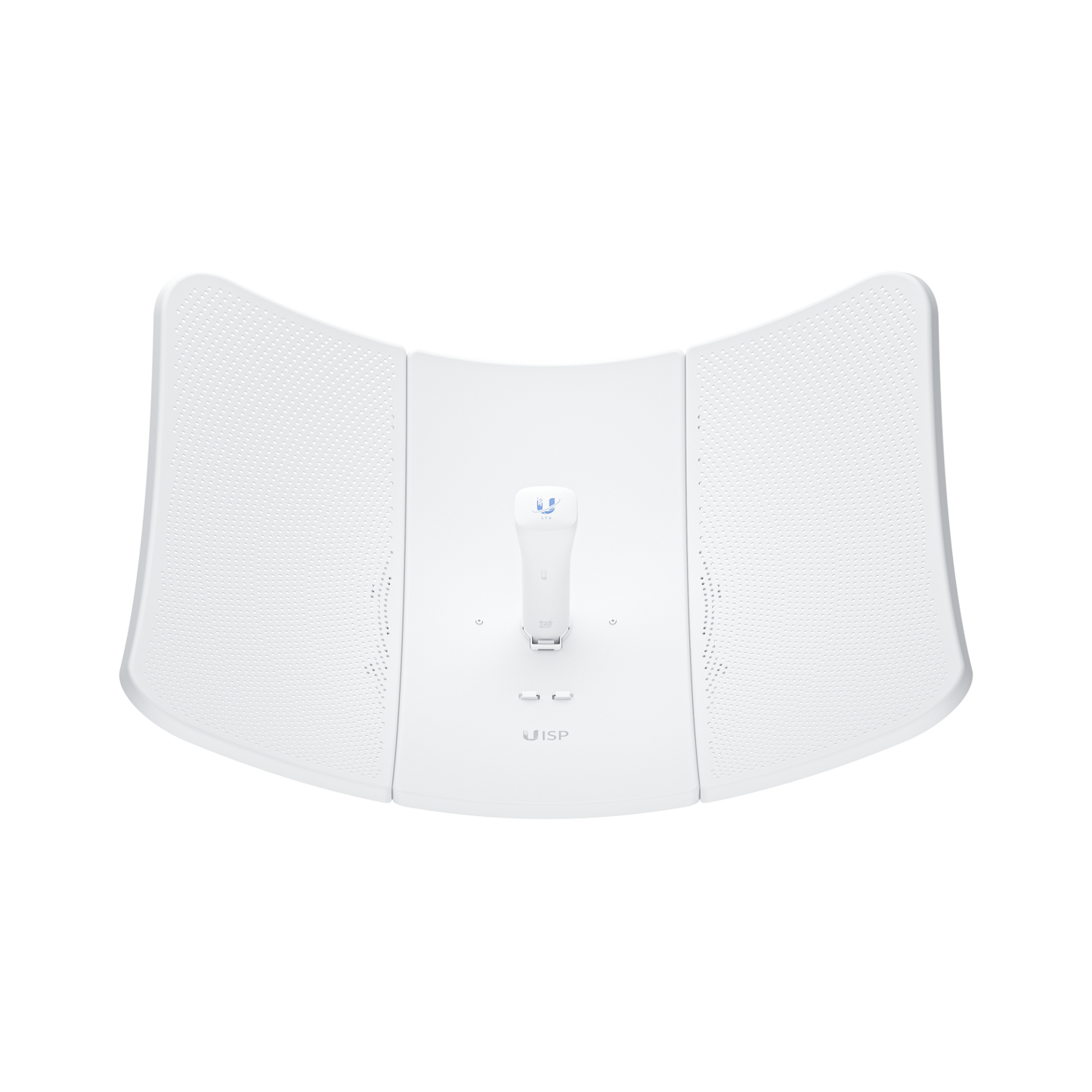

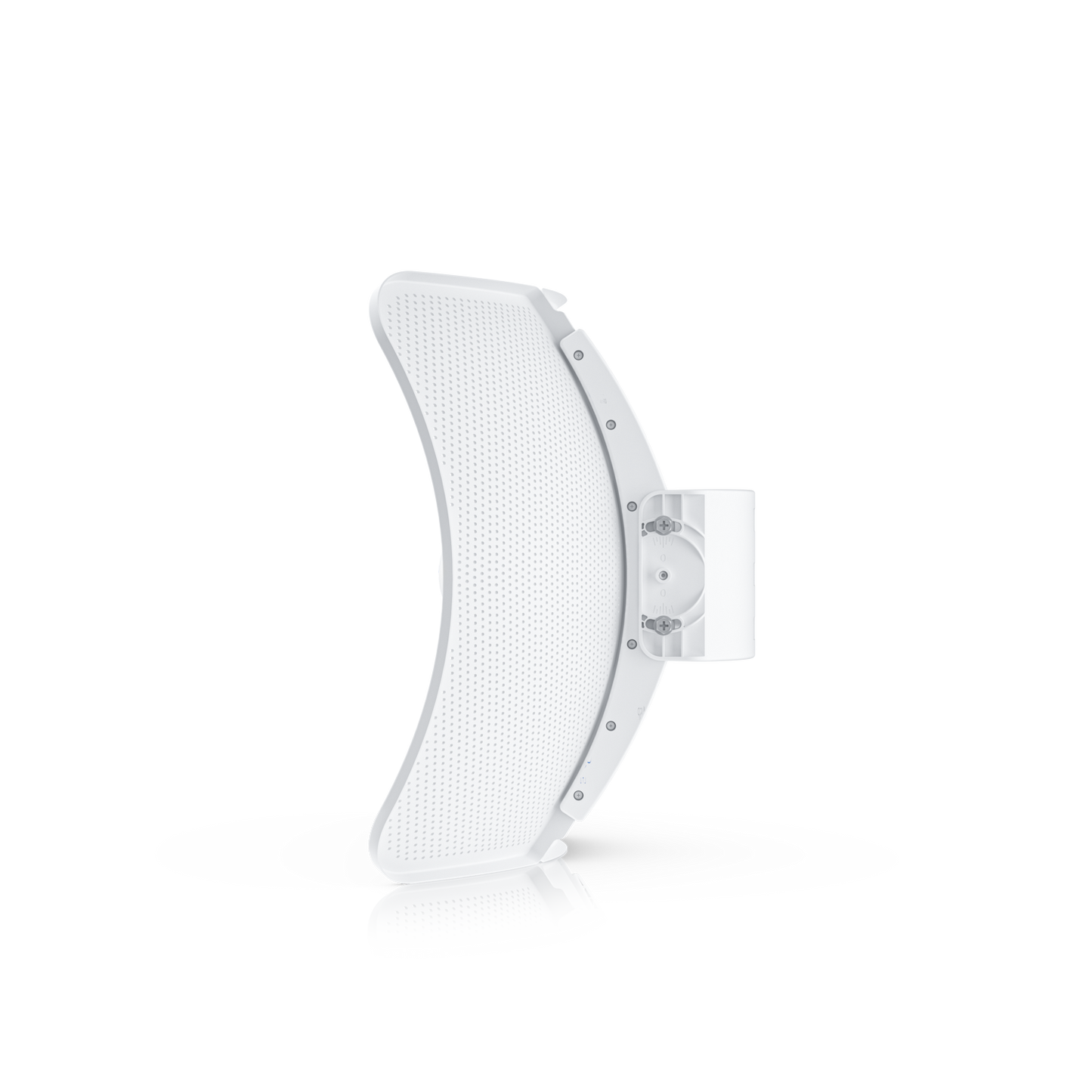

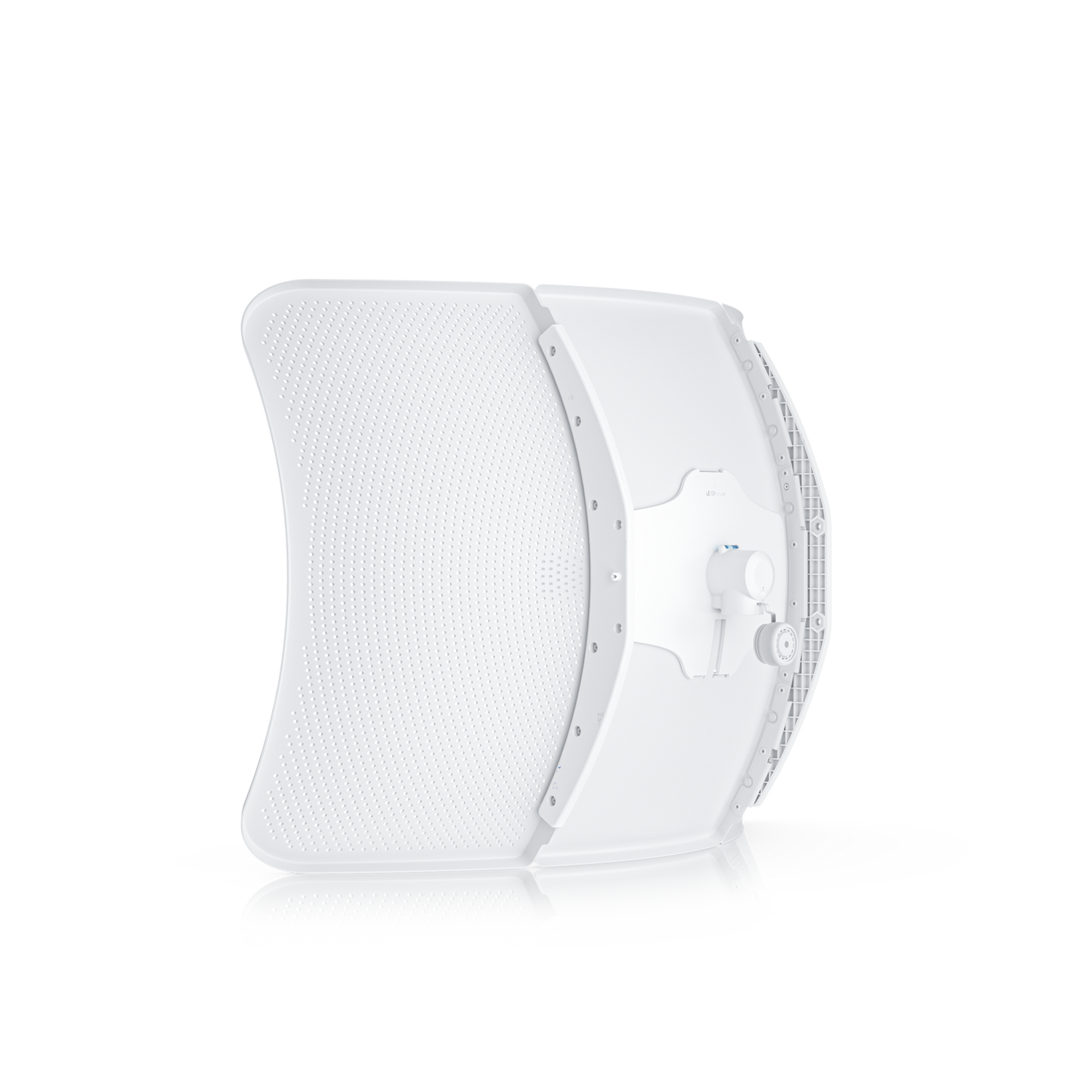

Discover the advanced 5 GHz LTU client, designed for establishing ultra-long-distance wireless connections with an LTU Rocket as its primary base station. Ideal for robust and reliable networking across vast distances in Australia.
- 5 GHz frequency band, enabling links over 30+ km
- High-speed connectivity with over 900 Mbps throughput1
- Incorporates a dedicated radio for spectral analysis
- User-friendly assembly process
Disclaimers
- 1 FW version 2.3.0 and later.
- 2 Compatible with LTU devices only.
| Mechanical | |
|---|---|

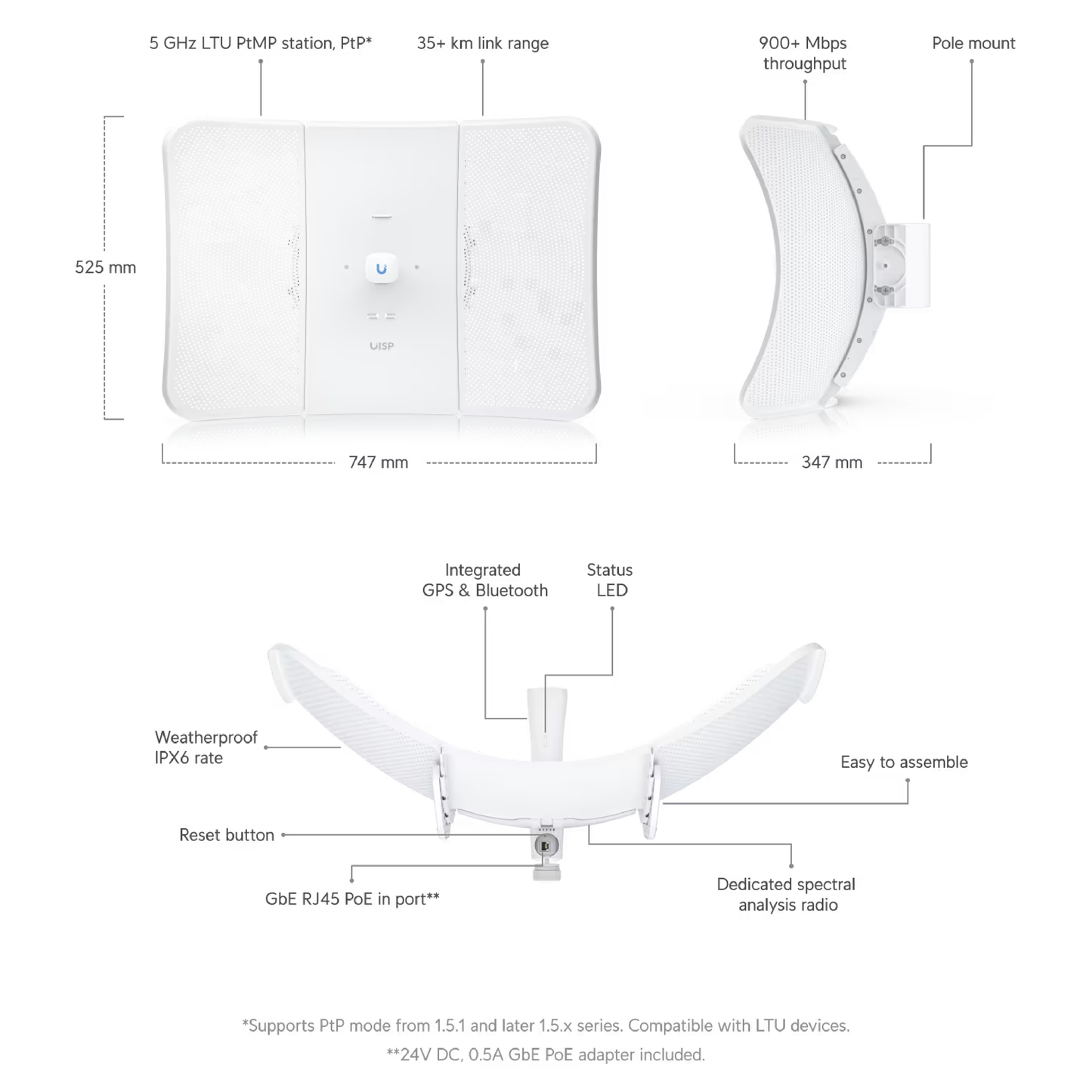

| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66") |
| Weight | 3.2 kg (7.06 lb) |
| Enclosure materials | Aluminum alloy, UV-stabilized polycarbonate |
| Mount material | UV-stabilized polycarbonate |

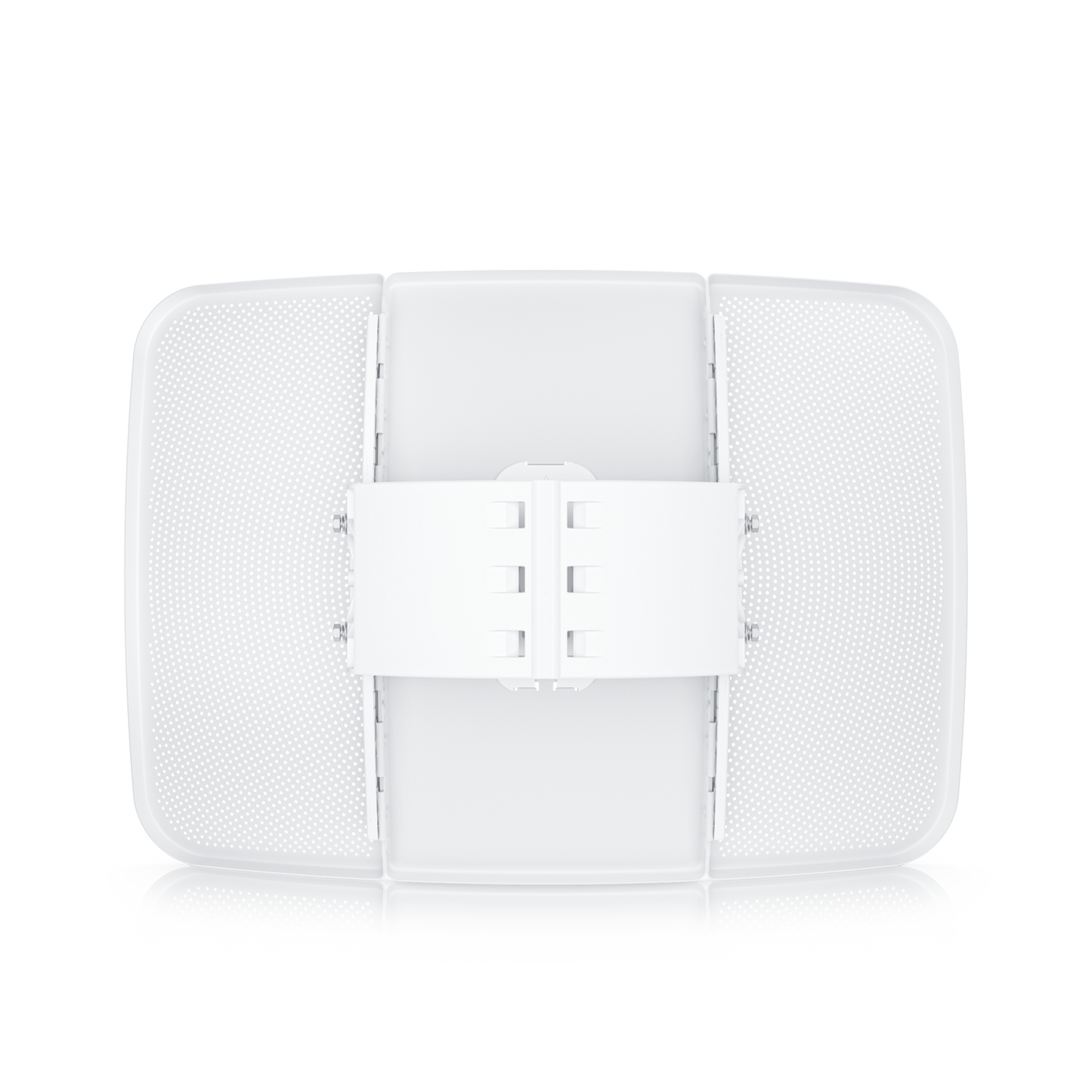

| Mount | Integrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36") |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22—26V DC |
| Max. power consumption | 8.5W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Button | Factory reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
