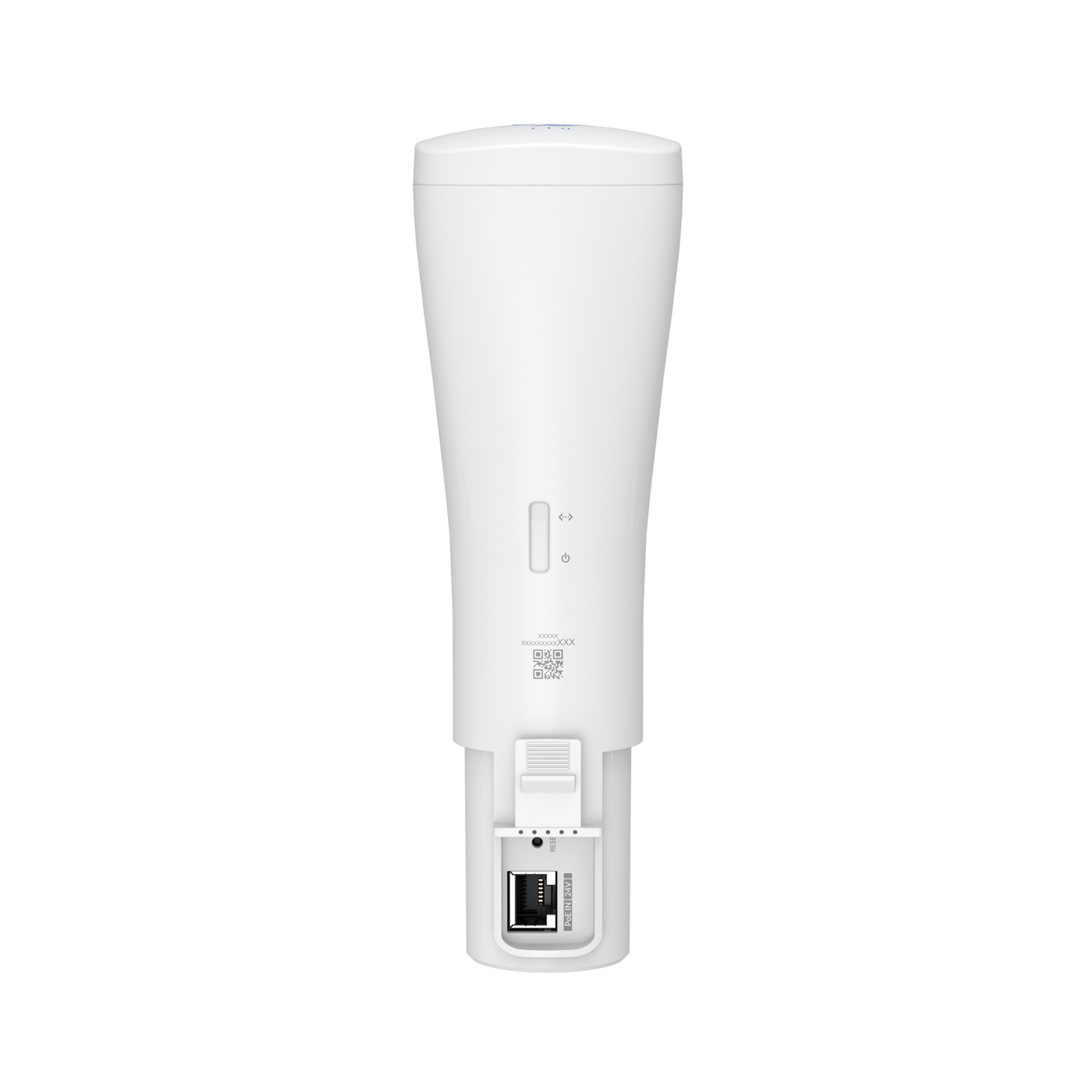

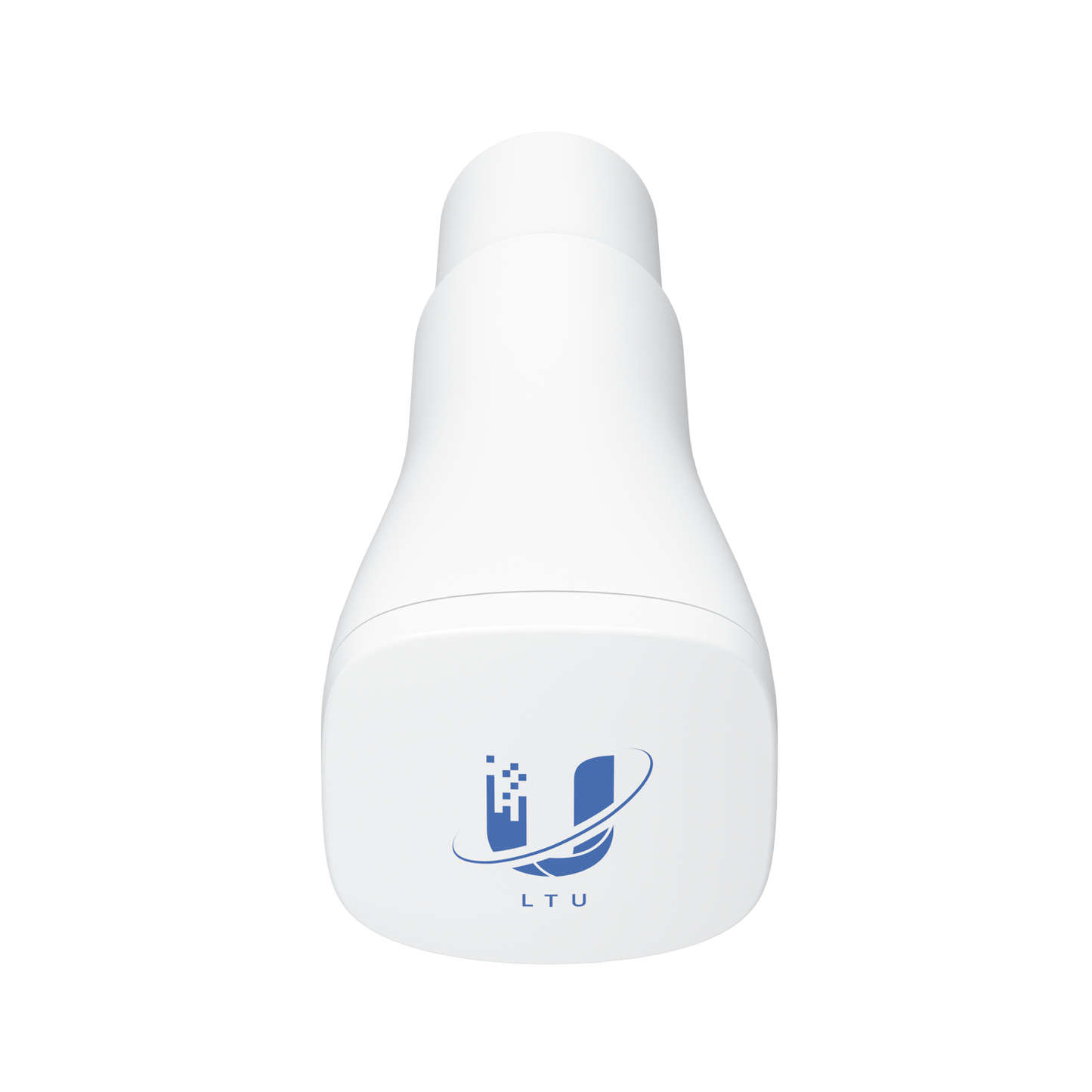

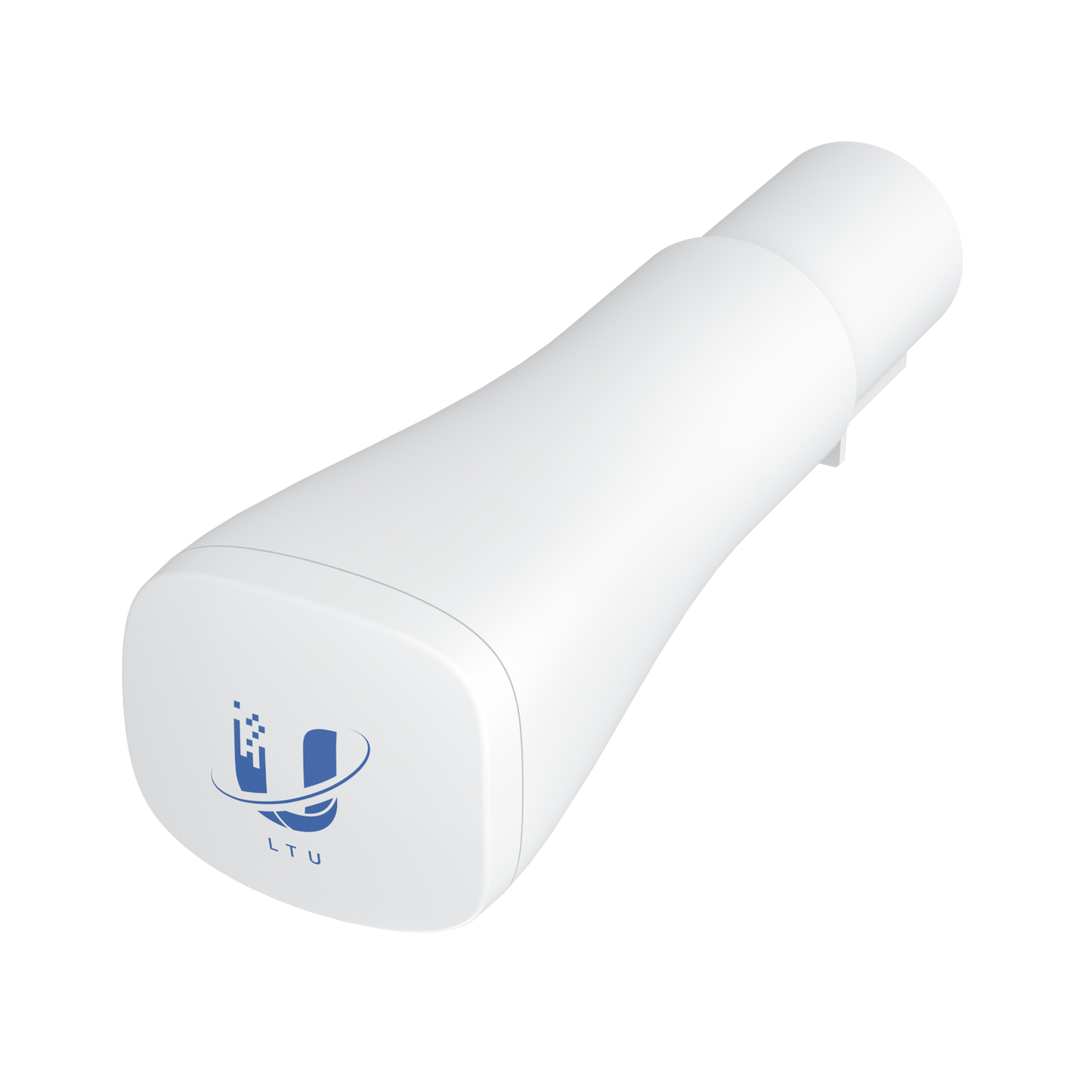

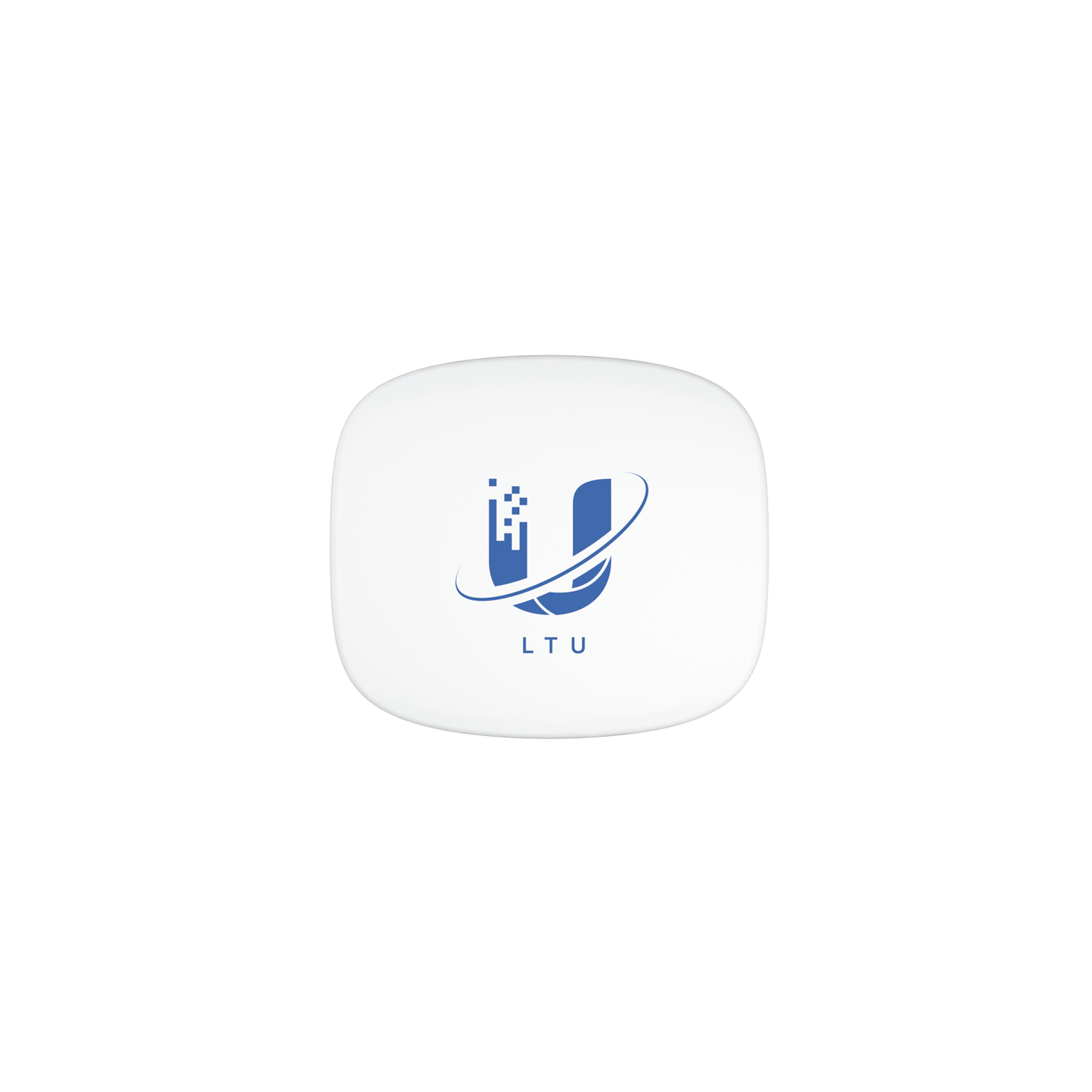

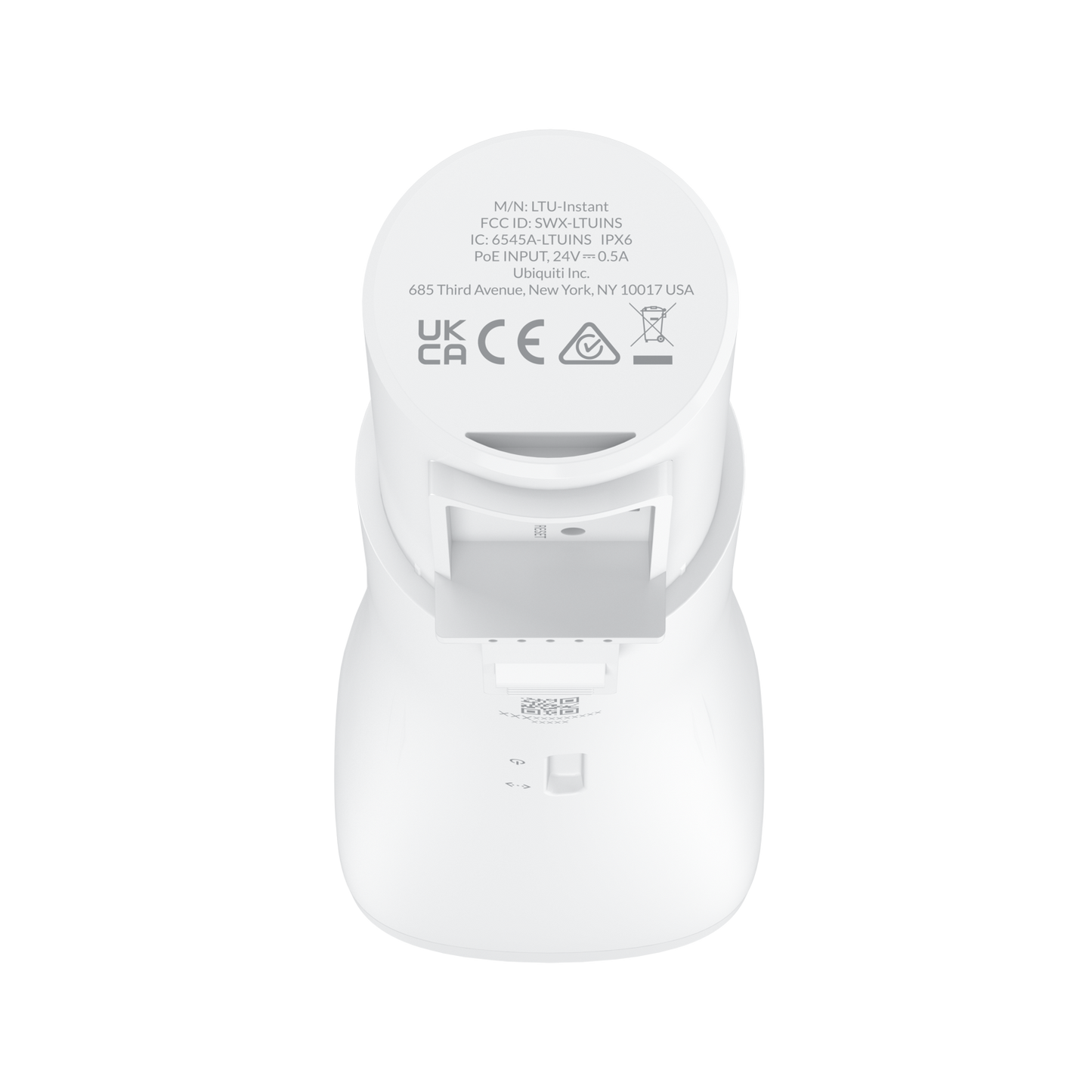

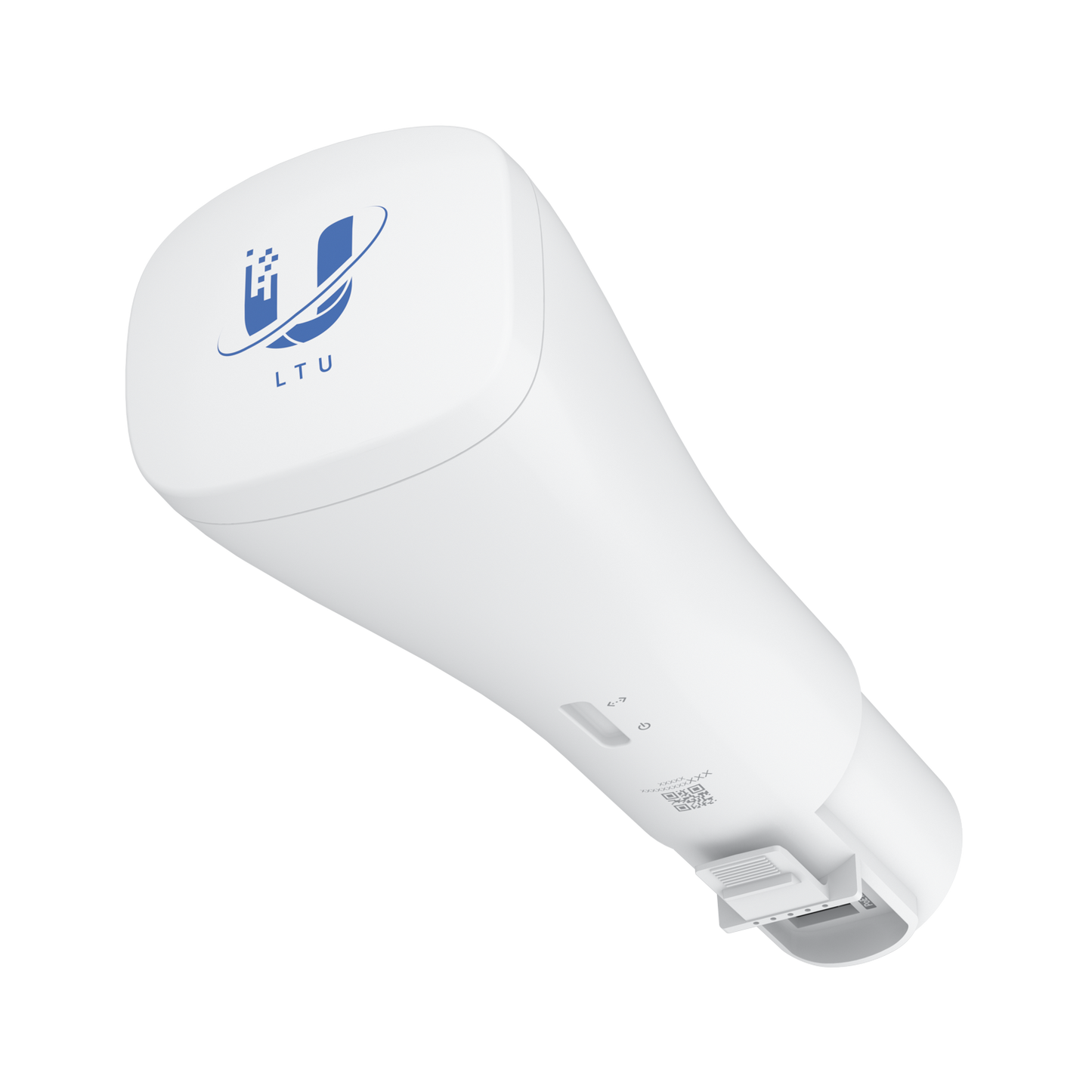

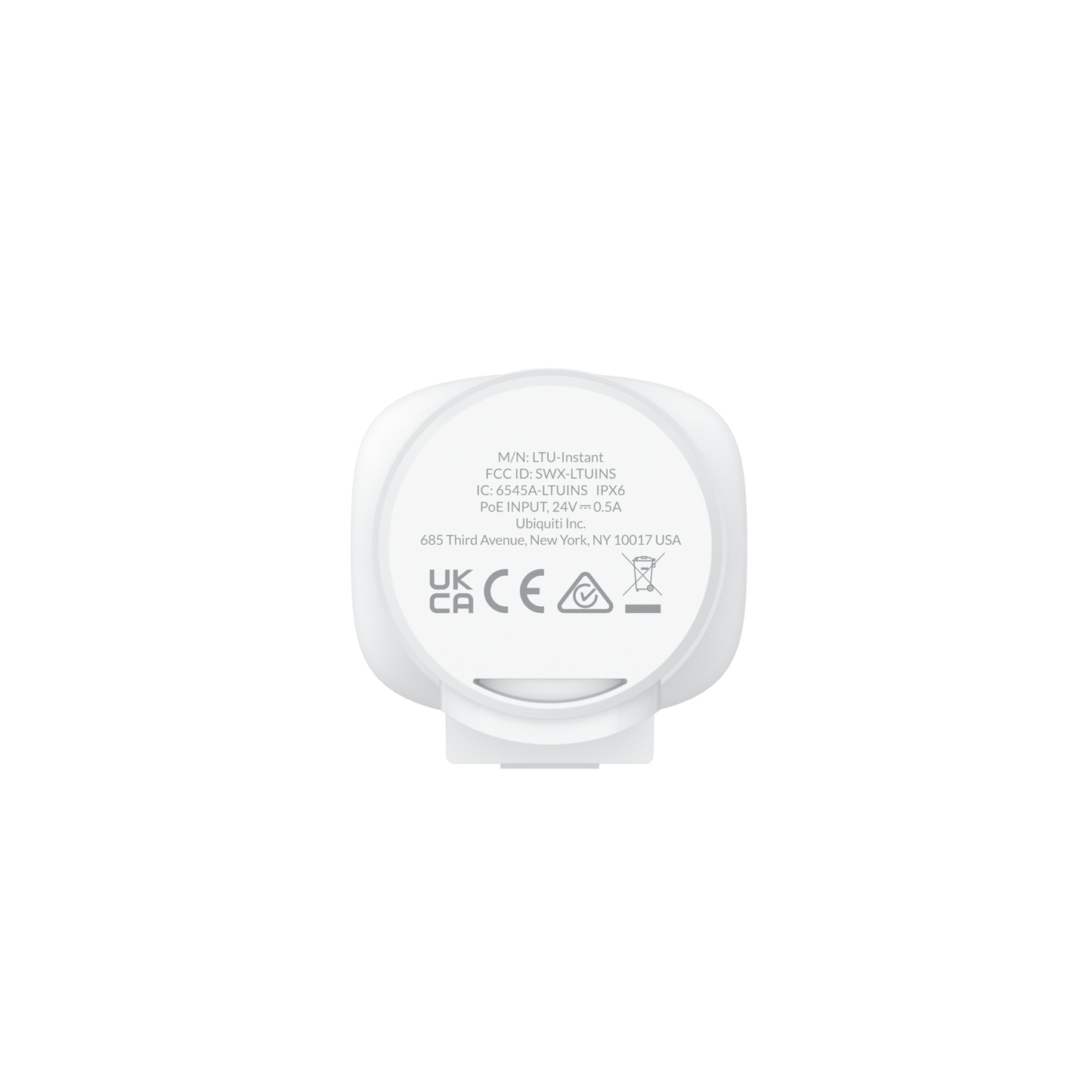

LTU Instant (5-pack) — UISP 5 GHz Wireless
LTU Instant (5-pack) — UISP 5 GHz Wireless
SKU:LTU-Instant-5
Regular price
$954.00
Regular price
$1,160.00
Sale price
$954.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
In stock and ready to ship
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Explore the advanced 5 GHz LTU client, perfectly designed for point-to-multipoint (PtMP) networks, pairing seamlessly with the LTU Rocket as the primary base station.
- Impressive throughput exceeding 900 Mbps*
- Powerful 22 dBi high-gain antenna featuring InnerFeed® technology
- Flawlessly integrates with existing LBE 5AC Gen 2 networks
- Comprehensive package includes five feeds and five PoE adapters
* Requires firmware version 2.3.0 or later for optimal performance.
| Mechanical | |
|---|---|
| Dimensions | Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21") Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71x 11.36") |
| Weight | Feed: 215 g (7.58 oz) Antenna: 890 g (1.96 lb) Antenna with mount: 1.07 kg (2.36 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22—26V DC |
| Max. power consumption | 8.5W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 22 dBi |
| Isolation | 20 dB |
