Ubiquiti

LTU Lite — UISP 5 GHz Wireless

LTU Lite — UISP 5 GHz Wireless

Regular price $168.00
Regular price $220.00 Sale price $168.00
23% Off | Save $52.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:LTU-Lite

In stock

View full details

The Ubiquiti LTU Lite, a versatile 5 GHz PtMP LTU Client, excels in a Point-to-Multi-Point (PtMP) setup using the LTU-Rocket as its BaseStation. Ideal for Australian network solutions.

  • Integrated 5 GHz antenna offering expansive coverage over 10+ km
  • High-speed connectivity with 900+ Mbps throughput1
  • Dedicated spectral analysis radio for optimal performance

Note

  • 1 FW version 2.3.0 and later.
  • Compatible with LTU devices only.
Mechanical

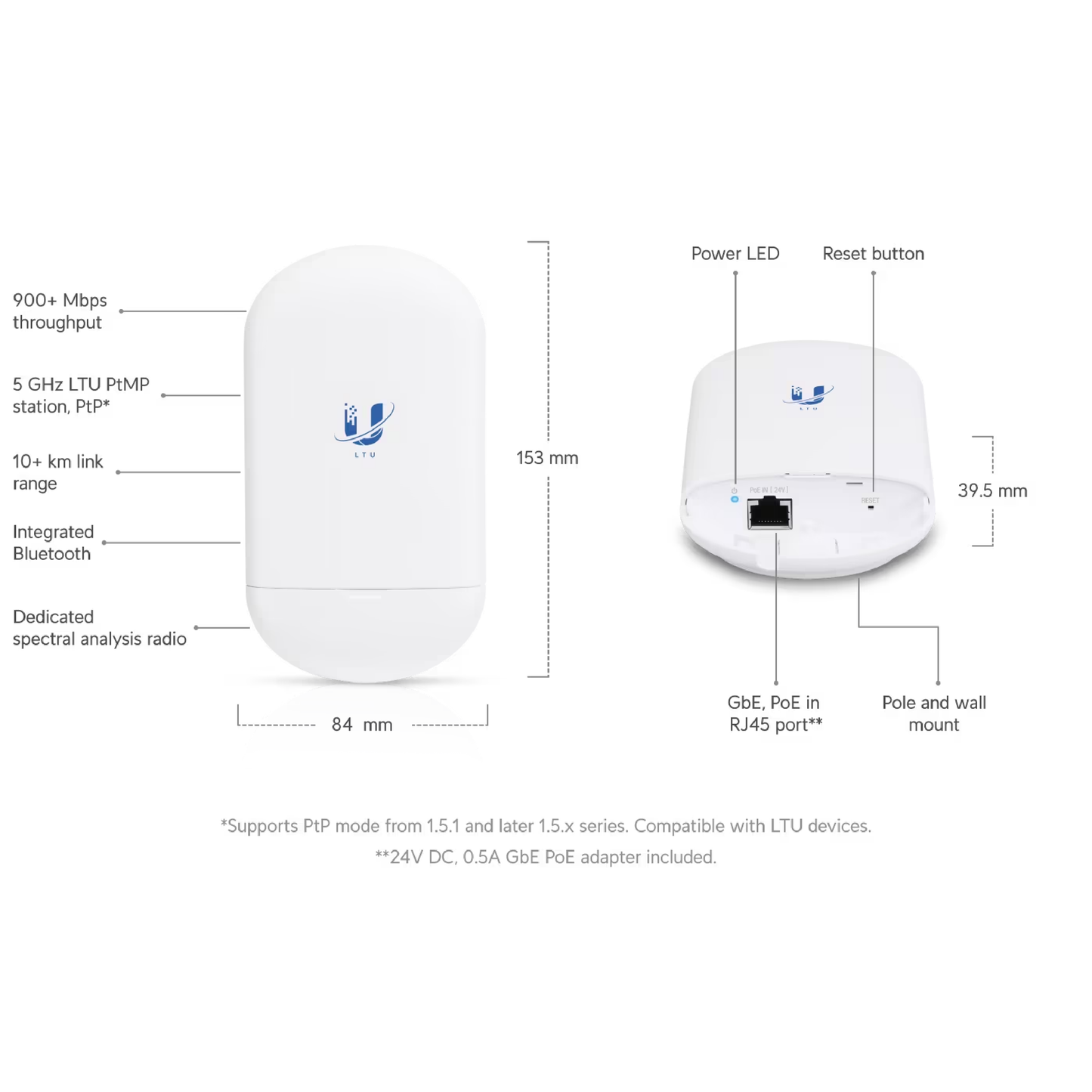

Dimensions 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56")
Weight 250 g (8.82 oz)
Enclosure material UV-stabilized polycarbonate
Mounting Pole mount, wall mount (Kit included)
Wind loading 20 N at 200 km/h (4.5 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method 24V passive PoE (Pairs 4, 5+; 7, 8-)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range 22—26V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24kV
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
Modes PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware.
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Network Bridge/Router* mode
*Router mode is available in PtMP CPE mode only.
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser
iOS™ or Android™ based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

EU


Worldwide


5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

2400 - 2483.5 MHz
5150 - 5875 MHz

2400 - 2483.5 MHz
4800 - 6200 MHz
*Depends on regulatory region.
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 13 dBi
Cross-pol isolation 20 dB
Beamwidth HPOL/VPOL/elevation: 45°
Polarization Dual linear
