Ubiquiti

LTU Long-Range — UISP 5 GHz Wireless

LTU Long-Range — UISP 5 GHz Wireless

Regular price $248.00
Regular price $310.00 Sale price $248.00
20% Off | Save $62.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:LTU-LR

In stock

View full details

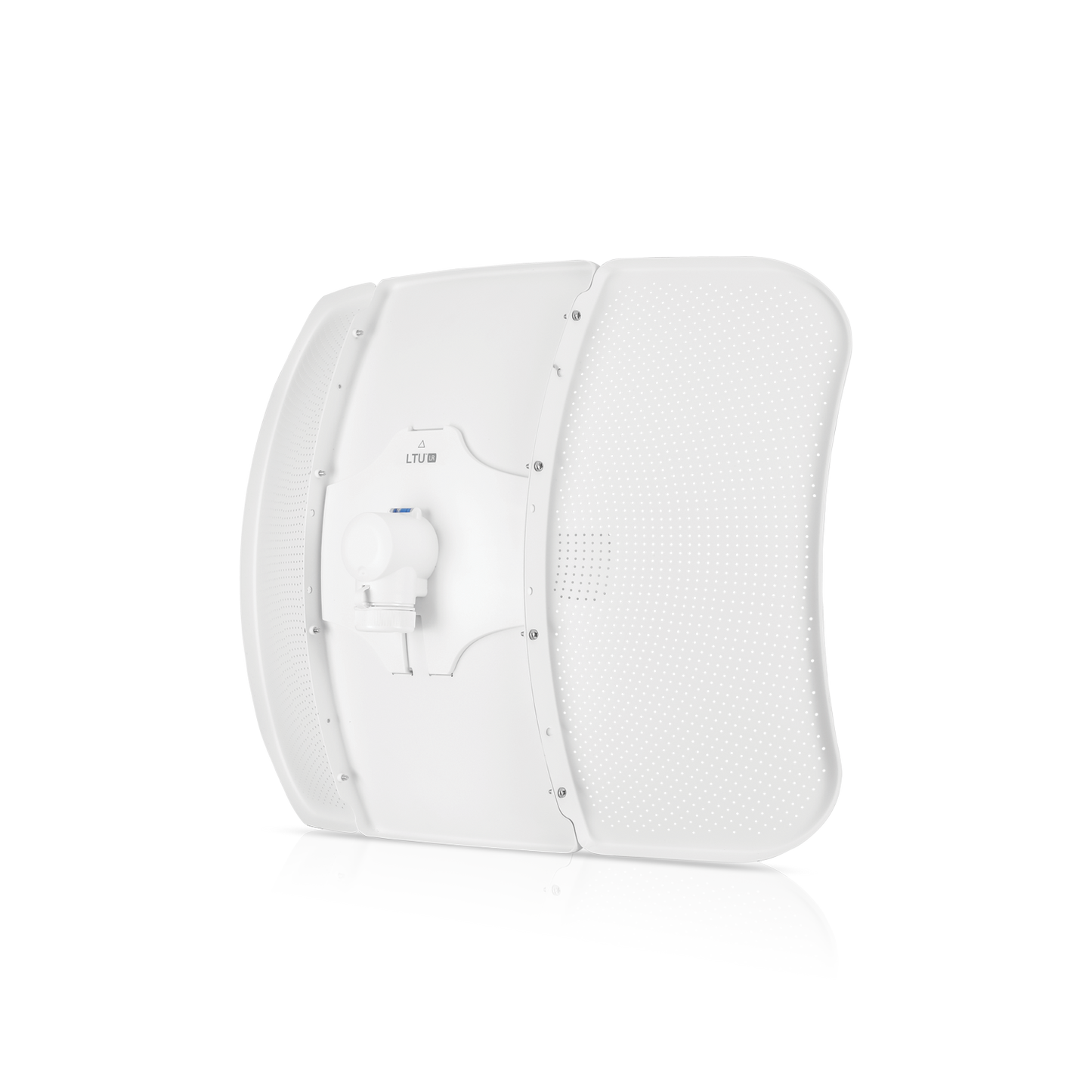

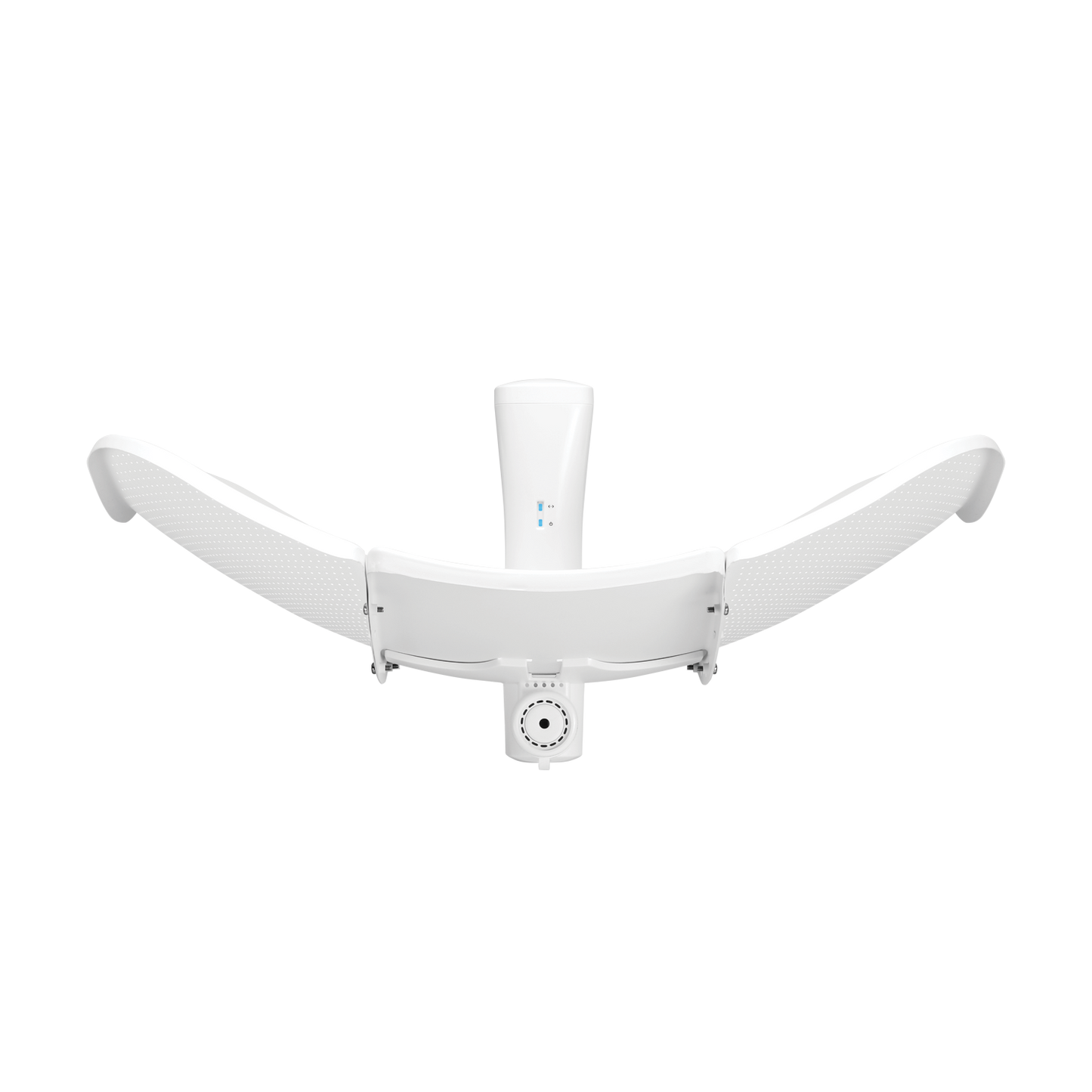

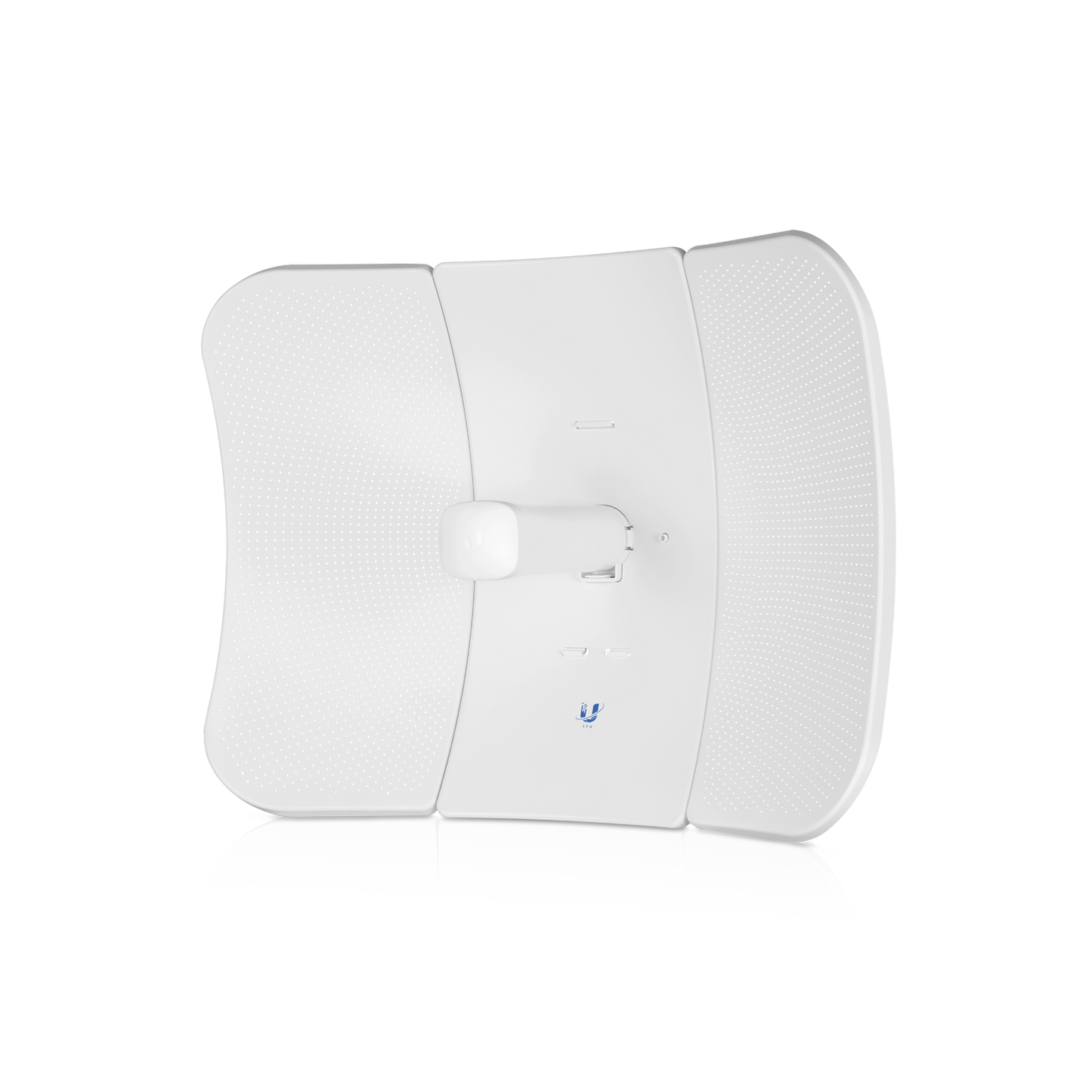

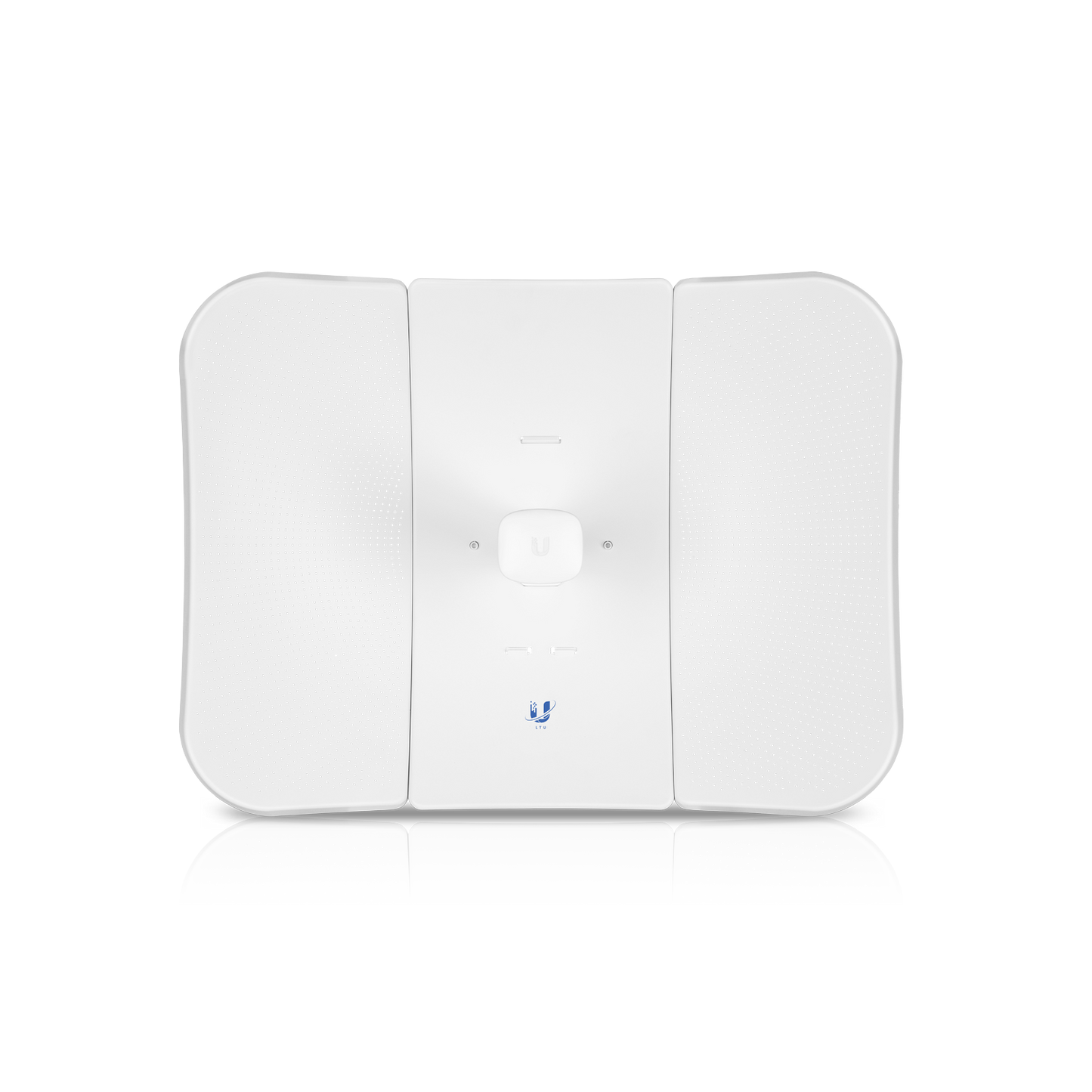

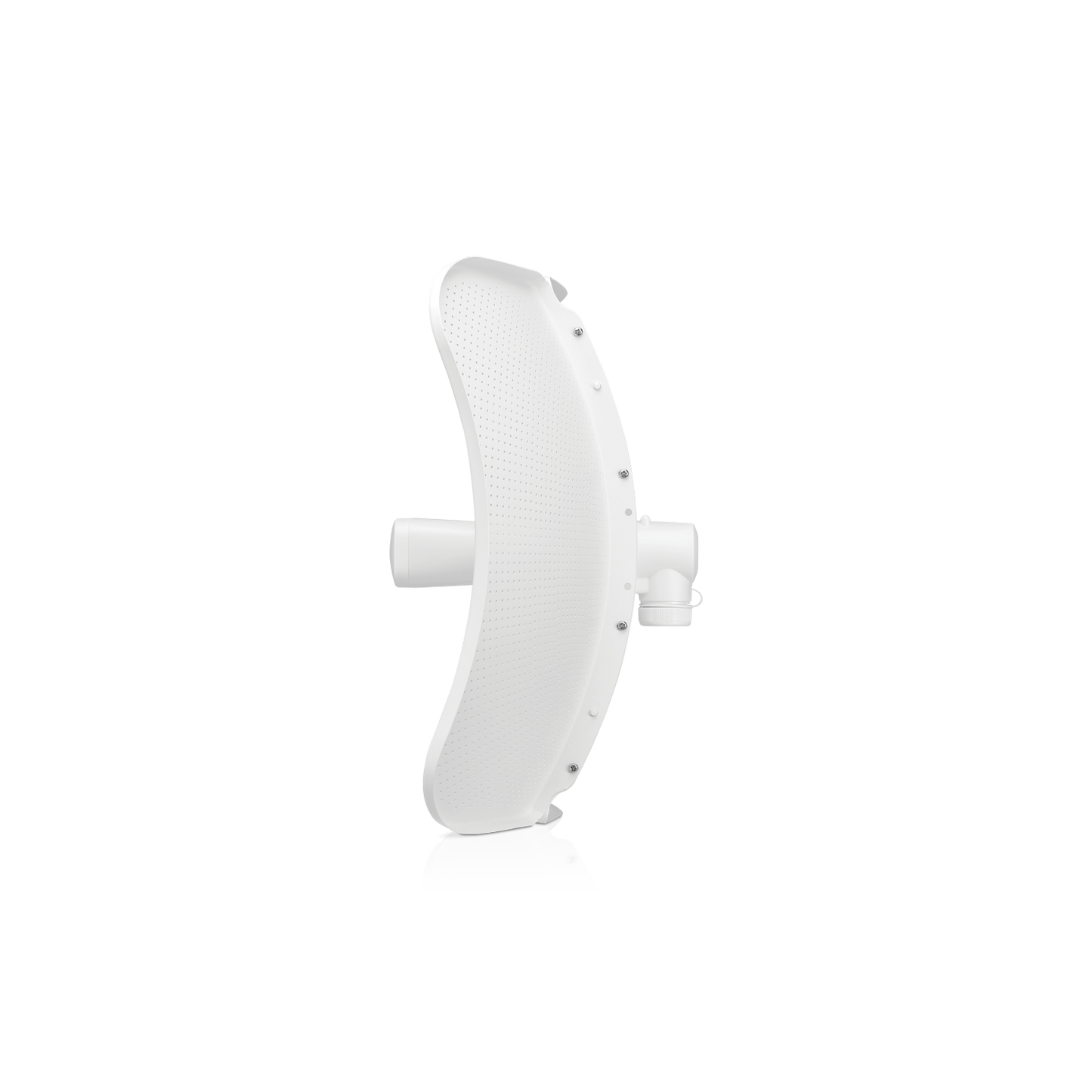

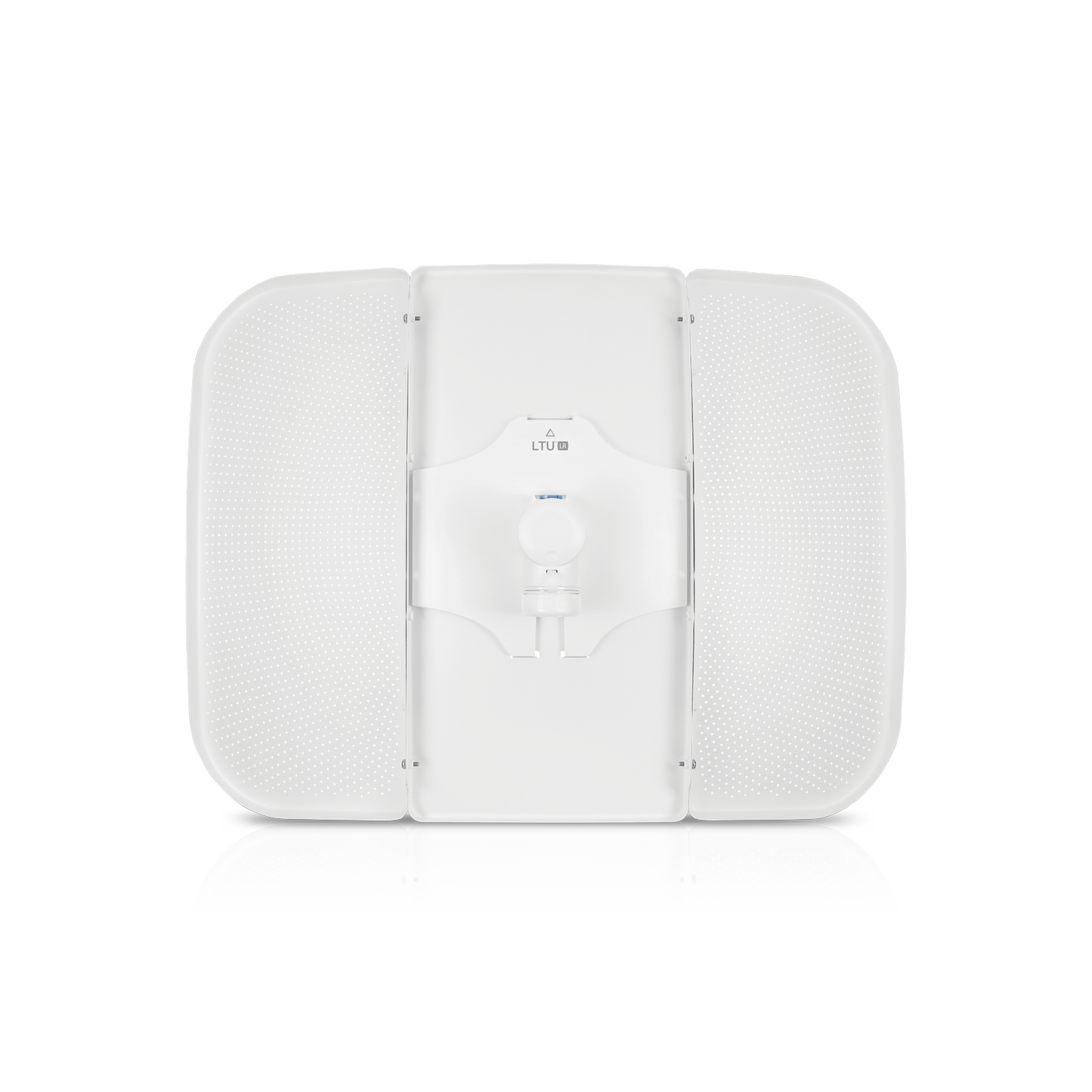

Experience cutting-edge connectivity with the Ubiquiti LTU Long-Range, a top-tier 5 GHz PtMP (Point-to-Multi-Point) client. Designed for seamless integration in a PtMP network, this device works flawlessly with the LTU-Rocket as the BaseStation, offering unparalleled performance and reliability.

  • Advanced 5 GHz technology, ensuring a link range exceeding 30 kilometres
  • Impressive throughput of over 900 Mbps1, ideal for high-demand applications
  • Incorporates a dedicated spectral analysis radio for optimised network performance
  • User-friendly design, facilitating easy assembly and installation

Disclaimers

  • 1 FW version 2.3.0 and later.
  • 2 Compatible with LTU devices only.
Mechanical

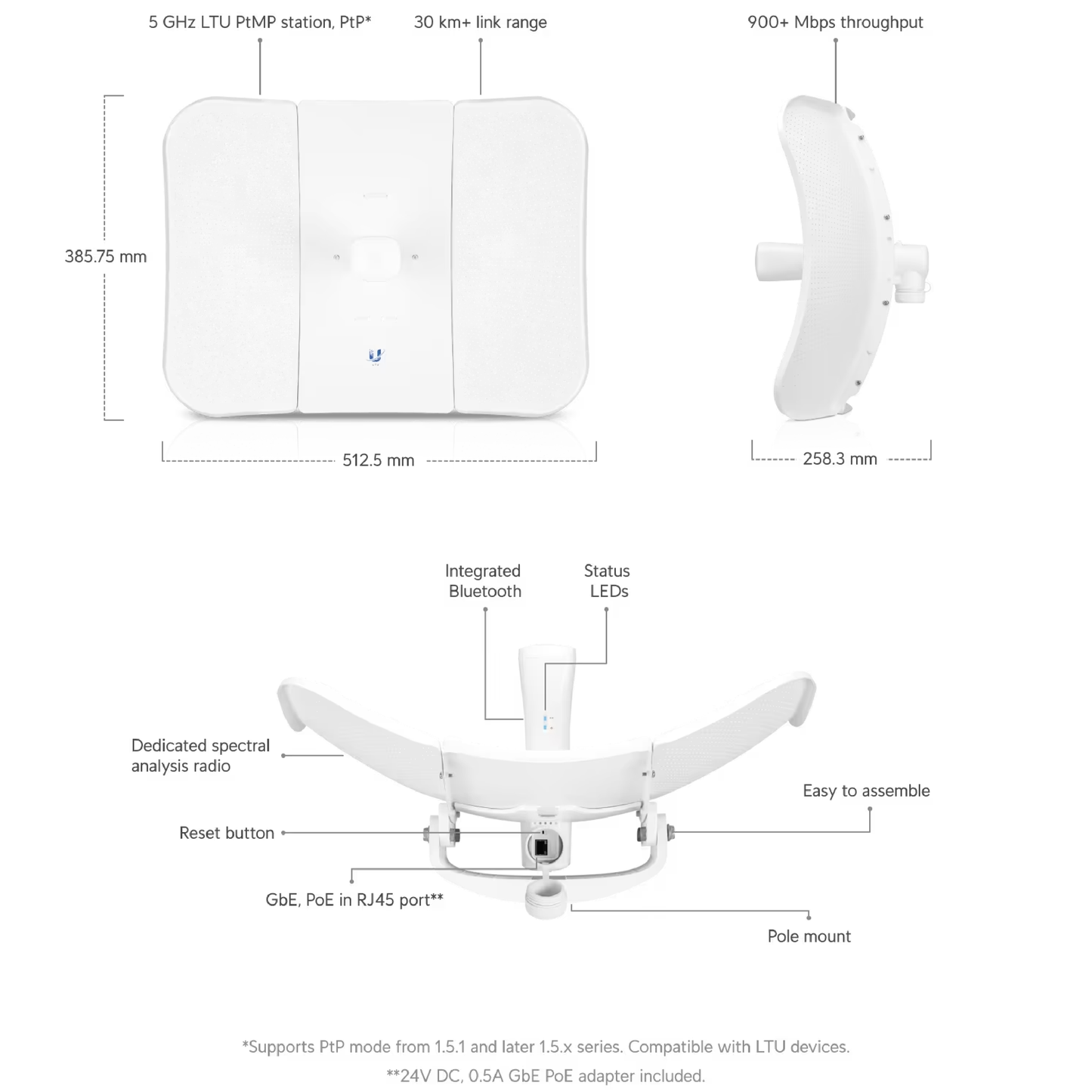

Dimensions 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Weight Without mount: 1.36 kg (3 lb)
With mount: 1.74 kg (3.8 lb)
Enclosure material UV-stabilized polycarbonate

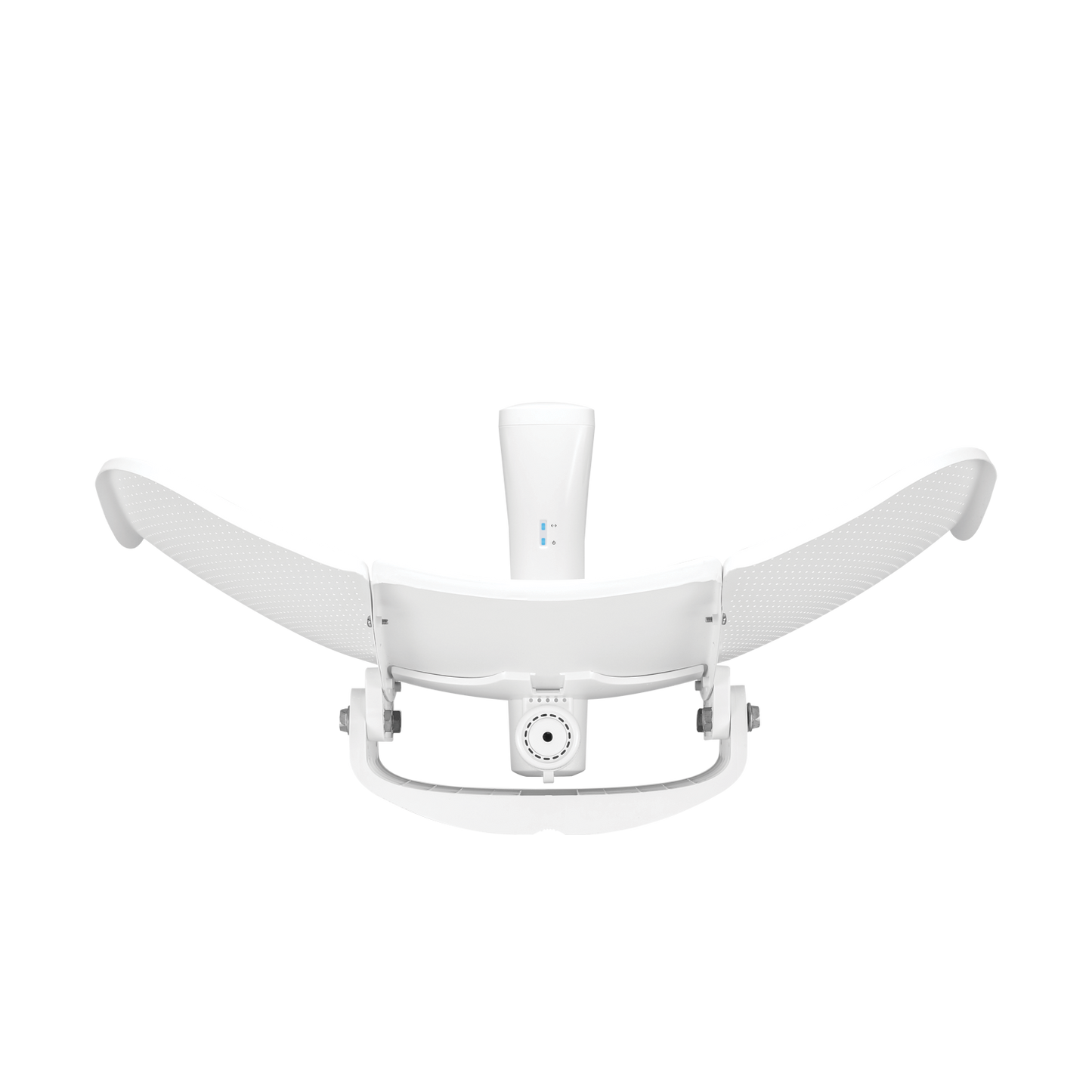

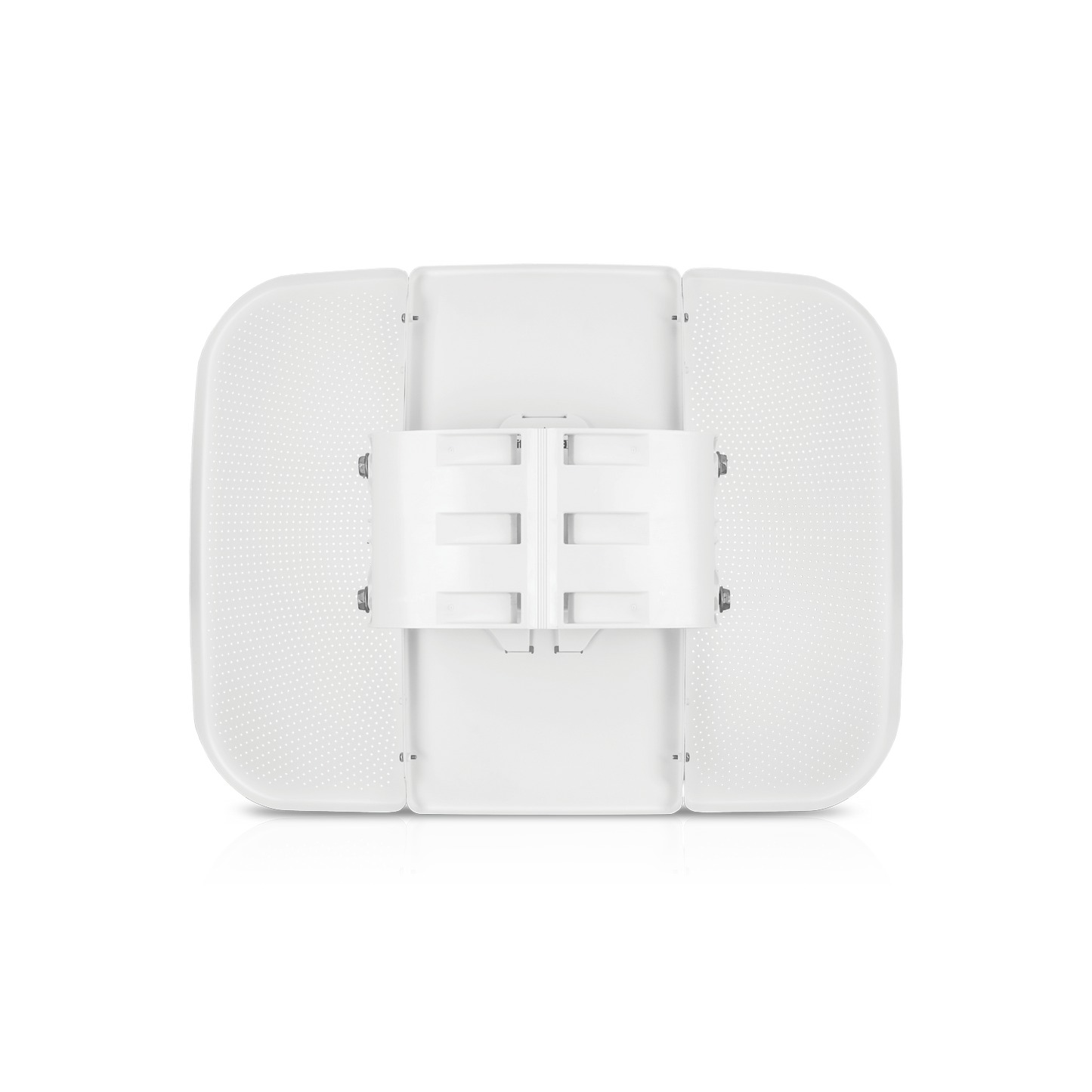

Mounting Pole mount (Kit included)
Wind loading 550 N at 200 km/h (123.6 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware

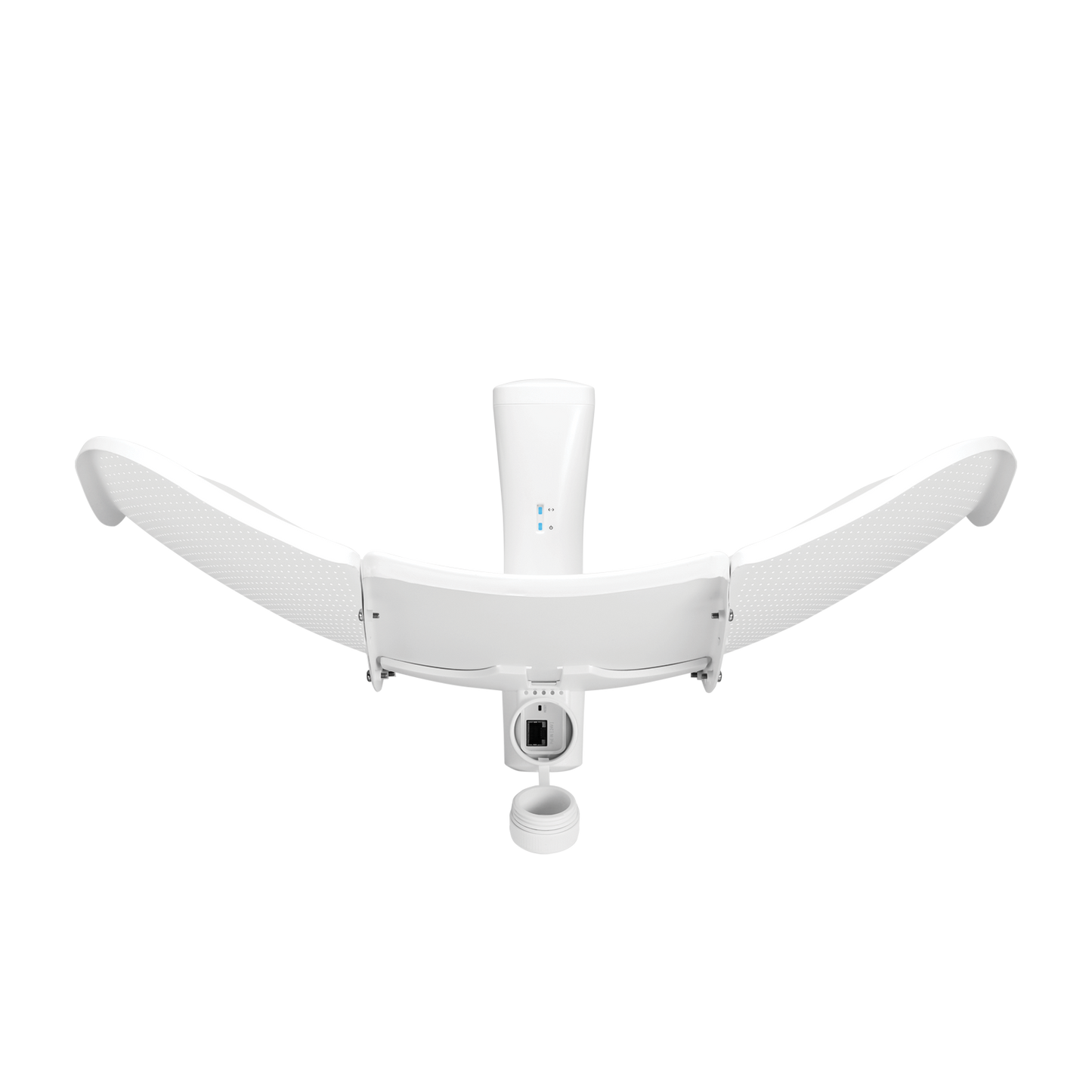

Networking interface (1) GbE RJ45 port
Power method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range 22—26V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24kV
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
Modes PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware.
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Network Bridge/Router* mode
*Router mode is available in PtMP CPE mode only.
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser
iOS™ or Android™ based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

Worldwide


5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

4800 - 6200 MHz
*Depends on regulatory region.
Management Radio
Worldwide

2400 - 2483.5 MHz
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 26 dBi
