LTU Professional — UISP 5 GHz Wireless
LTU Professional — UISP 5 GHz Wireless
SKU:LTU-PRO
Regular price
$368.00
Regular price
$410.00
Sale price
$368.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
5 GHz PtMP LTU Client, offering superior RF performance, operates in a PtMP network with the LTU-Rocket as the BaseStation. Ideal for Australian conditions.
- 5 GHz frequency, over 25 km link range
- 900+ Mbps data transfer rate1
- Dedicated radio for spectral analysis
- Built-in radome for enhanced durability
Note
- 1 FW version 2.3.0 and later.
- 2 Compatible with LTU devices only.
| Mechanical | |
|---|---|

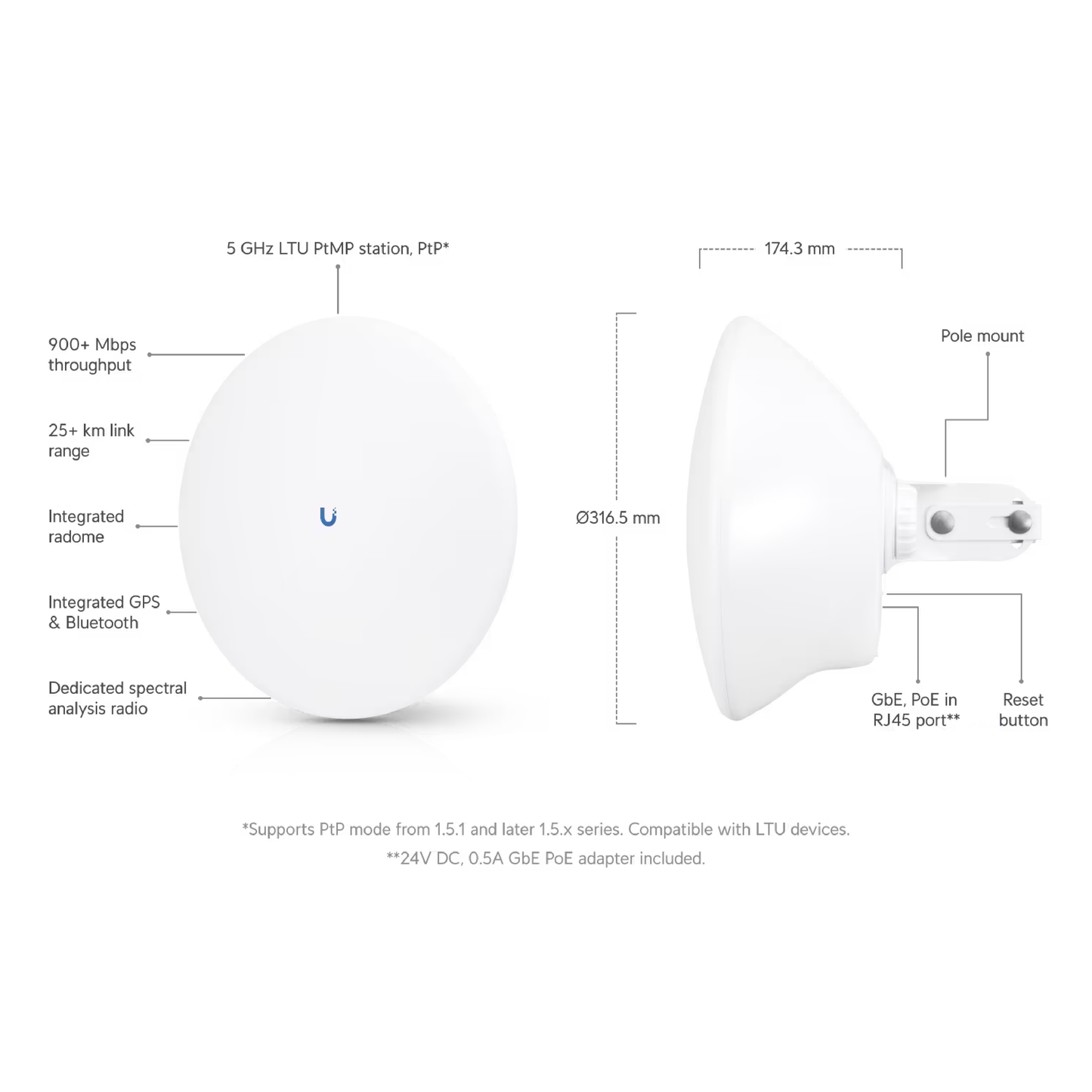

| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") |
| Weight | 1.3 kg (2.87 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mounting | Pole mount (Kit included) |
| Wind loading | 150 N at 200 km/h (33.72 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 22–26V DC |
| Max. power consumption | 9W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 EU Worldwide |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz 5150 - 5875 MHz 2400 - 2483.5 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe level | -10 dB |
| Front-to-back ratio | 27 dB |
