LTU Rocket — UISP 5 GHz Wireless
LTU Rocket — UISP 5 GHz Wireless
Business purchase? Contact us below for bulk discounts!
SKU:LTU-Rocket
In stock and ready to ship
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-1.png?v=1702177886&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-2_1.png?v=1702177887&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-2.png?v=1702177885&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-3.png?v=1702177886&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-4.png?v=1702177886&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-5.png?v=1702177885&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-6.png?v=1702177885&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-7.png?v=1702177885&width=1445)
![Ubiquiti LTU Rocket](http://bits-mart.com/cdn/shop/files/ubiquiti-ltu-rocket-uisp-5-ghz-wireless-8.png?v=1702278894&width=1445)

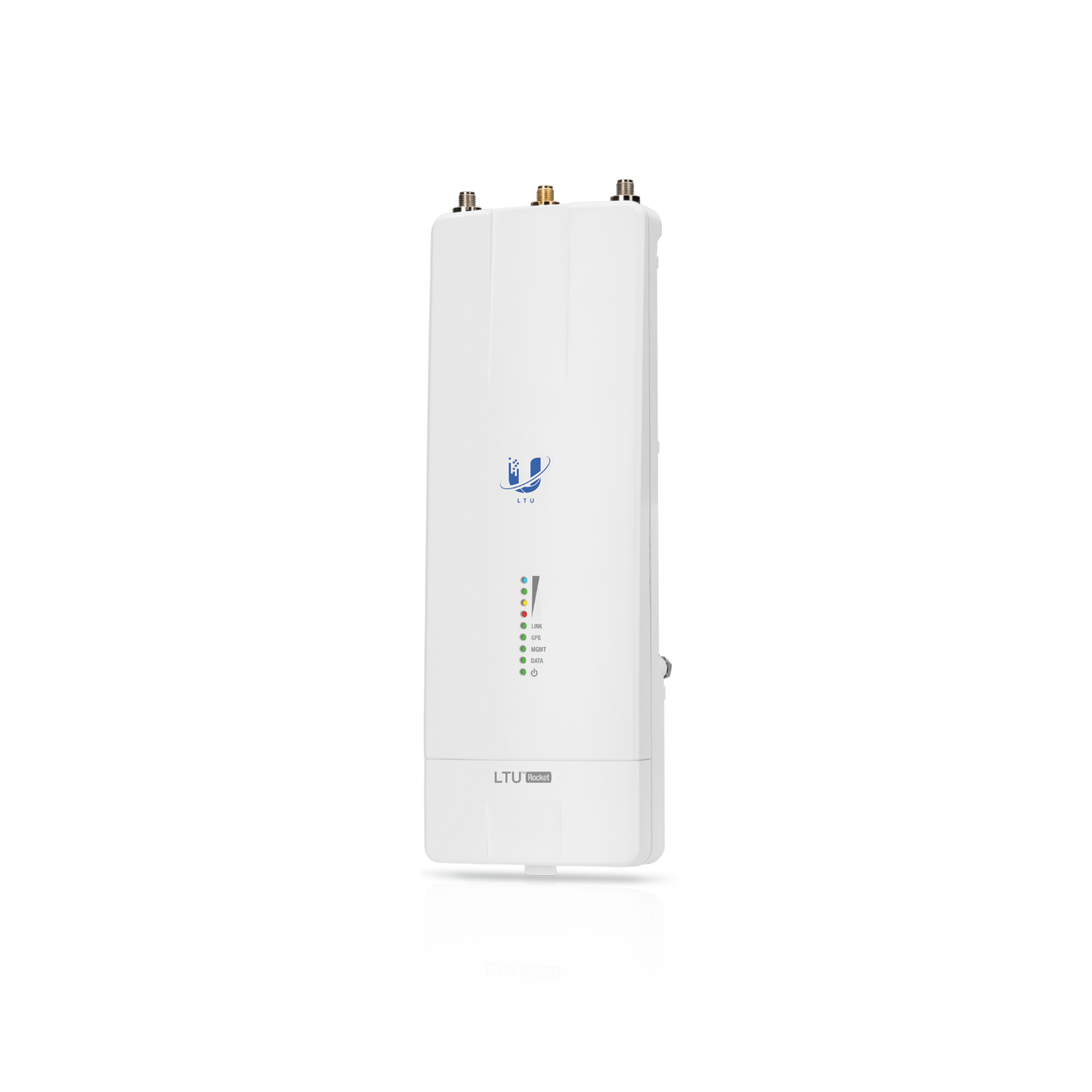

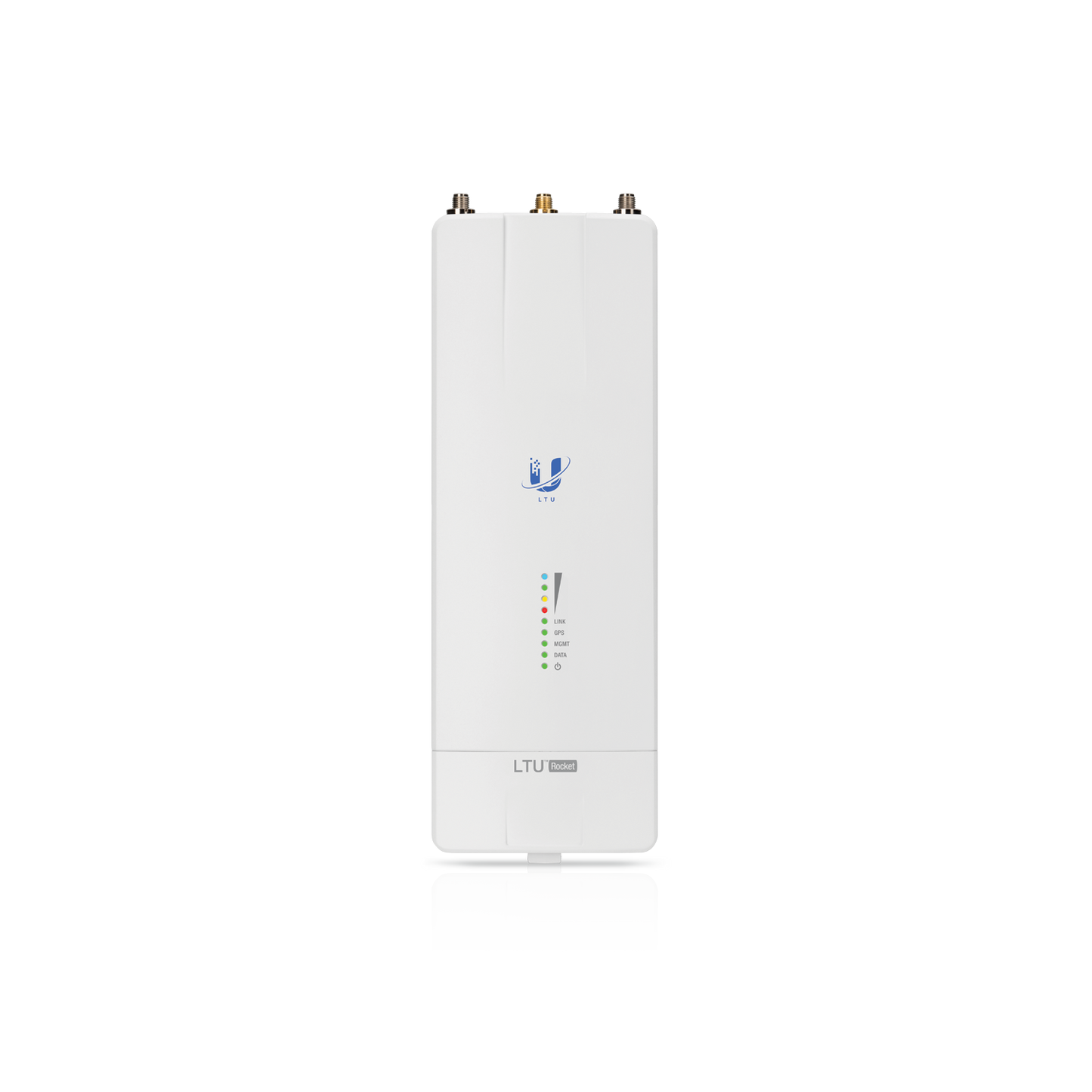

Discover the Ubiquiti LTU Rocket, a revolutionary 5 GHz Point-to-Multipoint (PtMP) LTU BaseStation Radio. Excelling in PtMP setups, it seamlessly integrates with LTU Pro, LTU Lite, or LTU LR as client devices.
- Advanced 5 GHz integrated filtering for superior performance
- Impressive throughput exceeding 900 Mbps1
- Capacity to support over 100 clients
- Specialised radio for spectral analysis
- Built-in GPS synchronisation
Disclaimers
- 1 FW version 2.3.0 and later.
- 2 Compatible with LTU devices only.
Mechanical | |
---|---|

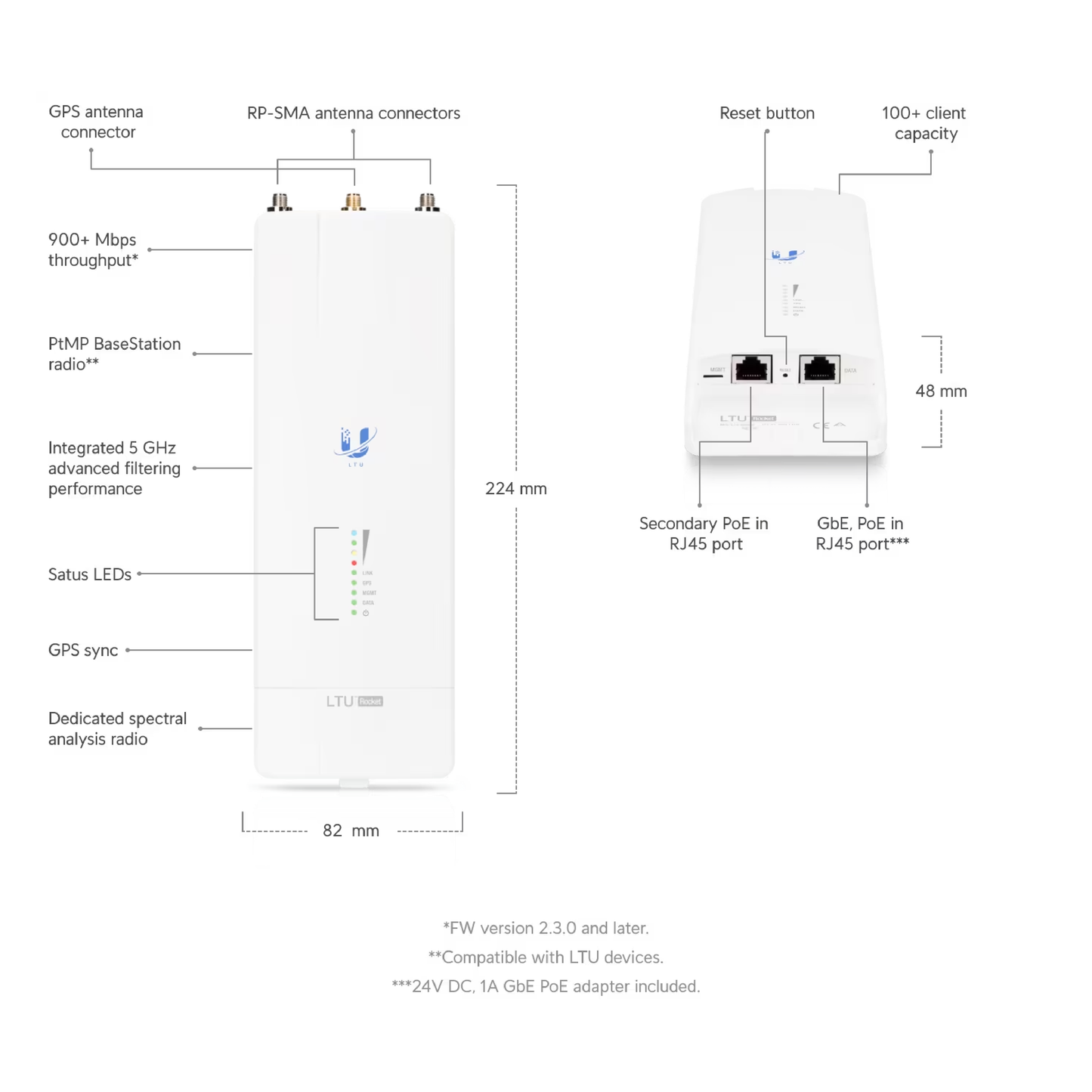

Dimensions | 224 x 82 x 48mm (8.82 x 3.23 x 1.89") |
Weight | 468 g (1.03 lb) |
Enclosure materials | Diecast aluminum, polycarbonate |
Mount materials | Metal, polycarbonate |
Mounting | Integrated pole mount (Kit included) GPS pole mount (Kit included) Rocket mount compatible |
Weatherproofing | IP67 |
Hardware | |

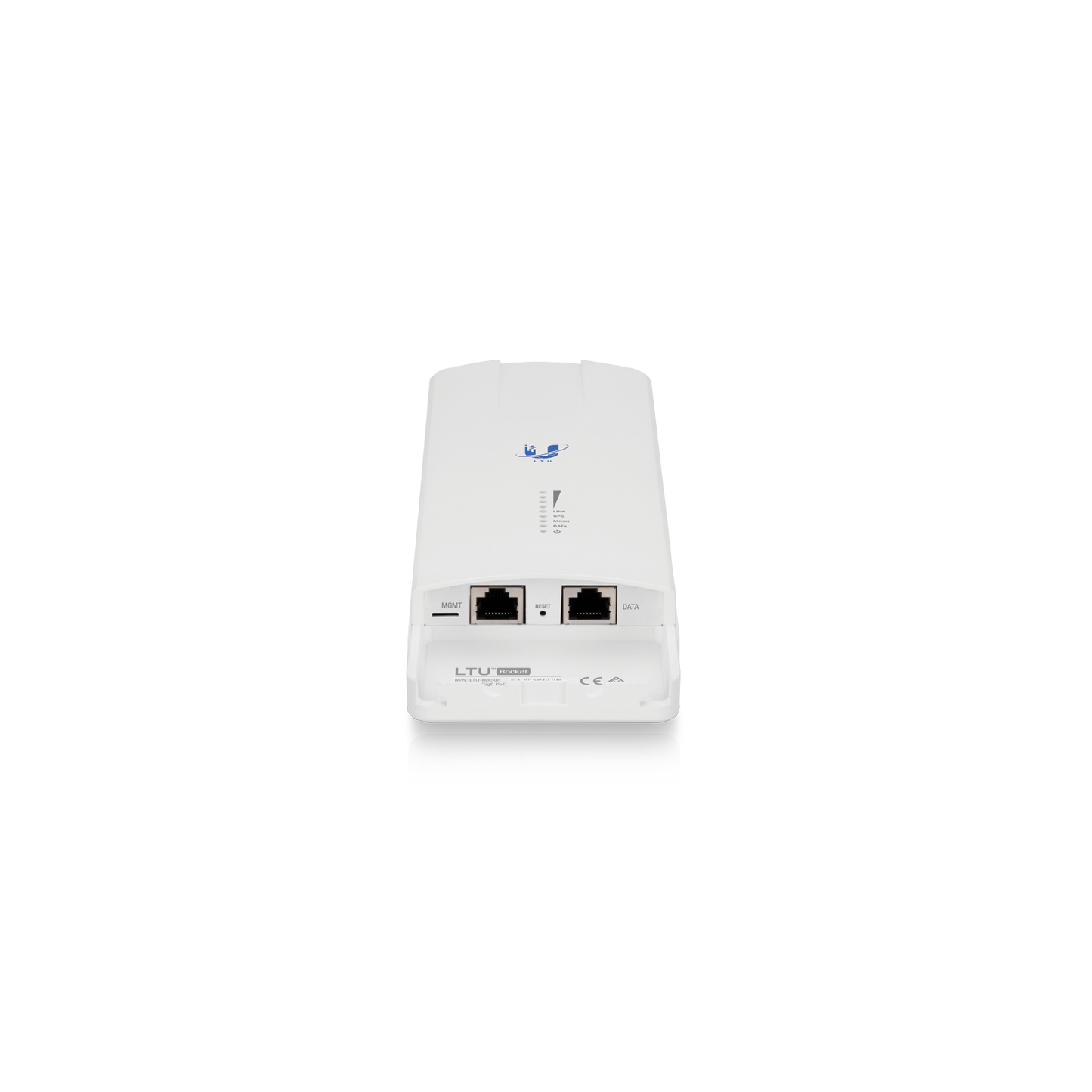

Networking interface | (2) GbE RJ45 ports |
Power method | Dual passive PoE |
Power supply | 24V, 1A PoE Gigabit adapter (Included) |
Supported voltage range | 18—54V DC |
Max. power consumption | 25W |

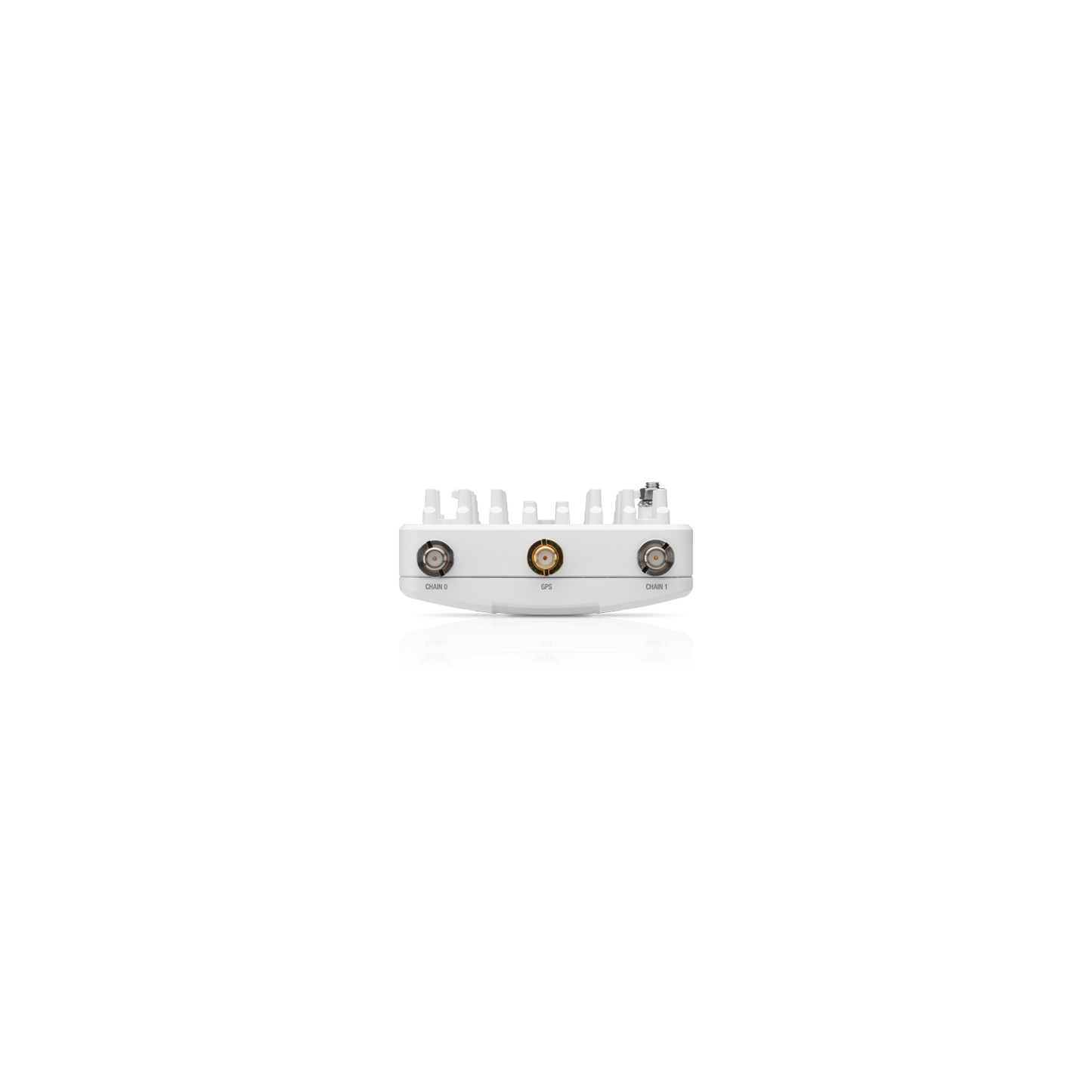

RF connections | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
GPS | Yes |
GPS antenna | External magnetic base |
Button | Factory reset |
Operating temperature | -40° to 55° C (-40° to 131° F) |
Certifications | FCC |
Software | |
Mode | PtMP BaseStation radio |
Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
Auto distance adjustment | Yes |
Auto power adjustment | Yes |
Security | Yes |
Statical reporting | Yes |
Management interface | Bluetooth management for easy setup over UISP App WEB UI |
Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
System | |
Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
Packets per second | 2+ million |
Supported clients count | 100+ |
Maximum range | 100+ km* * Throughput and range values may vary depending on the environmental conditions. |
Encryption | WPA2-PSK (AES) |
Uplink/Downlink ratio | 25/75, 33/67, 50/50 |
RF | |
Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depends on regulatory region. |
Max. conducted TX power | 29 dBm |
Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* selectable Programmable uplink and downlink duty cycles *FW version 2.3.0 and later. |
Management radio | 2400 - 2483.5 MHz |
