UISP Fiber OLT GPON Optical Line Terminal
Ubiquiti UF-OLT UISP Fiber OLT GPON Optical Line Terminal
SKU:UF-OLT
Regular price
$2,945.00
Regular price
$2,945.00
Sale price
$2,945.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty

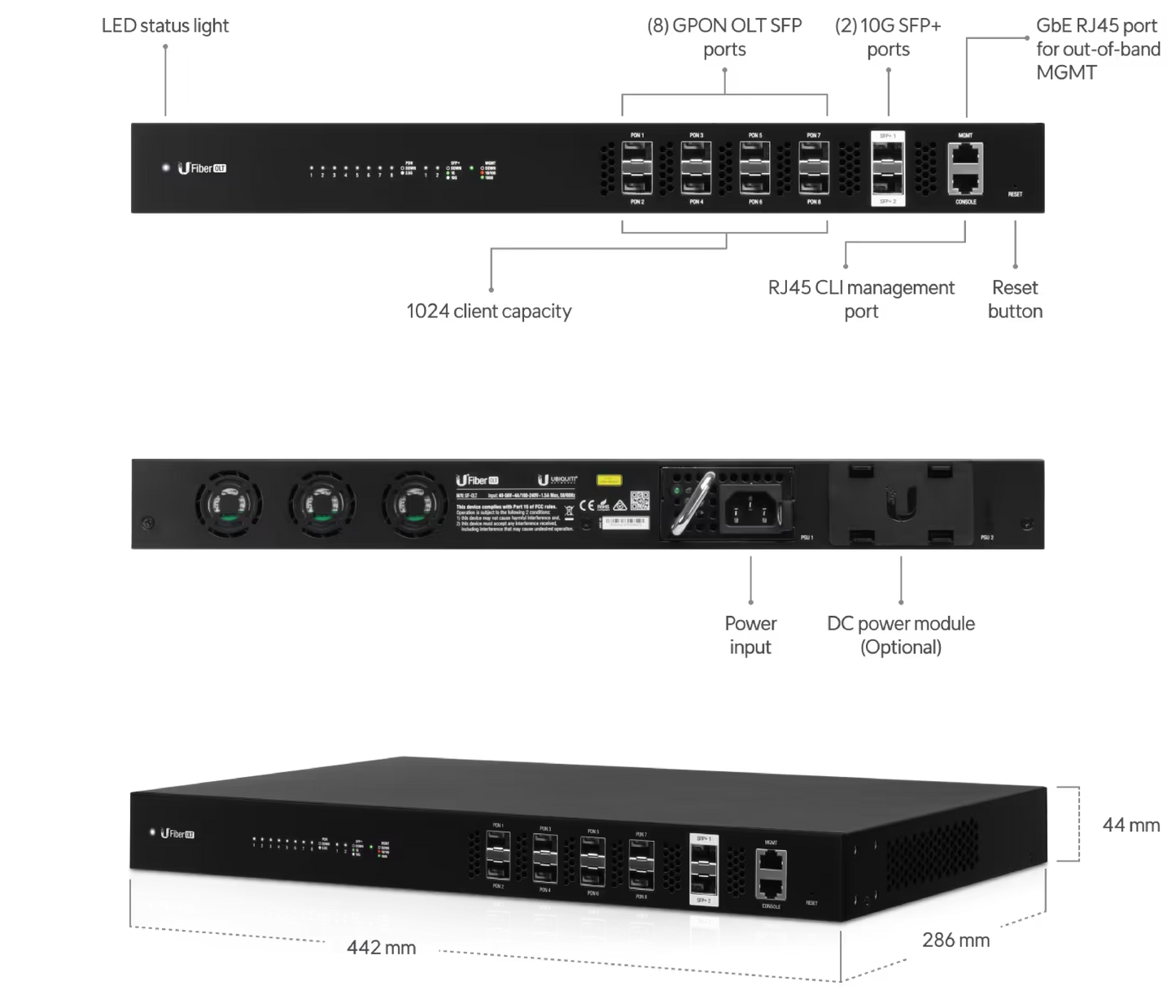

Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).
- GPON. 2.488 Gbps down / 1.244 Gbps stream capacity.
- 1024 Client capacity (8 ports).
- (2) 10G SFP+ uplink ports.
- 1U Rack mount.
- Power redundancy support.
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight |
Without mounting brackets: 4.4 kg (9.7 lb) With mount brackets: 4.5 kg (9.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface |
(8) GPON OLT SFP ports (2) 10 Gbps SFP+ ports |
| Management interface |
(1) Ethernet Out-of-Band (1) Ethernet In-Band (1) RJ45 Serial Console port Bluetooth |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | (2) Hotswap AC/DC PSU |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 40W (Excluding SFP modules) |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Power |
(1) Blue/white Blinking blue: reset to default Steady blue: system is booting Steady white: service is ready |
| GPON OLT SFP |
(8) White Steady/blinking white: link/activity |
| SFP+ |
(2) White/gren White:10G Green: 1G Steady on after link is up; blinking while active |
| Ethernet |
(1) Green Green: 1G Steady on after link is up; blinking while active |
| Software | |
| Mode | OLT GPON Core and Layer 2 Ethernet switch |
| VLAN | 4062 VLANs supported |
| Advanced QoS | Support 8 priority queues per user port and traffic classification |
| Concurrent clients | 1024 ONUs/ONTs registered |
| Ubiquiti specific features | UISP Mobile App |
| Fiber | |
|
Operating wavelength TX RX |
1490 nm 1310 nm |
| Line code | Scrambled NRZ |
|
Optical interface nominal bit rate Downstream Upstream |
2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
Visit Ubiquiti for more information.
