UISP Fiber WiFi GPON CPE
Ubiquiti UF-WIFI UISP Fiber WiFi GPON CPE
SKU:UF-WIFI
Regular price
$142.00
Regular price
$142.00
Sale price
$142.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
GPON customer-premises equipment (CPE) with a built-in WiFi router.

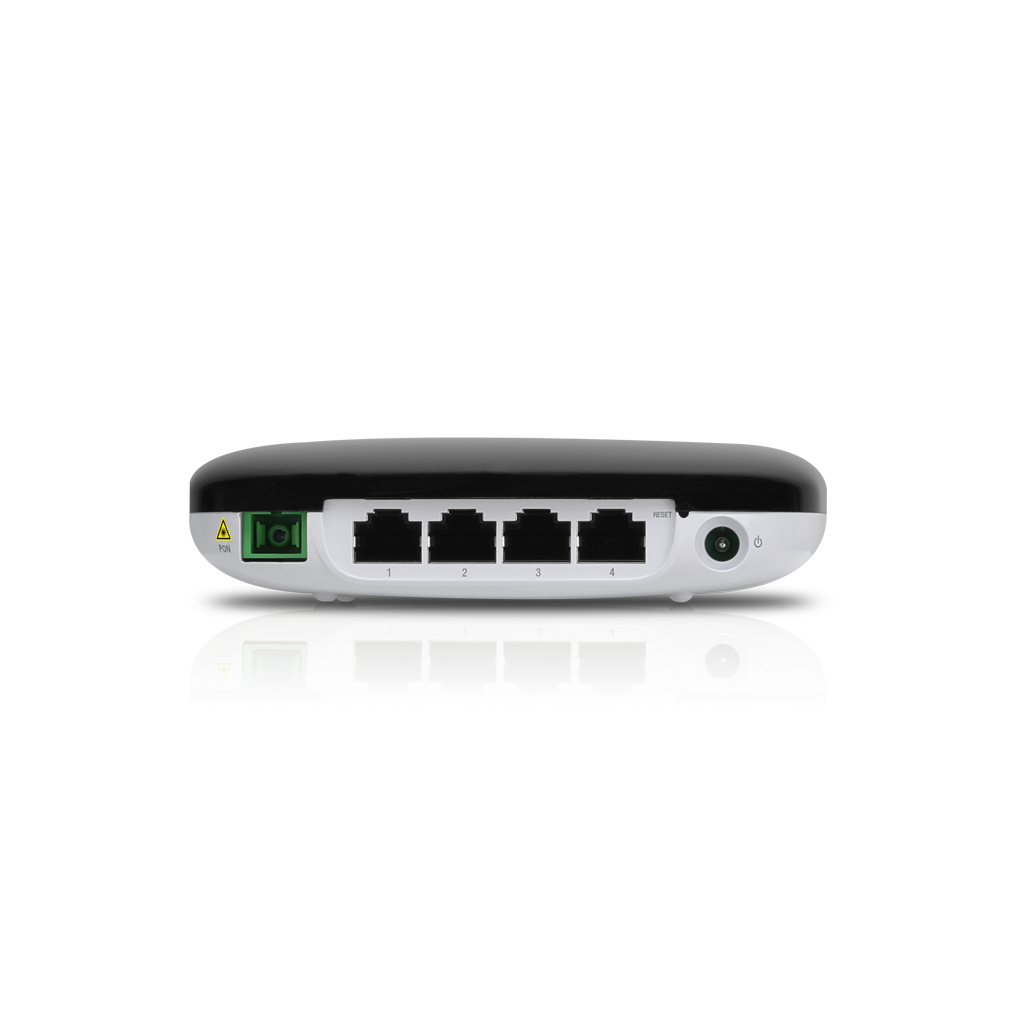

- (1) GPON port.
- Integrated 4-port GbE switch.
- Integrated WiFi4.
- Dying gasp support.
Note: This device is only compatible with the Fiber OLT. It cannot be used with third-party OLTs.
| Mechanical | |
|---|---|

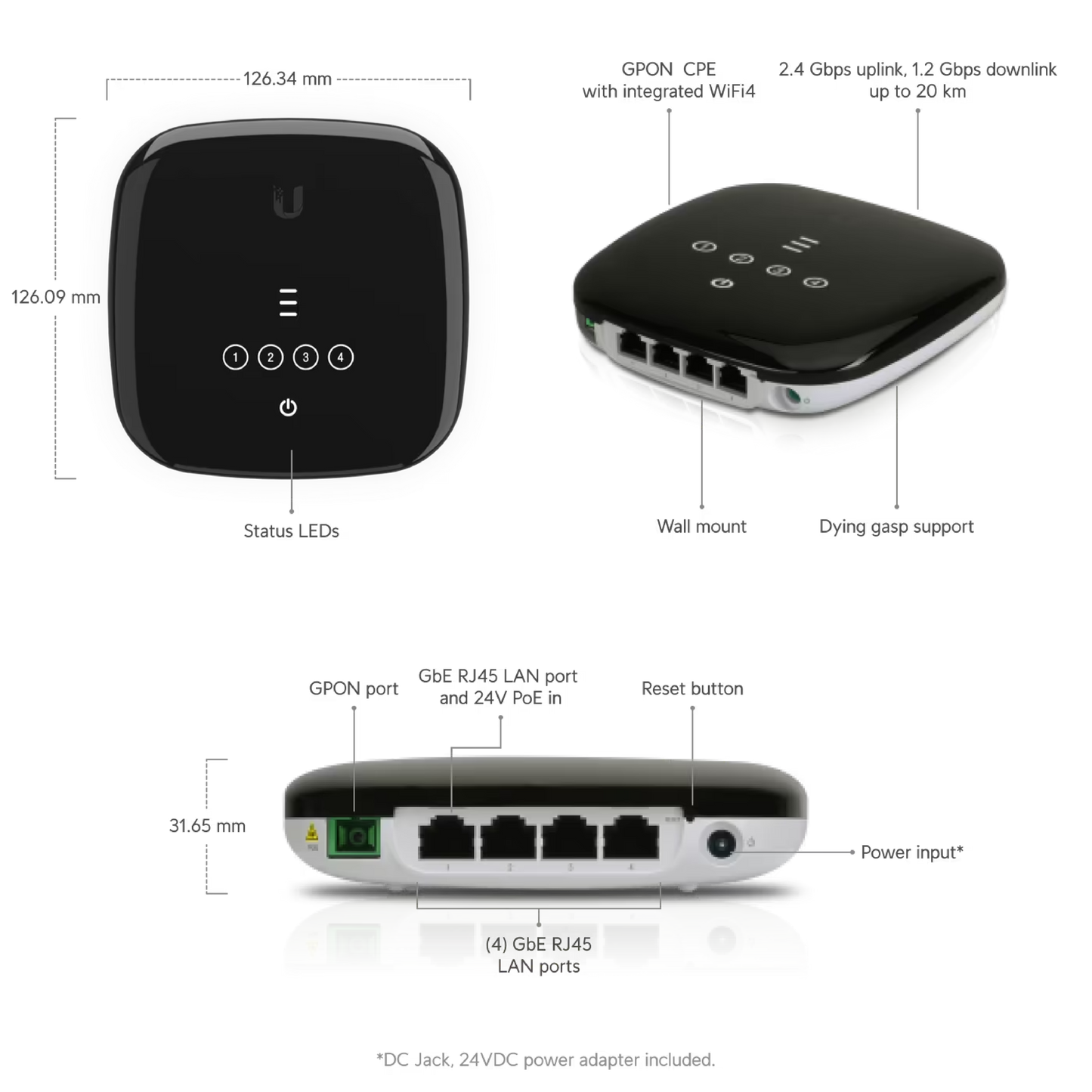

| Dimensions | 126.3 x 126.1 x 31.7 mm (5 x 5 x 1.3") |
| Weight | 190 g (6.7 oz) |
| Enclosure material | UV-stabilized polycarbonate (PC110U) |
| Hardware | |
| Networking interface |
(1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11n |
| Management interface |
Ethernet In-Band PON |
| Power method |
DC Jack, 24V DC 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Power supply | Universal AC/DC adapter, 100—240V AC, 50/60 Hz, 24V/0.5A |
| Supported voltage range |
10–30V DC (passive PoE) 5V DC (adapter) |
| Max. power consumption | 7W |
|
Total non-blocking line rate Downstream Upstream |
2.488 Gbps 1.244 Gbps |
|
Normal range of optical module TX RX |
1.5 to 5 dBm -8 to -28 dBm |
|
Max. WiFi TX power 2.4 GHz |
20 dBm |
|
MIMO 2.4 GHz |
2 x 2 |
|
Max. WiFi radio rate 2.4 GHz |
300 Mbps |
|
Antenna gain 2.4 GHz |
1 dBi |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

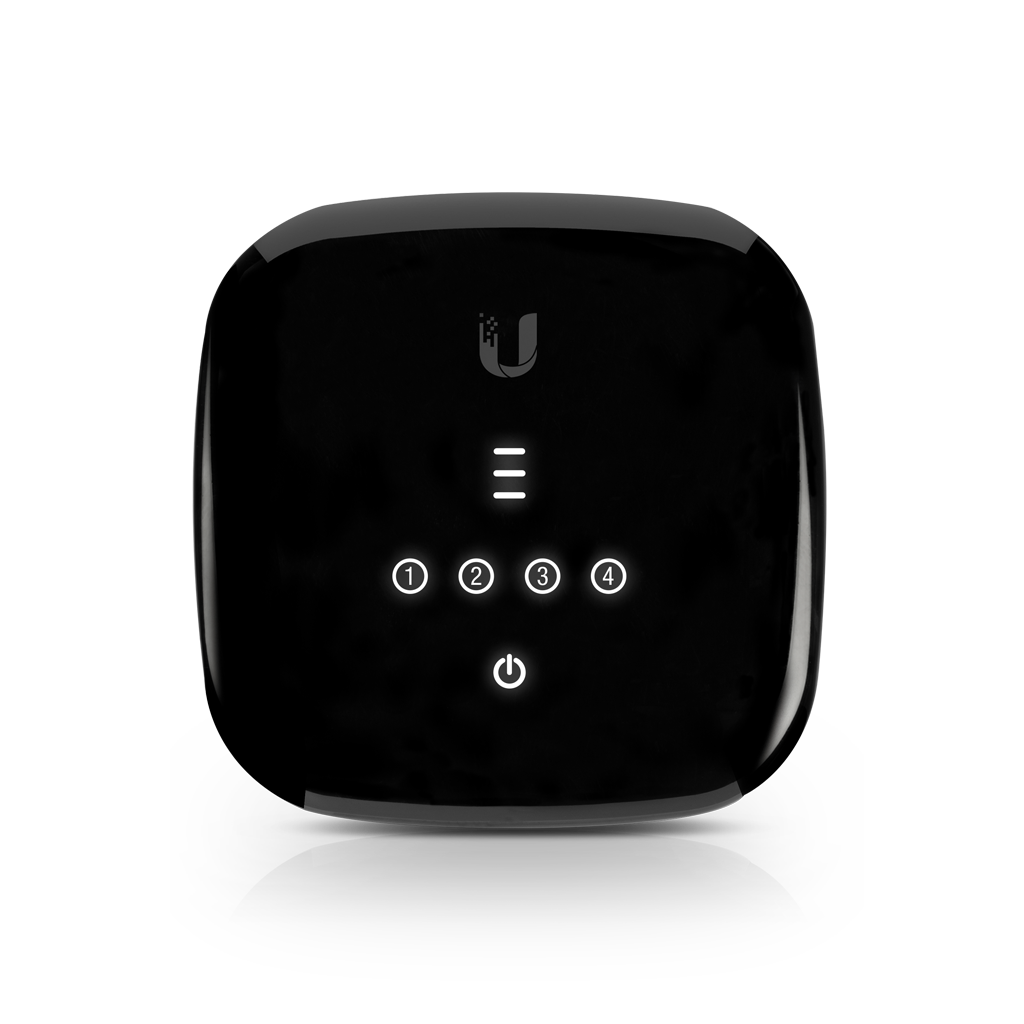

| LEDs | |
| PON status |
(3) Signal LEDs All-OFF: bootup 1x red: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x red + 2x white: signal too strong (>= -8 db) 3x red: no signal LEDs alternate between 3x red and a signal strength indicator: No authority |
| Ethernet |
Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UISP Mobile App |
| WiFi standards | 802.11 b/g/n |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Fiber | |
|
Operating wavelength TX RX |
1310 nm 1490 nm |
| Line code | Scrambled NRZ |
|
Optical interface nominal bit rate Downstream Upstream |
2488.32 Mbit/s 1244.16 Mbit/s |
| Physical reach | 20 km |
| Supported Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Visit Ubiquiti for more information.
