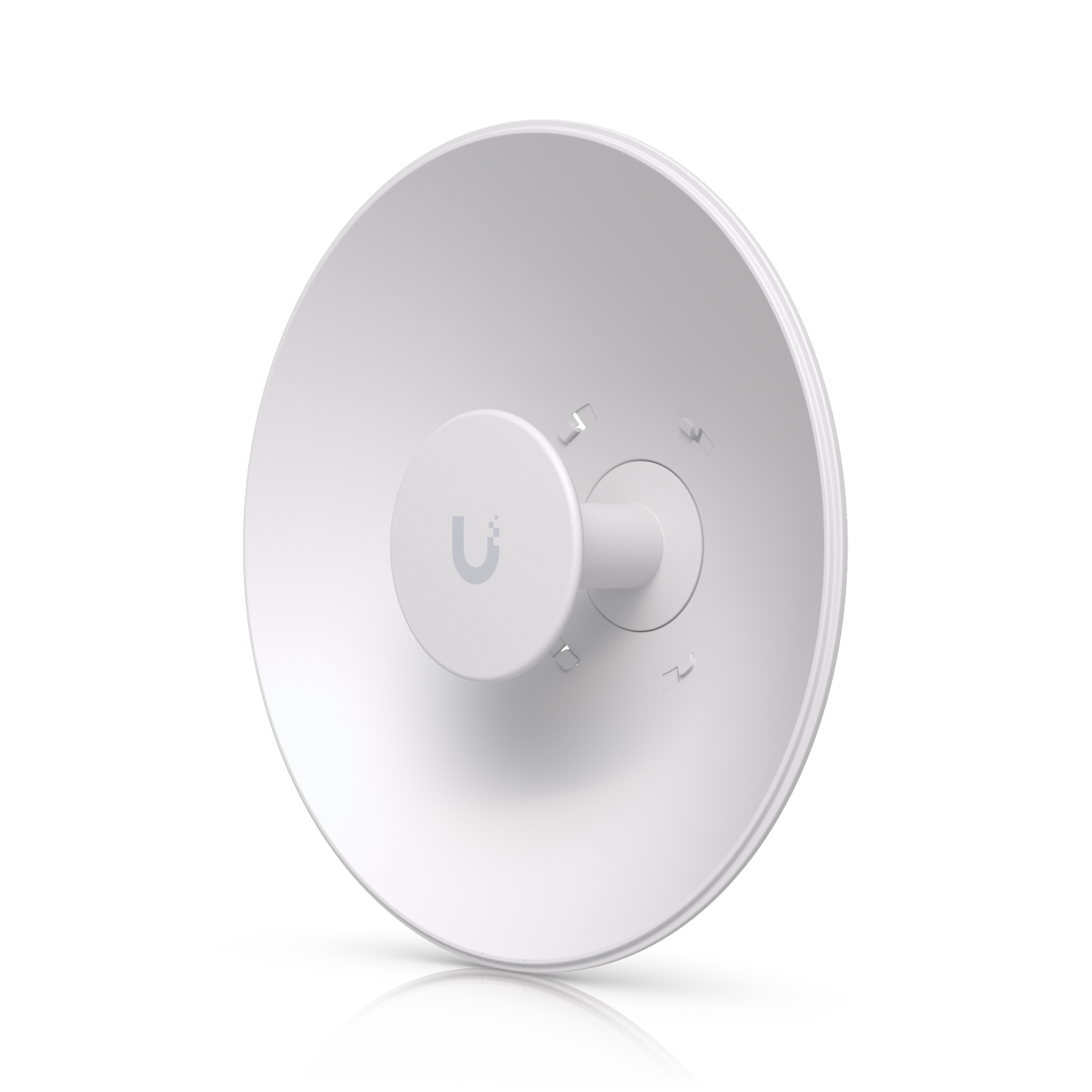

  • Ubiquiti UISP-Dish-Mini UISP Dish Mini shown in a three-quarter view with the outer housing visible.
  • Outer housing of the Ubiquiti UISP-Dish-Mini UISP Dish Mini seen in a front view.

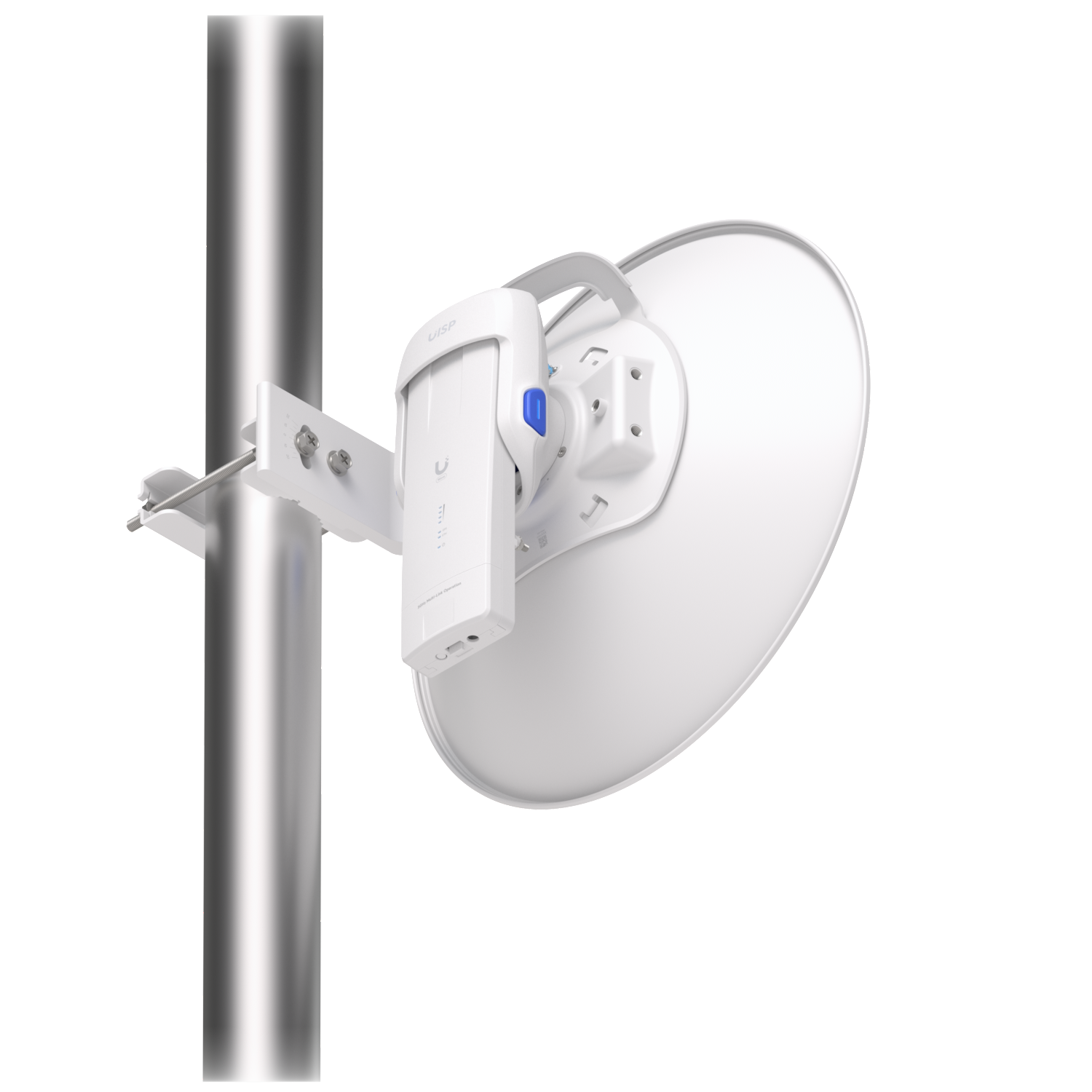

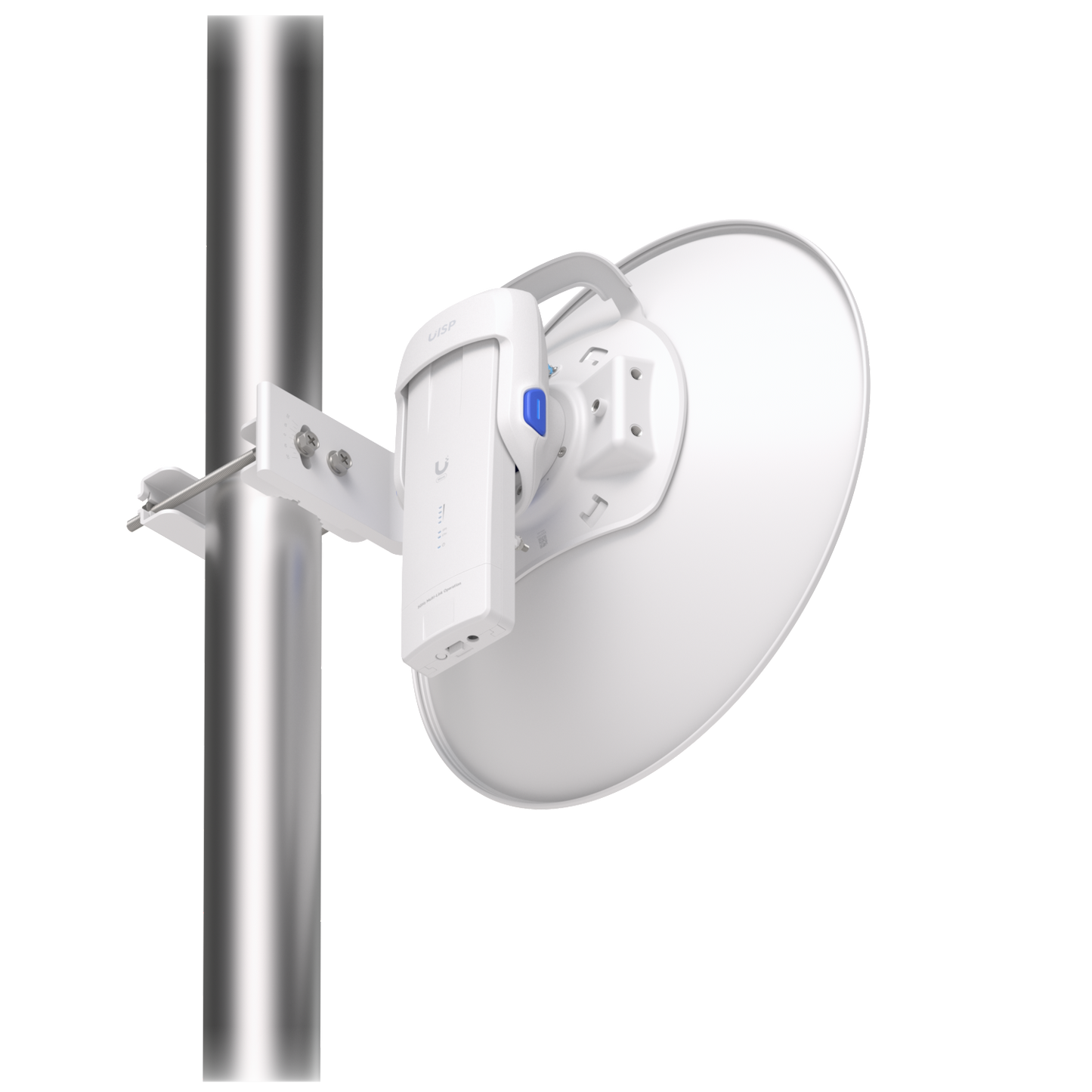

  • Ubiquiti UISP-Dish-Mini UISP Dish Mini secured in its mounted orientation with attachment hardware visible.

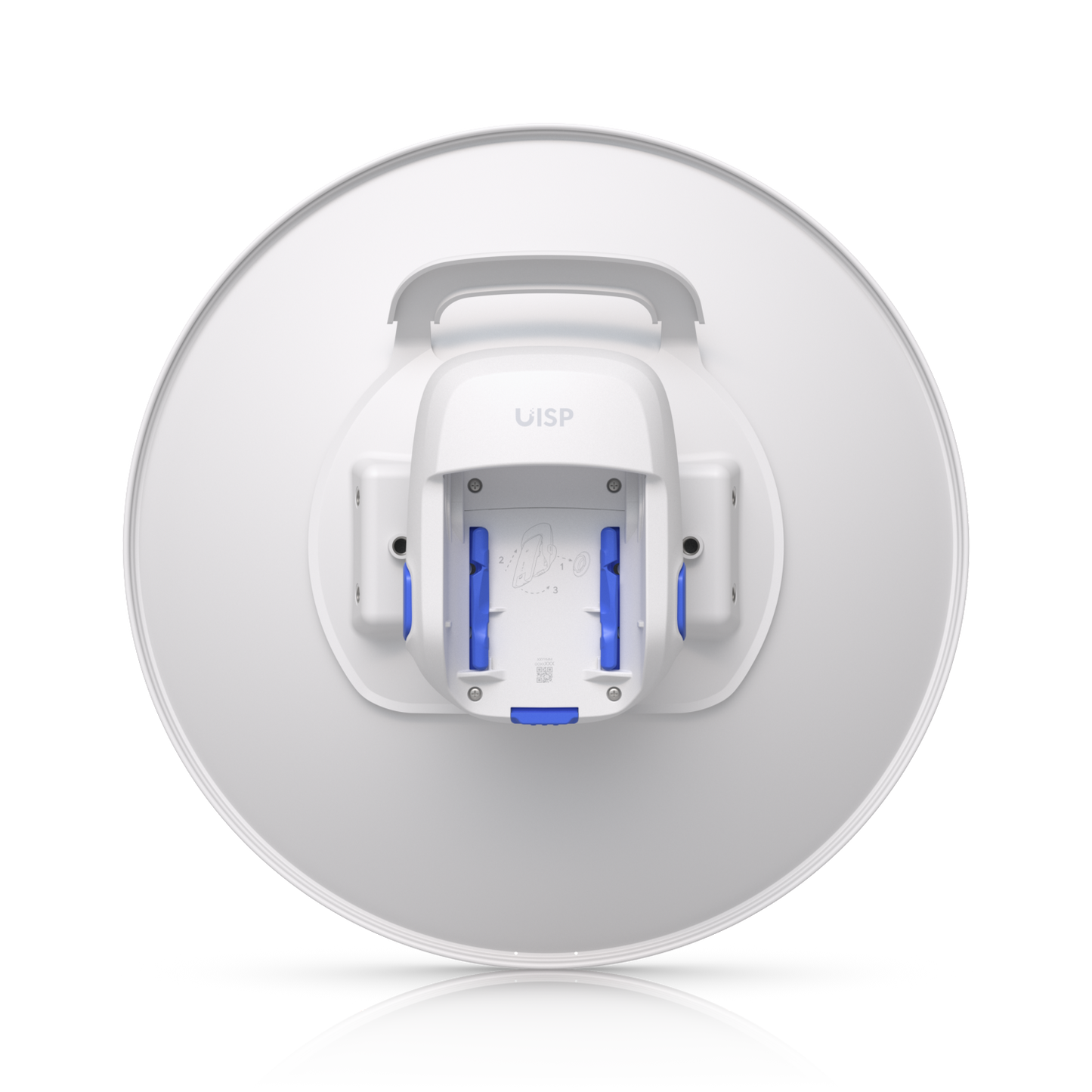

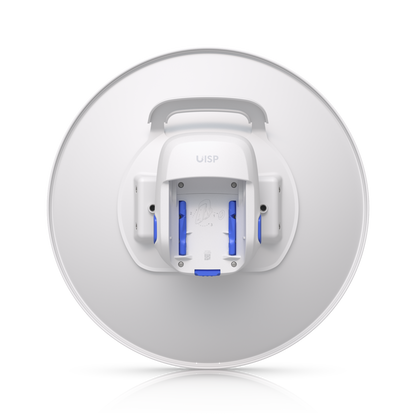

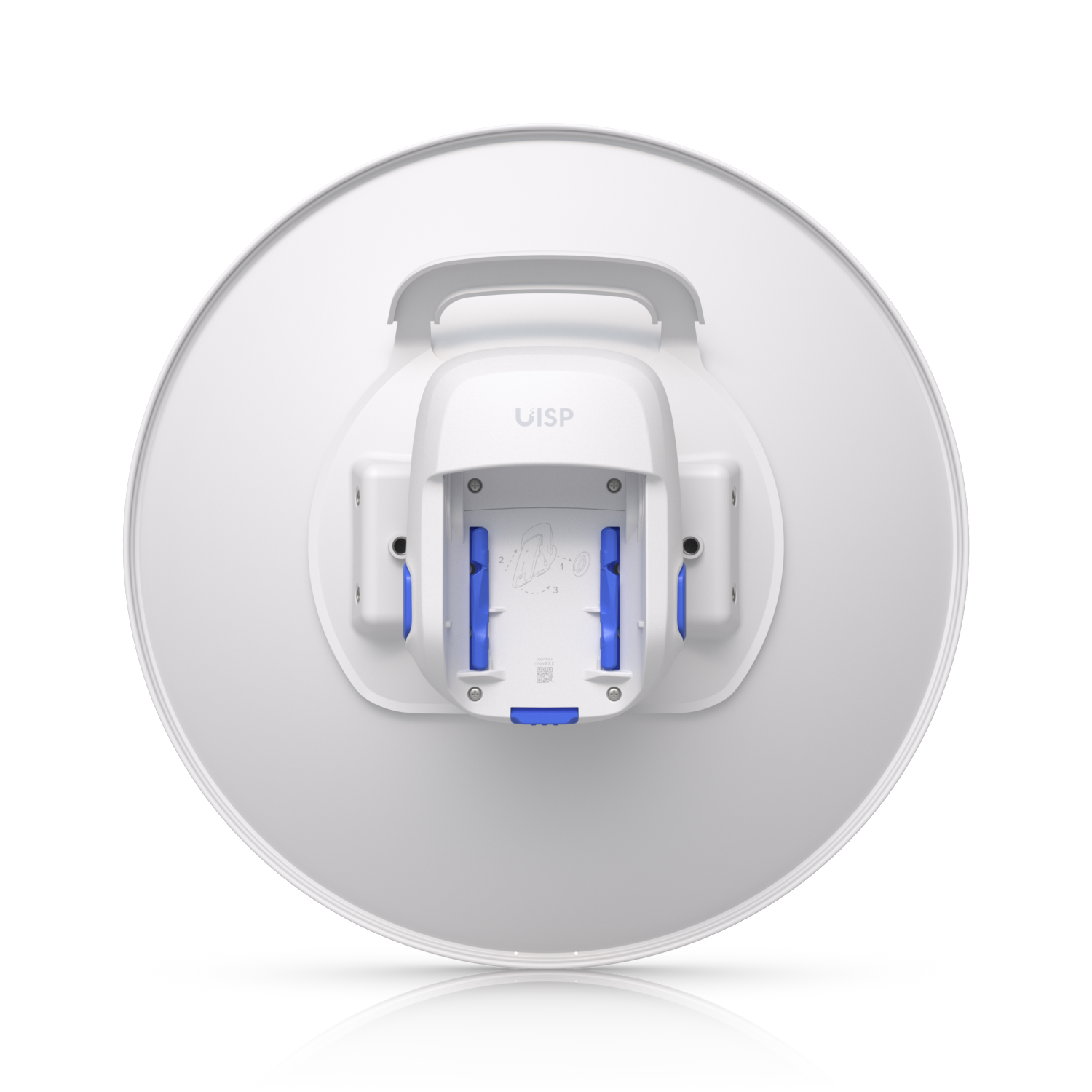

  • Straight-on front view of the Ubiquiti UISP-Dish-Mini UISP Dish Mini showing visible ports and connection sockets.

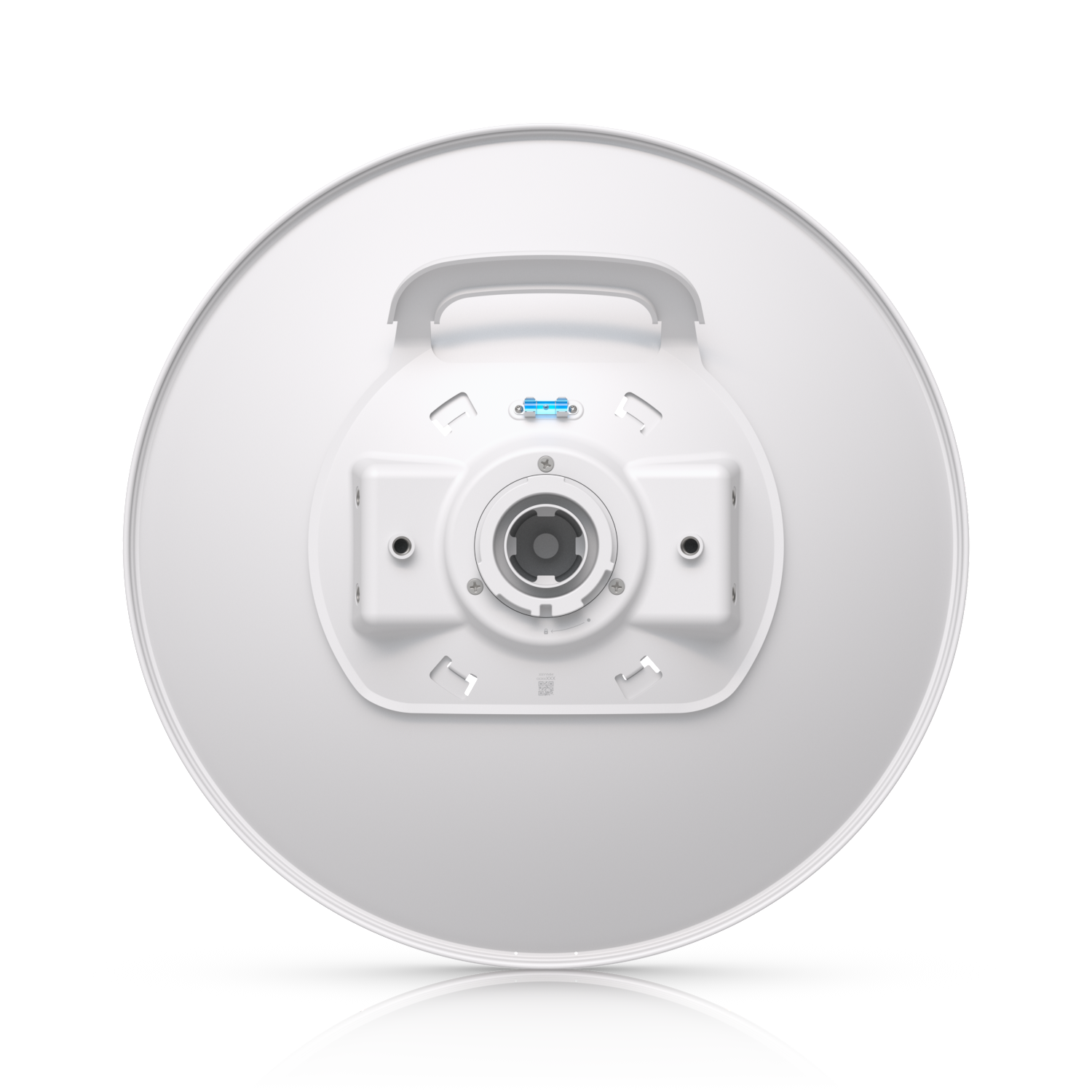

  • Ubiquiti UISP-Dish-Mini UISP Dish Mini shown in a straight-on front view with the outer housing visible.
  • Outer housing of the Ubiquiti UISP-Dish-Mini UISP Dish Mini seen in a straight-on front view.
  • Ubiquiti UISP-Dish-Mini UISP Dish Mini viewed from a straight-on front angle with the outer housing visible.

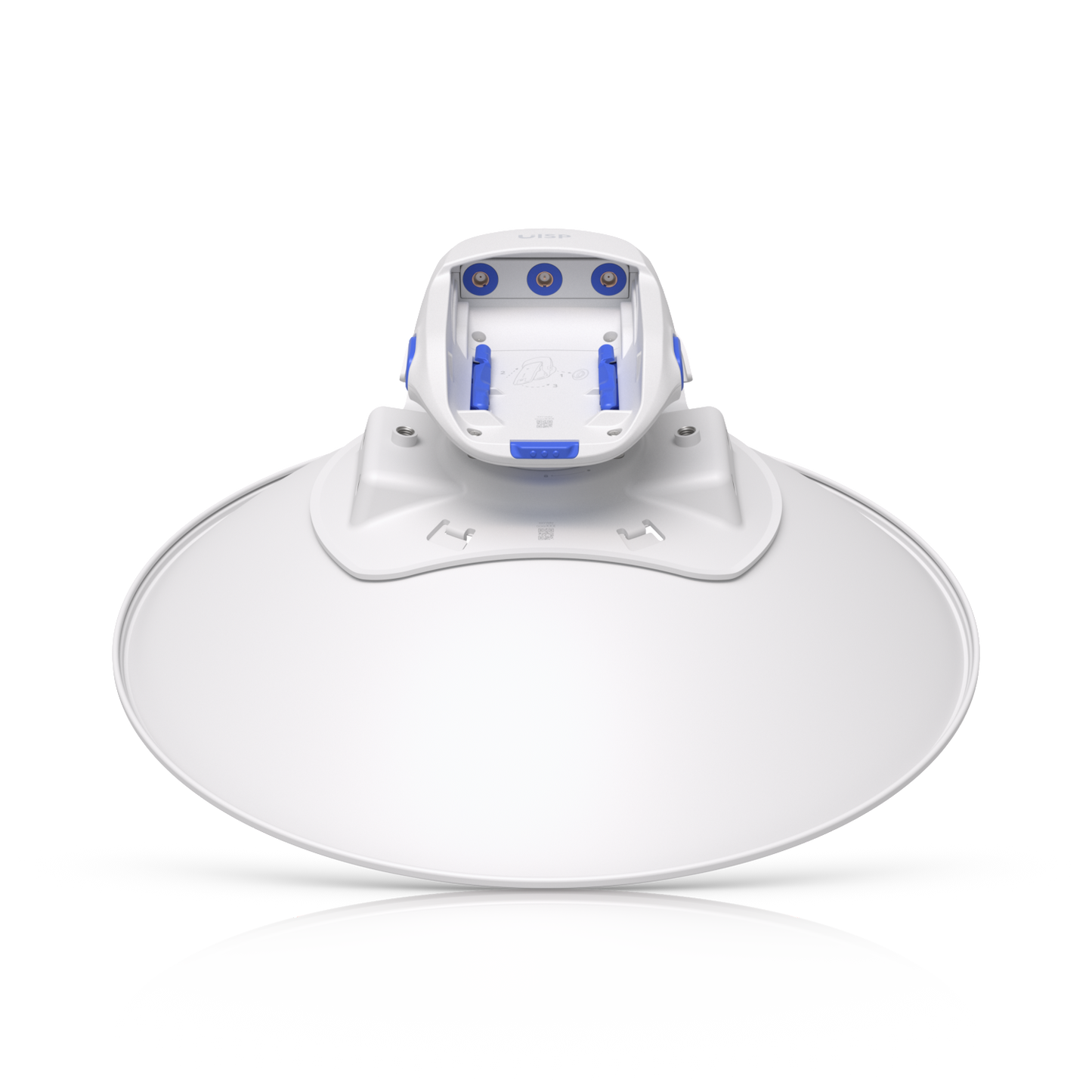

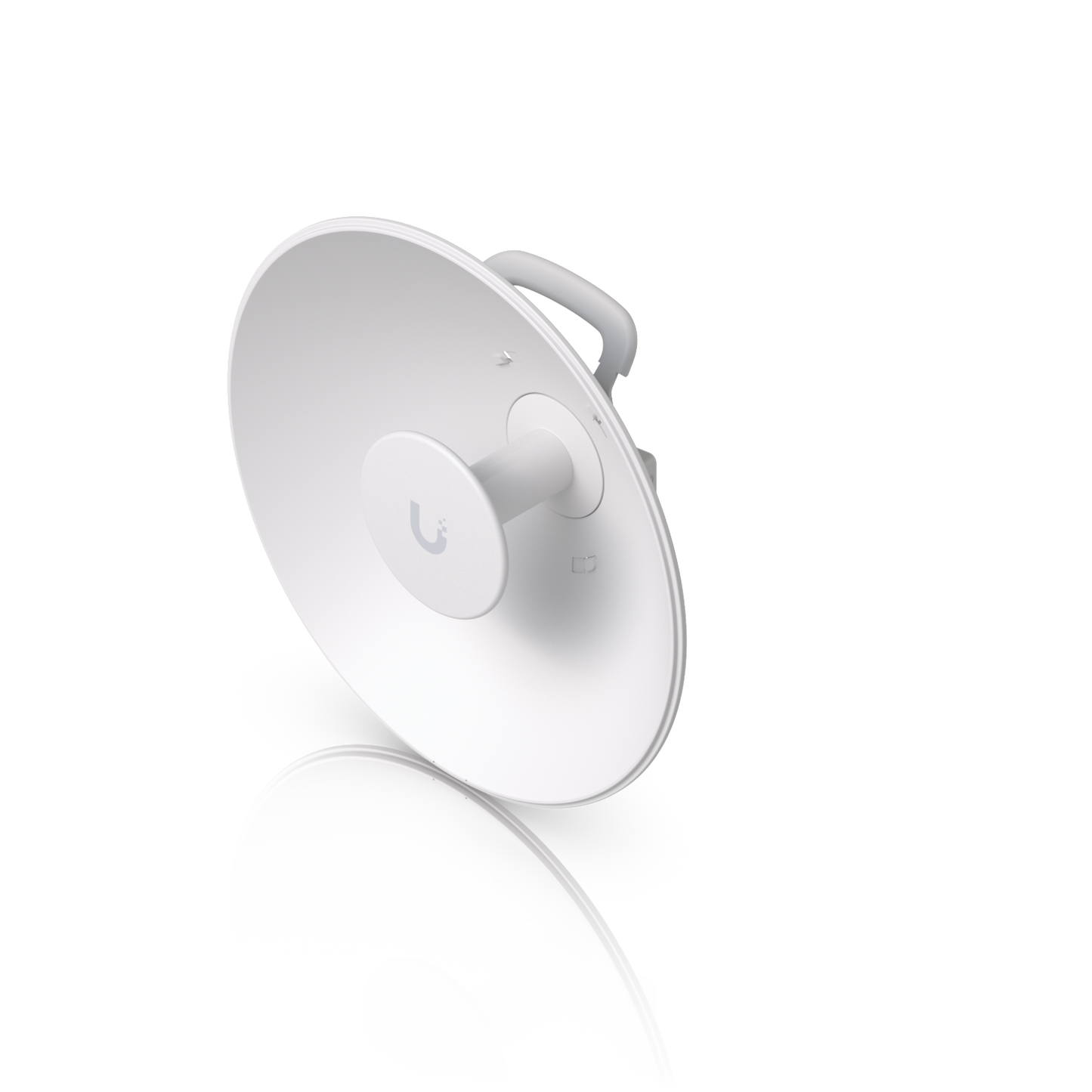

  • Perspective view of the Ubiquiti UISP-Dish-Mini UISP Dish Mini with the outer housing visible.

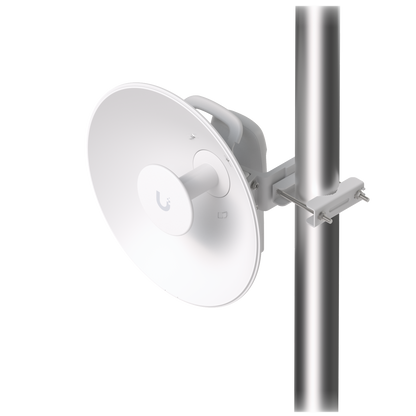

  • Ubiquiti UISP-Dish-Mini UISP Dish Mini shown in place with its installed orientation visible.

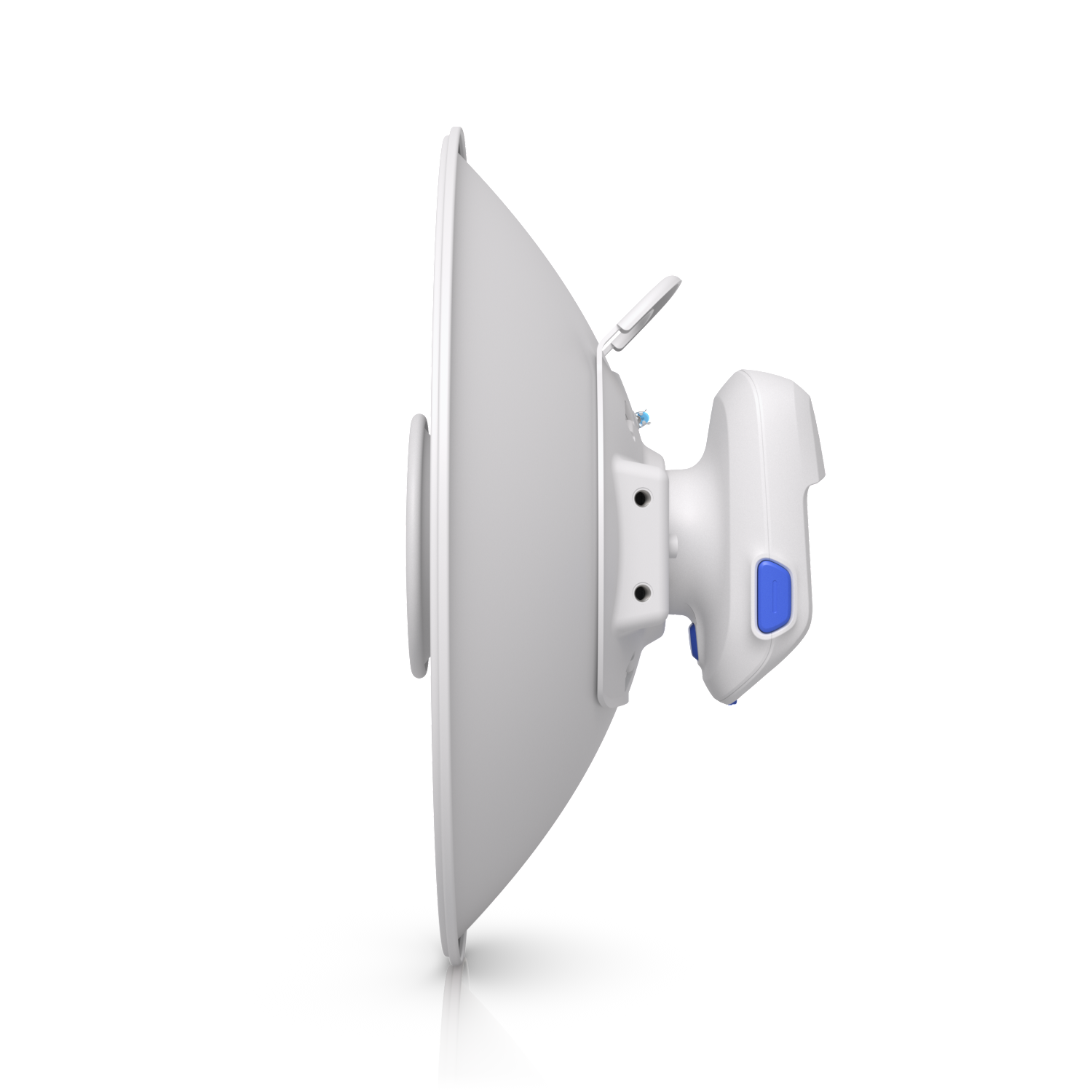

  • Outer housing of the Ubiquiti UISP-Dish-Mini UISP Dish Mini seen in a slim side view.

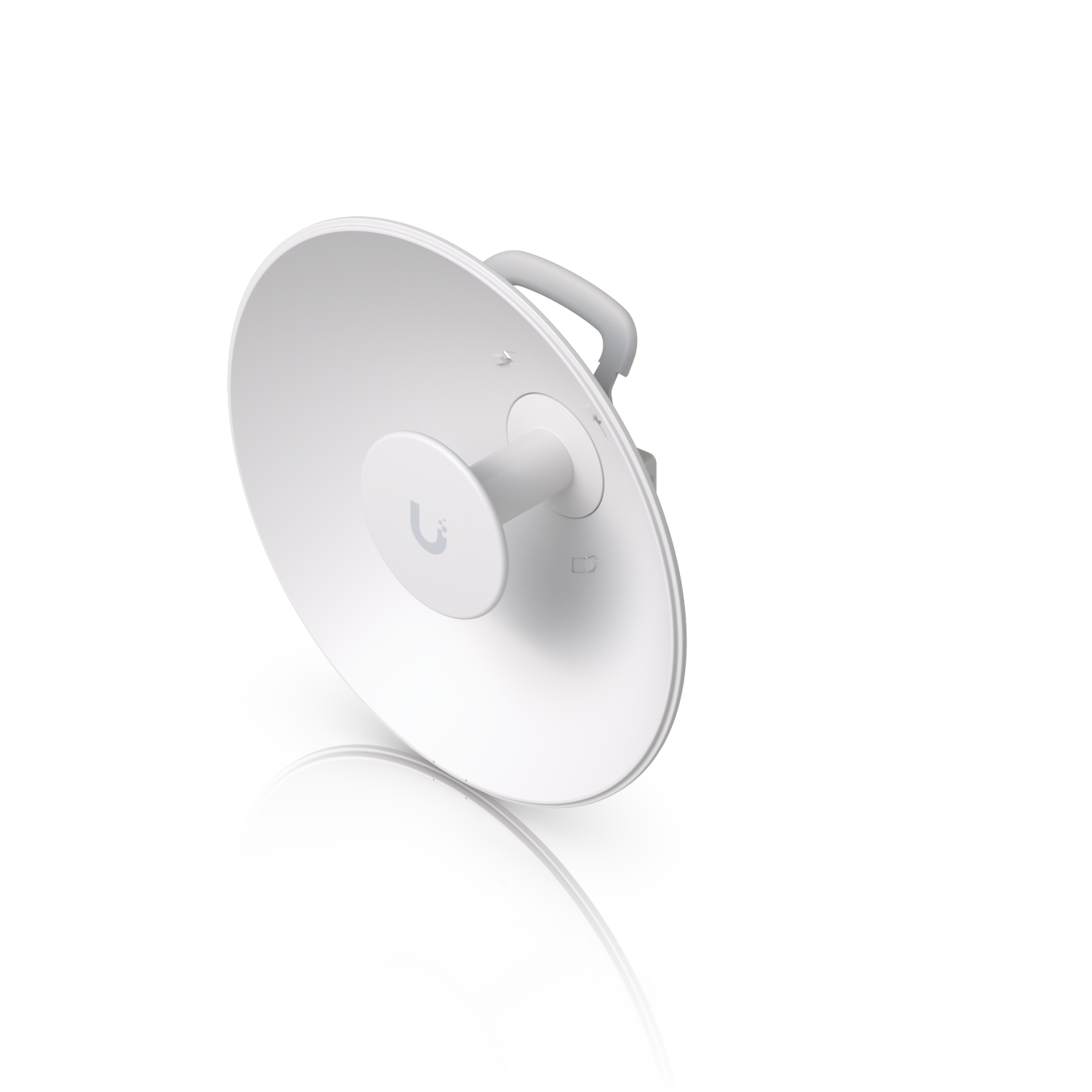

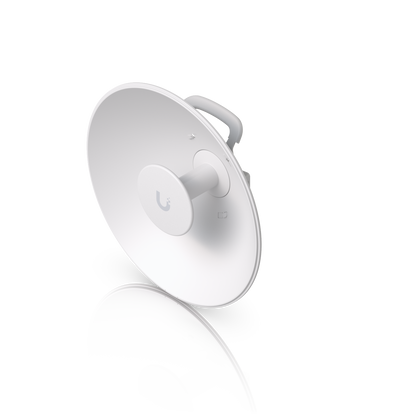

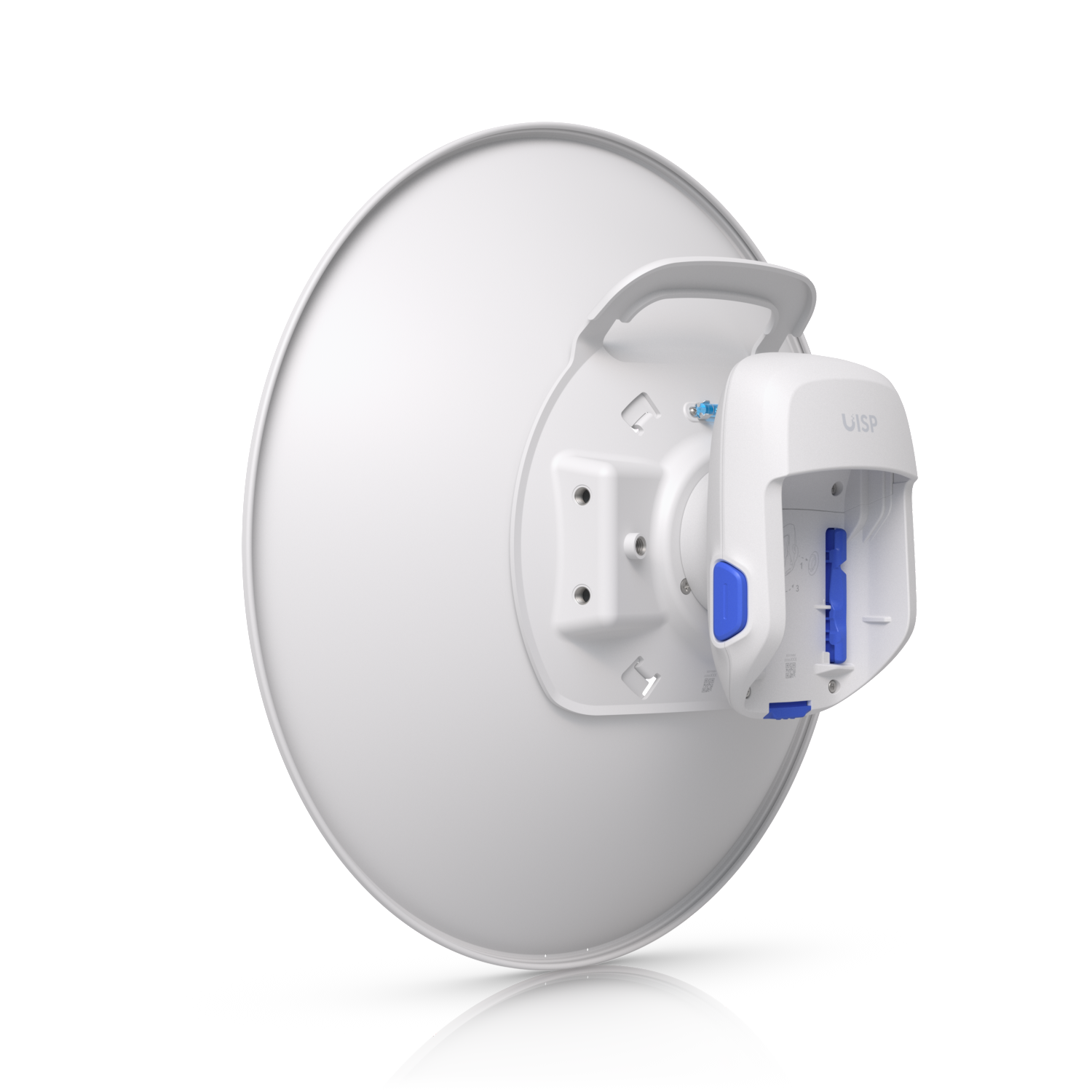

  • Ubiquiti UISP-Dish-Mini UISP Dish Mini viewed from a diagonal angle with the outer housing visible.
1 12

Ubiquiti

2-Year Warranty

UISP Dish Mini

UISP Dish Mini

UISP-Dish-Mini

$344.00
$344.00 $344.00
0% Off | Save $0.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

Out of stock

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

5-7 GHz compact dish with 26 dBi gain and radio direct connect.

Compatibility: Wave-MLO5, AF-5XHD, RP-5AC-Gen2

Customer Satisfaction

Check out some recent reviews and customer experiences shared on Trustpilot

Trustpilot

Specification

Mechanical

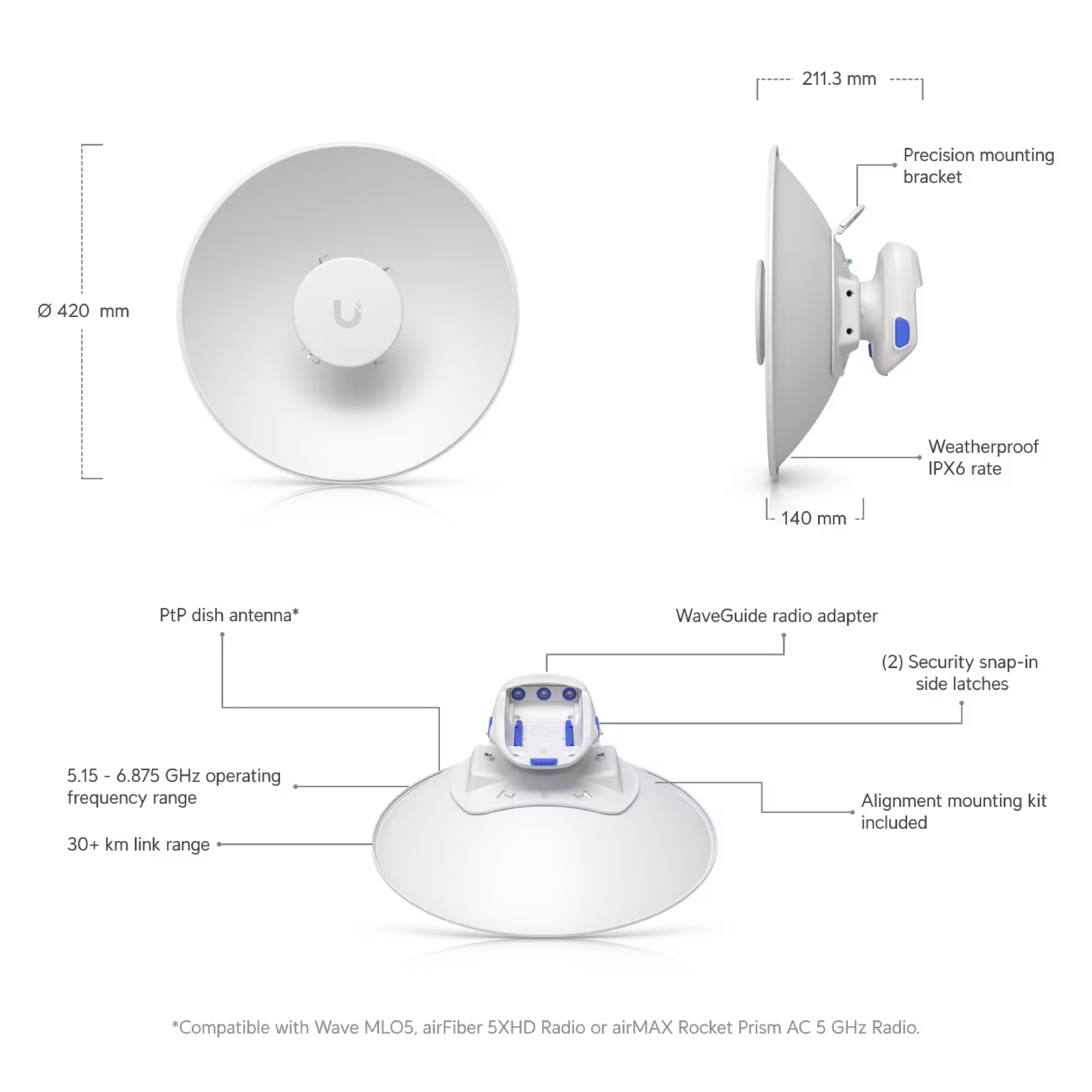

Dimensions Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9″)
Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3″)
Weight Antenna dish: 1.95 kg (4.3 lb)
Mount: 1 kg (2.2 lb)
Waveguide: 0.45 kg (1 lb)
Enclosure Material Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate
Waveguide: Aluminum alloy, UV-stabilized polycarbonate
Mount Material Powder-coated galvanized steel, aluminum alloy
Wind Survivability Up to 200 km/h (124 mph)
Wind Loading 348 N at 200 km/h (78 lbf at 124 mph)

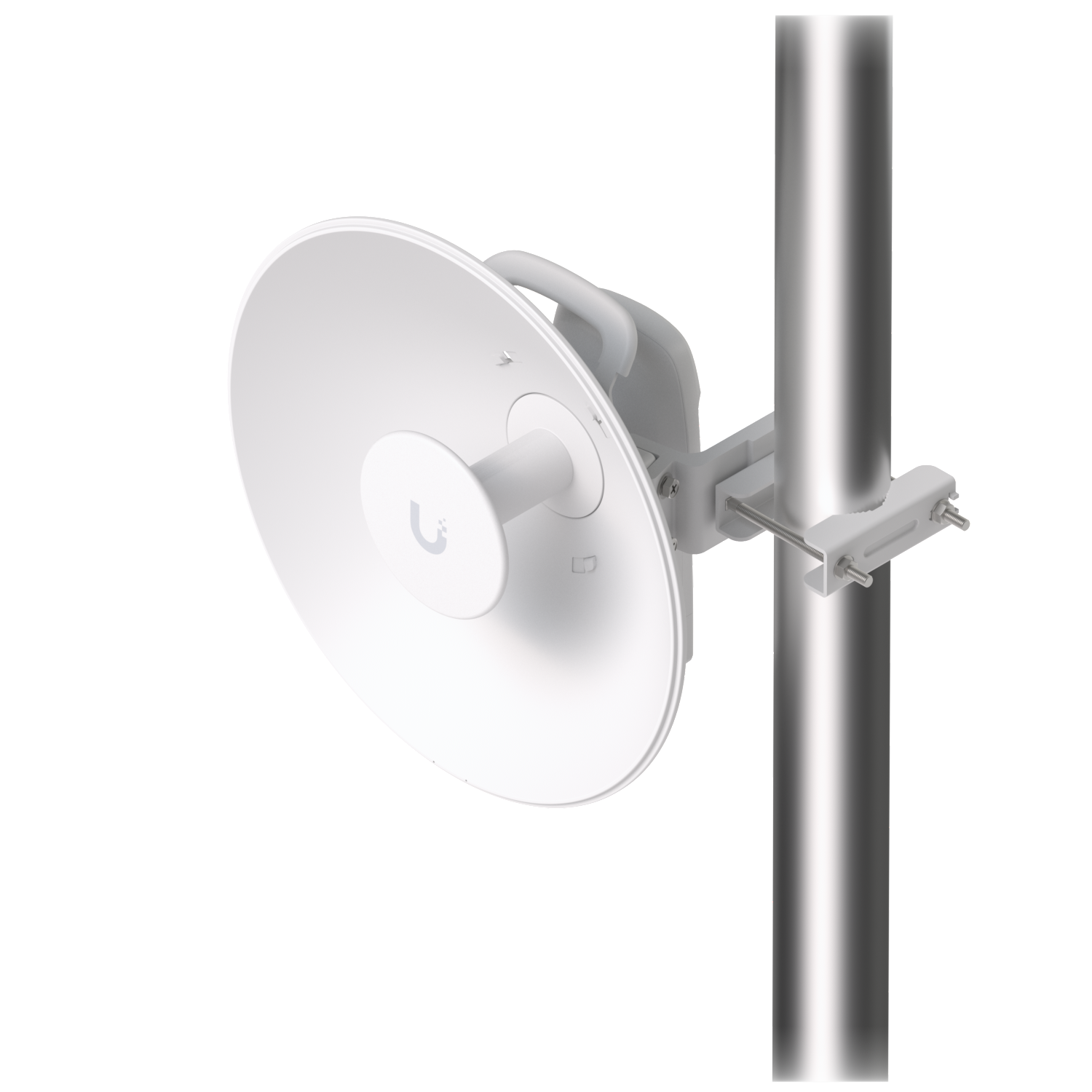

Mounting Pole mount
Alignment mounting kit (Included)
Mechanical adjustment: ±20° elevation
Pole Mount Diameter Ø1.25–3" (Ø32–76 mm)
Weatherproofing IPX6
Hardware
Frequency Range 5.15 to 6.875 GHz
Beamwidth Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB)
Electrical Downtilt 0°
Max. VSWR 2:1
Polarization Dual-Linear
Cross-Pol Isolation 15 dB
NDAA Compliant ✓
