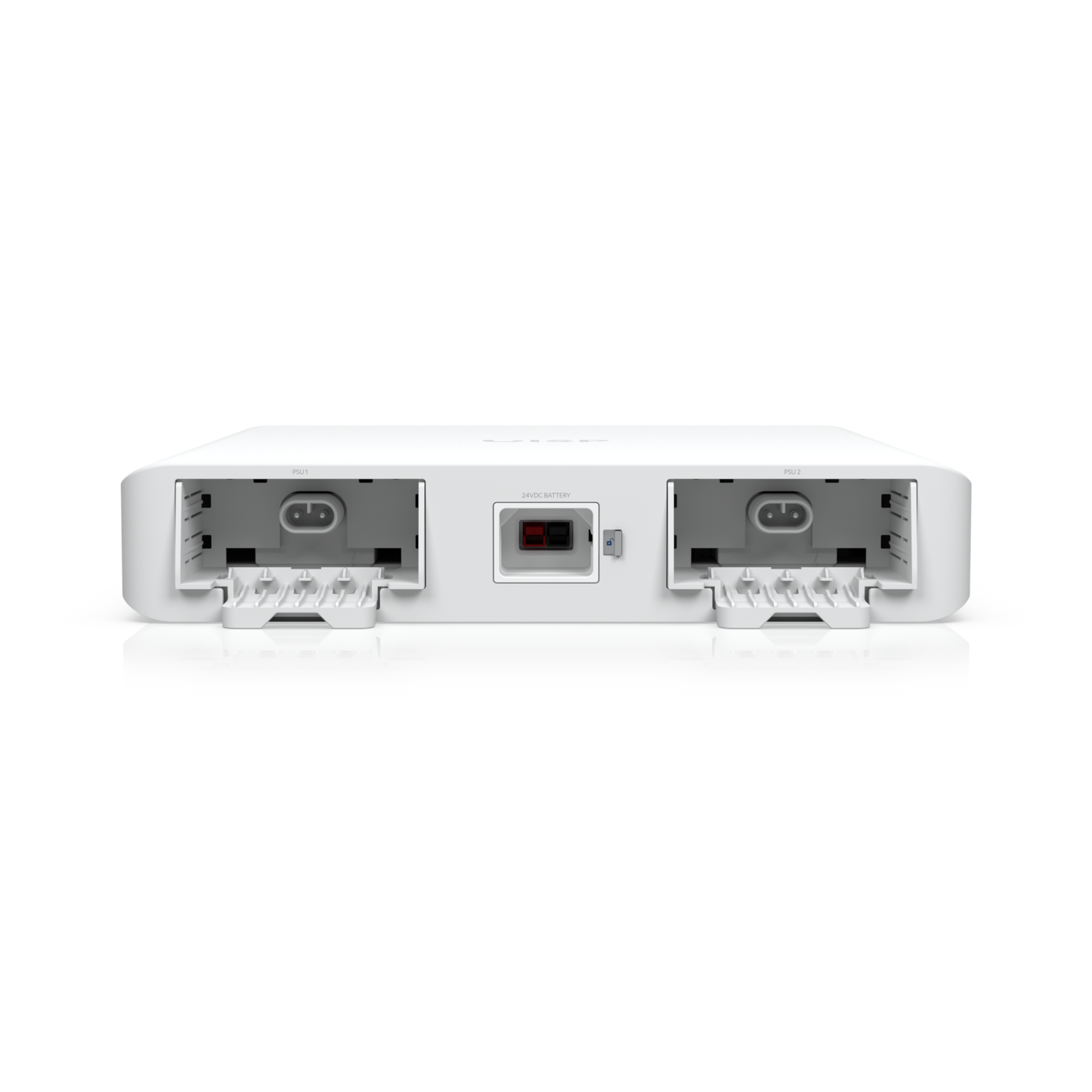

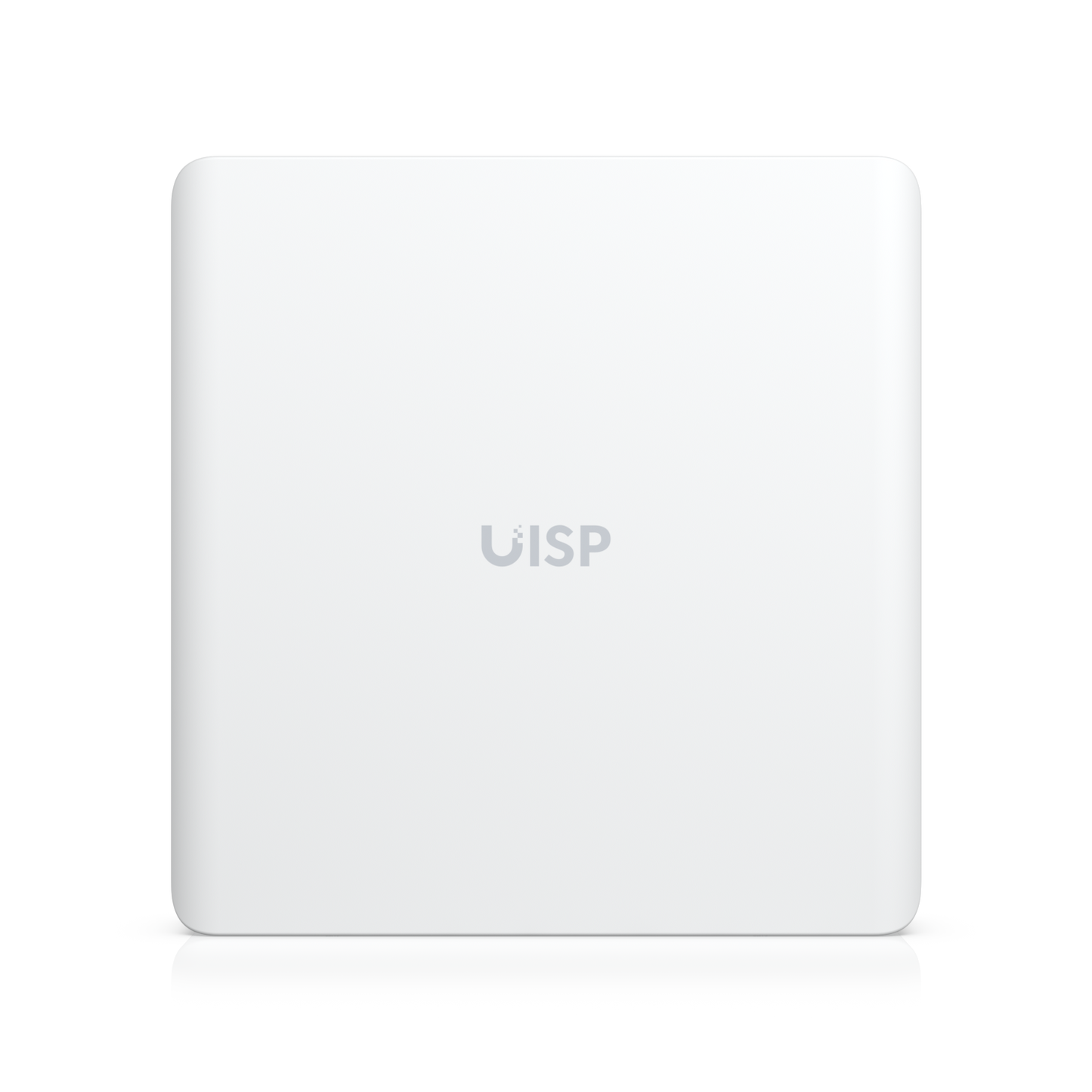

Uninterruptible power system designed for MicroPoP applications.

  • Total power supply: 200W* (27V DC) / Redundant power supply: 100W
  • 115Wh Li-ion backup battery
  • One Power TransPort output
  • One DC battery port for an external 24V lead-acid battery (not included)

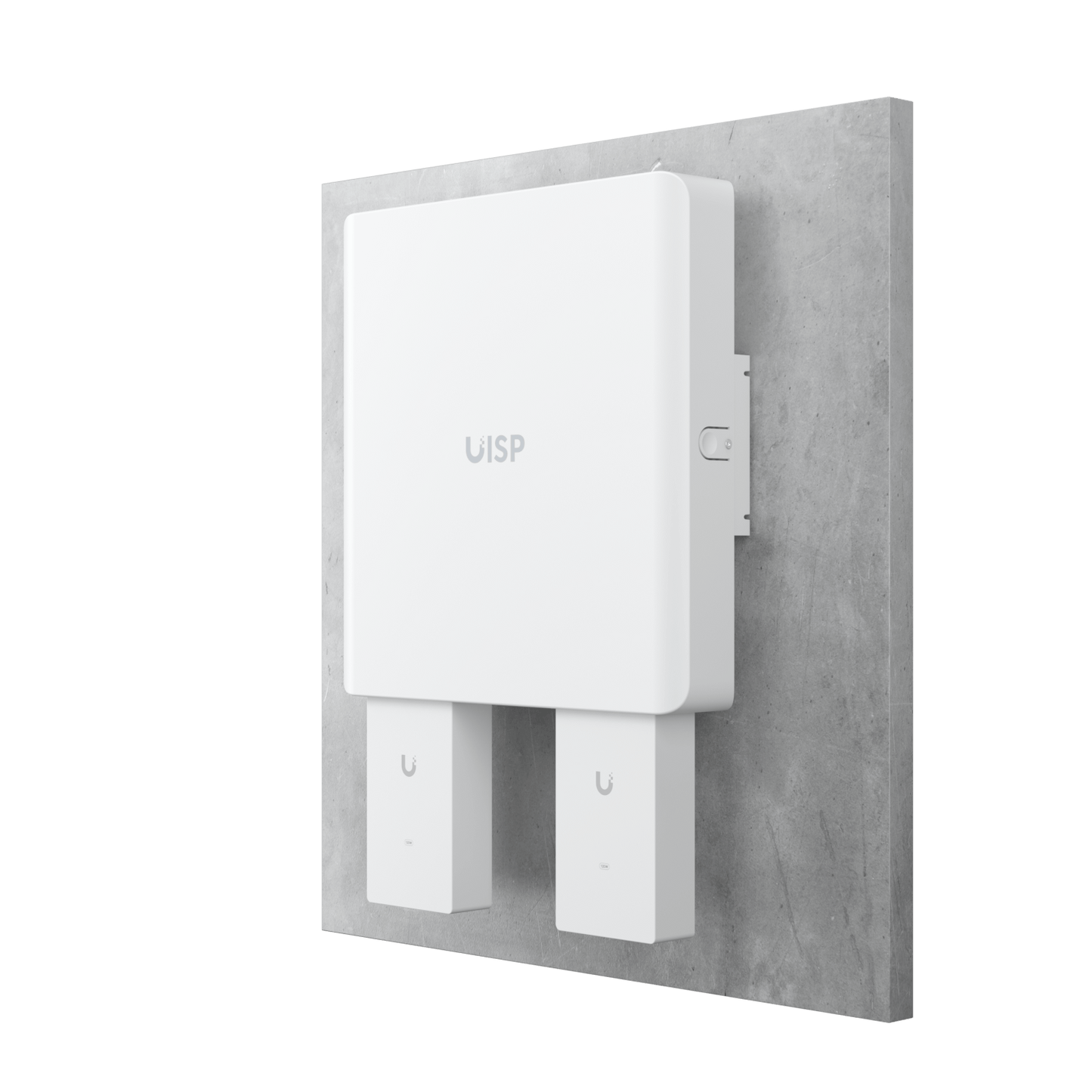

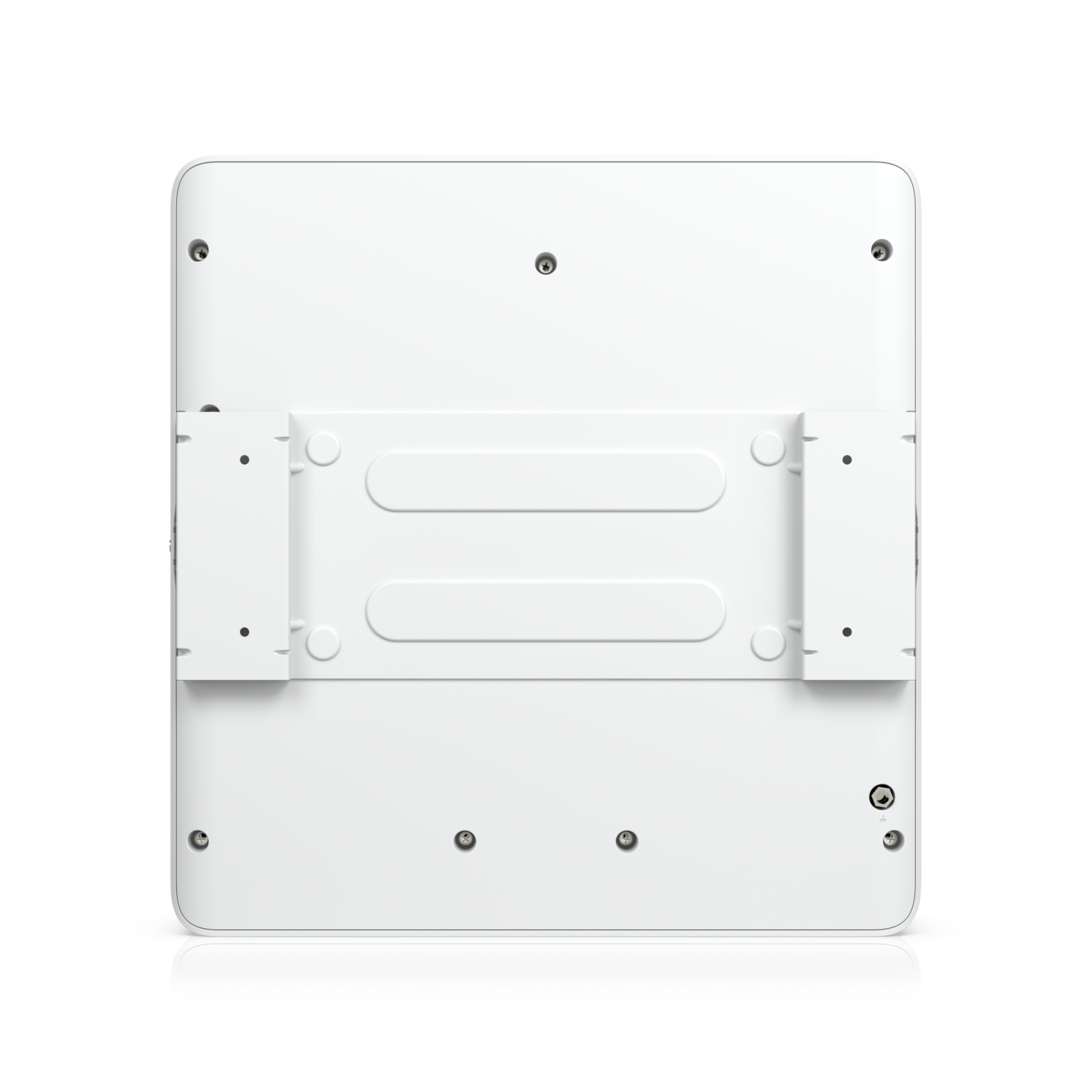

  • Wall-mountable (kit included)

Note:

* With (2) PSUs installed (sold separately).

Compatibility

  • UISP-Console
  • UISP-R
  • UISP-R-Pro
  • UISP-S
  • UISP-S-Pro
Mechanical

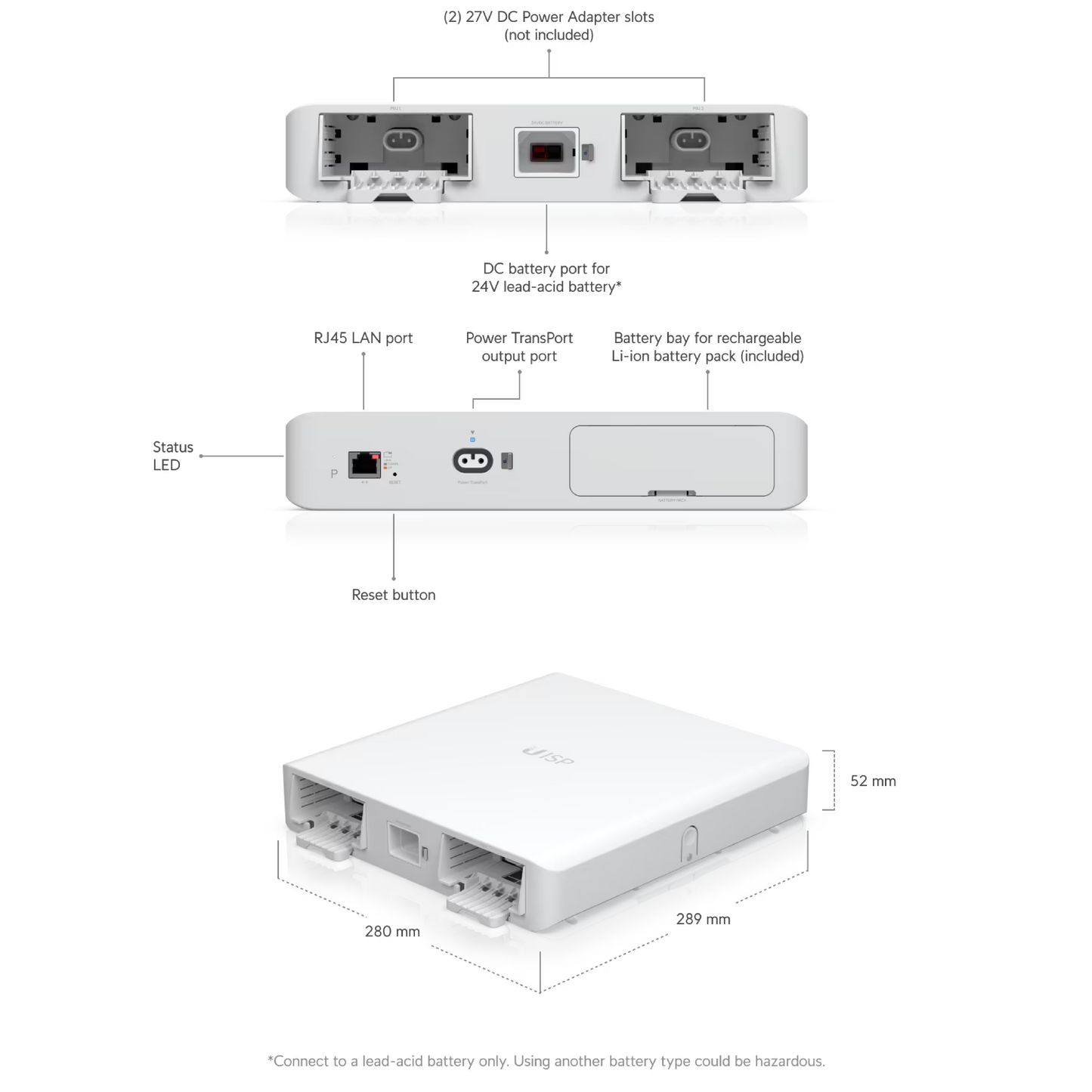

Dimensions 289 x 280 x 52 mm (11.38 x 11.02 x 2.05")
Weight 1.4 kg (3.1 lb)
Enclosure materials Polycarbonate, acrylonitrile butadiene styrene
Hardware

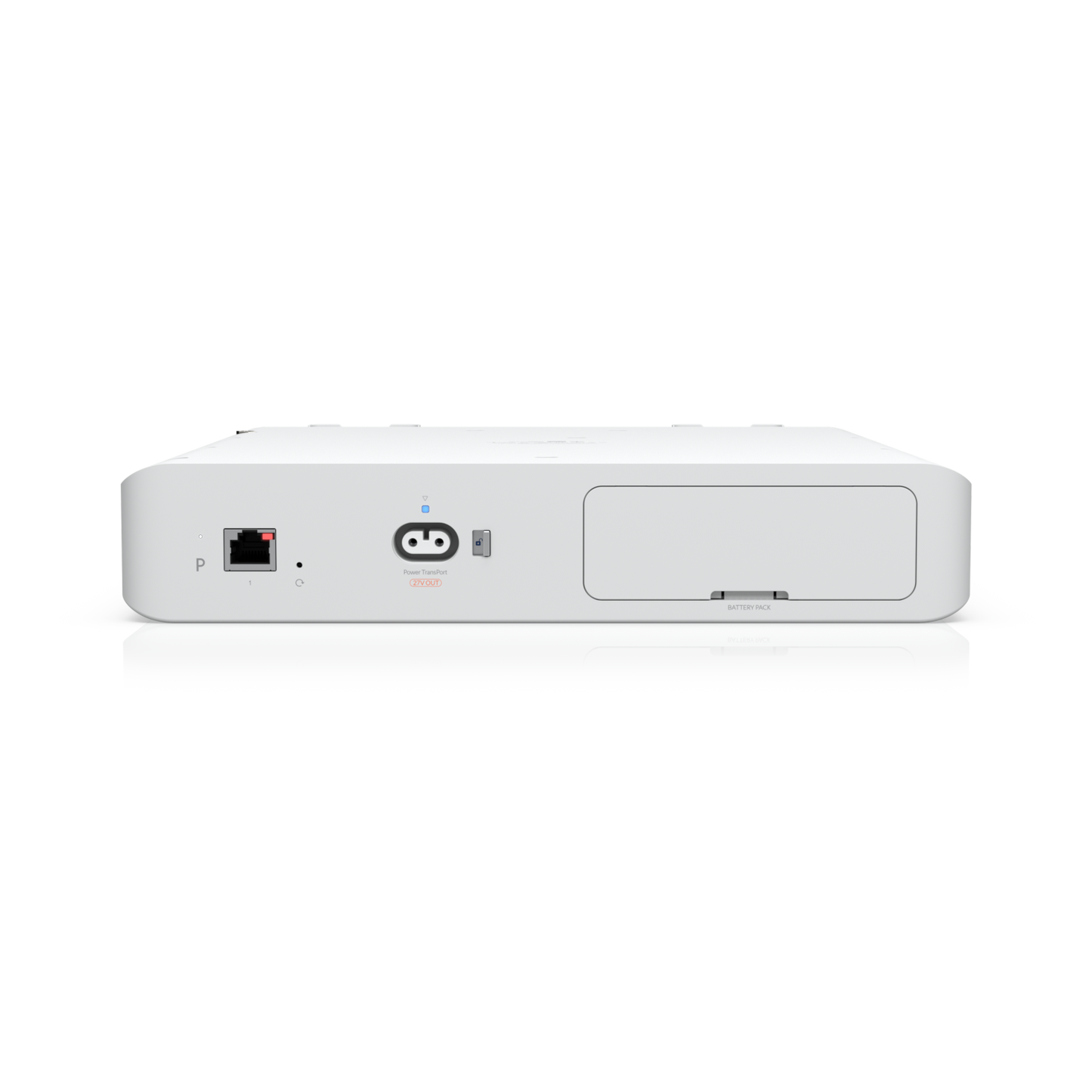

Networking interface (1) 10/100 MbE RJ45 LAN port
Management interface Ethernet In-band
Bluetooth
Power TransPort output 27V DC, 100W (with 1 power adapter)
27V DC, 200W (with 2 power adapters)
Power method (2) 27V DC, 4.4A power adapters (120W Power TransPort Adapter not included)
Backup power (1) 25.2V DC, 7.93A rechargeable Li-ion battery pack (included)
(1) 24V DC, 8.33A lead acid battery input* (battery not included)
*Connect to a lead-acid battery only. Using another battery type could be hazardous.
Max. power consumption 3W (excludes Power TransPort output and battery charger)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% non-condensing
Certifications CE, FCC, IC
LEDs
System Status
RJ45 data port Link/activity
Power TransPort On/Off
Compatibility
Supported models UISP Console
UISP Router (installed with UISP Box)
UISP Router Pro
UISP Switch (installed with UISP Box)
UISP Switch Pro
Software
Management application UISP: Version 1.4.5 and later
