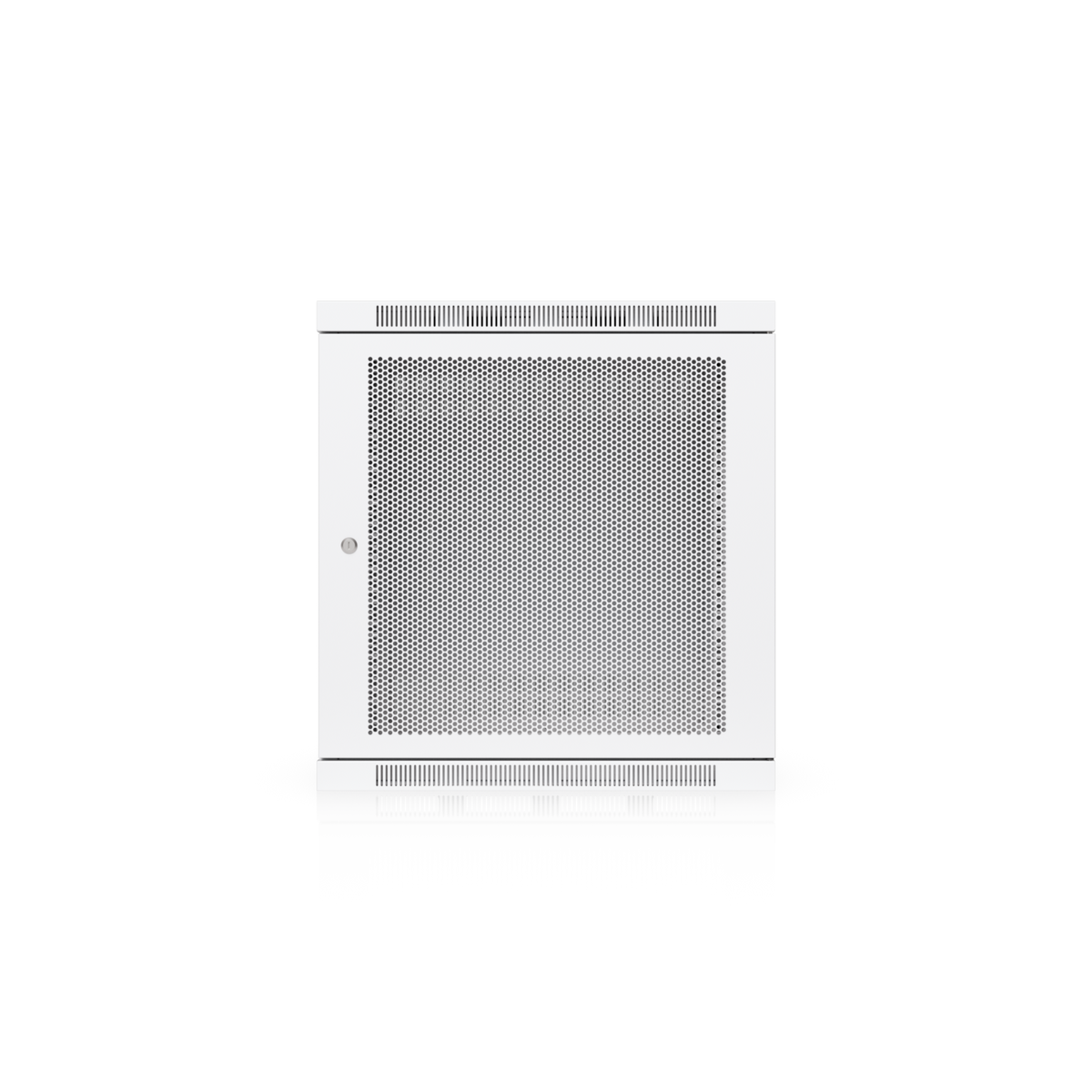

UniFi Standard 12U Rack Cabinet with Perforated Front Door

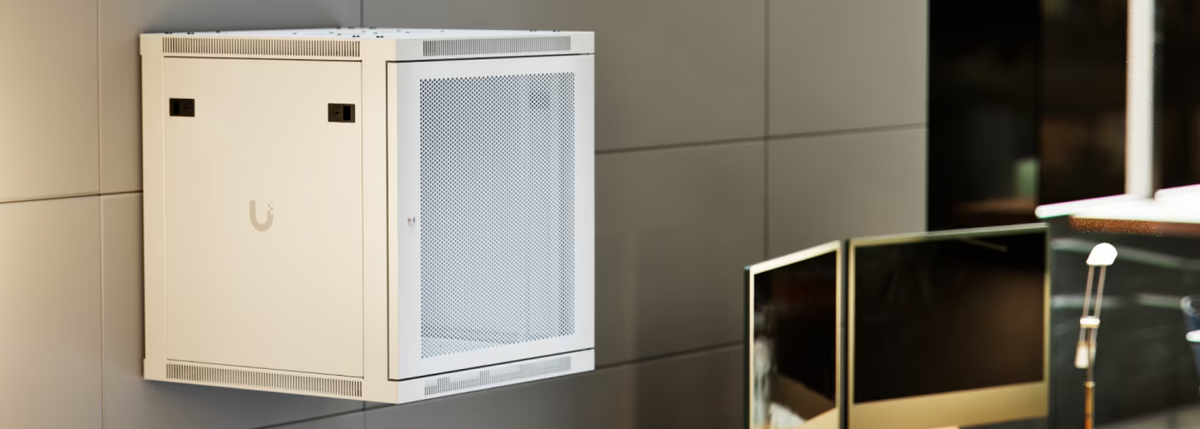

The Ubiquiti UACC-Rack-12U-Wall-600-P is a 12U wall-mount rack cabinet built for compact deployments that still need real airflow, real security and real cable management. It arrives fully assembled — no flat-pack, no fiddly bracket sequence — so it goes from pallet to wall in a single visit. A perforated front door and two pre-installed 120 mm fans keep switches, gateways and NVRs breathing, while lockable solid side panels and a keyed front door keep the whole stack out of reach.

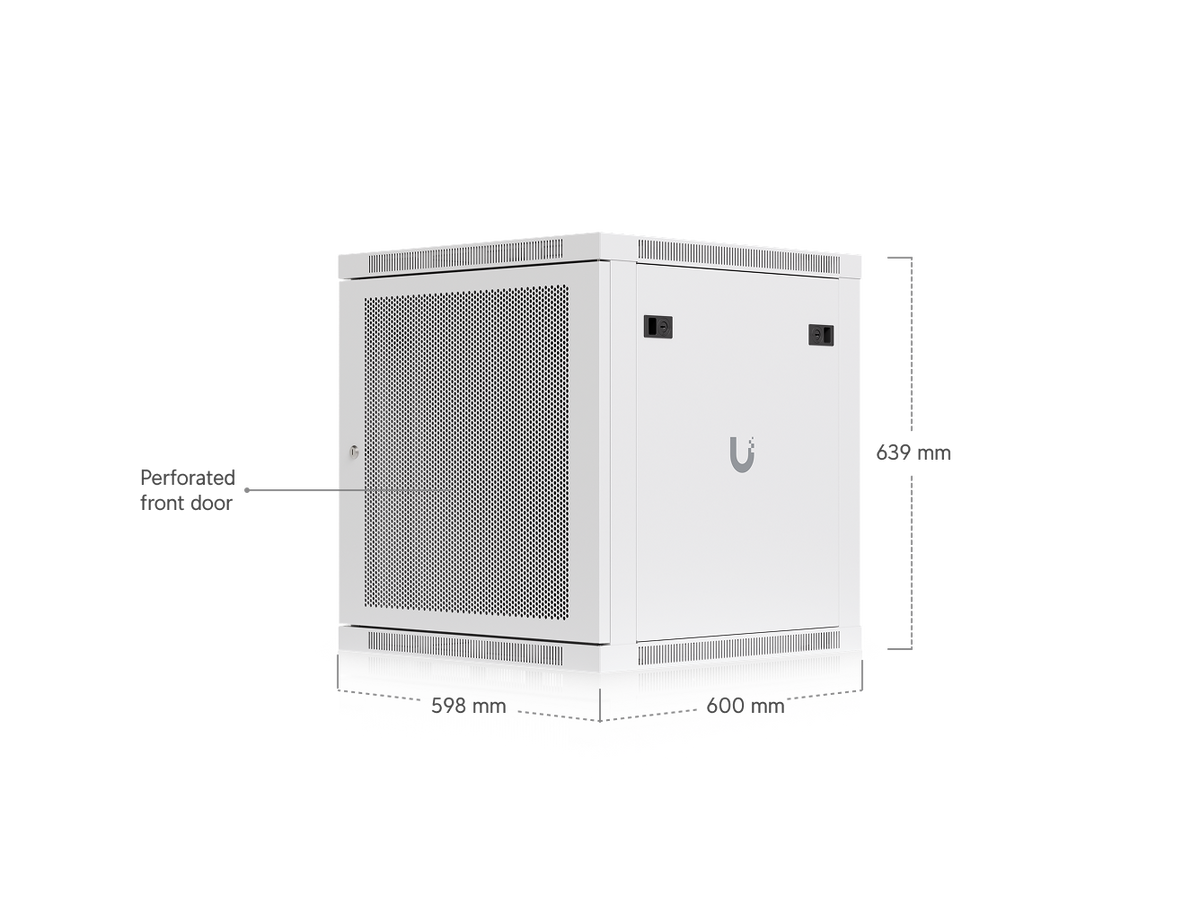

At 600 mm deep with an adjustable 448–508 mm mounting depth and an 80 kg load rating, it comfortably handles a full UniFi stack in an office comms room, retail back-of-house, education block or small-site MDF.

Ships fully assembled — install in one visit

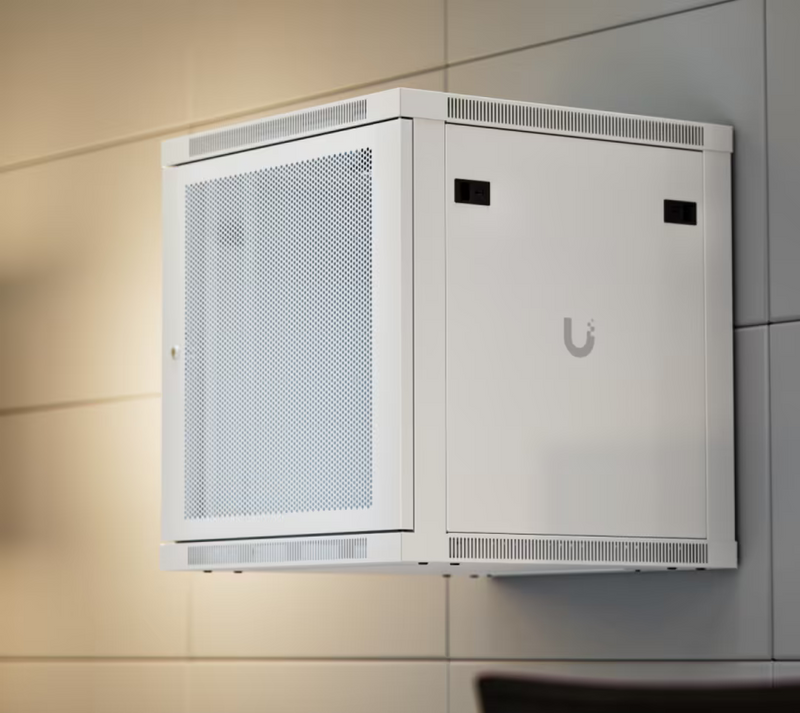

This cabinet is delivered built. Hang it, ground it, load it. Because the rack ships as a complete unit at 31.8 kg (70.1 lb) packaged, delivery may require additional handling time and can be restricted to some residential addresses — worth confirming the delivery point before you order.

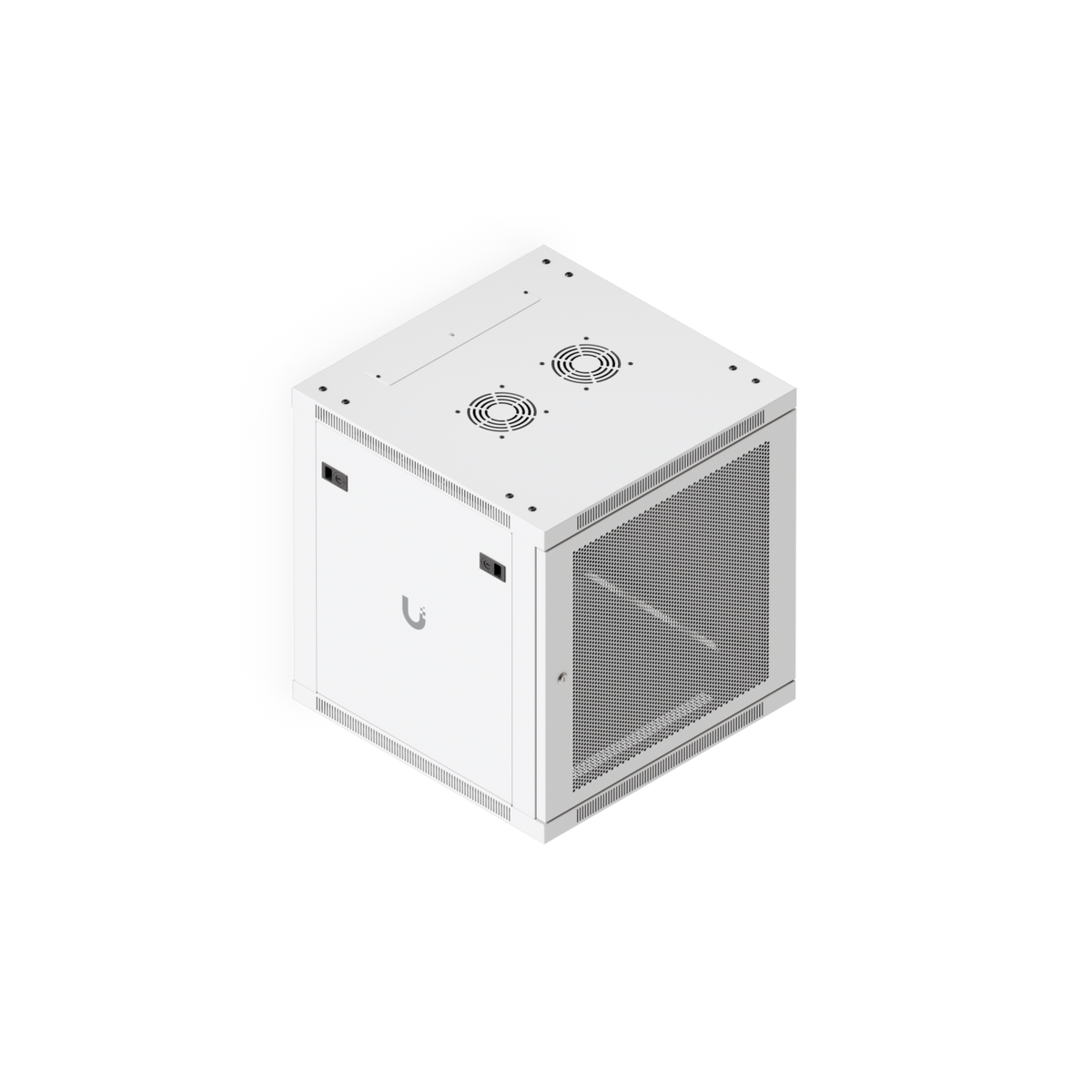

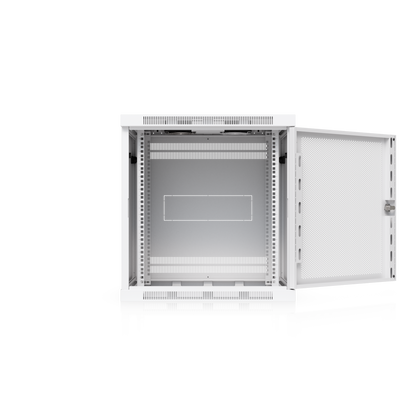

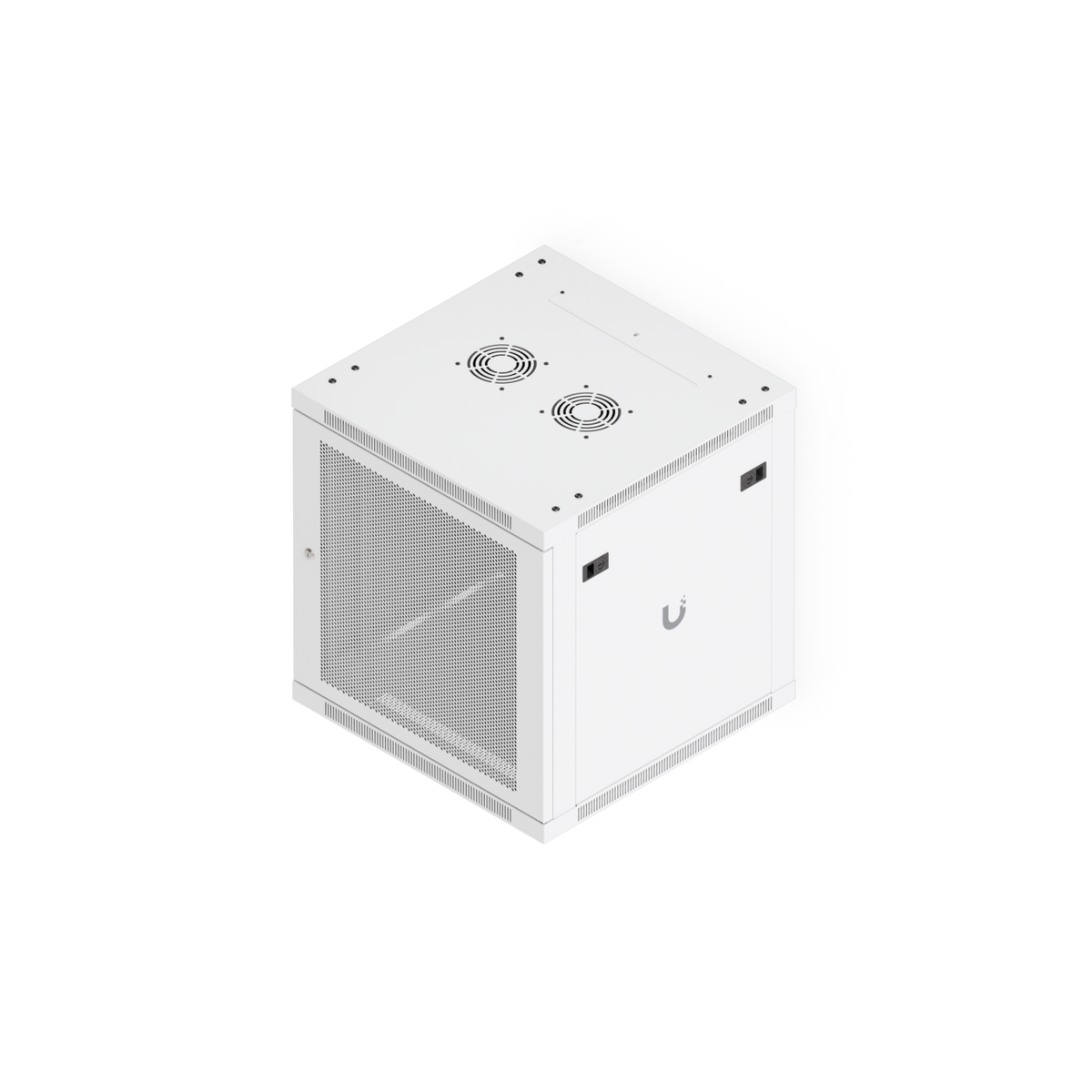

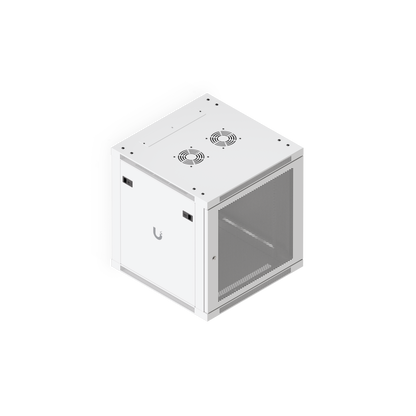

Perforated door + dual fans for passive and active cooling

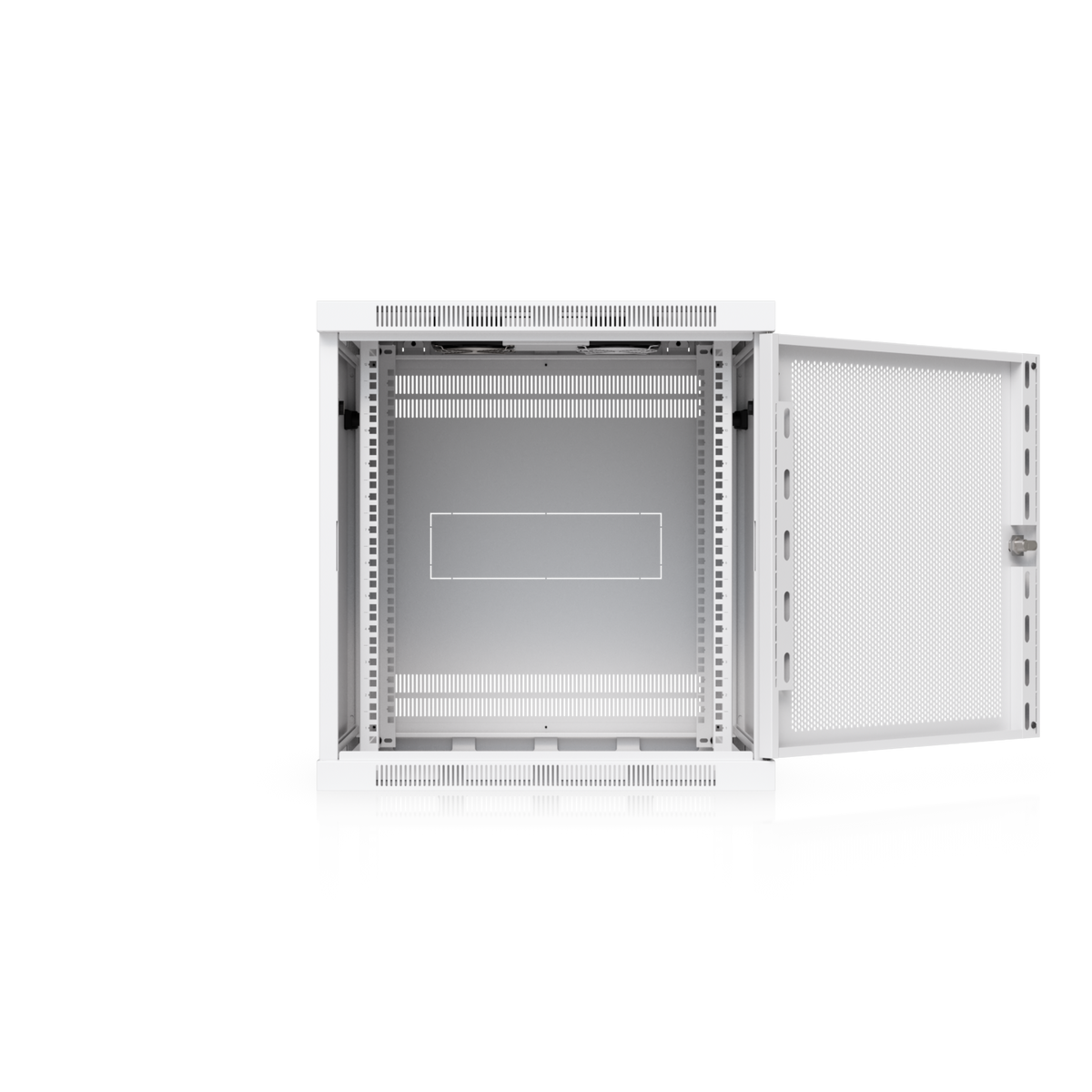

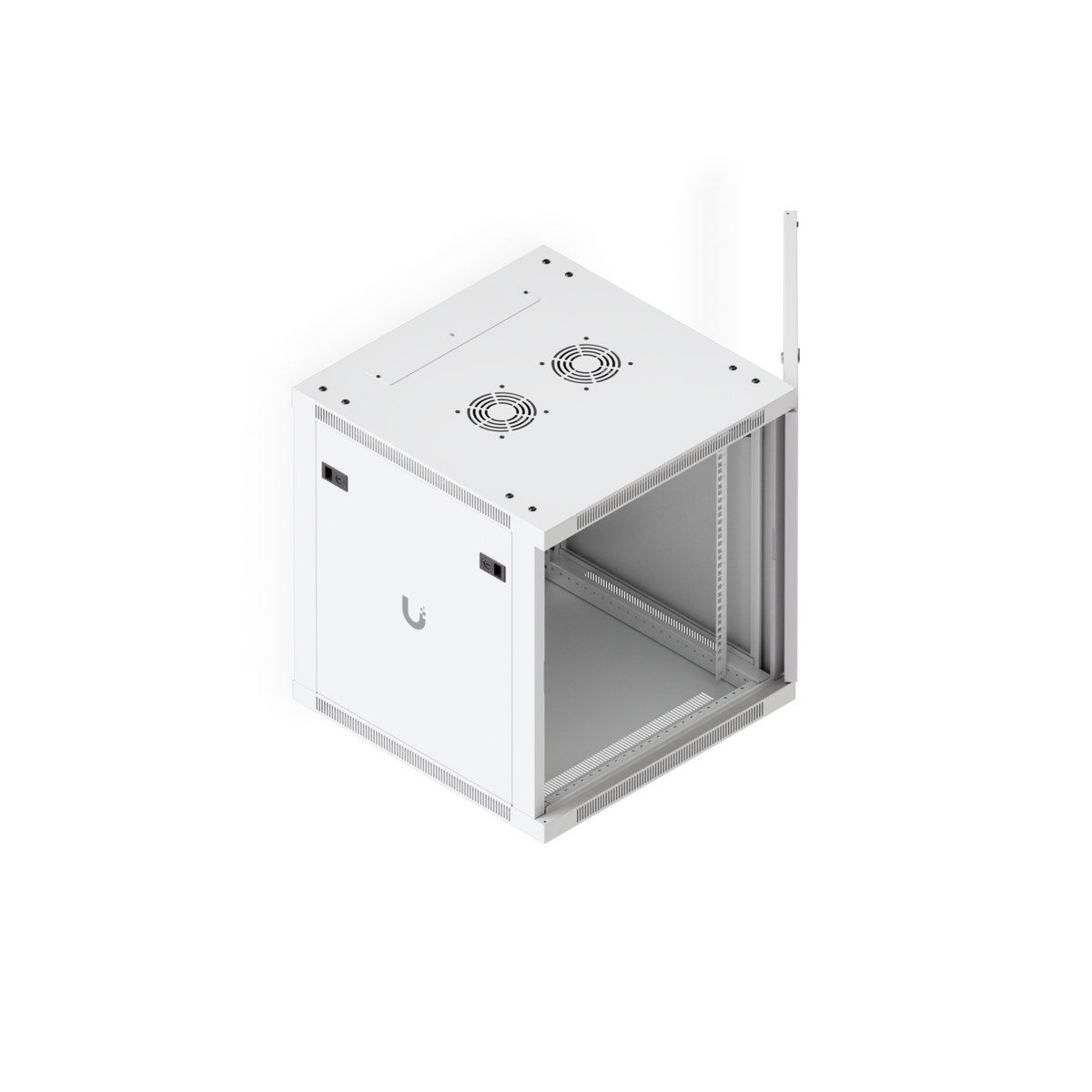

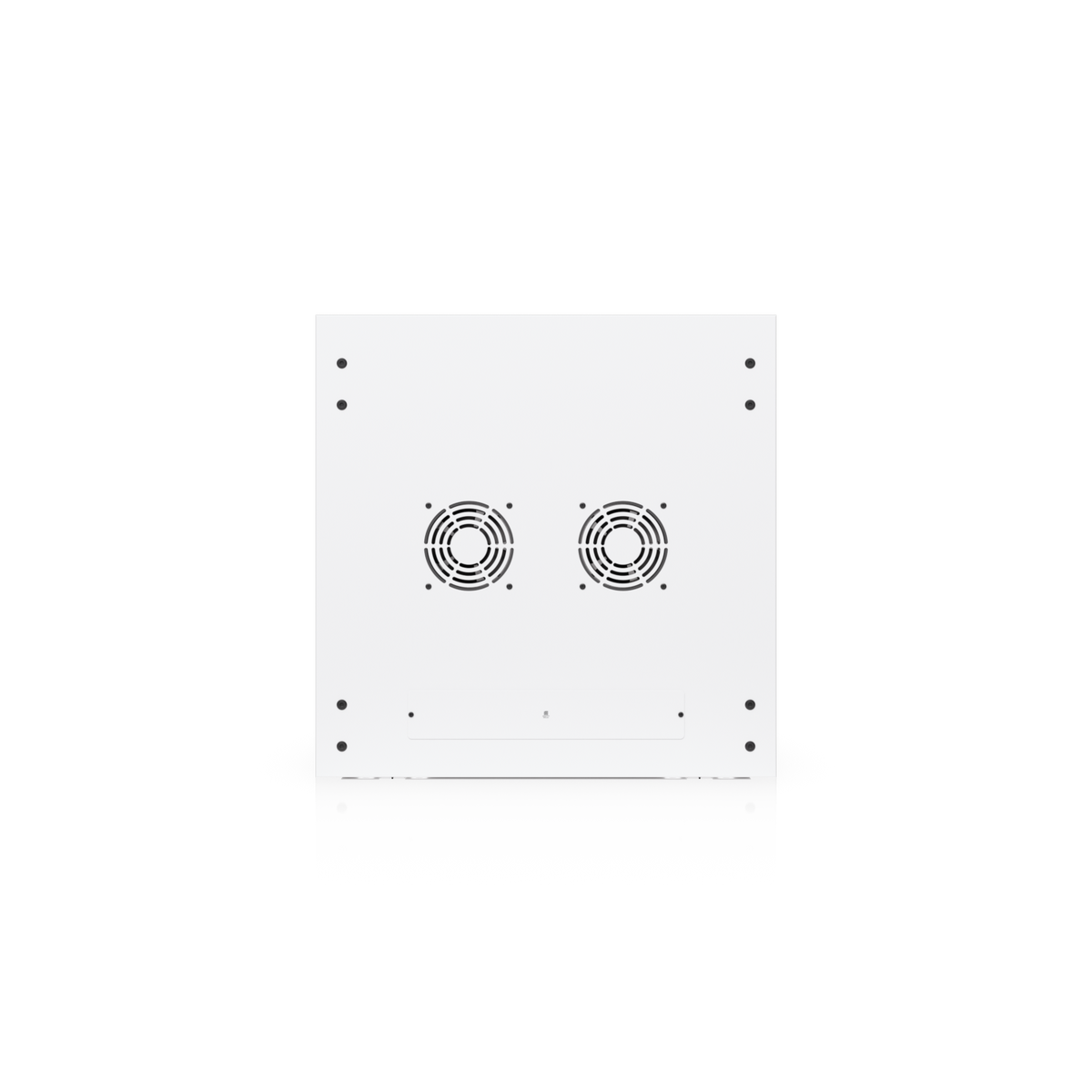

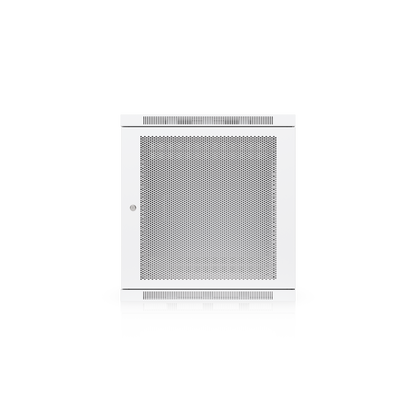

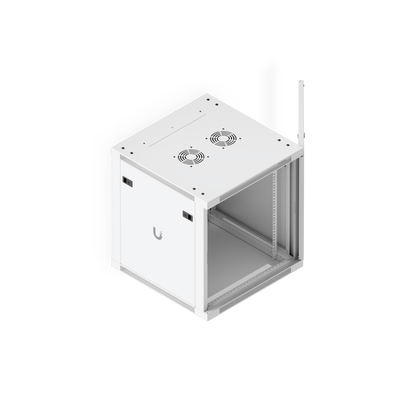

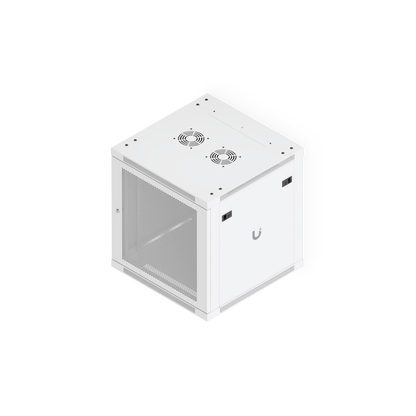

The perforated front door lets ambient air reach equipment faces directly instead of trapping heat behind glass. Backing it up are two pre-installed 120 x 120 x 38 mm AC fan modules, giving you active extraction when a densely populated 12U starts working hard. Total acoustic output stays at or below 50 dB(A) — quiet enough for an occupied office or classroom corridor.

Choosing between doors: pick the perforated variant when thermal headroom matters — PoE switches, gateways, or an NVR running 24/7. Pick the glass-door variant when the rack sits in a customer-facing space and appearance outranks airflow.

Lockable on every face

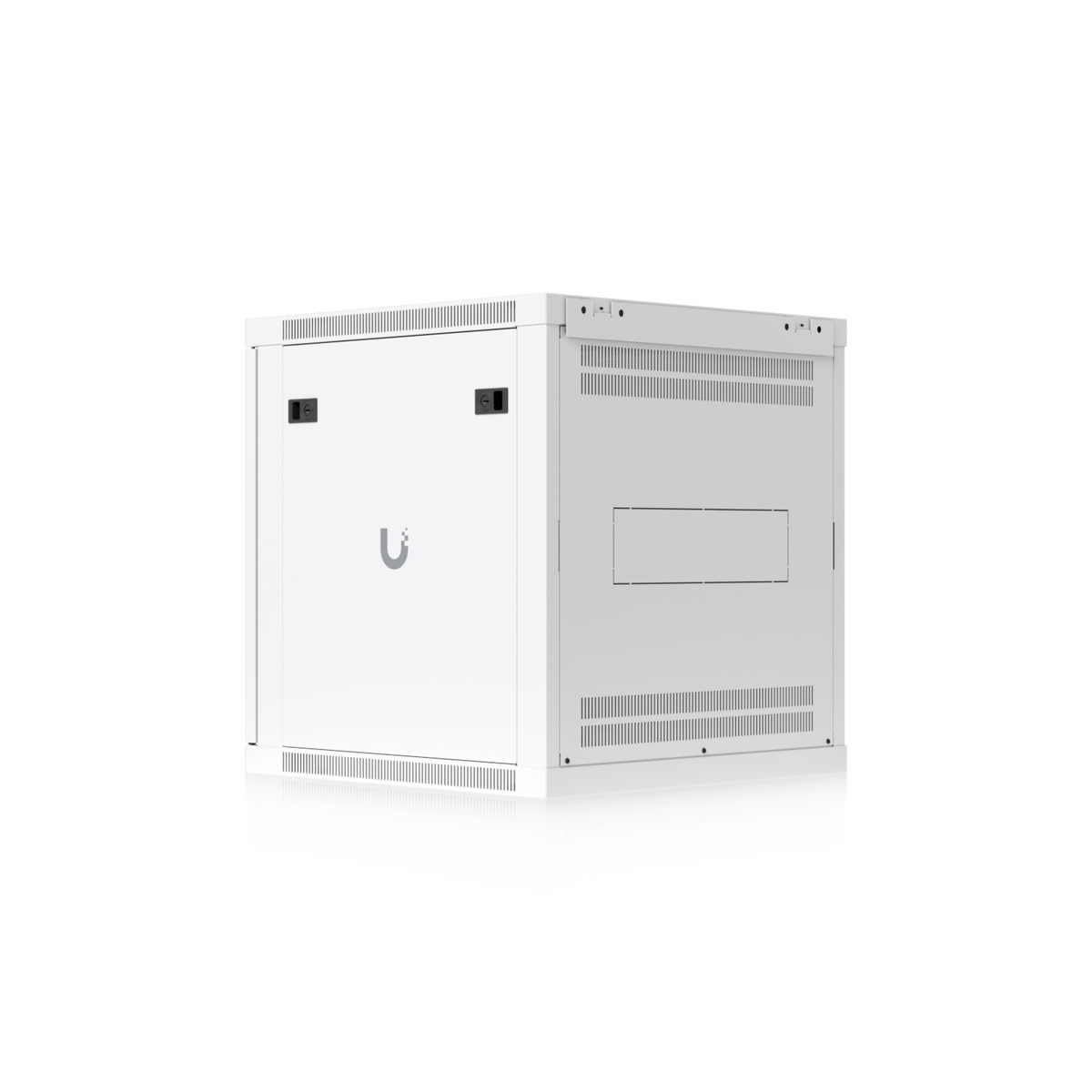

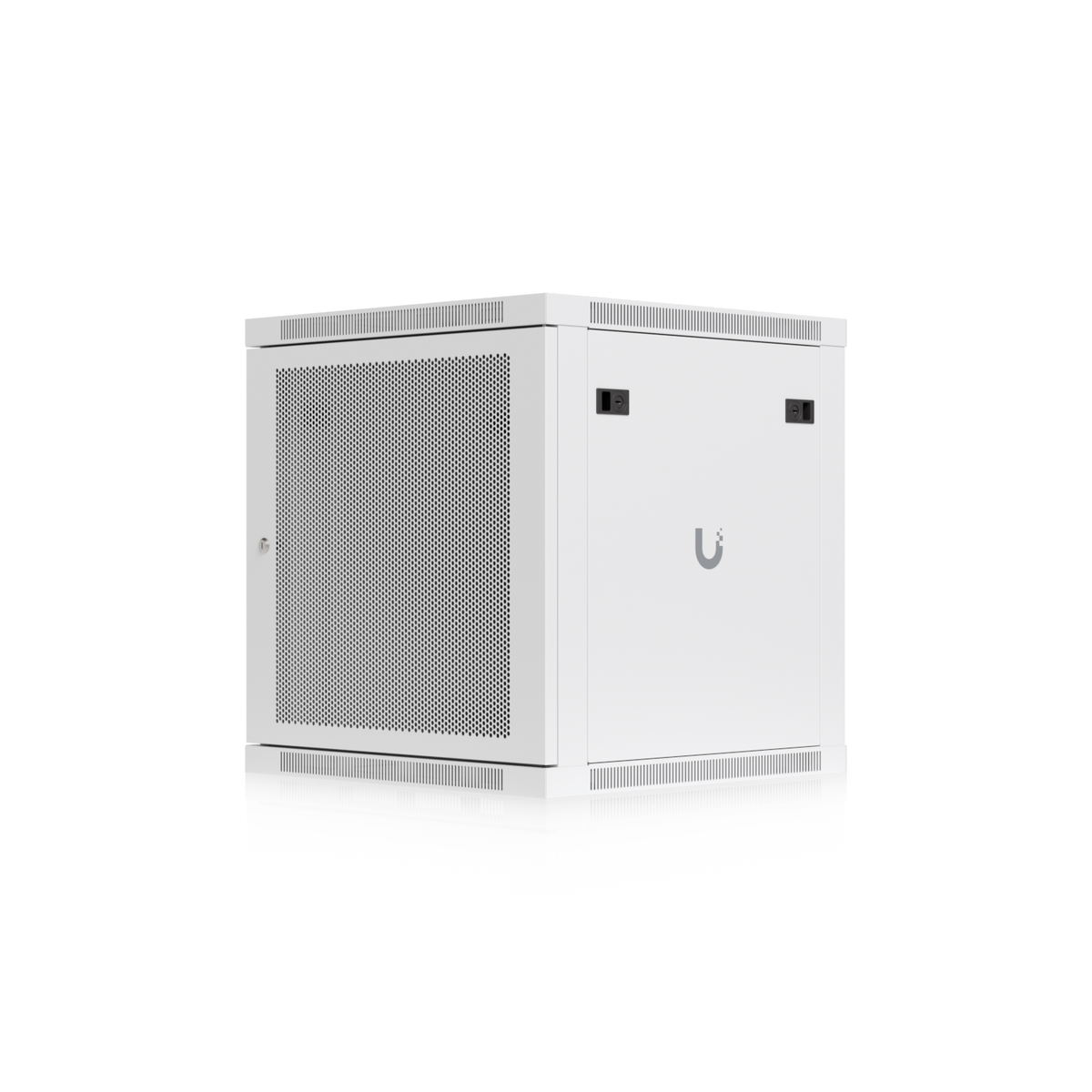

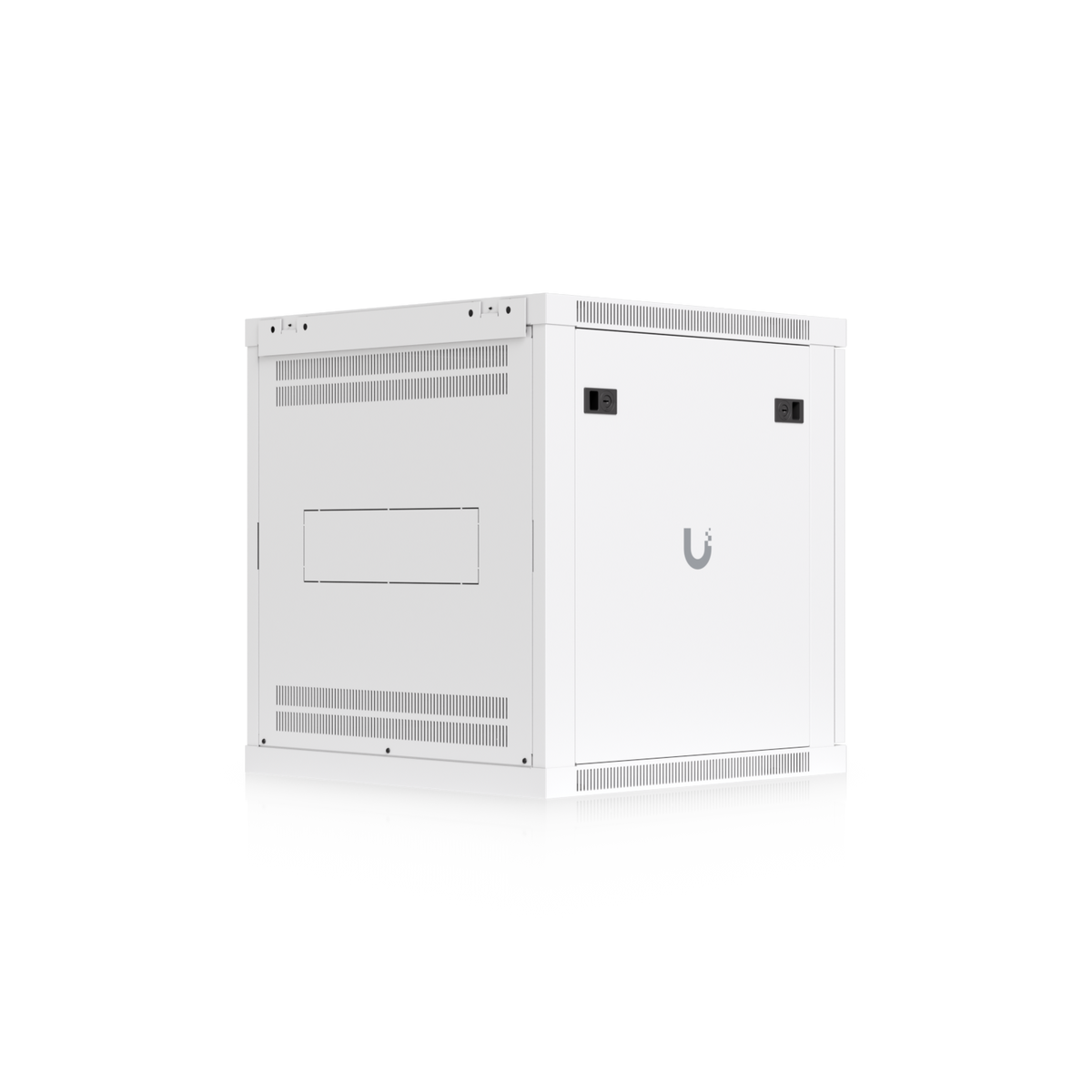

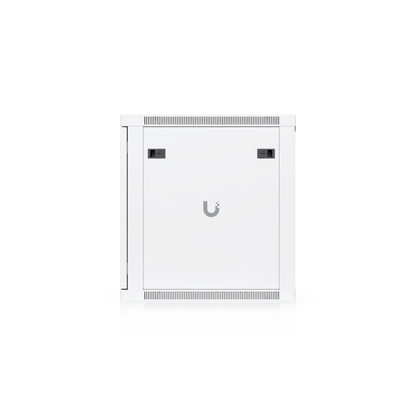

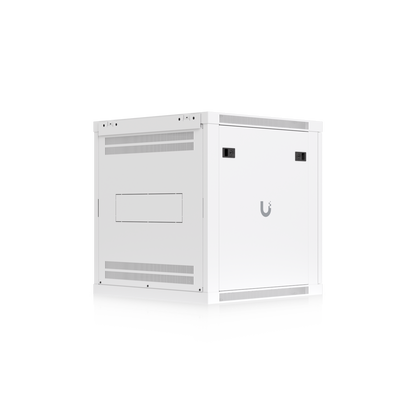

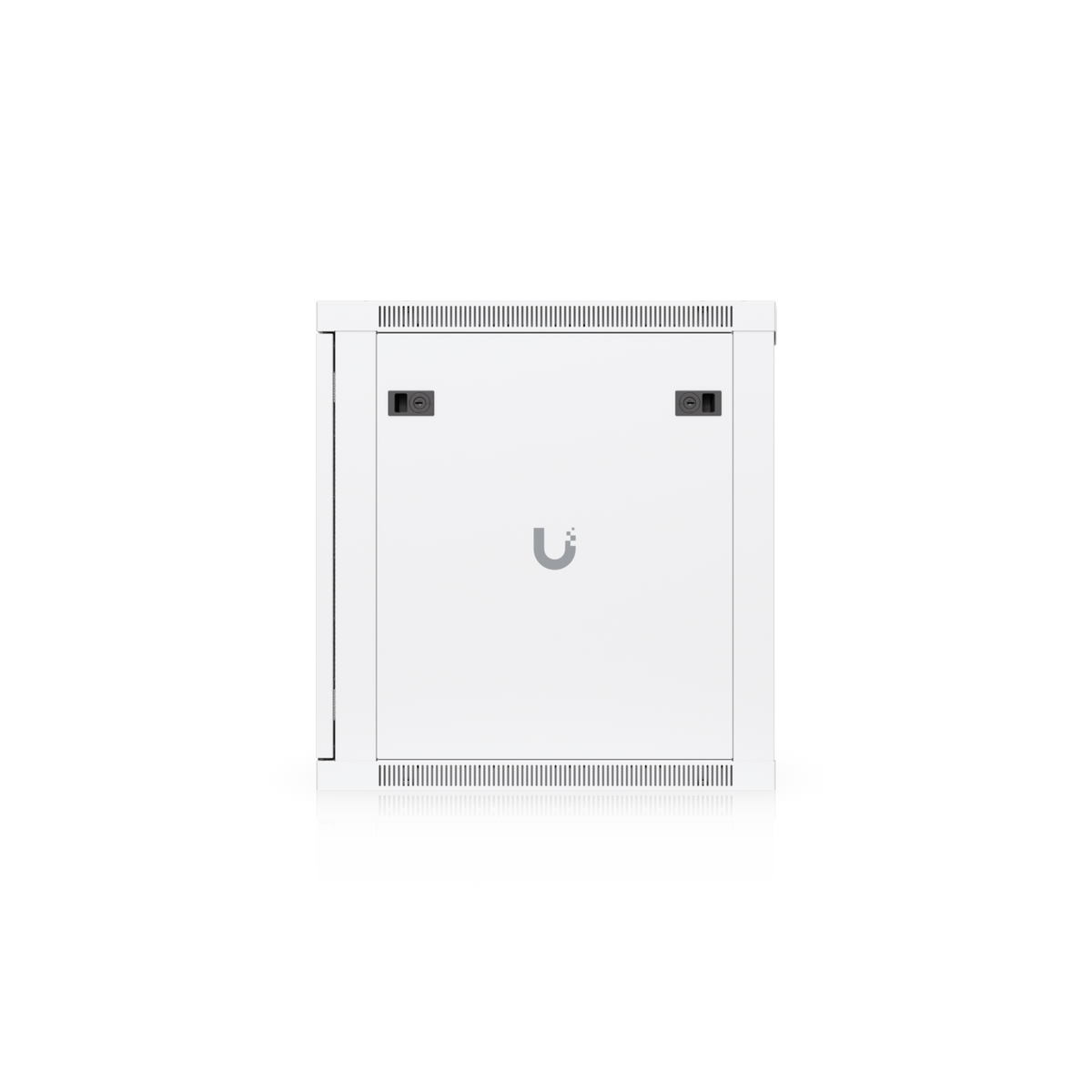

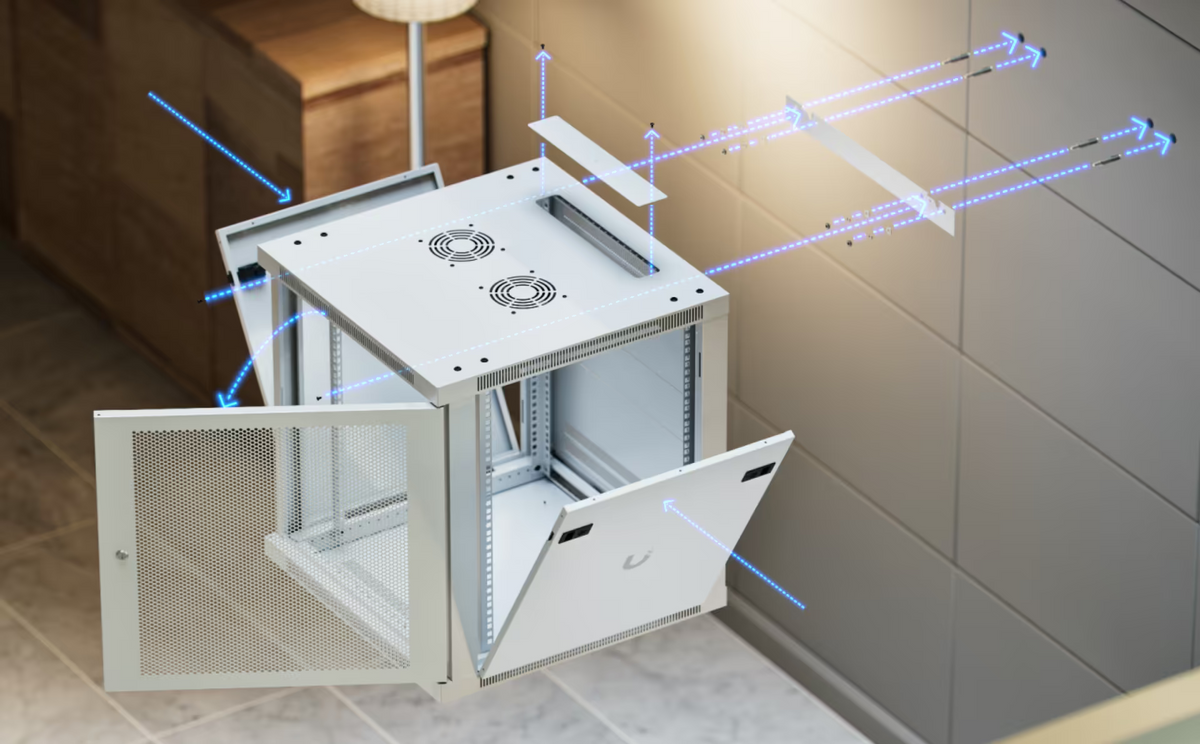

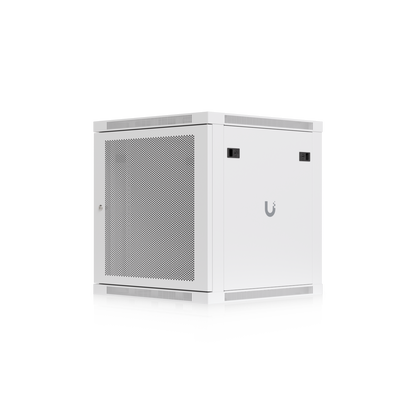

Security is built in, not bolted on: one front door lock, four side panel locks and two keys. The two solid side panels are both removable and lockable, so you get open-sided access during a build-out and a sealed enclosure once you hand the site over.

Adjustable depth for mixed-vendor gear

Square mounting holes to the EIA/ECA-310-E standard fit standard 19" rails, cage nuts and rack ears. Mounting depth ships at 448 mm (17.6") and adjusts out to 508 mm (20") in 20 mm (0.8") increments, so deeper UPS units, servers and NVRs slot in alongside shallow UniFi switches.

Cable entry on three faces

Route cable however the room demands:

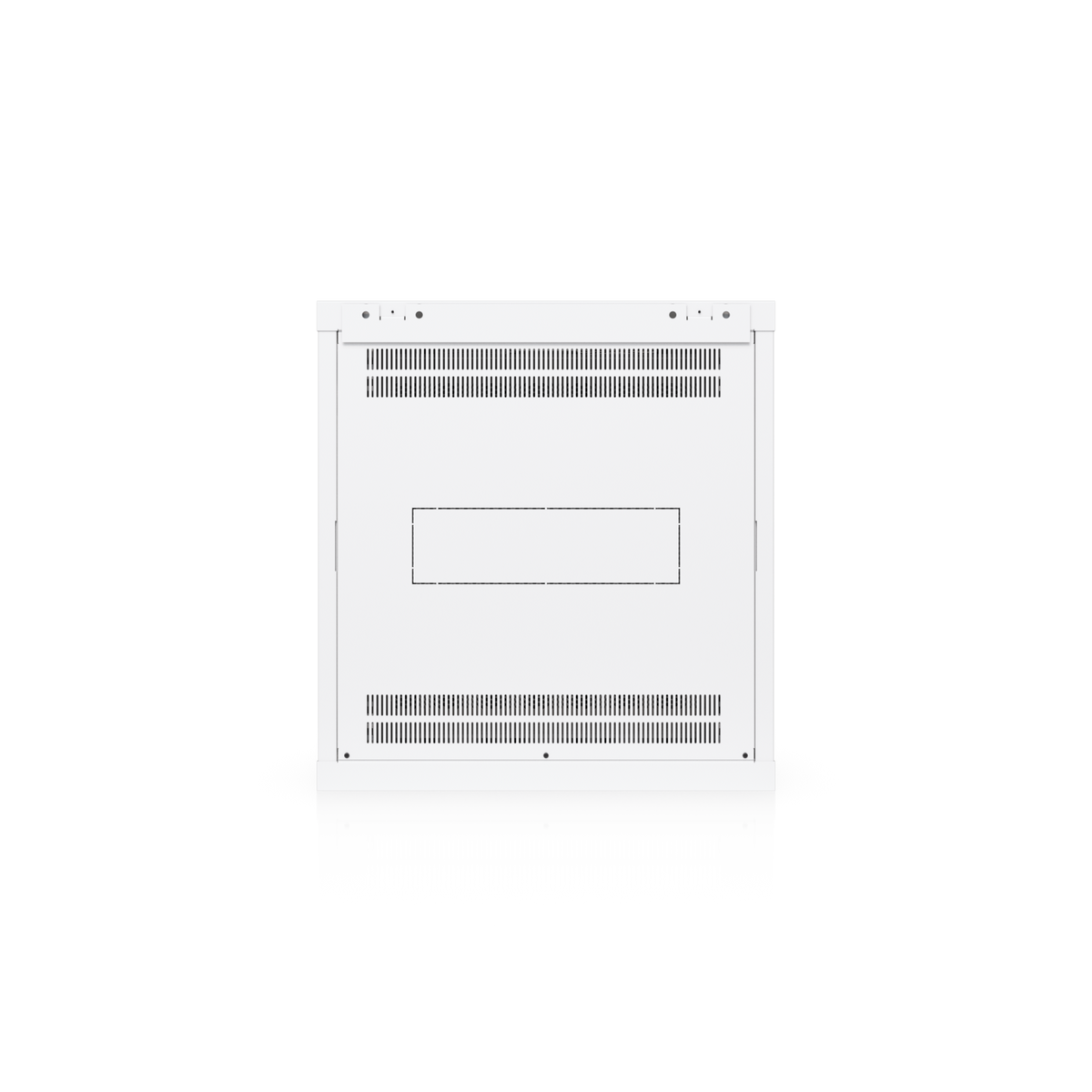

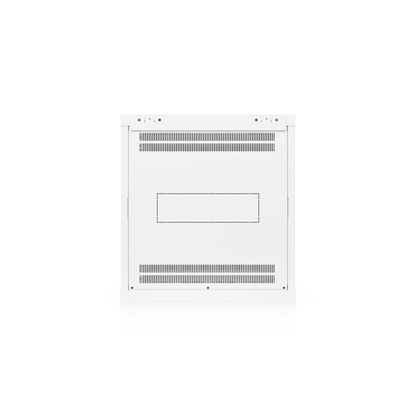

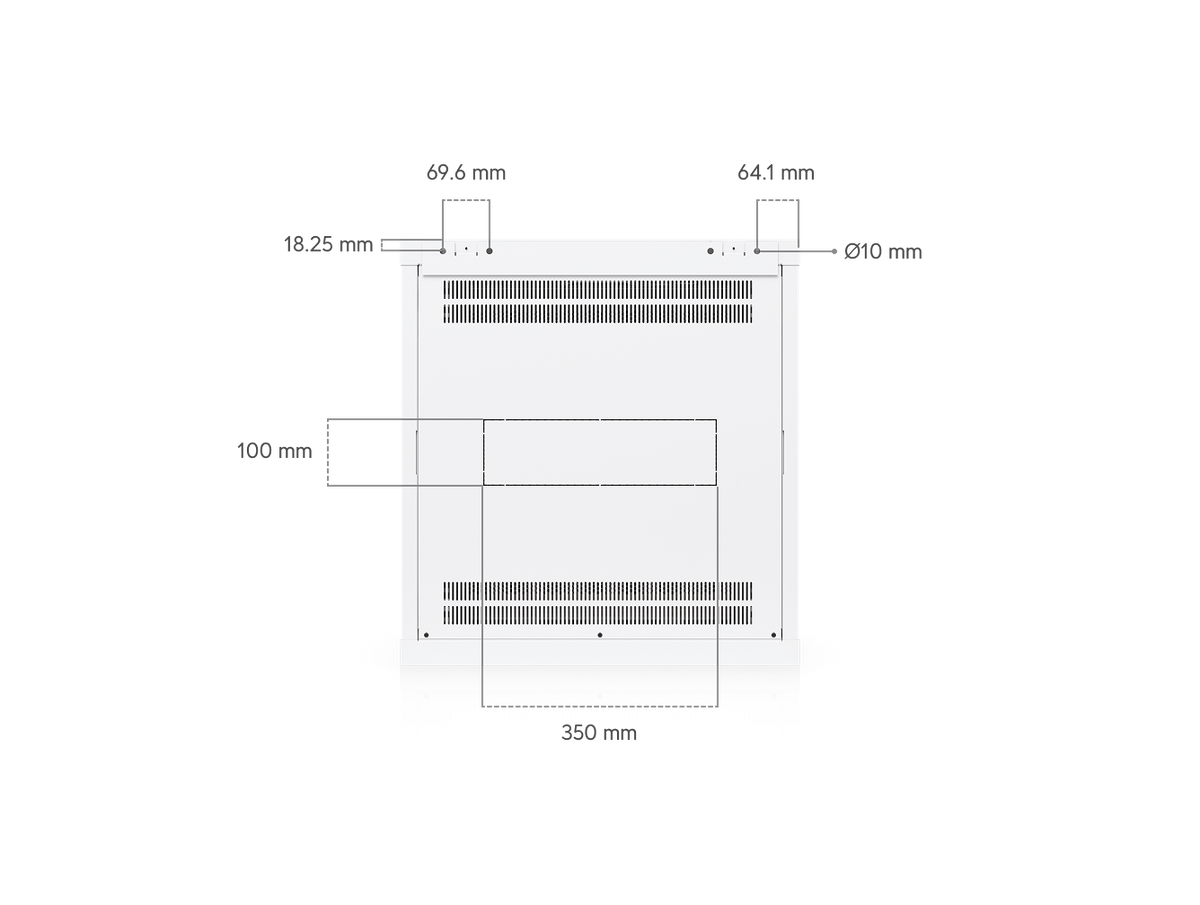

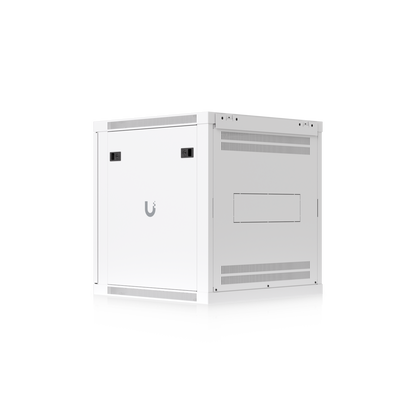

• Rear wall: 350 x 100 mm (13.8 x 3.9").

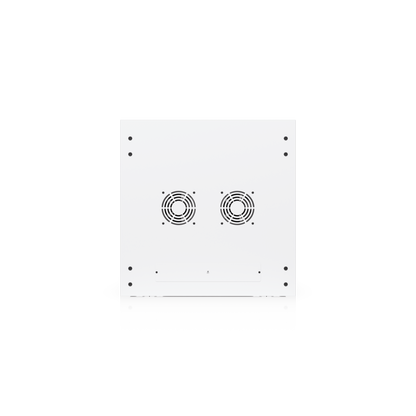

• Top: 336.5 x 52.5 mm (13.2 x 2.1").

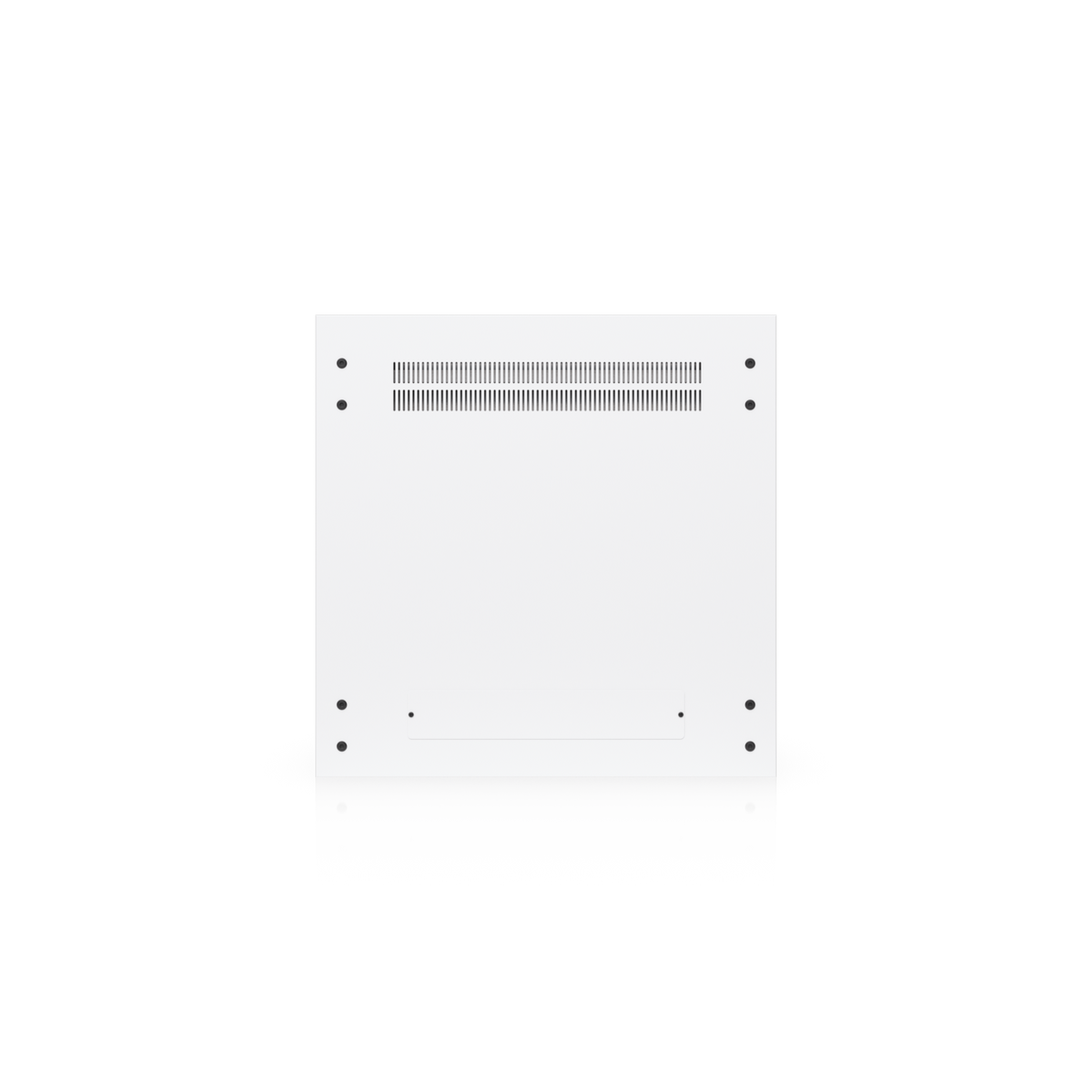

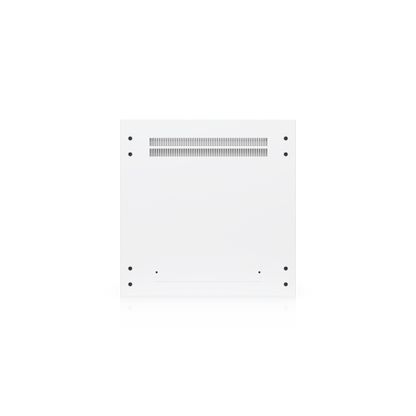

• Bottom: 336.5 x 52.5 mm (13.2 x 2.1").

Integrated grounding lugs make bonding to site earth straightforward and compliant.

Built to last

The enclosure is SPCC steel with a white powder-coat finish — 1.2 mm door and side panels, 1.2 mm main body, and 2 mm posts carrying up to 80 kg (176 lb) of equipment.

Key features

• 12U capacity, 4-post enclosed cabinet, wall-mounted.
• Ships fully assembled — no on-site build required.
• Perforated front door, reversible (default left-hand outswing).
• Two pre-installed 120 x 120 x 38 mm AC fan modules, ≤ 50 dB(A).
• Two solid side panels — removable and lockable.
• 80 kg (176 lb) maximum equipment load.
• Adjustable mounting depth: 448 mm default, 508 mm max, 20 mm pitch.
• Square mounting holes, EIA/ECA-310-E compliant.
• Six locks and two keys (1 front door + 4 side panels).
• Three cable-entry openings — rear, top and bottom.
• Grounding lugs included.
• SPCC steel, powder-coated white.
• NDAA compliant; CE and RoHS certified.

Ideal for

• Small and medium office comms rooms.
• Retail back-of-house and hospitality sites.
• Classrooms, school blocks and campus IDFs.
• Medical, dental and allied-health practices.
• Home labs and prosumer network builds.
• Government and federally funded projects requiring NDAA-compliant hardware.
