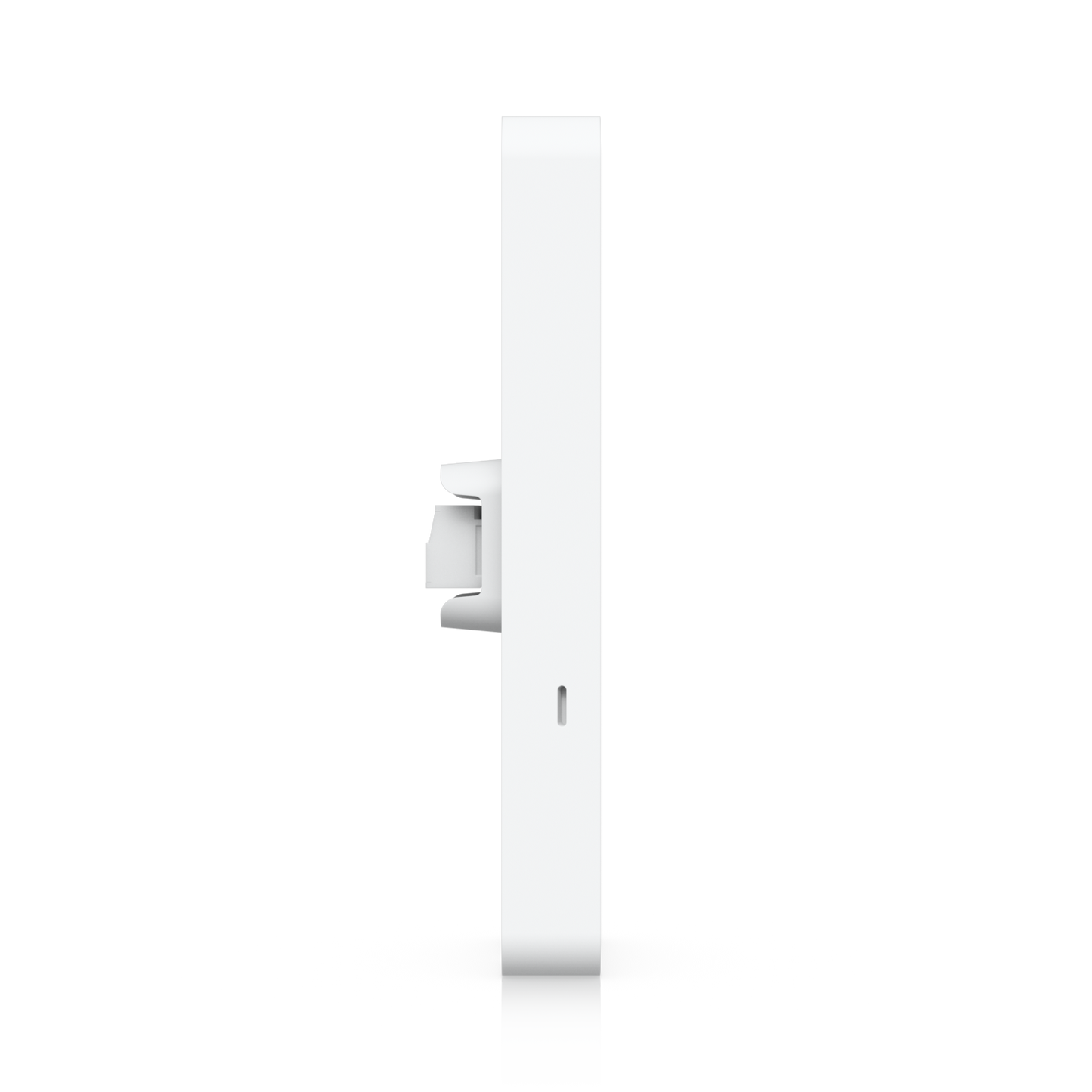

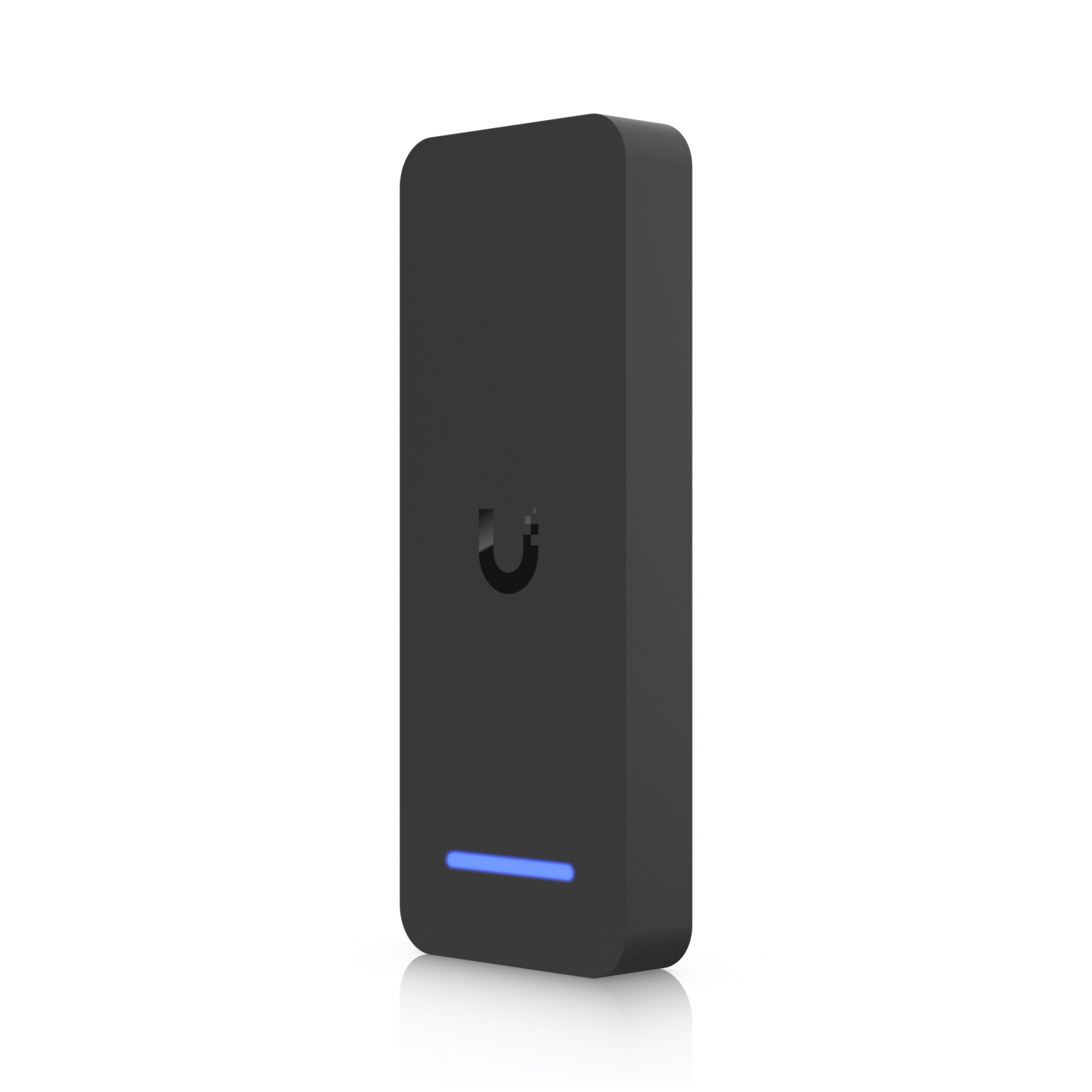

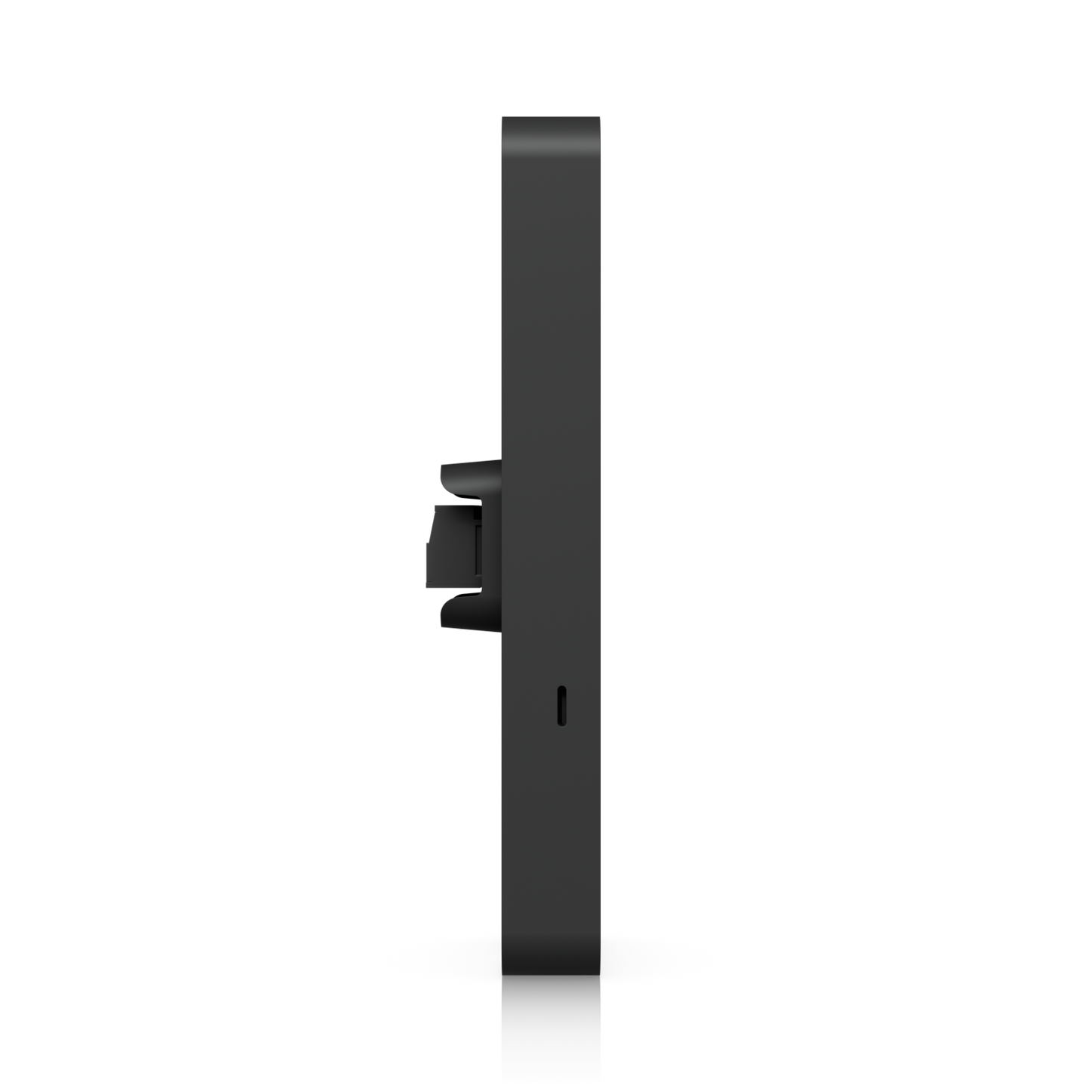

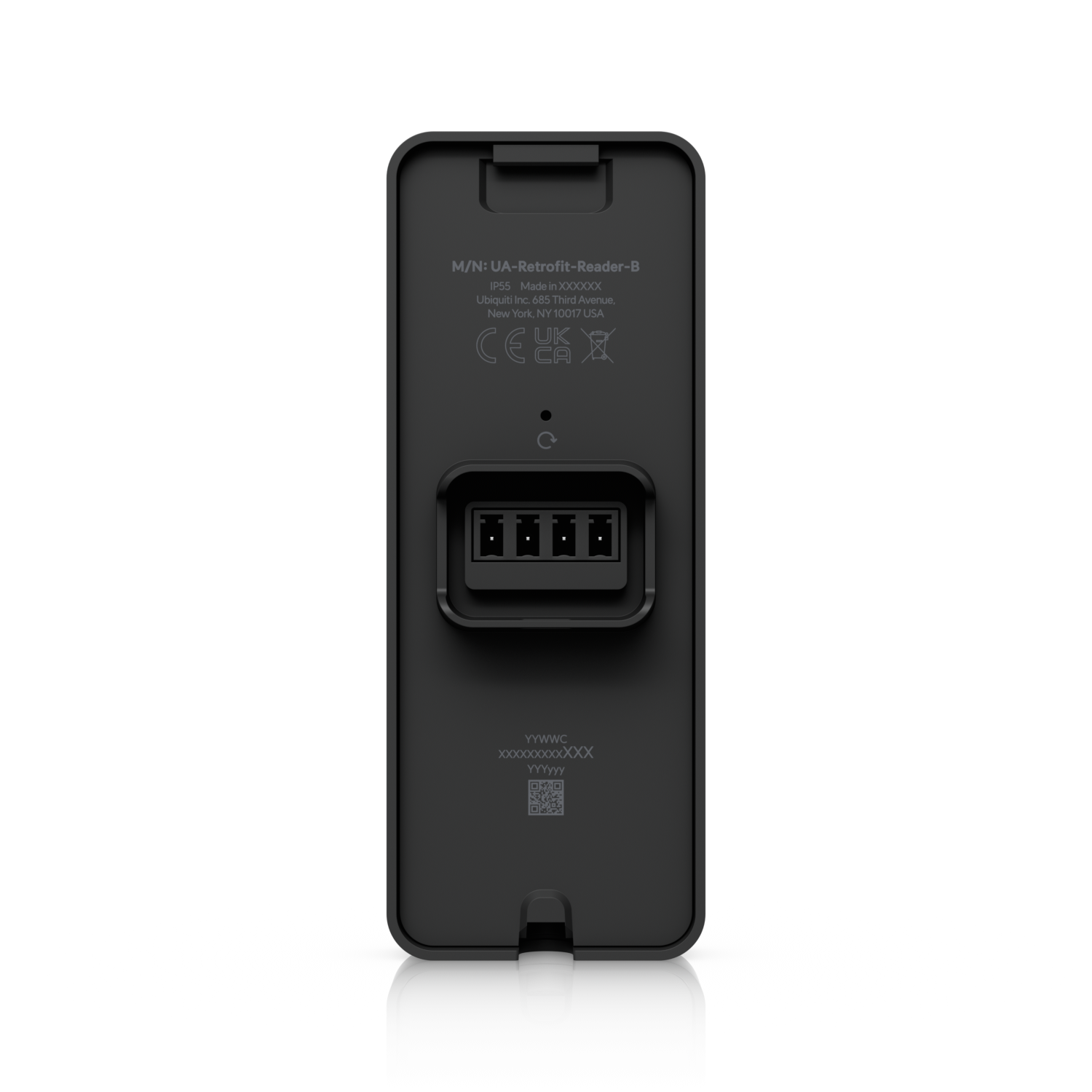

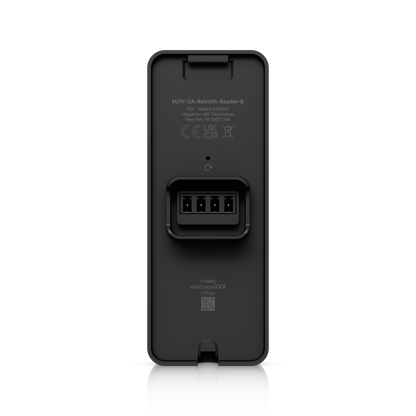

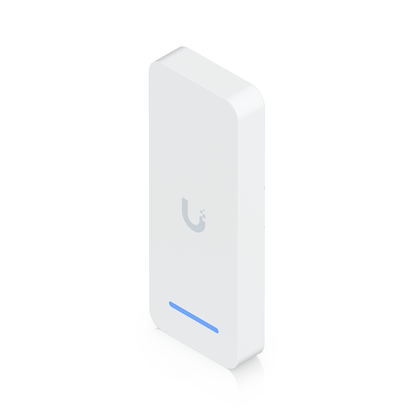

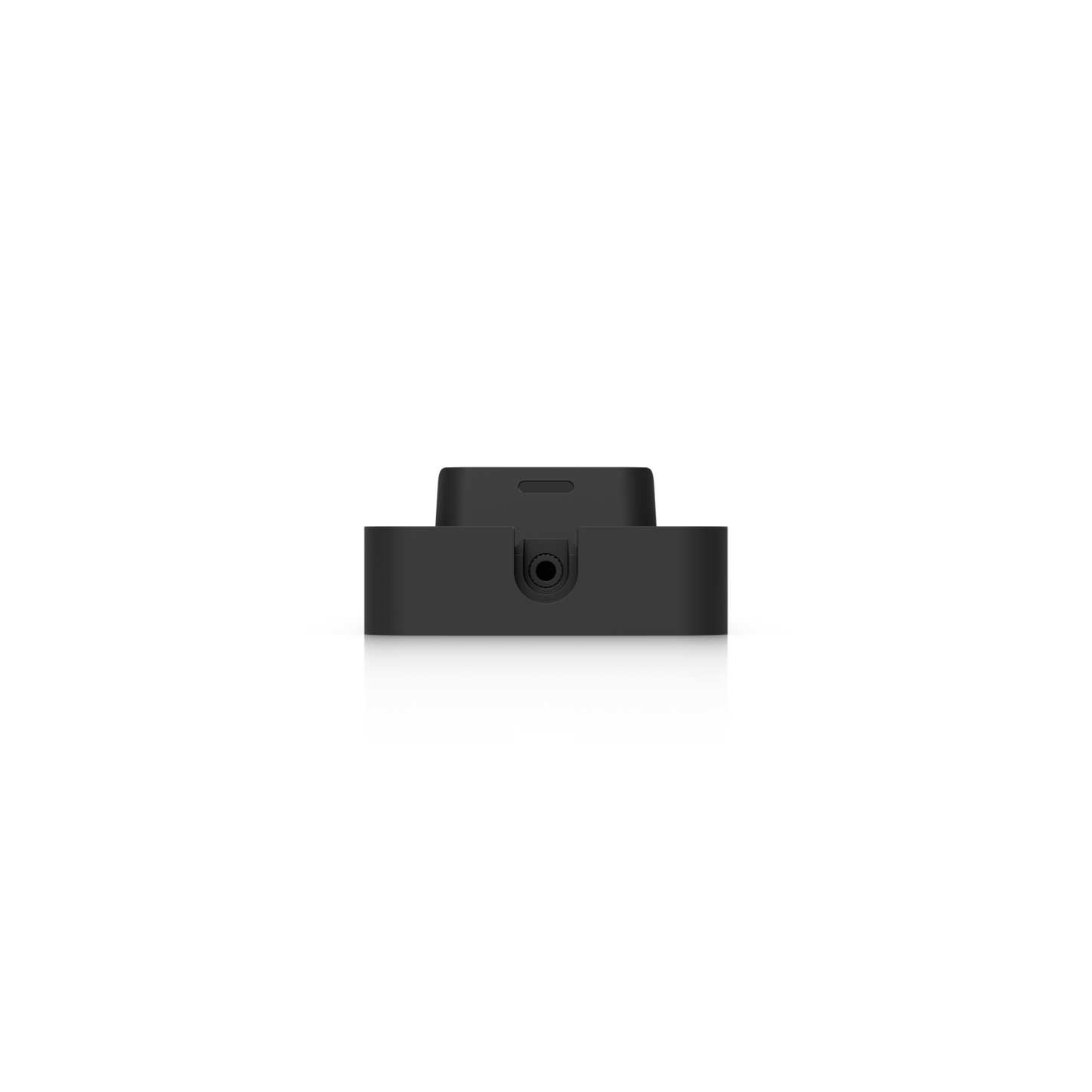

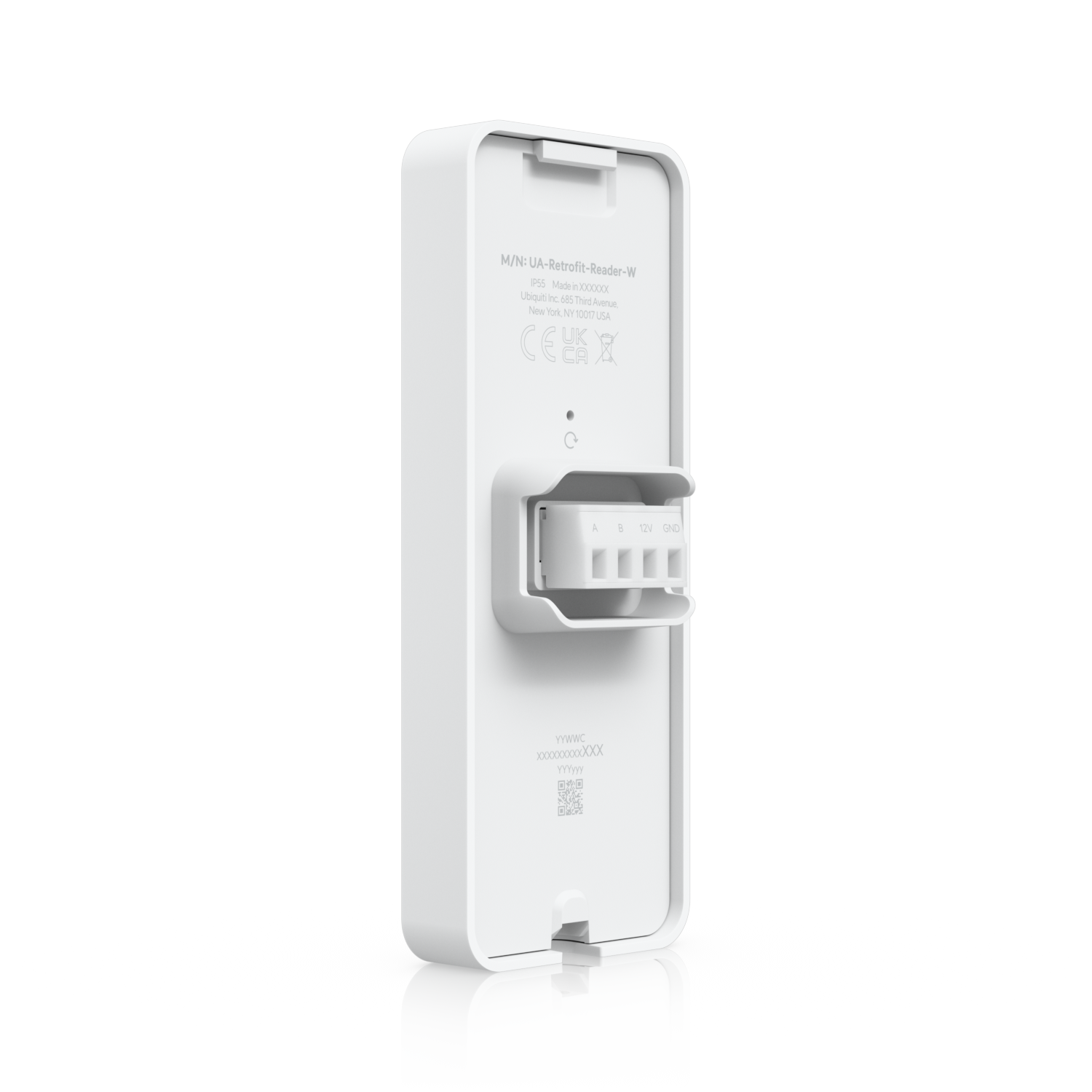

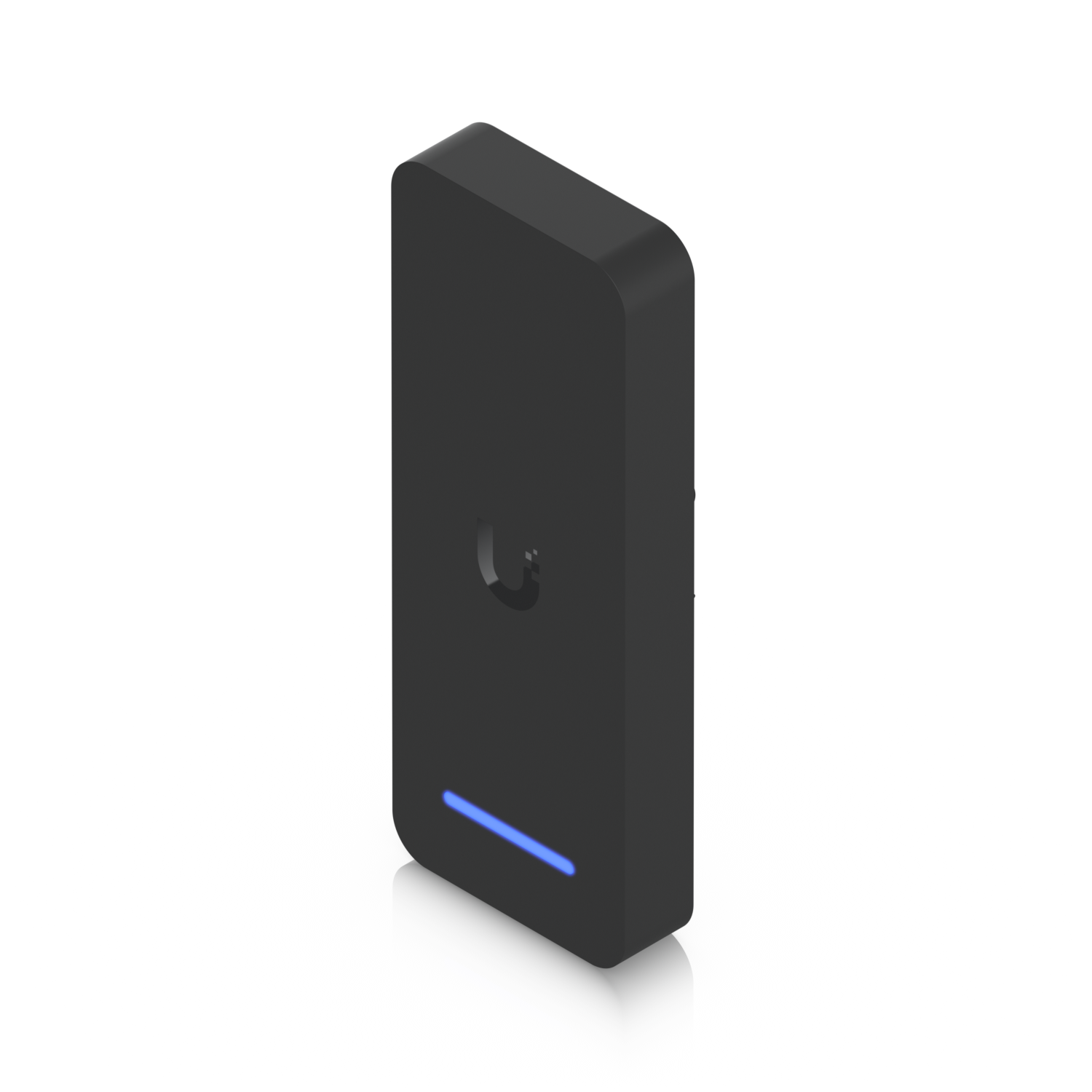

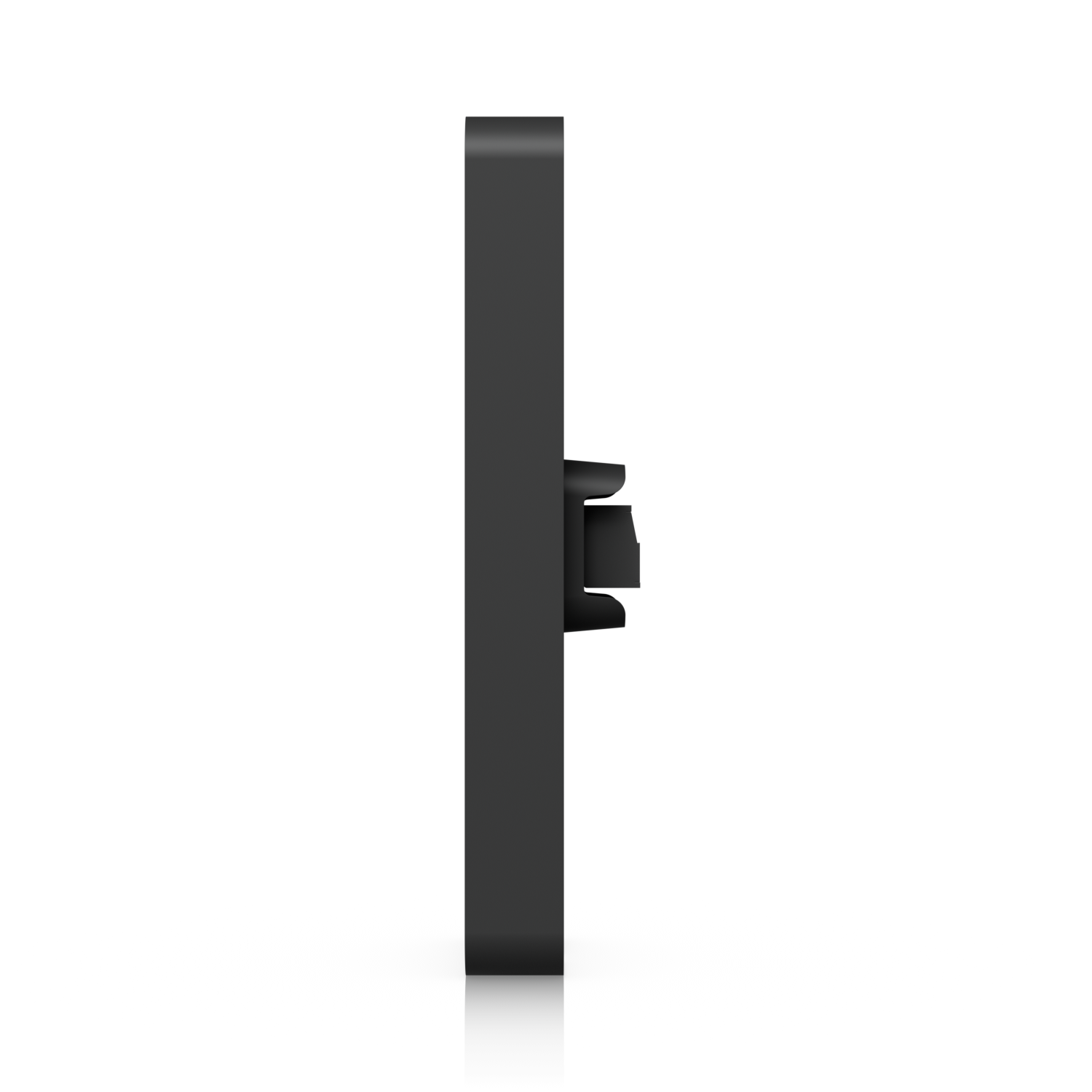

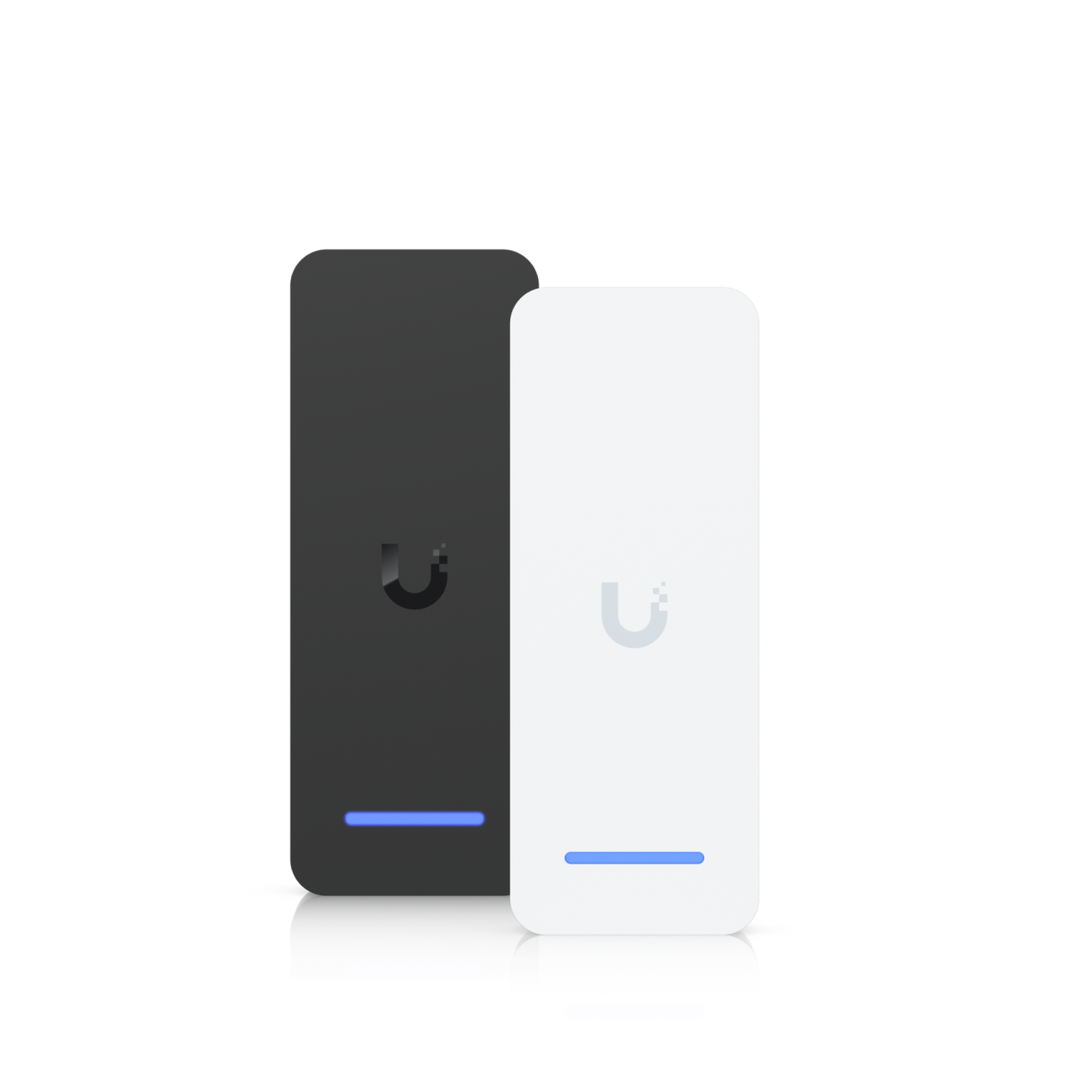

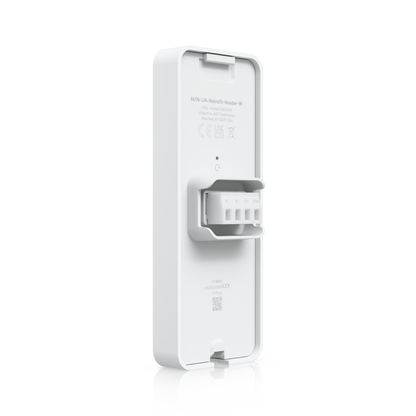

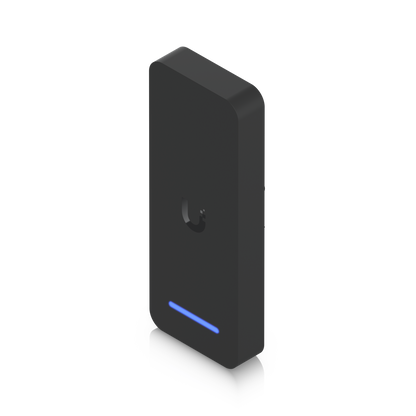

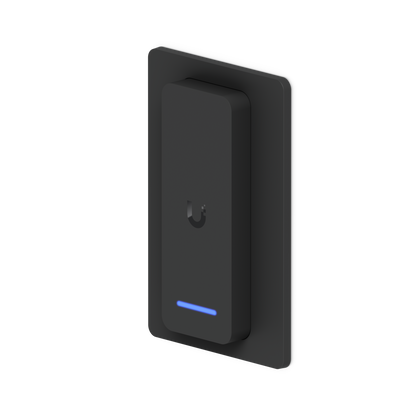

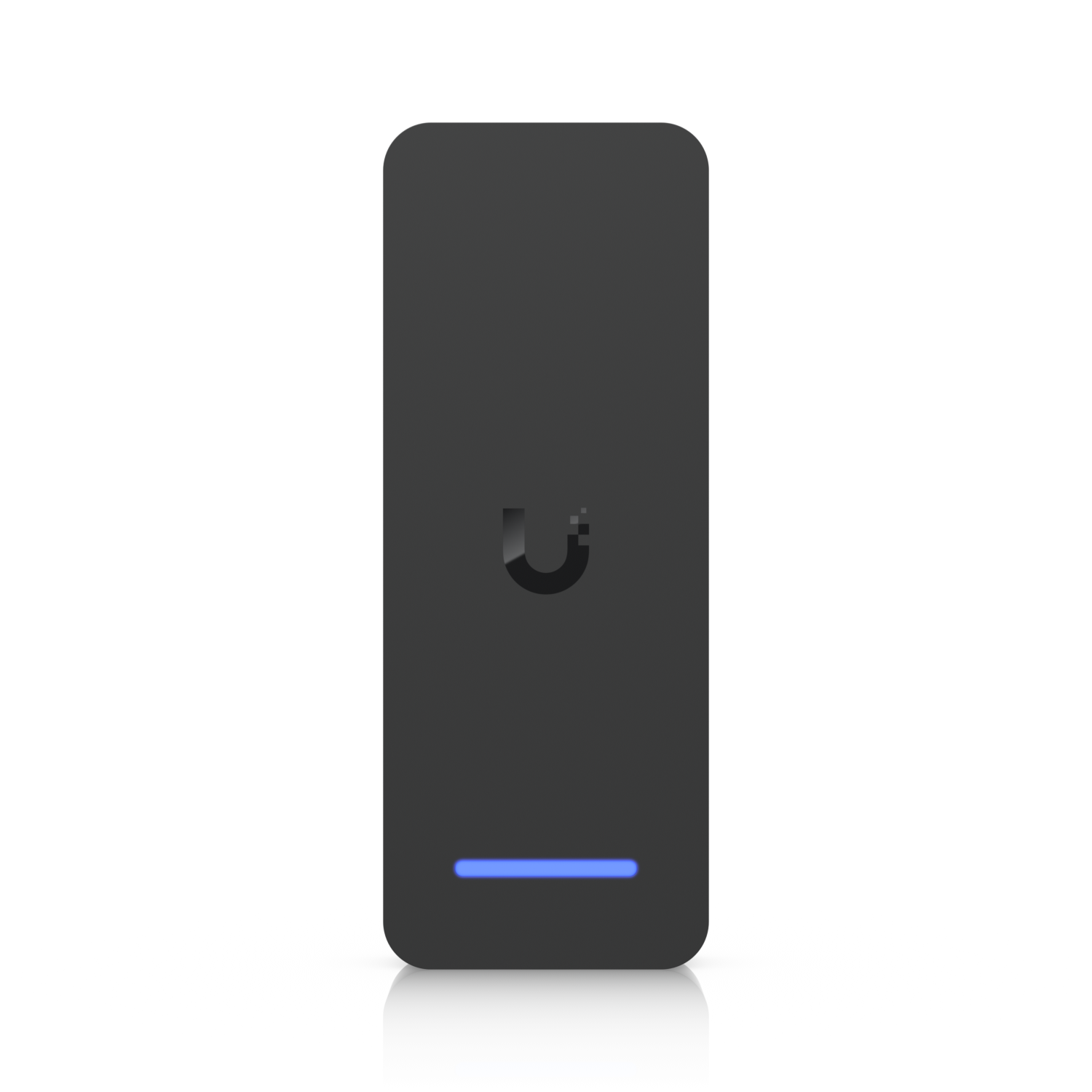

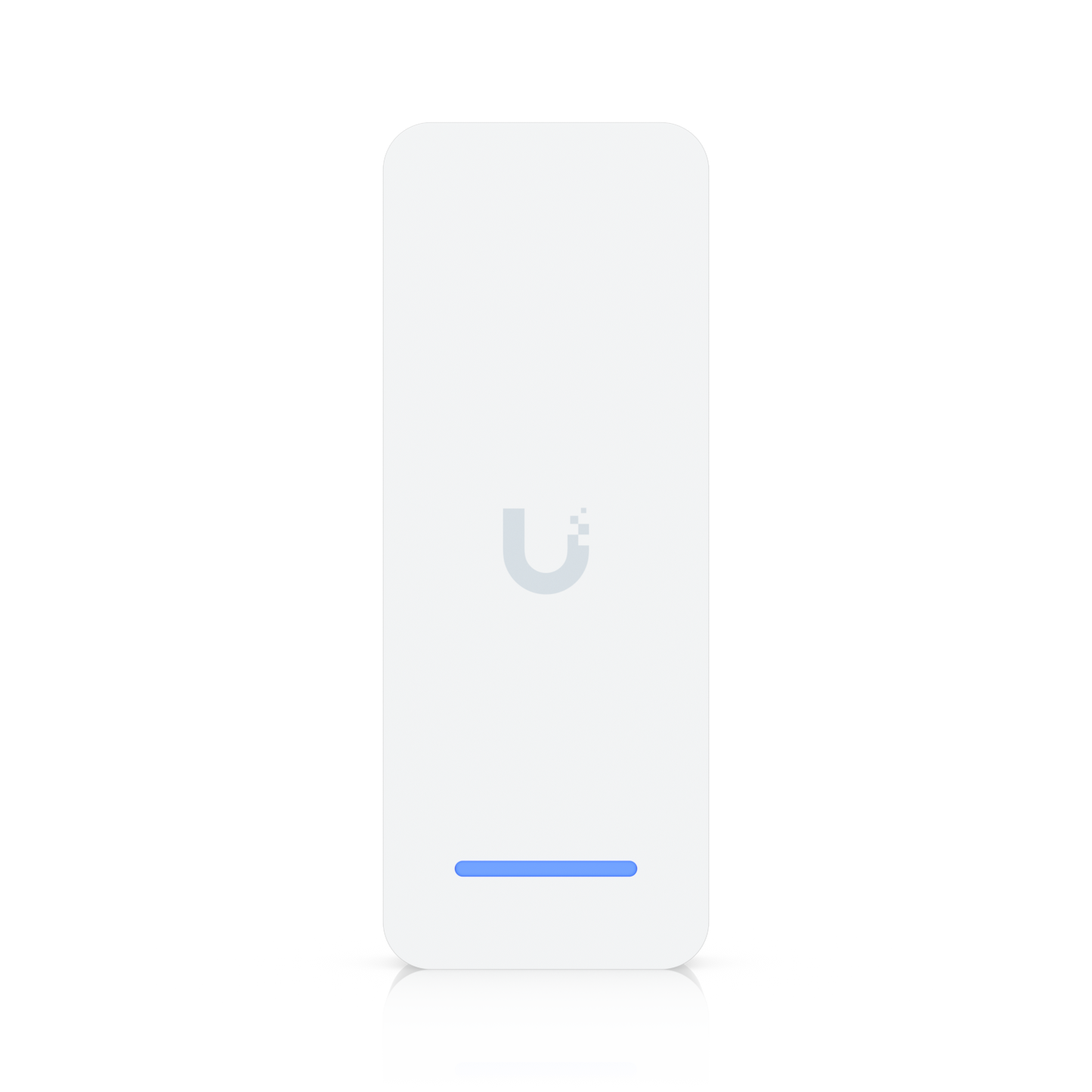

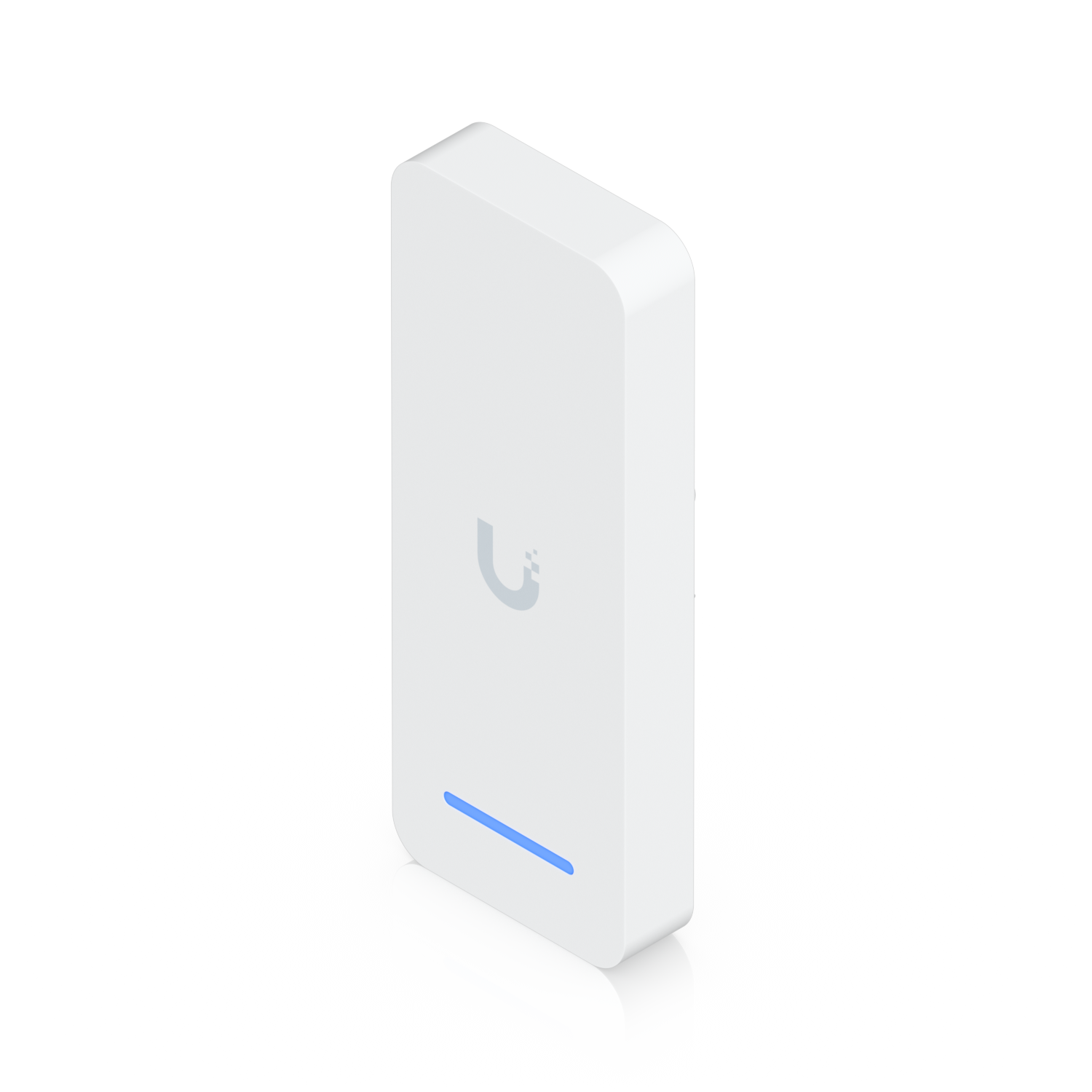

UniFi Retrofit Reader
Ubiquiti UA-Retrofit-Reader UniFi Retrofit Reader
SKU:UA-Retrofit-Reader-B
EOFY Sale. Limited promotional stock available — don’t miss out!
60 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

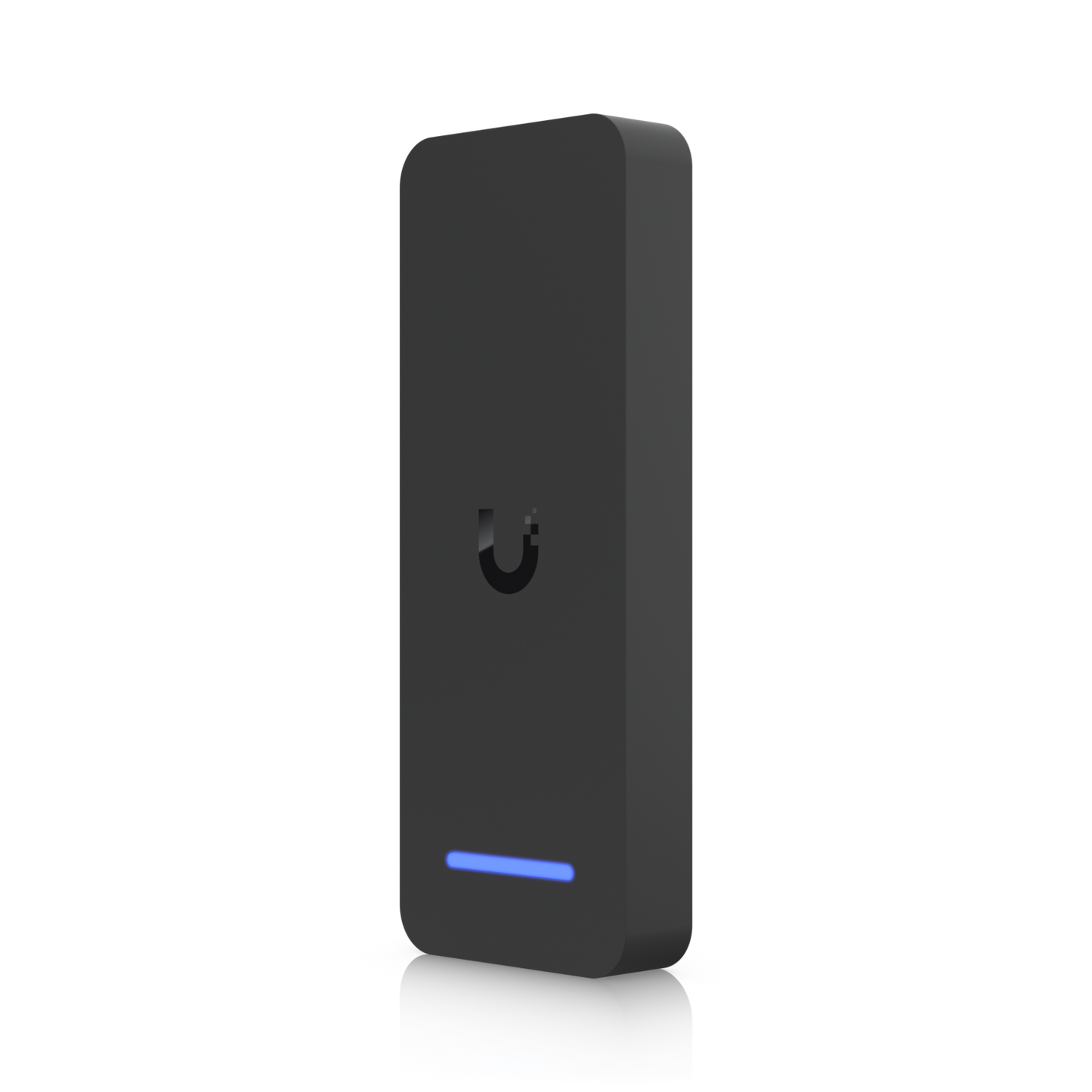

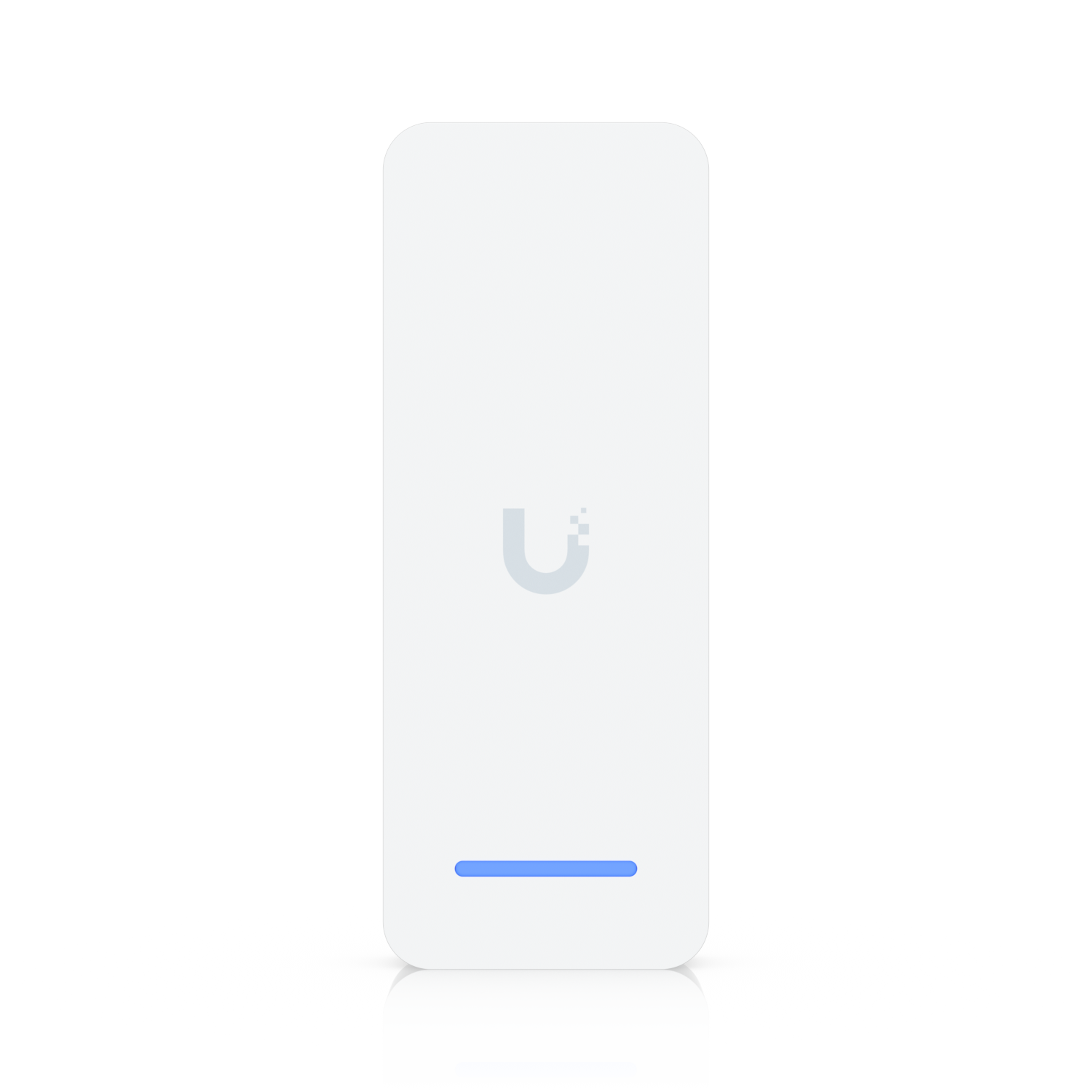

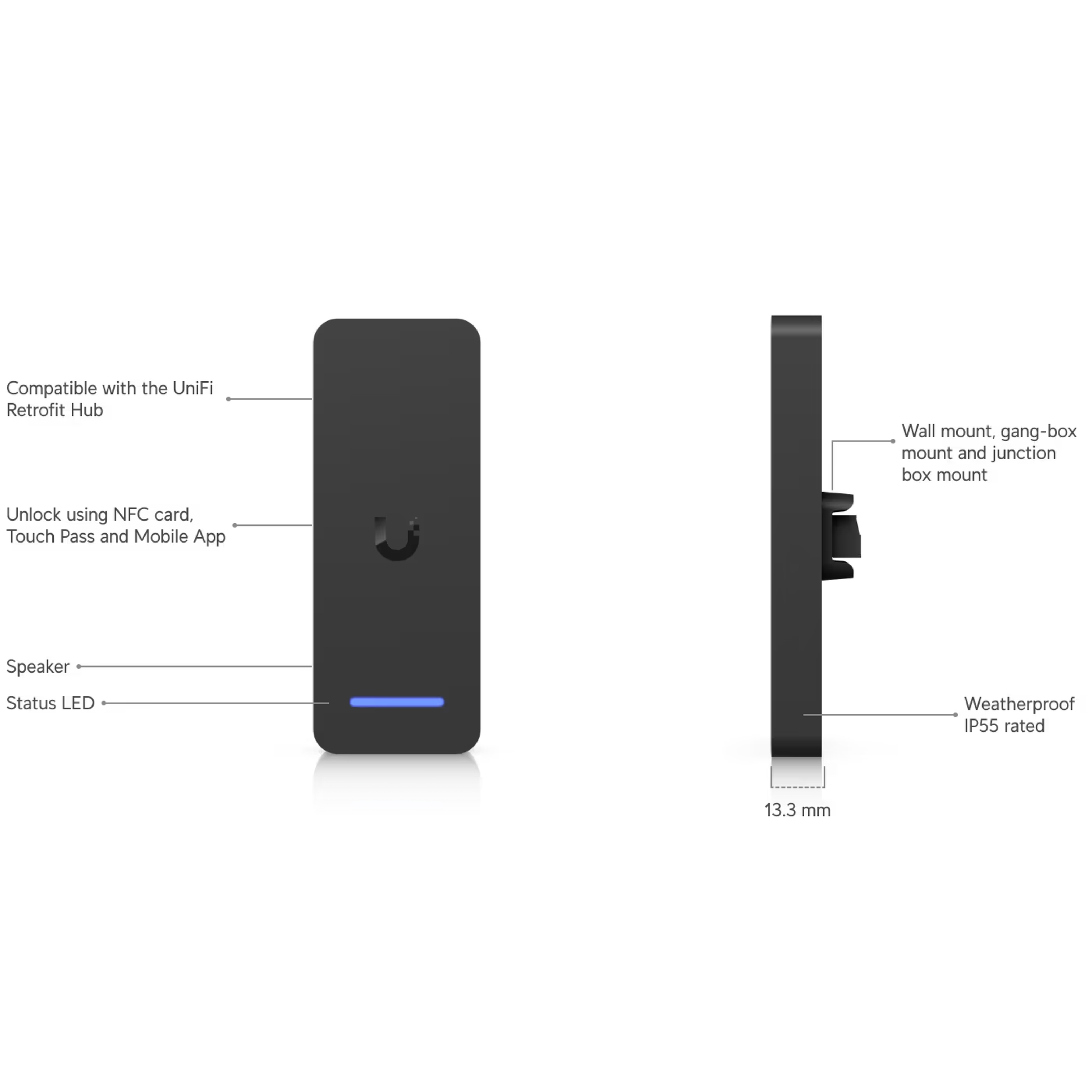

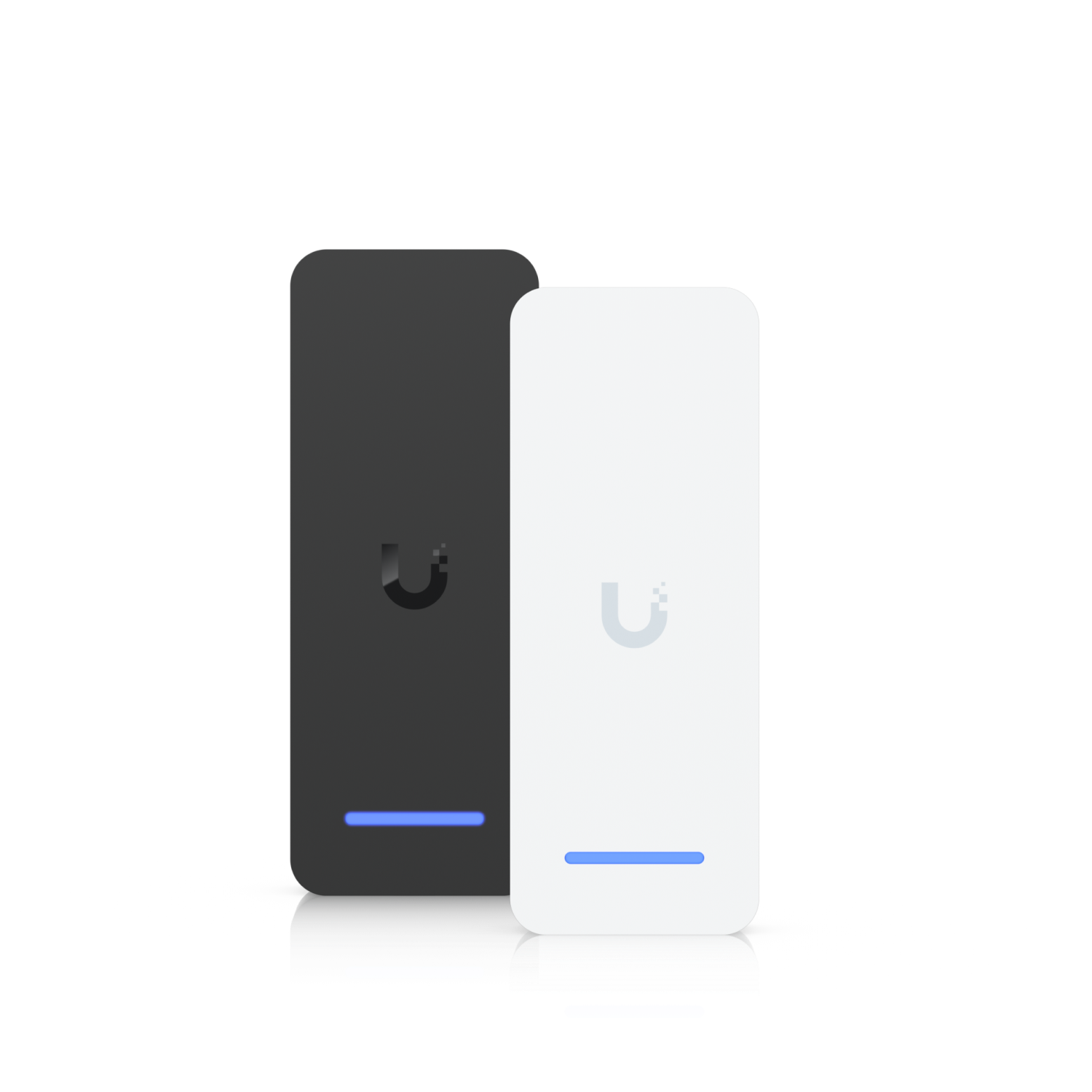

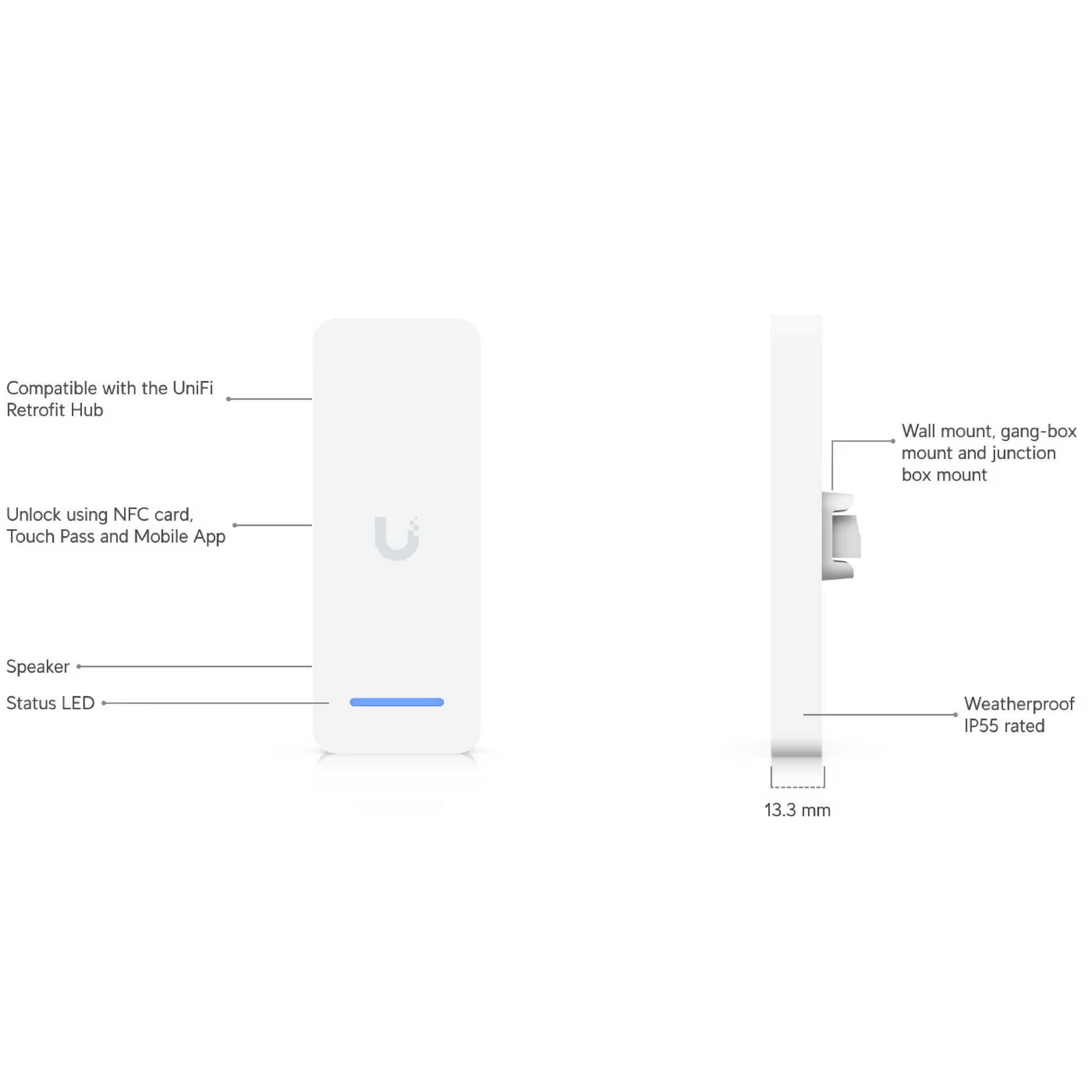

Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.
Note. Touch Pass is not supported in Brazil, China, Kosovo, Vietnam, Nepal and any country or region subject to the sanctions of the United States government and other relevant governments.
View Installation Guide| Overview | |
|---|---|
| Dimensions |

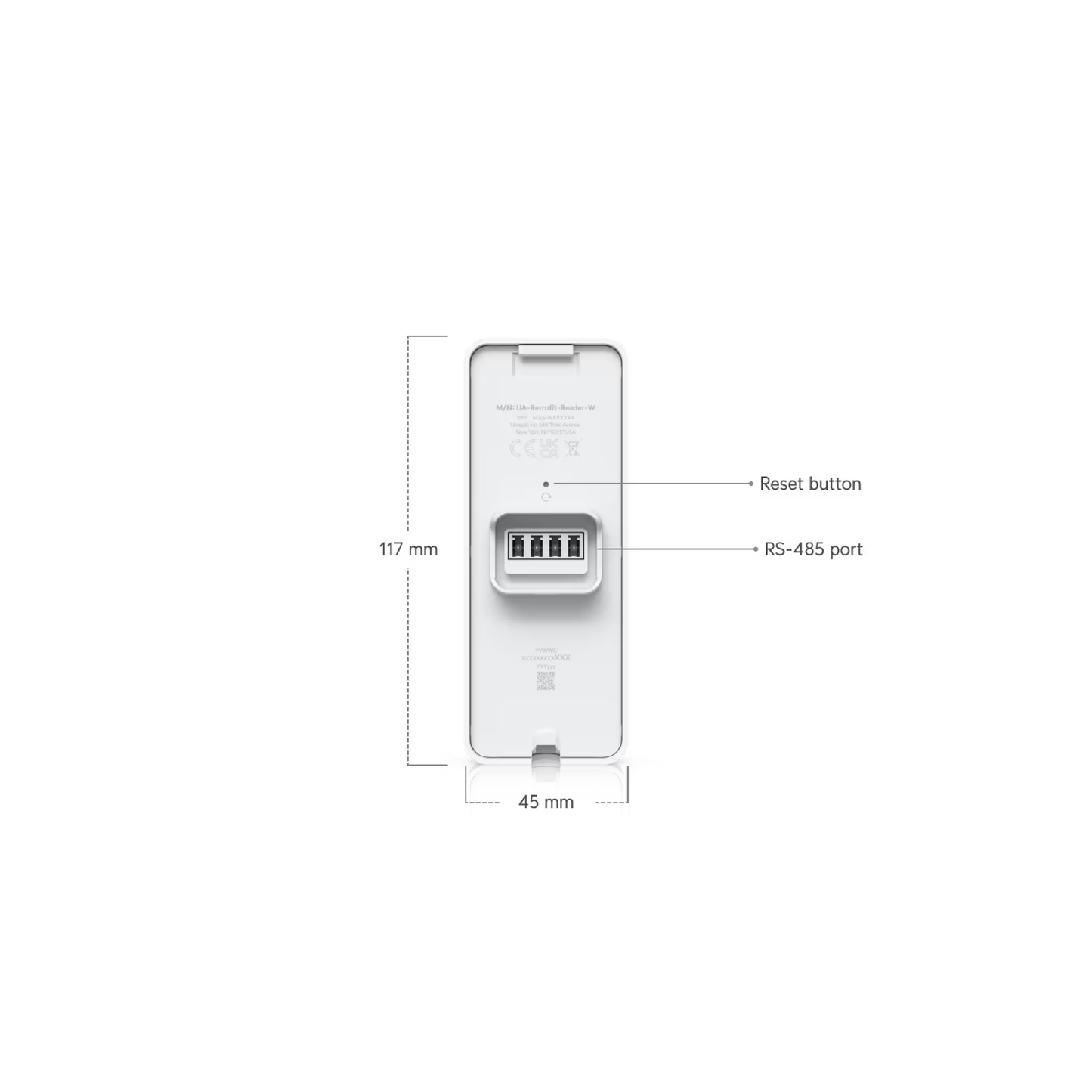

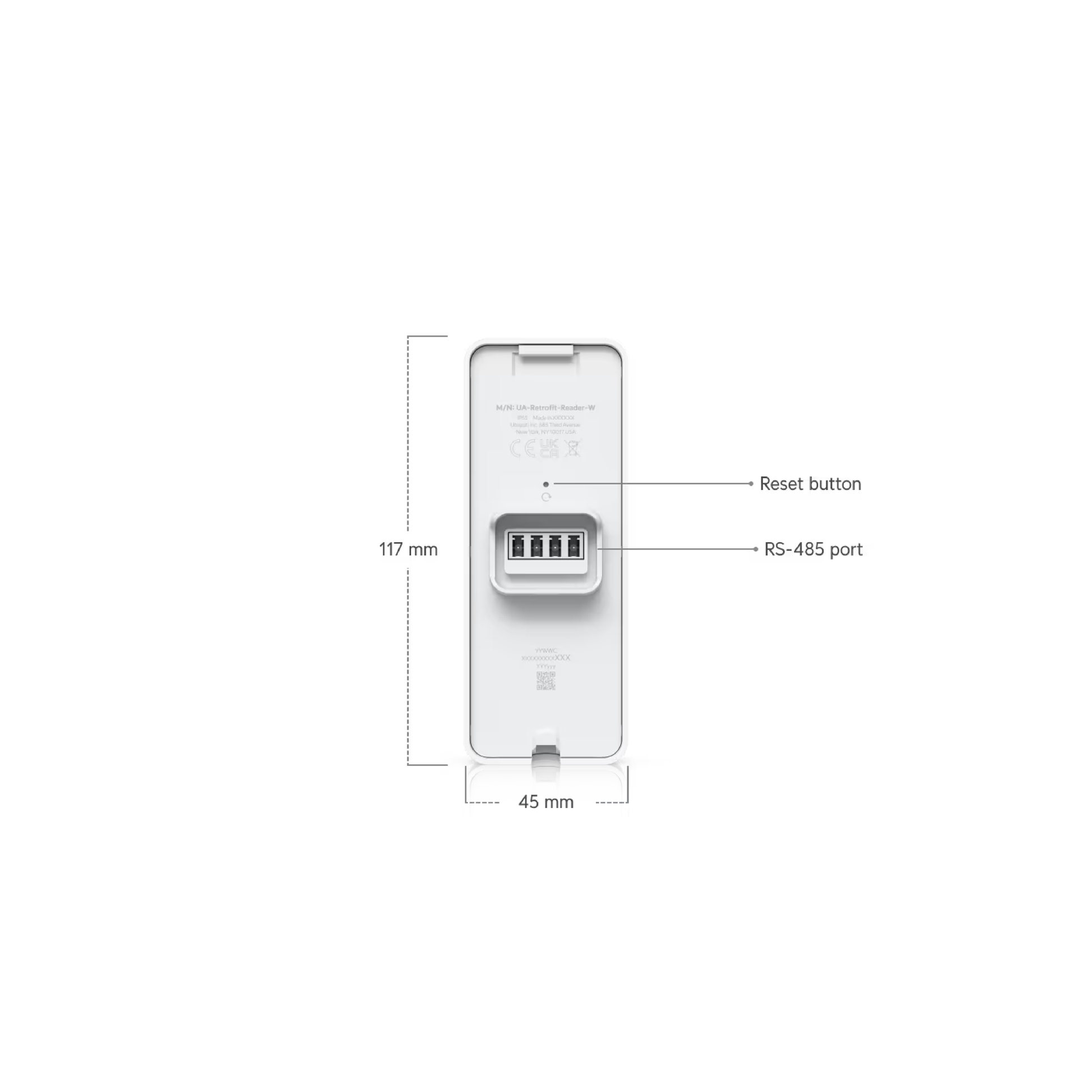

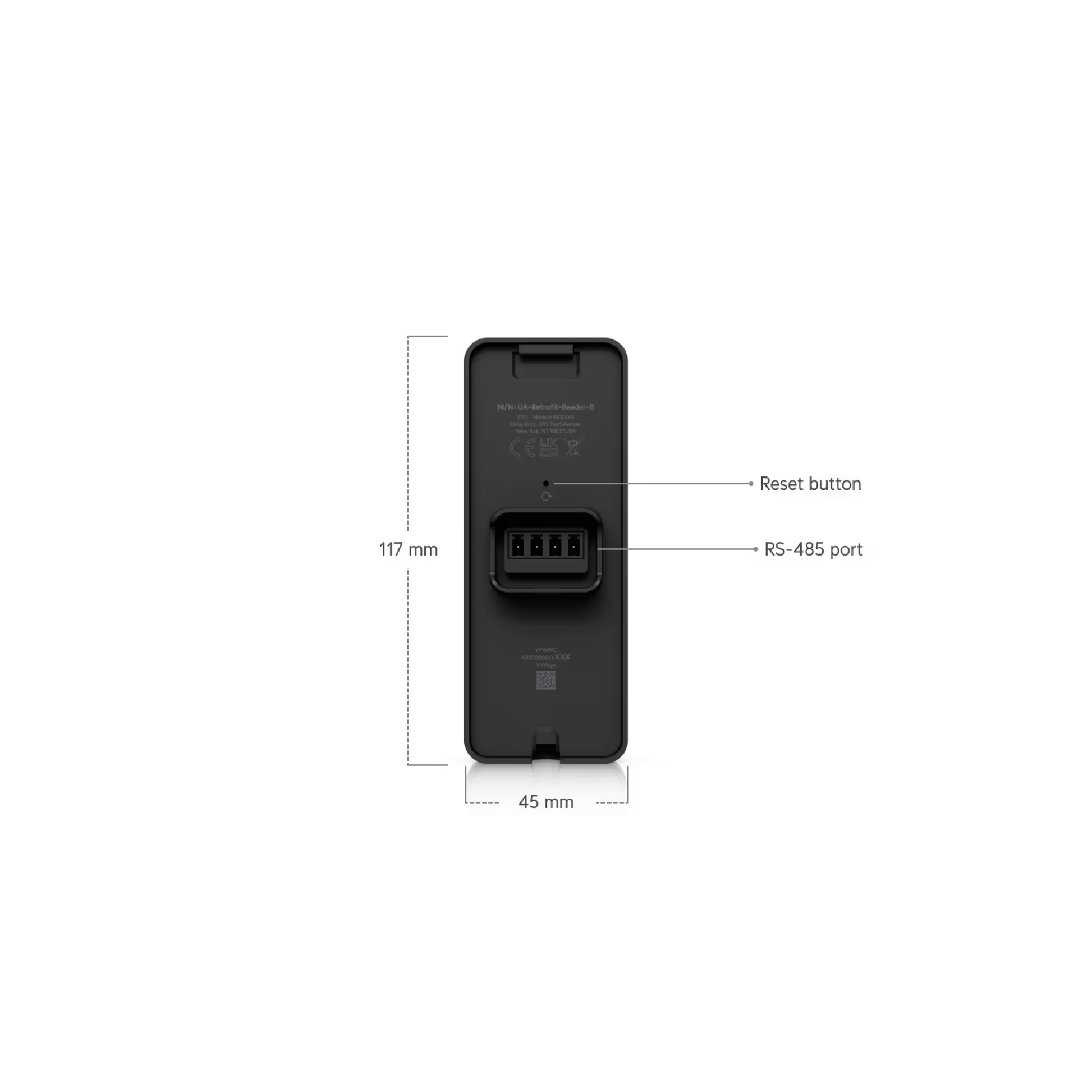

117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5") |
| NFC Card & Keyfob Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| NDAA Compliant | ✓ |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |

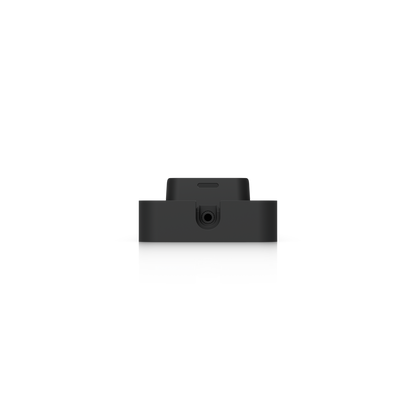

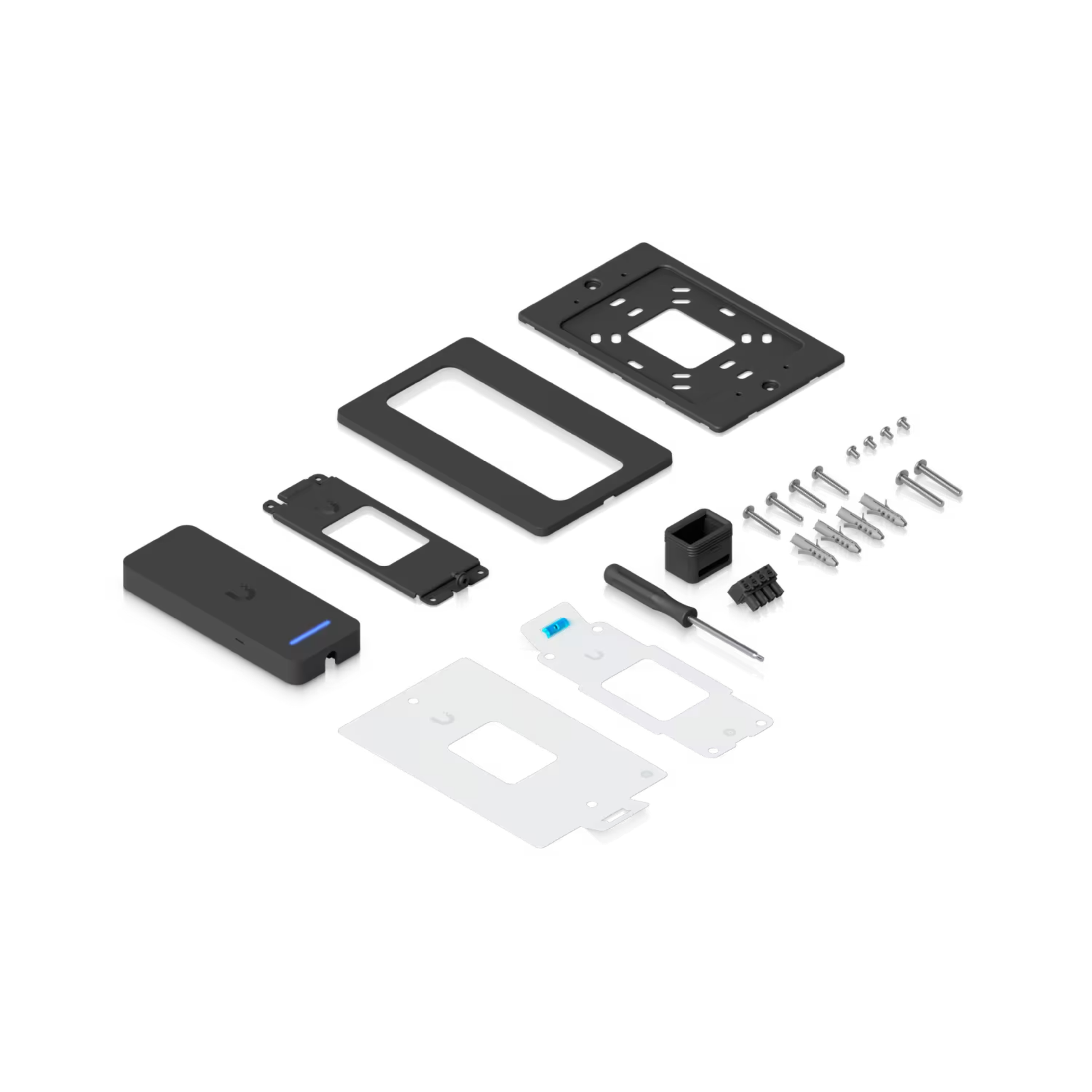

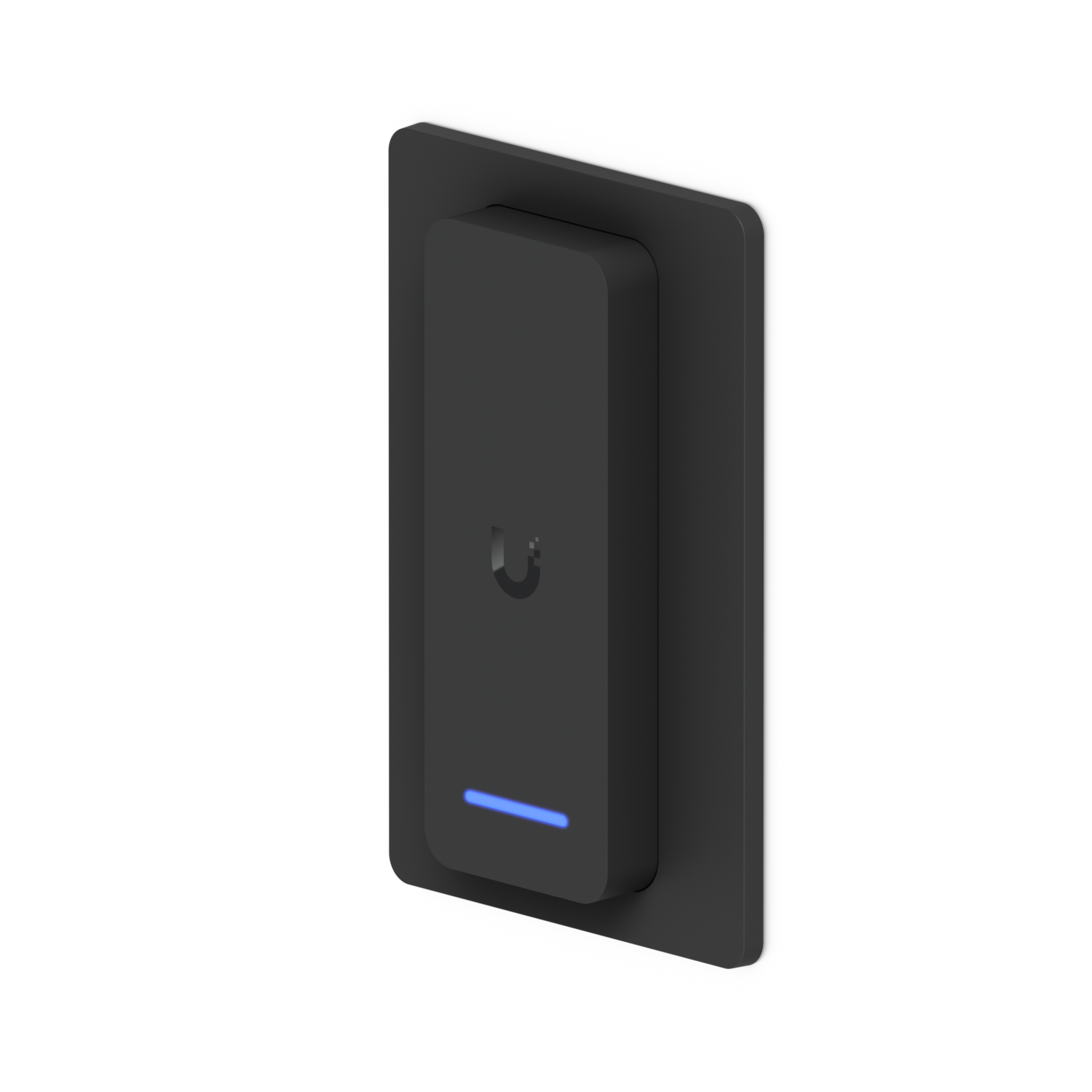

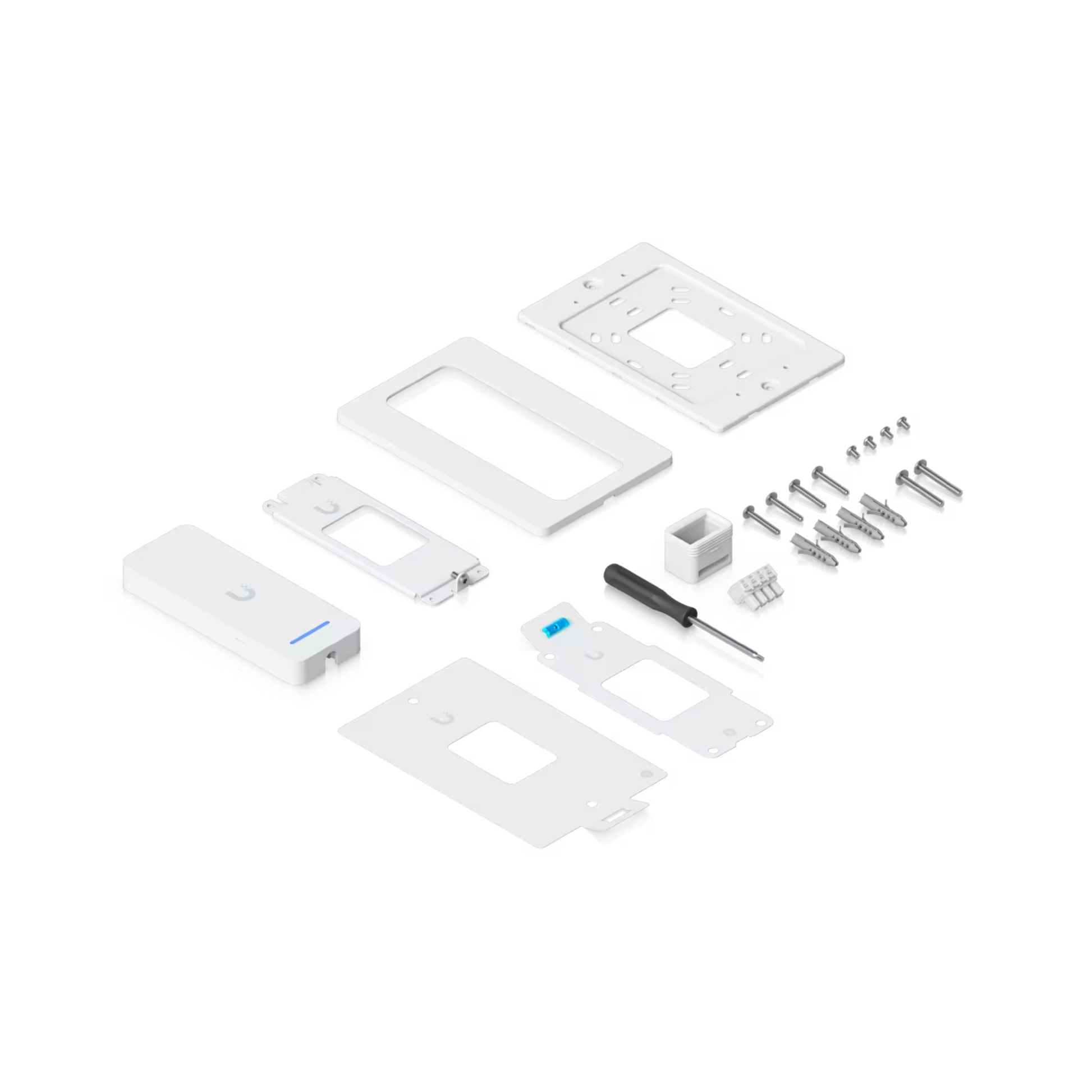

| Mounting |

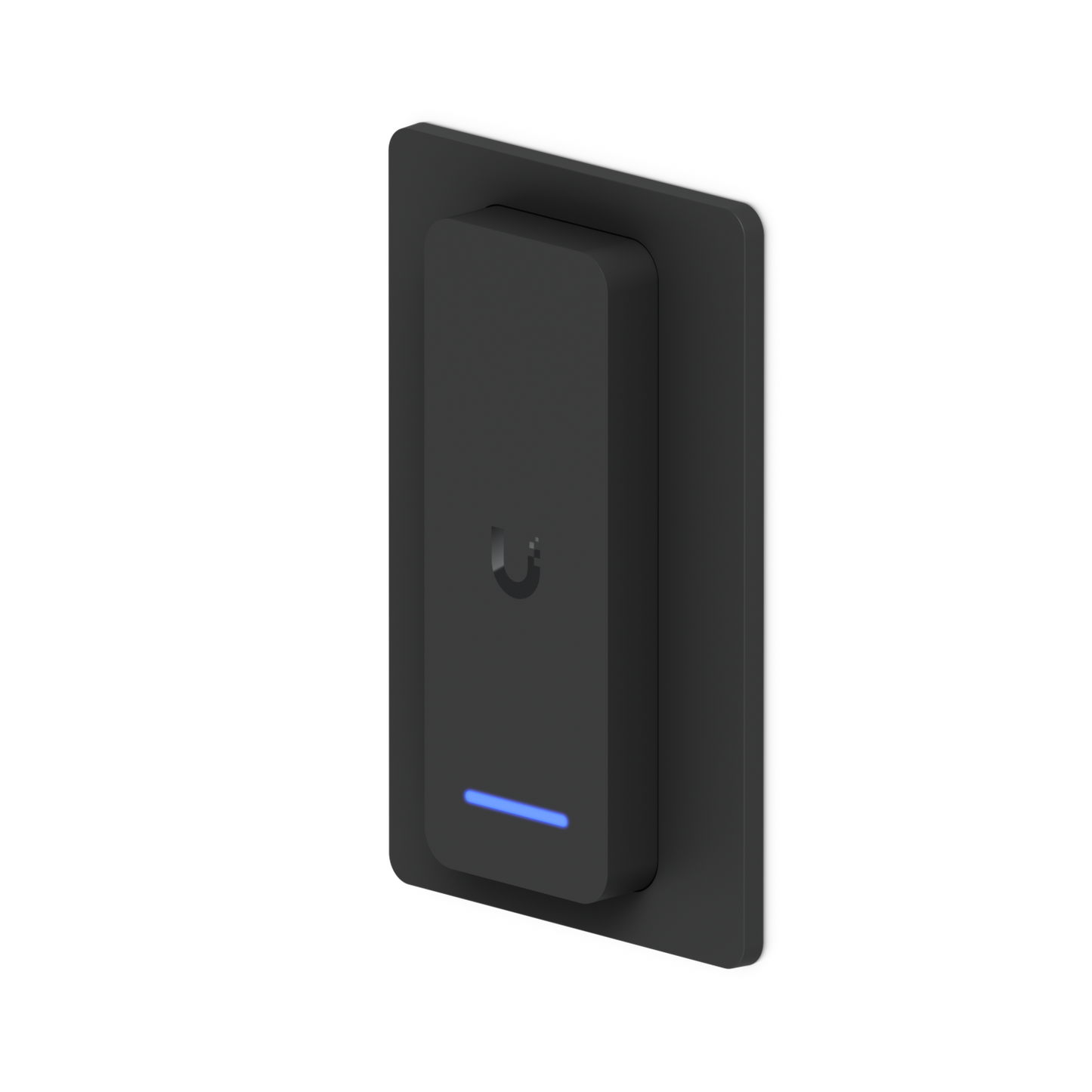

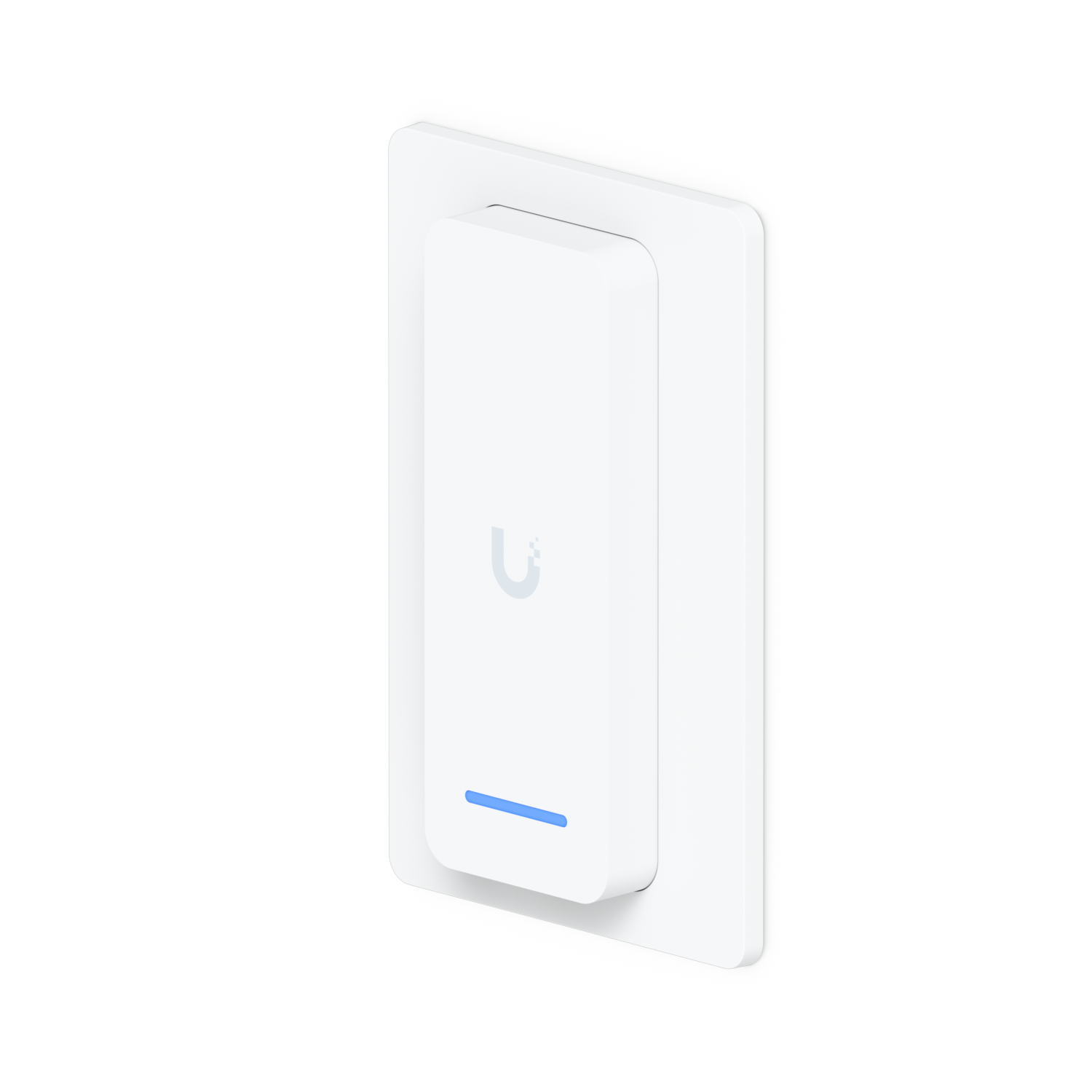

Wall, gang-box mount (Included) Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

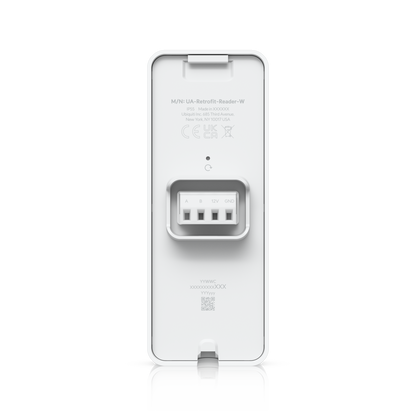

| Connectivity |
RS-485 BLE 4.1 NFC |
| Security | OSDP v2 |
| Power Method | DC 12V |
| Max. Power Consumption | 2.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Speaker | ✓ |
| LEDs | R/G/B/W Learn More |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology |
ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
Visit Ubiquiti for more information.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Frequently Asked Questions
Can the Retrofit Reader connect to third-party access controllers?
No. The Retrofit Reader only works with the Retrofit Hub.

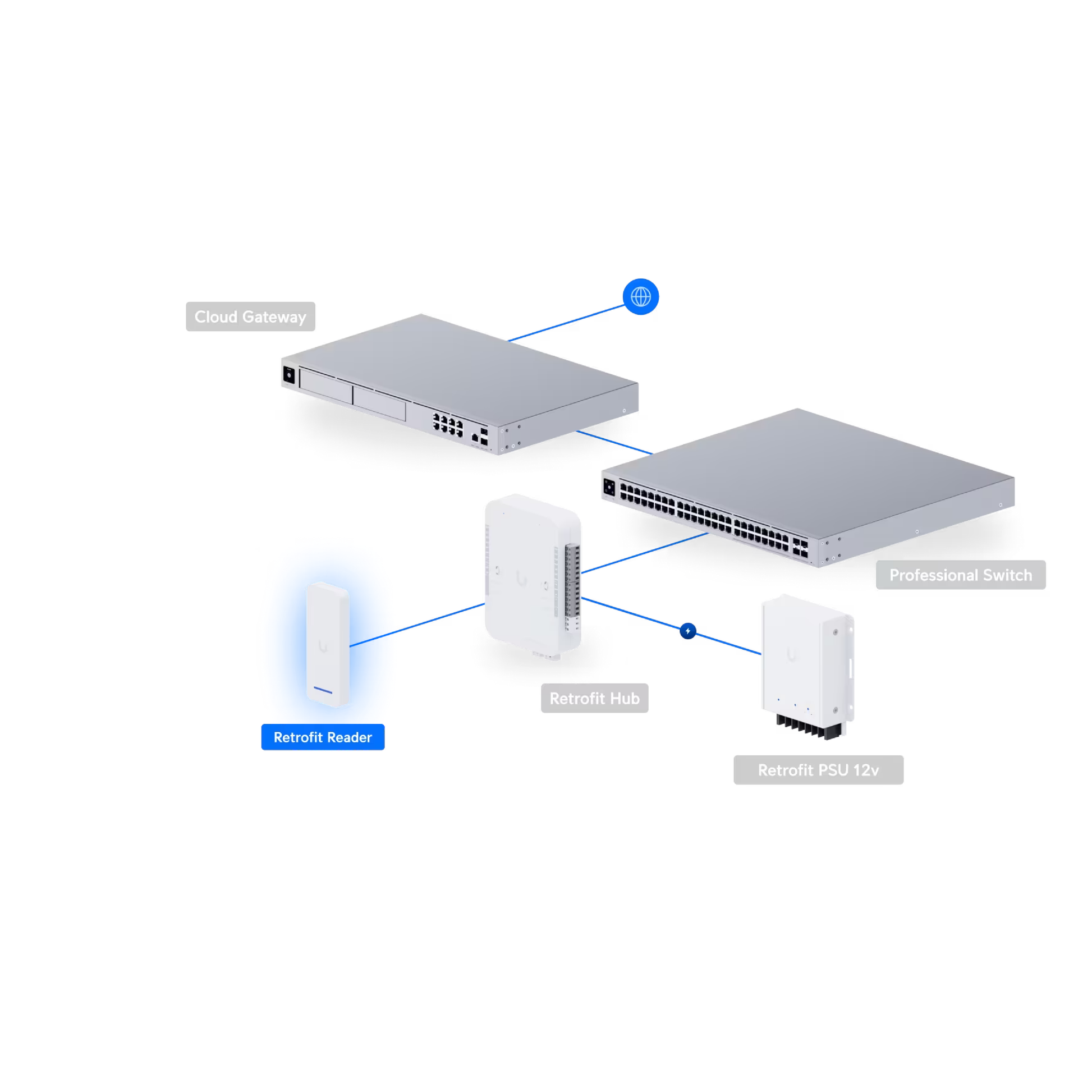

How do I connect the Retrofit Reader to the Retrofit Hub?

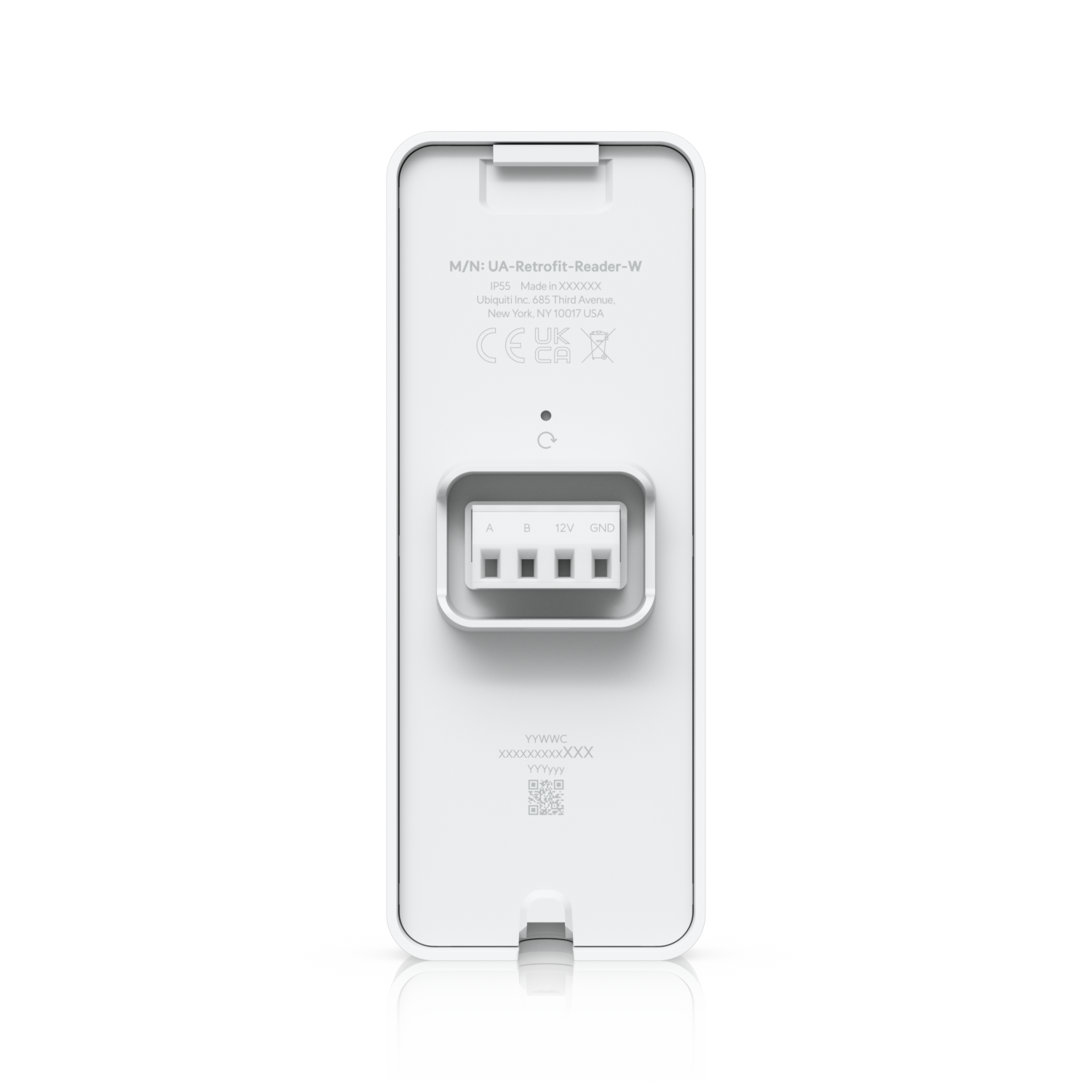

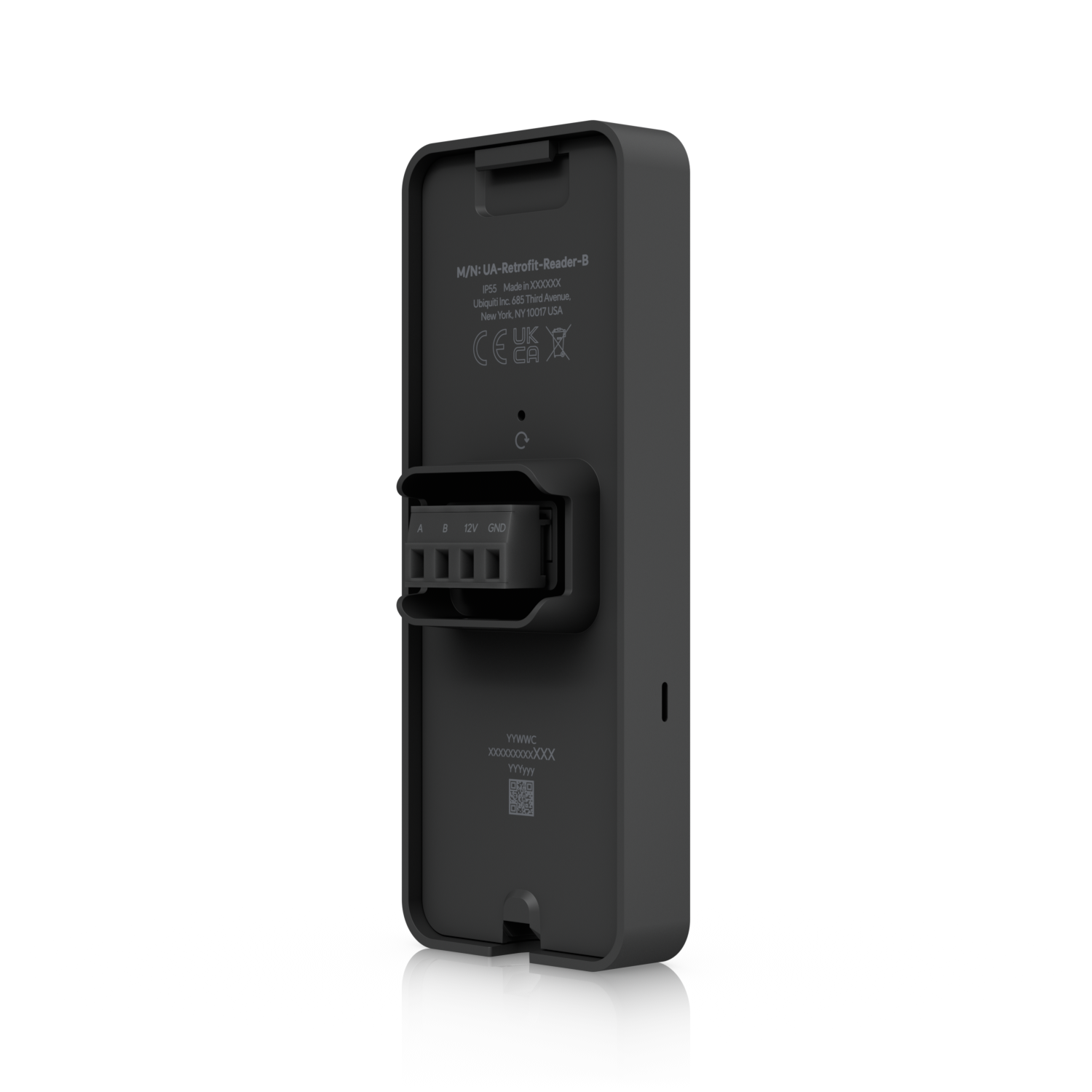

Connect the Retrofit Reader with the provided RS-485 wiring instructions. It must be connected directly to the designated ports on the Retrofit Hub.
Does the Retrofit Reader support daisy-chain connections?
Yes. You can daisy-chain up to two Retrofit Readers per door.
Please note that daisy-chaining is only available for UniFi Retrofit Readers. Wiegand readers are not supported.
