UniFi WaveFiber ONU GPON
Ubiquiti Wave-Fiber-ONU UniFi WaveFiber ONU GPON
SKU:Wave-Fiber-ONU
Regular price
$95.00
Regular price
$109.00
Sale price
$95.00
Unit price
per
Taxes included.
EOFY Sale. Limited promotional stock available — don’t miss out!
206 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
Compatibility:
- UISP-FIBER-OLT-XGS,
- UF-OLT,
- UF-OLT-4.
| Mechanical | |
|---|---|

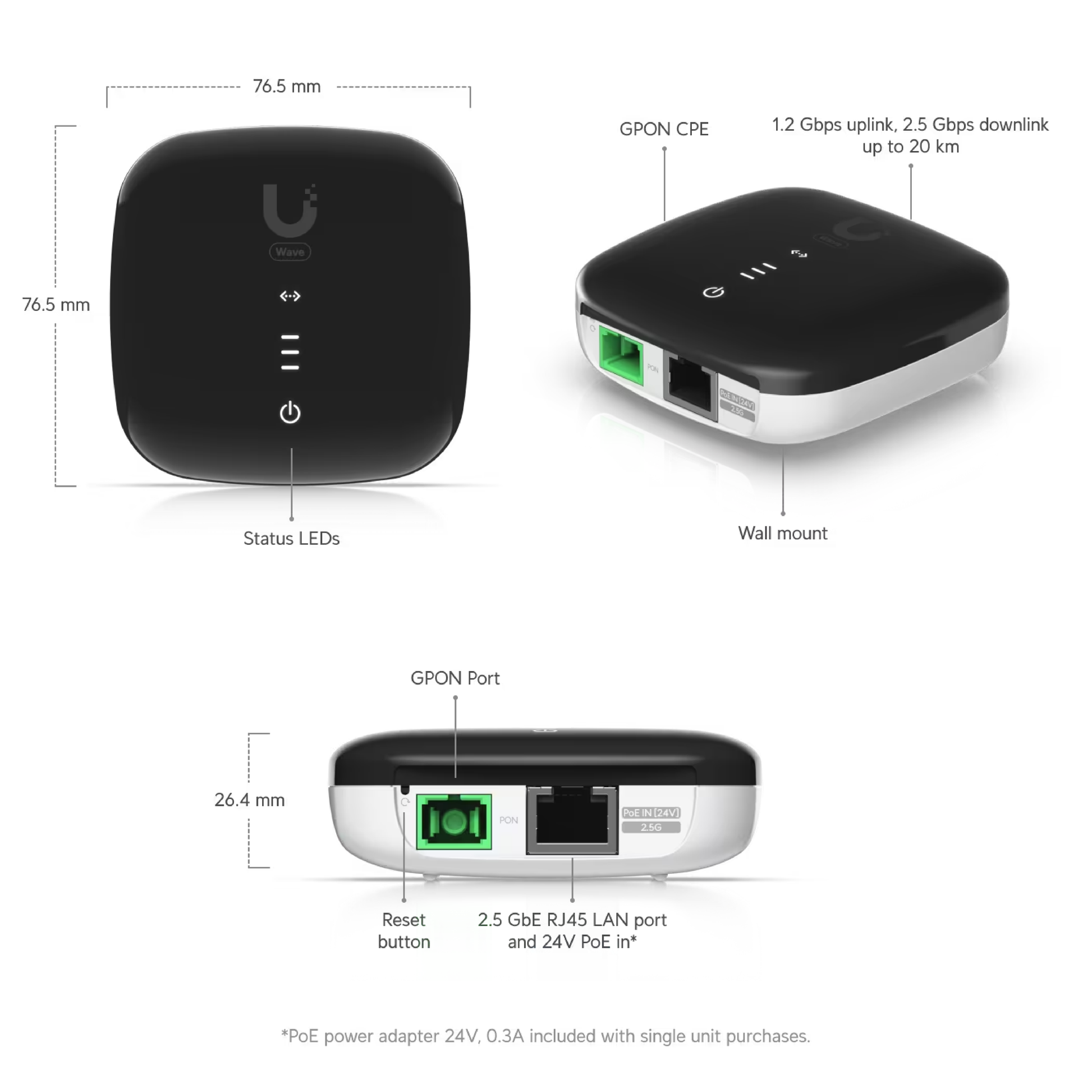

| Dimensions | 76.5 x 76.5 x 26.4 mm (3 x 3 x 1") |
| Weight | 78 g (2.8 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Networking interface |

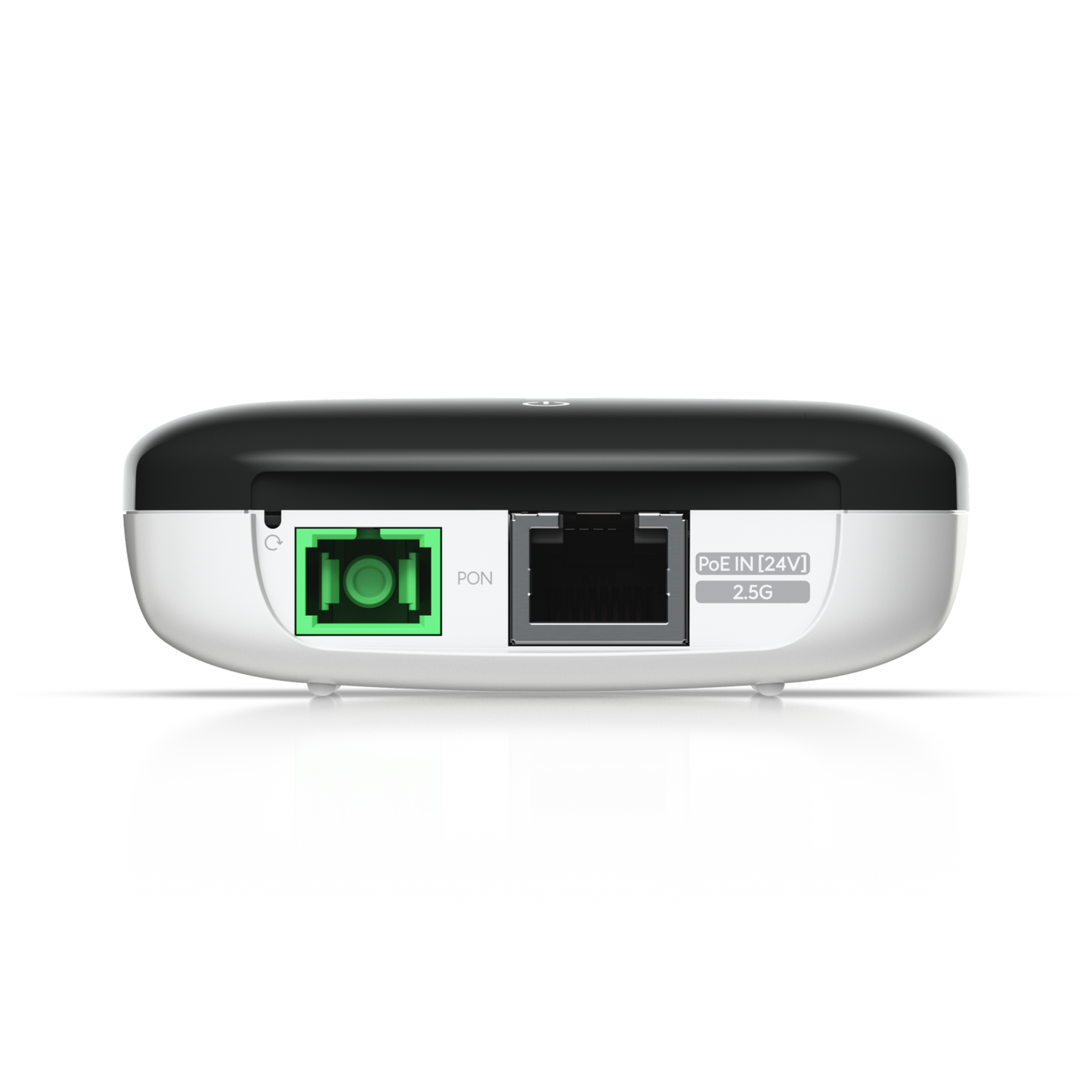

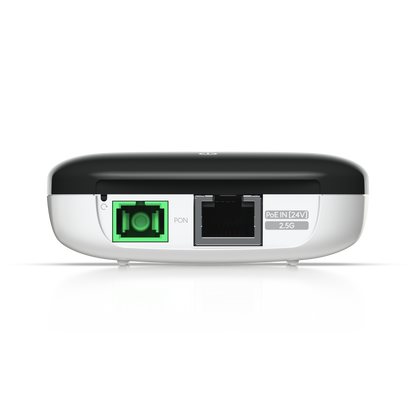

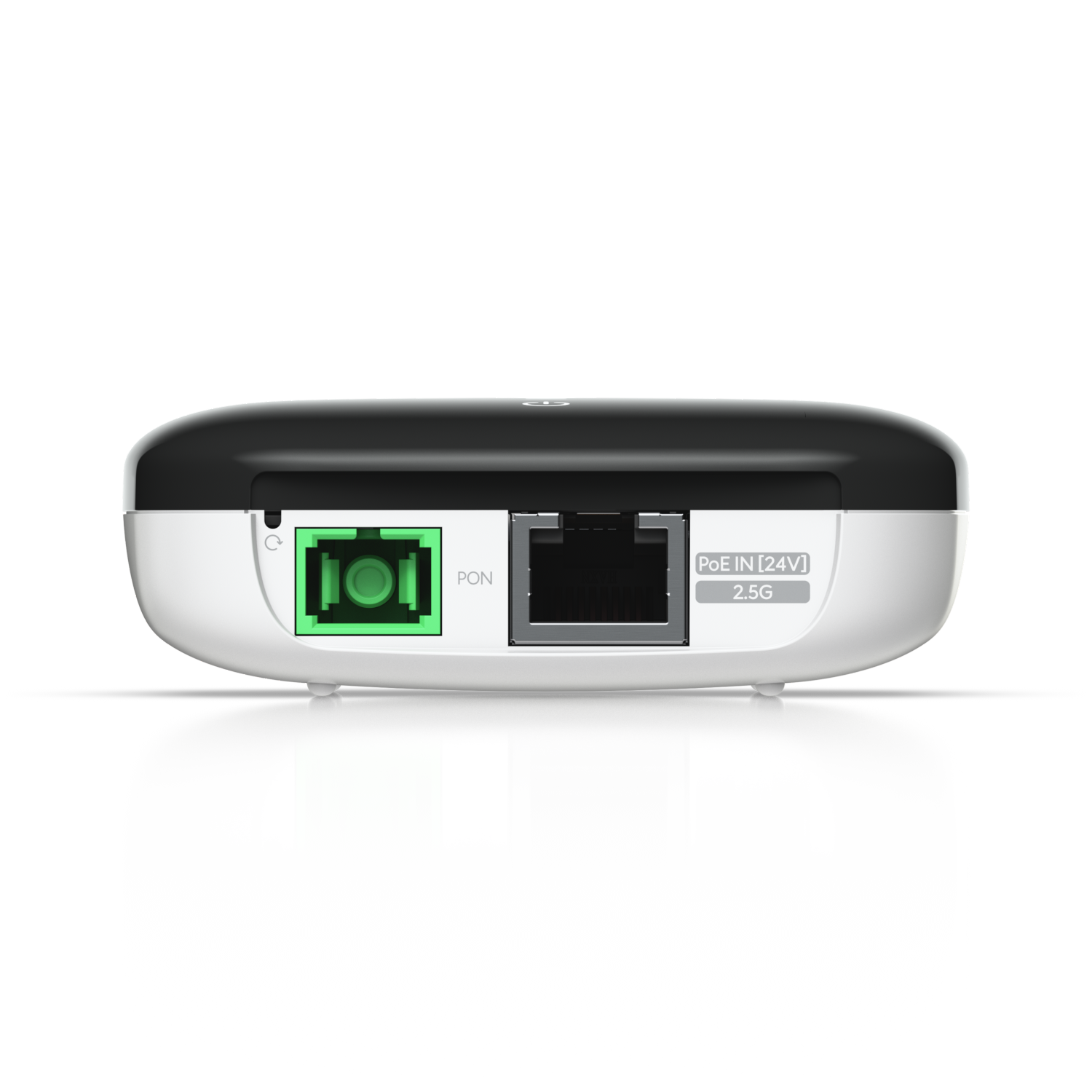

(1) SC/APC, ITU-G.984 GPON WAN port (1) 1/2.5 GbE RJ45 LAN port |
| Management interface |
Ethernet in-band PON |
| Power method | PoE, 0.3A |
| Power supply | 24V passive PoE 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 20-28V DC |
| Max. power consumption | 5W |
| Total non-blocking line rate |
Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| Normal range of optical module |
TX: 1.5 to 5 dBm RX: -8 to -28 dBm |
| Mounting | Desktop, wall |
| Button | (1) Factory reset |
| Ambient operating temperature | -15 to 45° C (5 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

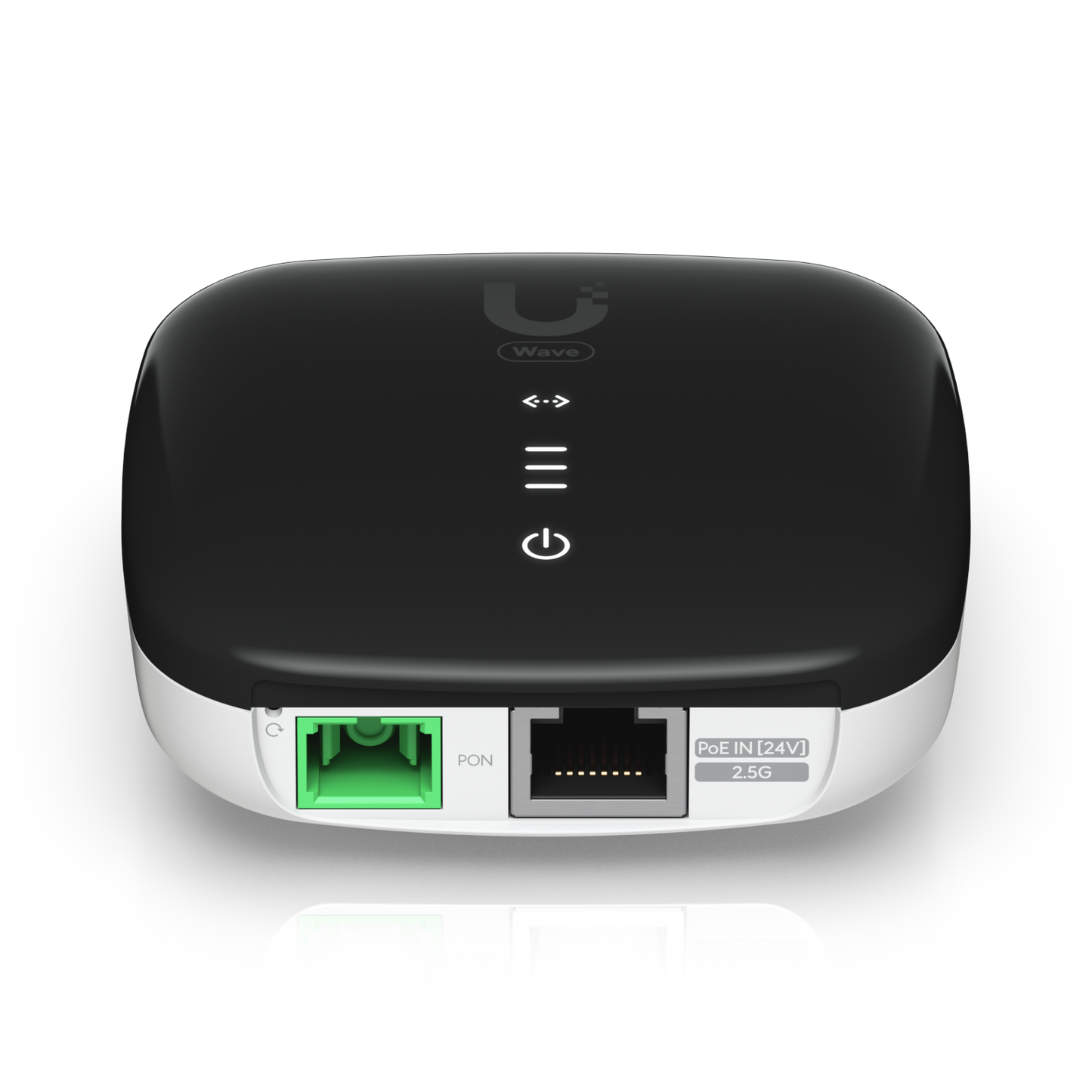

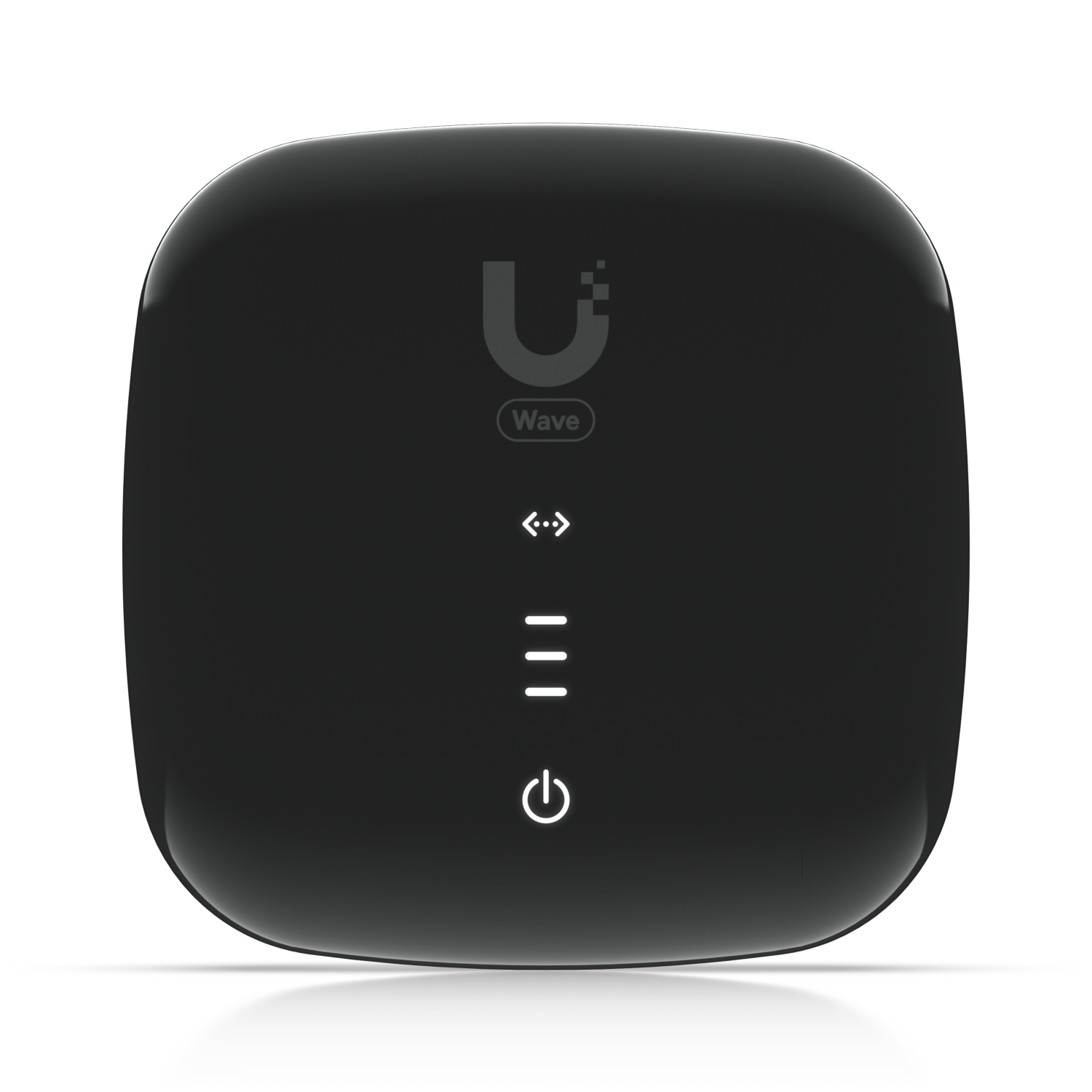

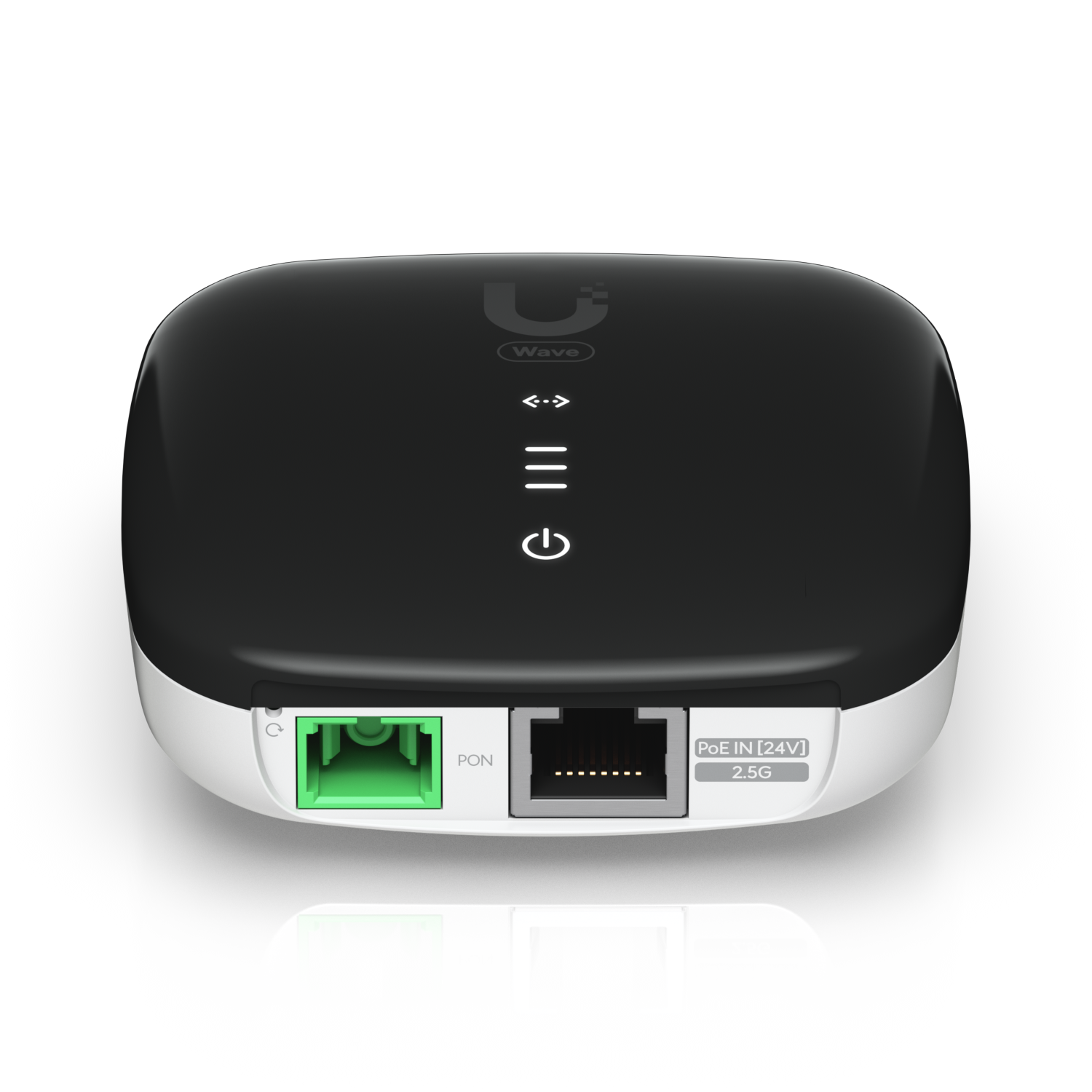

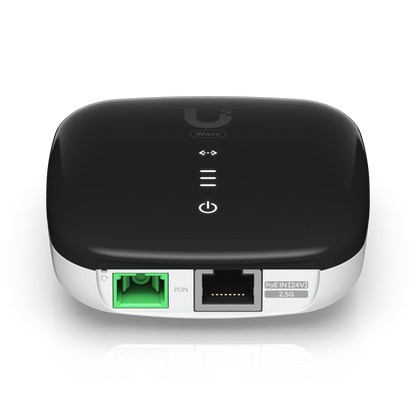

| LEDs | |
| PON status |
(3) signal LEDs All-OFF: bootup 1x red: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x red + 2x white: signal too strong (>= -8 db) 3x red: no signal LEDs alternate between red and a signal strength indicator: No authority |
| Ethernet |
Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Security | GEM Port Encryption |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Fiber | |
| Operating wavelength |
TX: 1310 nm RX: 1490 nm |
| Line code | Scrambled NRZ |
| Optical interface nominal bit rate |
Downstream: 2488.32 Mbit/s Upstream: 1244.16 Mbit/s |
| Physical reach | 20 km |
Visit Ubiquiti for more information.
