BAT120 UPS Uninterruptible Power Supply
Teltonika BAT120 UPS Uninterruptible Power Supply
SKU:BAT120
Regular price
$274.00
Regular price
$315.00
Sale price
$274.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
30 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

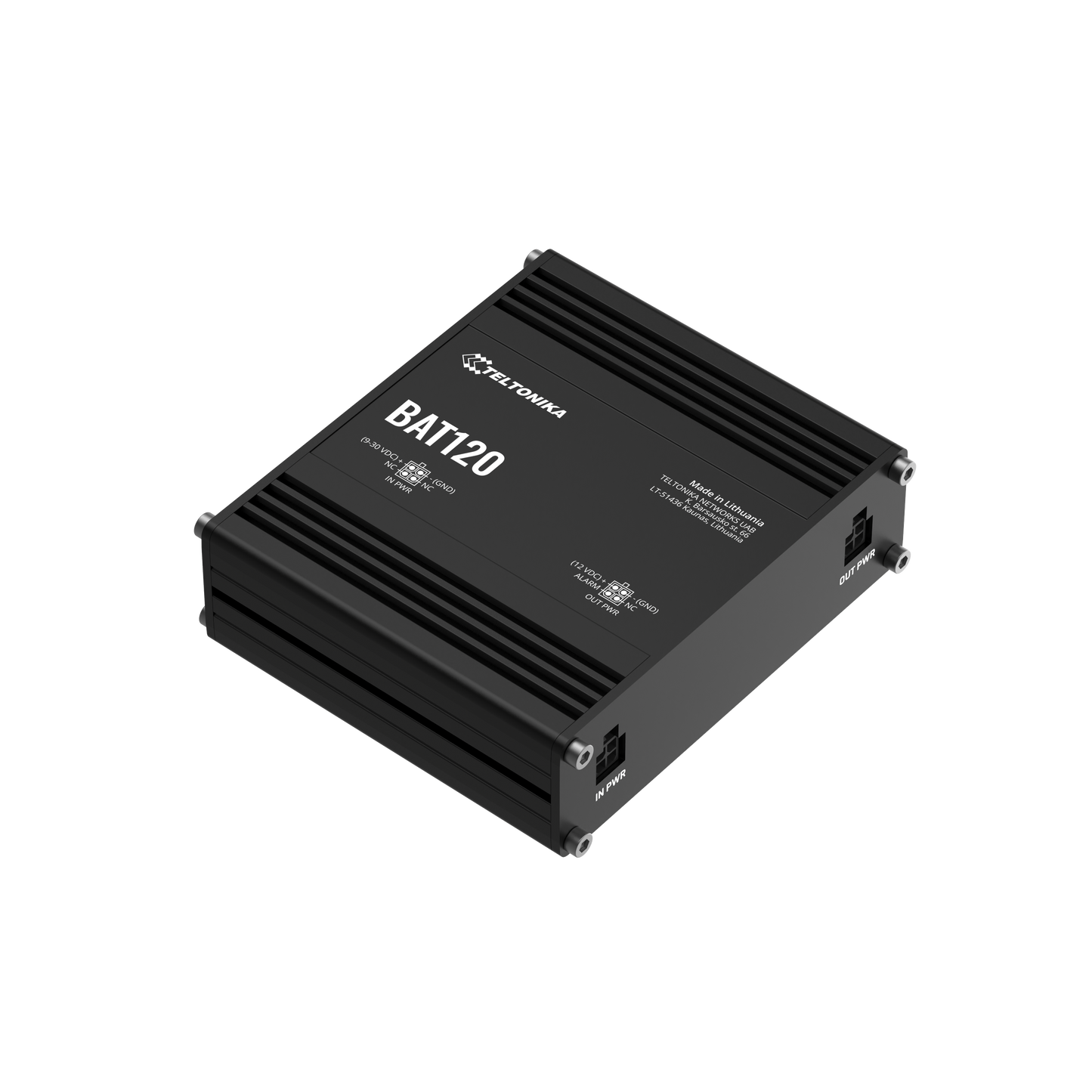

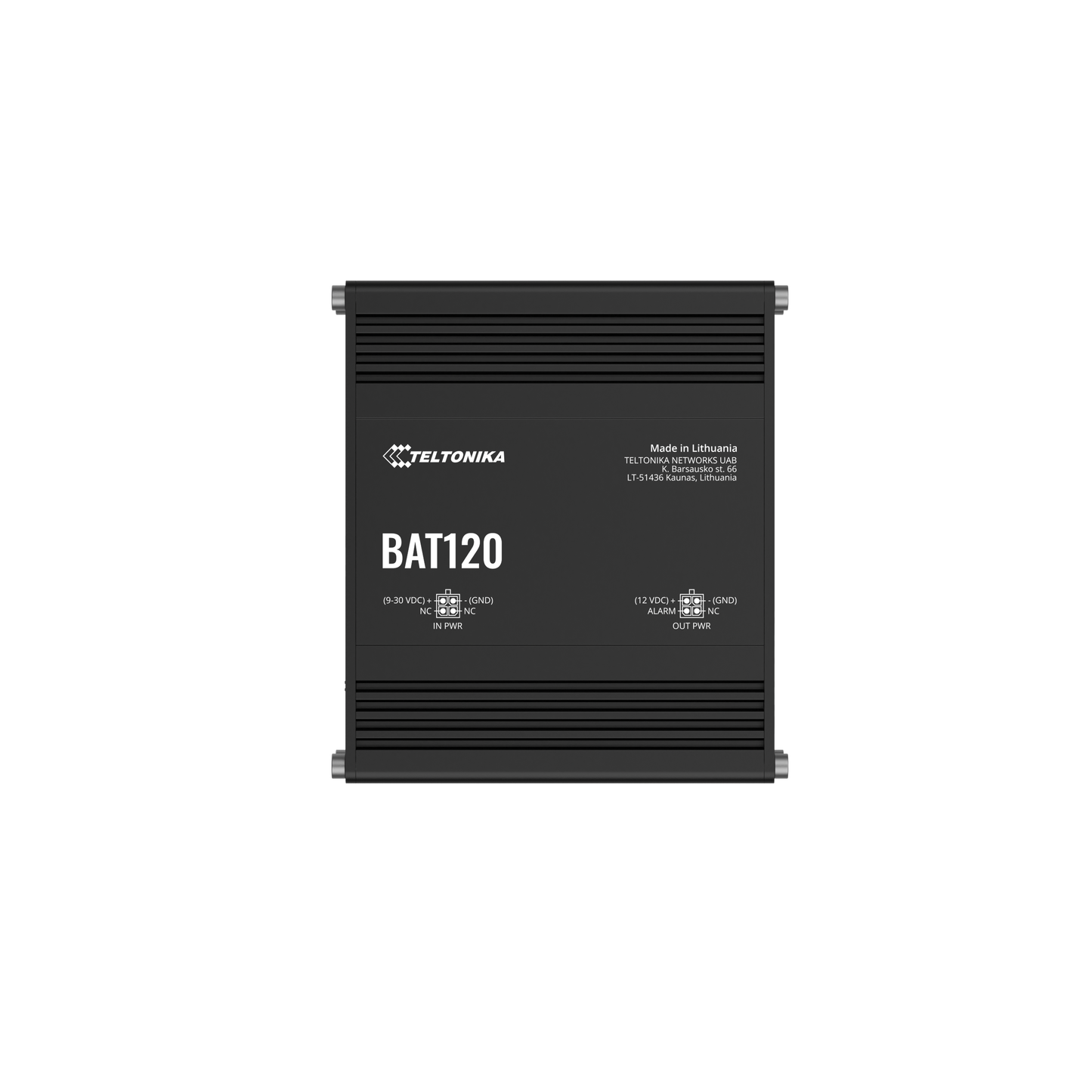

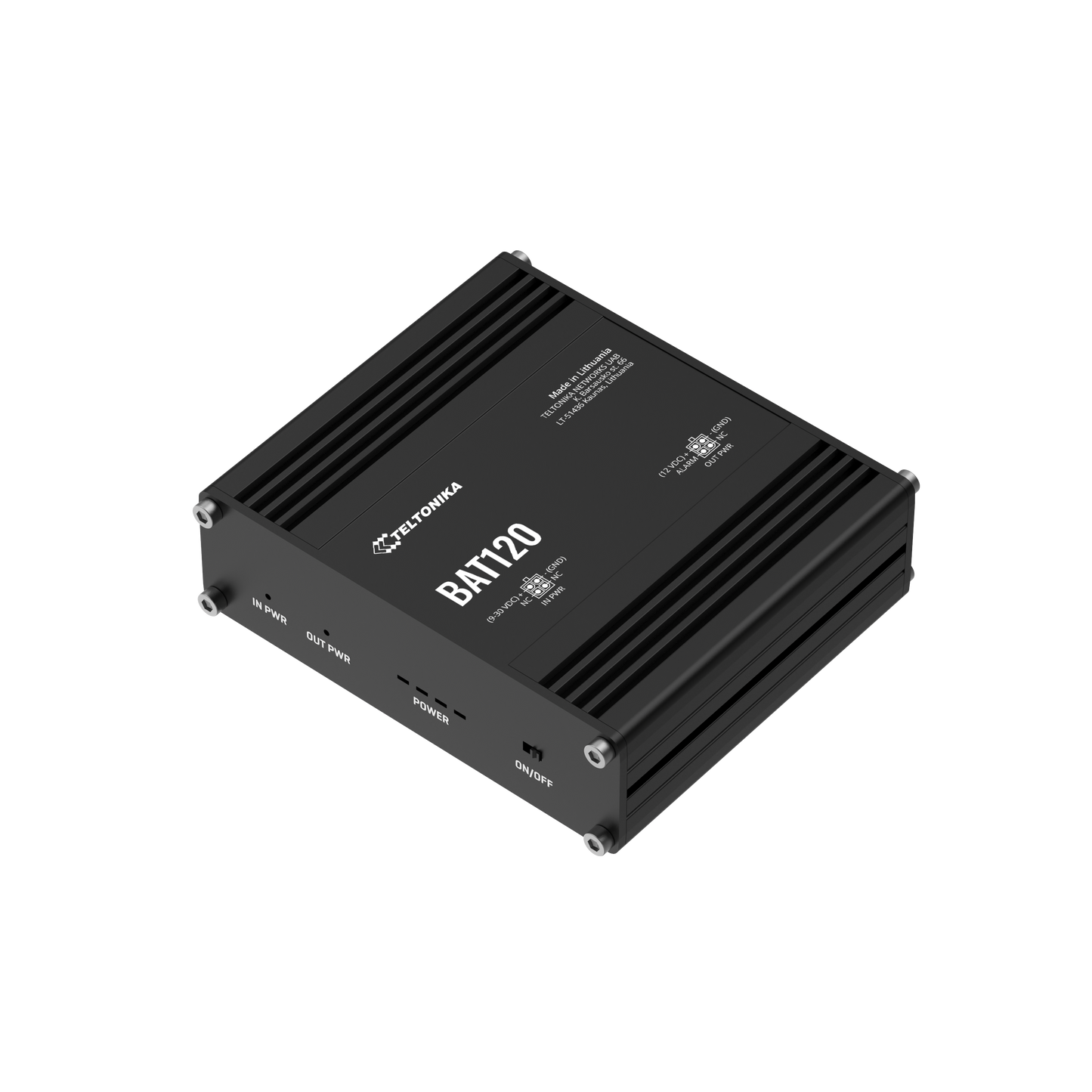

BAT120 is the first industrial grade UPS (Uninterruptible Power Supply) in the Teltonika Networks portfolio. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery.
| Power | |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input Power/Max Charging Current | Charger: max 4 W / 300 mA (max battery charging current) |
| Input Voltage Range | 9 - 30 VDC |
| Input Protection | Reverse polarity protection, Overvoltage protection |
| Output Voltage in Passthrough Mode | 9 - 30 VDC |
| Output Voltage in Battery Mode | 12 VDC |
| Output Protection | 3 A overcurrent protection |
| Max Output Power/Current in Battery Mode | 22 W / 1.8 A |
| Battery Capacity | 2600 mAh 17 Wh |

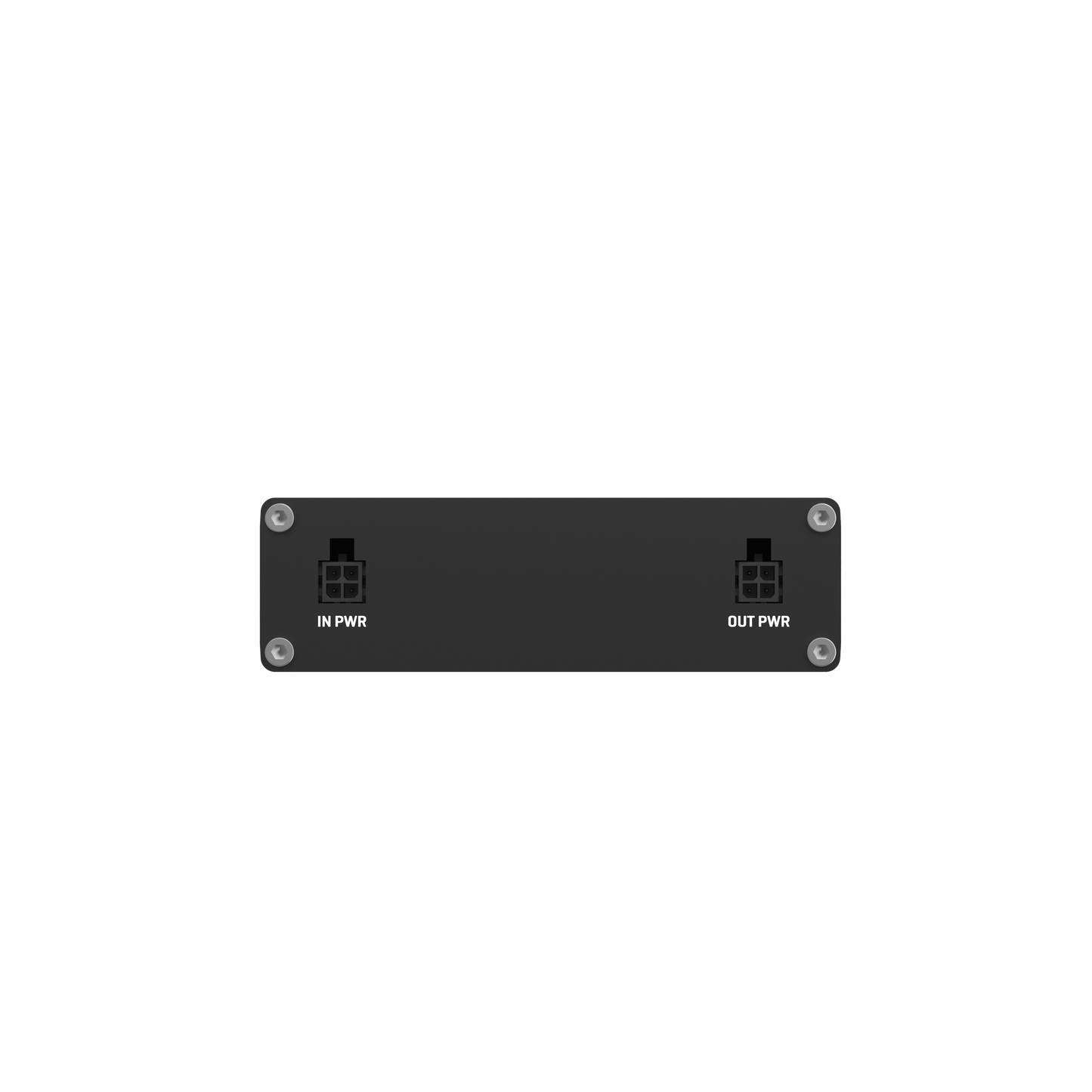

| Power IN | 1x 4-pin DC connector |
| Power OUT | 1x 4-pin DC connector |

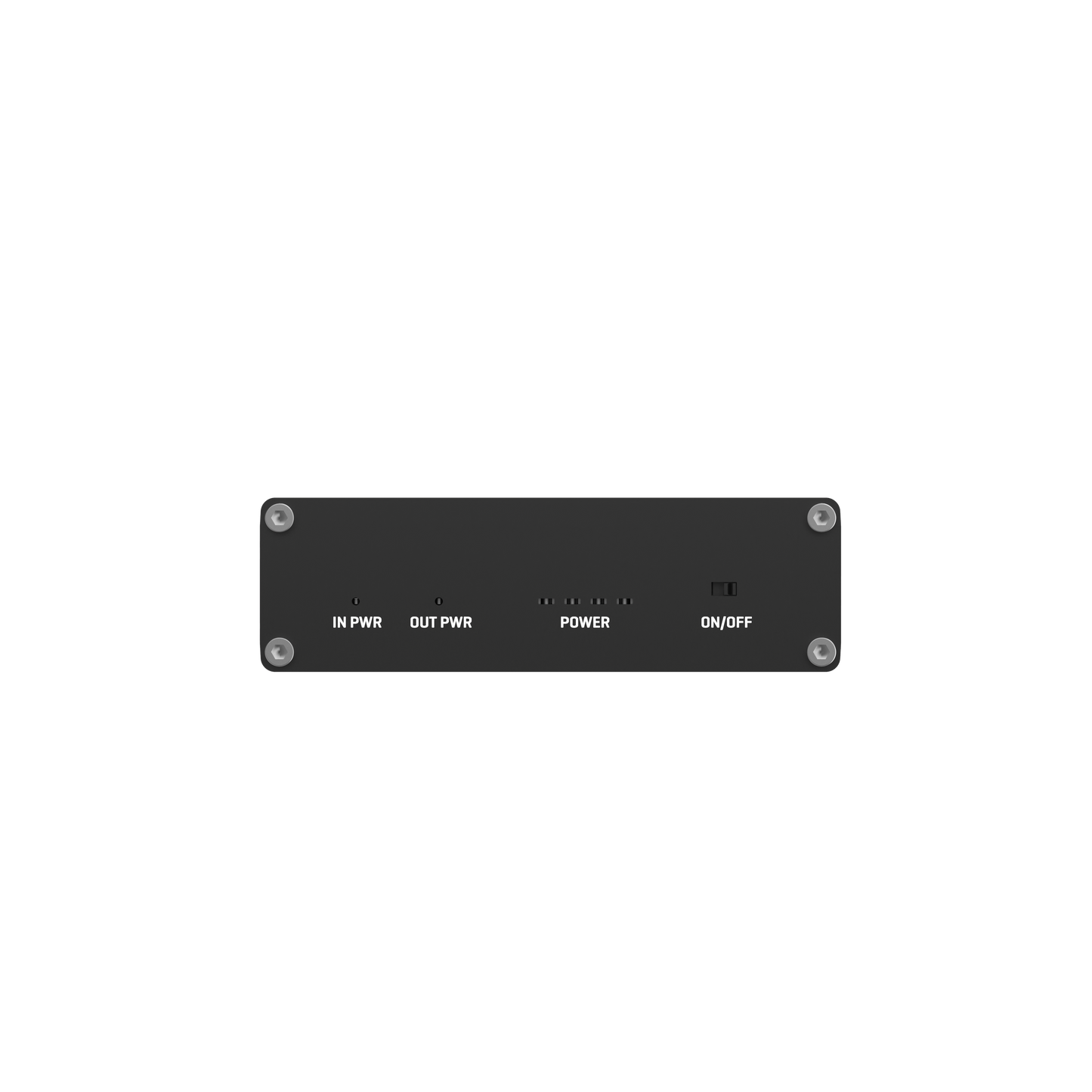

| Status LEDs | 1x IN PWR LED, 1x OUT PWR LED, 4x Power status LEDs |
| Switch | On/Off slider switch |
| Alarm Output | |
| Alarm Output | 1x Active HIGH output, max output 12 V, 2.5 mA |
| General Characteristics | |
| Lithium Cells | 2x 18650 Li-Ion cells |
| Compatible Devices | RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100 |
| Physical Specification | |
| Casing Material | Aluminum housing |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 315g |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating Temperature | 0 °C ~ 45 °C |
| Regulatory & Type Approvals | |
| Regulatory | CE/RED, UKCA, EAC |
Visit Teltonika for more information.
