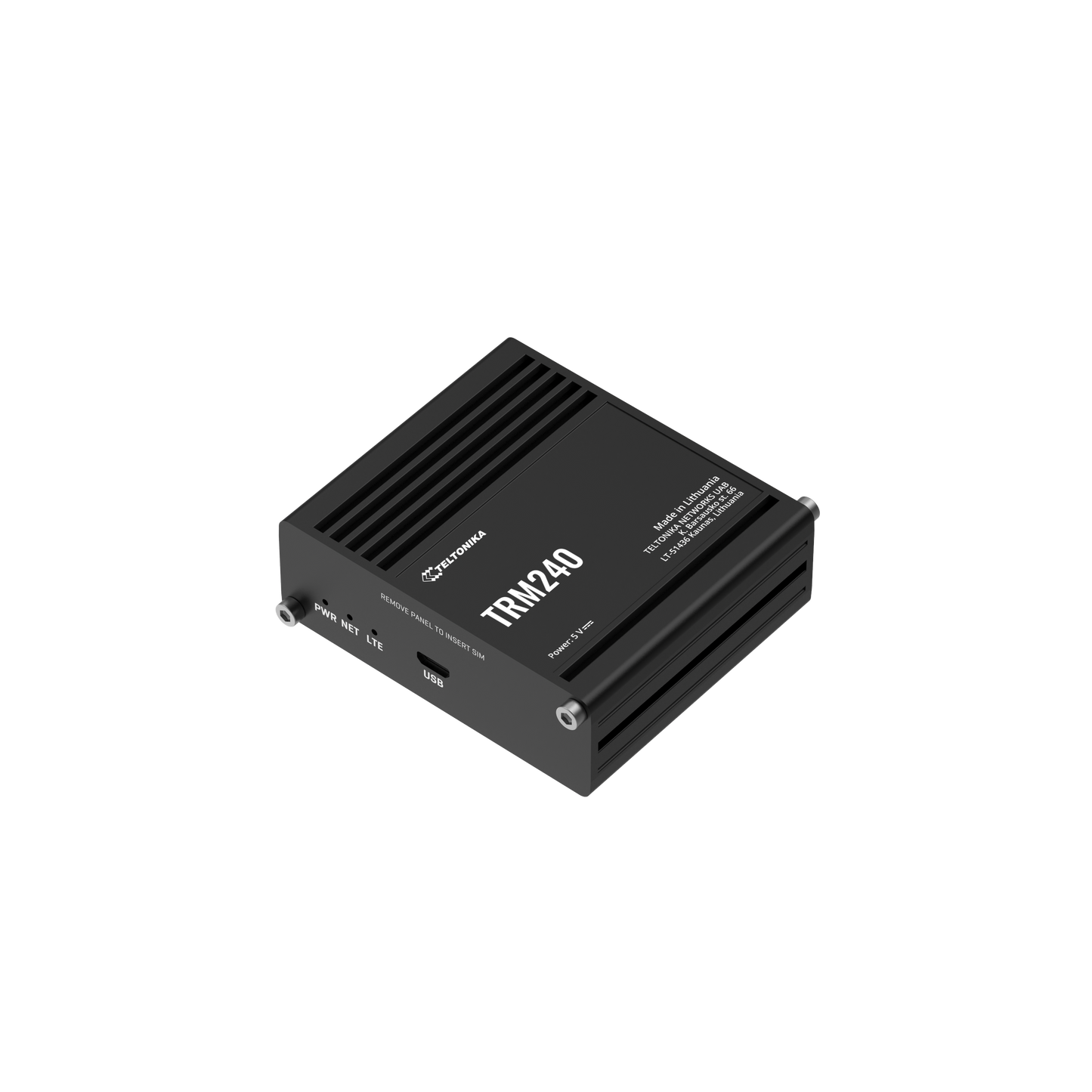

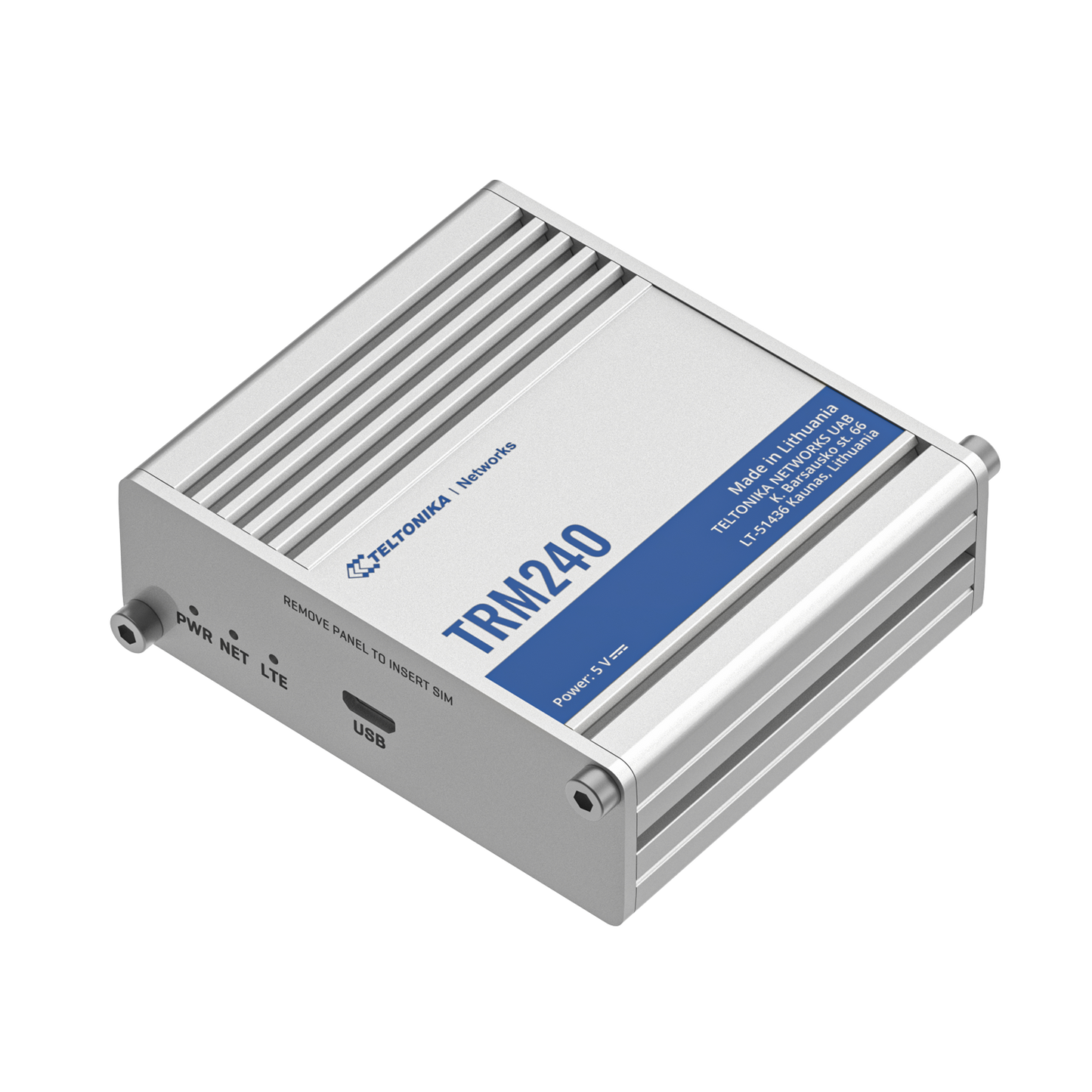

TRM240 Industrial Cellular Modem

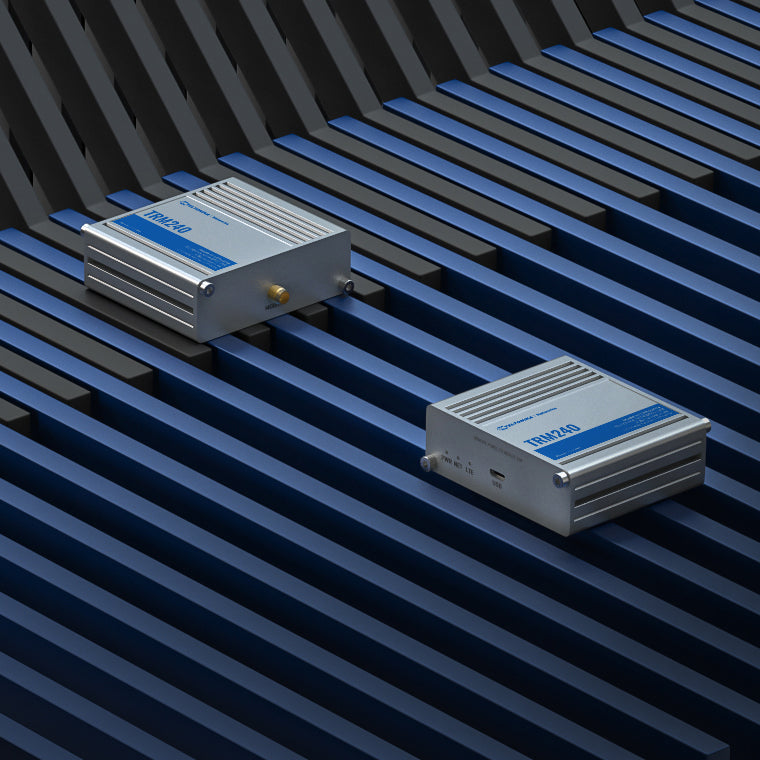

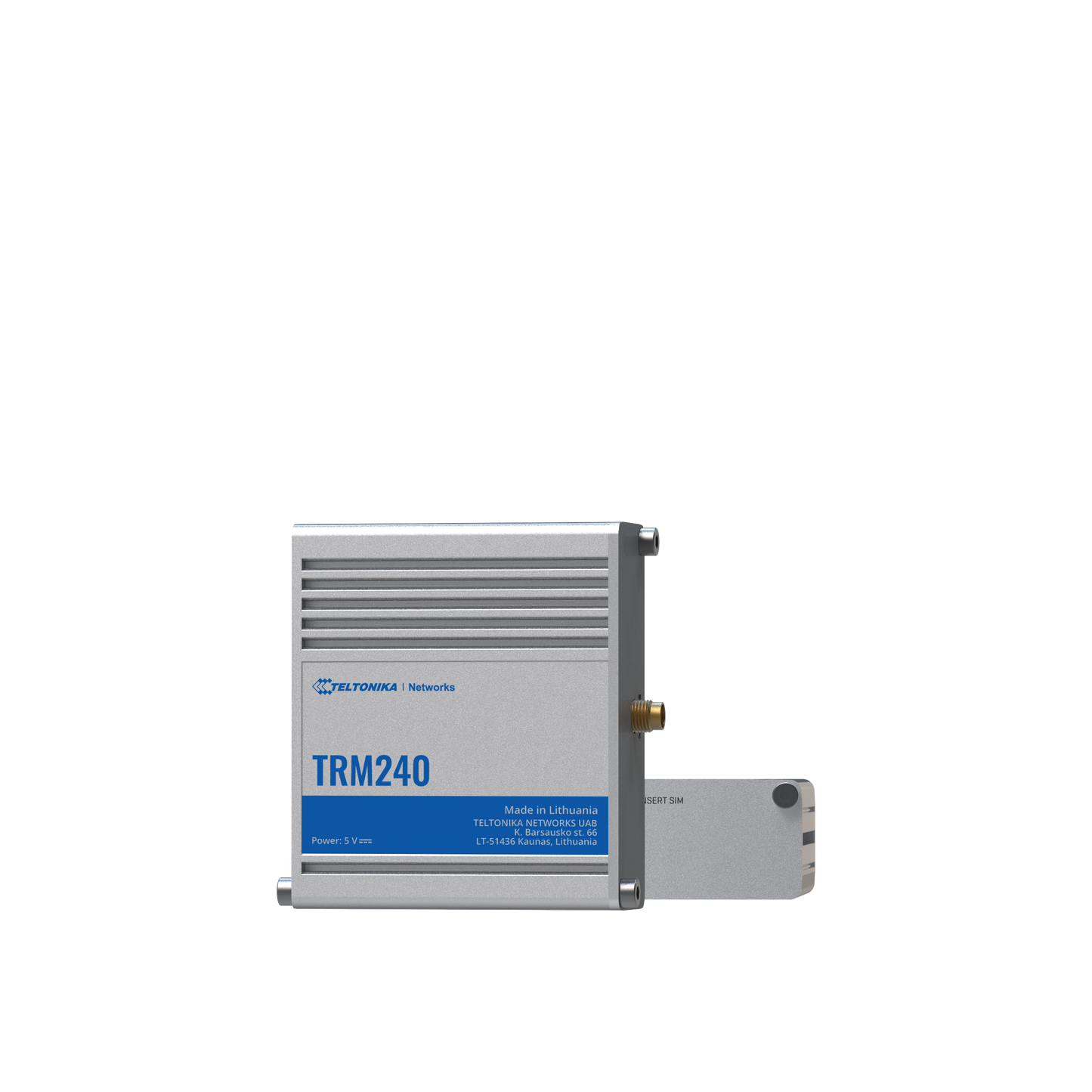

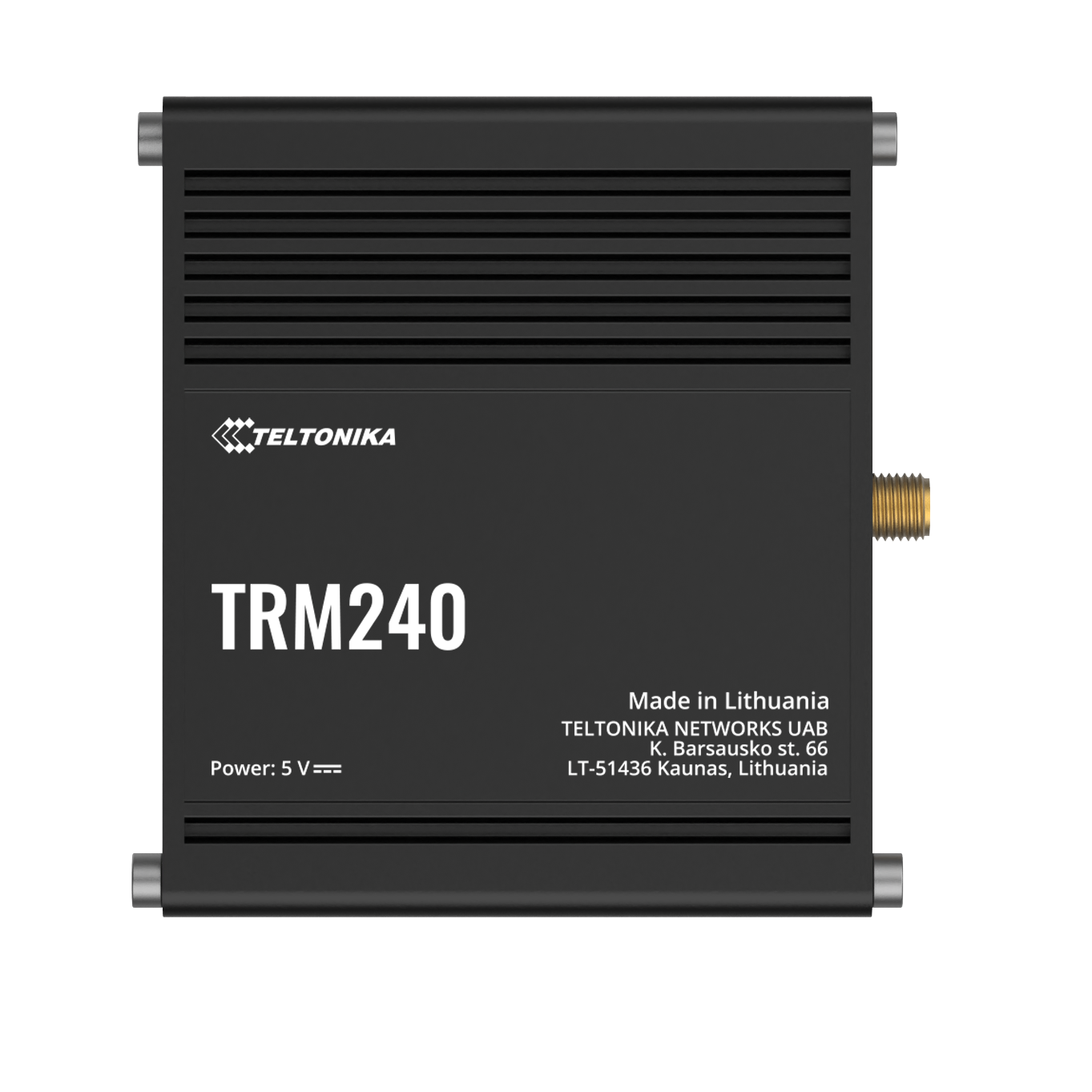

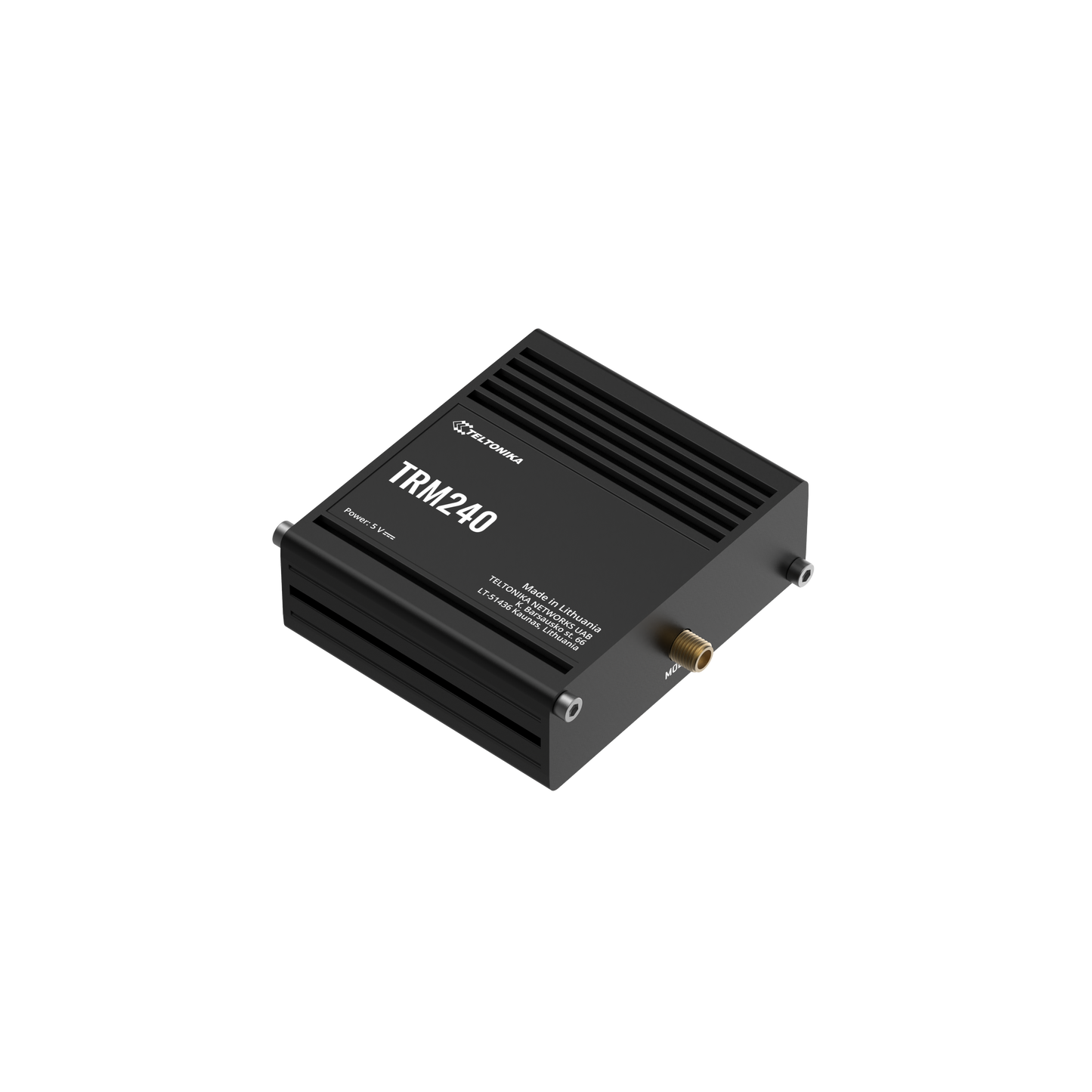

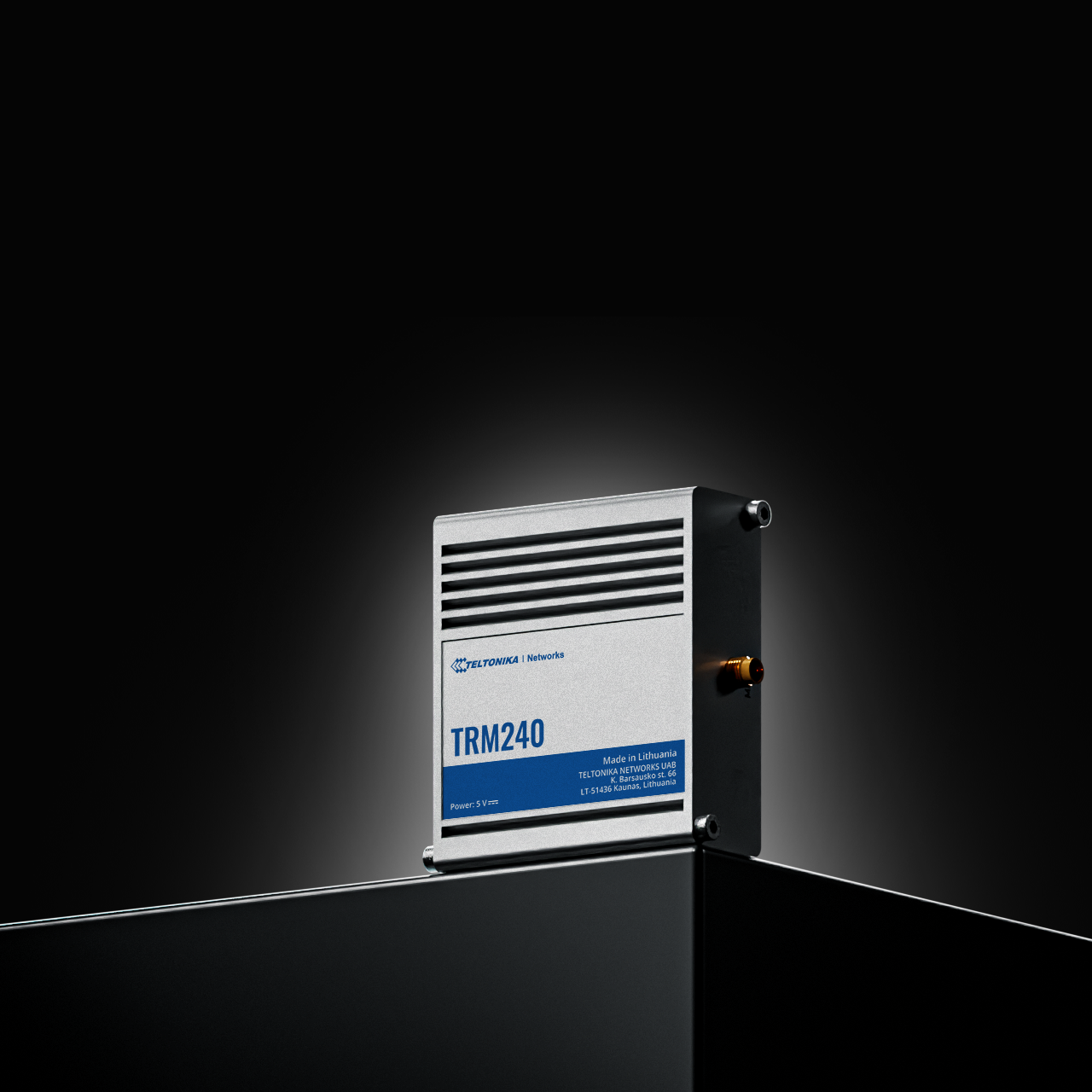

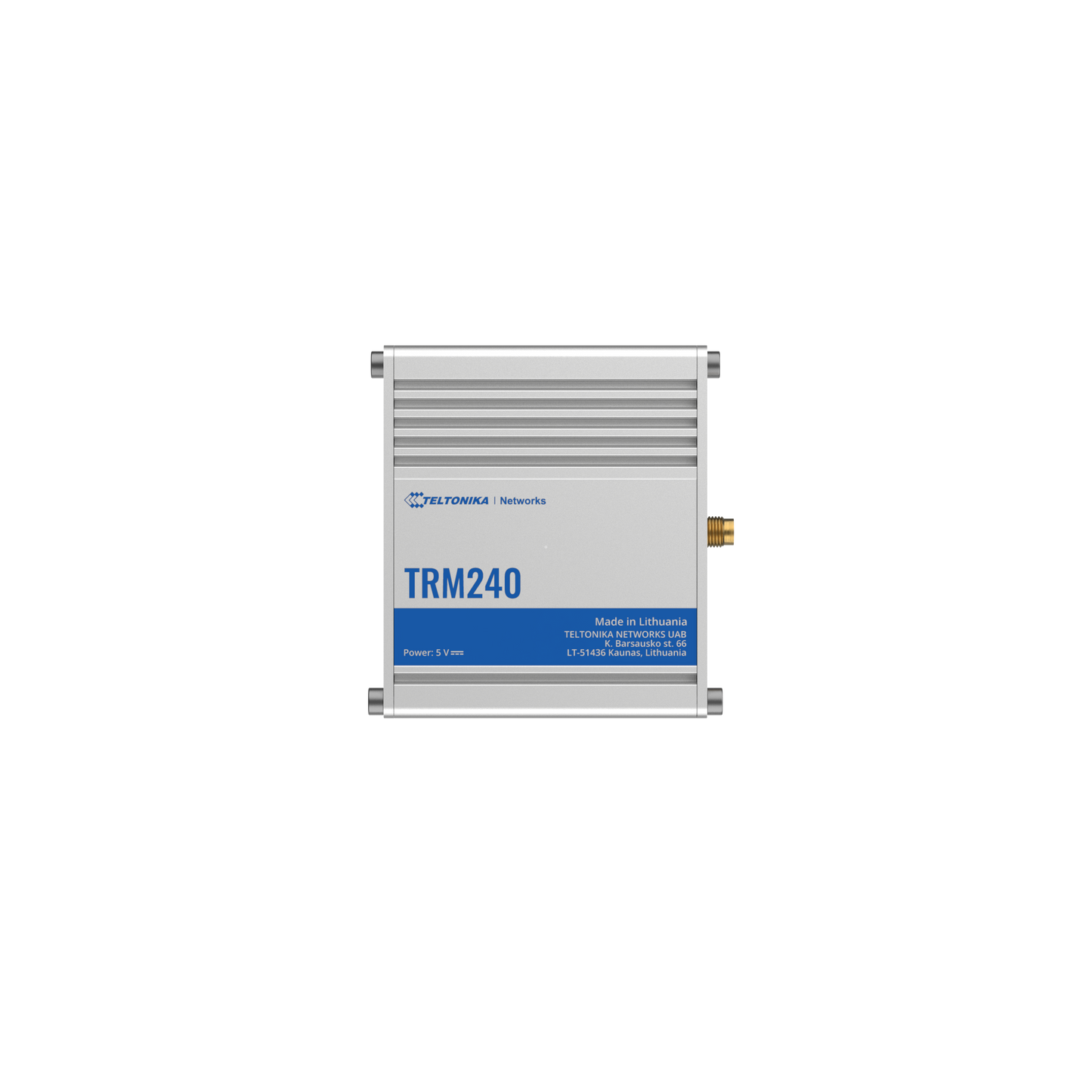

Teltonika TRM240 Industrial Cellular Modem
SKU:TRM240
20 in stock
Authorised Reseller | Australian Stock | Australian Warranty
TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
CONNECTIVITY: 4G/LTE (Cat 1), 3G, 2G.
COMPACT & DURABLE: Small size, easy installation.
USB: Interface for internet access.
EXTERNAL ANTENNA: For deployment flexibility.
Mobile | |
---|---|
Mobile module | 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps |
3GPP Release | Release 12 |
Power | |
Connector | microUSB |
Input voltage range | 5V - powered via microUSB |
Power consumption | 3.2 W Max |
Physical Interfaces | |

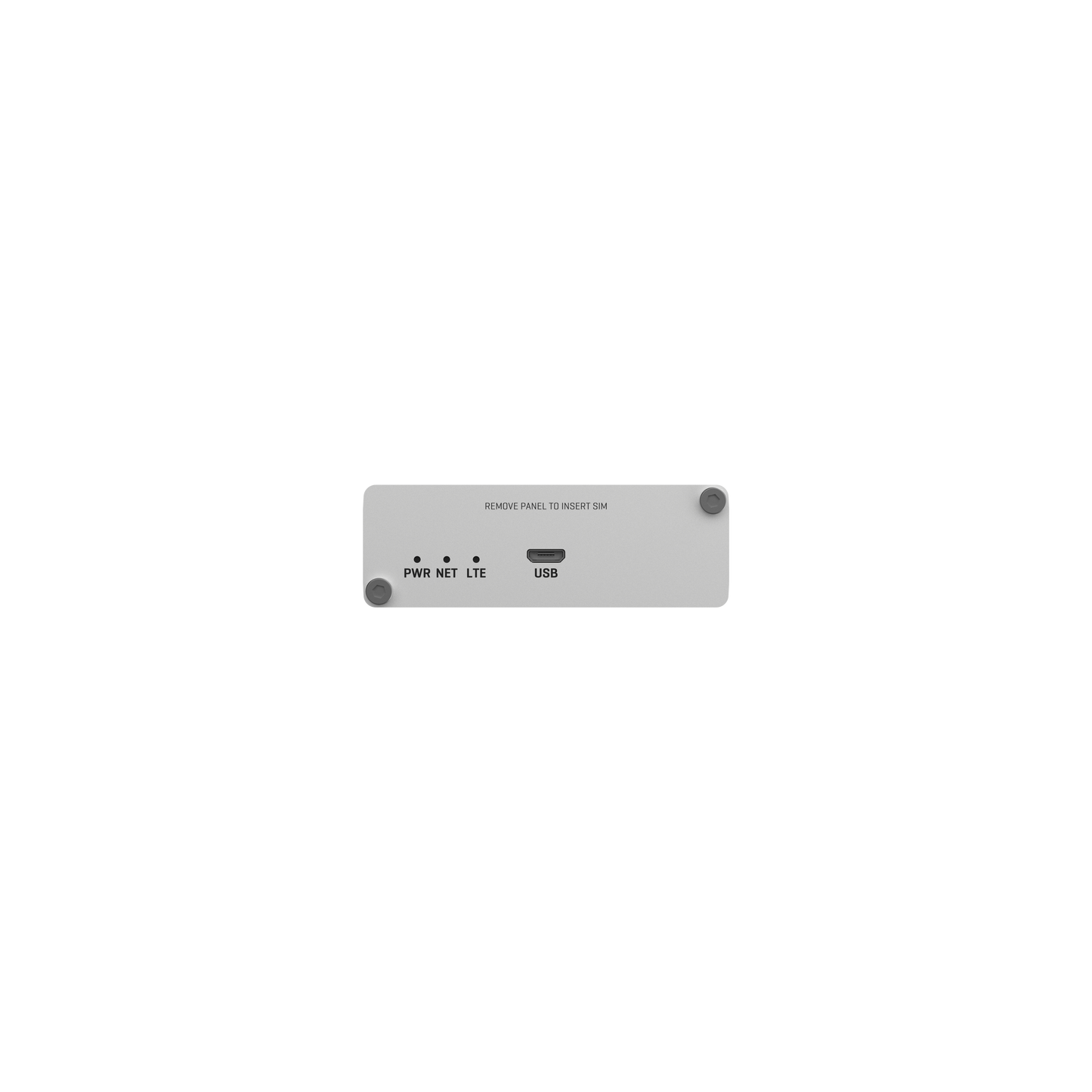

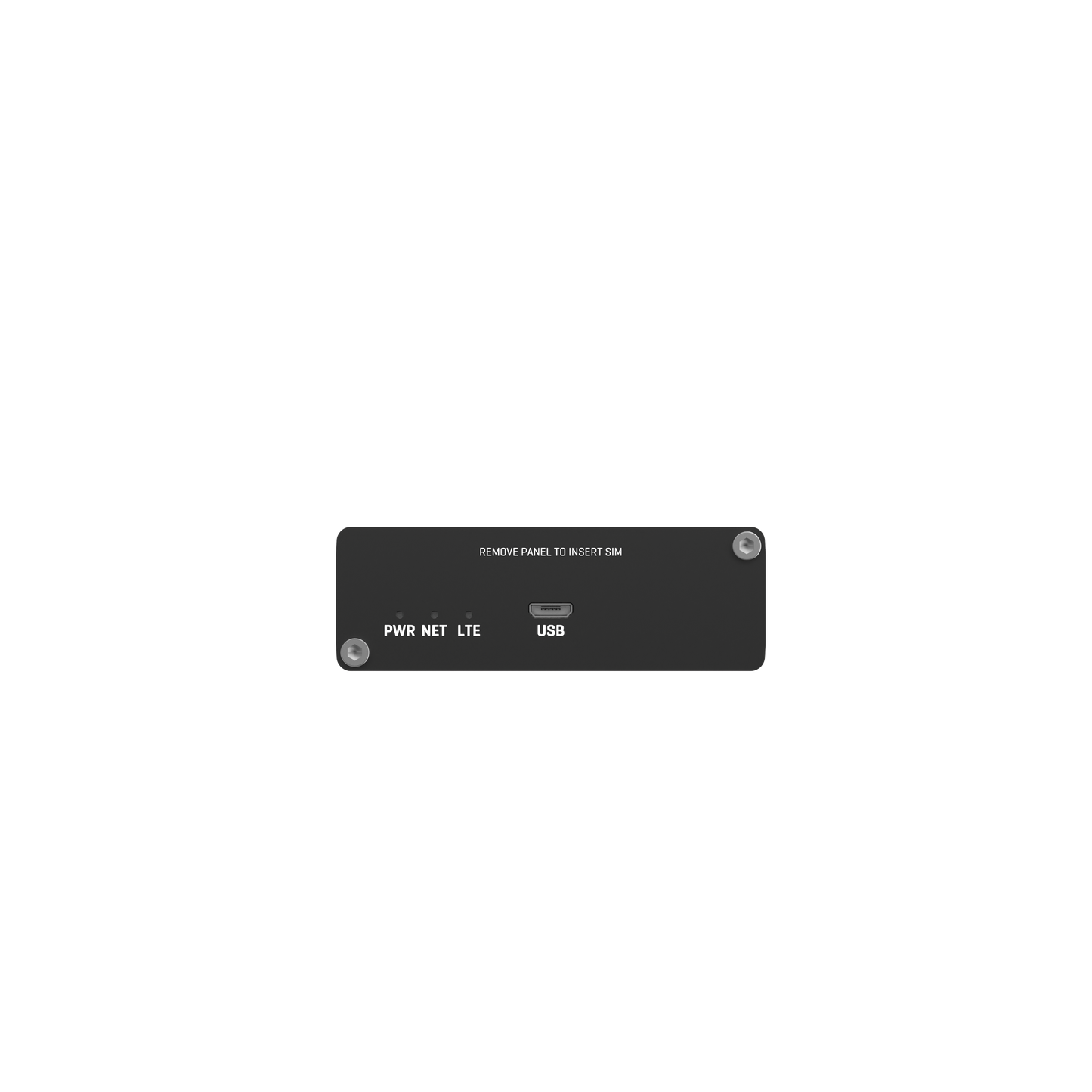

Status LEDs | 1 x Power LED, 1 x Network LED, 1 x LTE LED |
SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
Power | 1x microUSB |

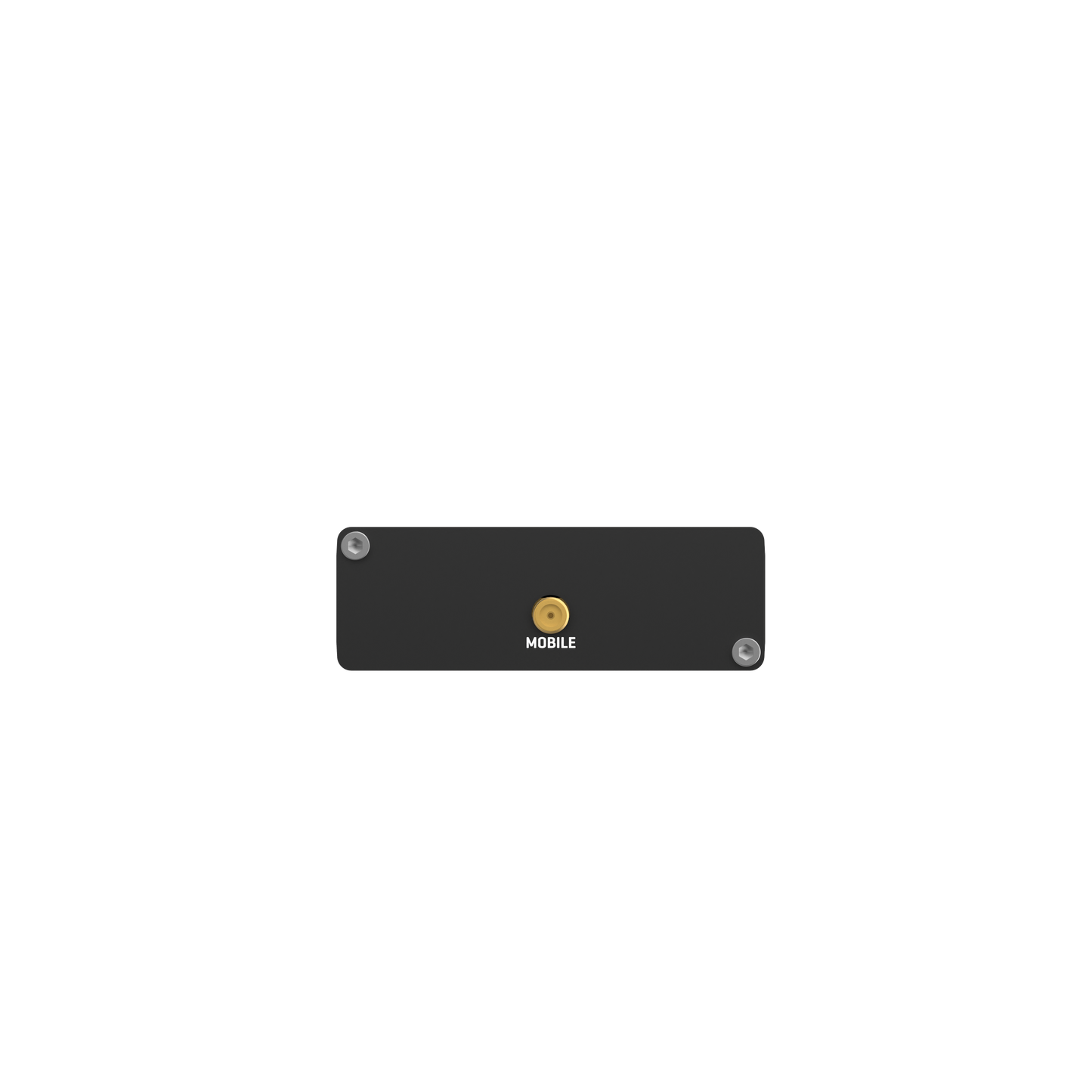

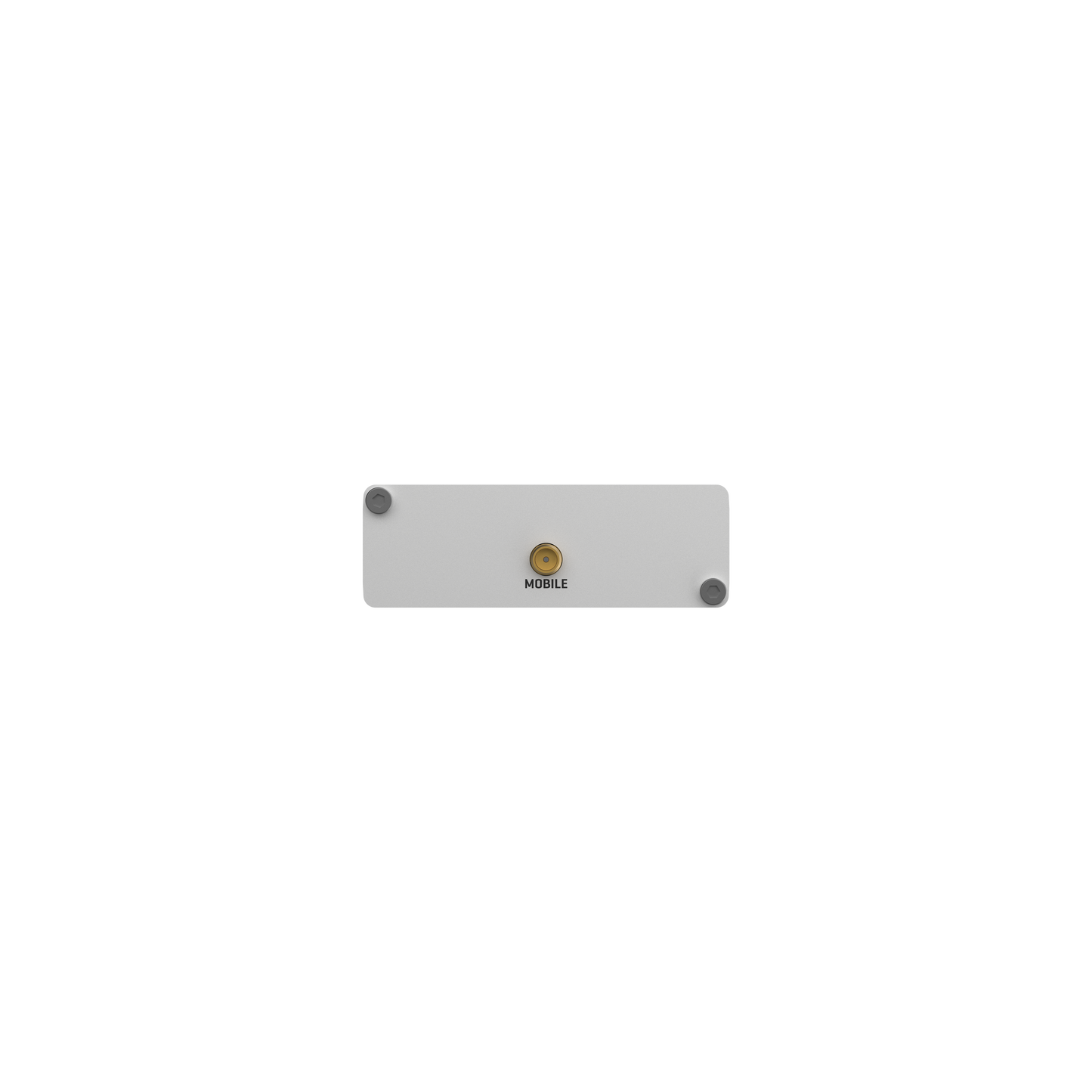

Antennas | 1 x SMA for LTE |
Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm |
Physical Specification | |
Casing material | Aluminium housing |
Weight | 131 g |
Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment | |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
TRM SOFTWARE | |
Management Software | Windows Connection Manager (NDIS driver) |
USB Driver | Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x |
RIL Driver | Android 4.x/5.x/6.x/7.x/8.x |
NDIS Driver | Windows 7/8/8.1/10 |
Gobinet Driver | Linux 2.6/3.x/4.1~4.14 |
Linux Driver | 3.x (3.4 and later)/4.1~4.14 |
Regulatory & Type Approvals | |
Regulatory | CE, UKCA, EAC, UCRF, Kenya, ICASA |
EMC Emissions & Immunity | |
Standards | Draft EN 303 446-1 V1.1.0 |
ESD | EN 61000-4-2:2009 |
Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 |
RF | |
Standards |
EN 301 511 V12.5.1 EN 301 908-1 V13.1.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.1.1 |
Safety | |
Standards | CE: EN 62368-1:2014 + A11:2017, EN 62311:2008 |
What's in the box?
- TRM240
- 1x Mobile antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1x hex key
- QSG (Quick Start Guide)
- Packaging box
Visit Teltonika for more information.
