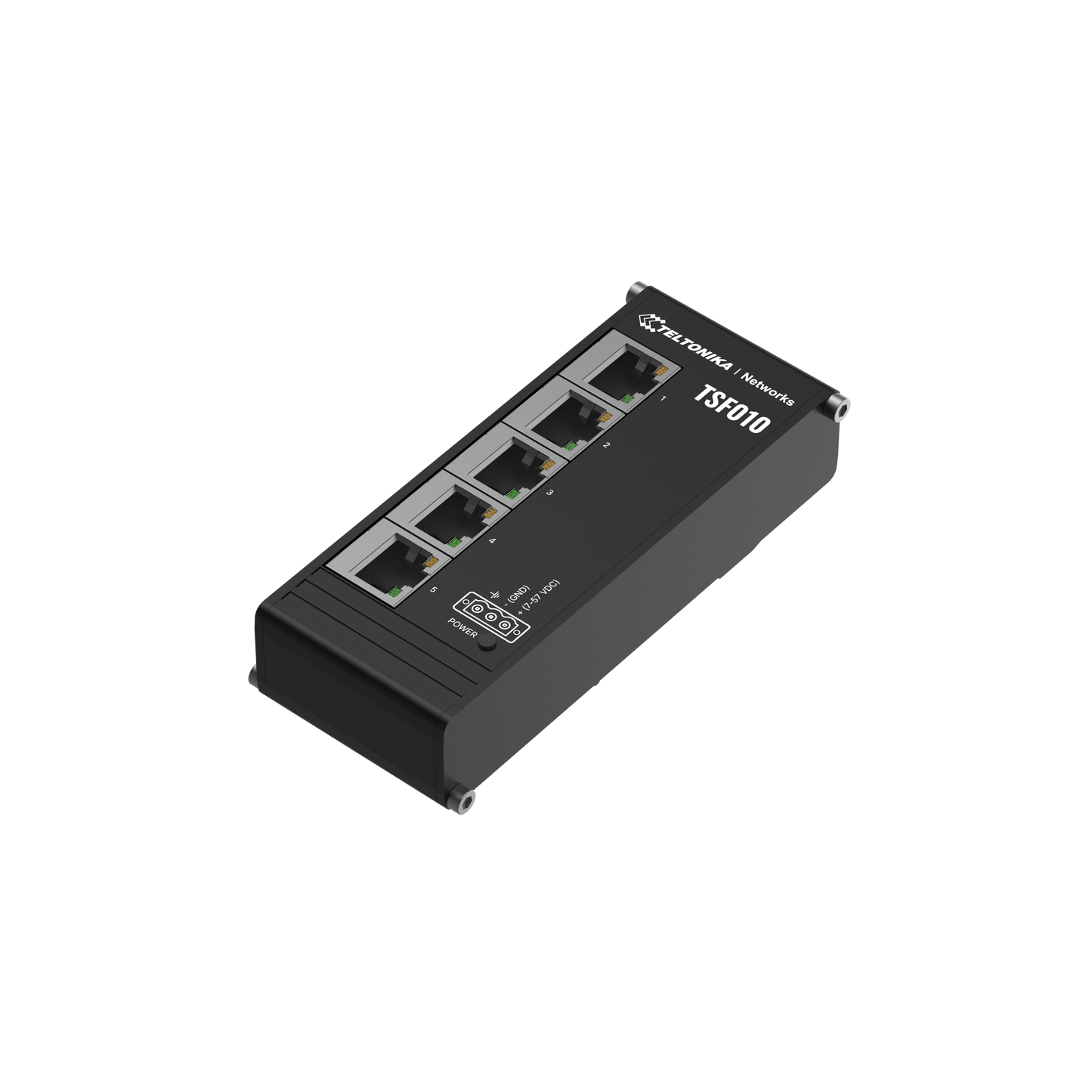

  • Teltonika TSF010 Flat Ethernet Switch viewed from a three-quarter angle showing visible ports and connection sockets.
  • Straight-on front view of the Teltonika TSF010 Flat Ethernet Switch with the enclosure open and internal components visible.
  • Teltonika TSF010 Flat Ethernet Switch shown in an angled view with the outer housing visible.
  • Ports and connection sockets of the Teltonika TSF010 Flat Ethernet Switch seen in a side-on view.
  • Teltonika TSF010 Flat Ethernet Switch viewed from the back panel showing visible ports and connection sockets.
  • Rear-facing view of the Teltonika TSF010 Flat Ethernet Switch showing visible ports and connection sockets.
1 9

Teltonika

TSF010 Flat Ethernet Switch

TSF010 Flat Ethernet Switch

TSF010

$94.00
$94.00 $94.00
0% Off | Save $0.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

Out of stock

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

3-PIN POWER INPUT: Flexible and tailor-made for industrial use.

FLAT & COMPACT: Flat and compact design weighing only 142 g.

INTEGRATED DIN RAIL BRACKET: Easy mounting for plug-and-play deployment.

7-57 VDC: Suitable voltage range for industrial applications.

Specification

Ethernet
ETHERNET 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
Bandwidth (Non-blocking) 10 Gbps
Packer buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
Power

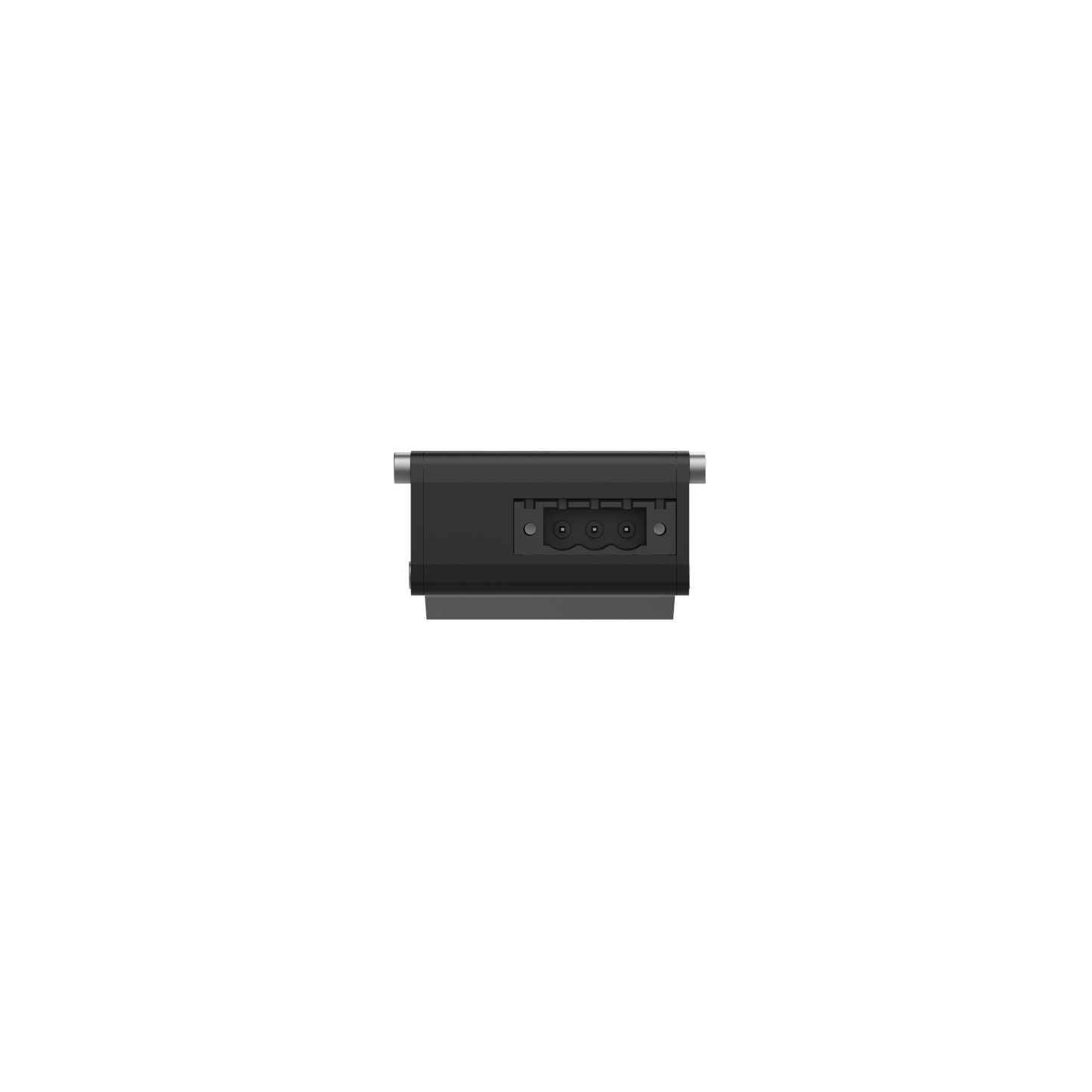

Connector 3-pin industrial DC power socket
Input voltage range 7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,
surge protection: min 64.4V/max 71.2V breakdown voltage,
93.6V maximum reverse voltage @4.3A maximum reverse surge current
Power consumption Idle: 1 W / Max: 1.5 W
Physical Interfaces
Ethernet 5 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power 1 x 3-pin industrial DC power socket
Grounding Grounding terminal on power connector
Physical Specification
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 113 x 28 x 50 mm
Weight 142 g

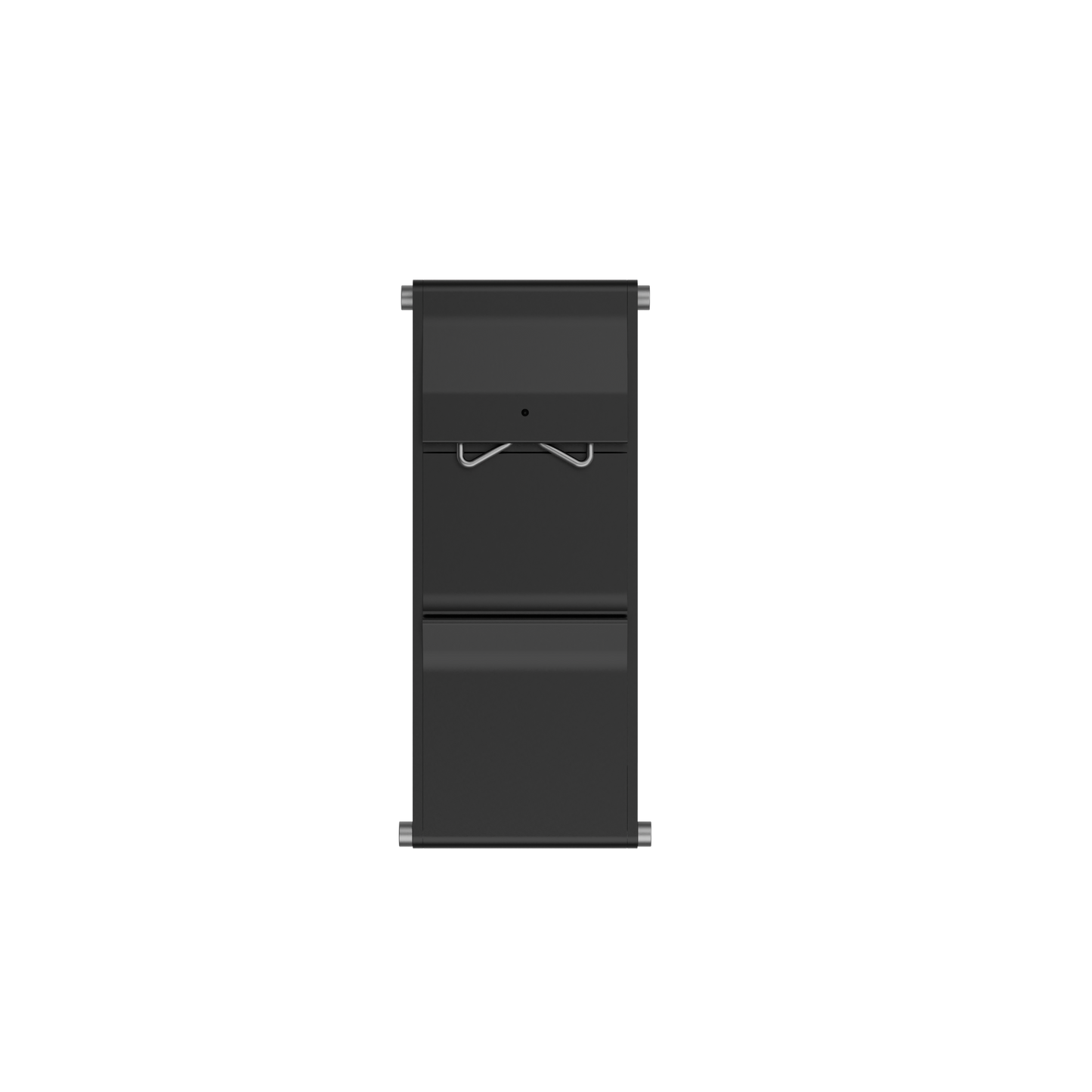

Mounting options Integrated DIN rail bracket
Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

What's in the box?

  • TSF010
  • 3-pin power connector
  • QSG (Quick Start Guide)
  • Packaging box
