TSW110 L2 Unmanaged Ethernet Switch
Teltonika TSW110 L2 Unmanaged Ethernet Switch
SKU:TSW110
13 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

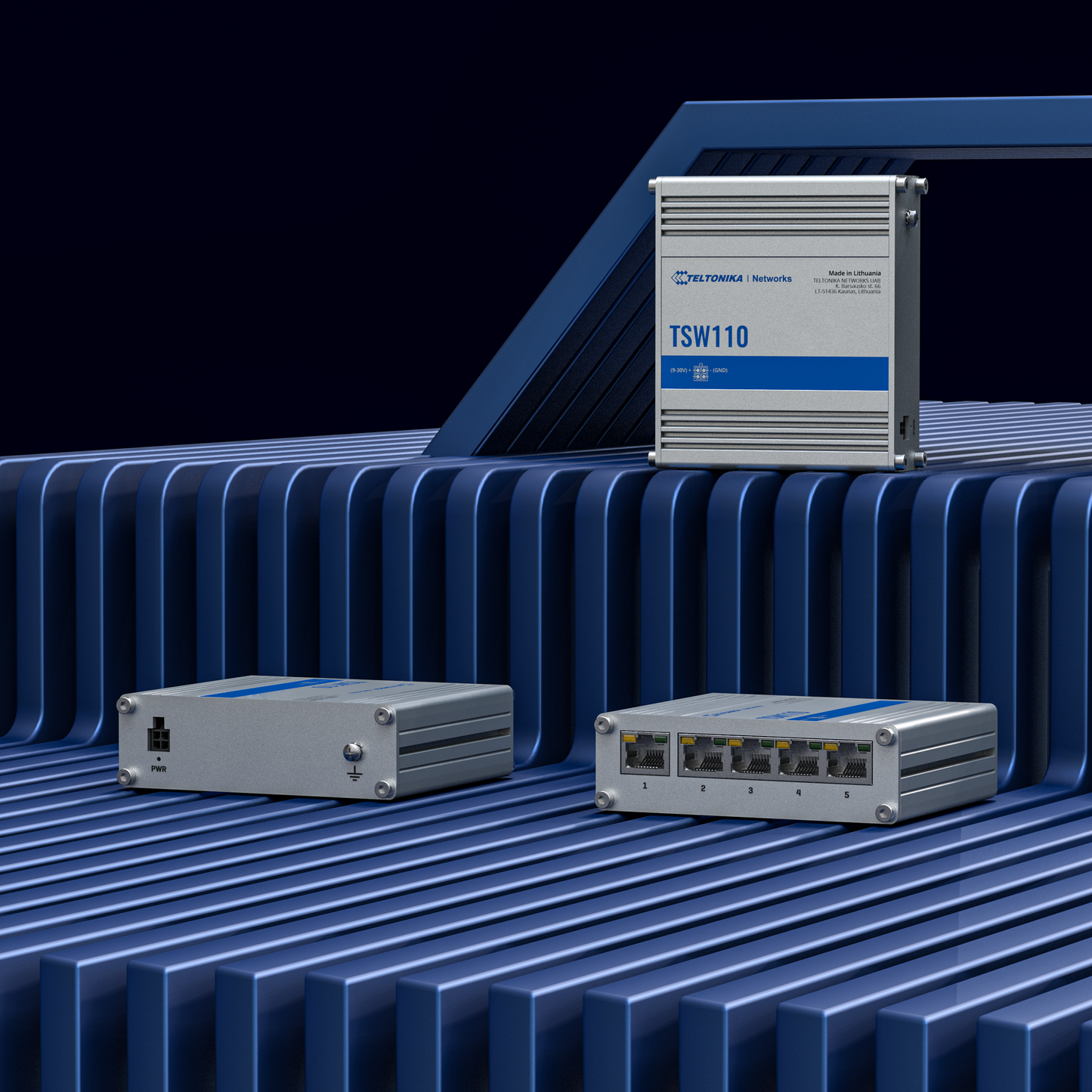

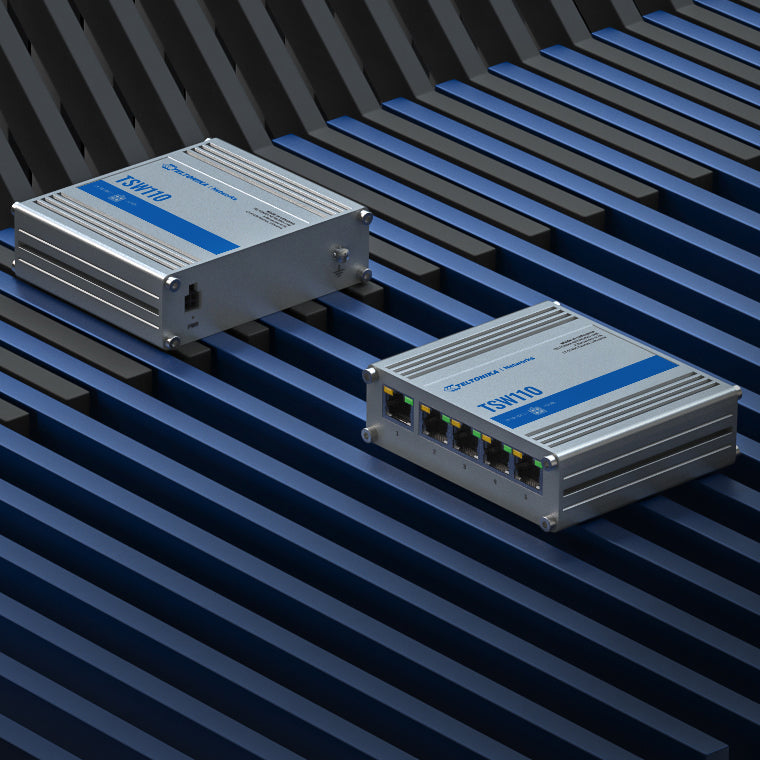

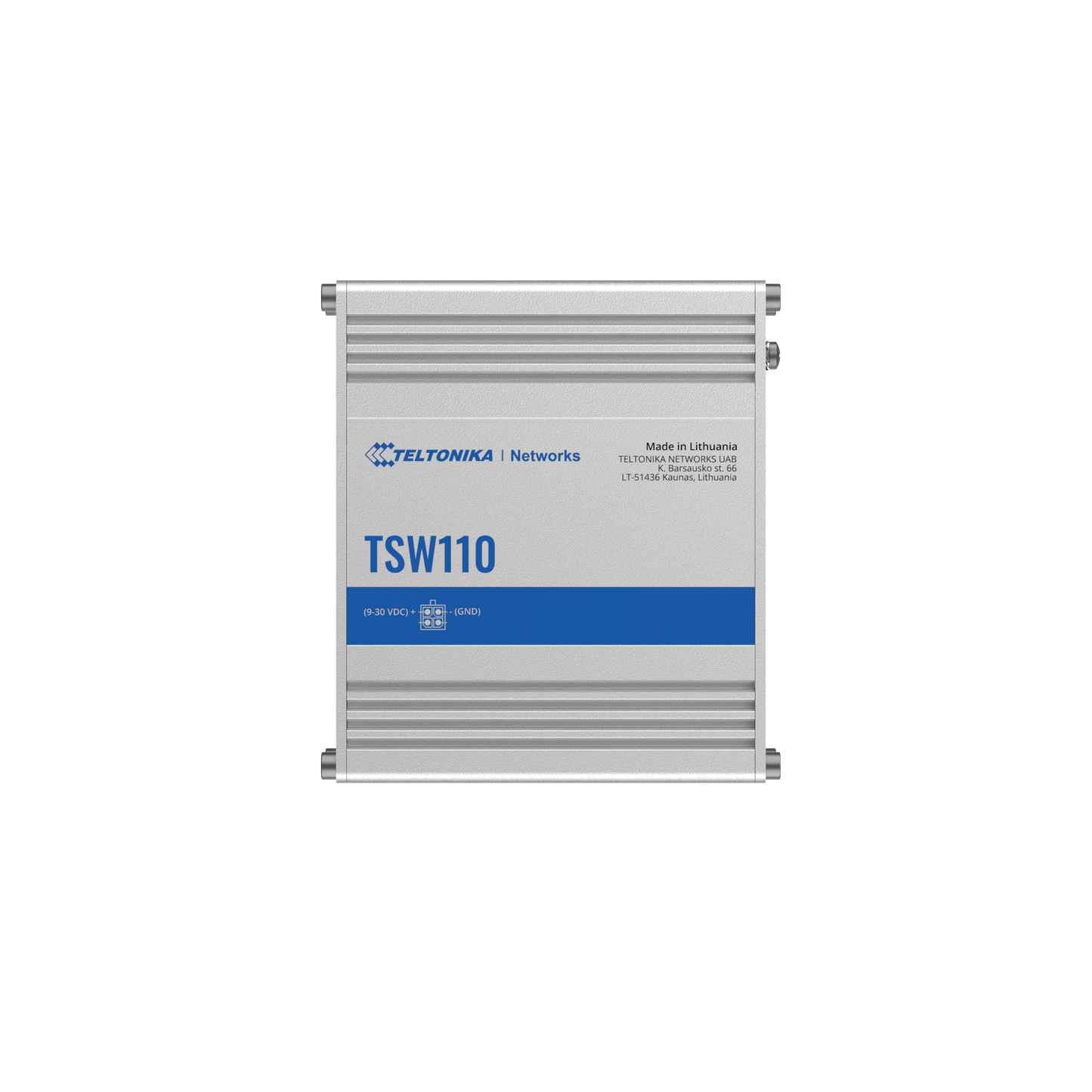

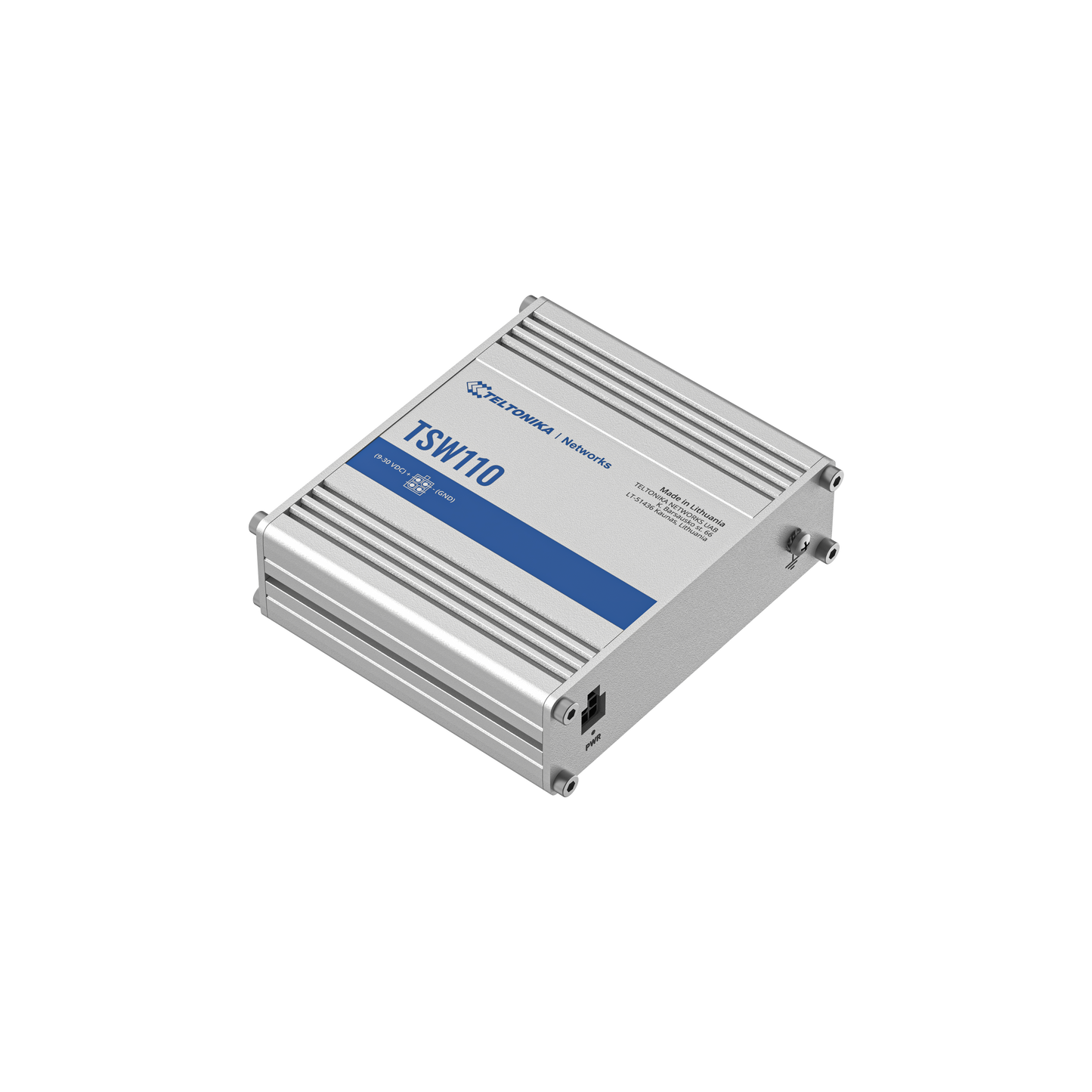

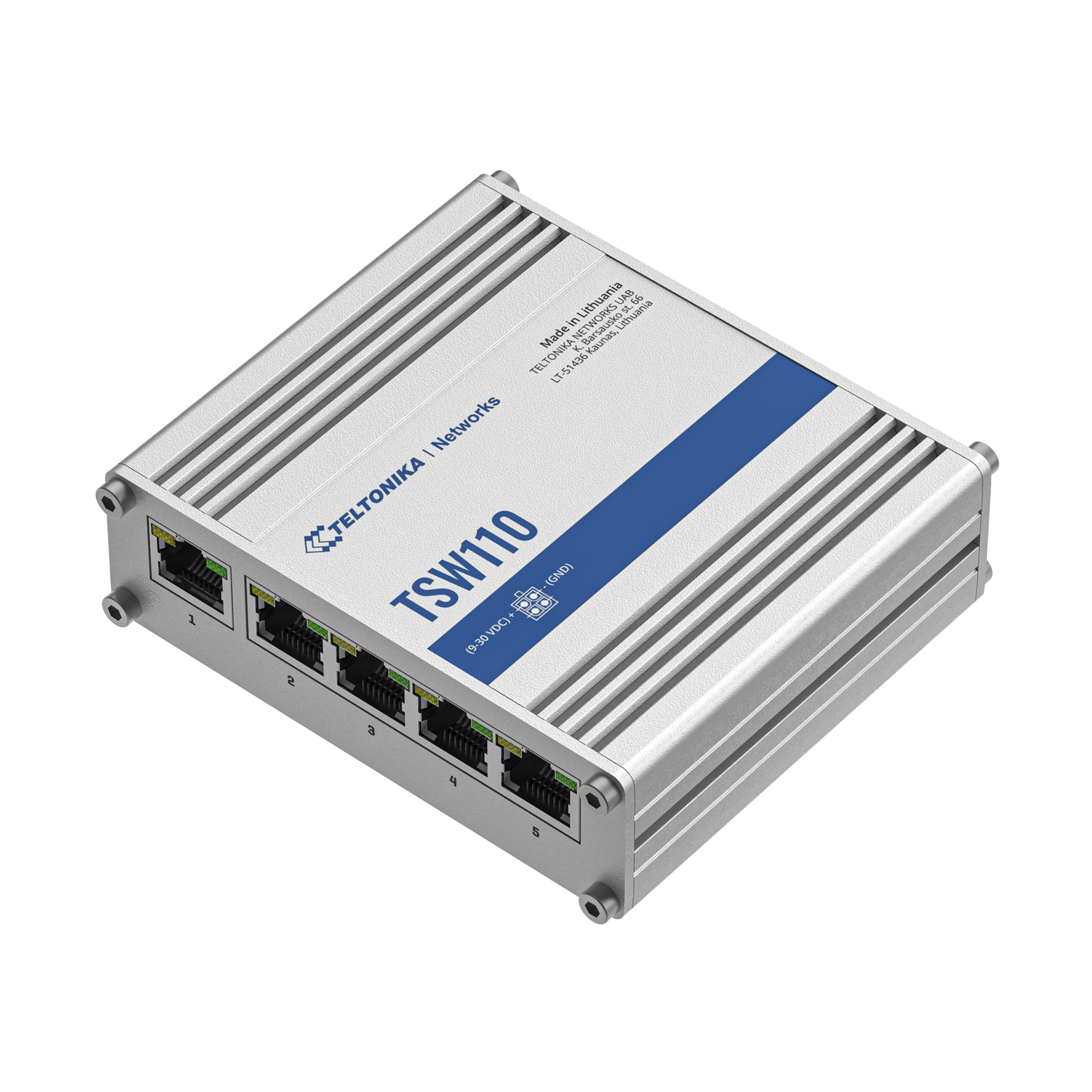

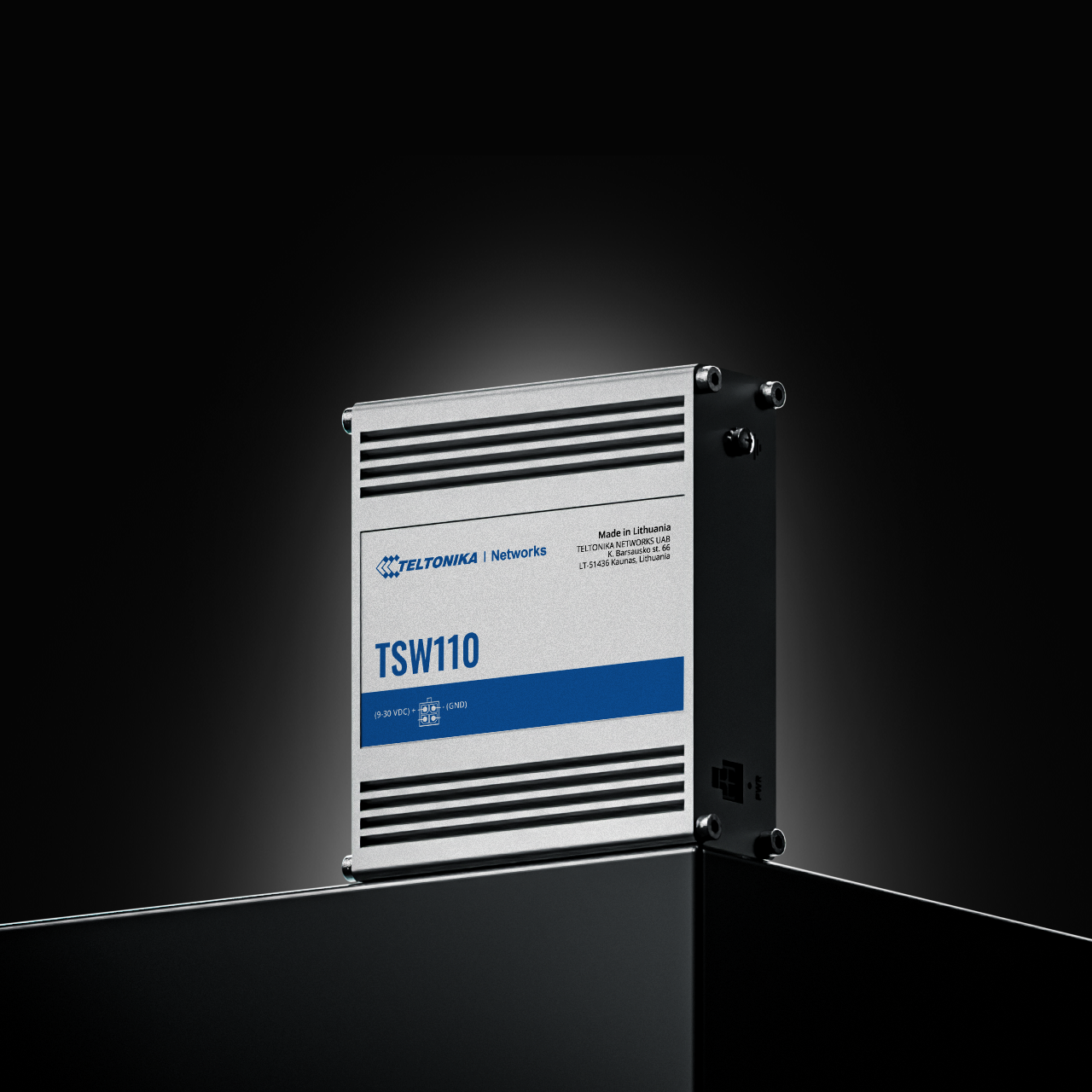

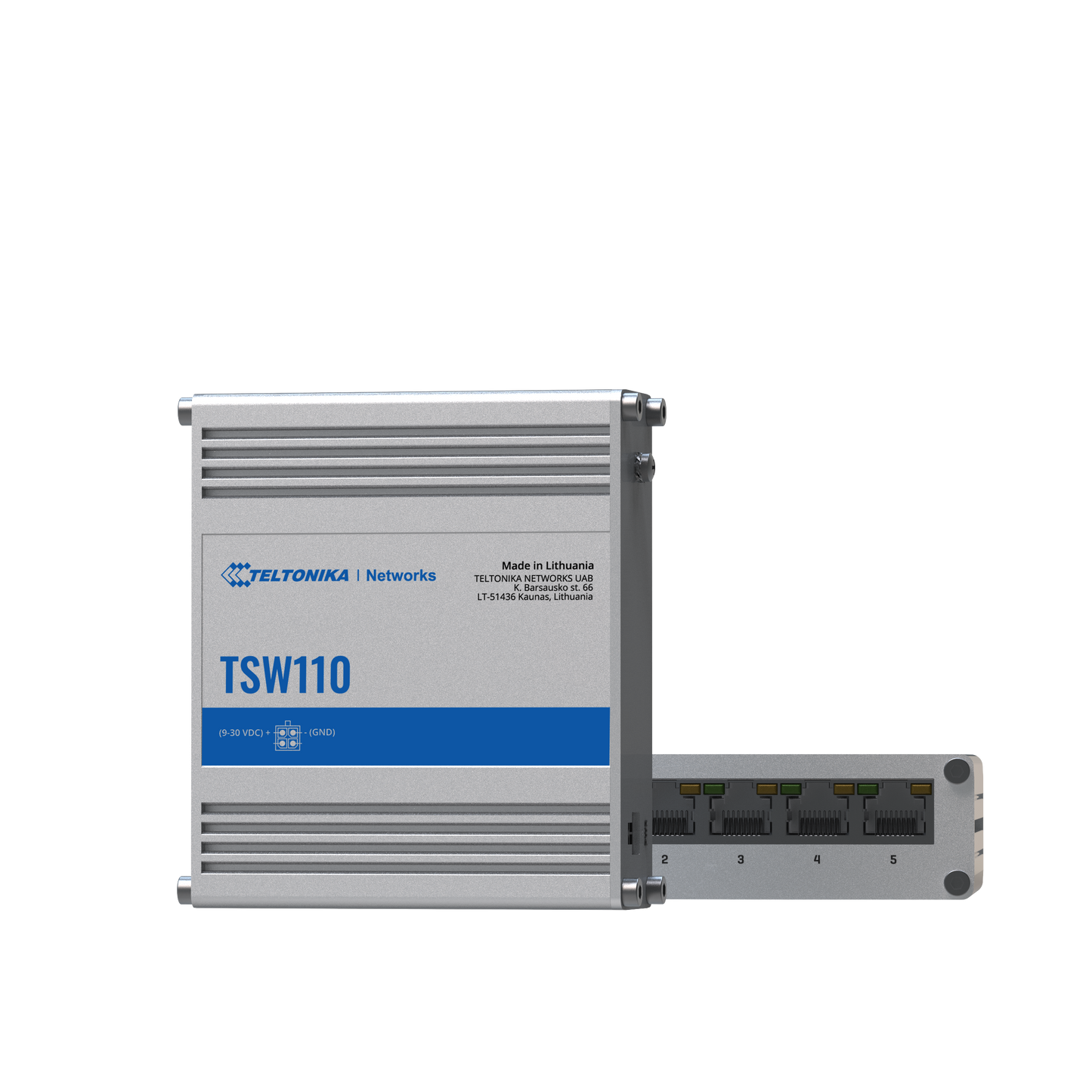

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
GIGABIT ETHERNET: 5 x Gigabit Ethernet with speeds up to 1000 Mbps.
DURABILITY: Rugged aluminium housing.
MOUNTING: DIN rail and surface mounting options.
TEMPERATURE: Operating temperature from -40 °C to 75 °C.
| Ethernet | |
|---|---|
| ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | < 0.4 W/ < 1.8 W |
| Physical Interfaces | |

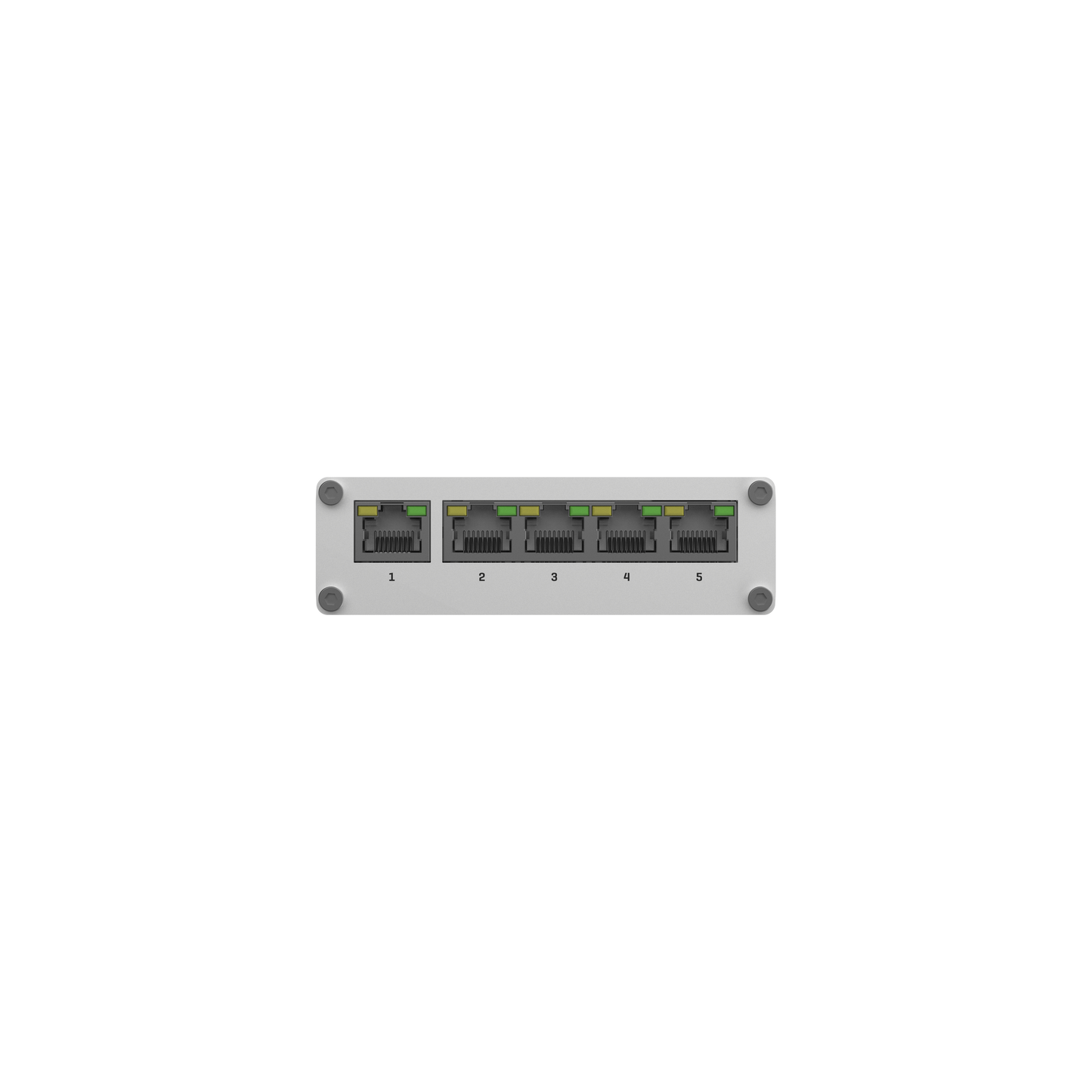

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |

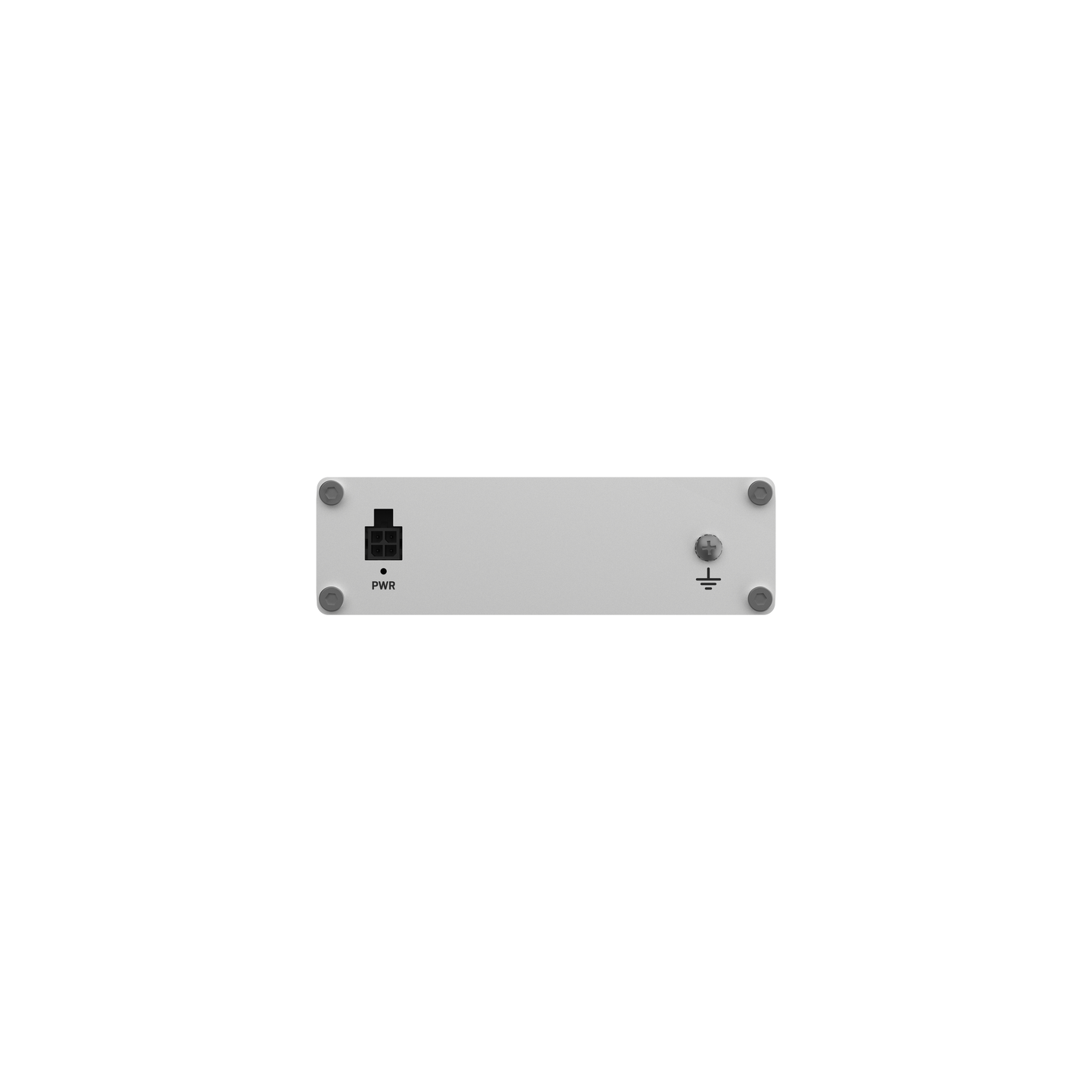

| Power | 1 x 4-pin power connector |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 227 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A11:2020 EN 61000-3-3:2013 + A1:2019 EN IEC 61000-3-2:2019 EN 55035:2017 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 + A1:2017 |
| Safety | |
| Standards |
IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 |
What's in the box?
- TSW110
- 9 W PSU
- QSG (Quick Start Guide)
- Packaging box
Visit Teltonika for more information.
