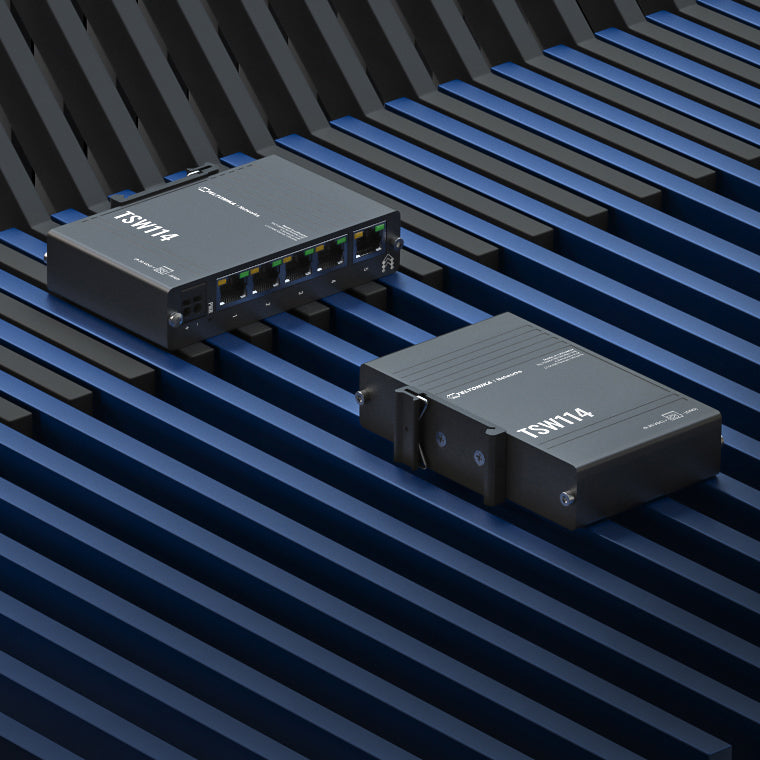

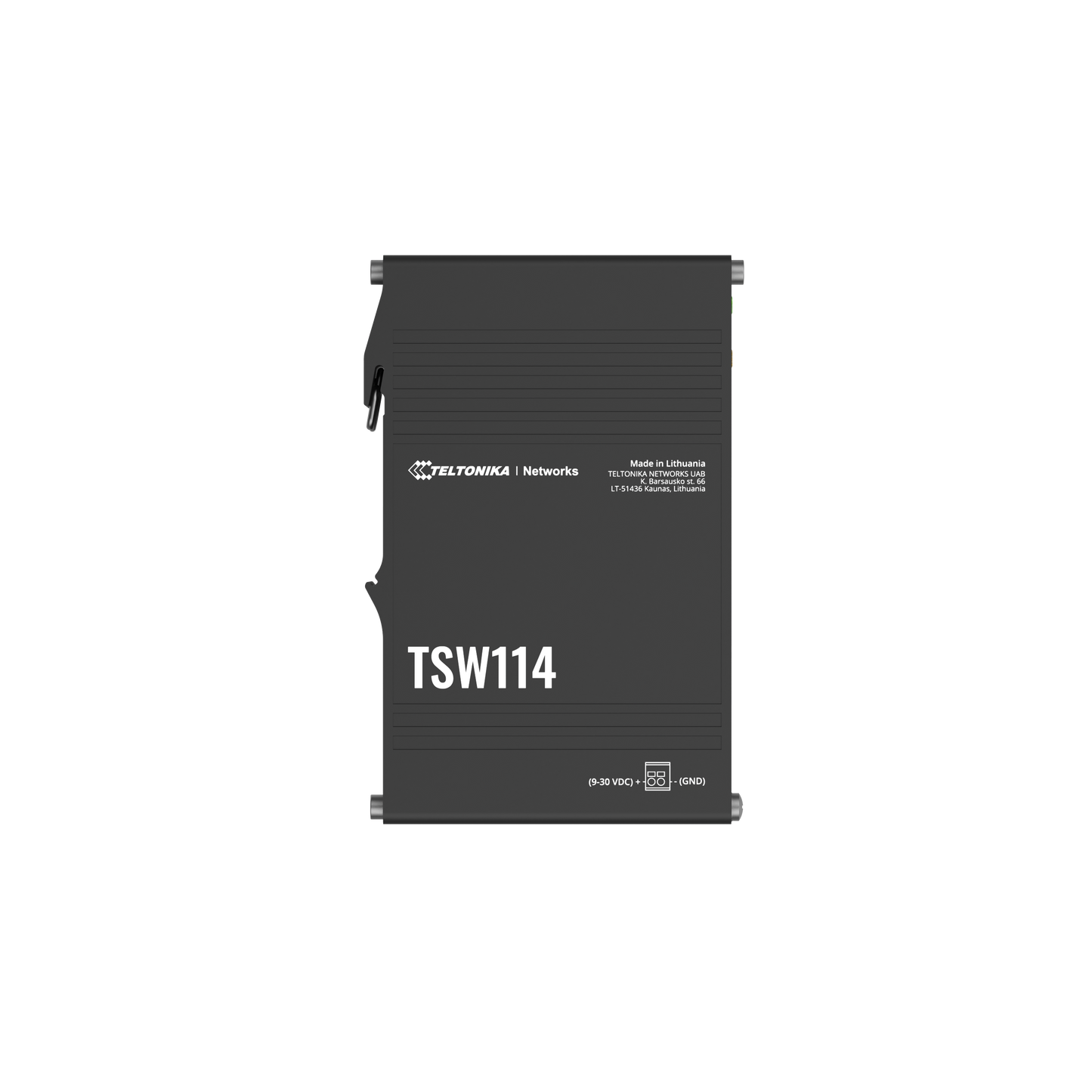

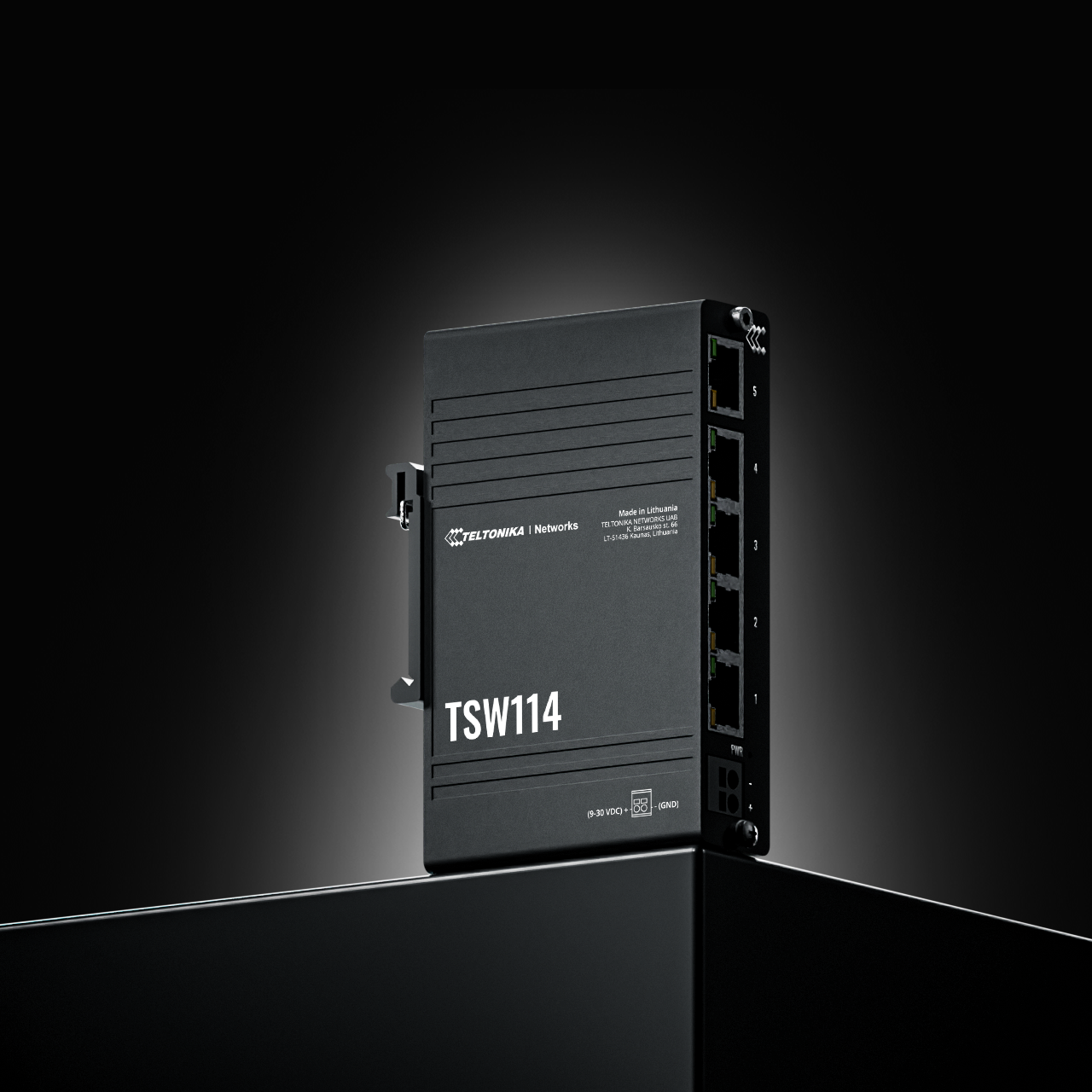

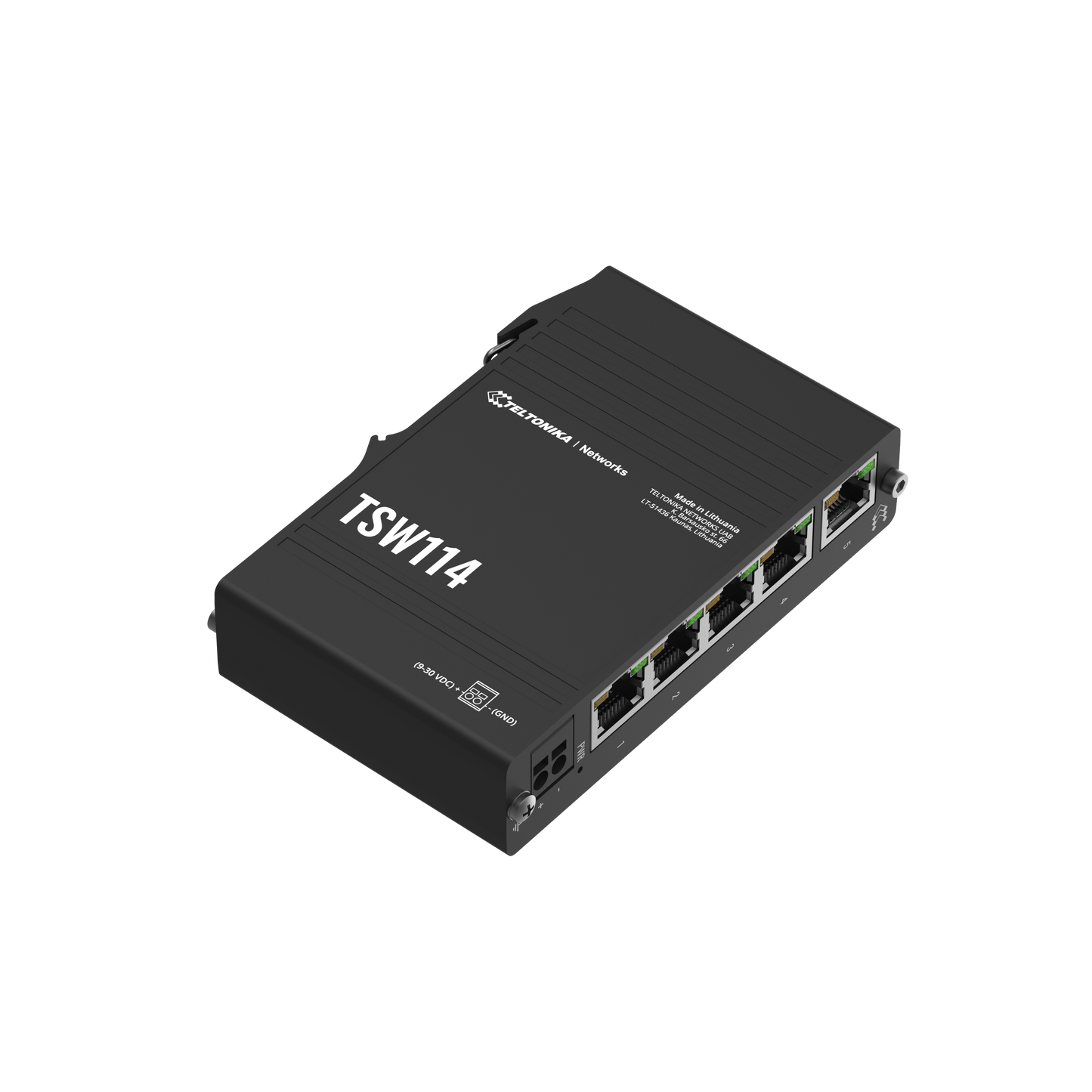

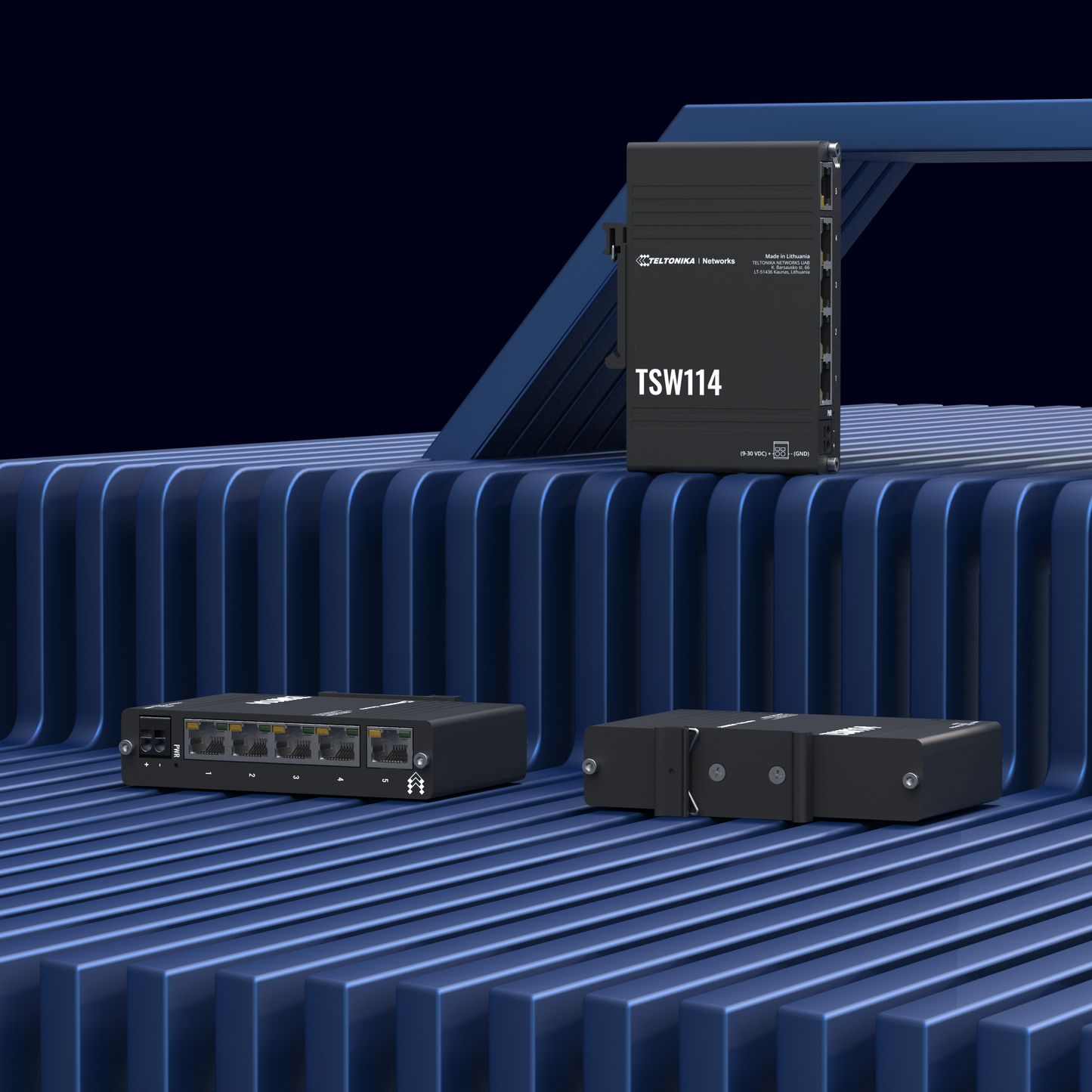

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The Ethernet switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

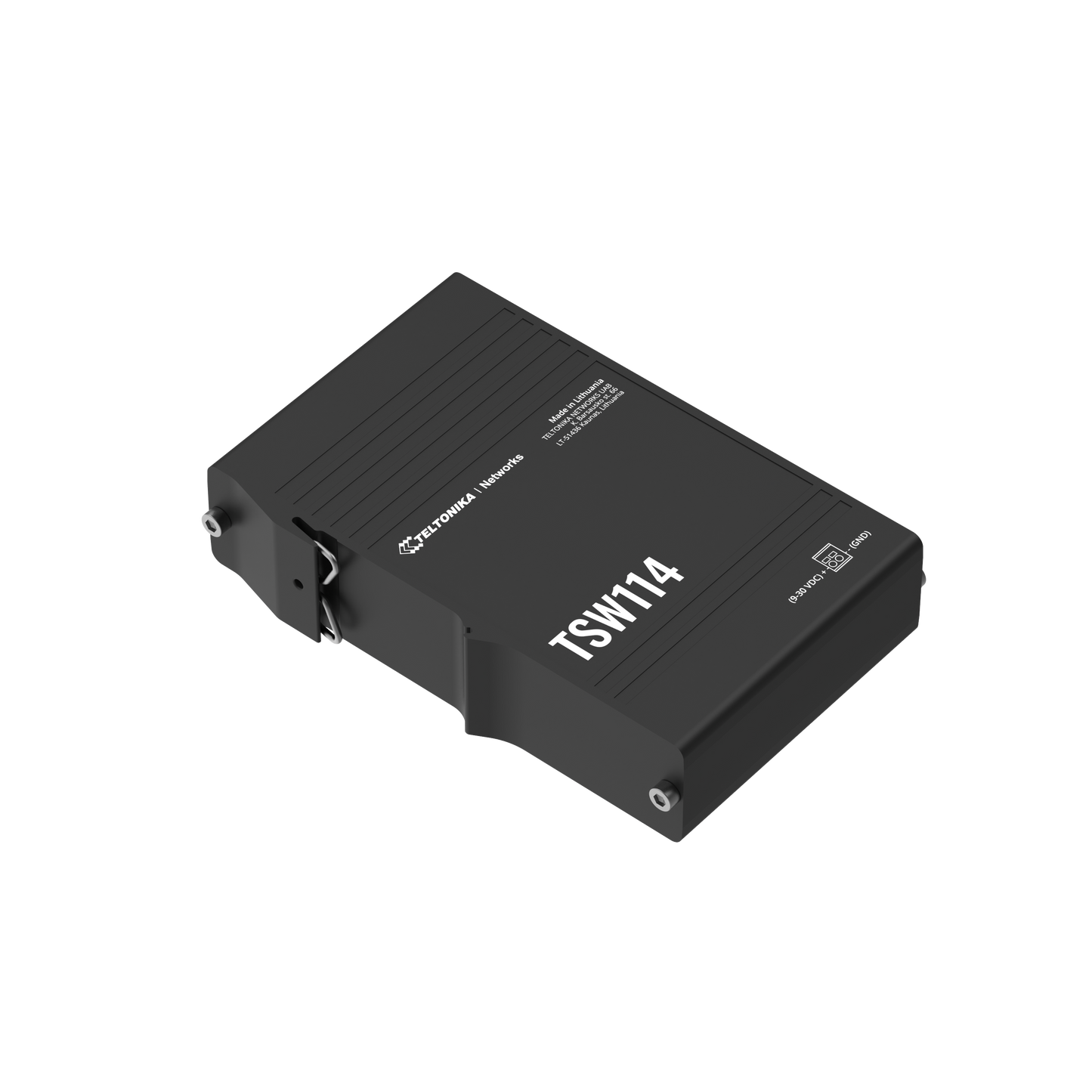

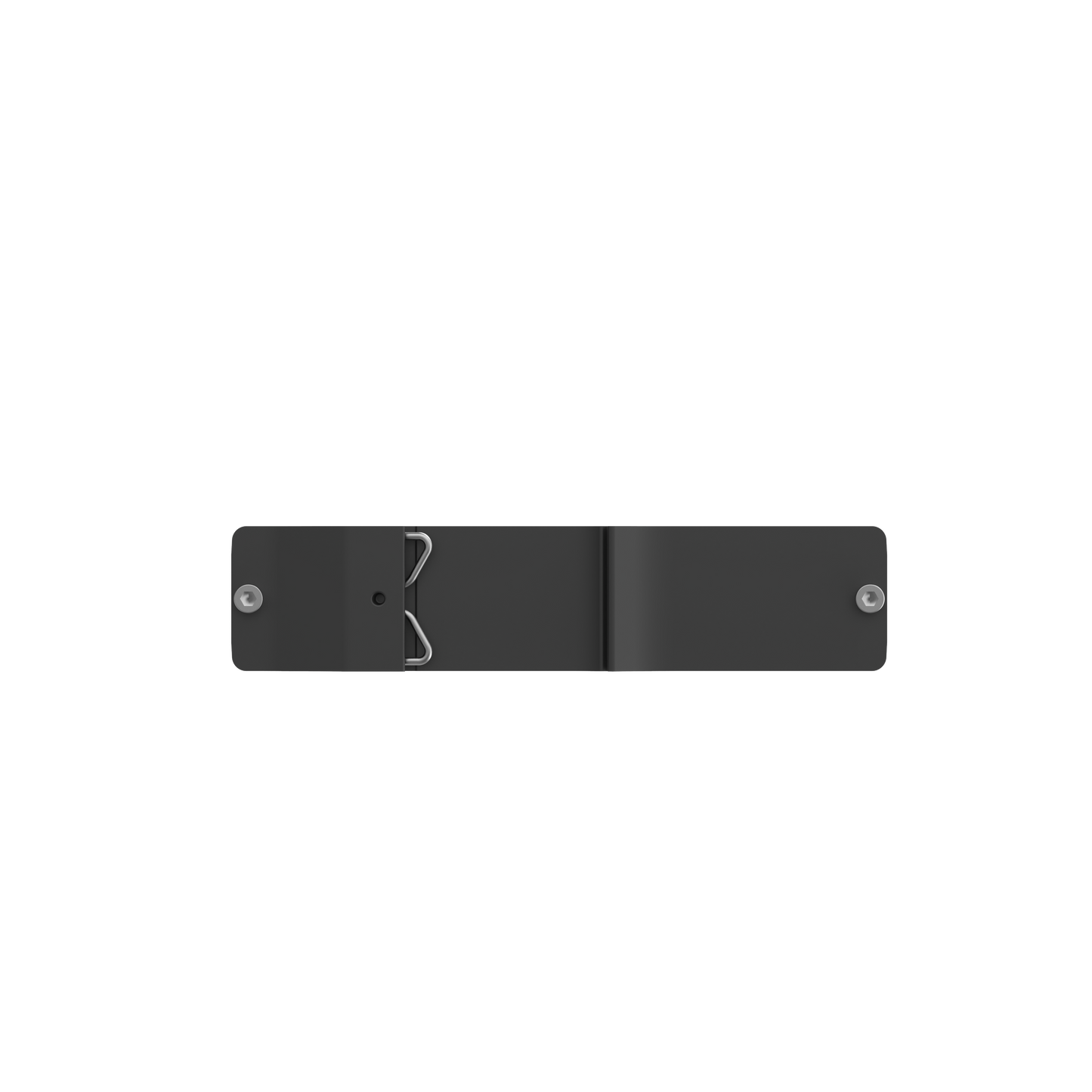

EASY MOUNTING: Integrated DIN rail bracket and front-facing ports.
GIGABIT ETHERNET: 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps.
COMPACT & DURABLE: Rugged anodised aluminium housing that fits in your pocket.
PLUG AND PLAY: No additional configuration needed.
| Ethernet | |
|---|---|
| ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 2.3 W |
| Physical Interfaces | |

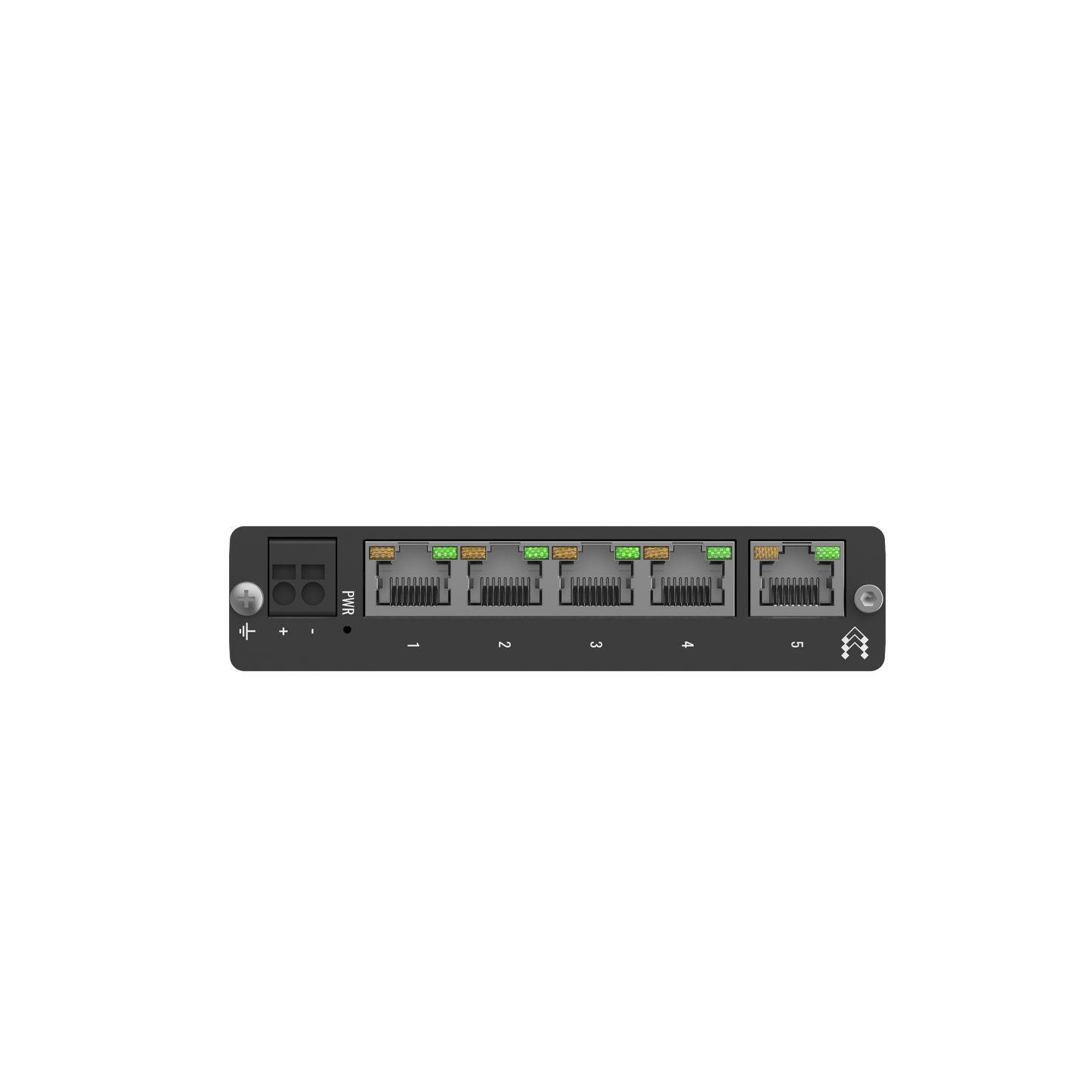

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 174 g |
| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| Safety | |
| Standards |
CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
What's in the box?
- TSW114
- QSG (Quick Start Guide)
- Packaging box
