TSW200 Industrial PoE+ Ethernet Switch

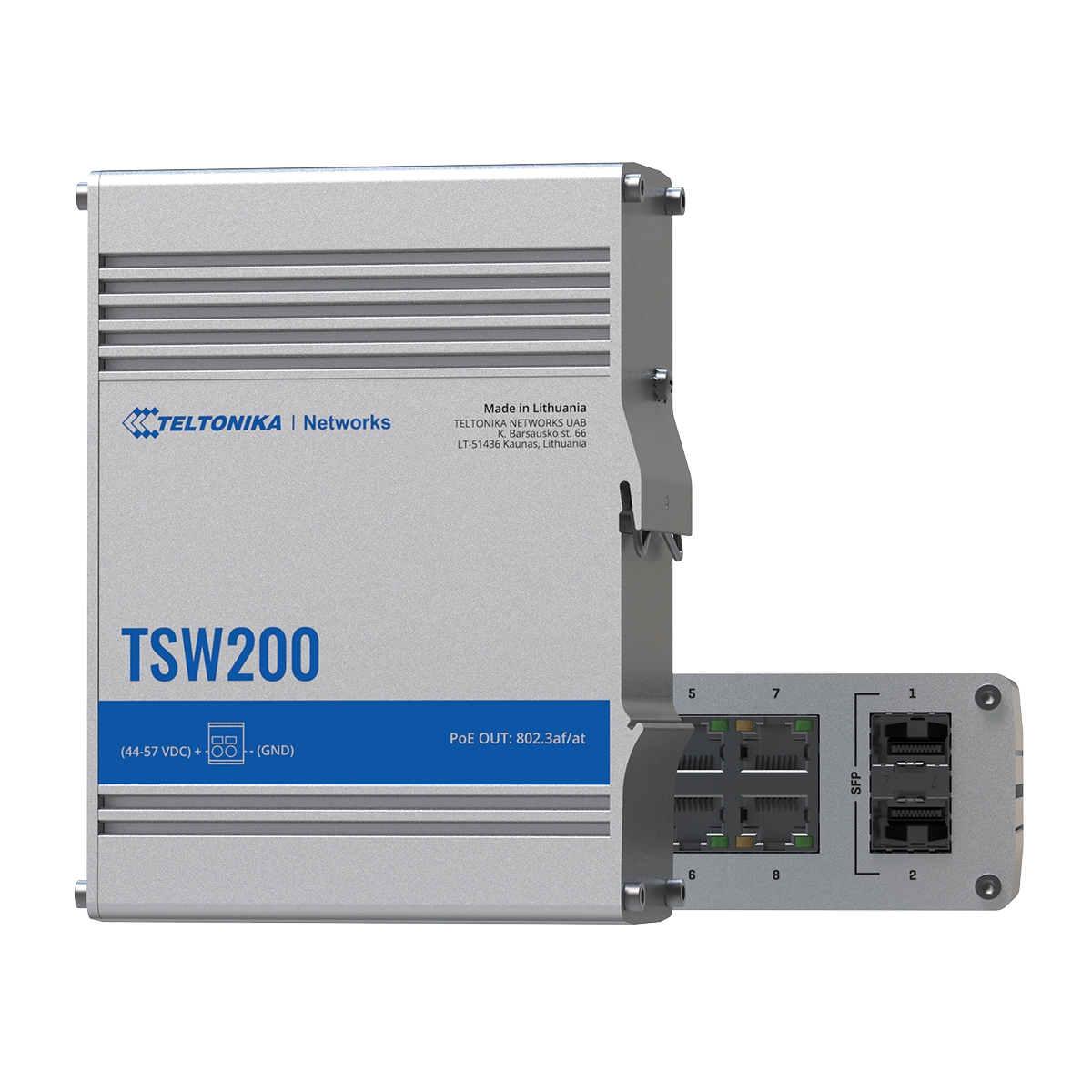

Teltonika TSW200 Industrial PoE+ Ethernet Switch
SKU:TSW200
59 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

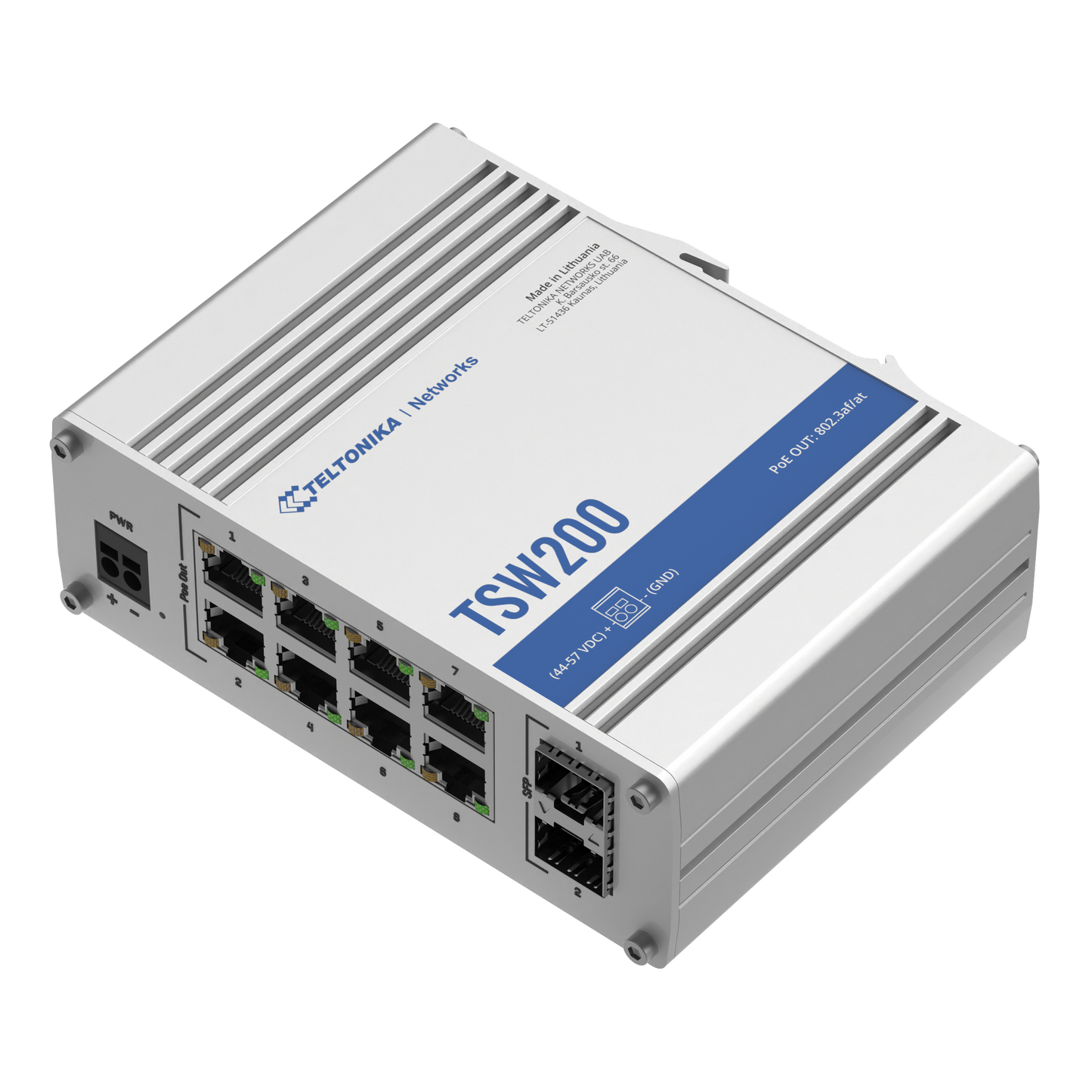

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
SFP: 2 x SFP ports for long-range Fiber-optic communication.
PoE+: 8 x PoE+ ports with 802.af, 802.3at standard support.
POWER BUDGET: Total power budget at PSE up to 240 W.
ETHERNET: 8 x Gigabit Ethernet with speeds up to 1000 Mbps.
| Ethernet | |
|---|---|
| ETH | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| POE OUT | |
| PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at Alternative B |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packer buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| PoE-out input voltage range | 44 – 57 VDC |
| Power consumption | Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W |

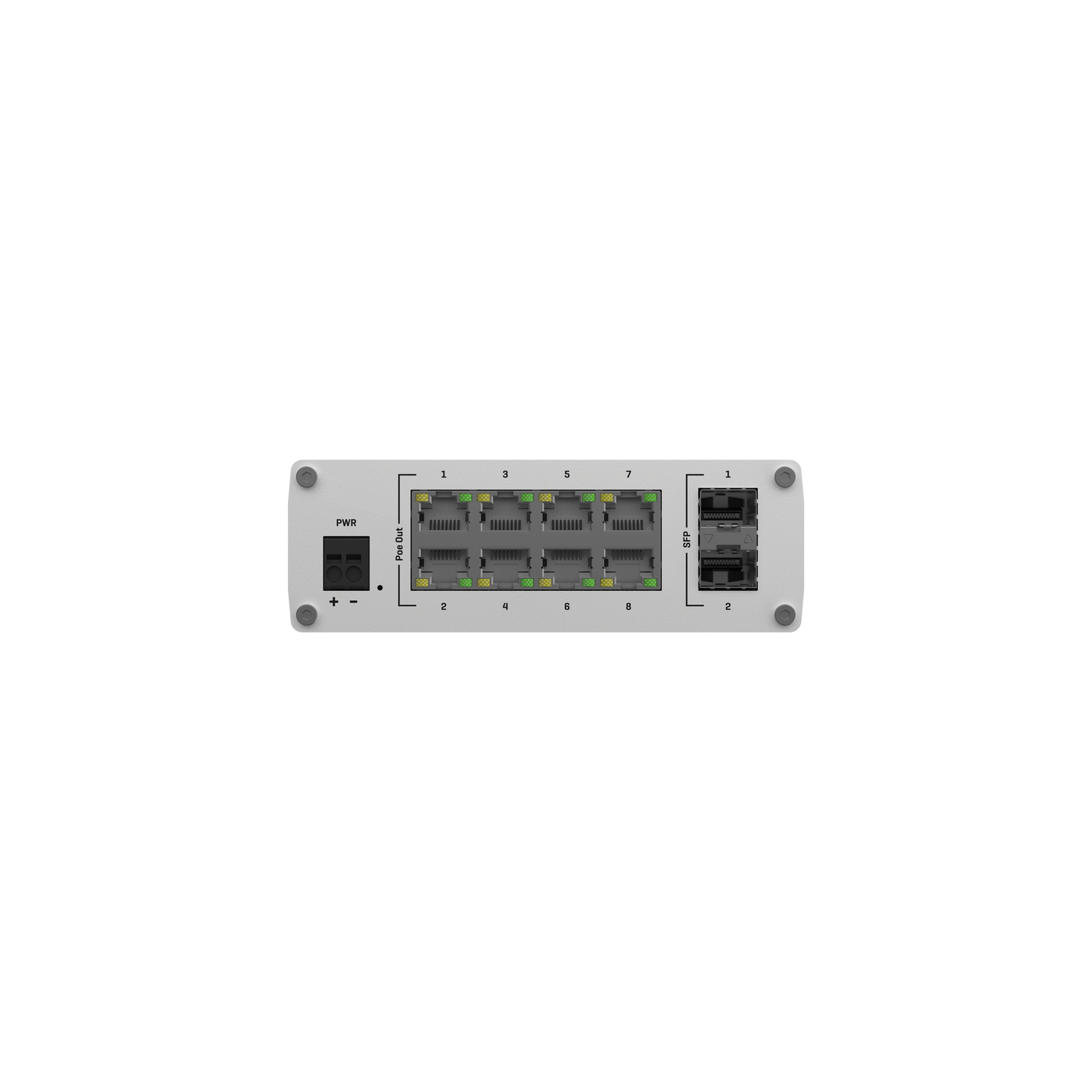

| Physical Interfaces | |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |

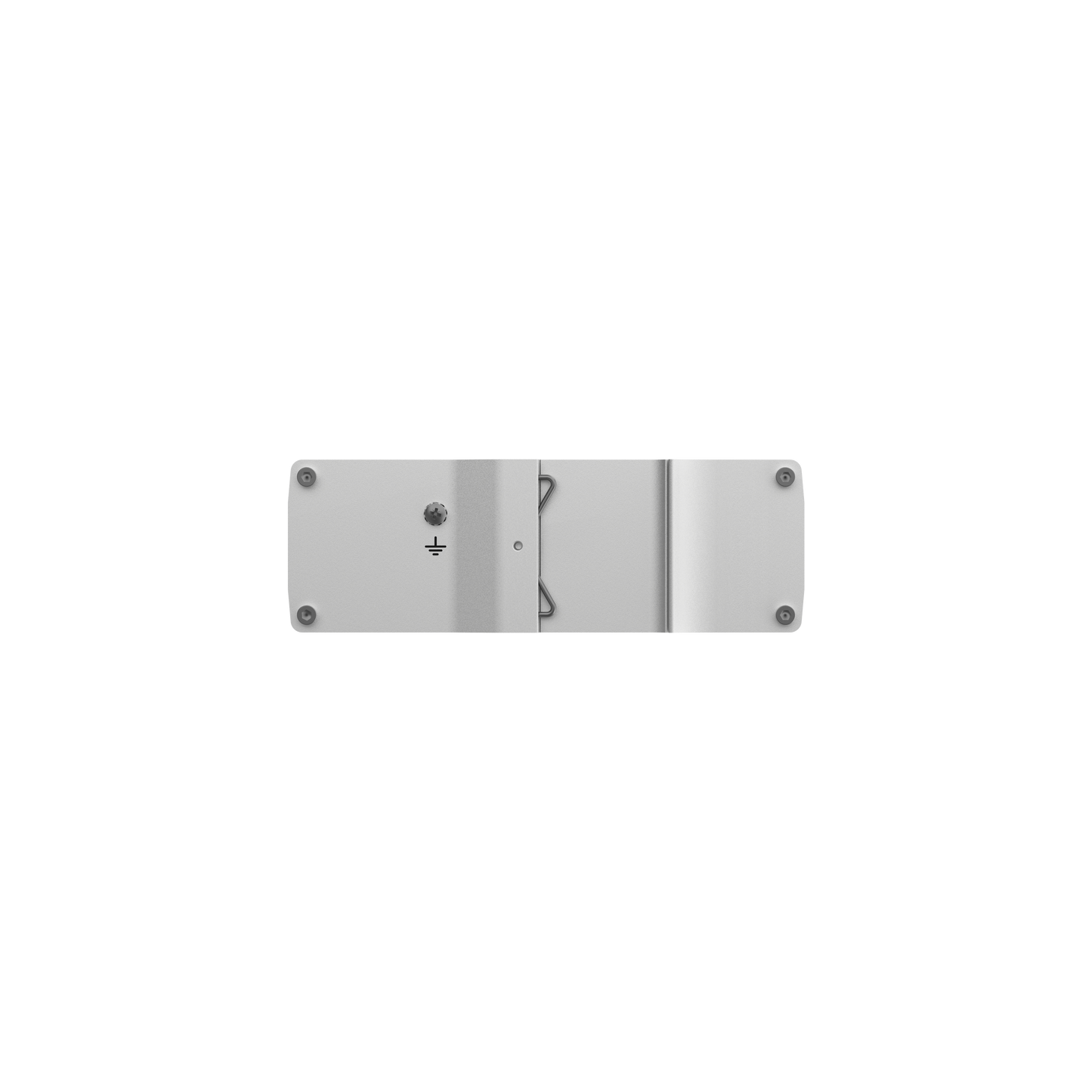

| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 517 g |

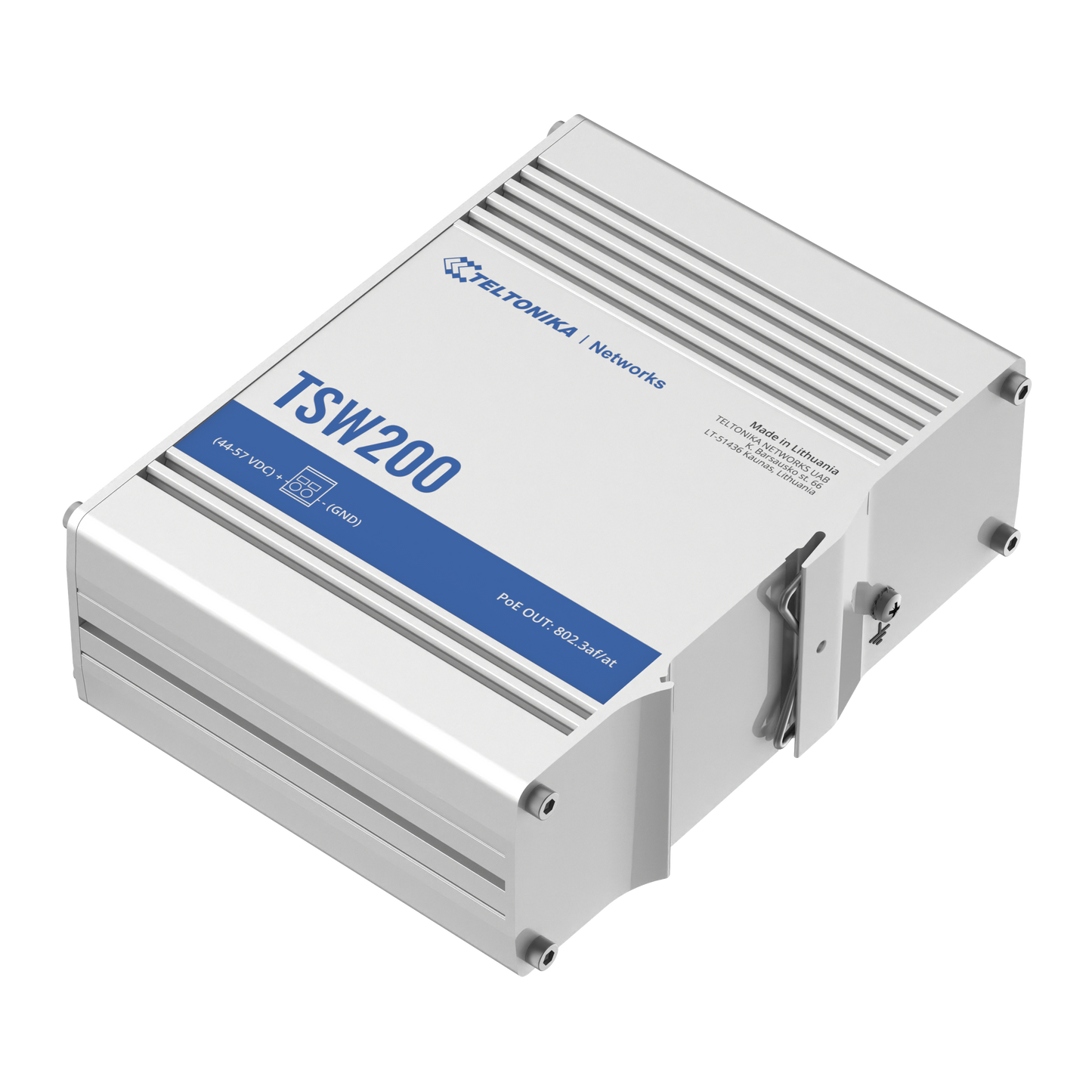

| Mounting options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, CB |
| EMC Emissions & Immunity | |
| Standards |
EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| Safety | |
| Standards |
IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 |
What's in the box?
- TSW200
- QSG (Quick Start Guide)
- Packaging box
Visit Teltonika for more information.
