Teltonika

TSW304 DIN Rail Ethernet Switch

Teltonika TSW304 DIN Rail Ethernet Switch

SKU:TSW304

Regular price $142.00
Regular price $168.00 Sale price $142.00
15% Off | Save $26.00 Sold out
Taxes included. Shipping calculated at checkout.

24 in stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

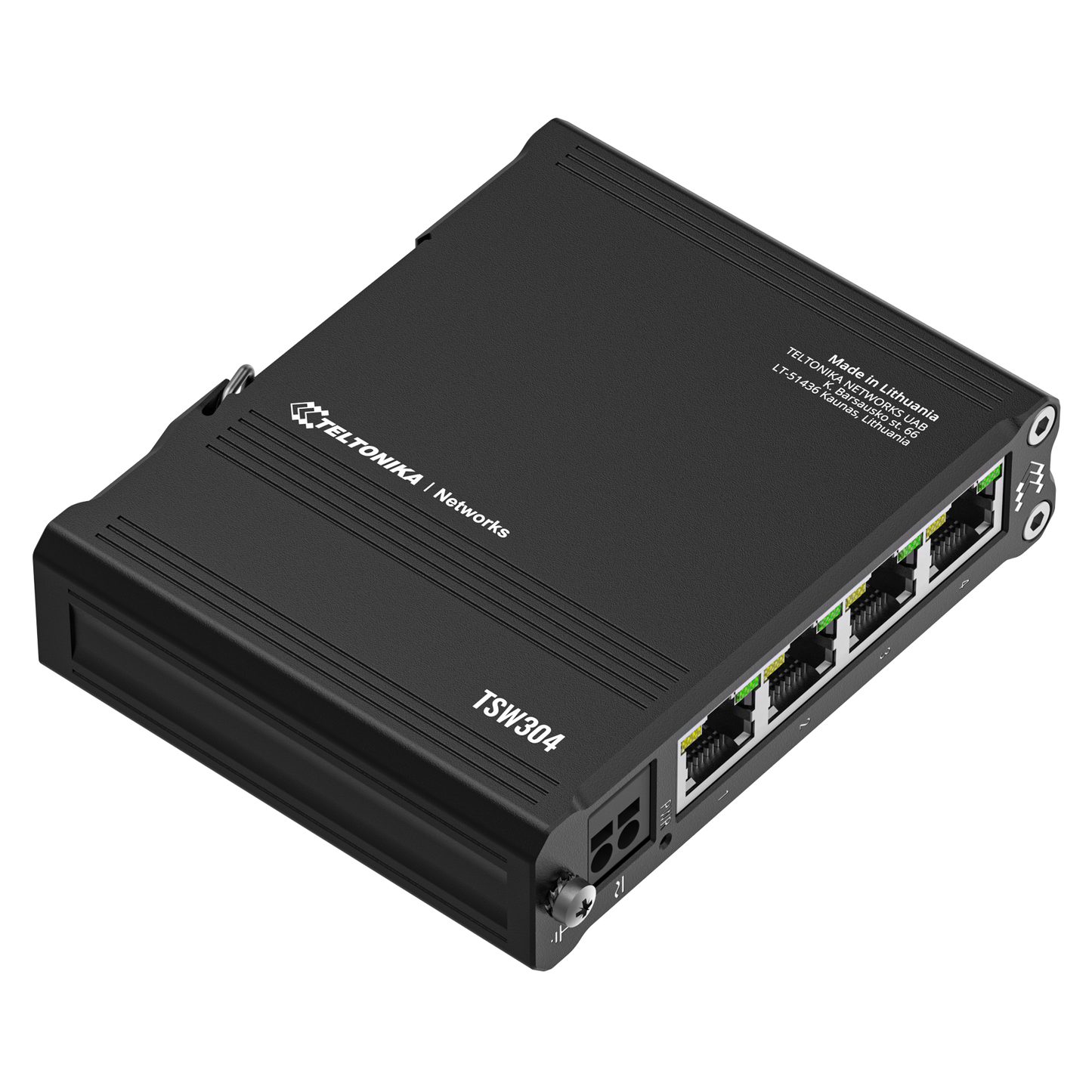

TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.

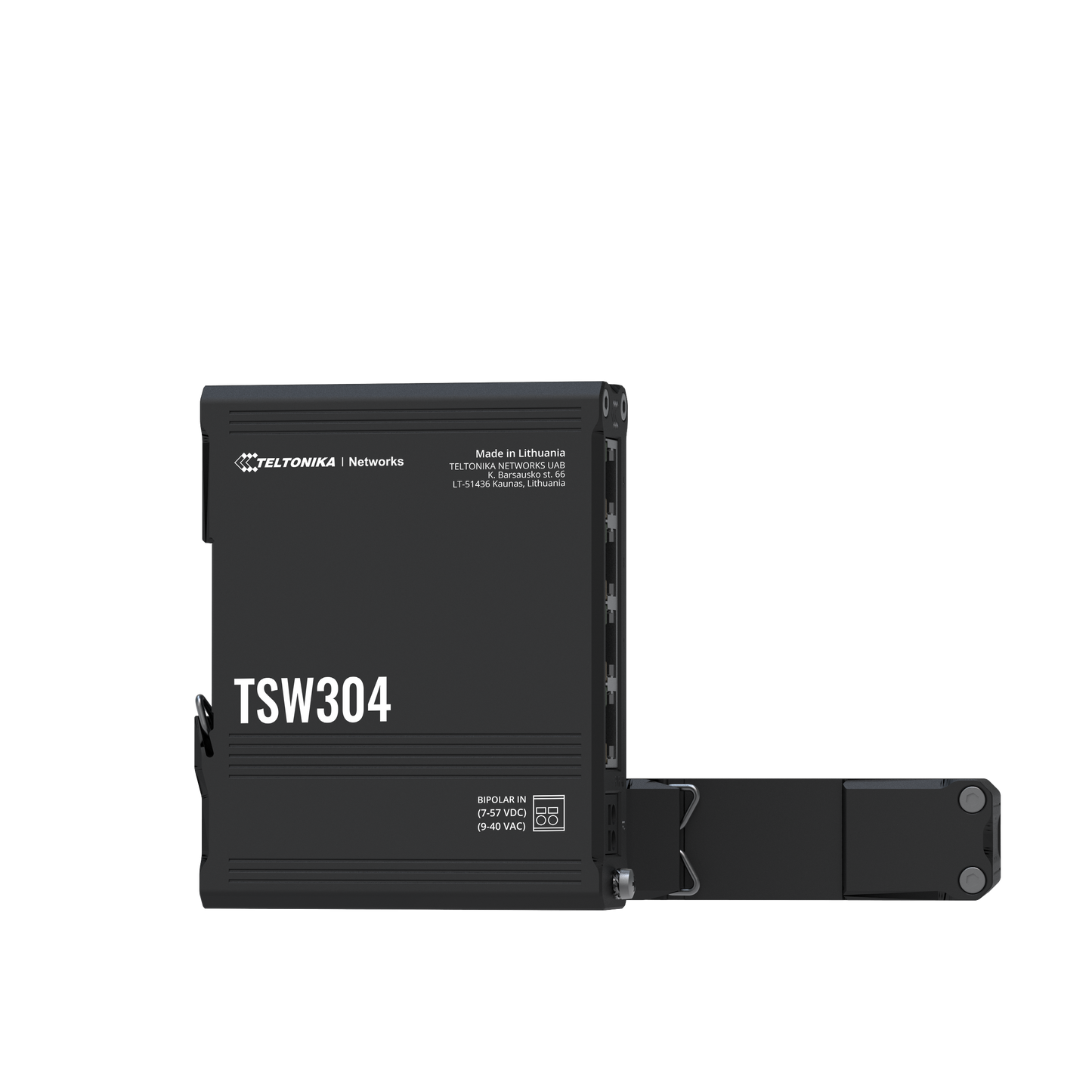

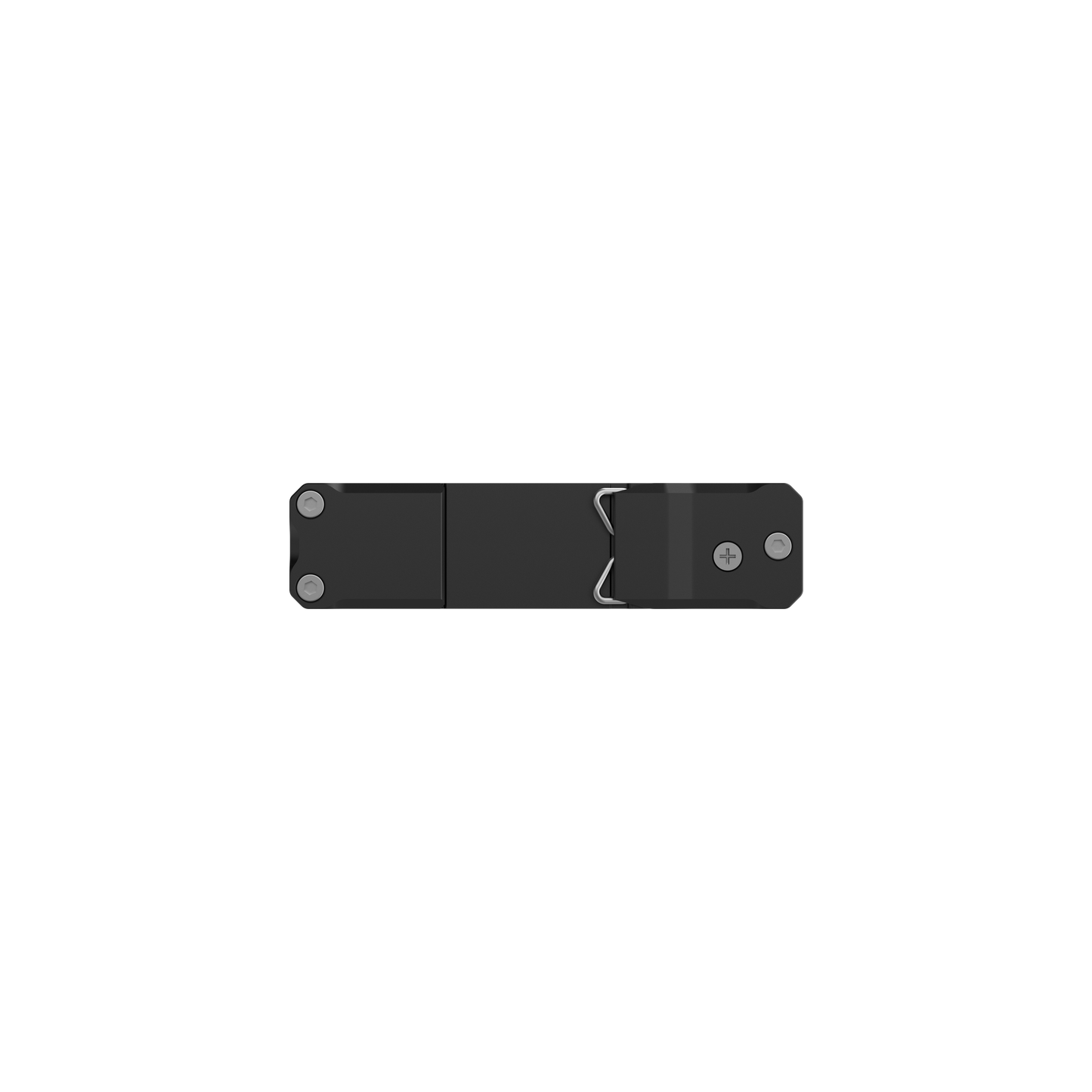

MOUNTING: Integrated DIN rail bracket and surface mounting options.

COMPACT: 102 x 25 x 81.5 mm.

GIGABIT ETHERNET: 4 x Gigabit Ethernet with speeds of up to 1000 Mbps.

7-57 V: Wide range of supported power supply voltages.

Ethernet
ETH 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
Bandwidth (Non-blocking) 8 Gbps
Packer buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
Power
Connector 2-pin industrial DC power socket
Input voltage range 7 - 57 VDC; 9 - 40 VAC
PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: 0.26 W / Max: 1.44 W
Physical Interfaces

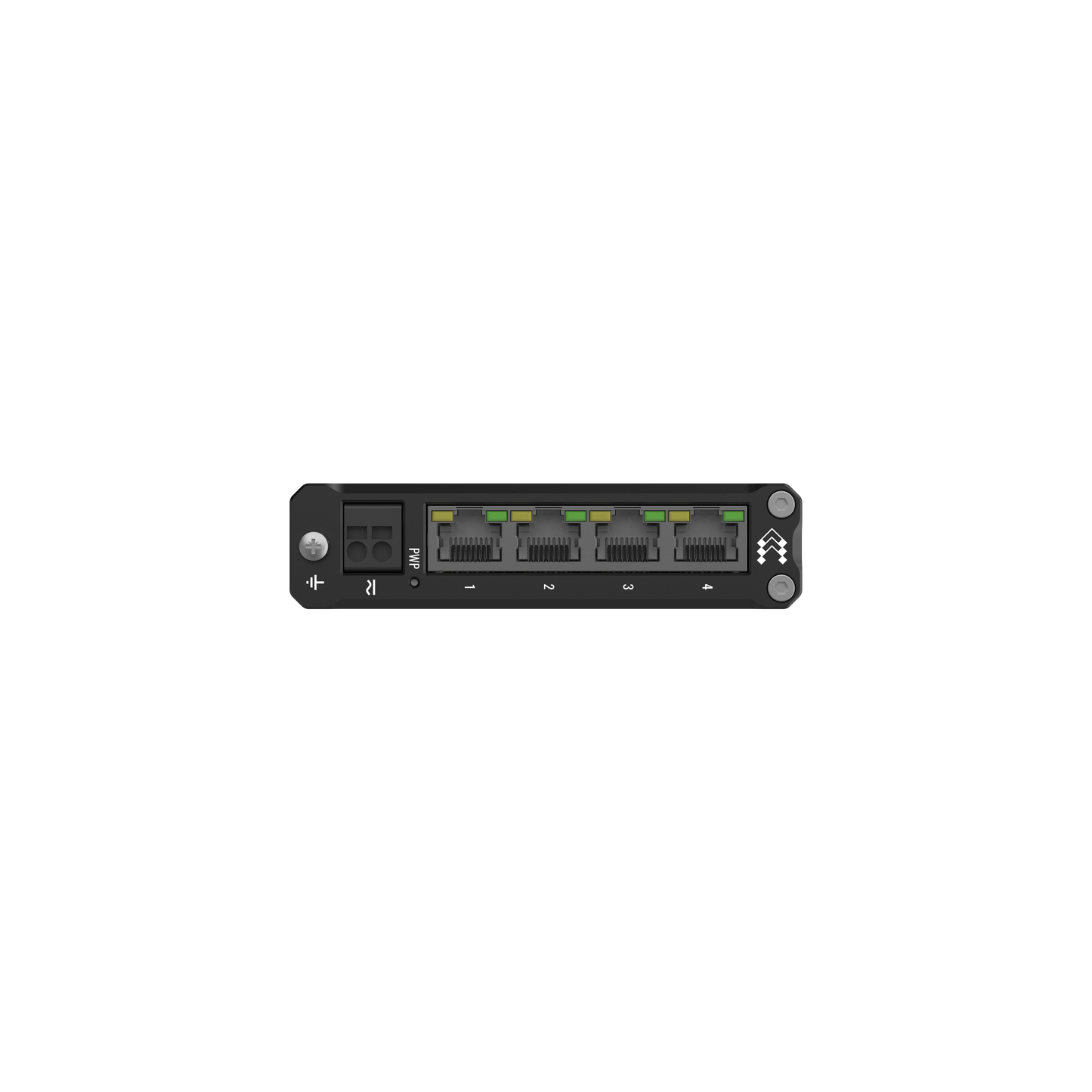

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 8 x ETH status LEDs, 1 x Power LED
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw
Physical Specification
Casing material Aluminium housing
Dimensions (W x H x D) 102 x 25 x 81.5 mm
Weight 210 g
Mounting options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals
Regulatory CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Safety
Standards EN IEC 62368-1:2020+A11:2020
IEC 60068-2-6:2007 Environmental testing - Part 2-6
IEC 60068-2-27:2008 Environmental testing - Part 2-27
IEC 60068-2-31:2008 Environmental testing - Part 2-31

What's in the box?

  • TSW304
  • QSG (Quick Start Guide)
  • Packaging box

Visit Teltonika for more information.
