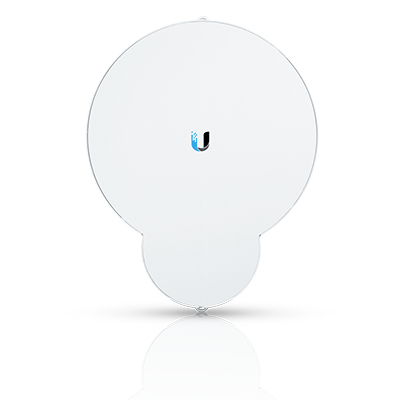

• Ubiquiti AF-24HD airFiber 24 Hi-Density 24 GHz Bridge
  • Ubiquiti AF-24HD airFiber 24 Hi-Density 24 GHz Bridge shown in a three-quarter view with ventilation slots and cooling grilles.
  • Open enclosure and internal components of the Ubiquiti AF-24HD airFiber 24 Hi-Density 24 GHz Bridge seen in a front view.

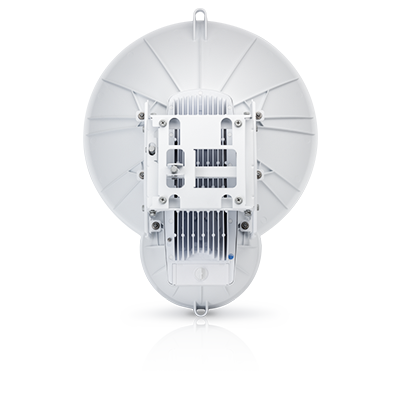

  • Ubiquiti AF-24HD airFiber 24 Hi-Density 24 GHz Bridge secured in its mounted orientation with attachment hardware visible.
1 4

Ubiquiti

2-Year Warranty

airFiber 24 Hi-Density 24 GHz Bridge

airFiber 24 Hi-Density 24 GHz Bridge

AF-24HD

$6,626.00
$6,626.00 $6,626.00
0% Off | Save $0.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

Out of stock

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

Delivers up to 2 Gbps throughput at a range of up to 20+ km.

  • 24 GHz, 20+ km link range.
  • 2+ Gbps throughput.
  • Separate integrated TX and RX antennas.
  • Integrated GPS sync.
  • 1+ Mpps processing.

Note: This product should be purchased in pairs in order to form links.

Specification

Mechanical

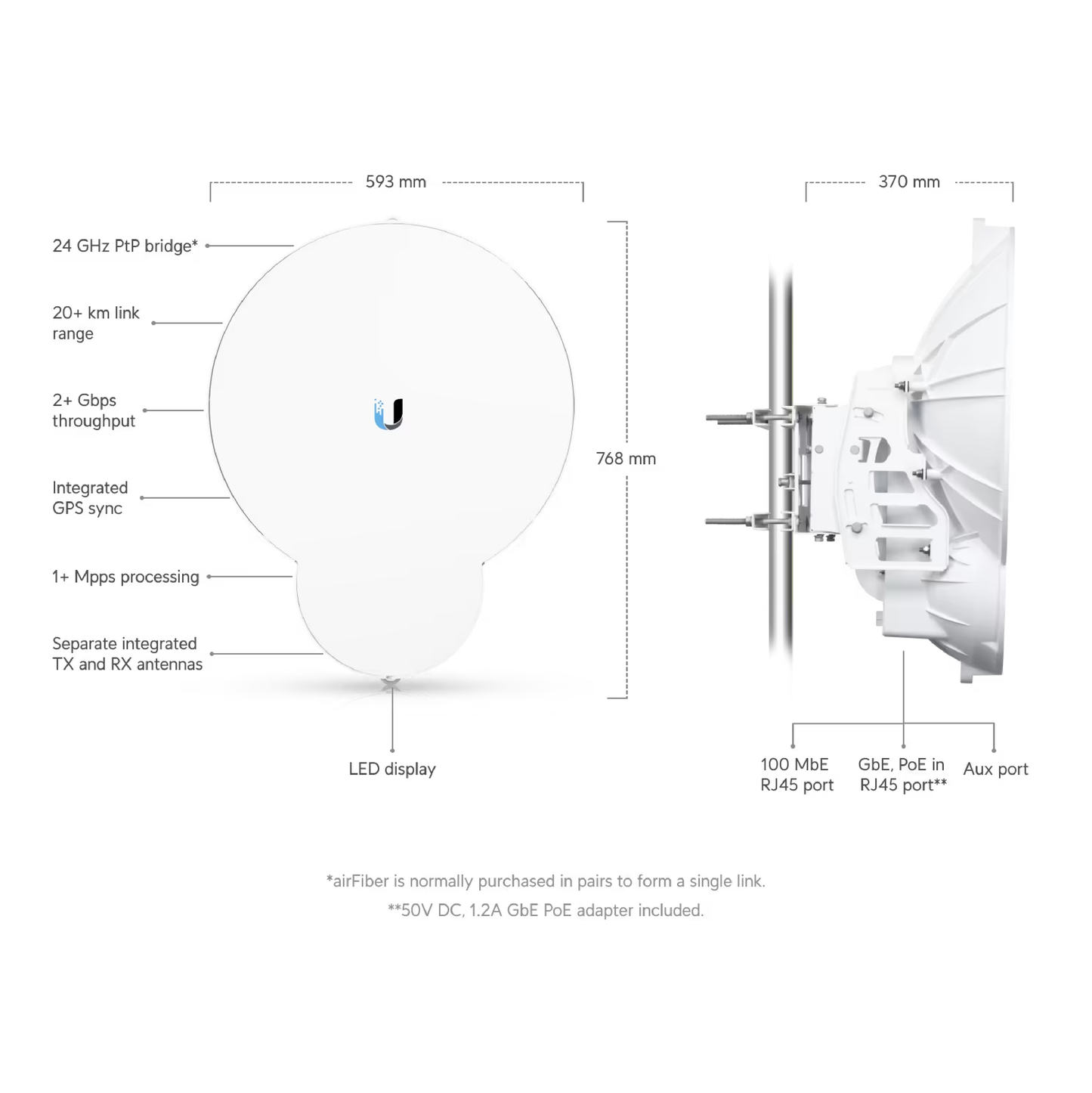

Dimensions 593 x 768 x 370 mm (23.35 x 30.24 x 14.57")
Weight 17.3 kg (38.14 lb)
Mounting Pole mount kit (Included)
Wind loading 770 N @ 200 km/h (170 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port
Auxiliary port (1) RJ-12, alignment tone port
Power method Passive PoE
Power supply 50V, 1.2A PoE GigE adapter (Included)
Supported voltage range 42—58V DC
Max. power consumption 50 W
Operating frequency 24.05 - 24.25 GHz
Operating temperature -40 to 55° C (-40 to 131° F)
Certifications CE, FCC, IC
System
Max. throughput 2 Gbps
Ma. range 20+ km
Packets per second 1+ million
Encryption 128-bit AES
Uplink/Downlink ratio 50% fixed
RF
GPS GPS clock synchronization
EIRP ~33 dBm (FCC/IC)
~20 dBm (CE)
~40 dBm (Other Regions)
Frequency accuracy ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel bandwidth 100 MHz
Operating frequency 24.05 – 24.25 GHz
Operating channels 24.1 GHz, 24.2 GHz
Modulation 256QAM
64QAM
16QAM
QPSK MIMO
QPSK SISO
¼x QPSK SISO
Gain
TX
RX
33 dBi
40 dBi
Beamwidth < 3.5°
Front-to-back ratio 70 dB
Polarization Dual-slant
Cross-polarity Iiolation > 28 dB
LEDs
System (8) Status LEDs:
  1. Data port speed
  2. Data port link/activity
  3. Configuration port speed
  4. Configuration port link/activity
  5. GPS synchronisation
  6. Modulation mode
  7. Master/slave
  8. RF status
(1) Two-digit LED display calibrated in dBm
