airFiber 60 HD 60 GHz Bridge
Ubiquiti AF60-HD airFiber 60 HD 60 GHz Bridge
SKU:AF60-HD
Regular price
$750.00
Regular price
$750.00
Sale price
$750.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty

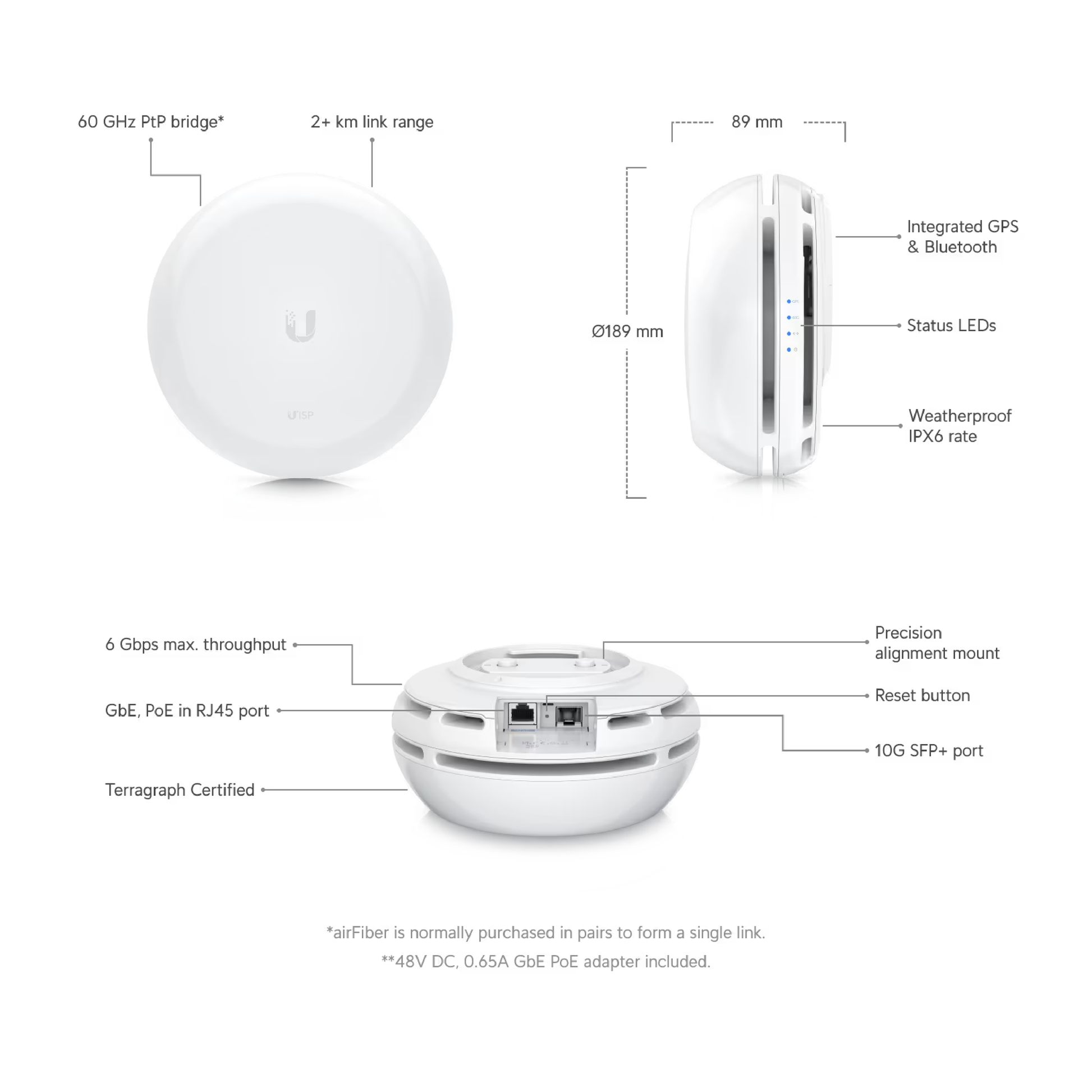

Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
- 2 km link range.
- 6 Gbps max. throughput.

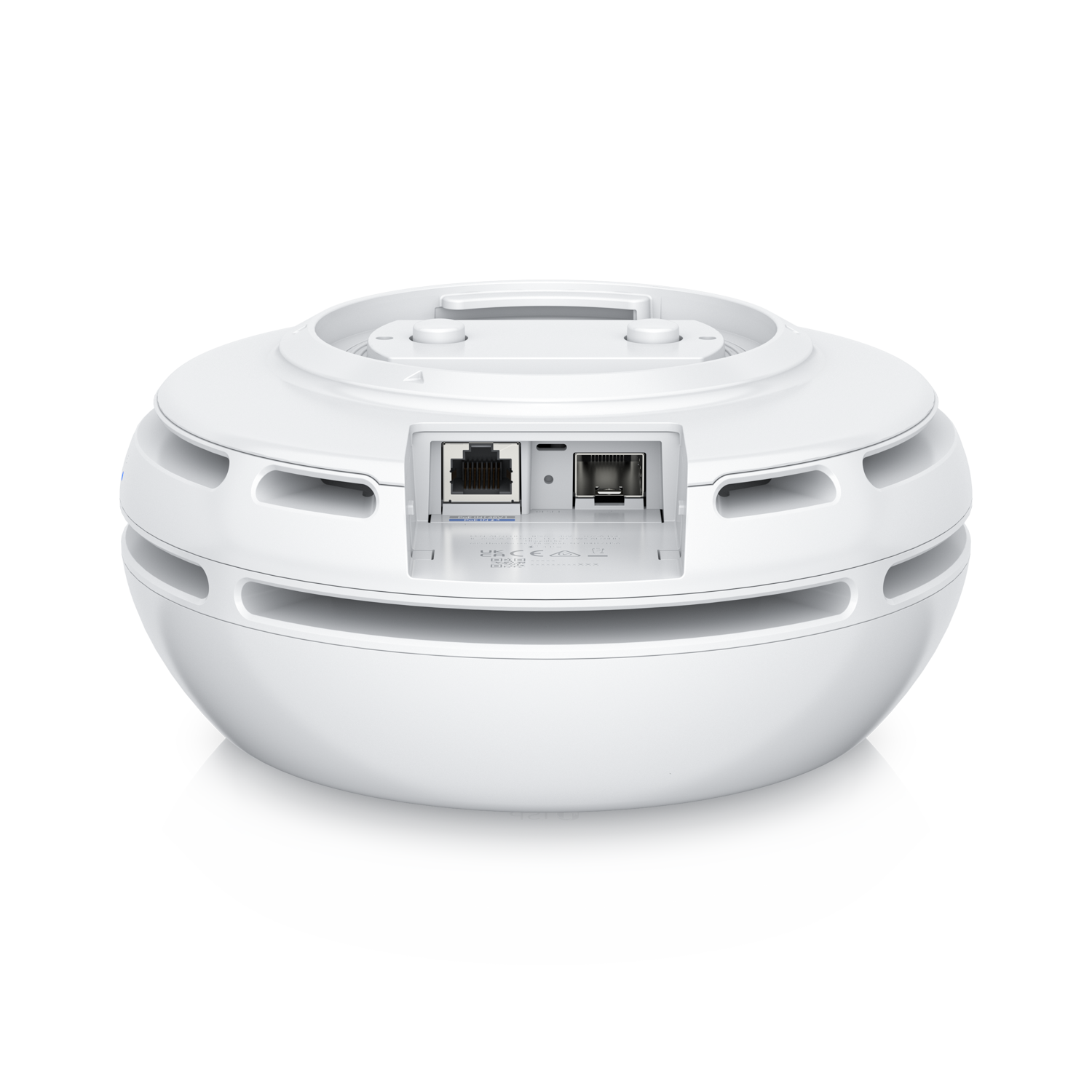

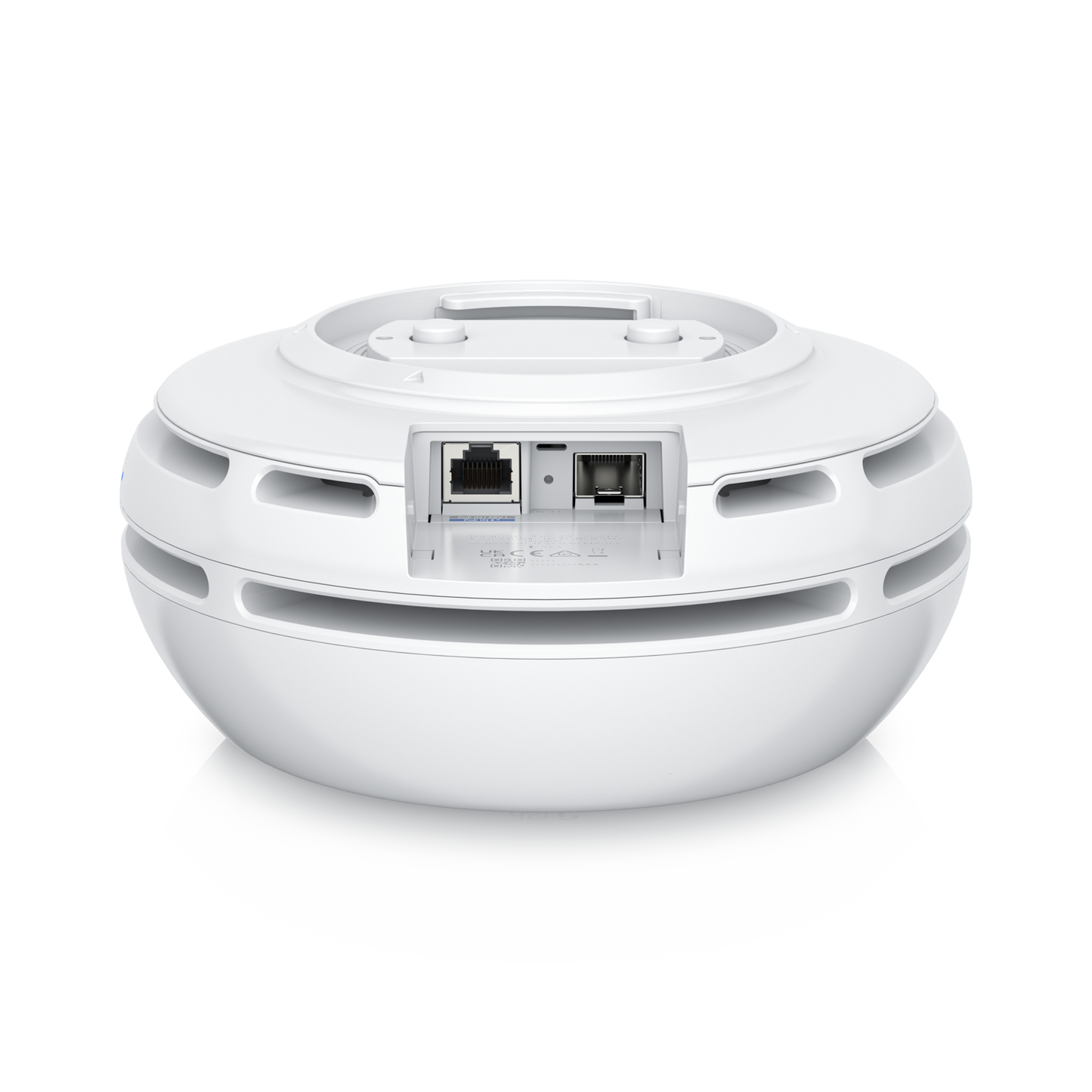

- (1) GbE and (1) 10G SFP+ port.

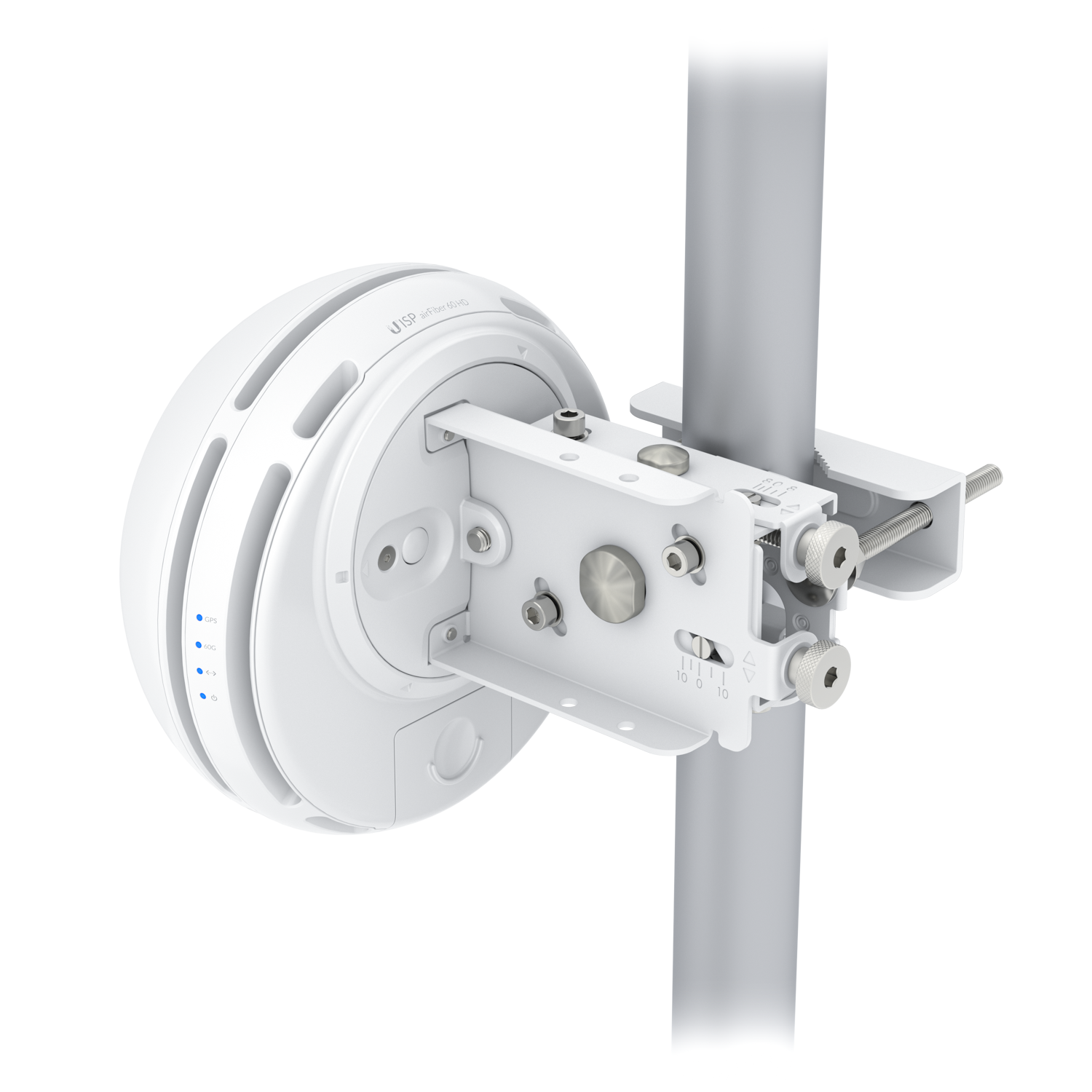

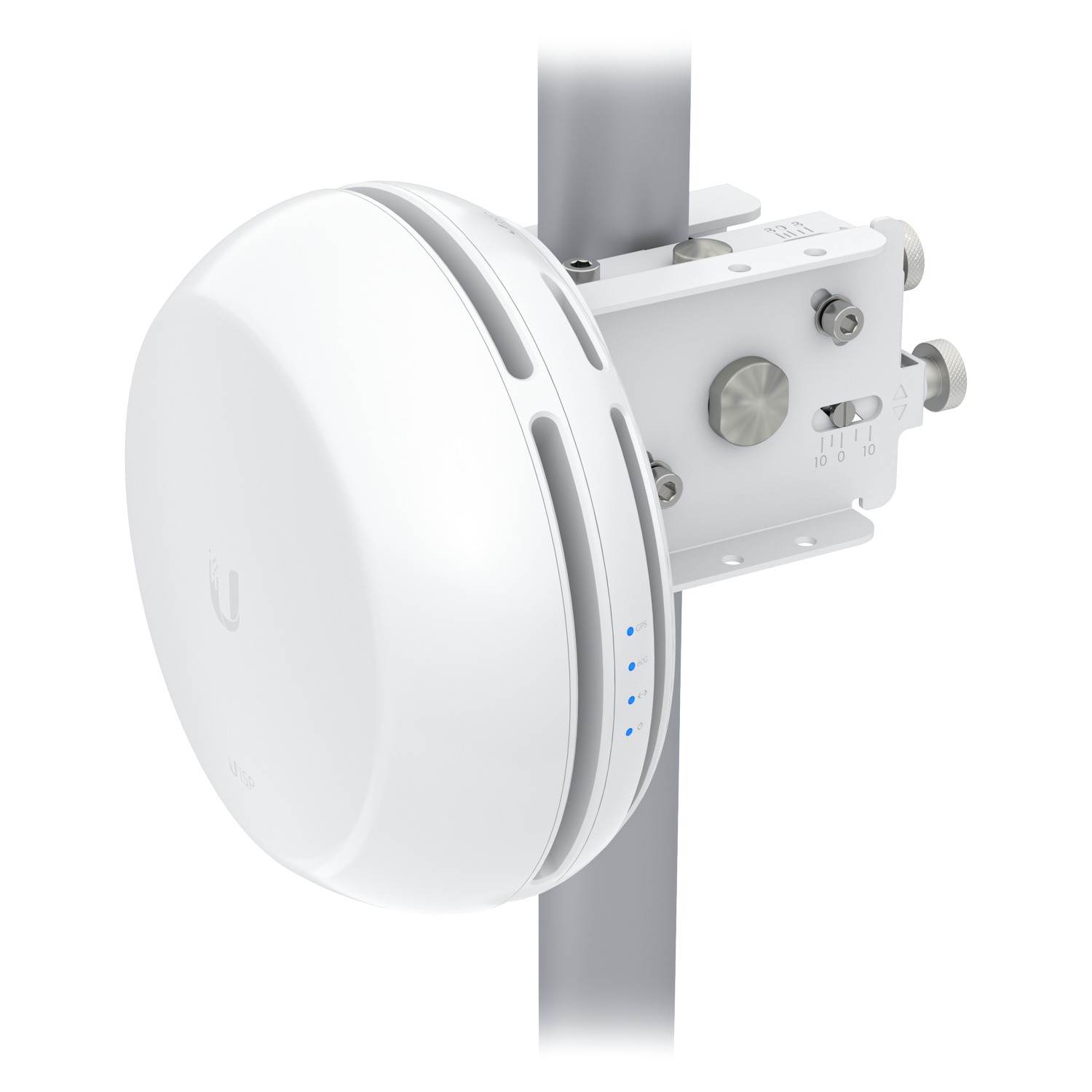

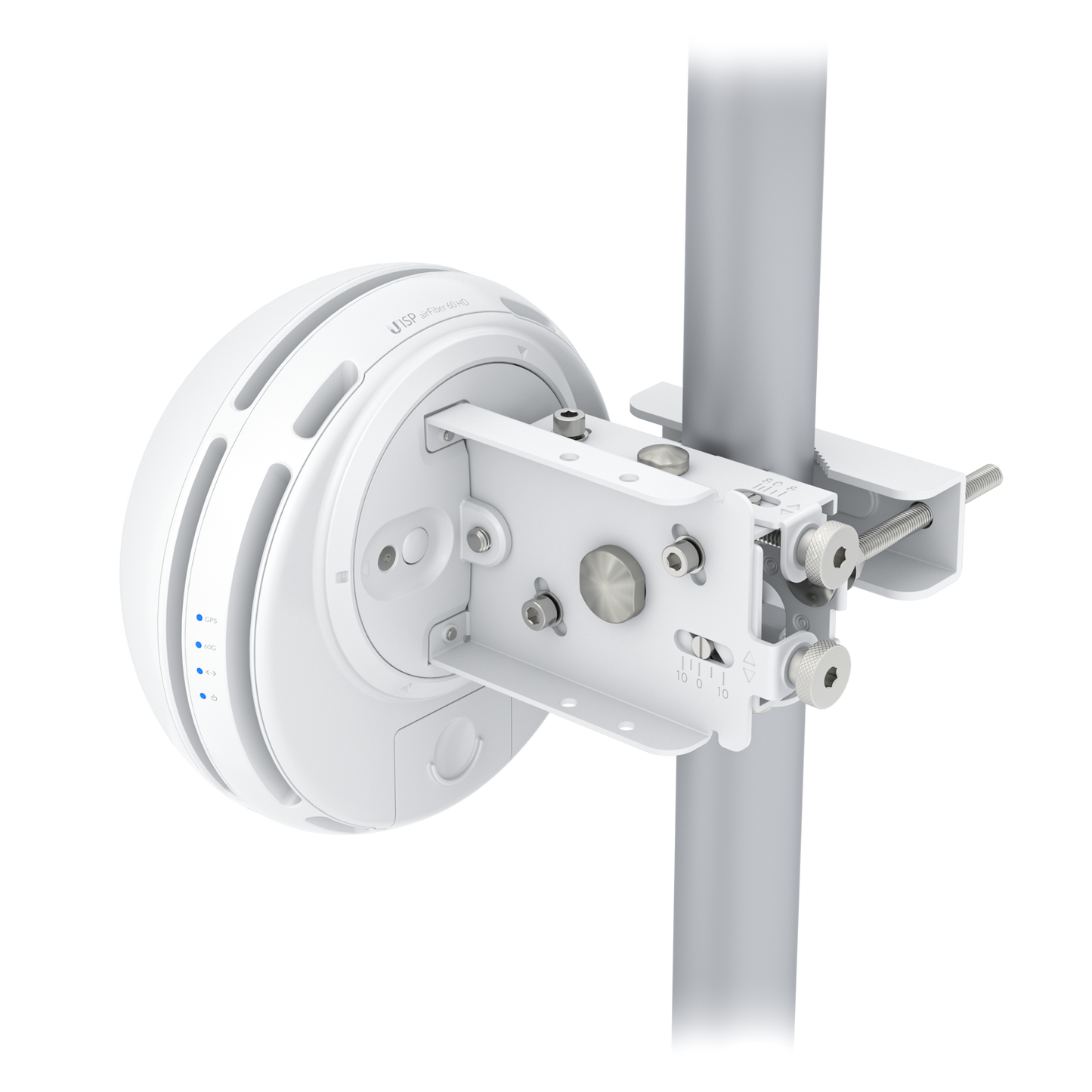

- Precision alignment mount.
- Integrated GPS.
Note: This product should be purchased in pairs in order to form links.
| Mechanical | |
|---|---|
| Dimensions | Ø189 x 89 mm (Ø7.4 x 3.5") |
| Weight |
Without mount: 1.8 kg (3.9 lb) With mount: 2.95 kg (6.5 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized plastic |
| Mount material | Stainless steel (SUS304) |

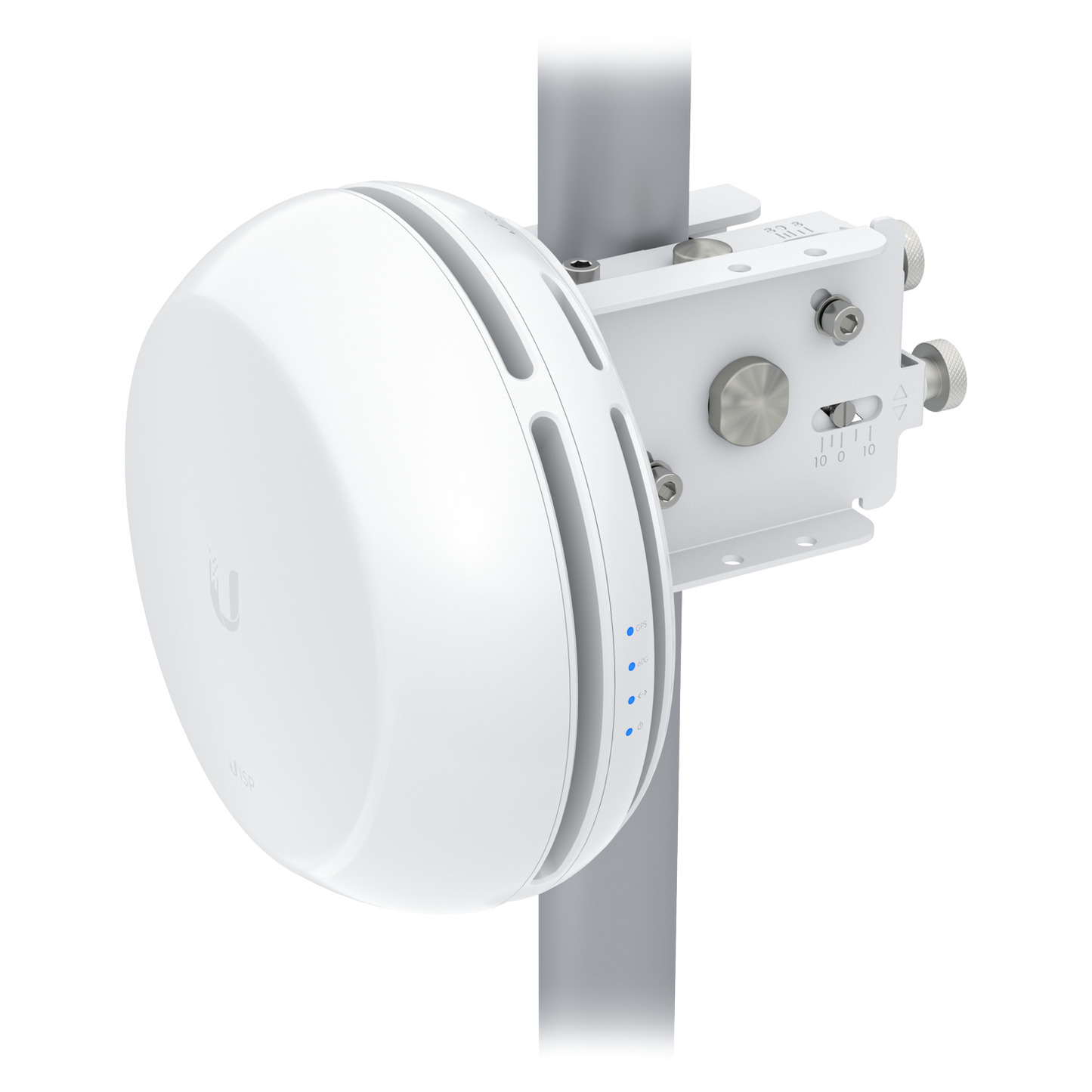

| Mount | 60G precision alignment pole mount (included) |
| Wind loading | 64 N at 200 km/h (14.39 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM Cortex A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interface |
(1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. power consumption | 29.31W |
| Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) |
| Supported voltage range |
44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| Operating mode | PtP Only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Utilities | Beamform info, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Wireless settings | GPS sync |
| Management interface |
Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
| System | |
|
Max. throughput 60 GHz |
3.8 Gbps/ 6 Gbps (with channel bonding enabled) |
| Max. range | 2 km |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink ratio | 50/50 |
| RF | |
| Operating frequency* |
57-66 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bonding enabled) |
| Operating channels |
58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* * Depends on the channel bandwidth. |
| Polarization | Vertically linear |
| Beamwidth |
Azimuth: 3 dB 3° Elevation: 3 dB 3° |
| Electrical downtilt | 0° |

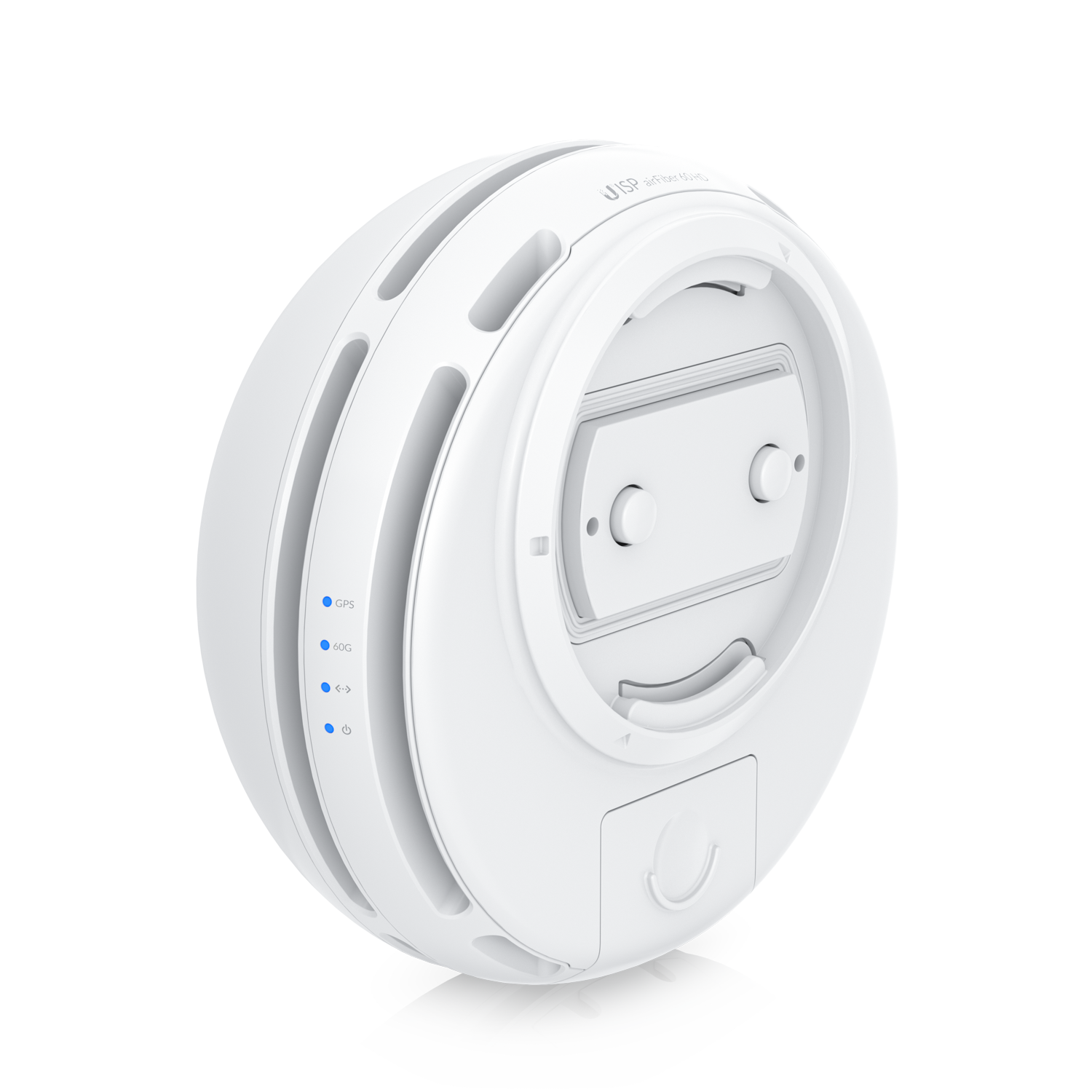

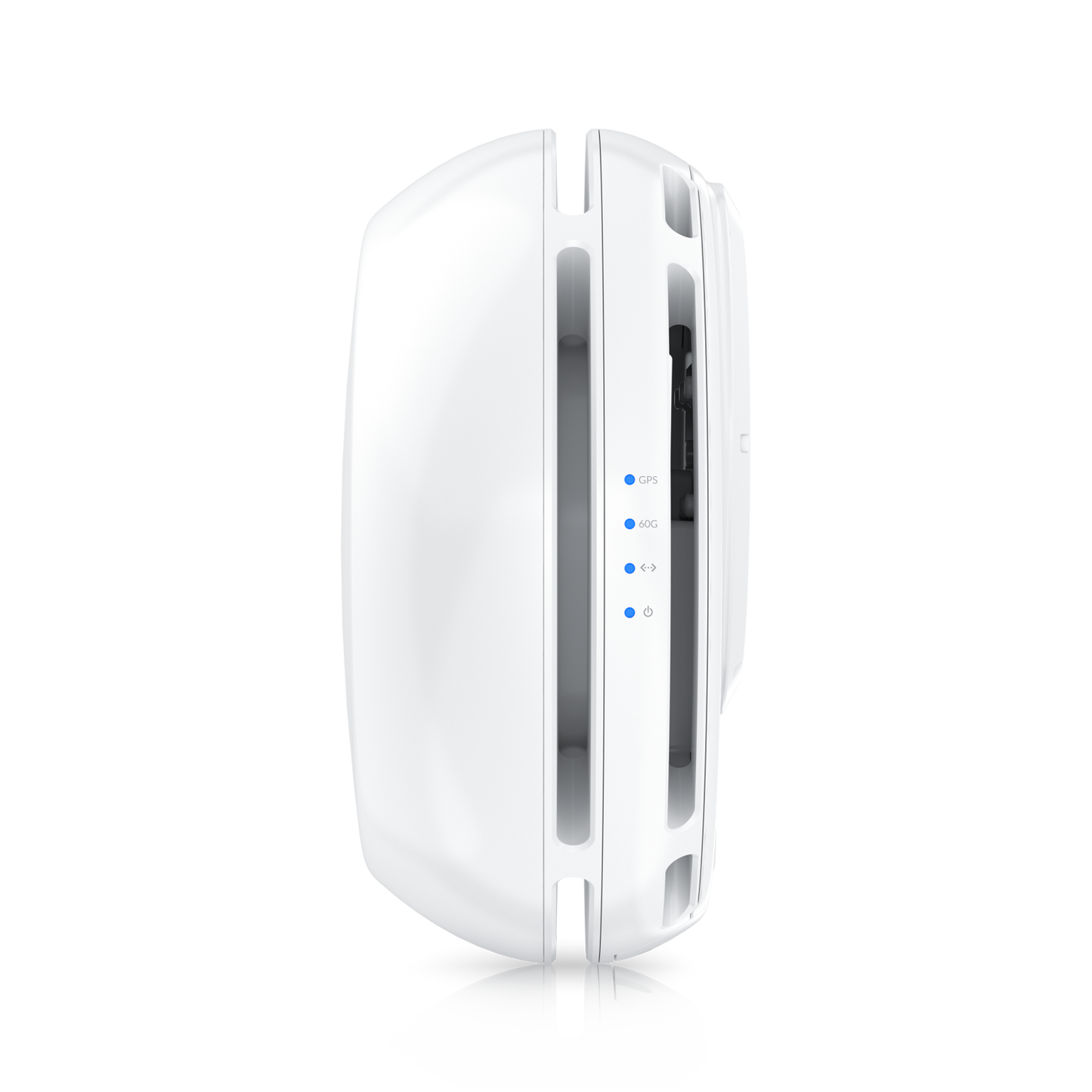

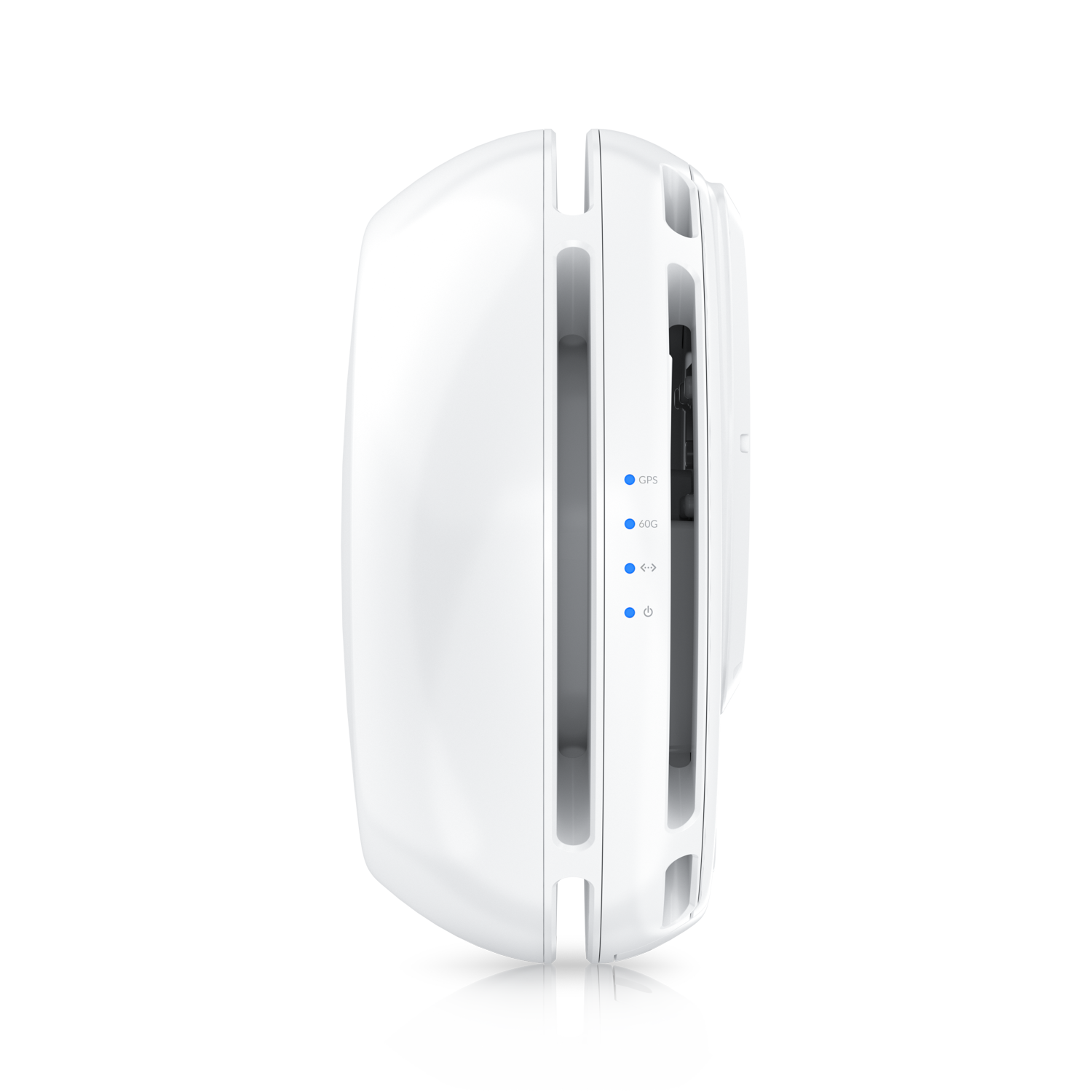

| LEDs | |
| Power |
Flashing white: bootup in progress White: not connected to UISP console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
Visit Ubiquiti for more information.
