• Ubiquiti AF-5G23-S45 airFiber X 5 GHz 23 dBi Slant 45 Antenna

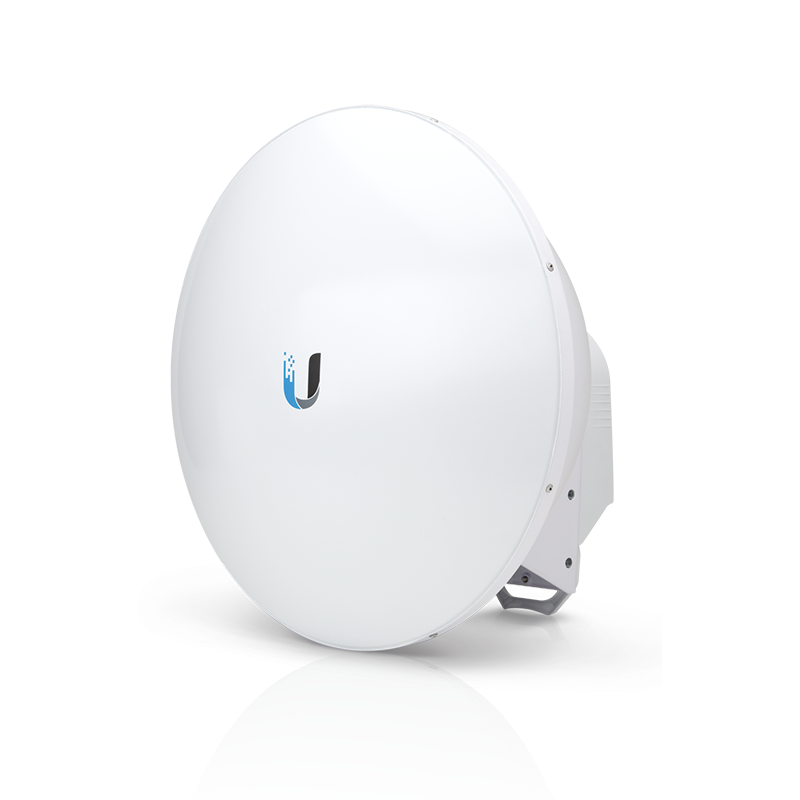

  • Ubiquiti AF-5G23-S45 airFiber X 5 GHz 23 dBi Slant 45 Antenna shown in a three-quarter view with the outer housing visible.

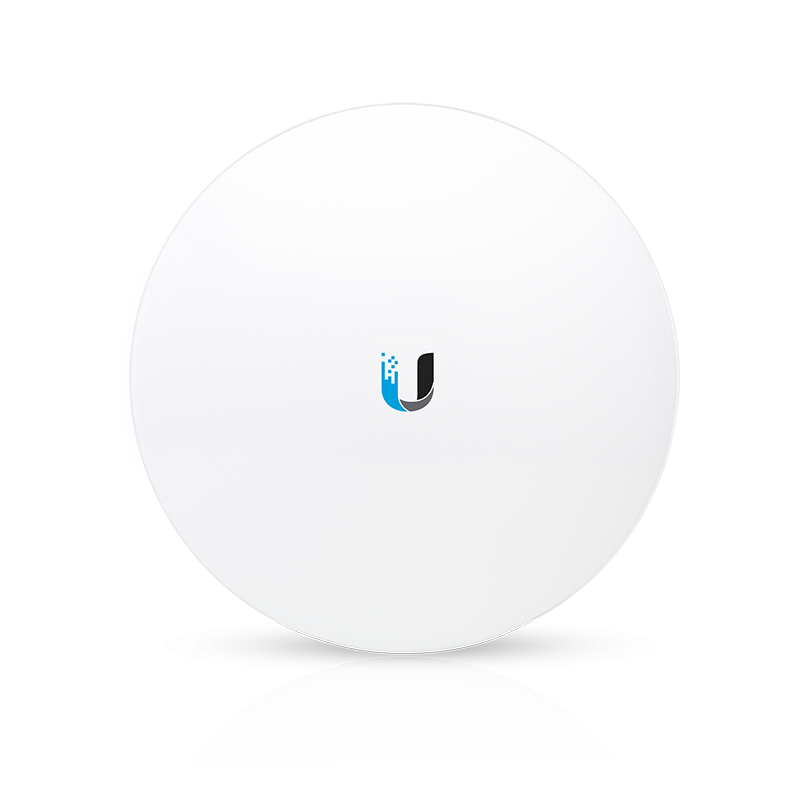

  • Outer housing of the Ubiquiti AF-5G23-S45 airFiber X 5 GHz 23 dBi Slant 45 Antenna seen in a front view.
1 3

Ubiquiti

2-Year Warranty

airFiber X 5 GHz 23 dBi Slant 45 Antenna

airFiber X 5 GHz 23 dBi Slant 45 Antenna

AF-5G23-S45

$200.00
$211.00 $200.00
5% Off | Save $11.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

Low stock: 1 left

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

5 GHz, 23 dBi antenna ideal for long range Point-to-Point (PtP) links.

  • 2x2 dual-polarity performance.
  • Robust mechanical design for outdoor application use.
  • Secure pole-mounting.

Compatible with airFiber X radios.

Specification

AF-5G23-S45
Dimensions 378 x 378 x 290 mm (14.88 x 14.88 x 11.42")
Weight With Mount: 3.4 kg (7.5 lb)
Frequency 5.1 - 5.9 GHz
Gain 23 dBi
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 190 N @ 200 km/h (43 lbf @ 125 mph)
Polarization Dual Linear
F/B Ratio 33 dB
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5") Poles
