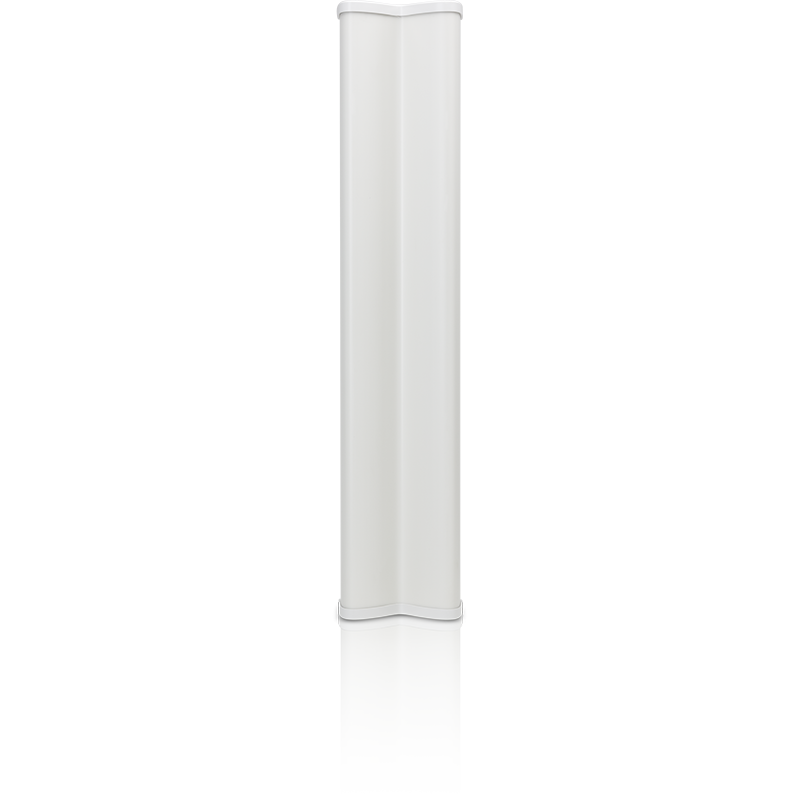

airMAX 2.4 GHz 15 dBi 120º Sector
Ubiquiti AM-2G15-120 airMAX 2.4 GHz 15 dBi 120º Sector
SKU:AM-2G15-120
Regular price
$256.00
Regular price
$256.00
Sale price
$256.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
2.4 GHz, 120º, 15 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
- 2x2 dual-polarity performance.
- Robust mechanical design for outdoor application use.
- Compatible with Rocket Prism 2AC.
| AM-2G15-120 | |
|---|---|
| Dimensions | 700 x 145 x 93 mm (27.6 x 5.7 3.7") |
| Weight | 4 kg (8.8 lb) |
| Frequency Range | 2.3 - 2.7 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N @ 160 km/h (24 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Visit Ubiquiti for more information.
