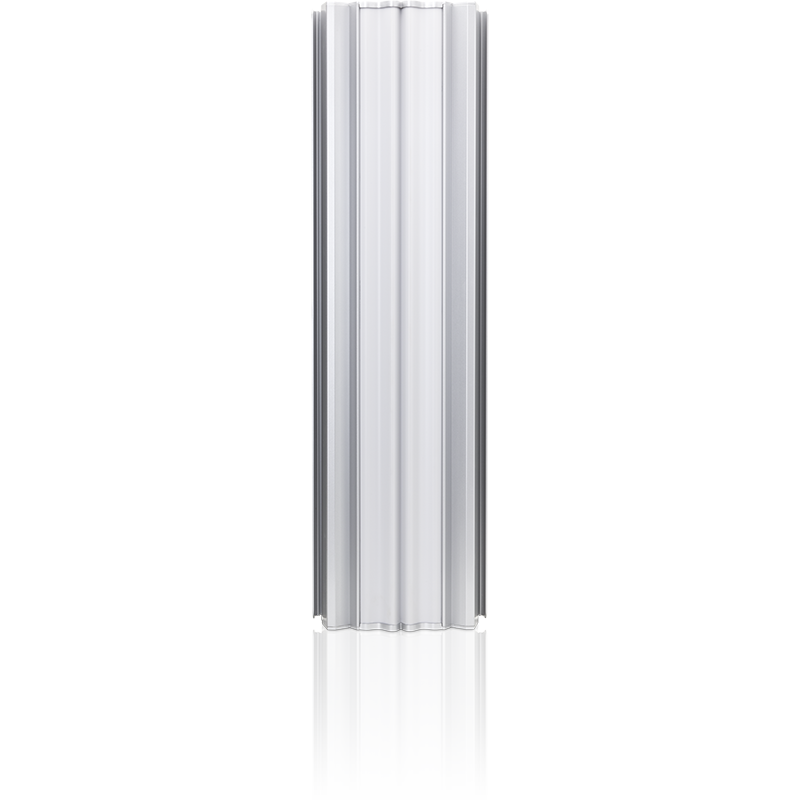

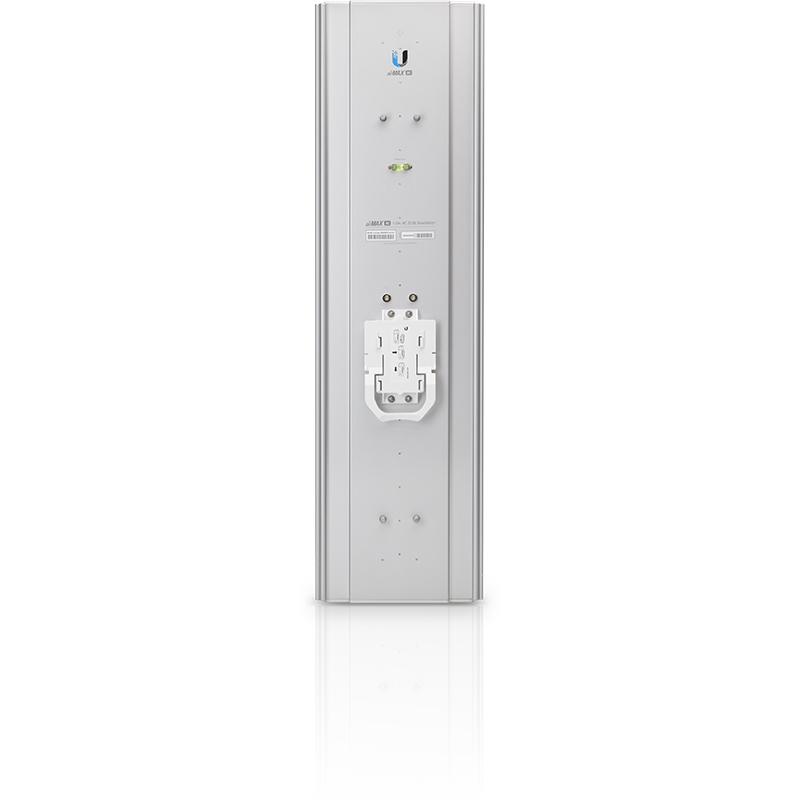

airMAX AC 5 GHz 22 dBi 45º Sector
Ubiquiti AM-5AC22-45 airMAX AC 5 GHz 22 dBi 45º Sector
SKU:AM-5AC22-45
Regular price
$333.00
Regular price
$353.00
Sale price
$333.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Sale ending soon! Limited promotional stock available — don’t miss out!
13 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.
- 2x2 dual-polarity performance.
- Robust mechanical design for outdoor application use.
- Compatible with Rocket Prism 5AC.
| AM-5AC22-45 | |
|---|---|
| Dimensions | 750 x 215 x 94 mm (29.5 x 8.5 x 3.7") |
| Weight | 6 kg (13.2 lb) |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 45° (6 dBi) |
| VPOL Beamwidth | 45° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N @ 200 km/h (78 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 30 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Visit Ubiquiti for more information.
