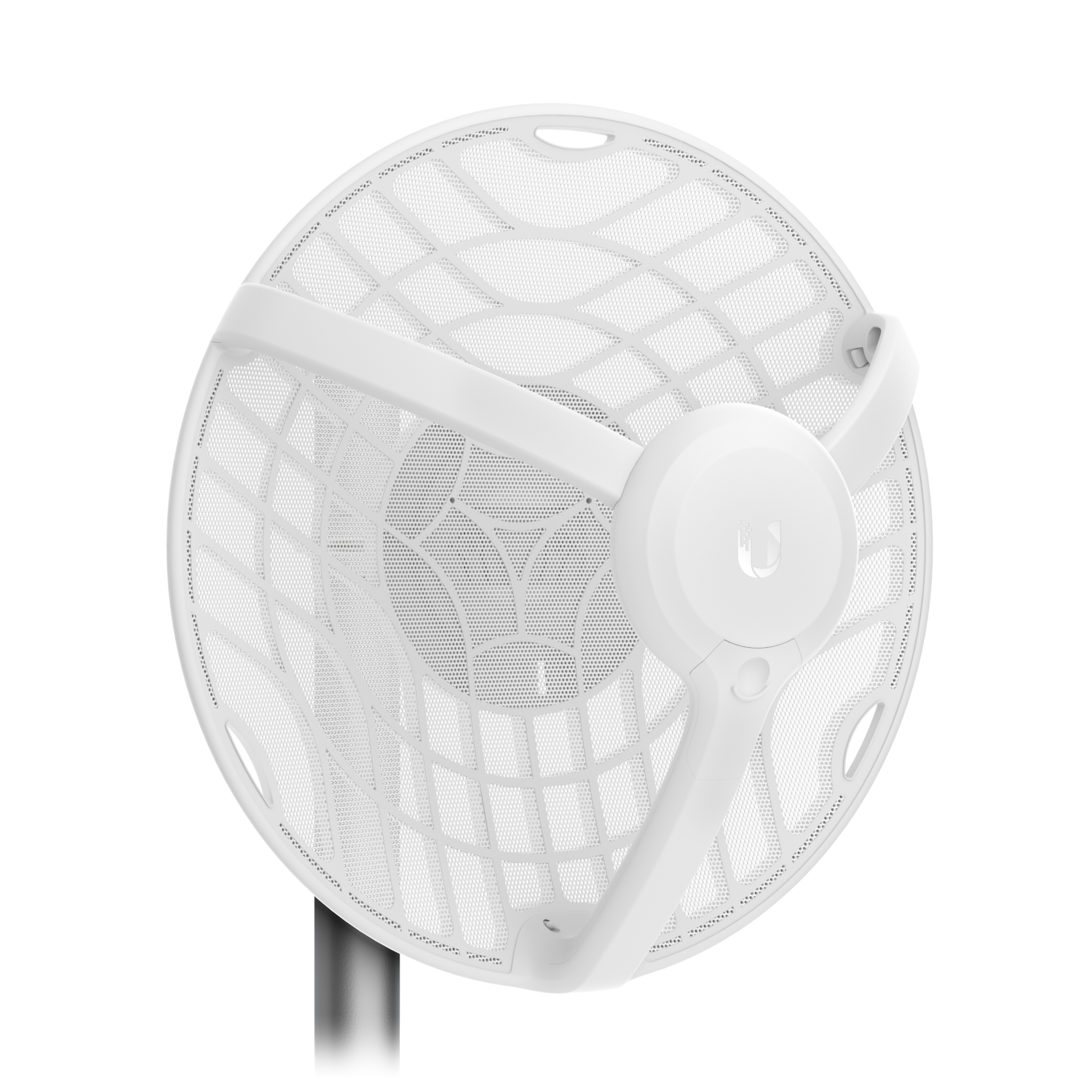

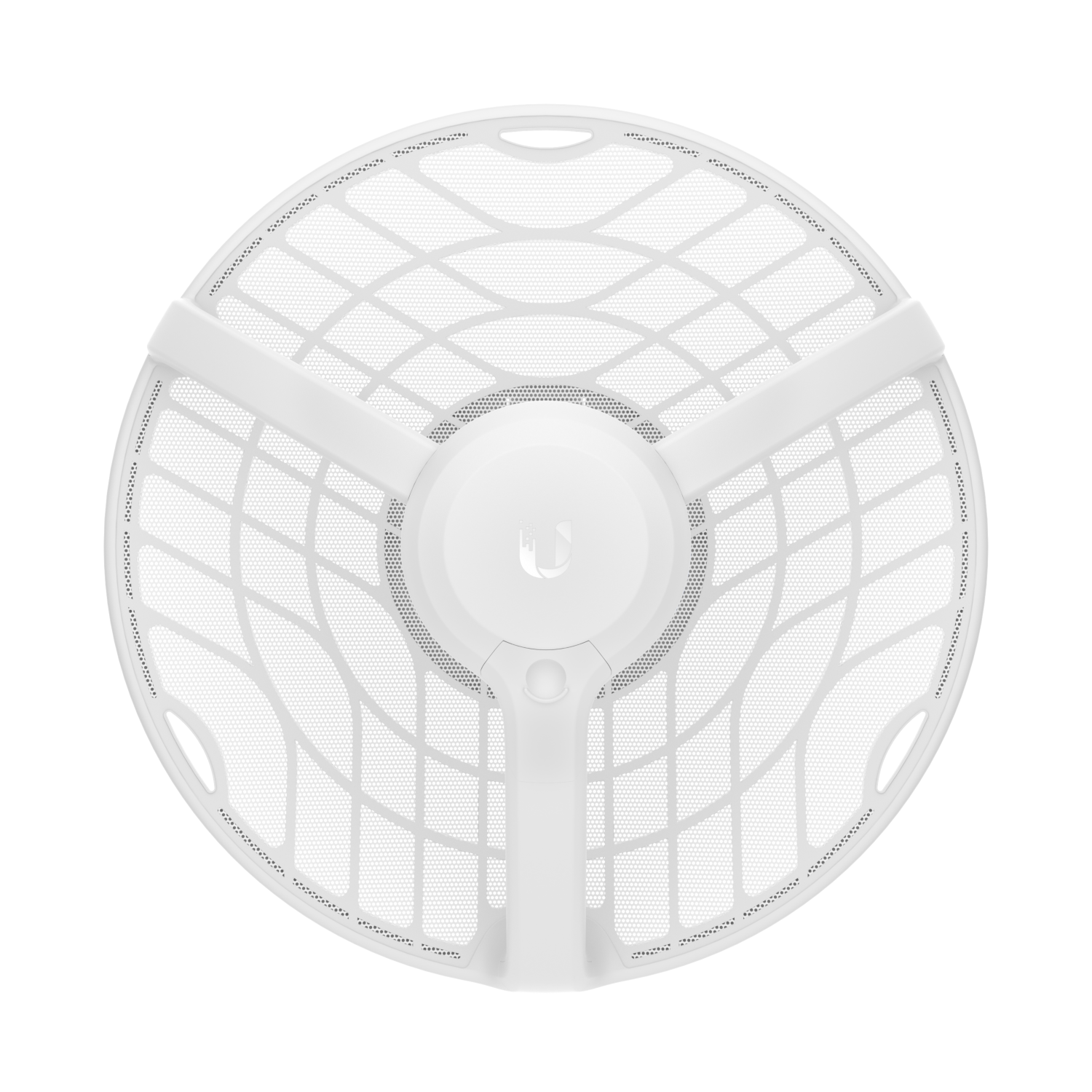

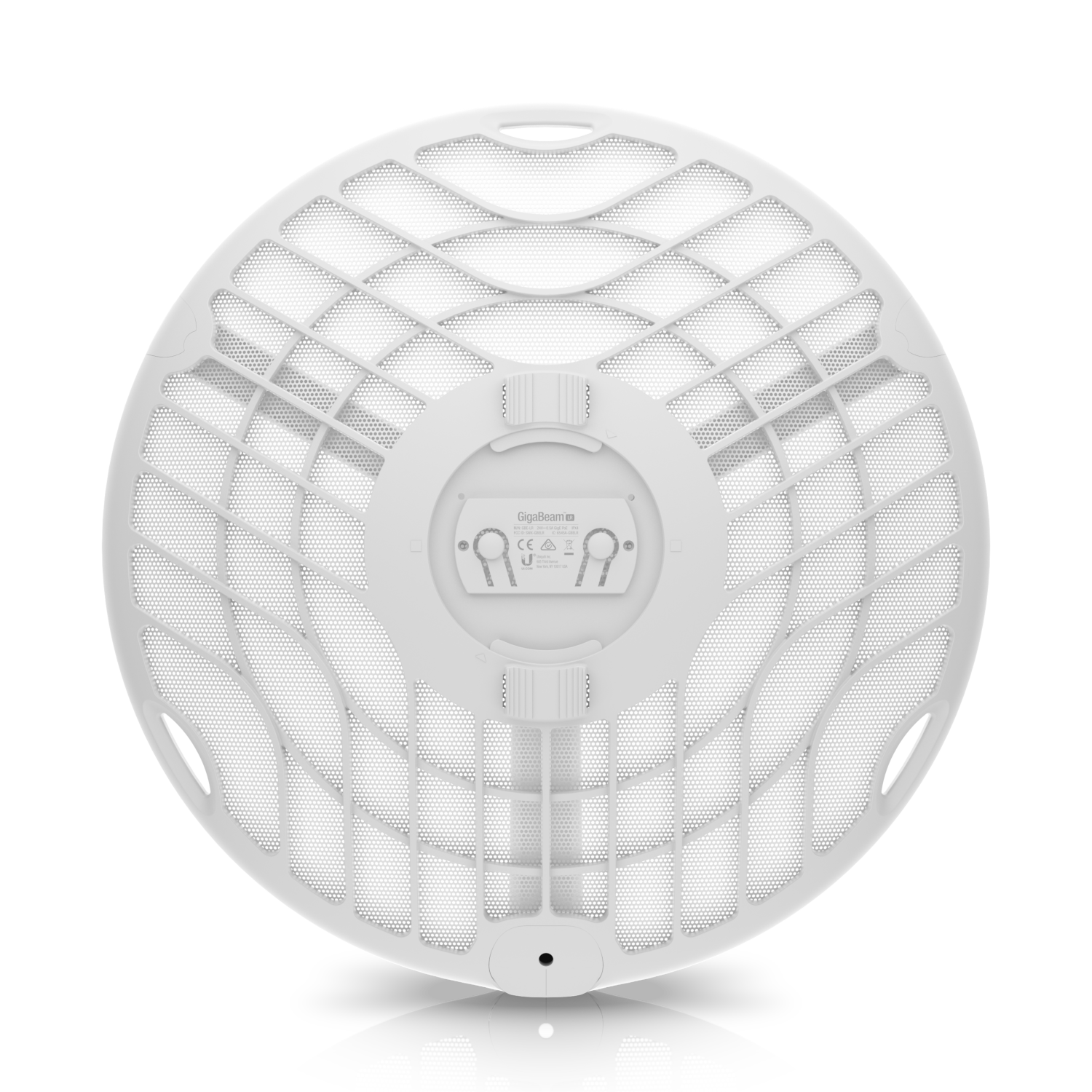

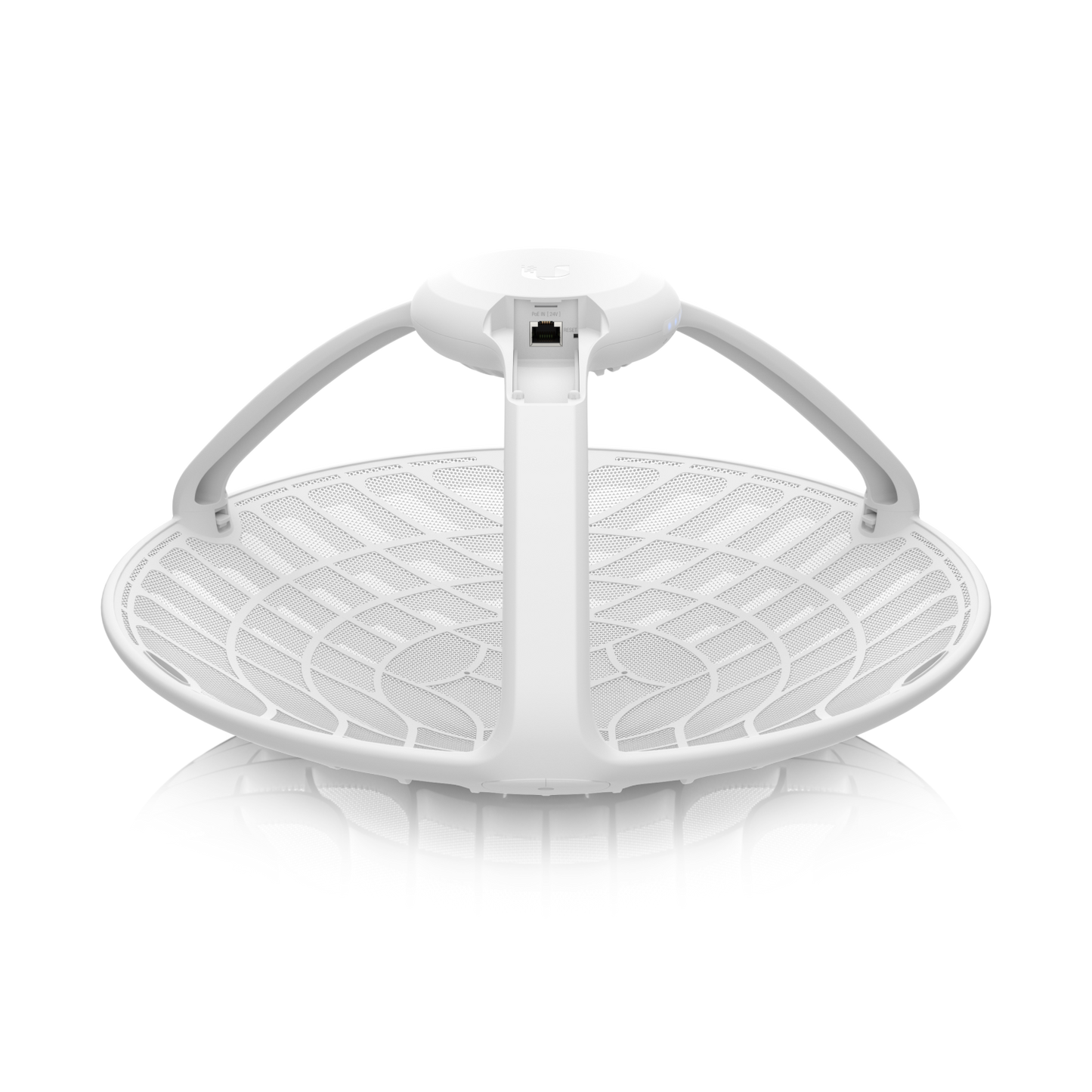

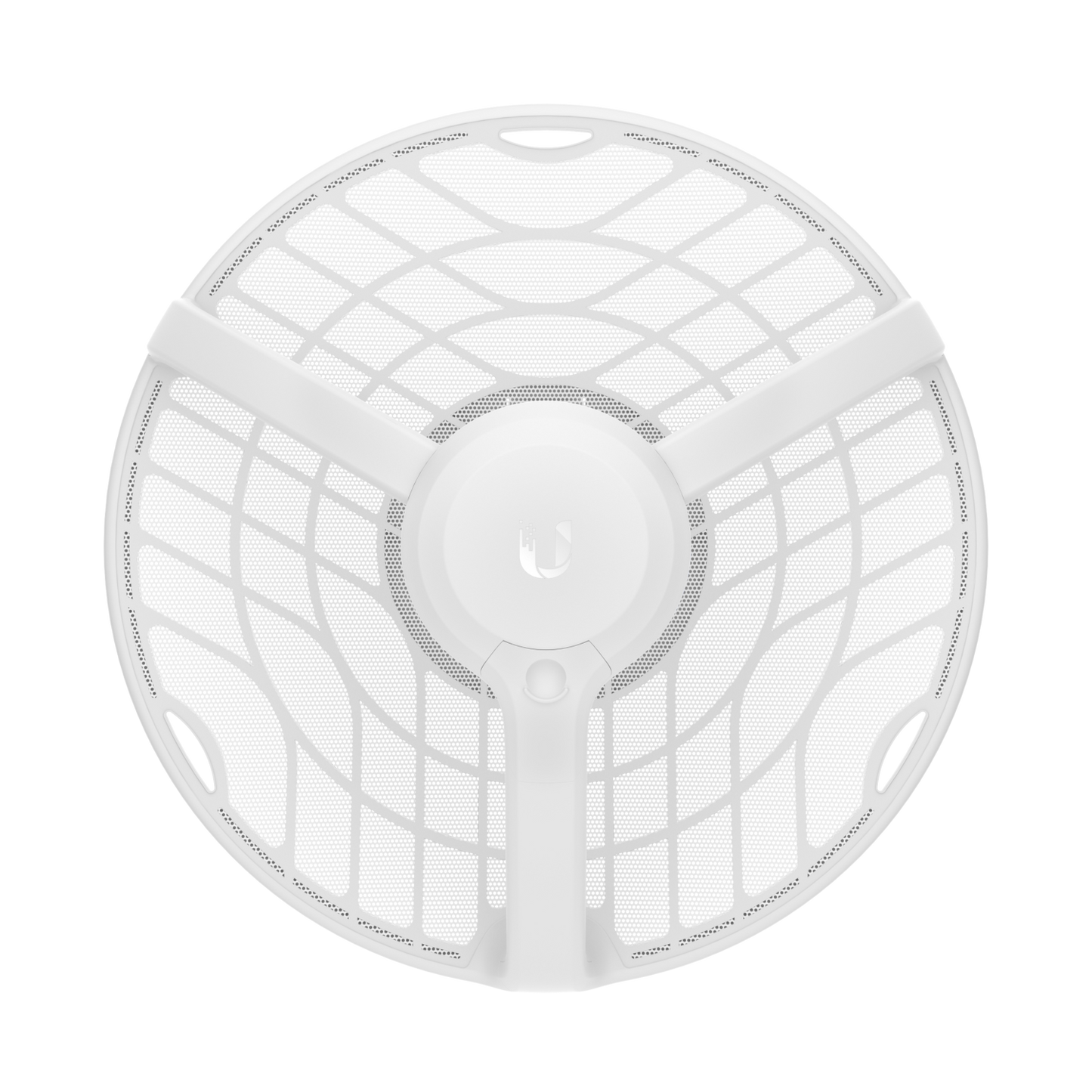

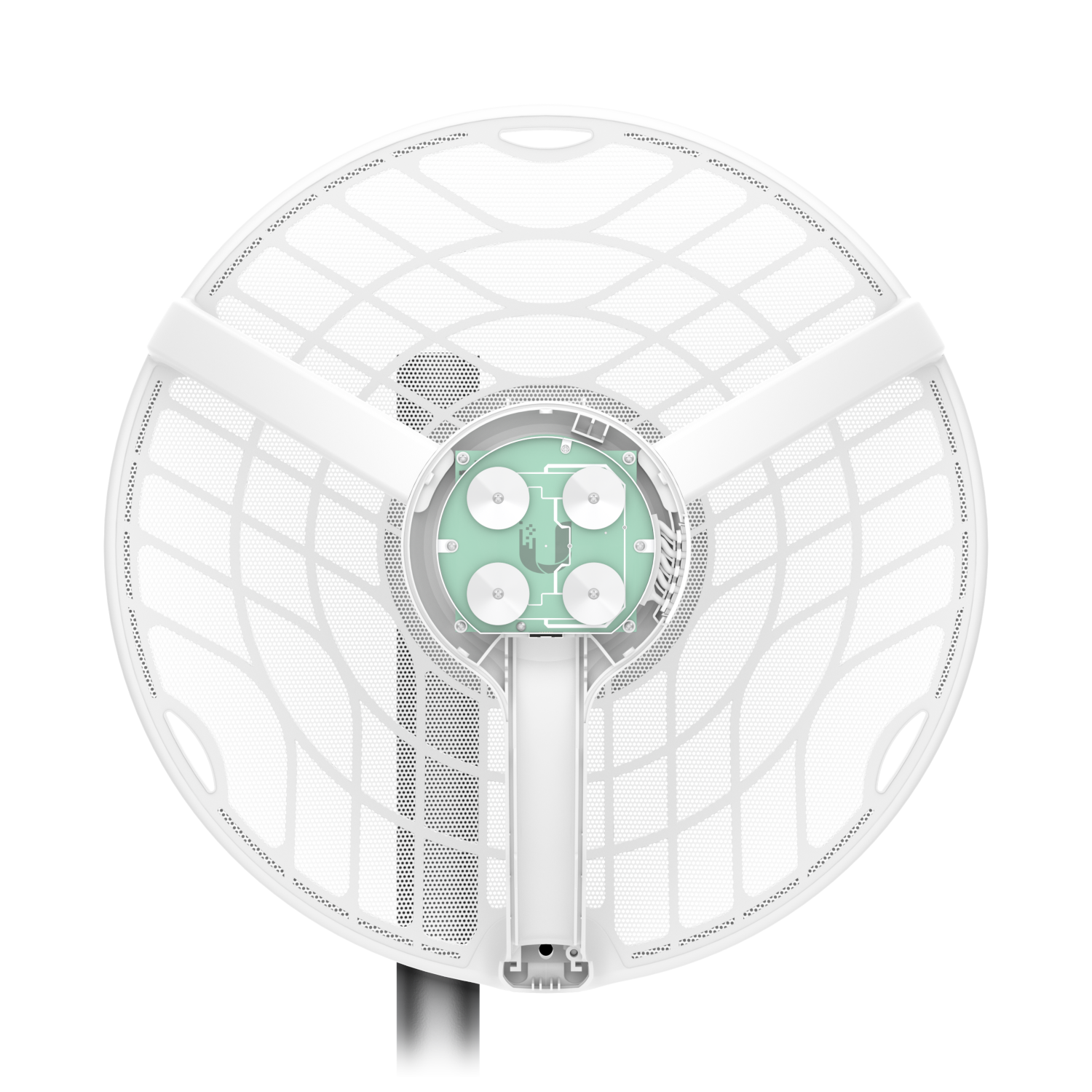

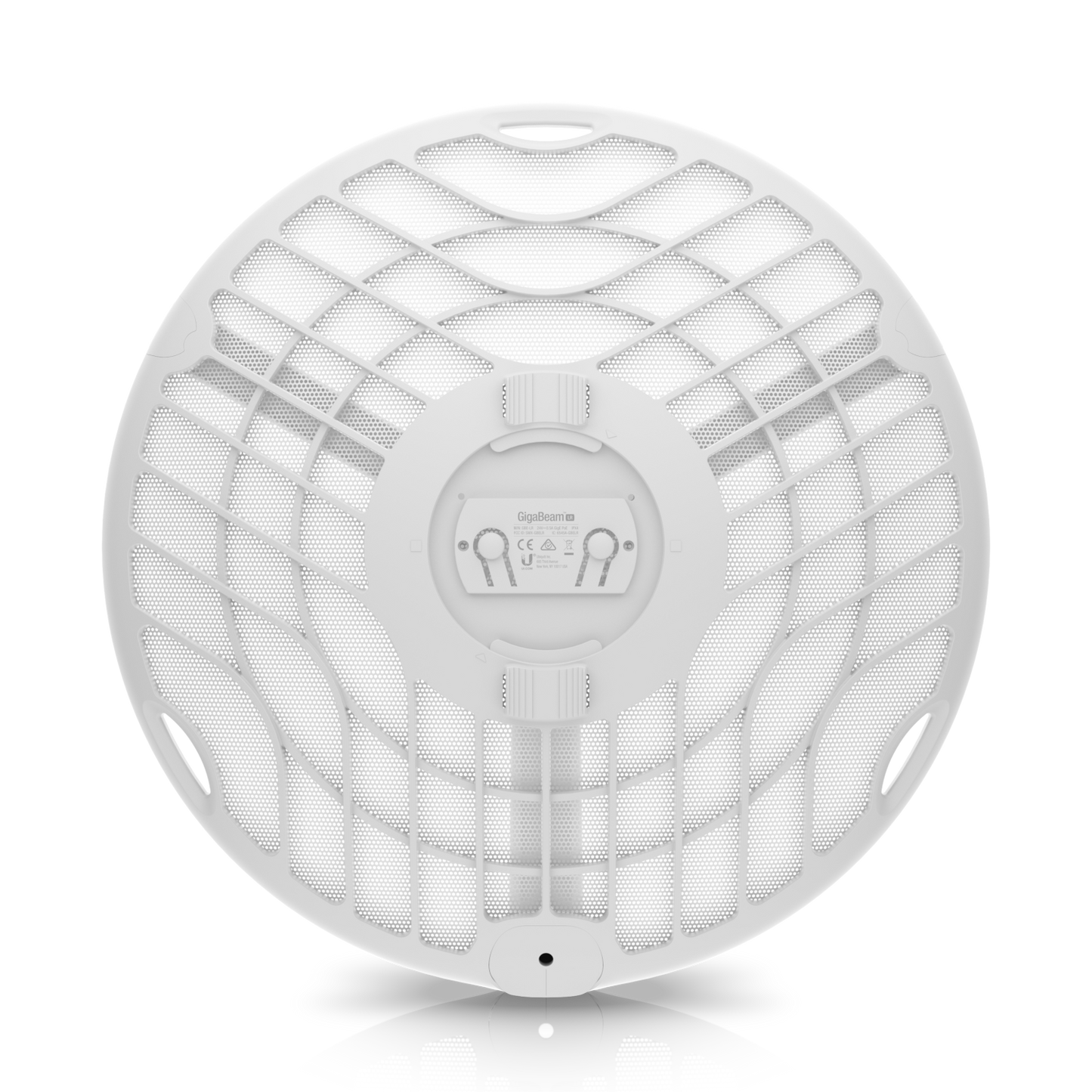

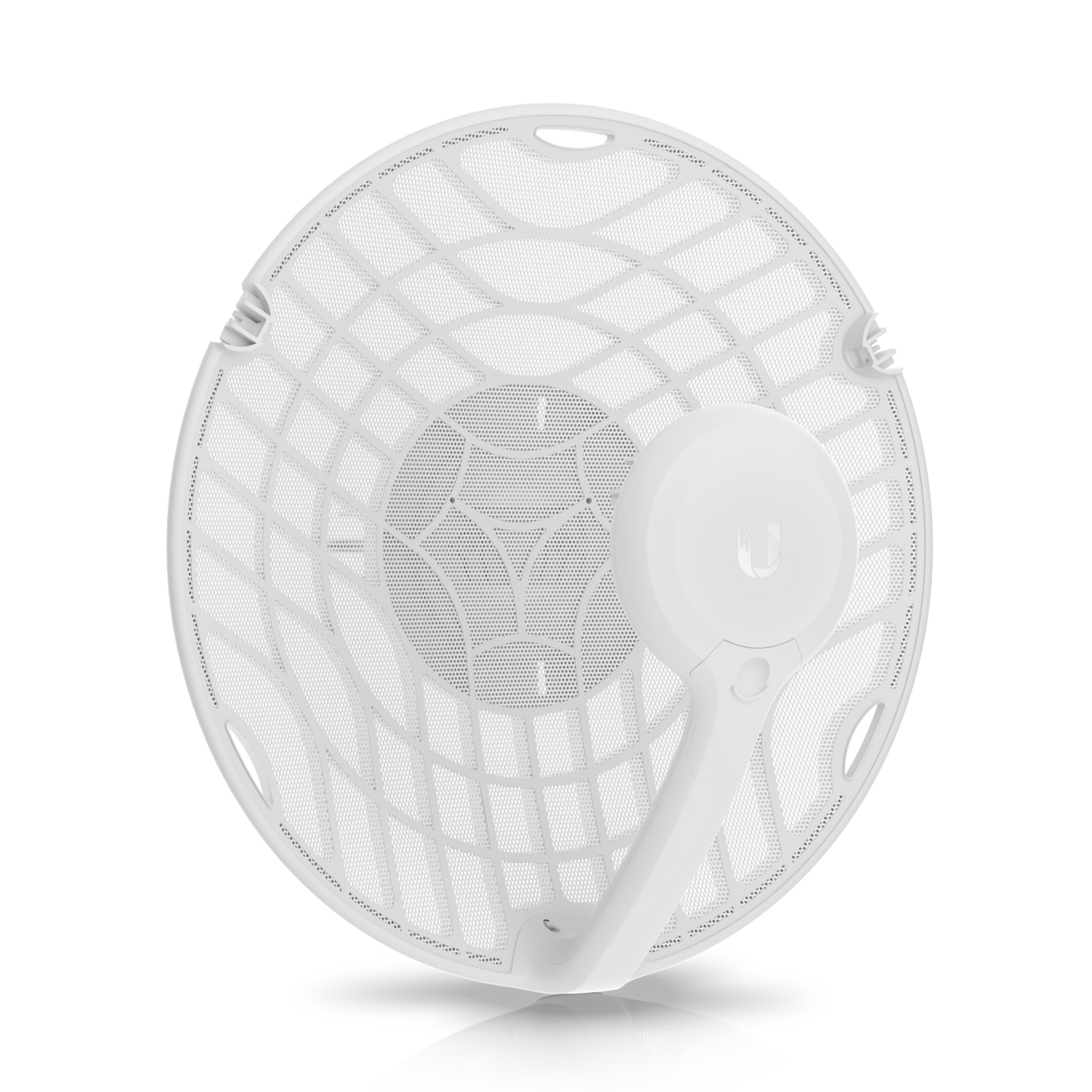

airMAX GigaBeam Long-Range
Ubiquiti GBE-LR airMAX GigaBeam Long-Range
SKU:GBE-LR
Regular price
$427.00
Regular price
$427.00
Sale price
$427.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
High-gain 60 GHz/5 GHz radio with 1+ Gbps throughput and up to 2 km range.
- 2+ km link range.
- 1 Gbps max. throughput.
- 5 GHz backup radio.
- (1) GbE port.
This product should be purchased in pairs in order to form links.

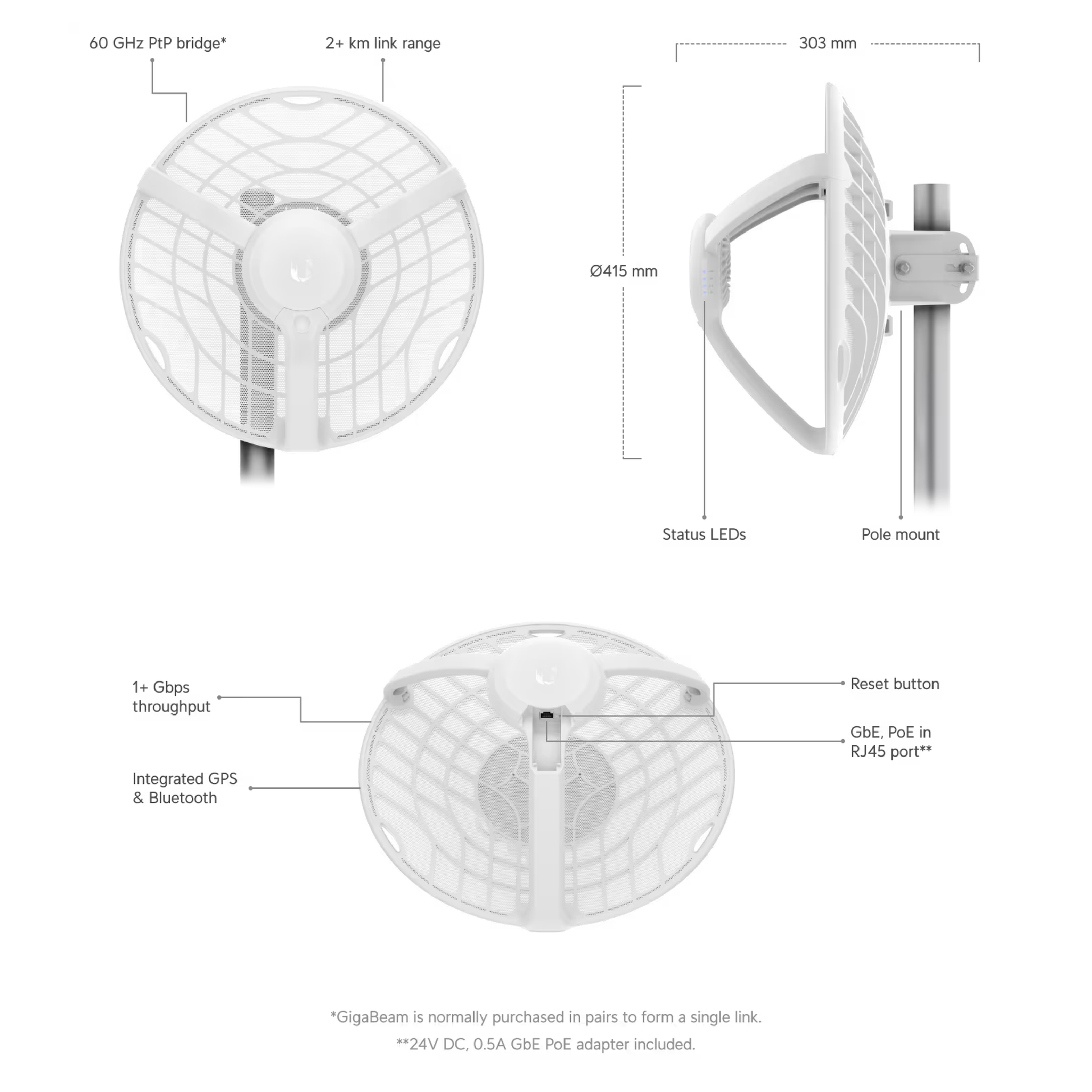

| Mechanical | |
|---|---|
| Dimensions | 415 x 415 x 303 mm (16.34 x 16.34 x 11.93") |
| Weight |
Without mount: 1.4 kg (3.09 lb) With mount: 1.8 kg (3.97 lb) |
| Enclosure materials | Aluminum, UV-stabilized polycarbonate |
| Wind loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |

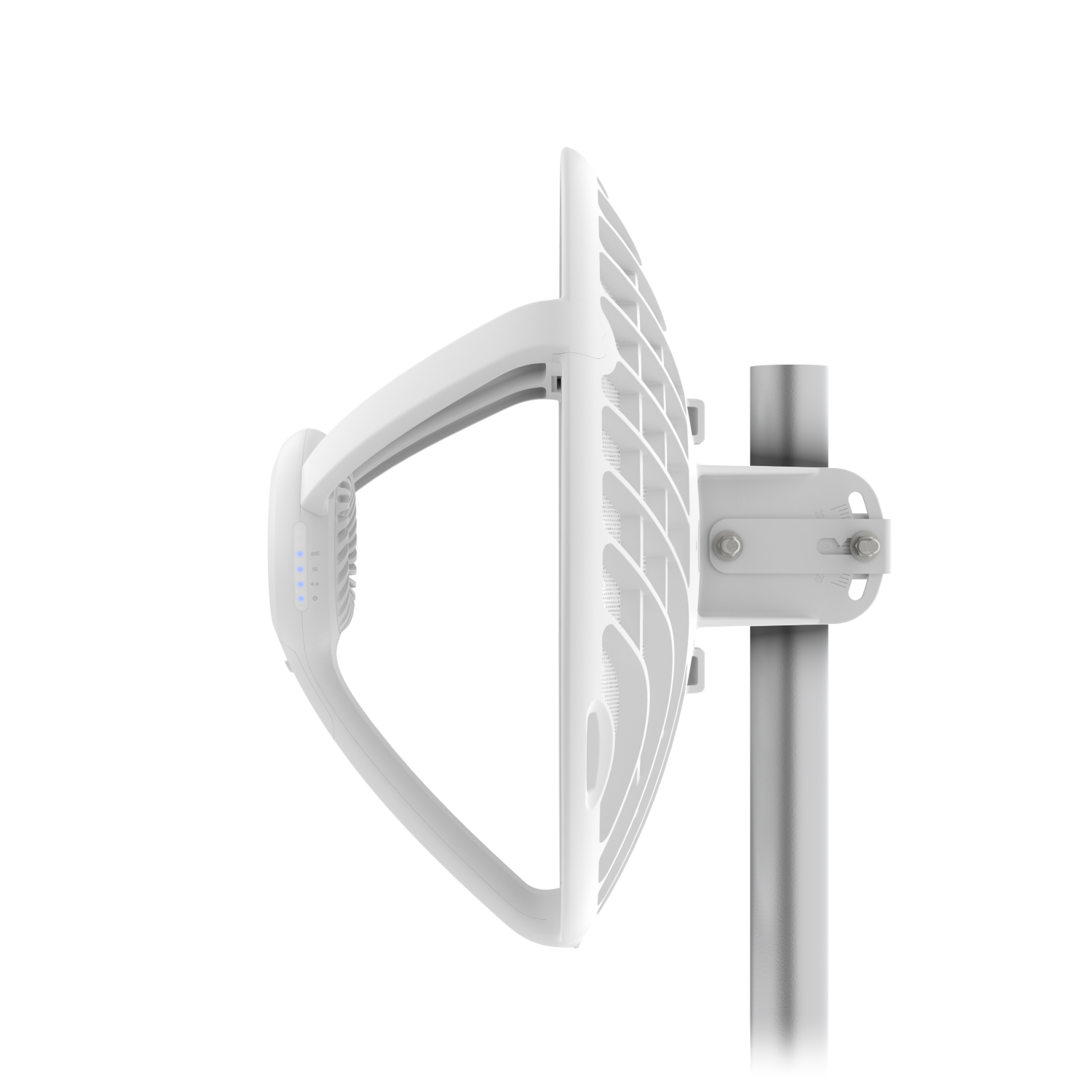

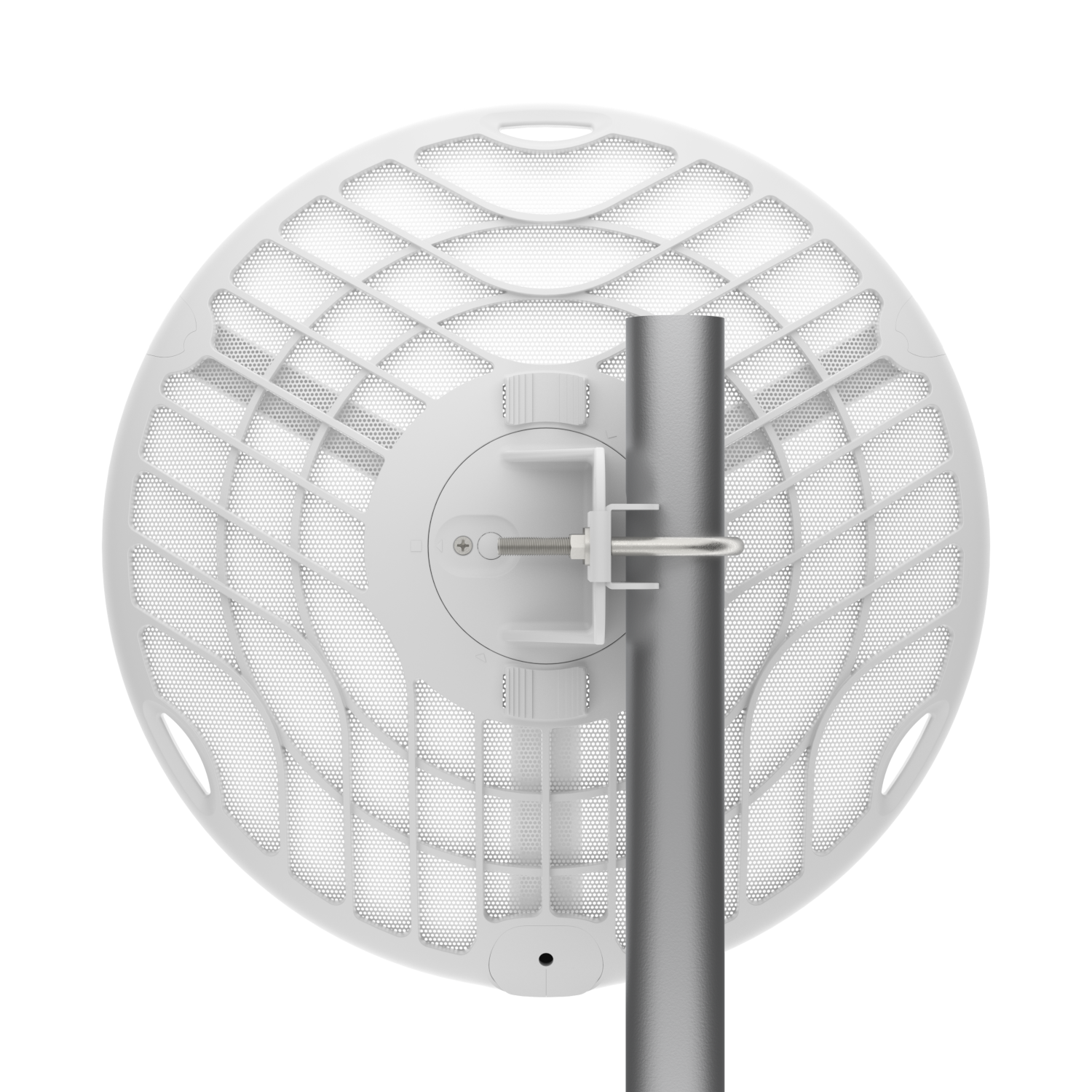

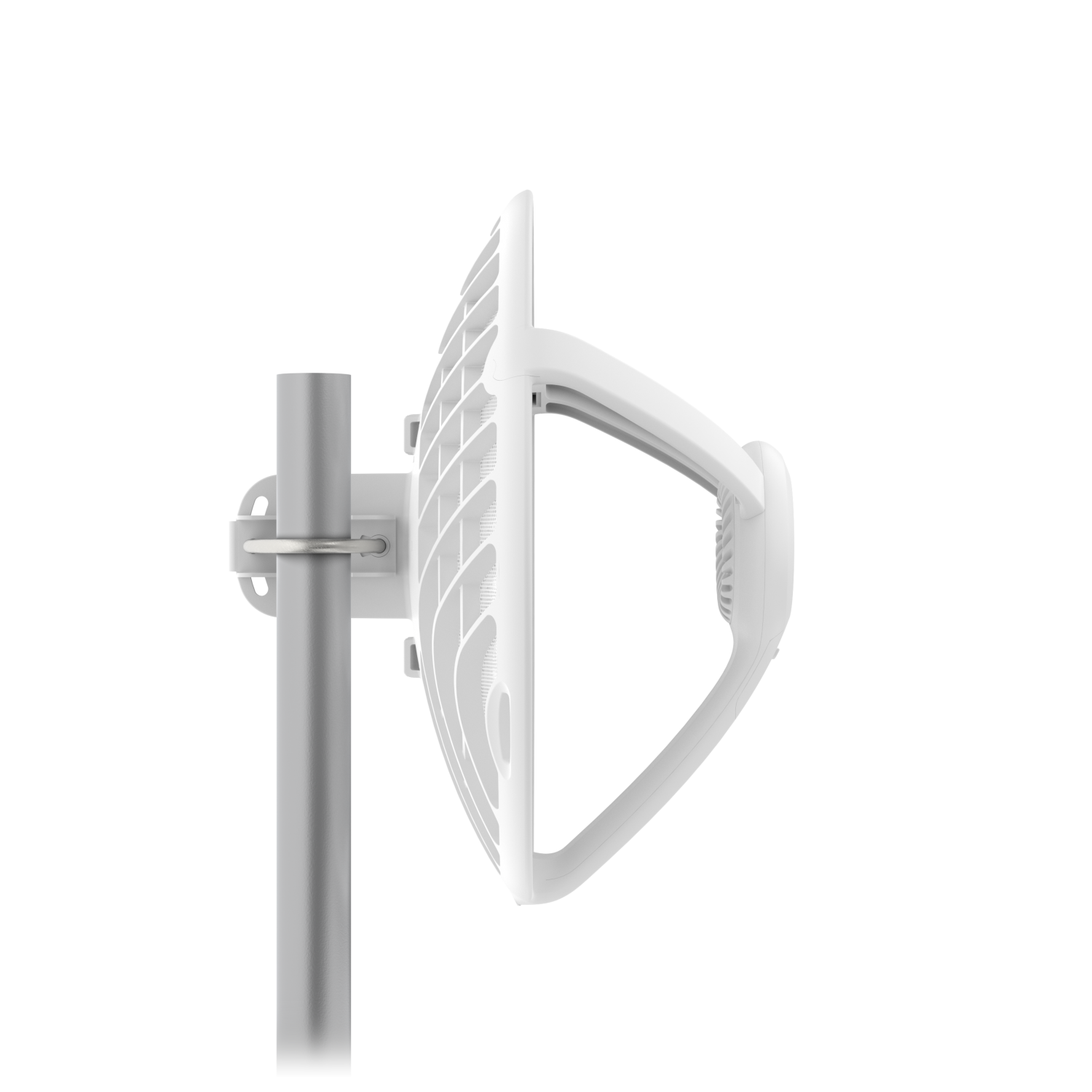

| Mounting | Pole mount (included) |
| Hardware | |
| Processor | Quad-core ARM Cortex- A7 |
| Memory | 256 MB DDR3 |
| Networking interface | (1) 10/100/1000 MbE RJ45 port |
| RF connections | Internal |
| Power method | Passive PoE (pairs 4, 5+; 7, 8-) |
| Power supply | 24V DC, 0.5A Gigabit PoE adapter (Included) |
| Voltage range | 22—26V DC |
| Max. power consumption | 11W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP |
| Ubiquiti specific features | Integrated 60 GHz and 5 GHz radios, discovery protocol |
| Security | WPA2 AES only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Tools | Antenna alignment tool, discovery utility, traceroute, speed test |
| Management interface | UISP application (web/mobile) |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
| RF | |
|
Max. conducted TX power 5/60 GHz combined |
25 dBm |
|
Channel bandwidth 60 Ghz 5 Ghz |
2160 Mhz 20/40/80 Mhz |
|
Management radio US/CA Worldwide |
2412 - 2462 MHz 2412 - 2472 MHzi |
|
Antenna gain 60 Ghz 5 Ghz |
38 dBi 11 dBi |
| Operating Frequency (Mhz) | |
|
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 57,000 – 66,000 |
| Worldwide |
5180 – 5875 57,000 - 66,000 |
| LEDs | |
| Power |
Flashing white: bootup in progress White: system ready, Ubiquiti Internet Service Provider (UISP) not configured, not connected Flashing blue: system ready, UISP configured, but cannot connect Blue: system ready, UISP configured and connected |
| Ethernet | Flashing blue: Ethernet traffic detected |
| 5G | Blue: active connection |
| 60G | Blue: active connection |
Visit Ubiquiti for more information.
