airMAX GigaBeam Plus — UISP 60 GHz Wireless
airMAX GigaBeam Plus — UISP 60 GHz Wireless
Regular price
$438.00
Regular price
$428.00
Sale price
$438.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
SKU:GBE-Plus
Out of stock
Couldn't load pickup availability

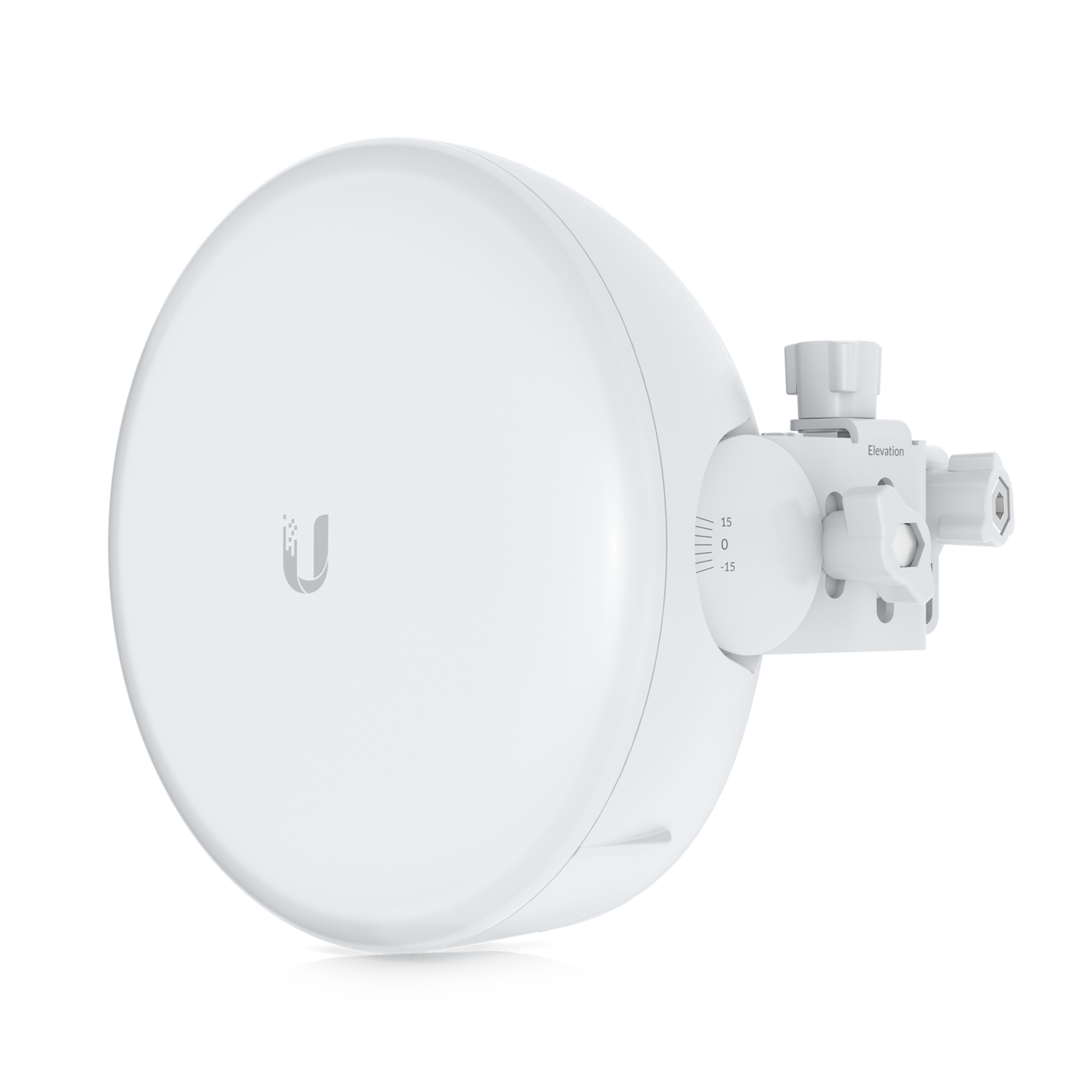

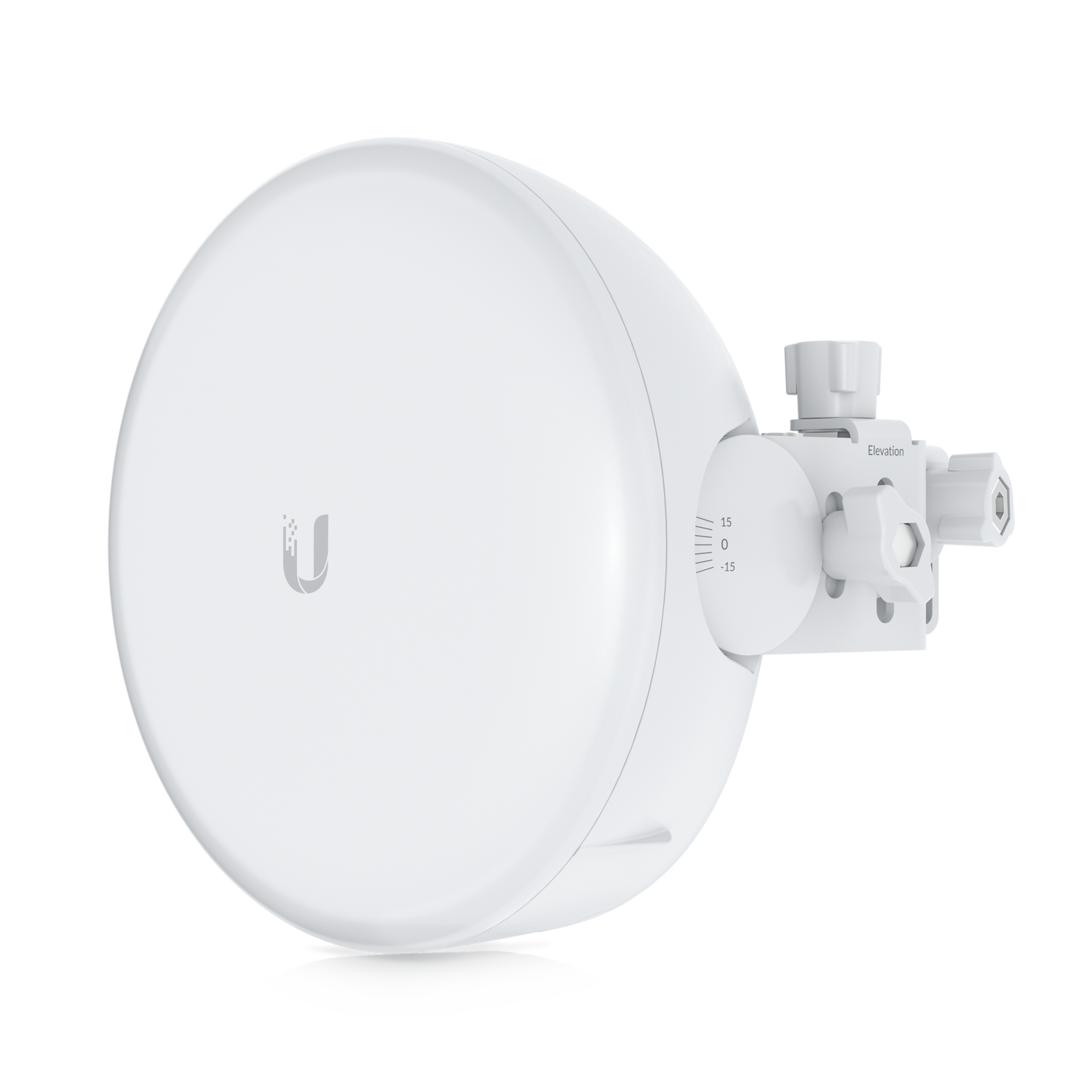

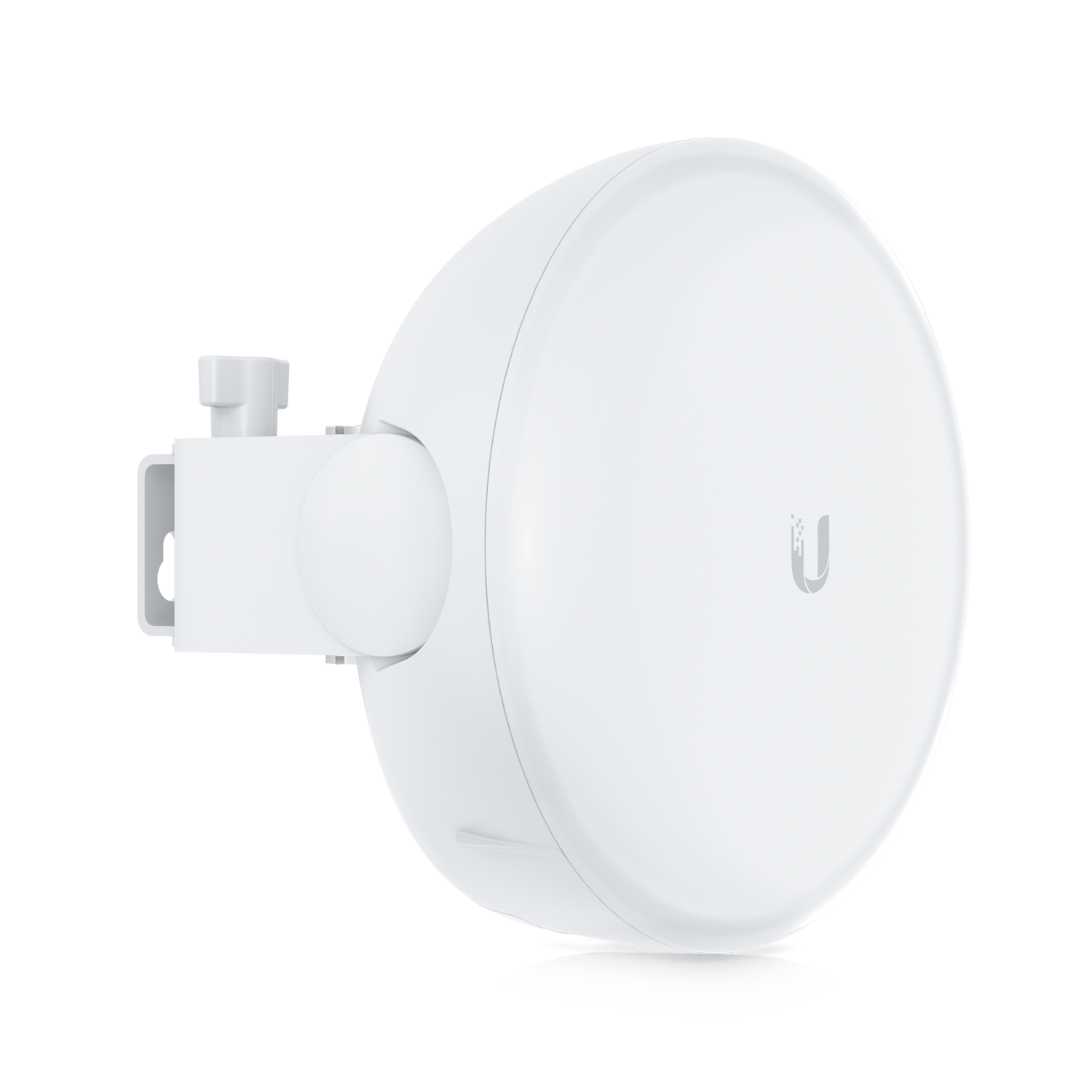

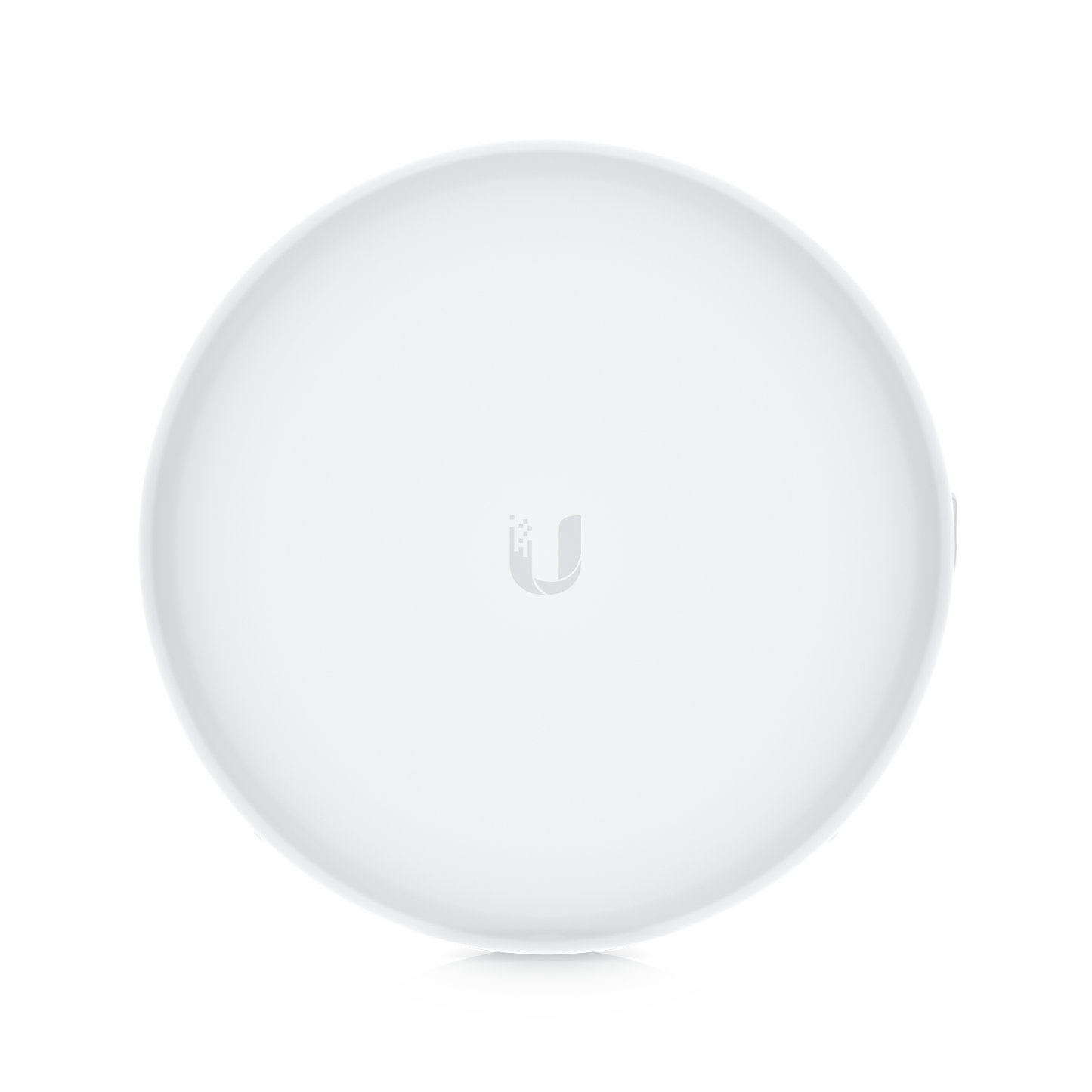

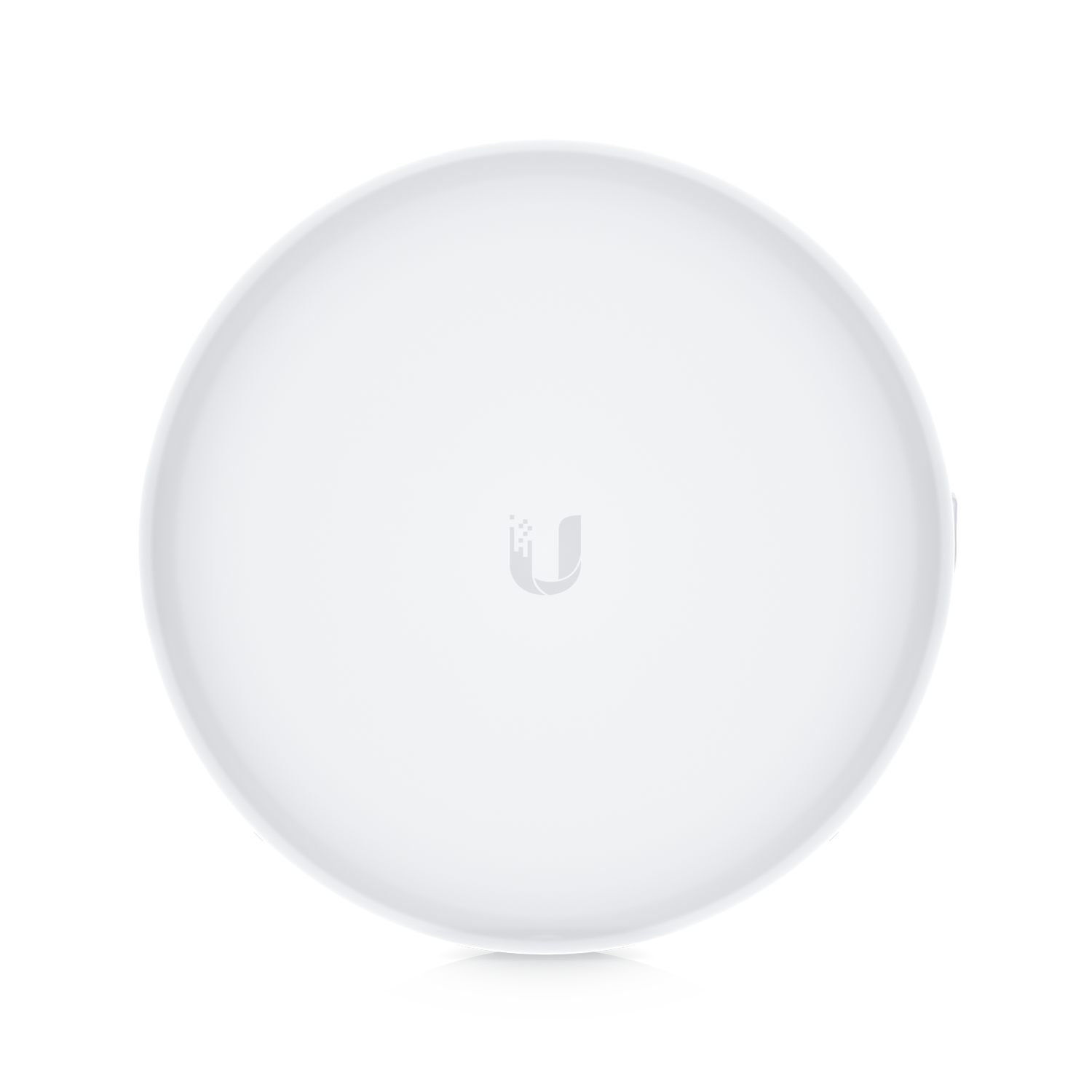

Experience cutting-edge connectivity with the Ubiquiti airMAX GigaBeam Plus, featuring a high-gain 60 GHz radio complemented by a Cassegrain reflector. This advanced technology ensures a swift data transfer rate exceeding 1.5 Gbps, coupled with minimal latency for efficient performance.
- Link range surpassing 1.5 kilometres
- Maximum throughput of 1.5 Gbps
- Includes a single Gigabit Ethernet (GbE) port
Note: This product should be purchased in pairs in order to form links.
| Mechanical | |
|---|---|

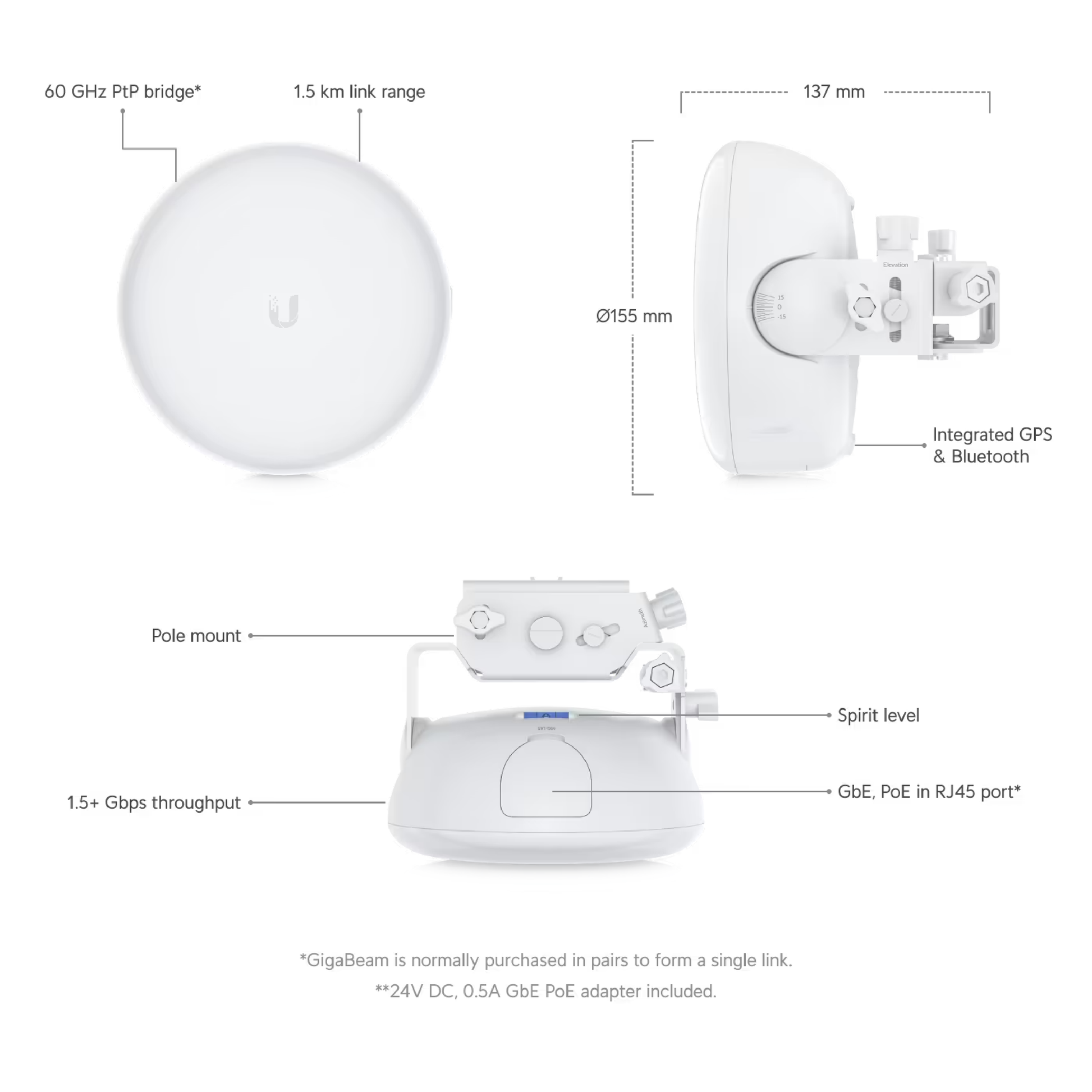

| Dimensions | Ø155 x 137 mm (Ø6.1 x 5.4") |
| Weight | 1 kg (2.2 lb) |
| Enclosure materials | UV-resistant polycarbonate, stainless steel |

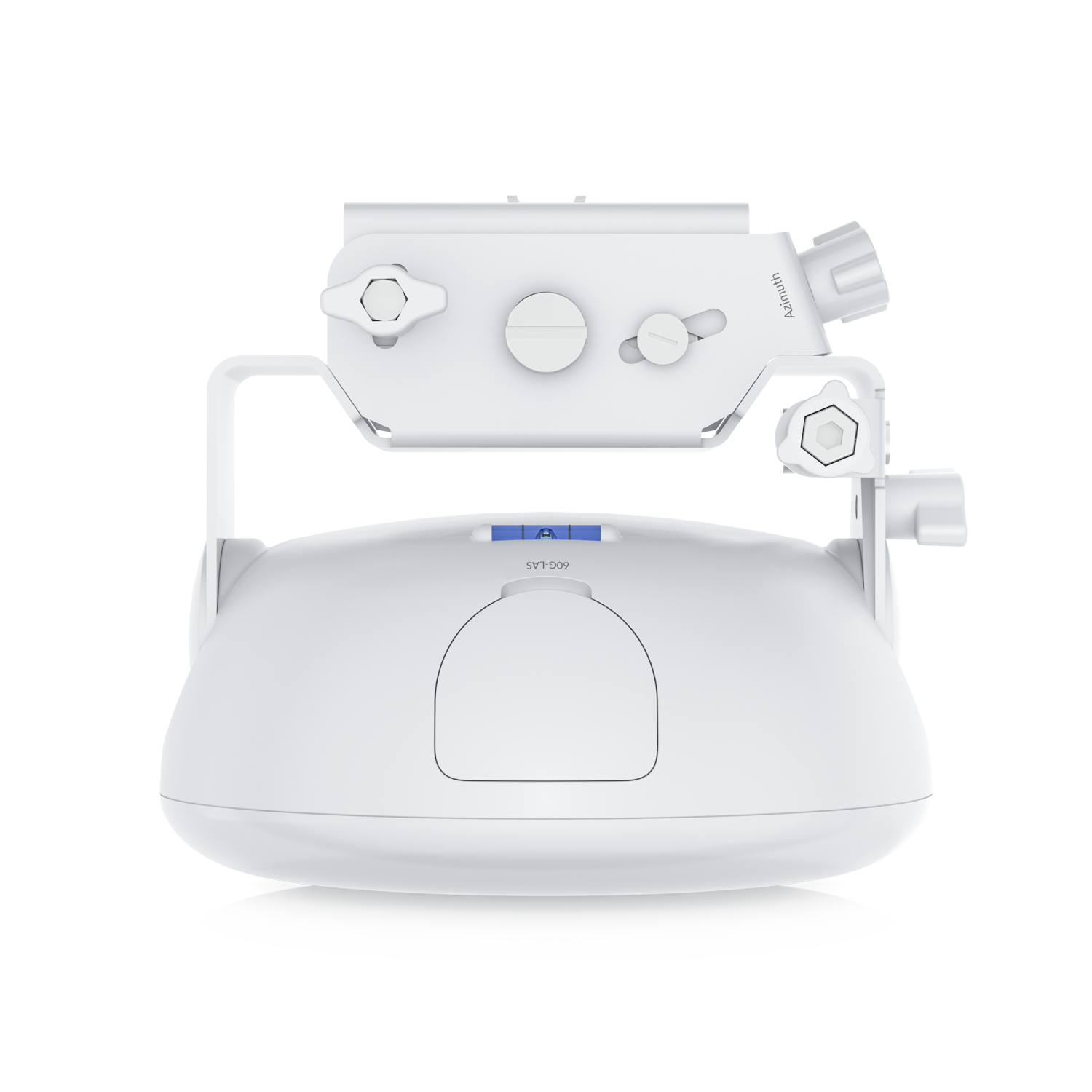

| Mount material | Metal |
| Wind loading | 50 N at 200 km/h (11.24 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking interface | 10/100/1,000 Mbps RJ45 port |
| Management interfaces | Ethernet Bluetooth |
| RF connections | Internal |
| Max. power consumption | 11W |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8-) |
| Power supply | 24V DC, 0.5A Gigabit PoE adapter |
| Supported voltage range | 22—26V DC |
| ESD/EMP protection | Air/contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating modes | PtP master or station |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol |
| Security | WPA2 AES only |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Tools | Antenna alignment, discovery utility, traceroute, speed test |
| Management interface | UISP application (web/mobile) |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| RF | |
| Operating frequency* | 57,000 - 66,000 MHz * Dependent on regional regulations. |
| Channel bandwidth | 2160 MHz |
| Operating channels | 58320, 60480, 62640, 64800 MHz |
| Beamwidth* | Azimuth: 2° (-3 dB) / 3° (-6 dB) Elevation: 2° (-3 dB) / 3° (-6 dB) * The antenna is only vertically polarized. |
| Bluetooth | 2400 - 2483.5 MHz |
| Electrical downtilt | 0° |

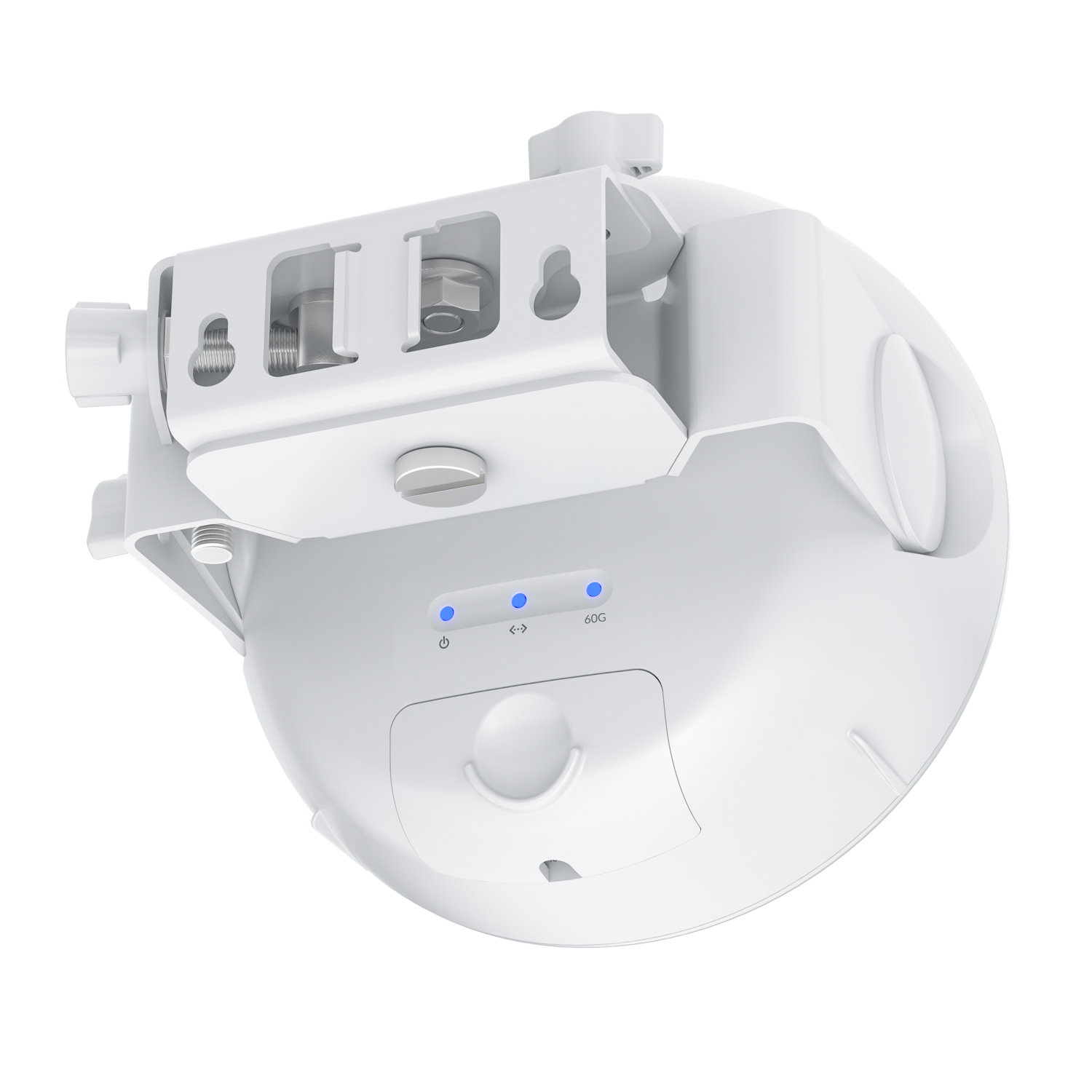

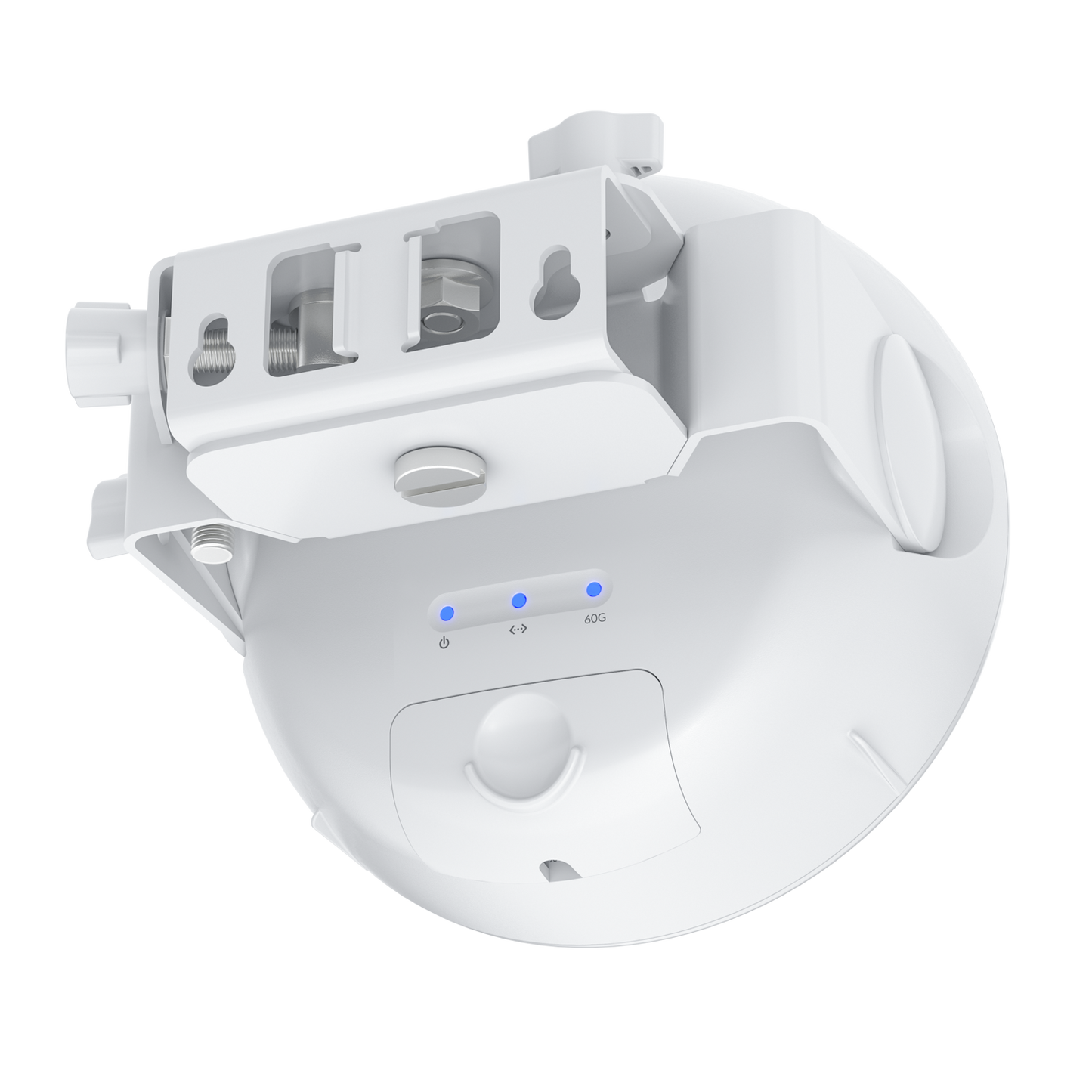

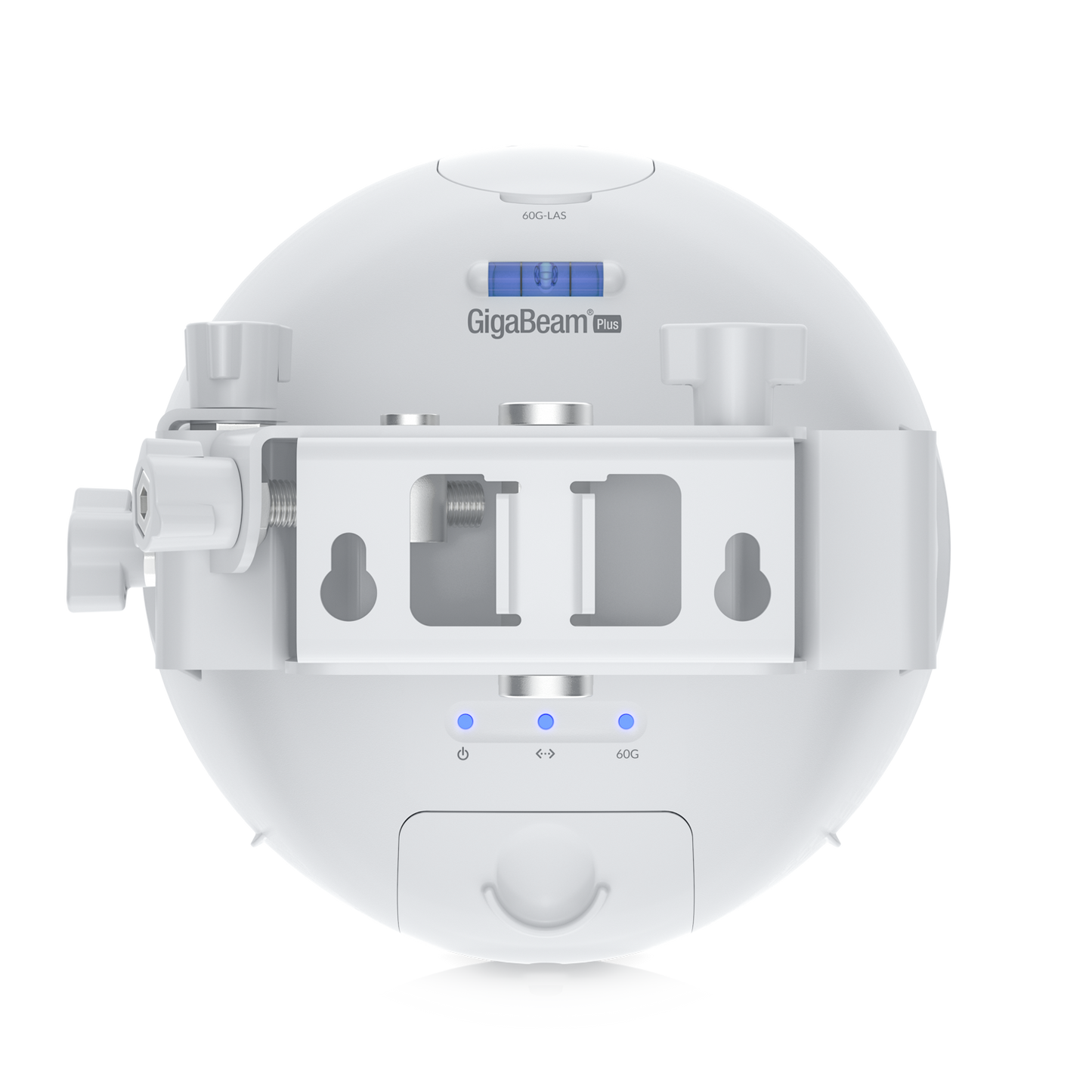

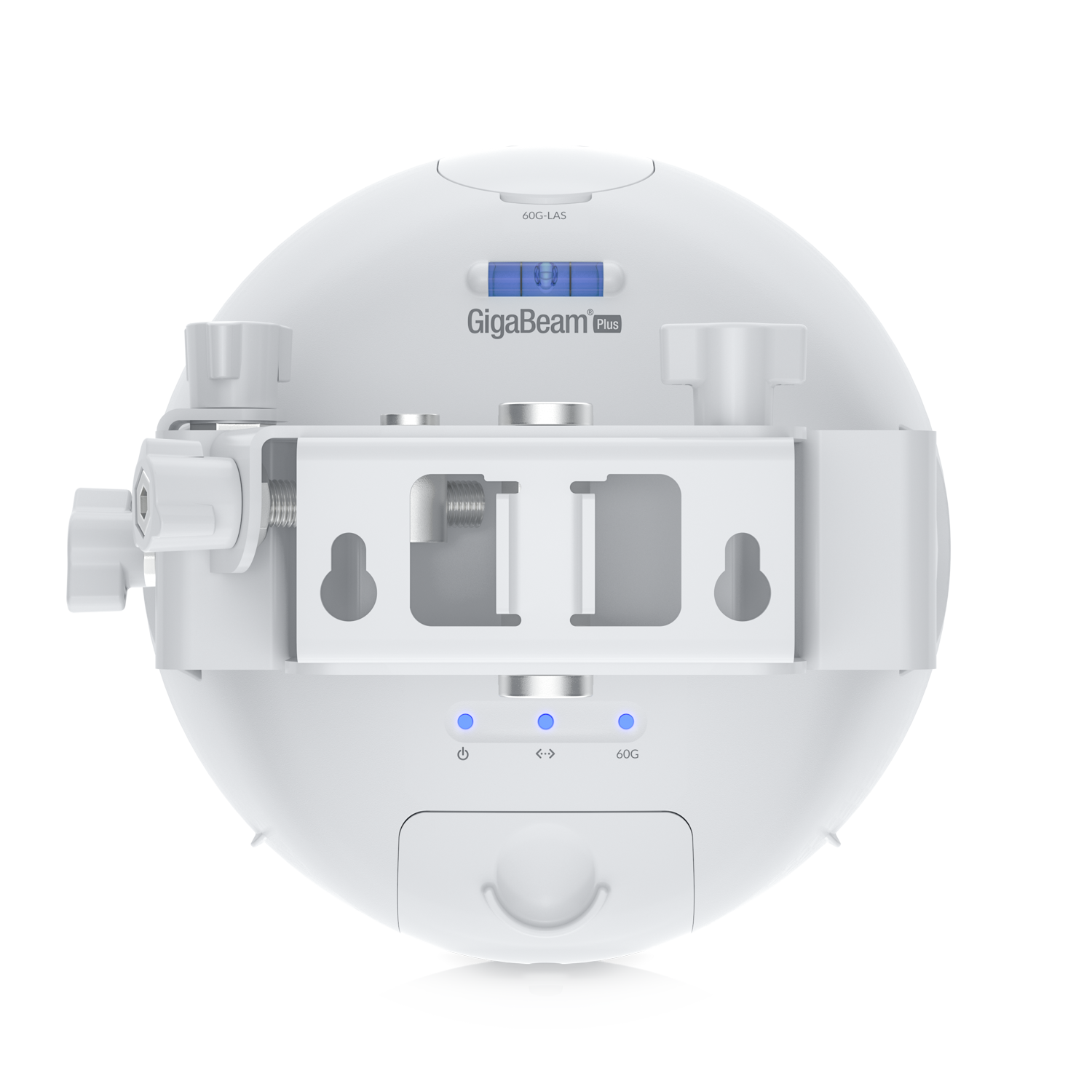

| LEDs | |
| Power | Flashing white: booting up White: not connected to UISP Blue: connected to UISP |
| Ethernet | Flashing blue: Ethernet traffic detected |
| 60GHz | Blue: connected |
