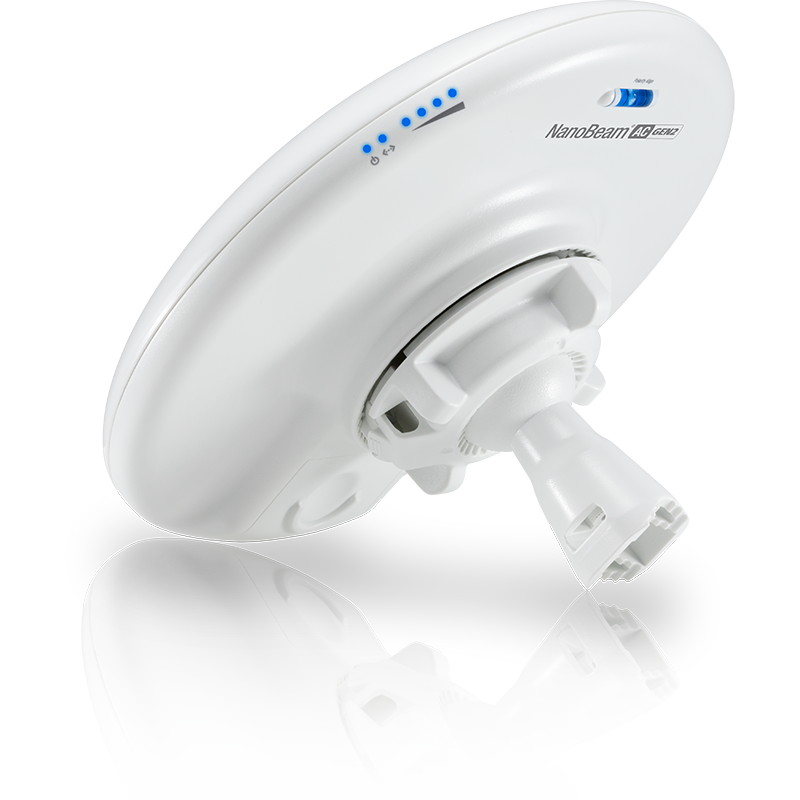

  • Outer housing of the Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge seen in a three-quarter view.

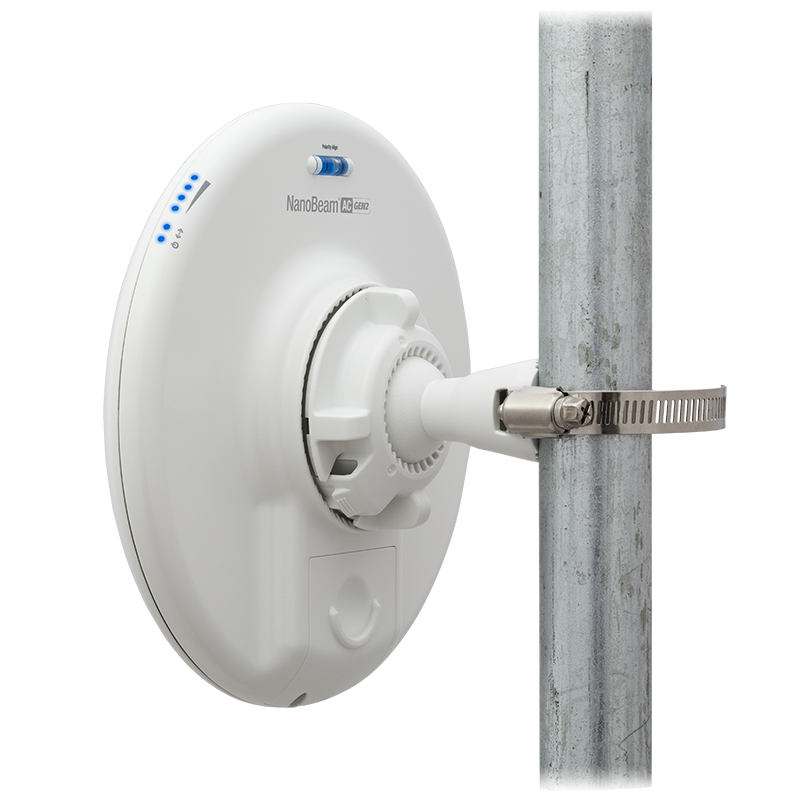

  • Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge secured in its mounted orientation with attachment hardware visible.
  • Straight-on front view of the Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge with the outer housing visible.

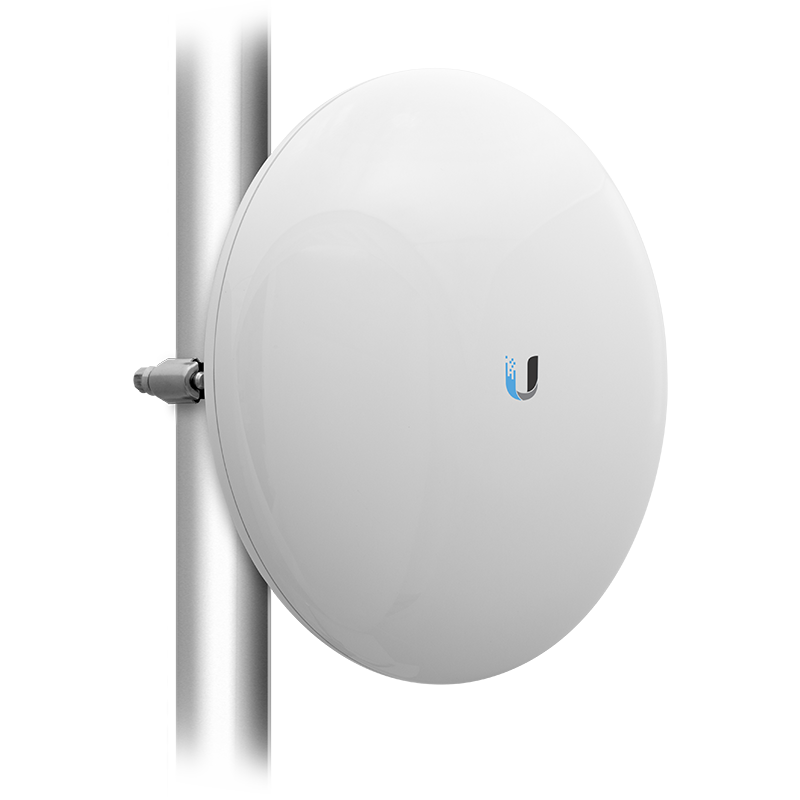

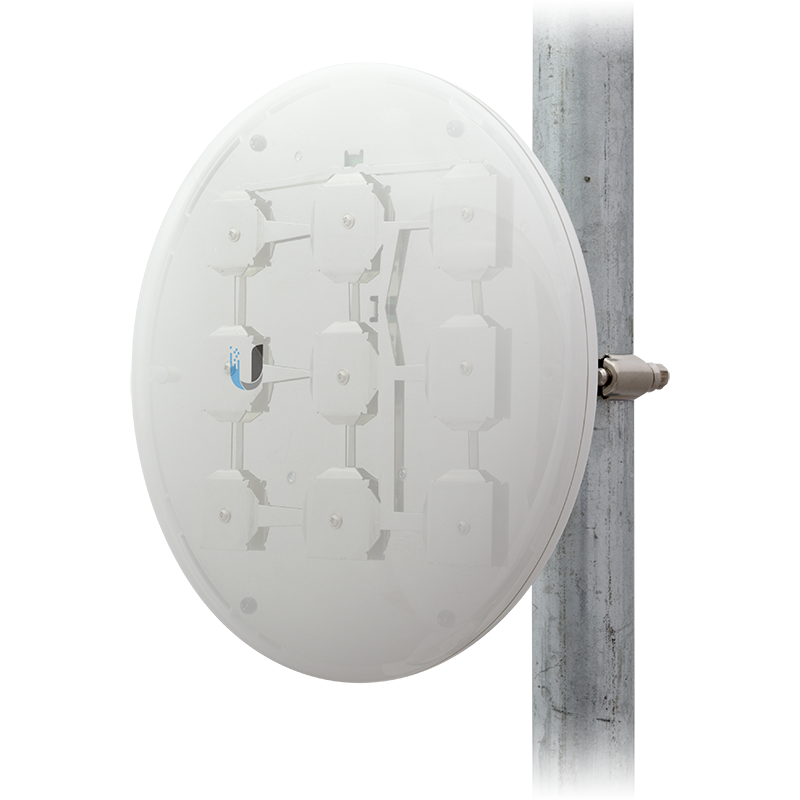

  • Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge shown in place with its installed orientation visible.
  • Outer housing of the Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge seen in a straight-on front view.
  • Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge viewed from an angled perspective with the outer housing visible.
  • Front-facing view of the Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge with the outer housing visible.
  • Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge shown in a front-facing view with the outer housing visible.
  • Outer housing of the Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge seen in a front-facing view.
  • Ubiquiti NBE-5AC-GEN2 airMAX NanoBeam 5AC Bridge viewed from its slim edge with the outer housing visible.
1 12

Ubiquiti

2-Year Warranty

airMAX NanoBeam 5AC Bridge

airMAX NanoBeam 5AC Bridge

NBE-5AC-GEN2

$167.00
$218.00 $167.00
23% Off | Save $51.00 Sold out
Taxes included.

Sale Live Now. Limited promotional stock available — don’t miss out!

502 in stock and ready to ship

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimised radio and antenna.

  • 5 GHz, 10+ km link range.
  • 450+ Mbps throughput.
  • Easy mounting.
  • Dedicated spectral analysis radio.
  • Dedicated WiFi management radio.

Specification

Mechanical

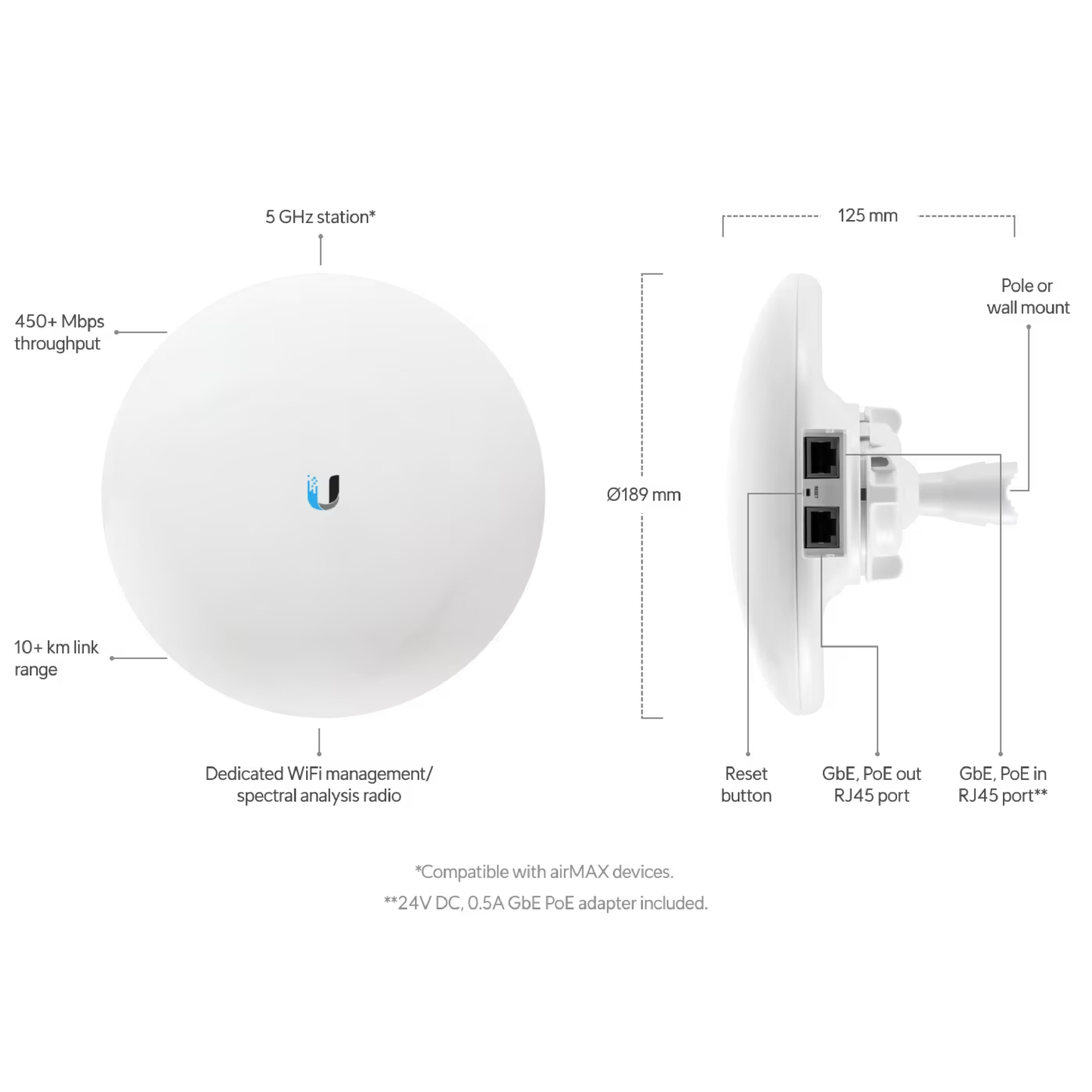

Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight 530 g (1.17 lb)
Enclosure material UV-stabilized plastic

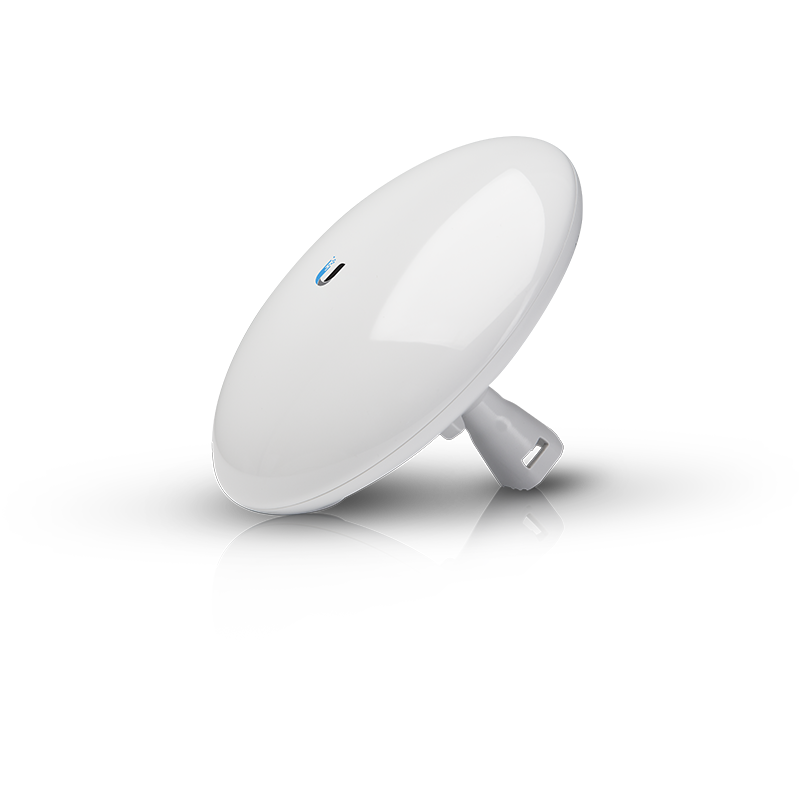

Mounting Pole mount kit (Included)
Wall mount (Not included)
Wind Loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware

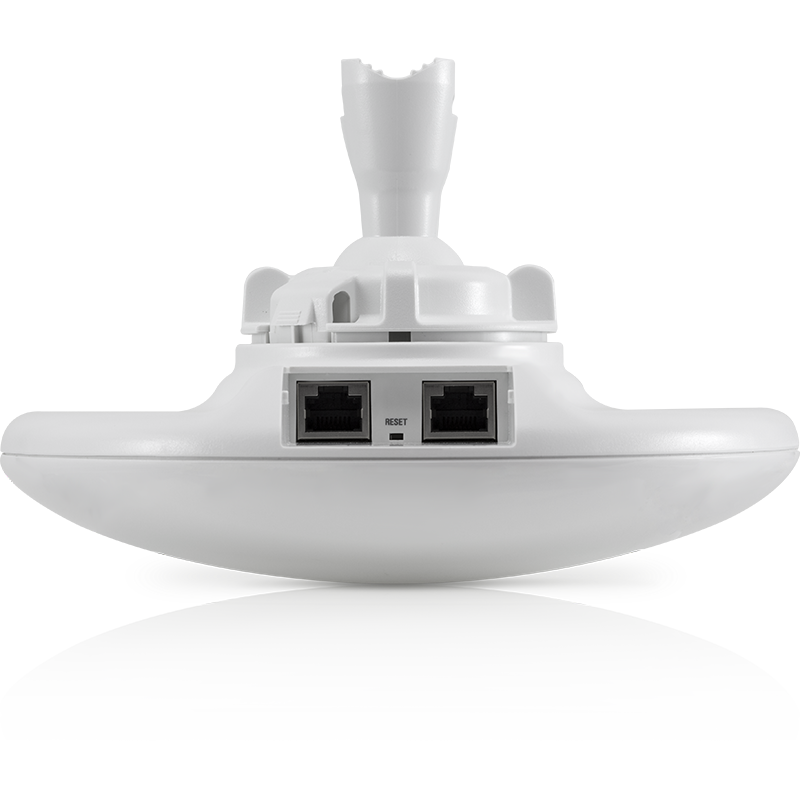

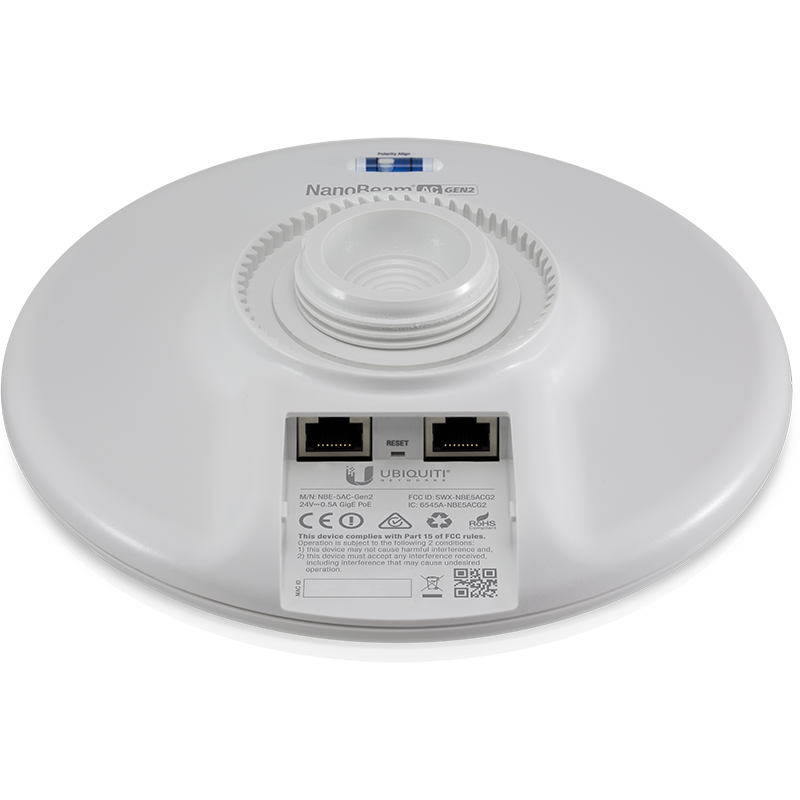

Networking interface (2) GbE RJ45 ports
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8W
ESD/EMP protection Air/contact: ± 24kV

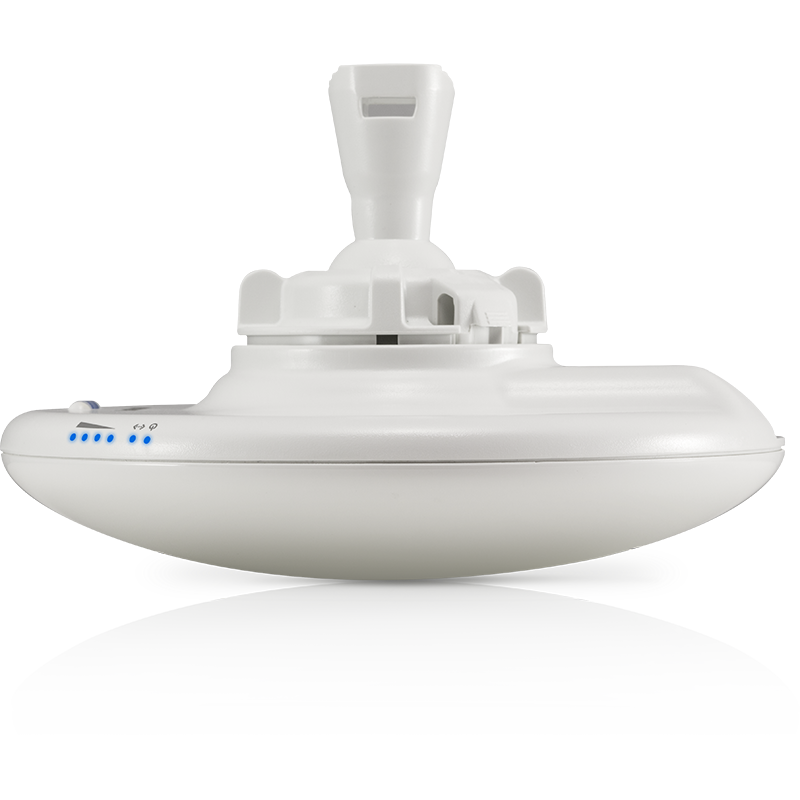

LEDs Power, Ethernet, (4) Signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 80° C (-40 to 176 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 19 dBi
Channel sizes
PtP Mode
PtPM Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
