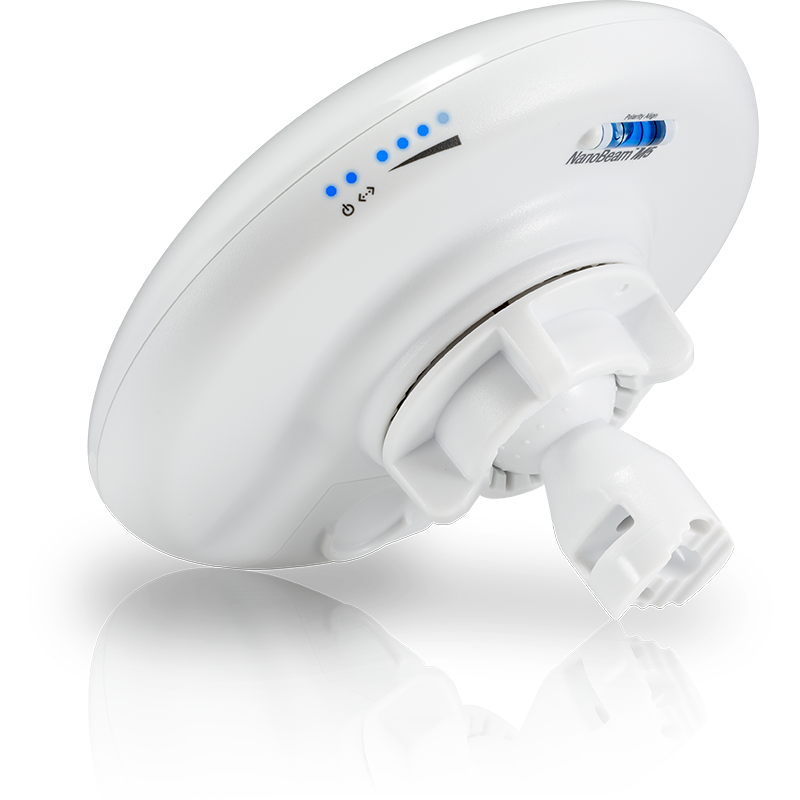

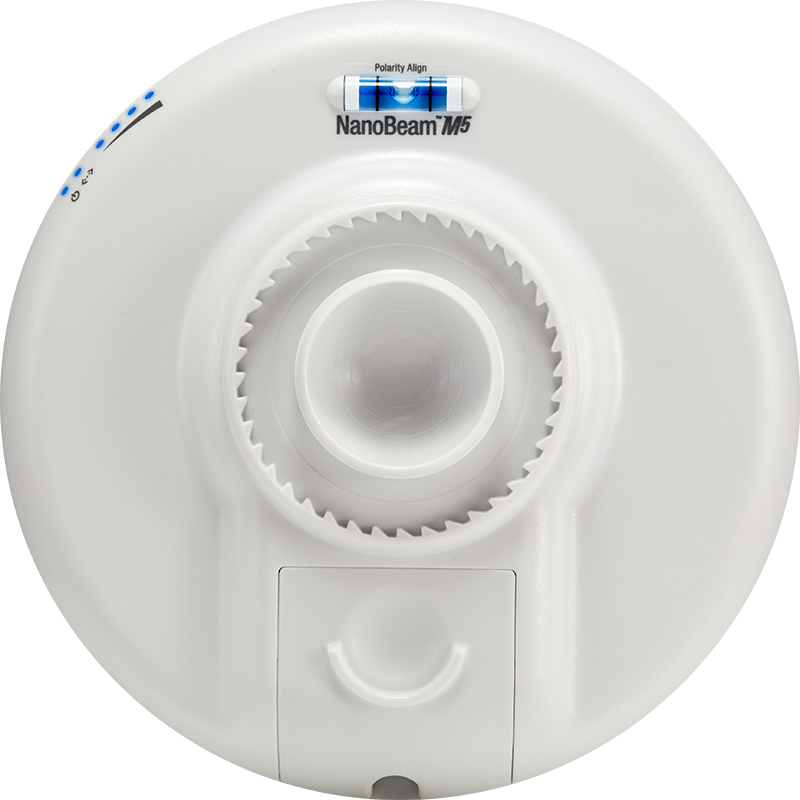

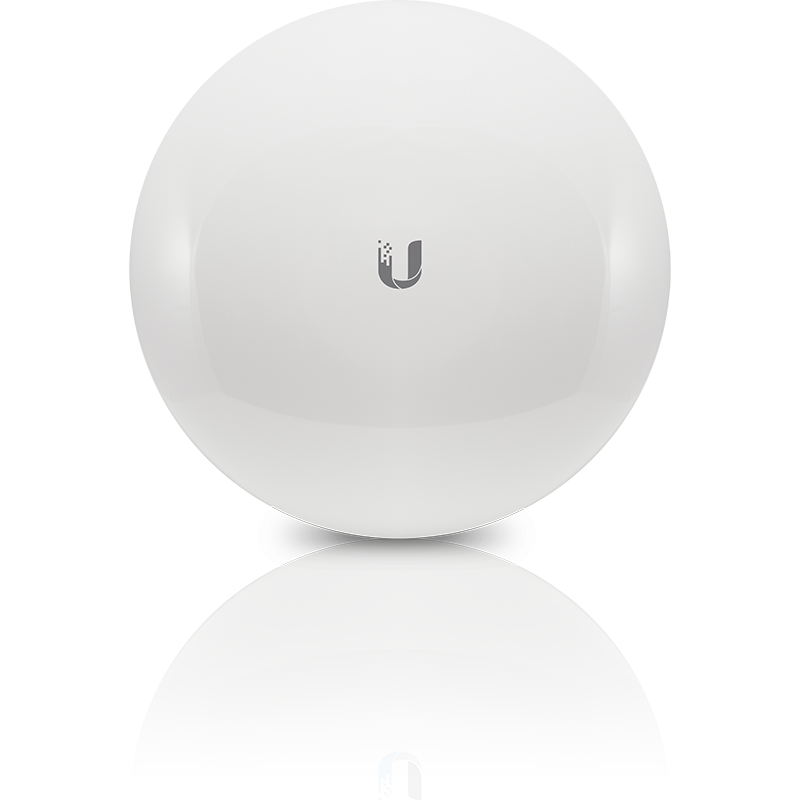

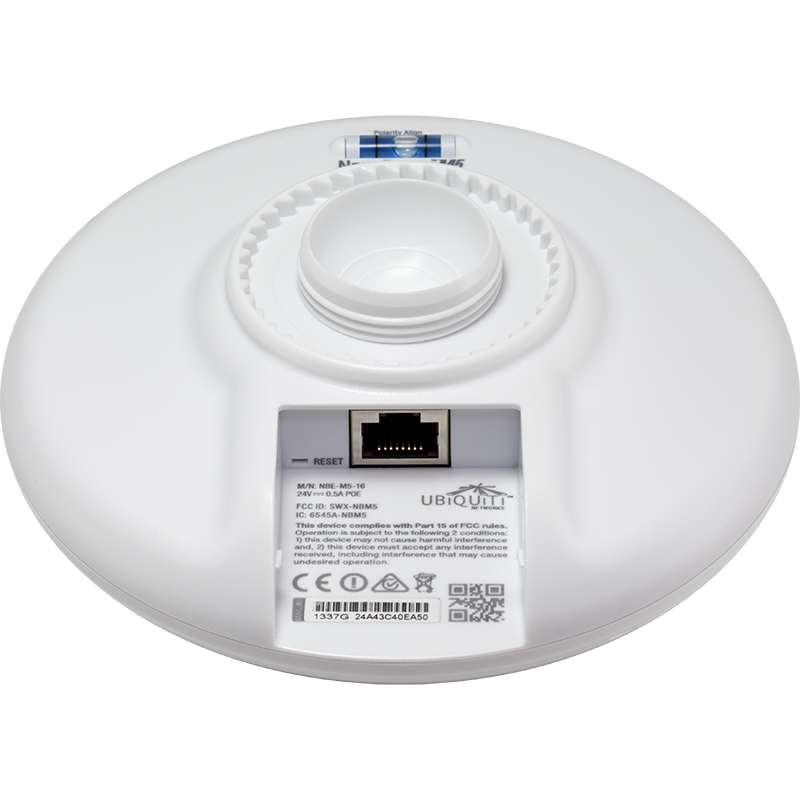

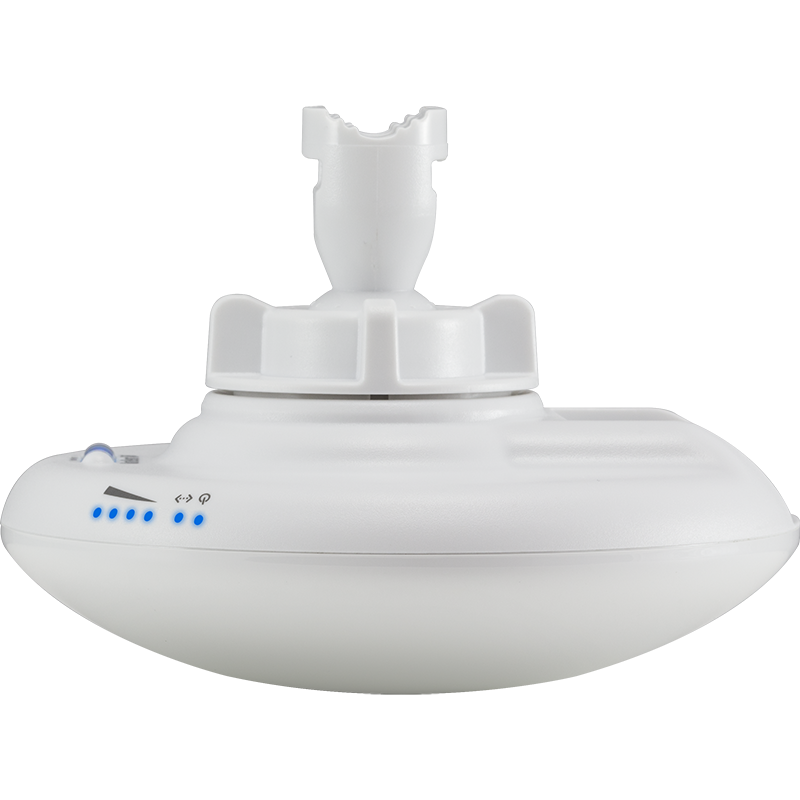

airMAX NanoBeam M5 — UISP 5 GHz Wireless

airMAX NanoBeam M5 — UISP 5 GHz Wireless

Regular price $112.00
Regular price $118.00 Sale price $112.00
5% Off | Save $6.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:NBE-M5-16

In stock

View full details

Experience unparalleled performance with the Ubiquiti airMAX NanoBeam M5, a leading 5 GHz, 16 dBi wireless bridge, designed for optimal connectivity.

  • Operates on the 5 GHz frequency band, perfect for Australian wireless networks
  • Cost-efficient solution with superior performance metrics
  • Seamless plug-and-play integration with airMAX antennas, ensuring easy setup and reliability
NBE-M5-16
Dimensions 140 x 140 x 54 mm (5.51 x 5.51 x 2.13")
Weight 0.320 kg (0.71 lb)
Power Supply 24V, 0.5A Gigabit PoE
Max. Power Consumption 6W
Gain 16 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs Atheros MIPS 74Kc, 533 MHz
Memory 64 MB DDR2, 8 MB Flash
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.5:1
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic

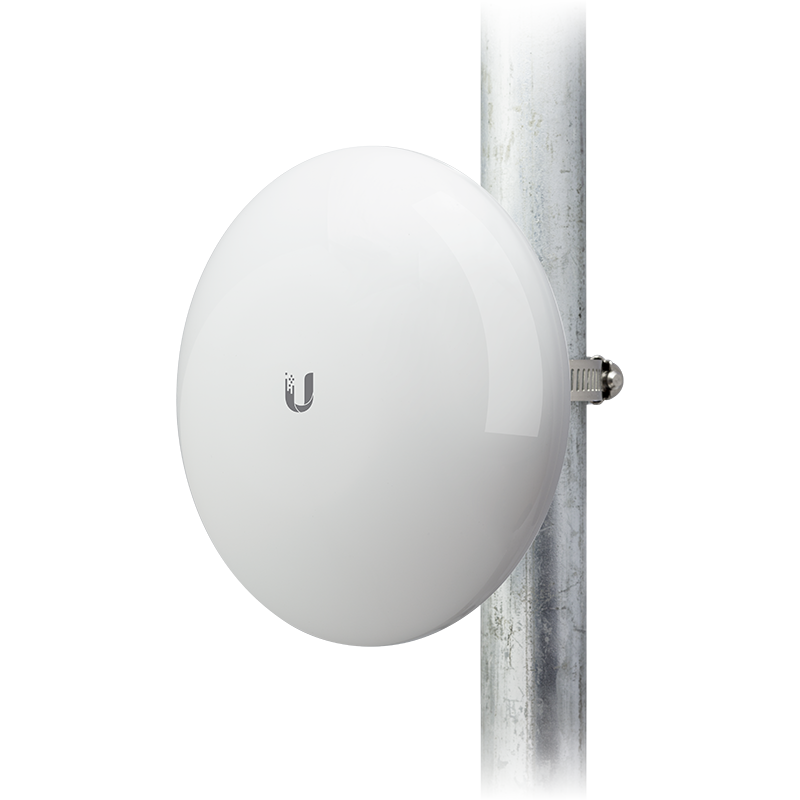

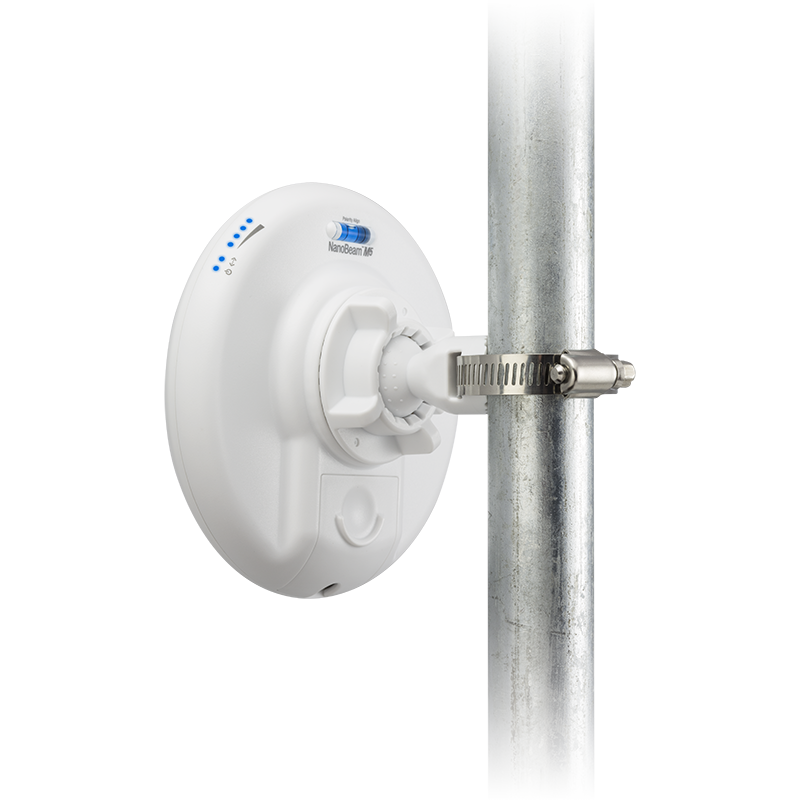

Mounting Pole-Mount (Kit Included), Wall-Mount
Wind Loading 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C
(-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency MHz
Worldwide 5150 - 5875
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
