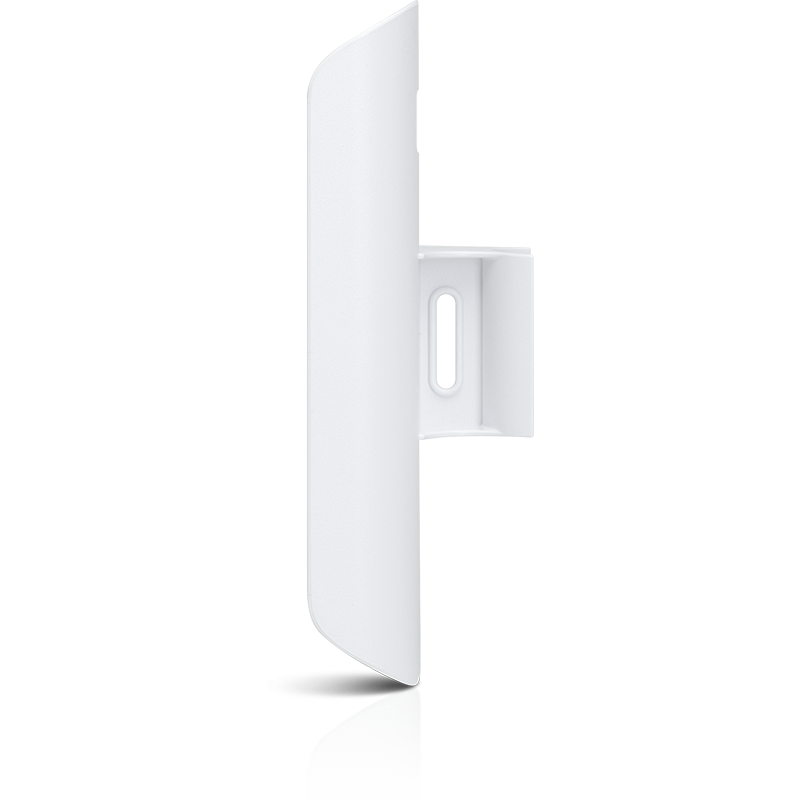

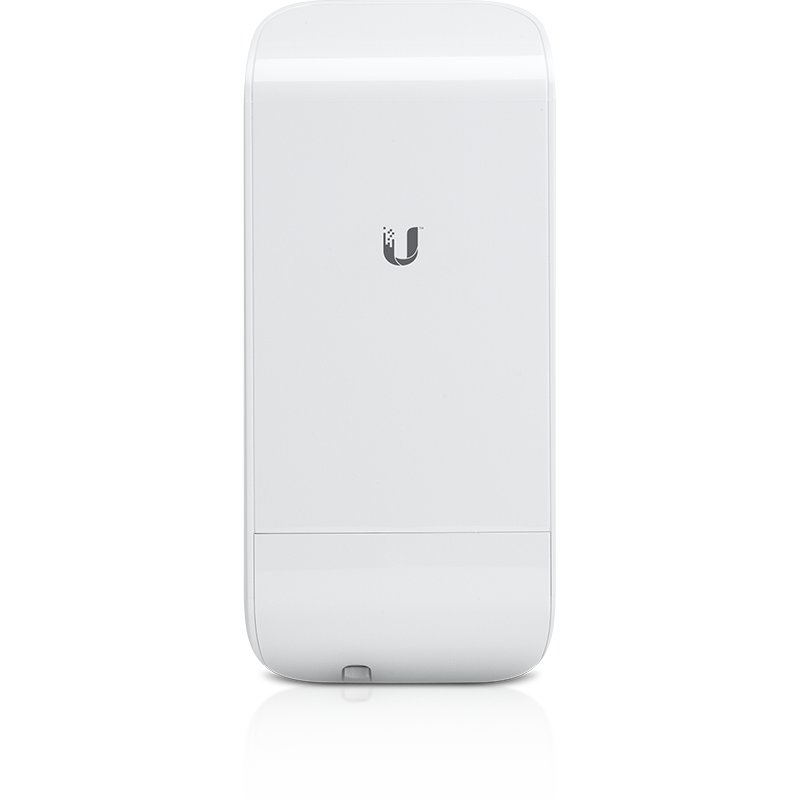

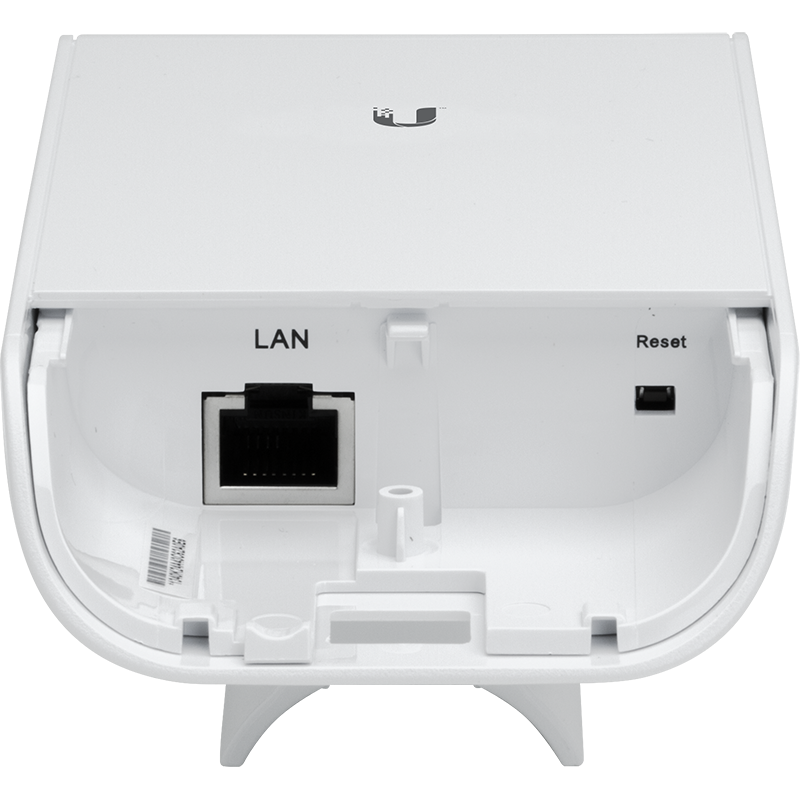

airMAX NanoStation M2 Loco
airMAX NanoStation M2 Loco
SKU:LocoM2
Regular price
$84.00
Regular price
$104.00
Sale price
$84.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
184 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Low-cost and efficient broadband 2.4 GHz CPE.
- 2.4 GHz frequency band.
- Cost-effective, high-performance.
- Plug-and-play integration with airMAX antennas.
Specification
| LocoM2 | |
|---|---|
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Weight | 180 g (6.35 oz) |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 24Kc, 400 MHz |
| Memory | 32 MB SDRAM, 8 MB Flash |
| Power Supply (PoE) 24V, 0.5A | 24V, 0.5A |
| Max. Power Consumption 5.5W | 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | 2412-2462 MHz |
| Gain | 8.5 dBi |
| Frequency | 2.4 GHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 60° (H-pol) / 60° (V-pol) / 60° (Elevation) |
| Polarization | Dual Linear |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE |
