UISP airMAX PowerBeam 5AC Bridge

Ubiquiti PBE-5AC-Gen2 UISP airMAX PowerBeam 5AC Bridge

SKU:PBE-5AC-Gen2

$240.00

~~$246.00~~ $240.00

2% Off | Save $6.00 Sold out

Taxes included. Shipping calculated at checkout.

Pack Single Unit 5-Pack

97 in stock

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector.

Mechanical

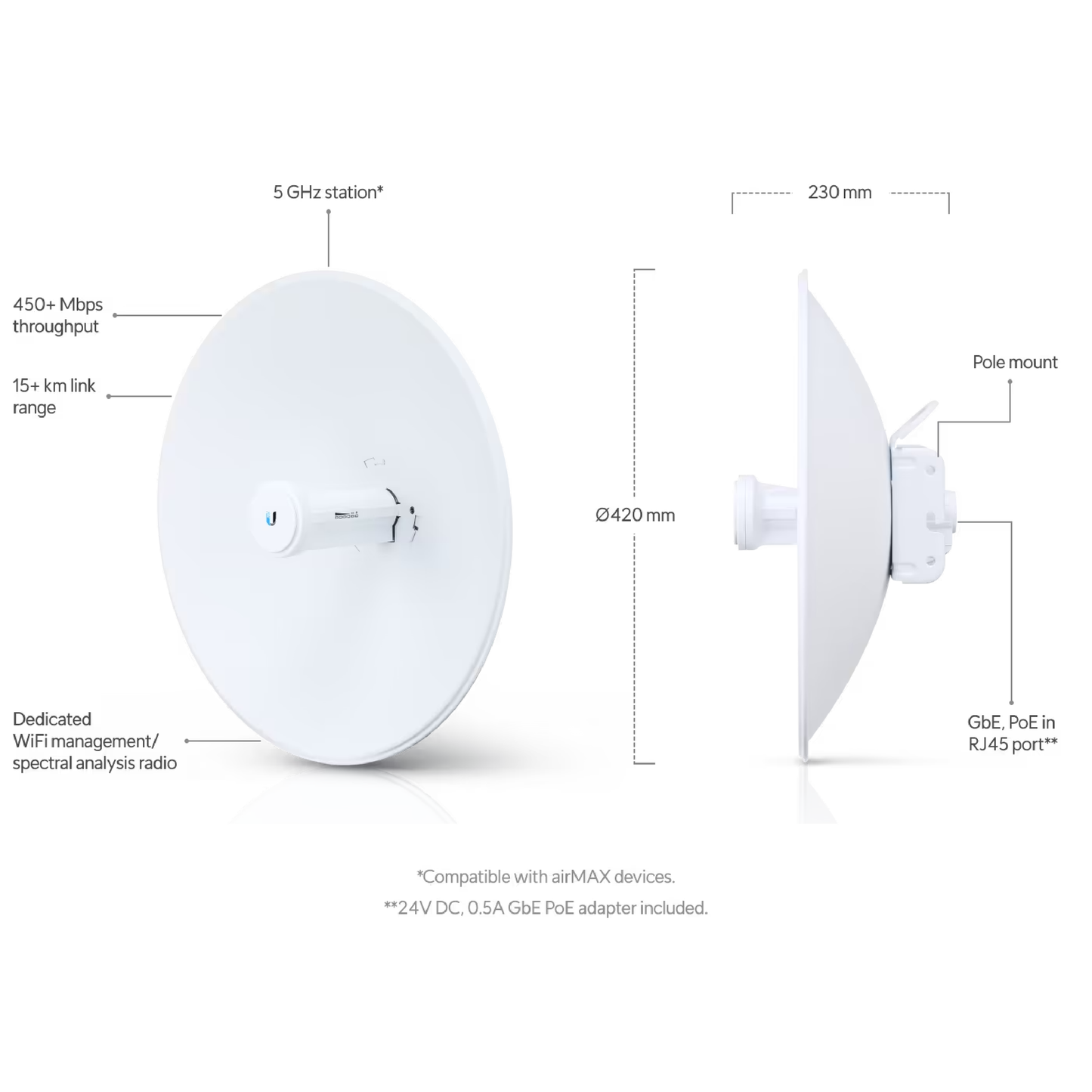

Dimensions	420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight	2.22 kg (4.89 lb)
Enclosure materials	UV-stabilized plastic, powder-coated SPCC
Wind loading	380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability	200 km/h (125 mph)
Mounting	Pole mount kit (Included)
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. power consumption	8.5W
Power supply	24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range	20—26V DC
ESD/EMP protection	Air/contact: ± 24 kV
LEDs	(1) Power, (1) LAN, (4) WLAN
RoHS compliance	Yes
Salt fog test	IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
Vibration test	IEC 68-2-6
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-driven rain test	ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
Operating temperature	-40 to 70 C (-40 to 158 F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
System
Gain	25 dBi
Channel sizes	PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Operating Frequency (MHz)
Worldwide	5150-5875 MHz
USA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz
Management Radio (MHz)
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz

Visit Ubiquiti for more information.
