Ubiquiti

UISP airMAX PowerBeam M5 300 Bridge

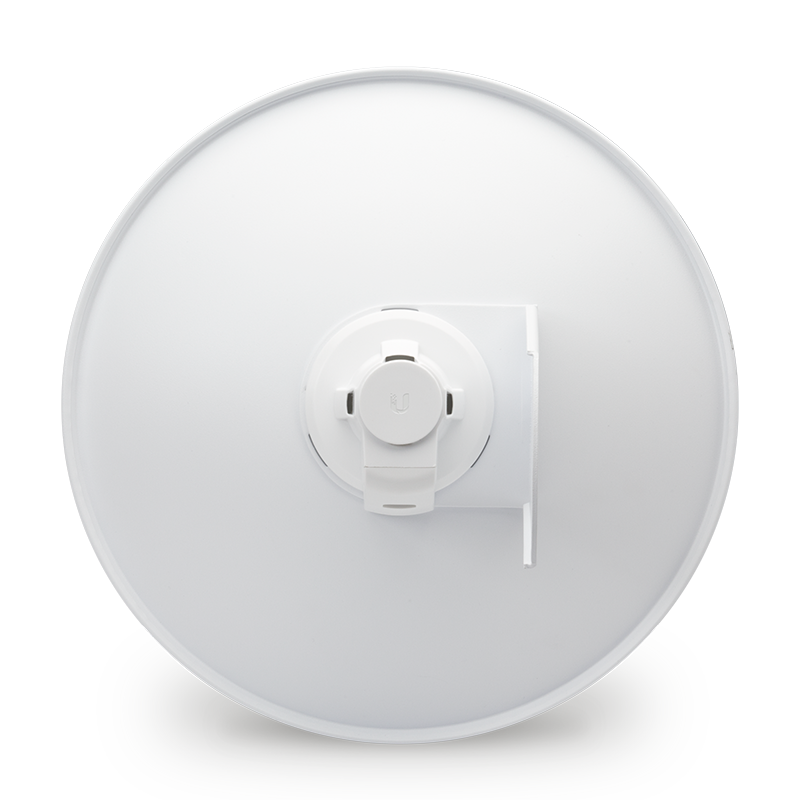

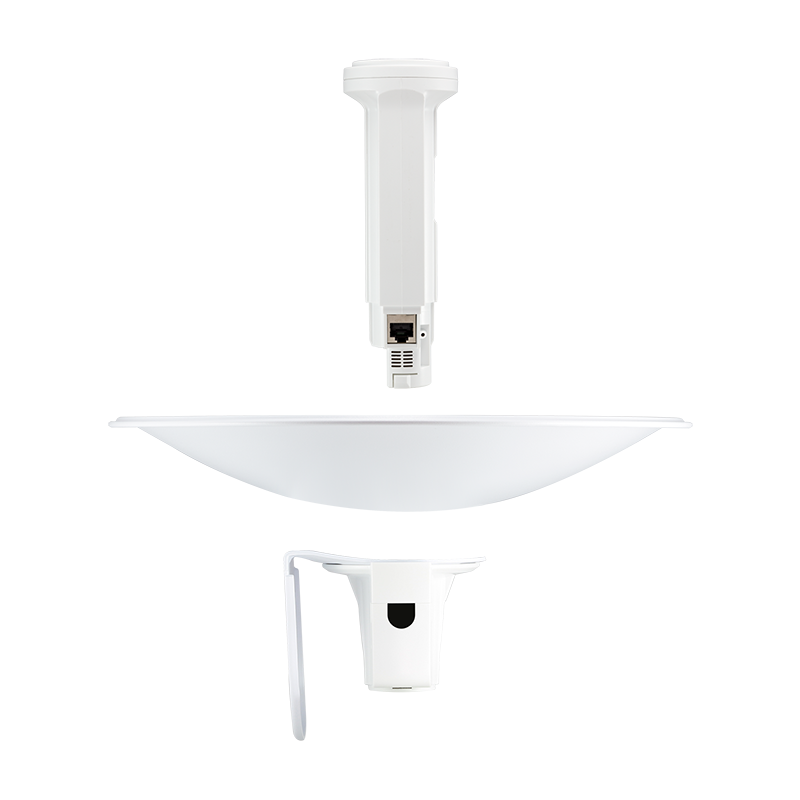

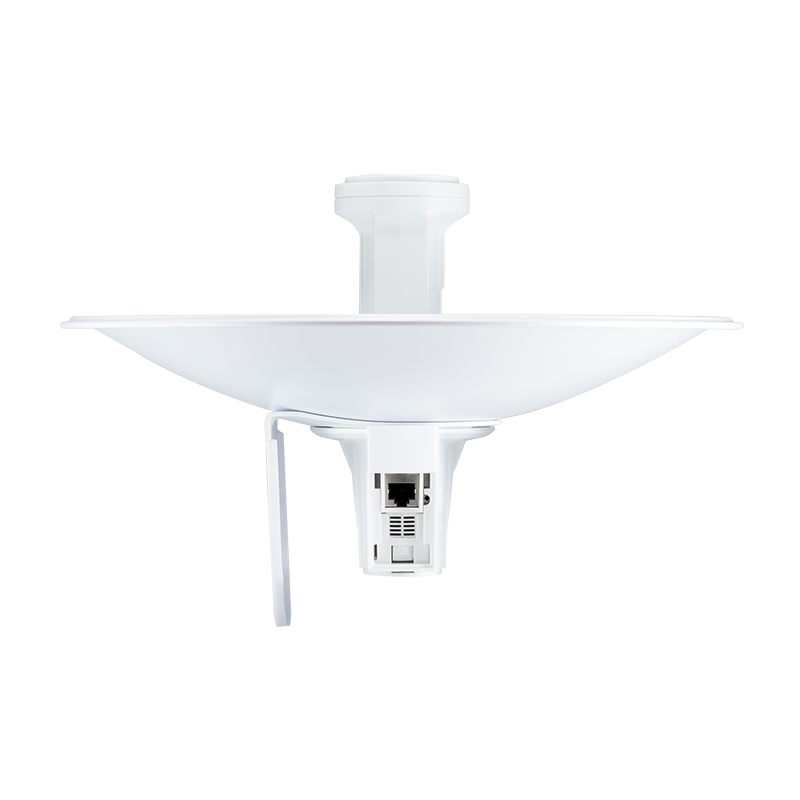

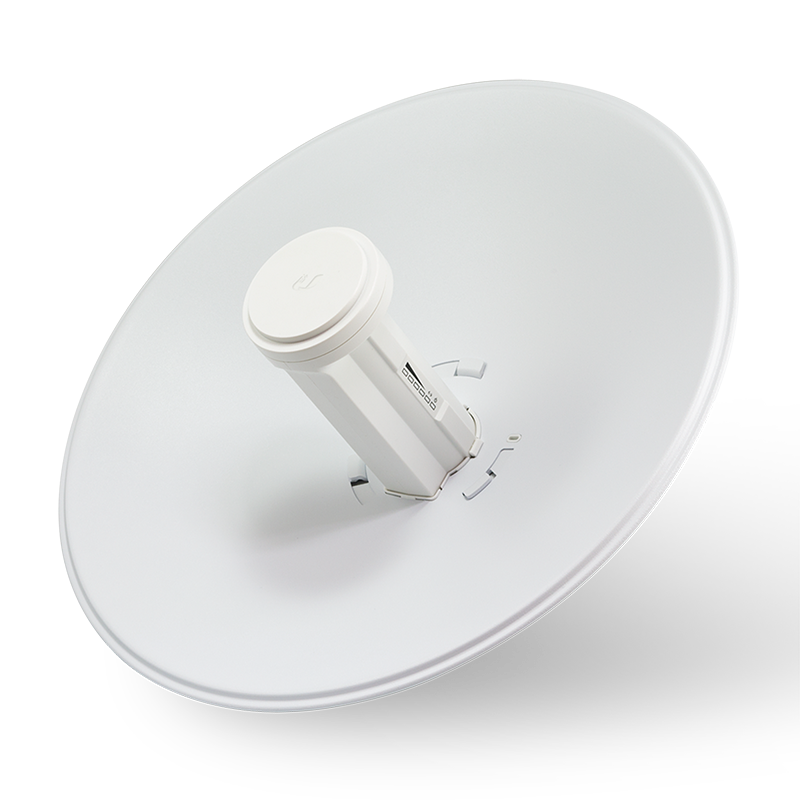

Ubiquiti PBE-M5-300 UISP airMAX PowerBeam M5 300 Bridge

PBE-M5-300

$128.00
$138.00 $128.00
7% Off | Save $10.00 Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 8 left

Authorised Reseller | Australian Stock | Australian Warranty

View full details

5 GHz, 22 dBi bridge with 150+ Mbps throughput.

  • 5 GHz, 3+ km link range.
  • 150+ Mbps throughput.
  • Improved mounting.
Mechanical
Dimensions 325 x 325 x 256 mm (12.8 x 12.8 x 10.1")
Weight 1.2 kg (2.65 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wind survivability 200 km/h (125 mph)
Wind loading 200.2 N @ 200 km/h (45 lbf @ 125 mph)
Hardware
Networking interface (1) 10/100 MbE port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A PoE adapter (Included)
Max. power consumption 6W
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN
Signal strength LEDs Software-adjustable to correspond to custom RSSI levels
RoHS compliance Yes
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 70° C(-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 22 dBi
Channel sizes 5/8/10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150 - 5875 MHz
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

Visit Ubiquiti for more information.
