Ubiquiti

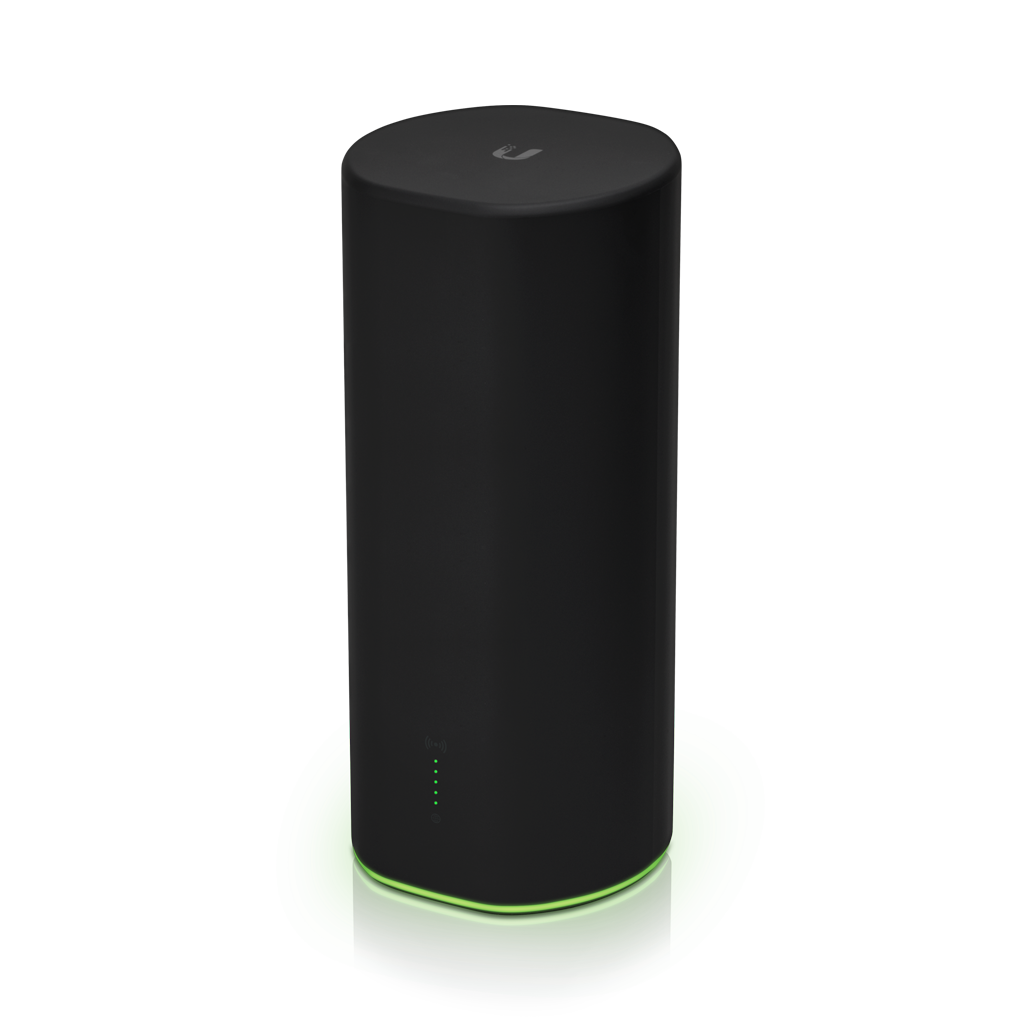

UniFi AmpliFi Alien Router and MeshPoint

Ubiquiti AFi-ALN UniFi AmpliFi Alien Router and MeshPoint

SKU:AFi-ALN

Regular price $1,358.00
Regular price $1,638.00 Sale price $1,358.00
17% Off | Save $280.00 Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

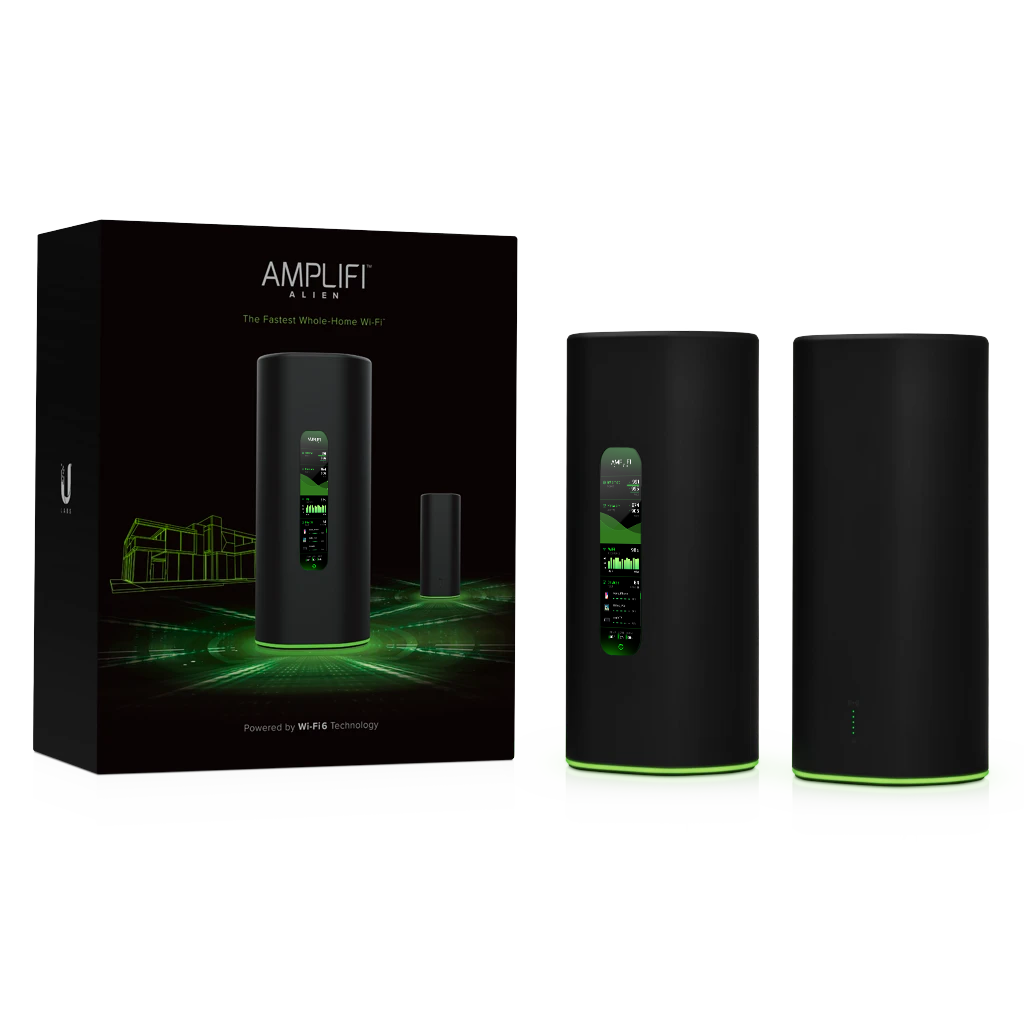

Experience out-of-this-world WiFi range and performance with 12-stream WiFi router. Includes a MeshPoint for seamless WiFi coverage expansion.

  • WiFi 6.
  • 12 spatial streams.
  • 560 m² (6,000 ft²) coverage with Router and MeshPoint.
  • 120+ connected devices.

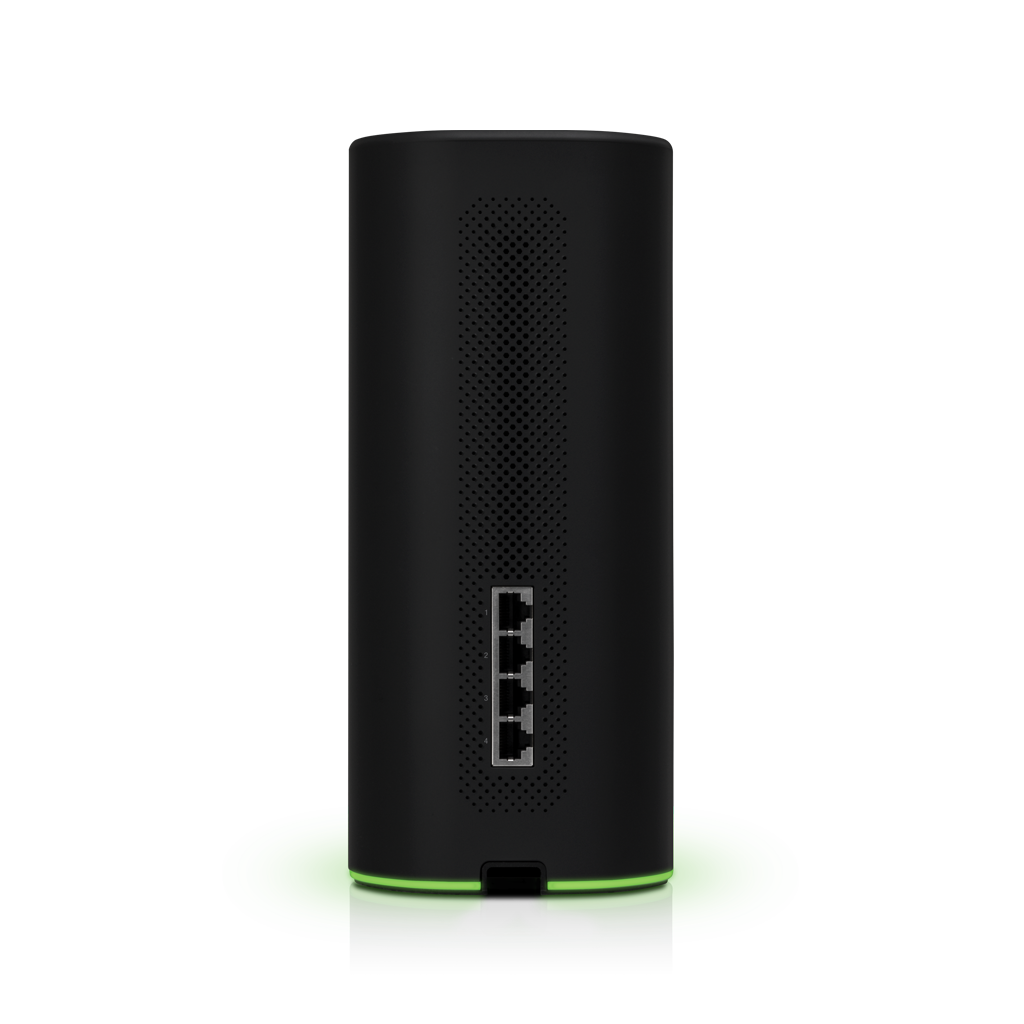

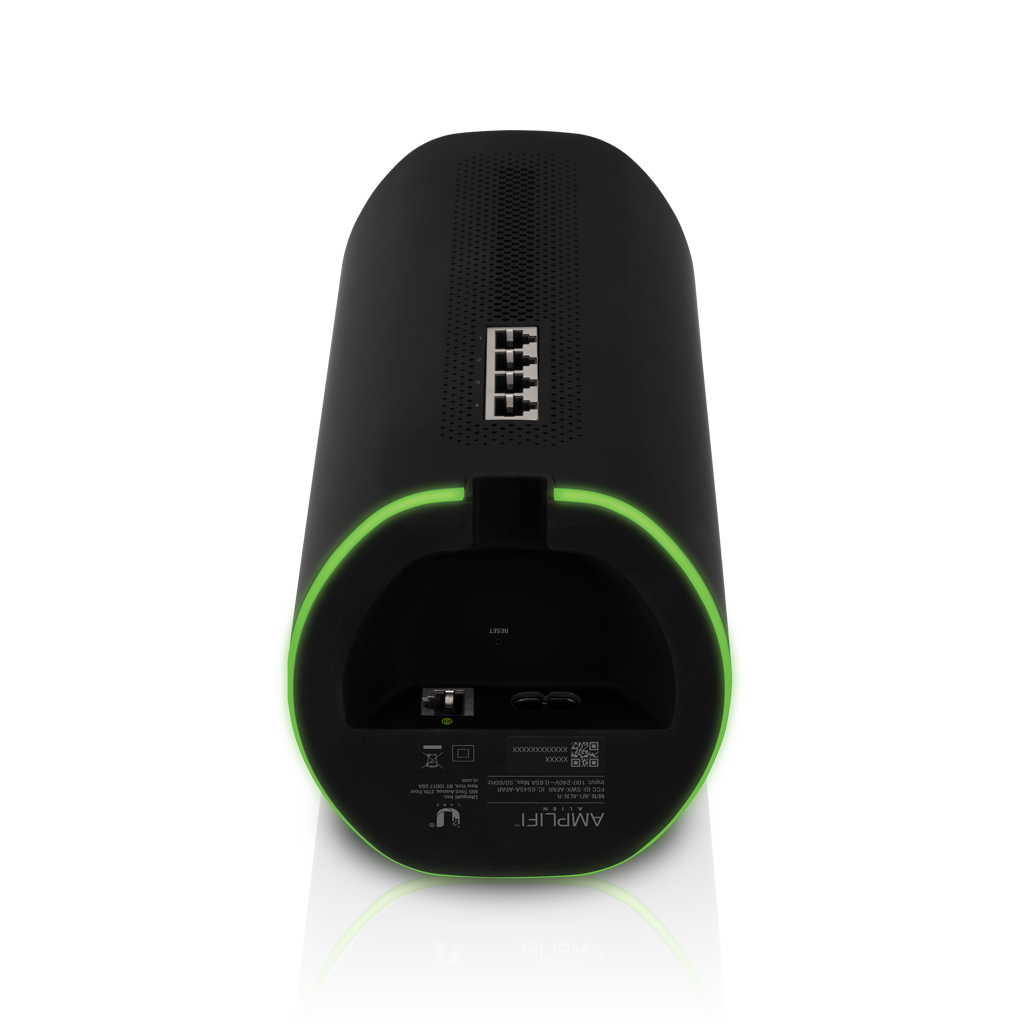

  • Router with (4) GbE LAN and (1) GbE WAN port.

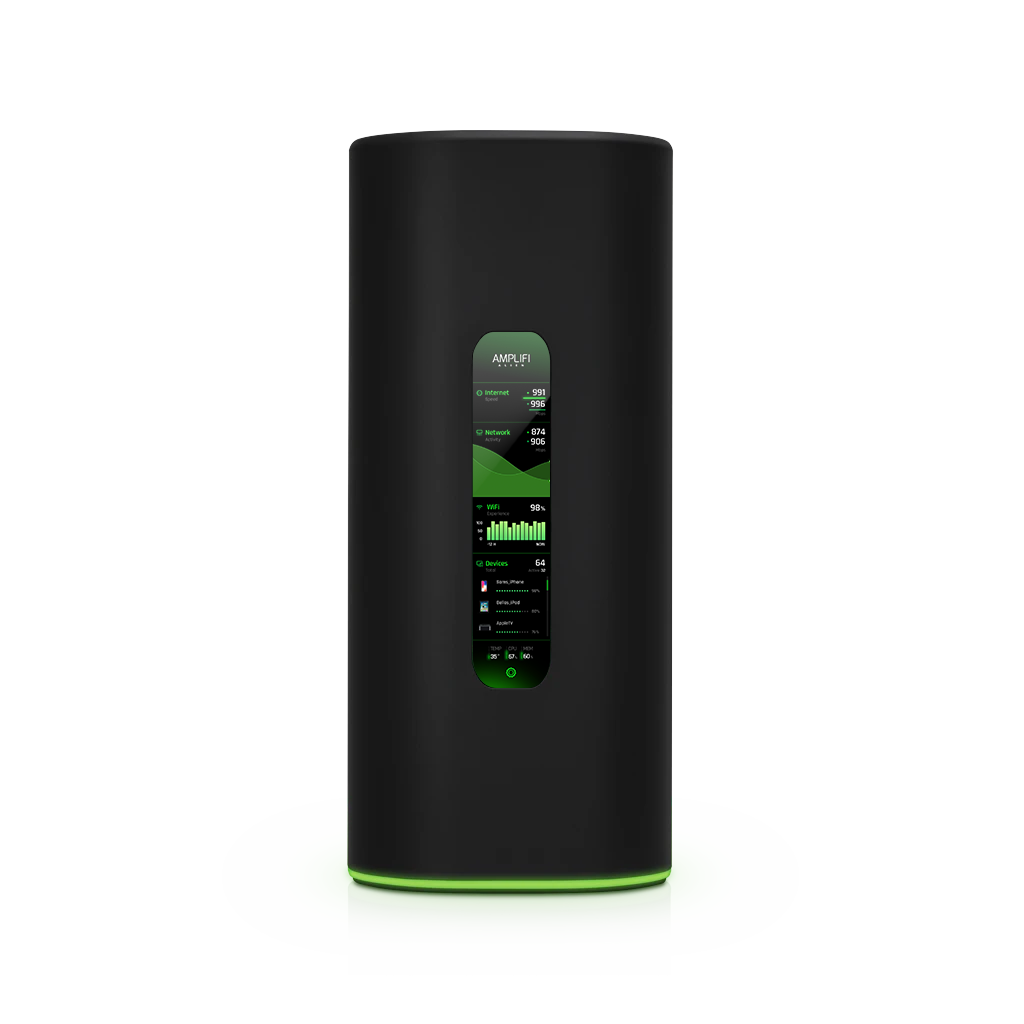

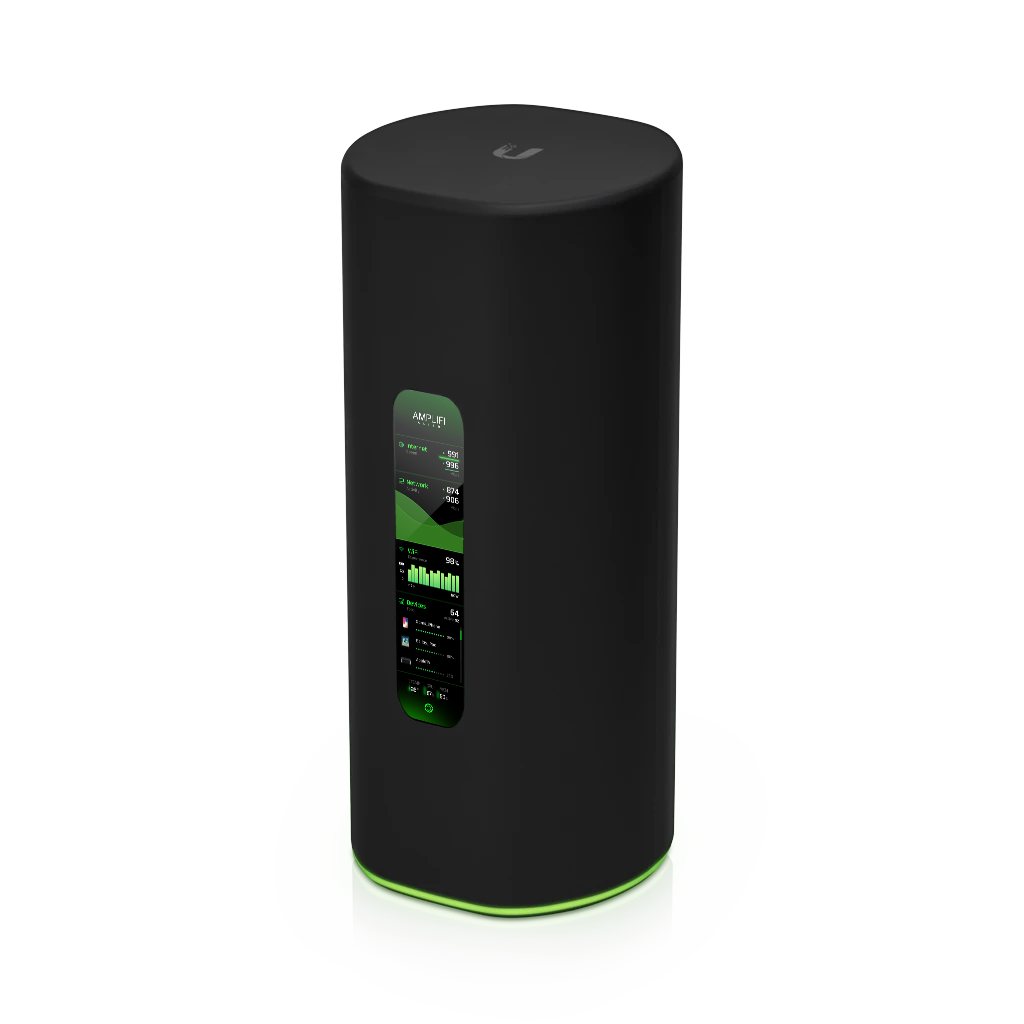

  • Router with 4.7" LCM touchscreen.

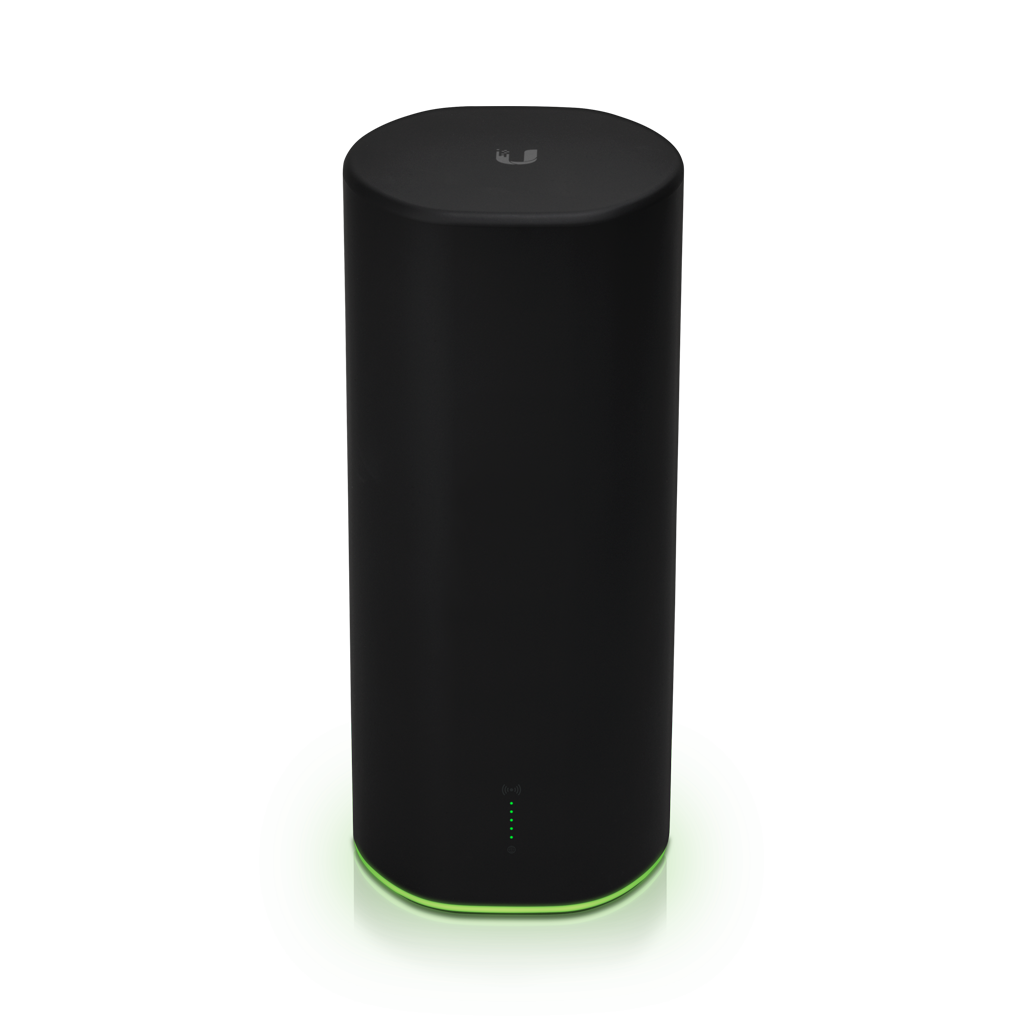

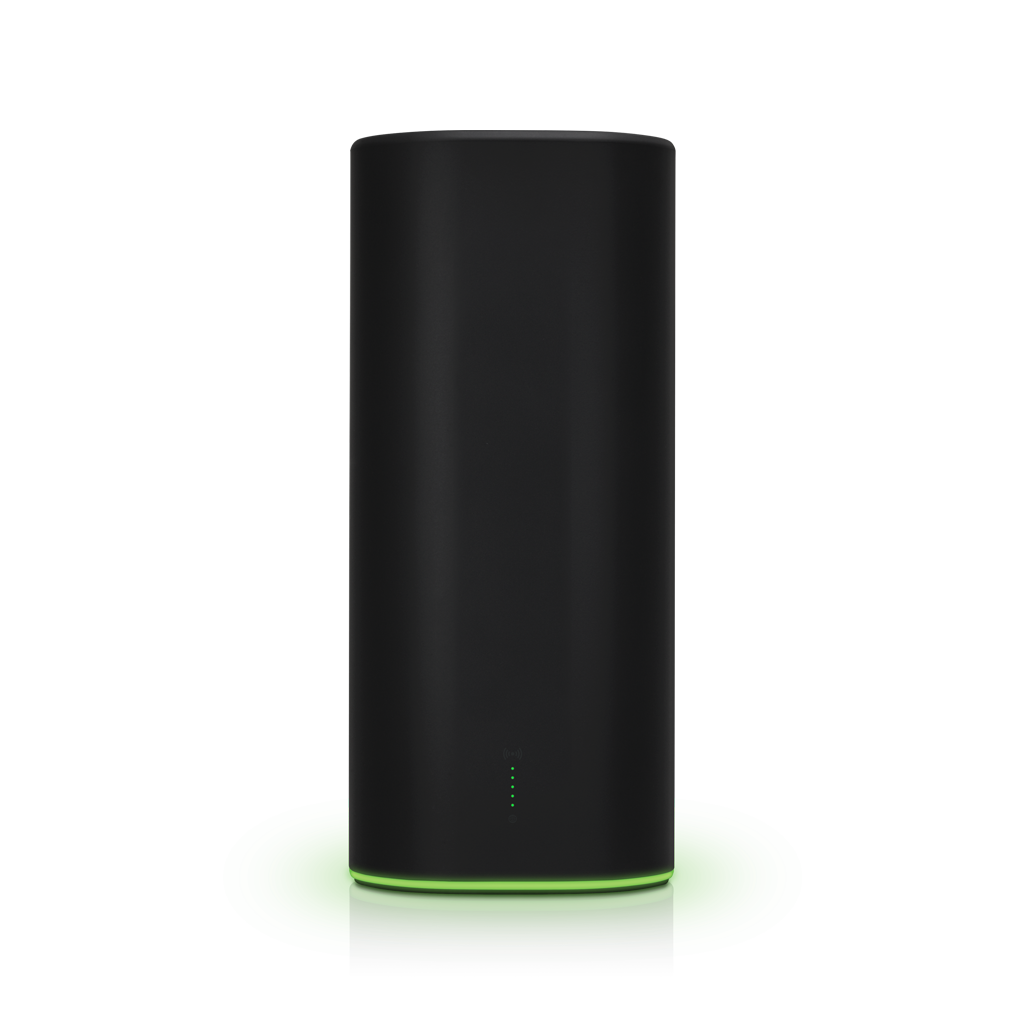

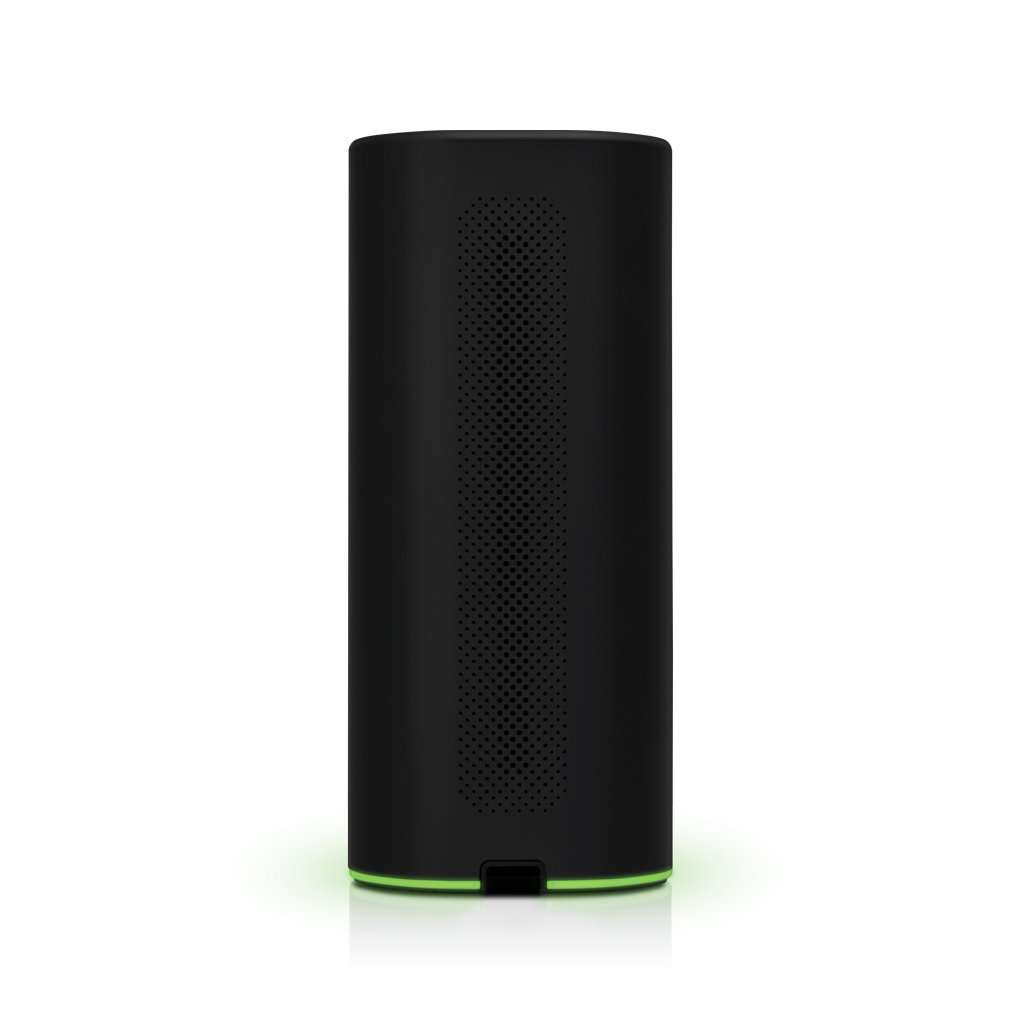

  • MeshPoint with (1) GbE LAN port.
Mechanical
Dimensions Router: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
MeshPoint: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
Weight Router: 1.2 kg (2.7 lb)
MeshPoint: 1.1 kg (2.4 lb)
Enclosure material Polycarbonate
Hardware
Processor Quad-Core ARM Cortex A53s at 2.2 GHz
Memory Router/MeshPoint: 1GB DDR3L
Management interface WiFi
Ethernet
Networking interface Router:
(1) GbE RJ45 WAN
(4) GbE RJ45 LAN

MeshPoint:
(1) GbE RJ45 LAN
Power method Router/MeshPoint: Universal AC input, 100–240V AC, 1A Max., 50/60 Hz
Max. power consumption Router: 35W
MeshPoint: 34W
ESD/EMP protection Air/contact: ± 24kV
Max. TX power
US:
2.4 GHz
5 GHz

International:
2.4 GHz
5 GHz


23 dBm
19 dBm (low band)/ 20 dBm (high band)


23 dBm*
20 dBm**
*Depends from the country selected, up to 30 dBm per chain.
**Depends from the country selected, up to 24 dBm per chain.
MIMO
US:
2.4 GHz
5 GHz

International:
2.4 GHz
5 GHz


4 x 4
4 x 4 (low band) / 8 x 8 (high band)


4 x 4
8 x 8
Speeds
US:
2.4 GHz
5 GHz

International:
2.4 GHz
5 GHz


1150 Mbps
1700 Mbps(low band) / 4800 Mbps (high band)


1148 Mbps
4800 Mbps
Antenna gain
2.4 GHz
5 GHz

3 dBi
6 dBi
Antenna Router/MeshPoint: Internal dual-band metal stamp with 12 polarity
Display Router: 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color
MeshPoint: No display
LEDs Router/MeshPoint: Green ring

MeshPoint: Green status indicator
Flashing: initial conguration
Lights up in sequence bottom to top: Bootup in progress
Lights up in sequence from the middle outwards: WiFi not ready or connected
Steady: Device is adopted (lit based on the signal strength receiving from the router)
Flash quickly: Locate
Lights up one by one: Firmware upgrading

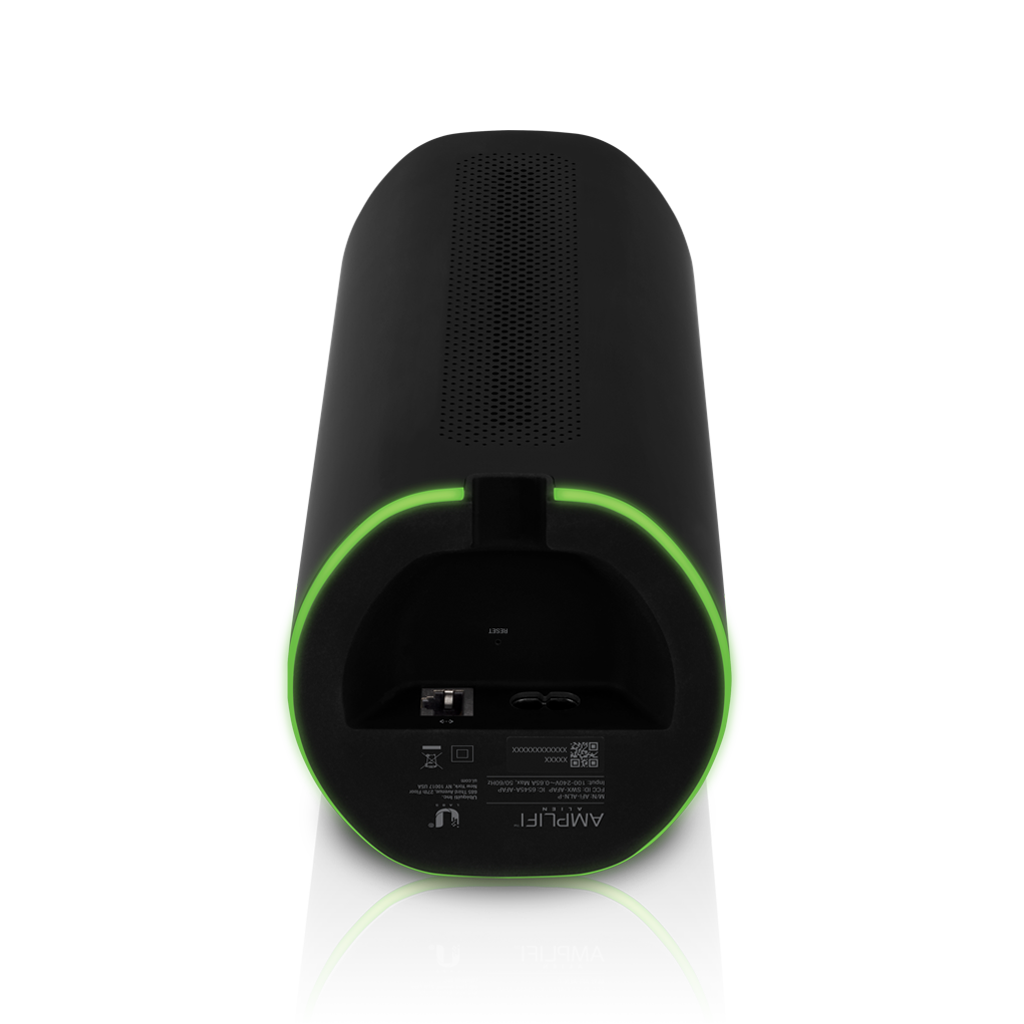

Button Router/MeshPoint: Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 5 to 95% honcondensing
Certifications CE, FCC, IC
Software
WiFi standards Up to WiFi 6
WiFi functions MU-MIMO, OFDMA, TX-beamforming
Wireless security WPA2
VLAN Yes
Advanced QoS Yes
Guest traffic isolation Yes
Power save Yes
Supported data rates 802.11a: 54 Mbps
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 600 Mbps + 600 Mbps
802.11ac: 1733 Mbps + 800 Mbps
802.11ax: 4800 Mpbs Router-Mesh connection (Backbone)
802.11ax: 4800 Mbps + 1148 Mbps (Available to clients)
Operating frequency*
2.4 GHz
5 GHz

2412 - 2472 MHz
5150 - 5875 MHz
* Depends on regulatory region.

Visit Ubiquiti for more information.
