UniFi Cloud Gateway Ultra
Ubiquiti UCG-Ultra UniFi Cloud Gateway Ultra
SKU:UCG-Ultra
Regular price
$178.00
Regular price
$230.00
Sale price
$178.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
262 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

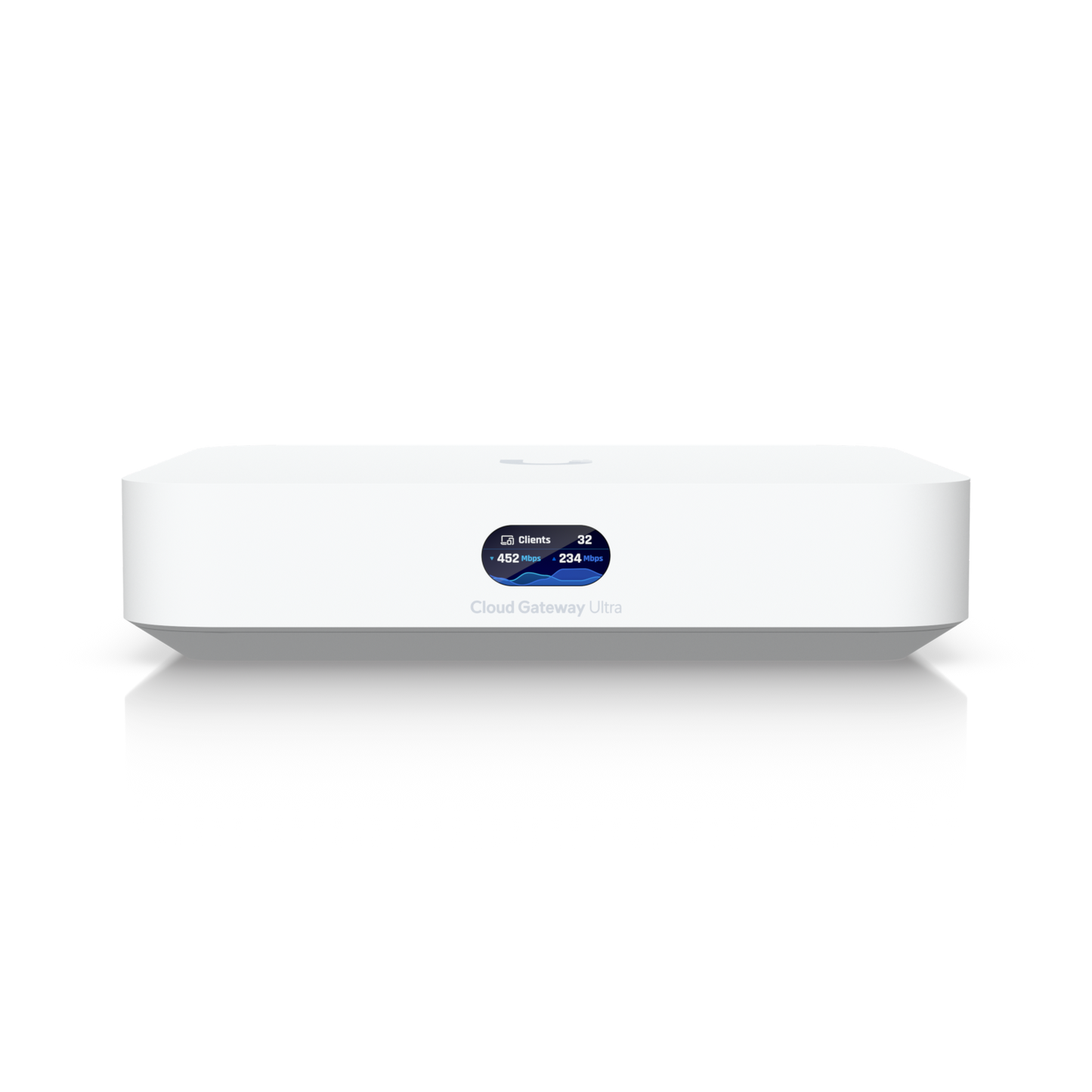

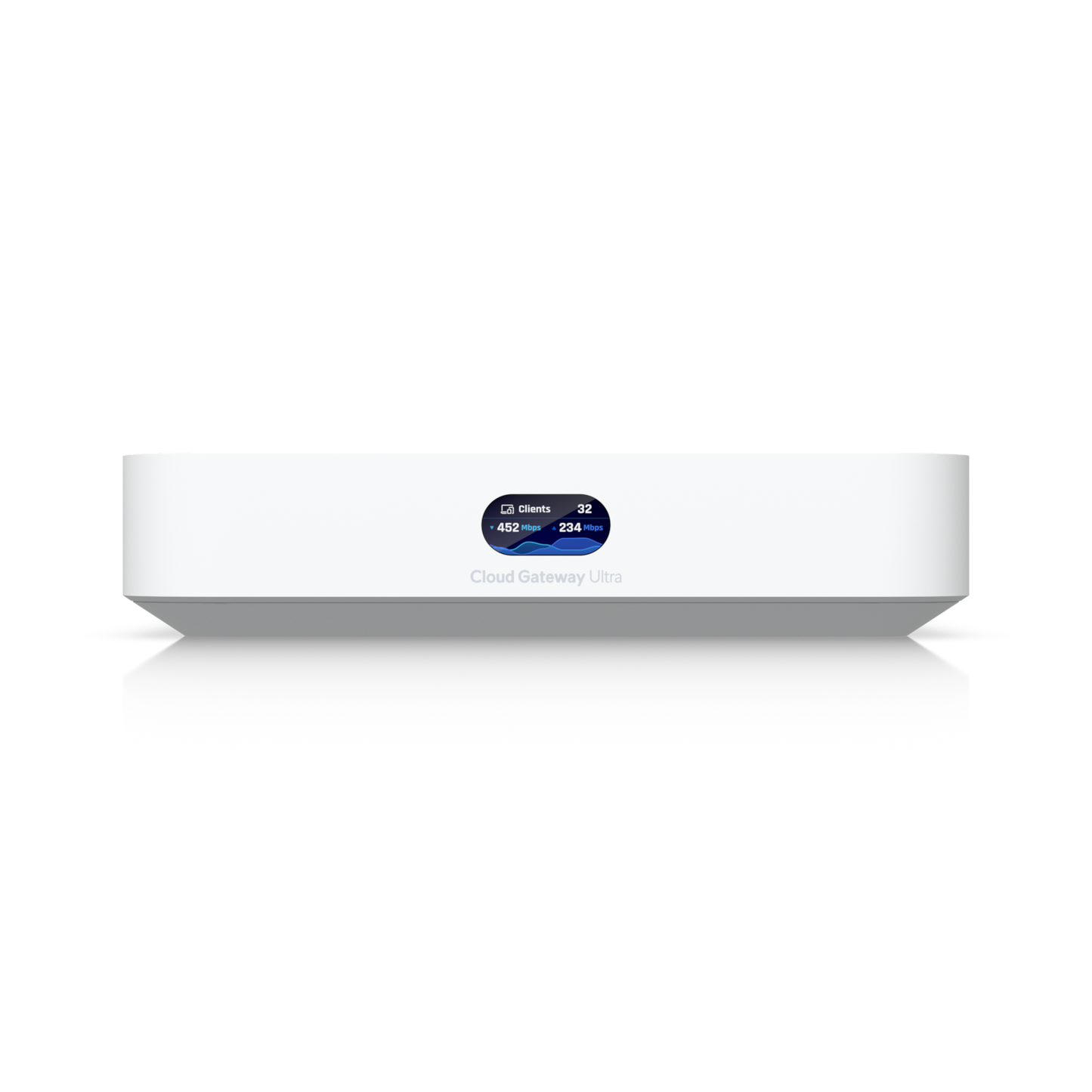

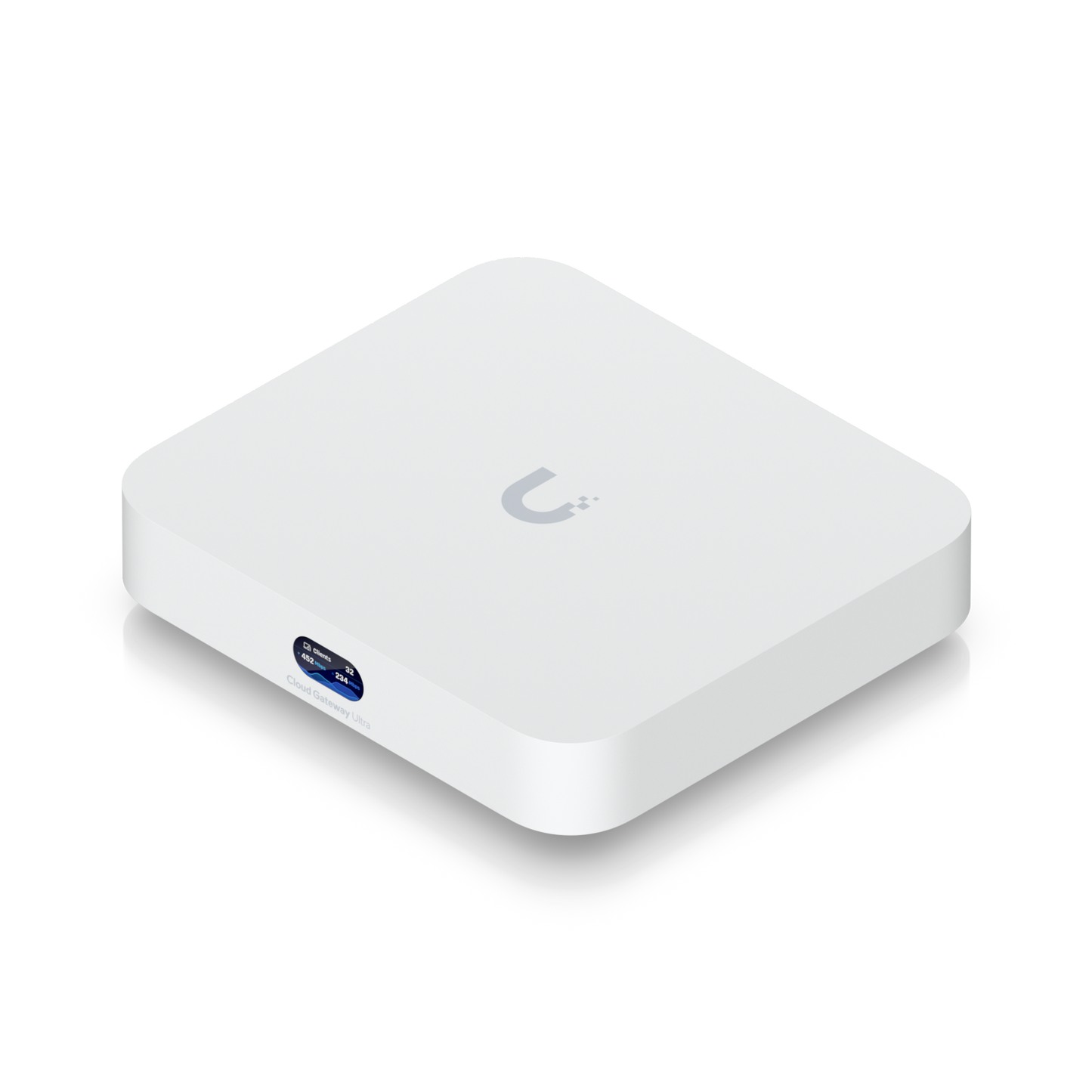

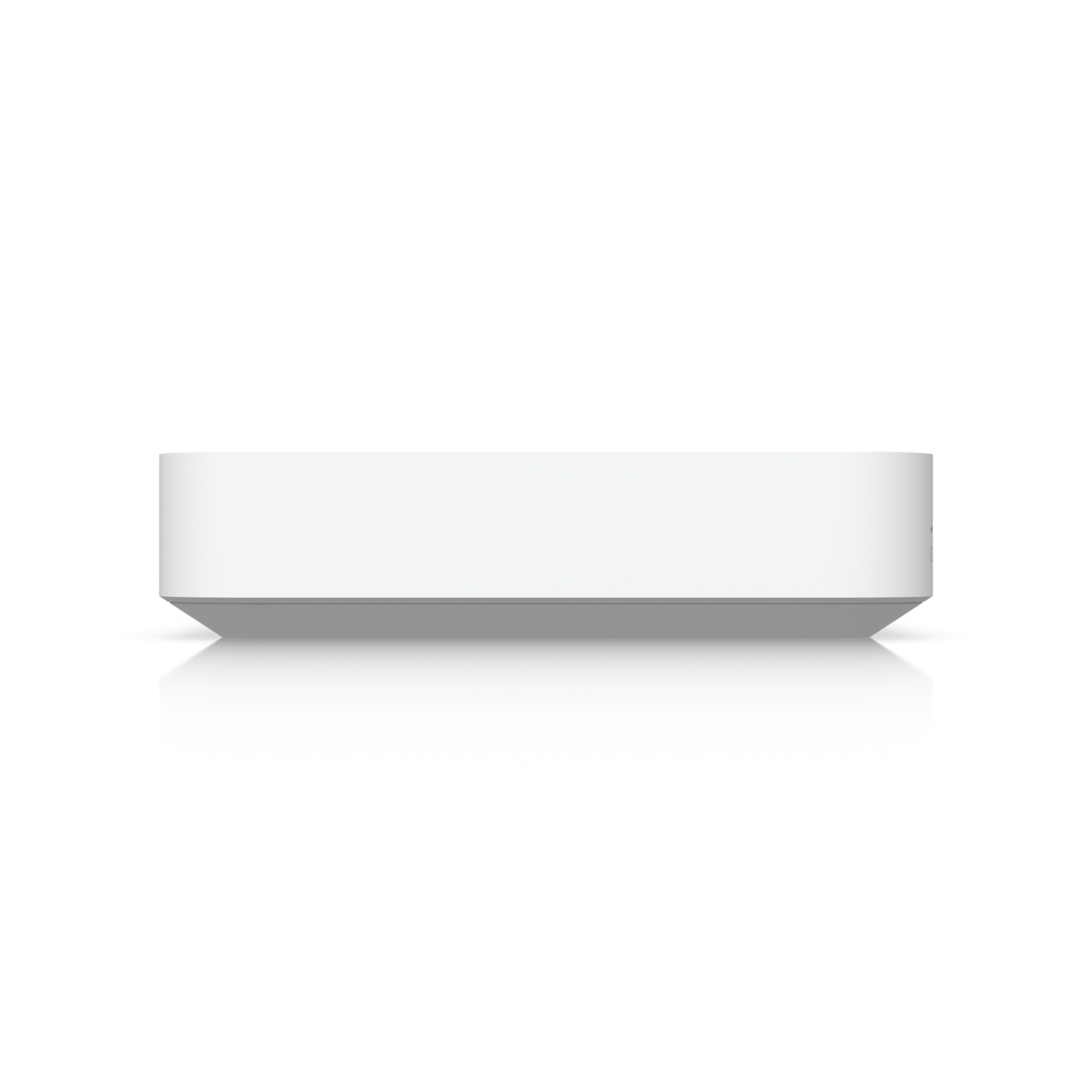

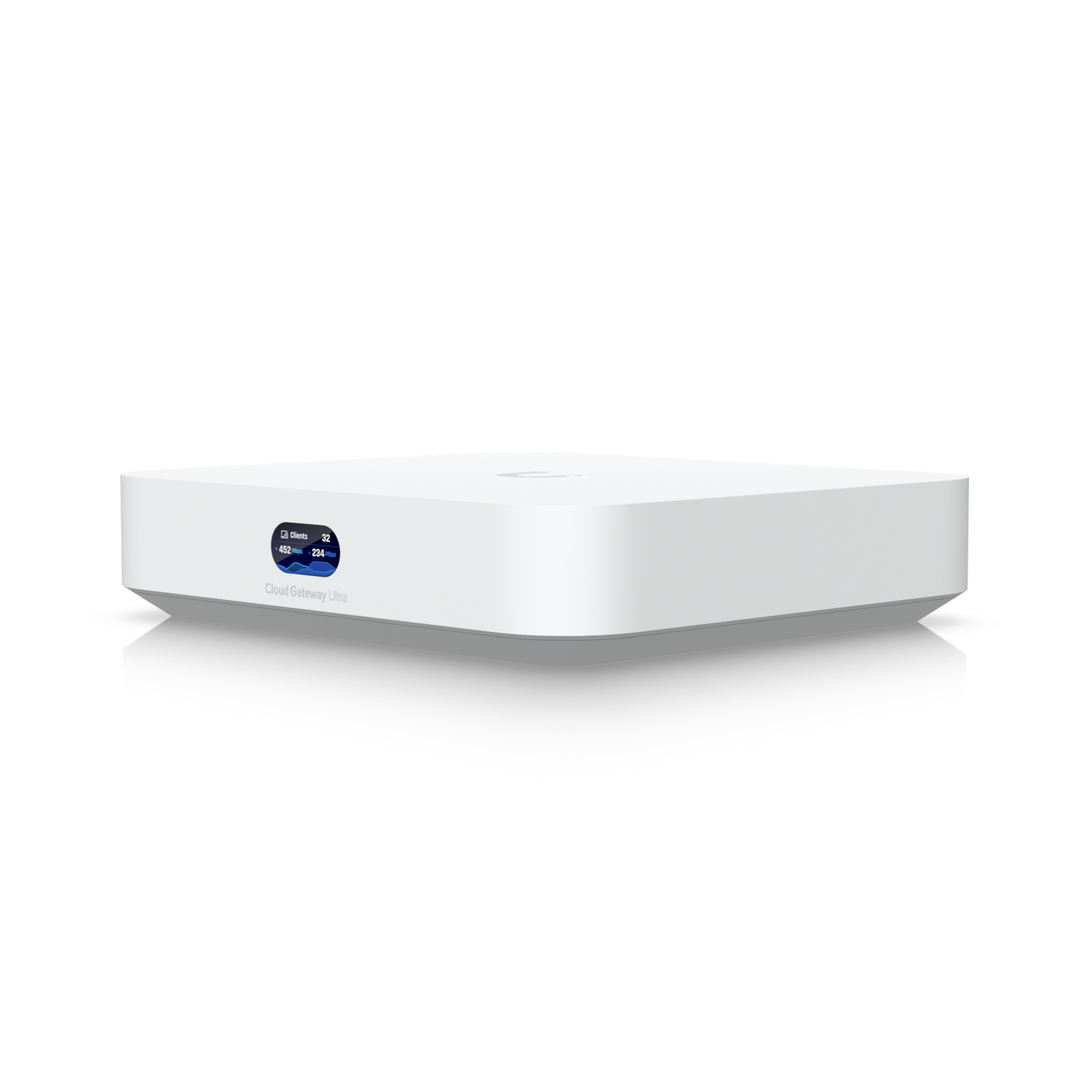

Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.
- Runs UniFi Network for full-stack network management.
- Manages 30+ UniFi Network devices and 300+ clients.
- 1 Gbps routing with IDS/IPS.
- Multi-WAN load balancing.
- 0.96" LCM status display.
- USB-C powered (adapter included).
| Mechanical | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| On-board storage | 16 GB eMMC |
| Management interface |
Ethernet Bluetooth |
| Networking interface |

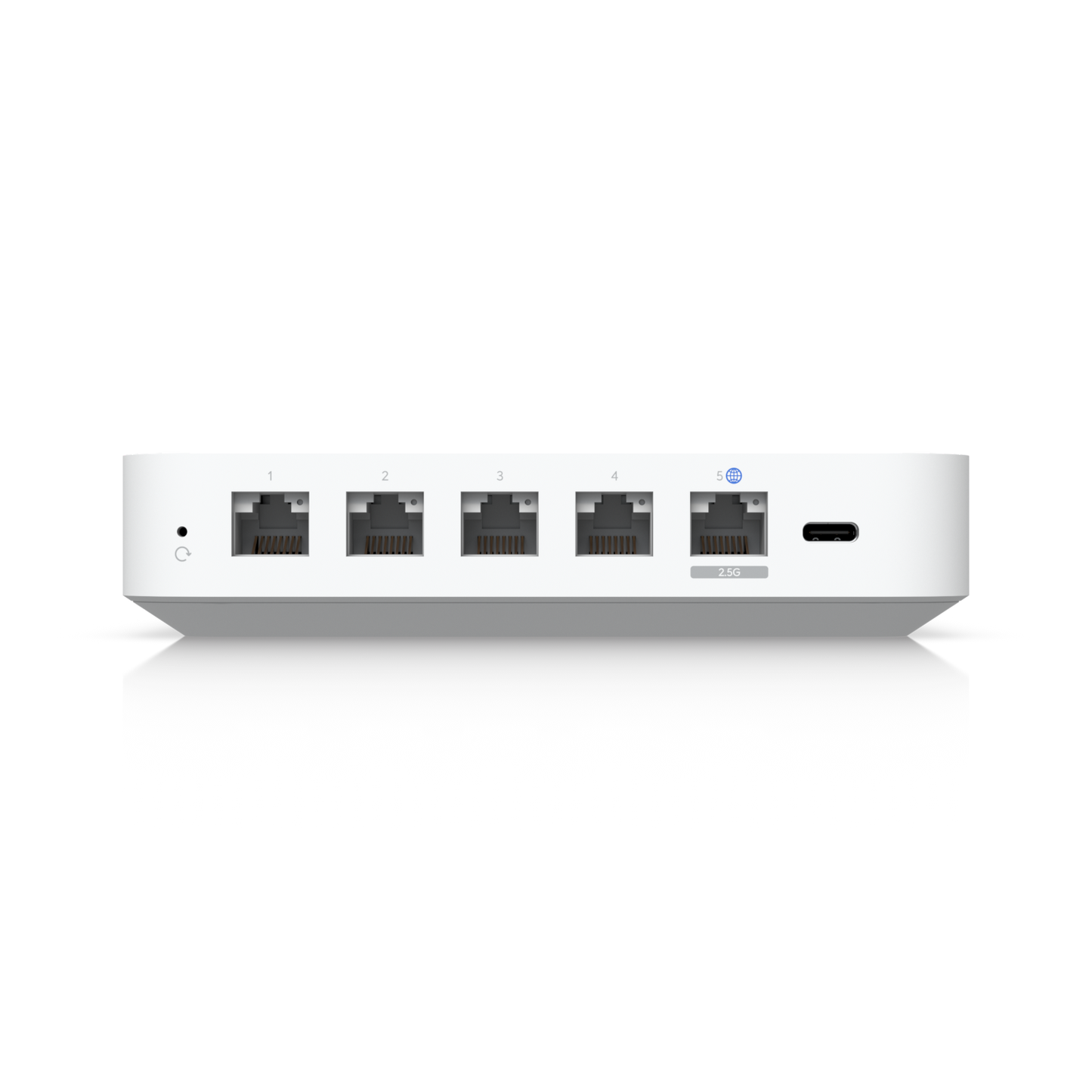

LAN: (4) GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
| IDS/IPS throughput |
1 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | USB type C (5V DC/3A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 6.2W |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance |
Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security |
Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking |
License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| Application Requirements | |
| Mobile app |
UniFi iOS: Version 10.12.0 and later UniFi Android: Version 10.11.2 and later |
Visit Ubiquiti for more information.
