Dream Machine Special Edition Cloud Gateway
Dream Machine Special Edition Cloud Gateway
SKU:UDM-SE
Regular price
$958.00
Regular price
$1,192.00
Sale price
$958.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
176 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

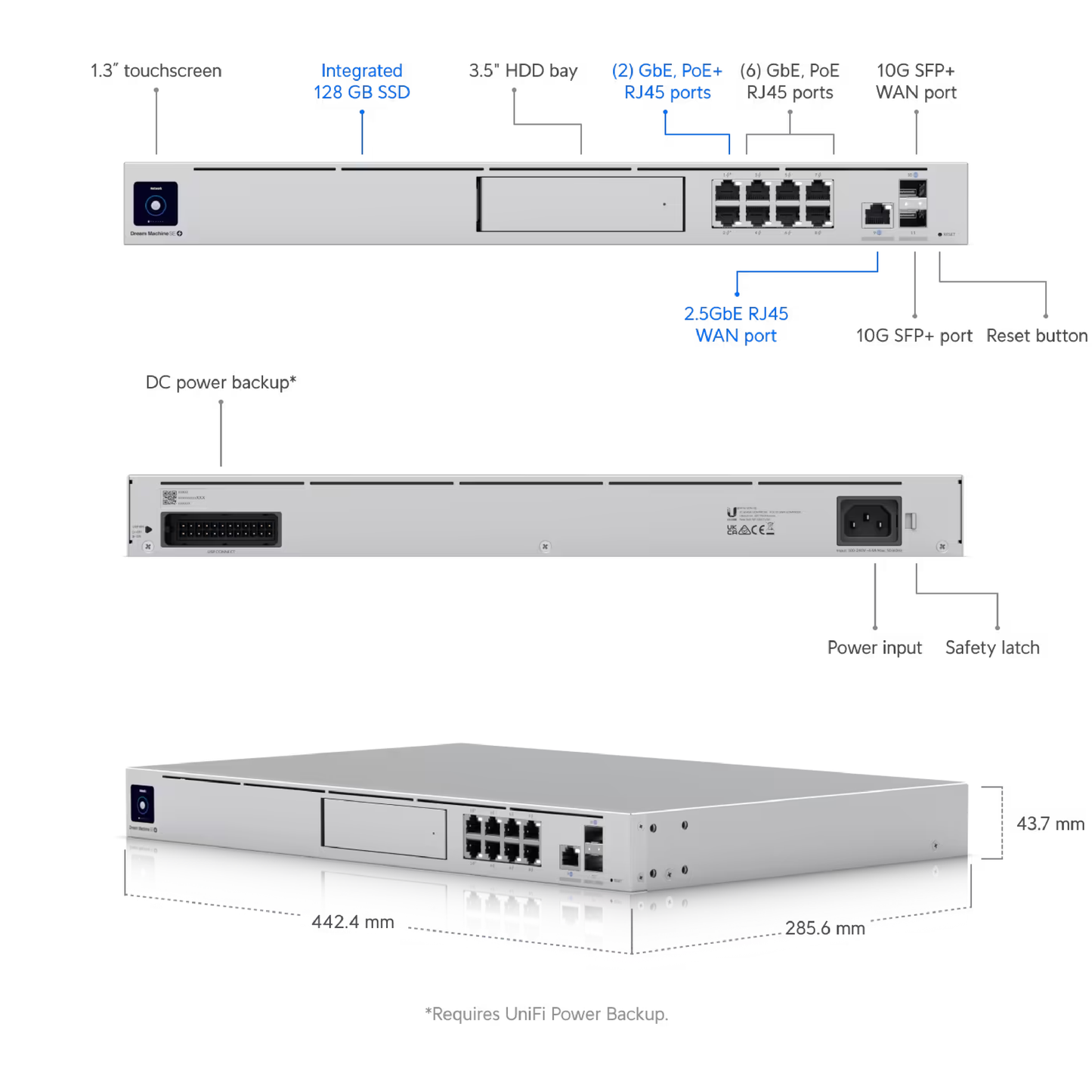

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
- Includes full UniFi application suite for device management.
- 3.5+ Gbps routing with IDS/IPS.
- (1) 10G SFP+ *, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE.
- (1) 10G SFP+ *, (1) 2.5 GbE RJ45 WAN ports.
- (1) 3.5" NVR HDD bay.
- Built-in 128 GB SSD for NVR detection recordings.
- UniFi Power Backup ready.
- 1.3" touchscreen.
Note: * Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
View Installation GuideCustomer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Specification
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 5 kg (10.9 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-core ARM Cortex-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage |
16 GB eMMC Integrated 128 GB SSD |
| Management interface |
Ethernet Bluetooth |
| Networking interface |
LAN: (8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port |
| PoE interface |
(6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-) |
| IDS/IPS throughput |
3.5 Gbps* *Measured with iPerf3 |
| Power method |
(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
| Power supply | AC/DC, internal, 240W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| PoE budget | 180W |
| Max. PoE wattage per port by PSE |
PoE: 15.4W PoE+: 30W |
| Voltage range PoE mode |
PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance |
Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security |
Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking |
License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | White: link/activity |
| SFP+ | White: link/activity |
| HDD |
White: disk activity Amber: disk error |
| RPS | Blue: ready |

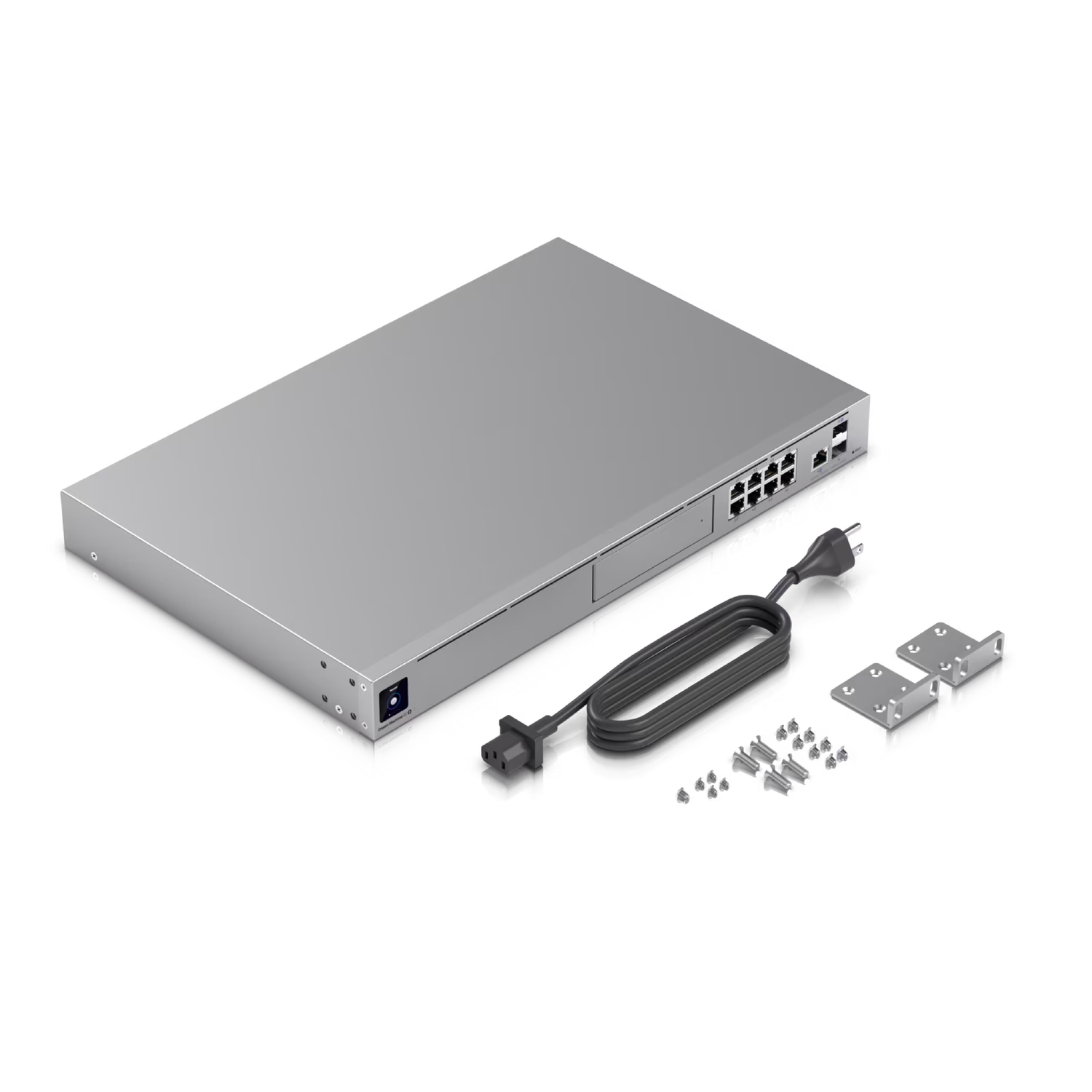

What's In The Box
