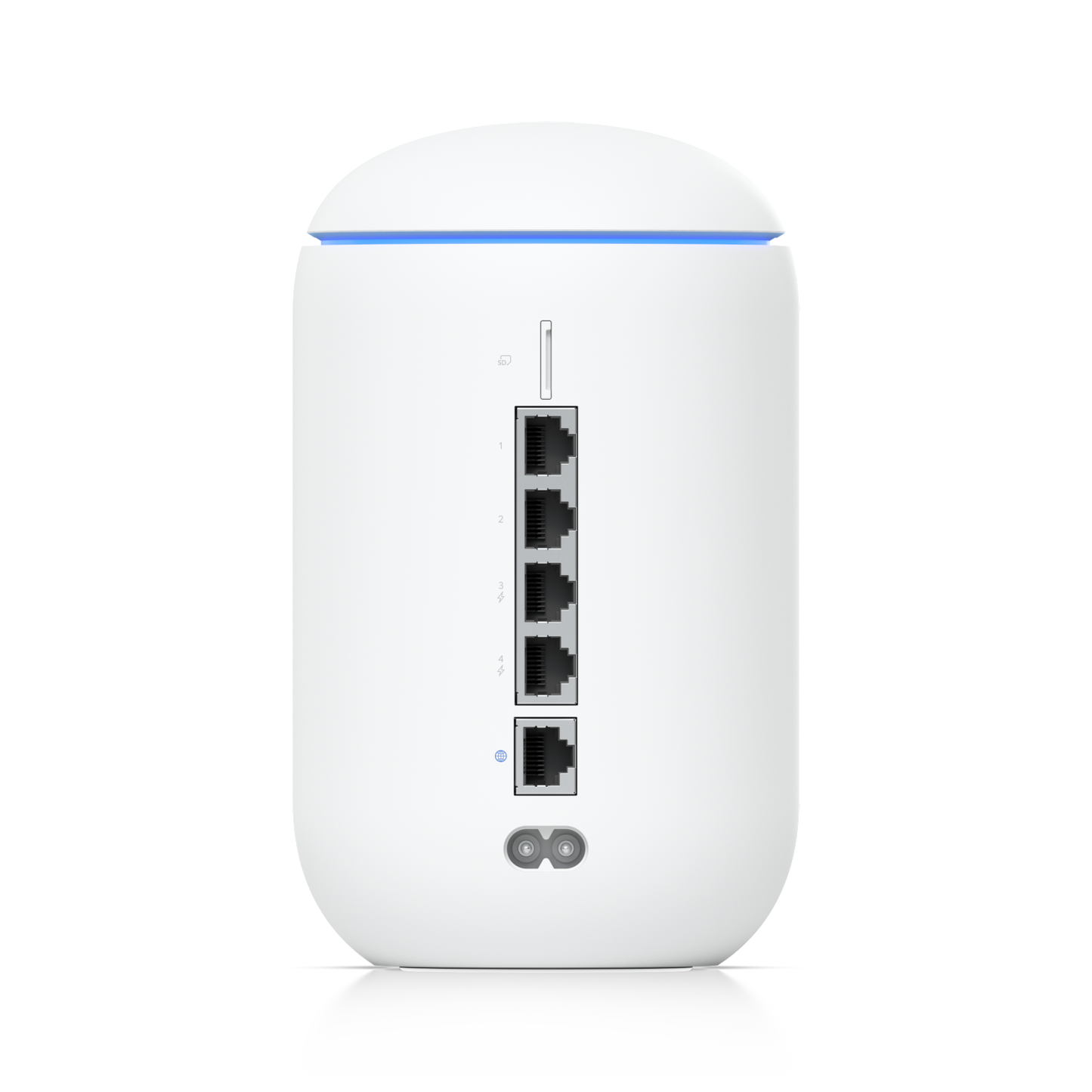

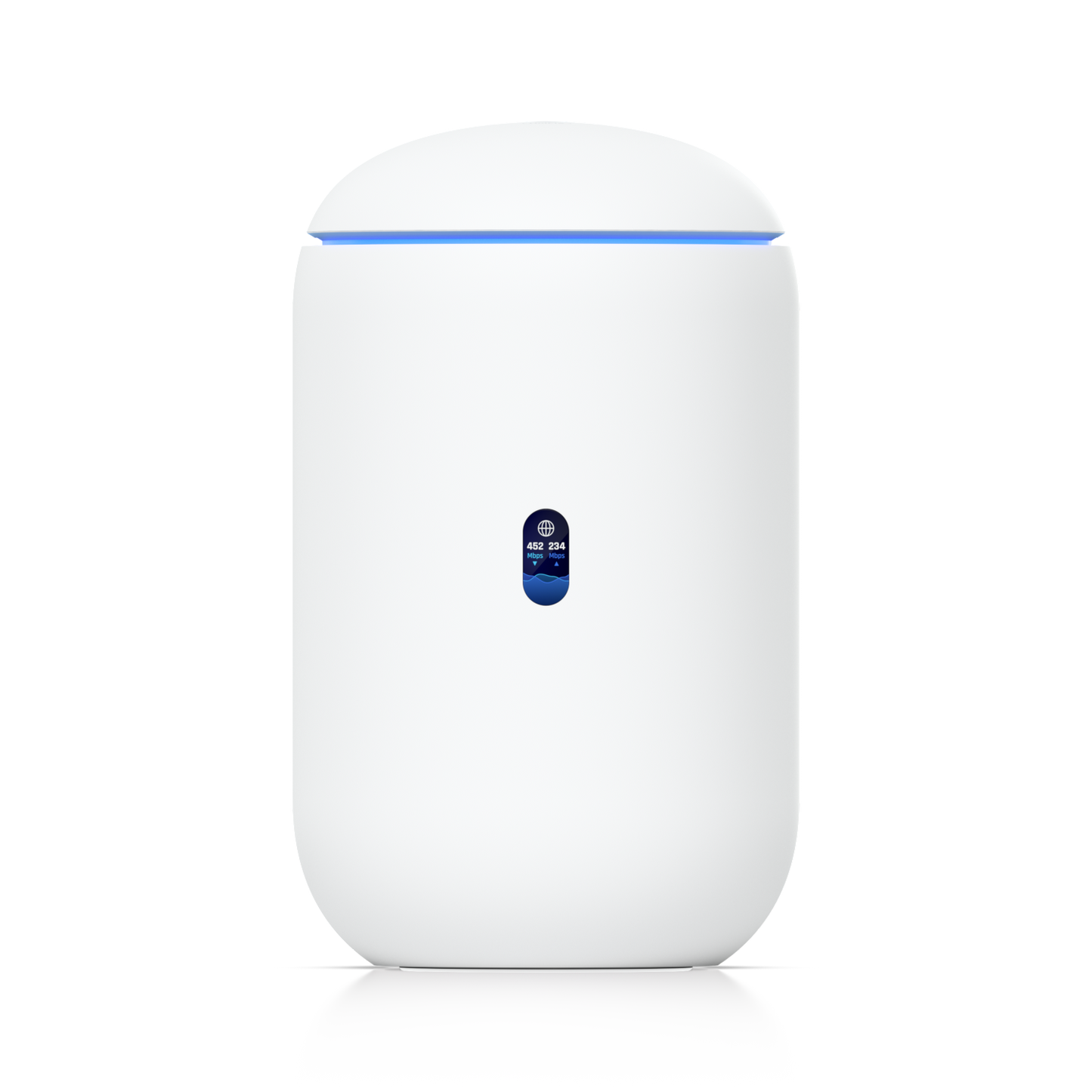

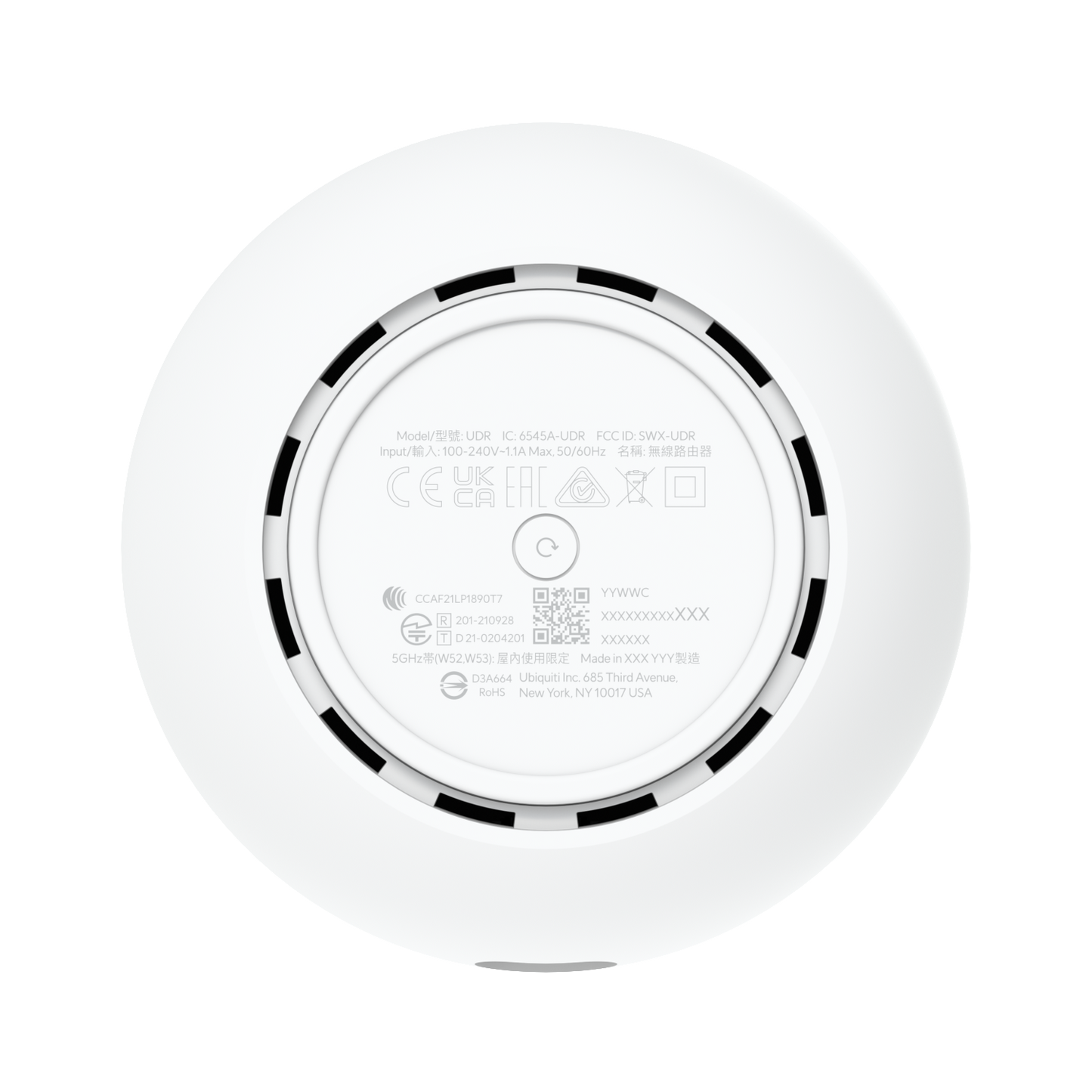

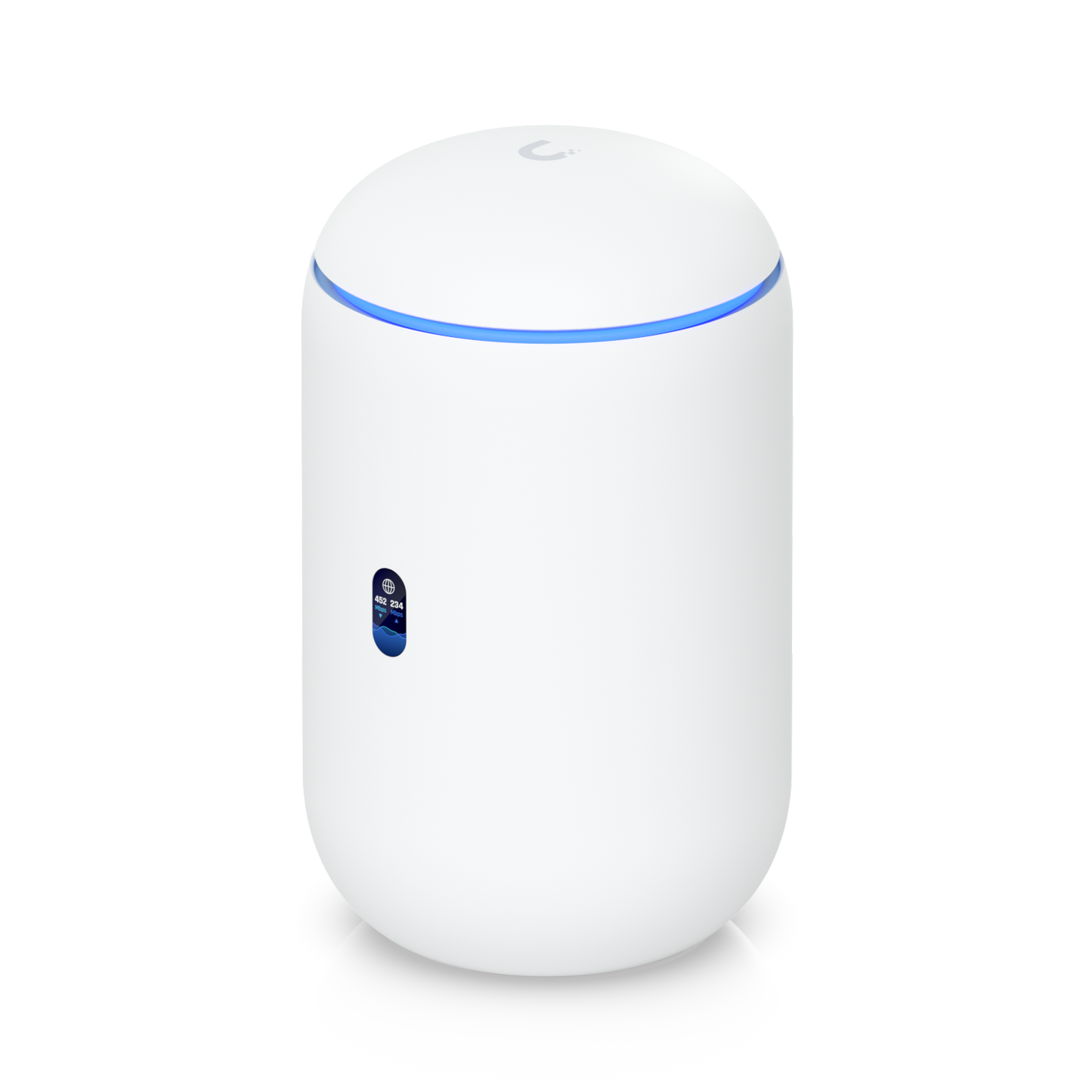

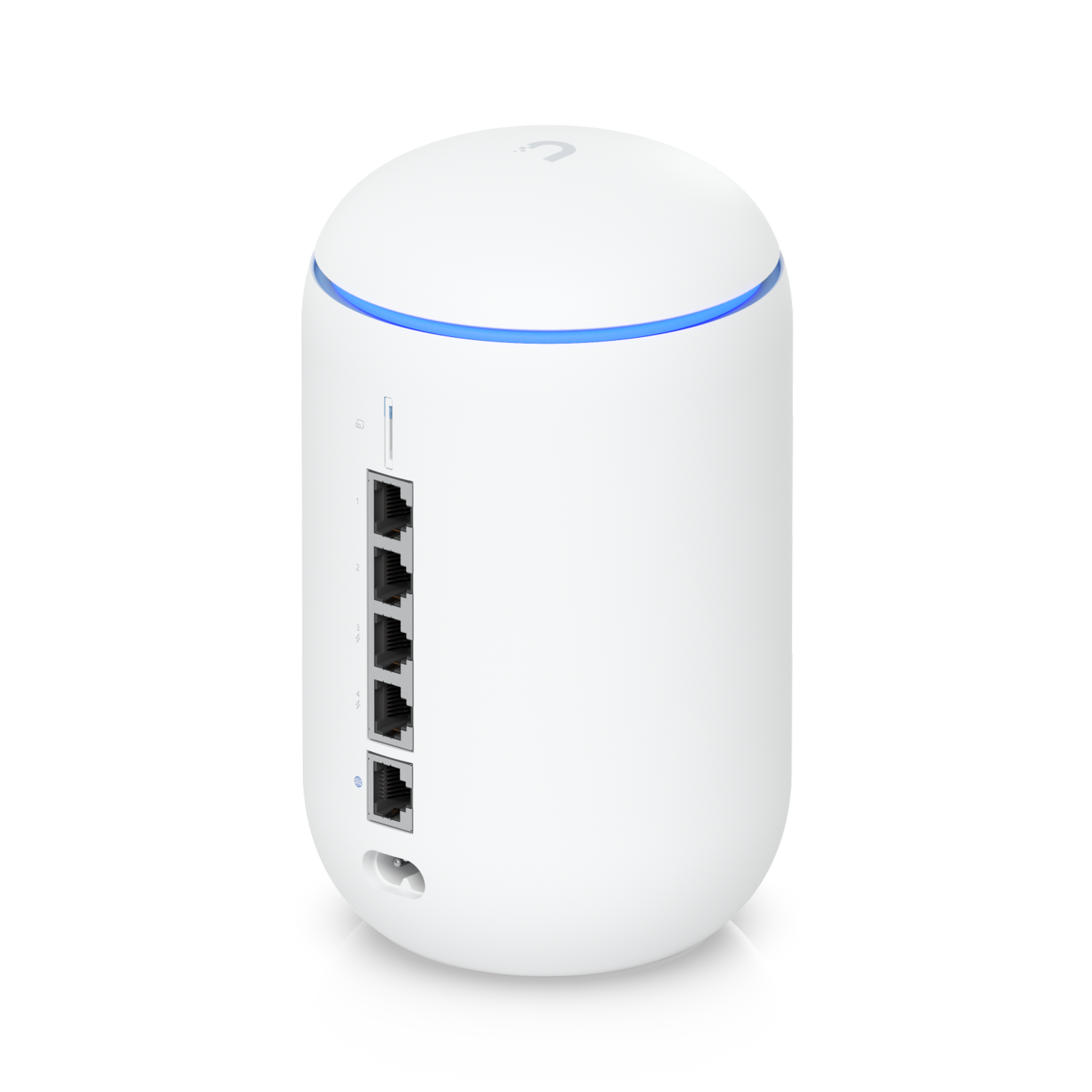

UniFi Dream Router WiFi 6 PoE Cloud Gateway
Ubiquiti UDR UniFi Dream Router WiFi 6 PoE Cloud Gateway
SKU:UDR
Regular price
$468.00
Regular price
$526.00
Sale price
$468.00
Unit price
per
80 in stock
Authorised Reseller | Australian Stock | Australian Warranty
Desktop UniFi Cloud Gateway with integrated WiFi 6 and PoE switching.
- Built-in WiFi 6 AP
- Supports three UniFi applications for device management *.
- Integrated 4-port switch with (2) PoE ports
- (1) GbE RJ45 WAN port **.
- 128 GB SSD & microSD card slot for NVR ***.
Note:
- * Consists of UniFi Network plus two of Protect, Access, Talk, or Connect.
- ** Internet speeds up to 700 Mbps.
- *** microSD card must have at least 128 GB of storage.

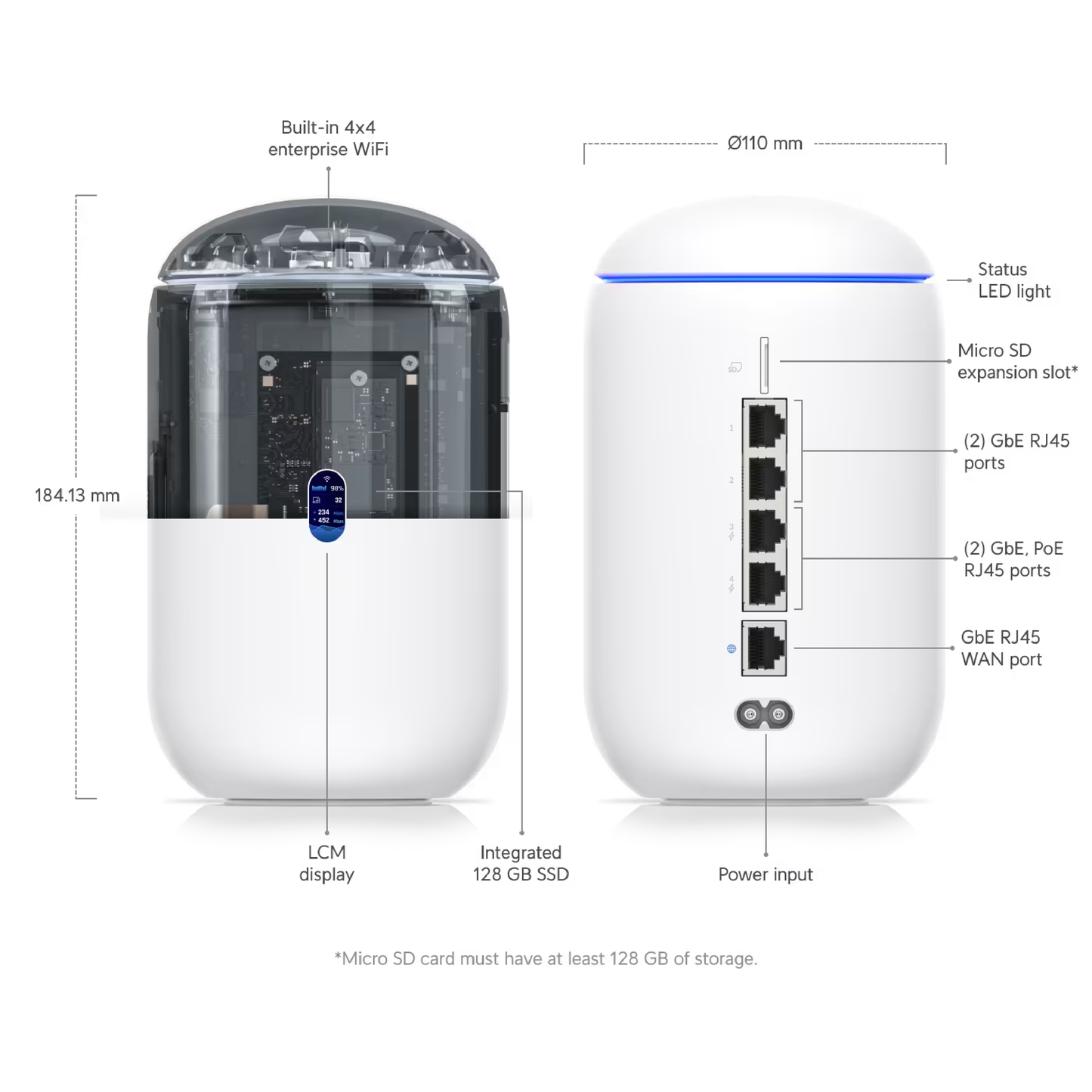

Mechanical | |
---|---|
Dimensions | Ø110 x 184.1 mm (Ø4.33 x 7.3") |
Weight | 1.2 kg (2.5 lb) |
Enclosure material | Polycarbonate |
Hardware | |
Processor | Dual-core Arm Cortex A53 at 1.35 GHz |
System memory | 2 GB |
Expansion slot |
Micro SD memory card* (Optional) *Requires a memory card with at least 128 GB of storage. |
Management interface |
Ethernet Bluetooth |
Networking interface |
(4) LAN: GbE RJ45 ports (1) WAN: GbE RJ45 port |
PoE interface | (2) PoE |
Power method | Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz |
Power supply | AC/DC, internal, 50W |
Supported voltage range | 100—240V DC |
Max. power consumption | 19.37W (Excluding PoE output) |
PoE budget | 40W |
Max. PoE wattage per port by PSE | 15.4W |
Voltage range PoE mode | 44—57V DC |
Max. TX power 2.4 GHz 5 GHz |
26 dBm 26 dBm |
MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
Throughput rate 2.4 GHz 5 GHz |
600 Mbps 2.4 Gbps |
Antenna gain 2.4 GHz 5 GHz |
3.4 dBi 4.3 dBi |
Antenna | (1) Internal, dual-band, quad-polarity antenna |
LCM display | (1) 0.96" screen |
Button | Factory reset |
LEDs | White/blue |
Operating temperature | -10 to 45° C (14 to 113° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Gateway Features | |
Performance |
WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
Next-generation security |
Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
Advanced networking |
License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
Software | |
WiFi standards |
802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Concurrent clients | 300+ |
Supported Data Rates | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Visit Ubiquiti for more information.
