UniFi Enterprise Campus 48 PoE Layer 3 Switch

Name: Ubiquiti ECS-48-PoE UniFi Enterprise Campus 48 PoE Layer 3 Switch
Availability: OutOfStock

Ubiquiti ECS-48-PoE UniFi Enterprise Campus 48 PoE Layer 3 Switch

SKU:ECS-48-PoE

$7,999.00

~~$7,999.00~~ $7,999.00

0% Off | Save $0.00 Sold out

Taxes included. Shipping calculated at checkout.

Out of stock

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

View full details

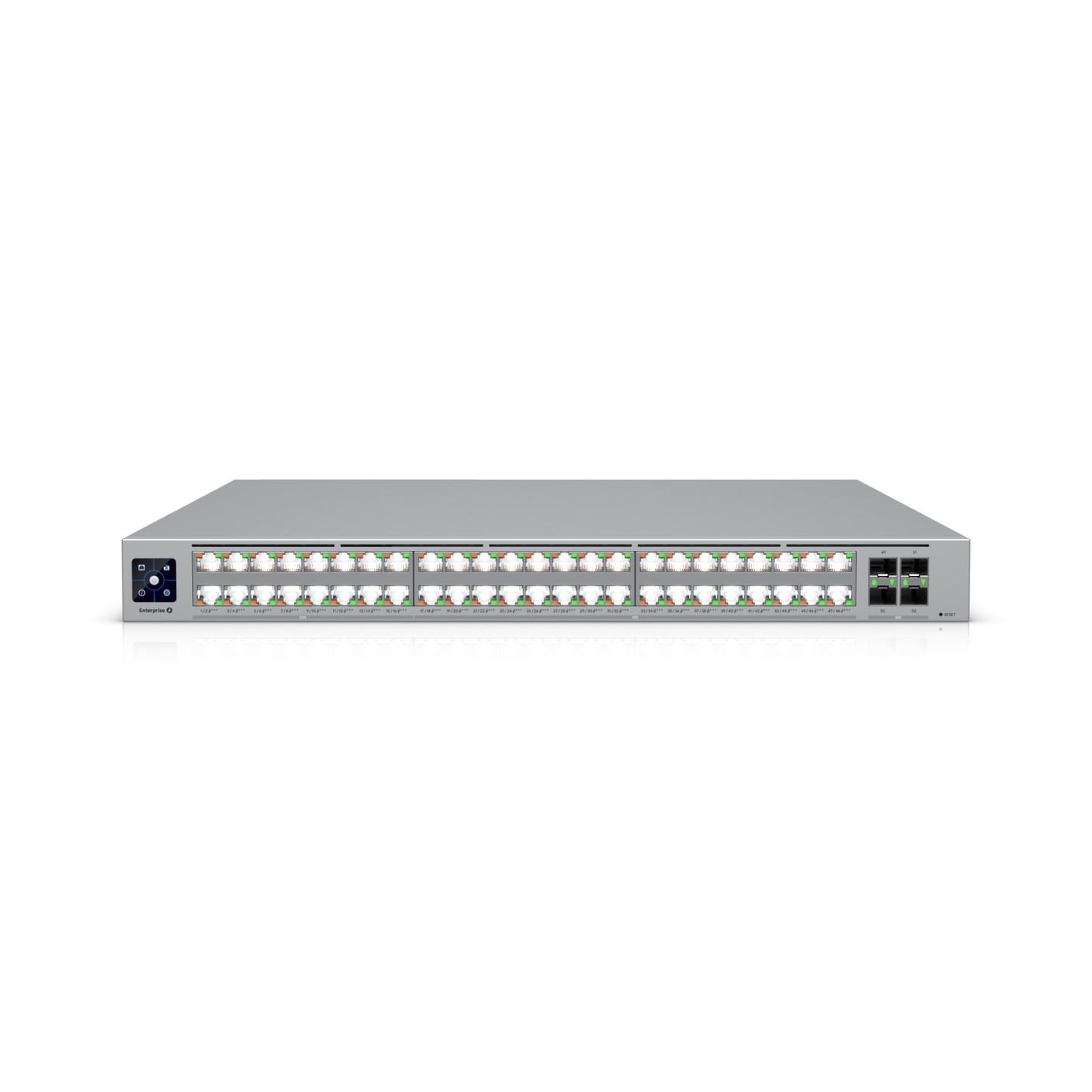

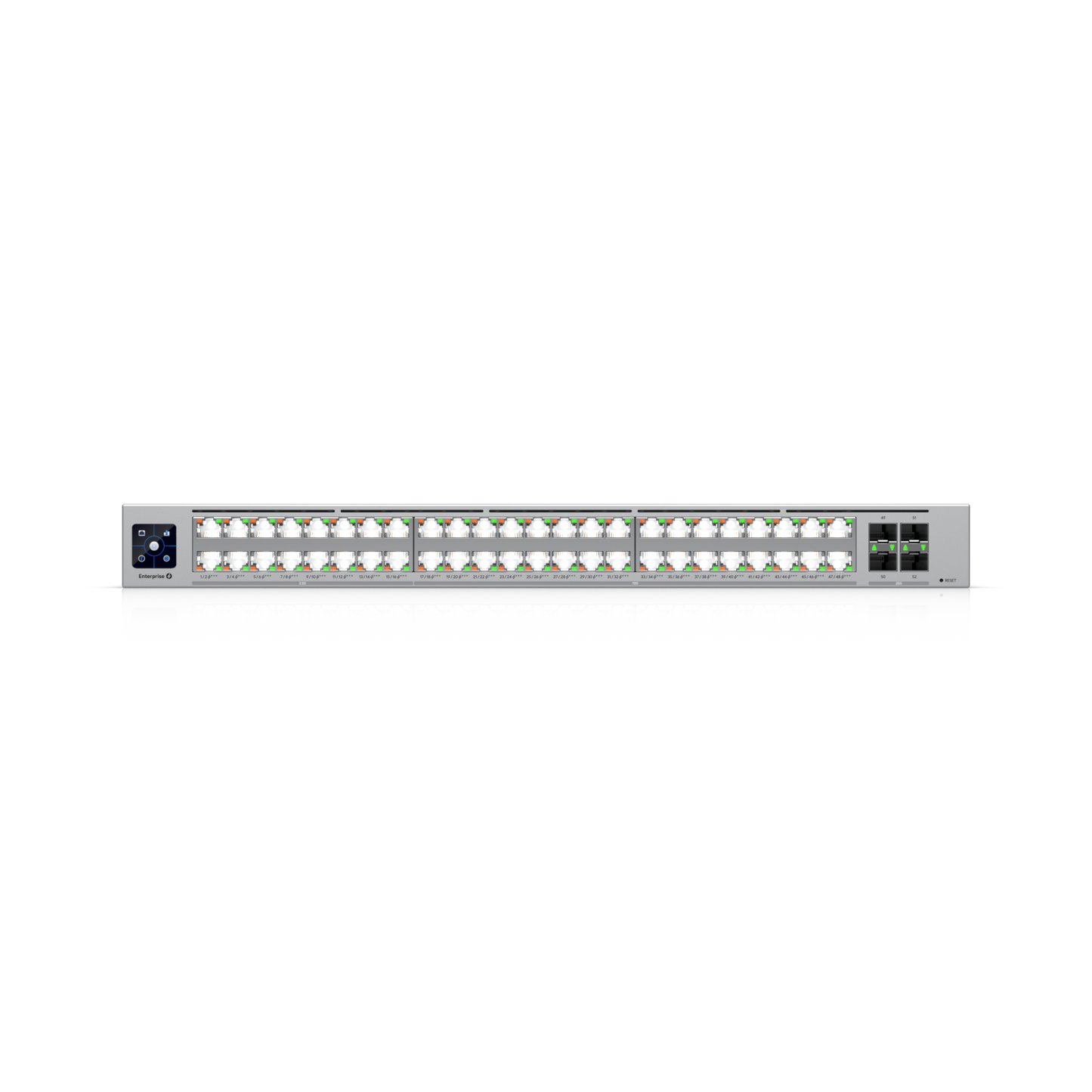

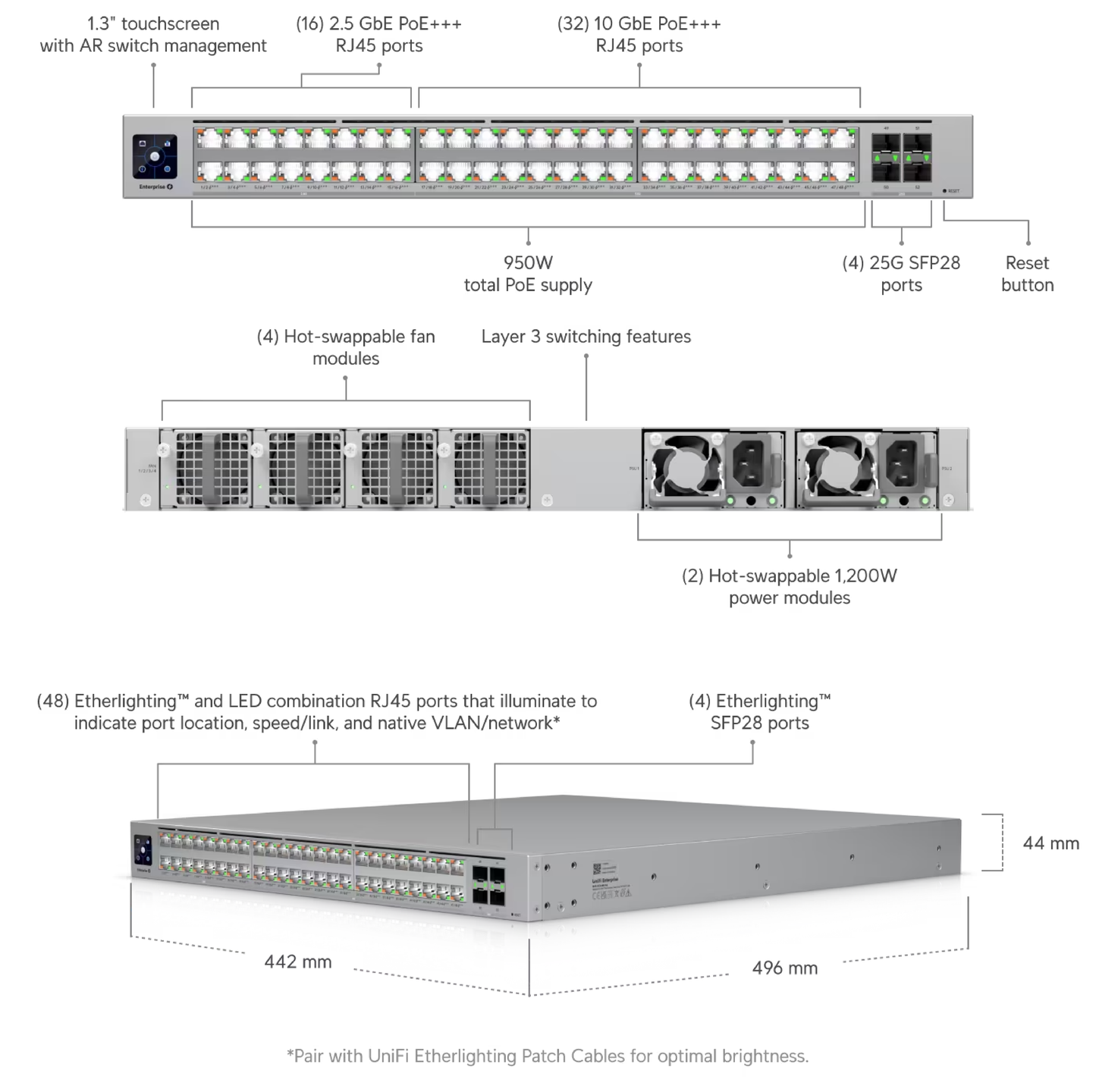

Enterprise-grade 48-port, Layer 3 Etherlighting PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

(32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable).
(4) 25G SFP28 ports.

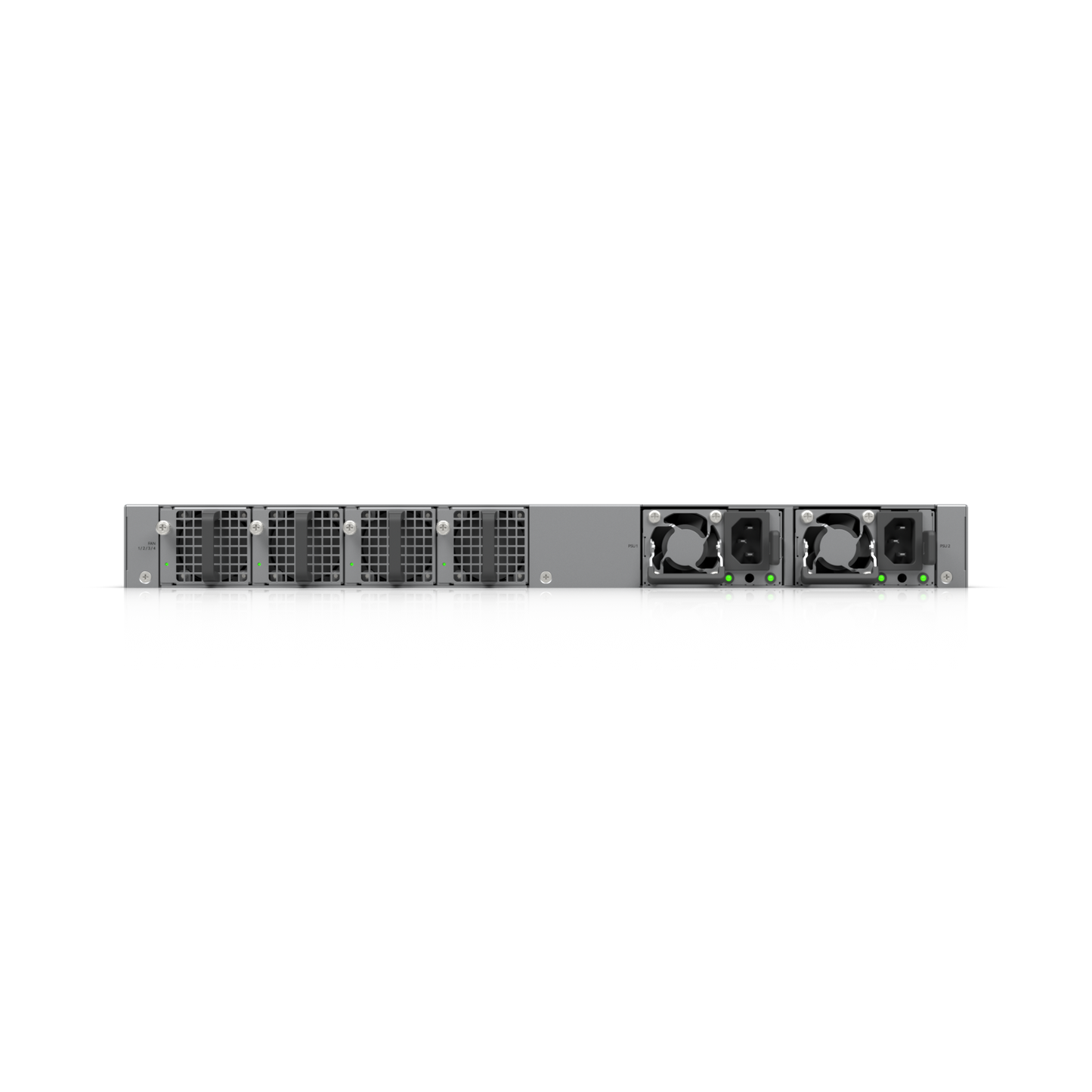

(2) included hot-swappable power modules for redundancy.
(4) included hot-swappable fan modules with one backup.

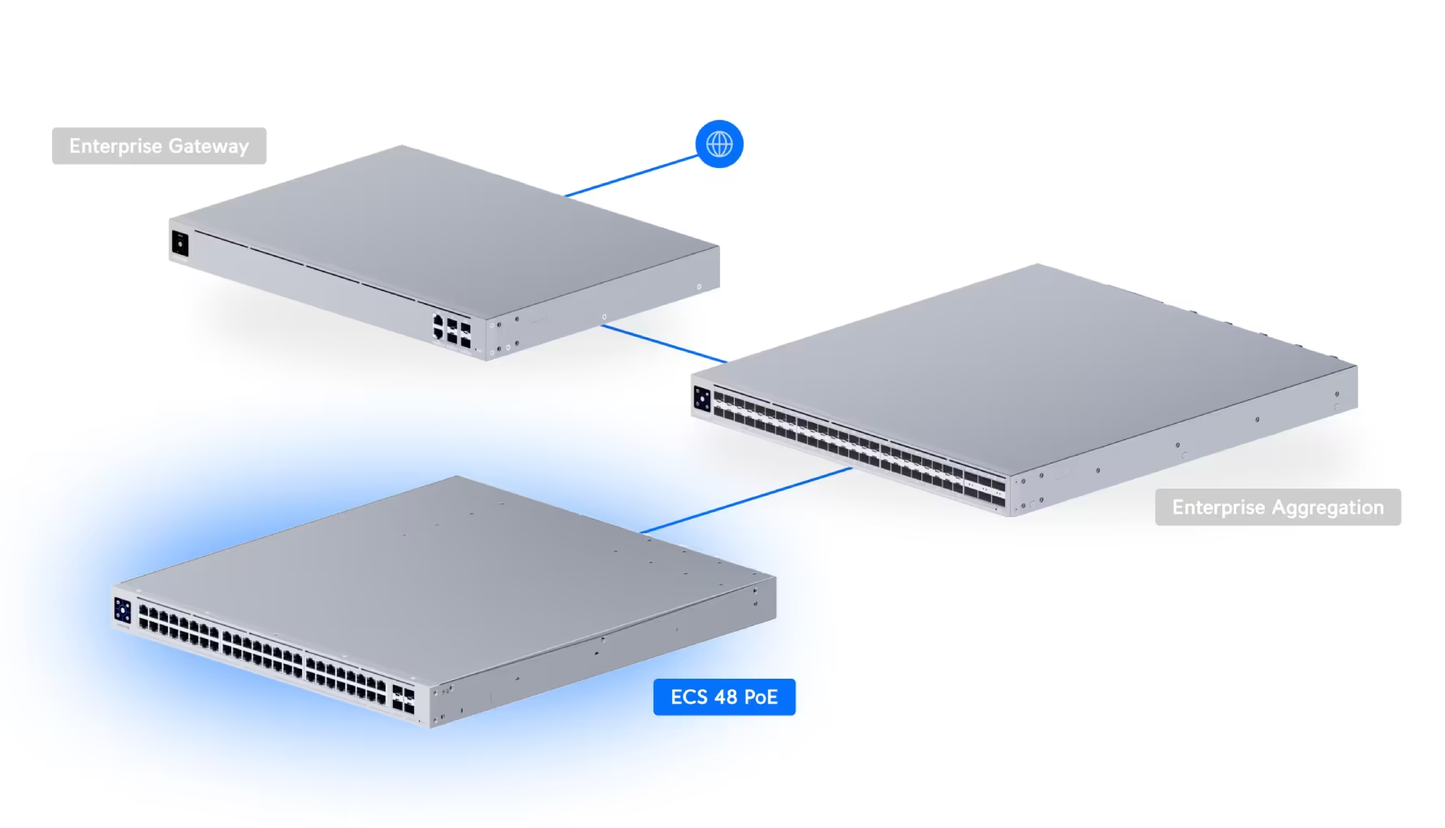

Note: Recommend being paired with Enterprise Campus Aggregation.

Mechanical
Dimensions	442 x 496 x 44 mm (17.4 x 19.5 x 1.7")
Weight	Without mounting brackets: 9.5 kg (20.9 lb) With mounting brackets: 9.6 kg (21.1 lb)
Enclosure material	SGCC steel

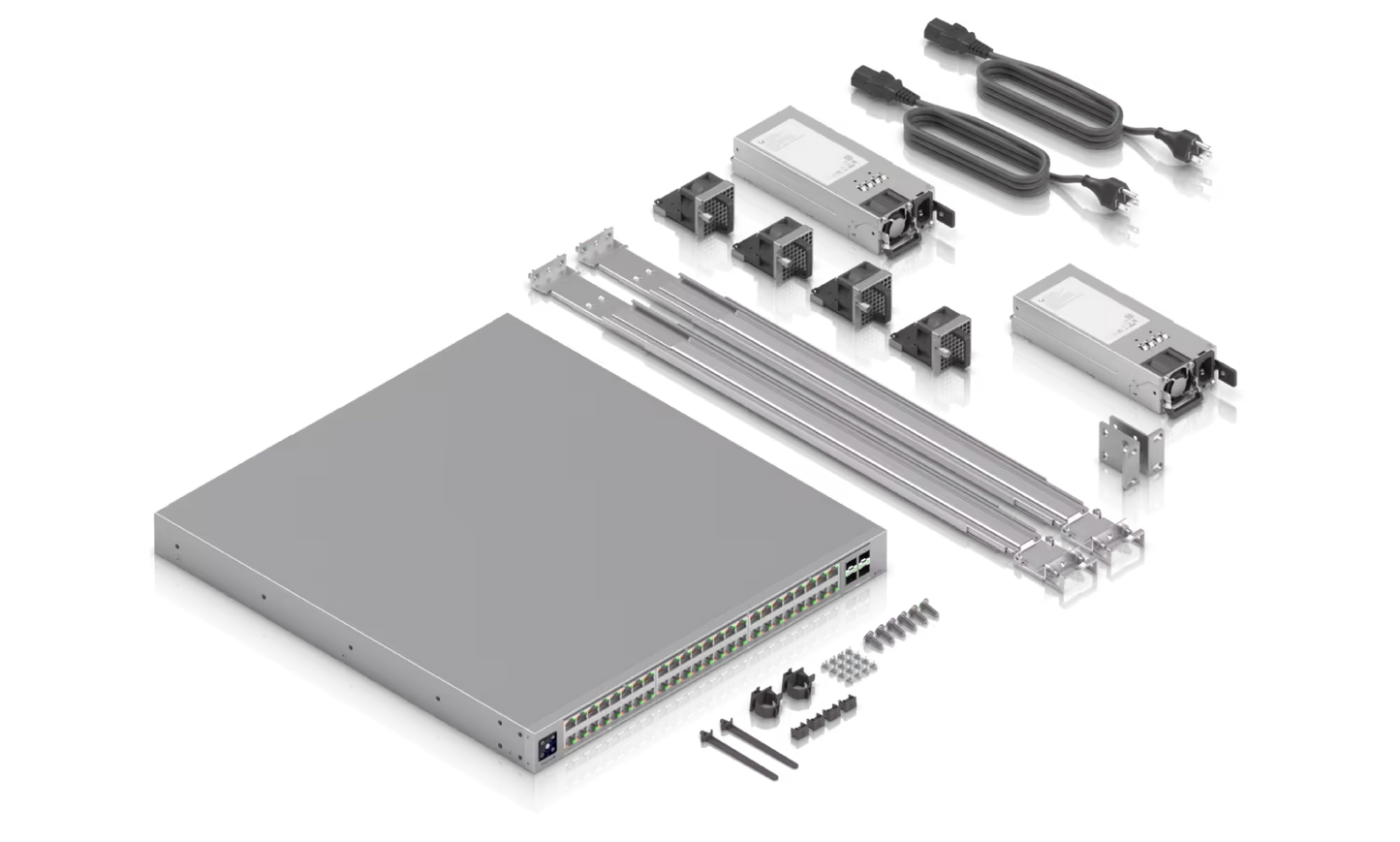

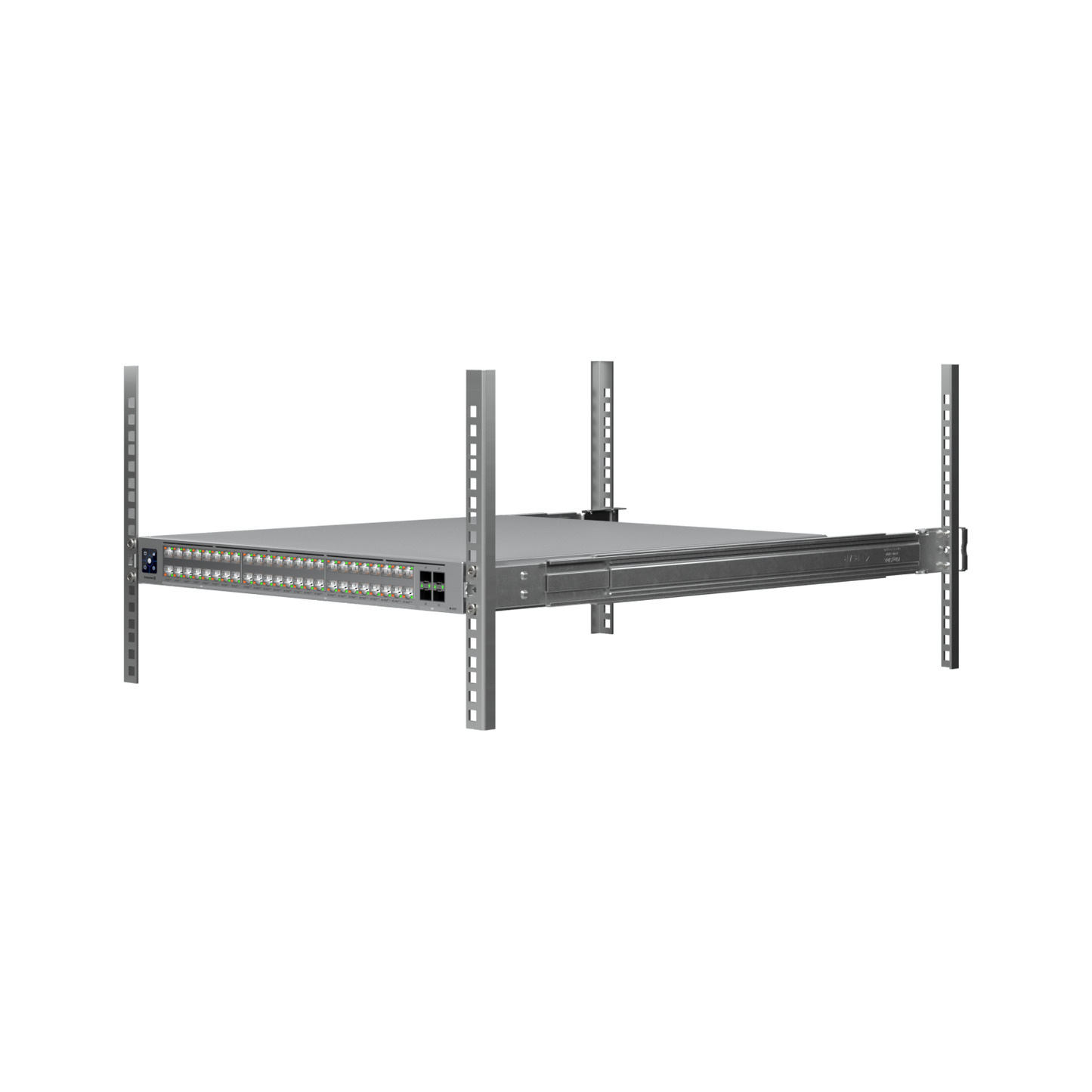

Slide rails support	The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6-39.4”)
Hardware
Management interface	Ethernet In-Band
Networking interface	(32) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports (16) 2.5/1 GbE, 100/10 MbE RJ45 ports (4) 25/10/1G SFP28 ports
PoE interface	(48) 90W PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)* *802.3bt Type 4, Class 8
Total non-blocking throughput	460 Gbps
Switching capacity	920 Gbps
Forwarding rate	684.48 Mpps
Power method	(2) Universal input, 100—240V AC, 50/60 Hz
Power supply	(2) Hot-swappable AC/DC 1,200W power modules
Max. power consumption	Excluding PoE output: 250W Including PoE output: 2,400W
Total available PoE	950W
Max. PoE wattage per port by PSE	PoE+++: 90W
Voltage range PoE mode	50—57V
Fan method	(4) hot-swappable fan modules* *Fan modules operate with 3 + 1 redundancy.
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet	Locating Speed/link Native VLAN/network
SFP28	Locating Speed/link Native VLAN/network
LEDs
System	Status
Ethernet	Link/activity

Visit Ubiquiti for more information.
