UniFi Enterprise Campus Aggregation Switch

Name: Ubiquiti ECS-Aggregation UniFi Enterprise Campus Aggregation Switch
Availability: OutOfStock

Ubiquiti ECS-Aggregation UniFi Enterprise Campus Aggregation Switch

SKU:ECS-Aggregation

$6,540.00

~~$8,499.00~~ $6,540.00

23% Off | Save $1,959.00 Sold out

Taxes included. Shipping calculated at checkout.

Out of stock

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

View full details

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting aggregation switch with MC-LAG support for high availability system design.

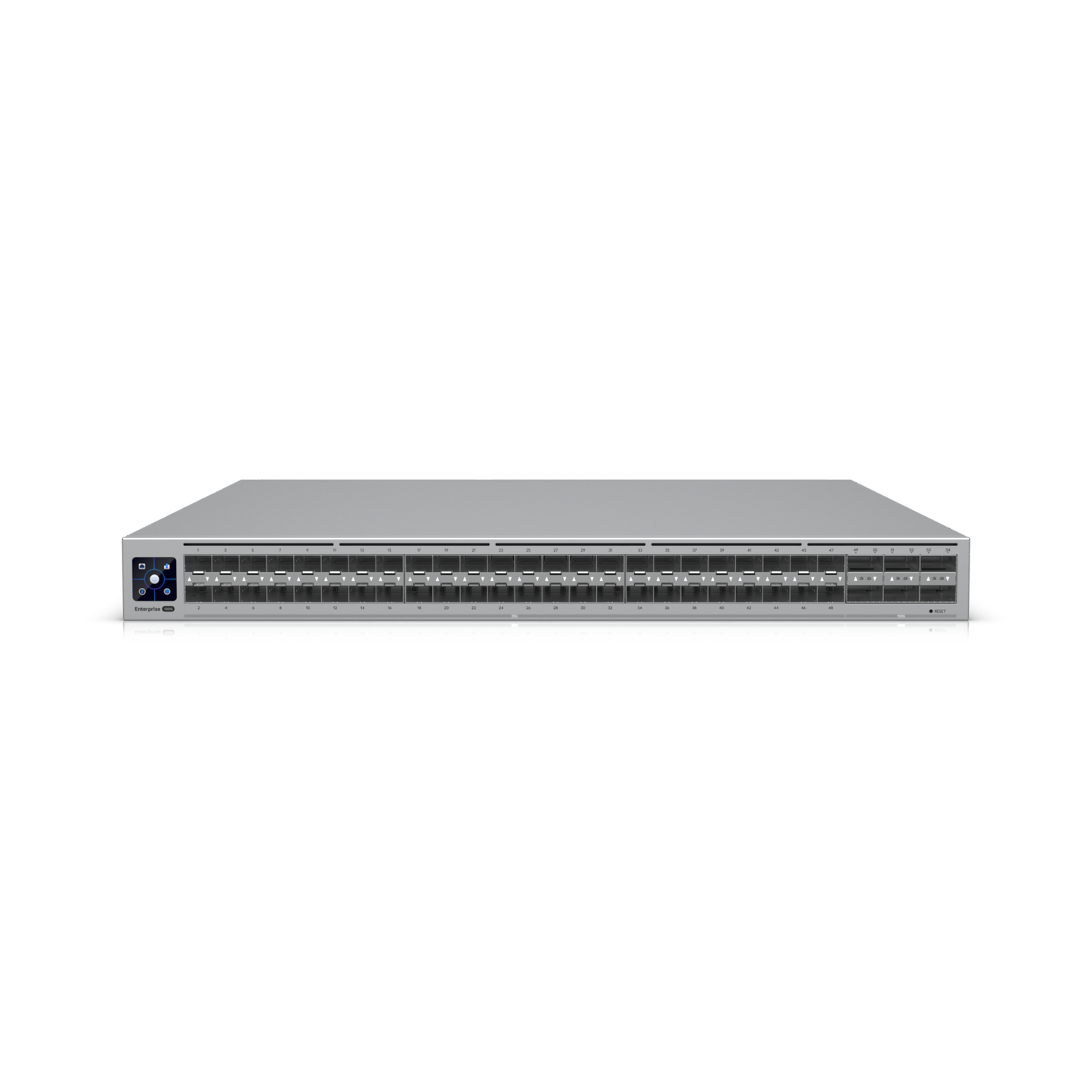

(48) 25G SFP28 and (6) 100G QSFP28 ports.

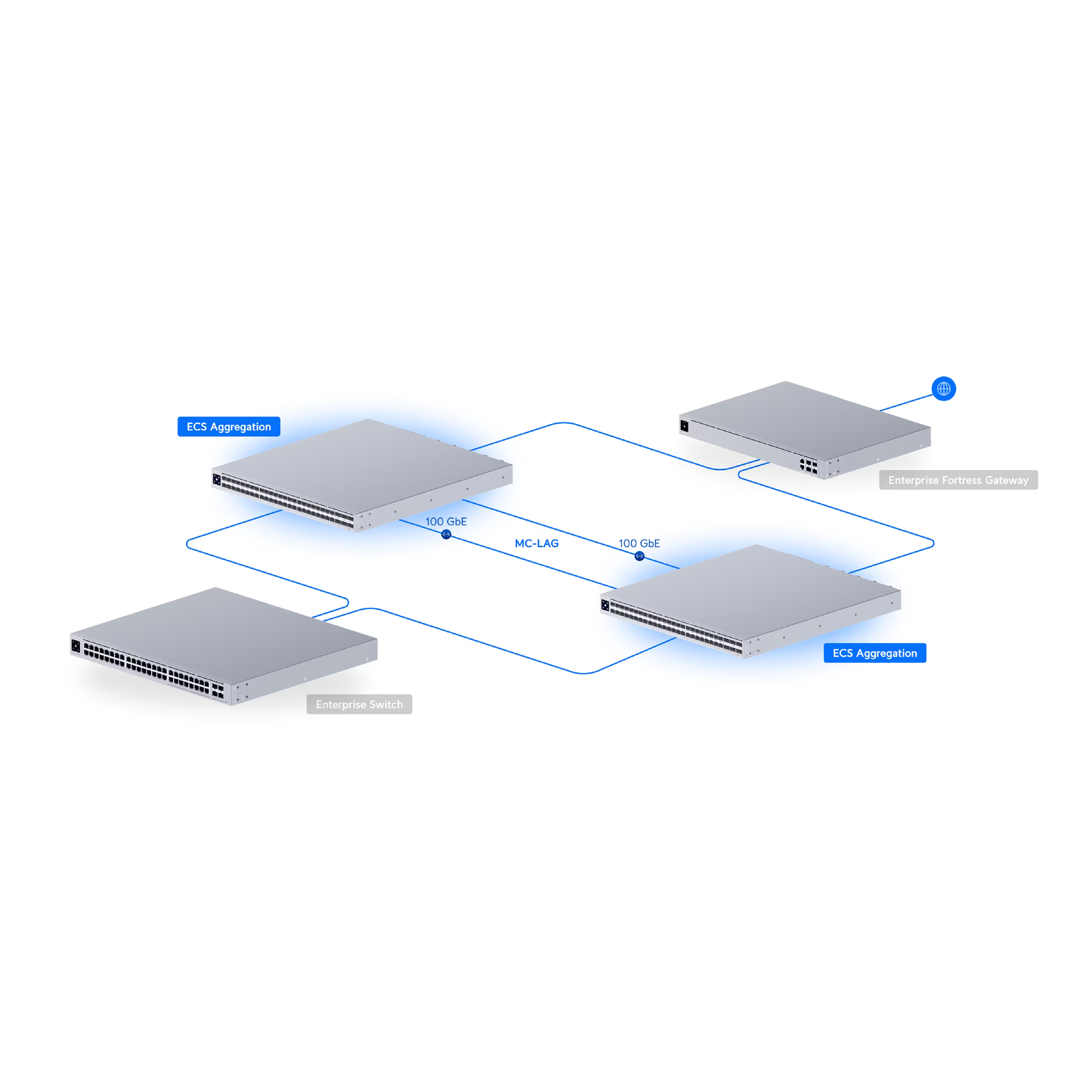

Multi-Chassis Link Aggregation (MC-LAG) support^*.
Layer 3 automatic failover (VRRP) support^**.
BGP Dynamic Routing^***.

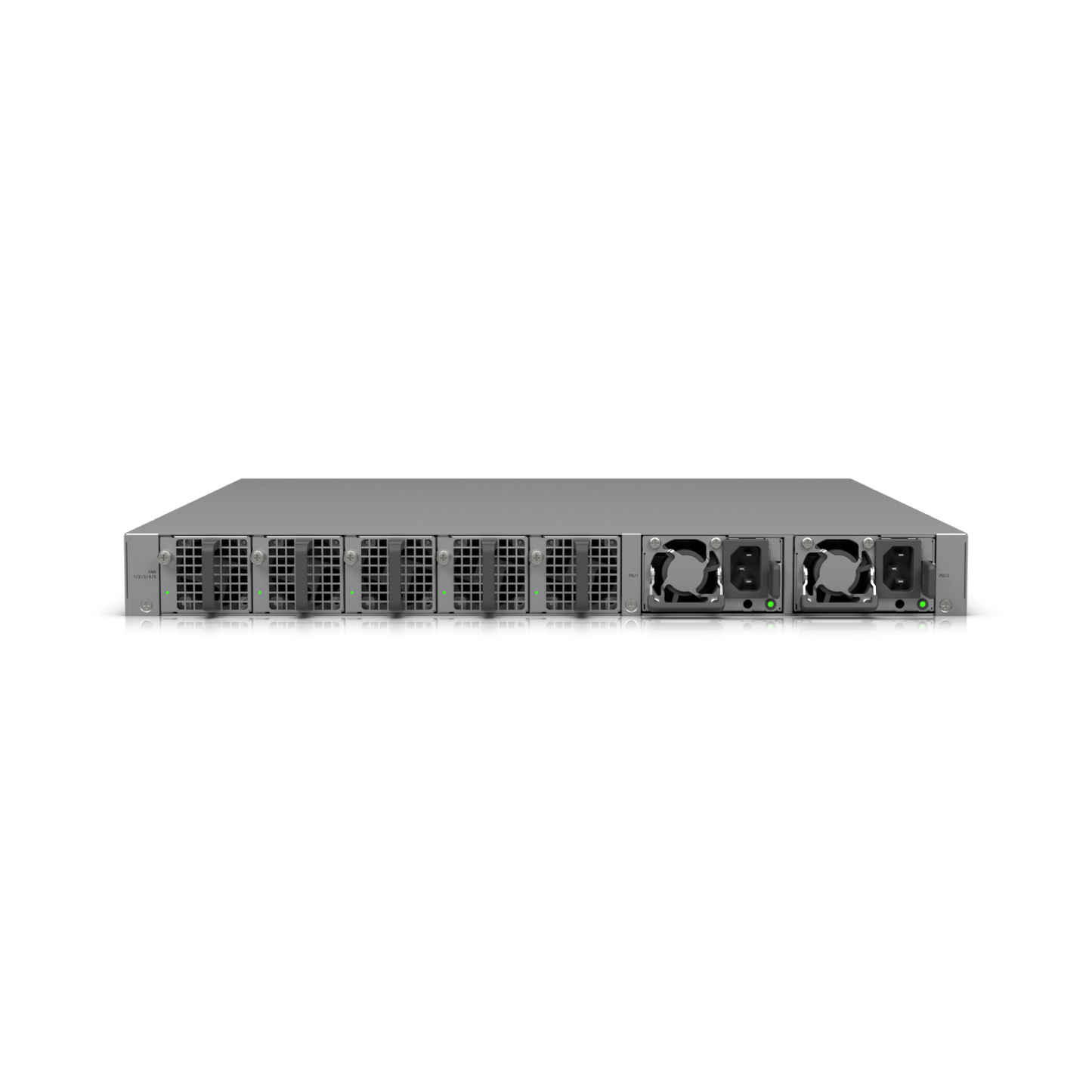

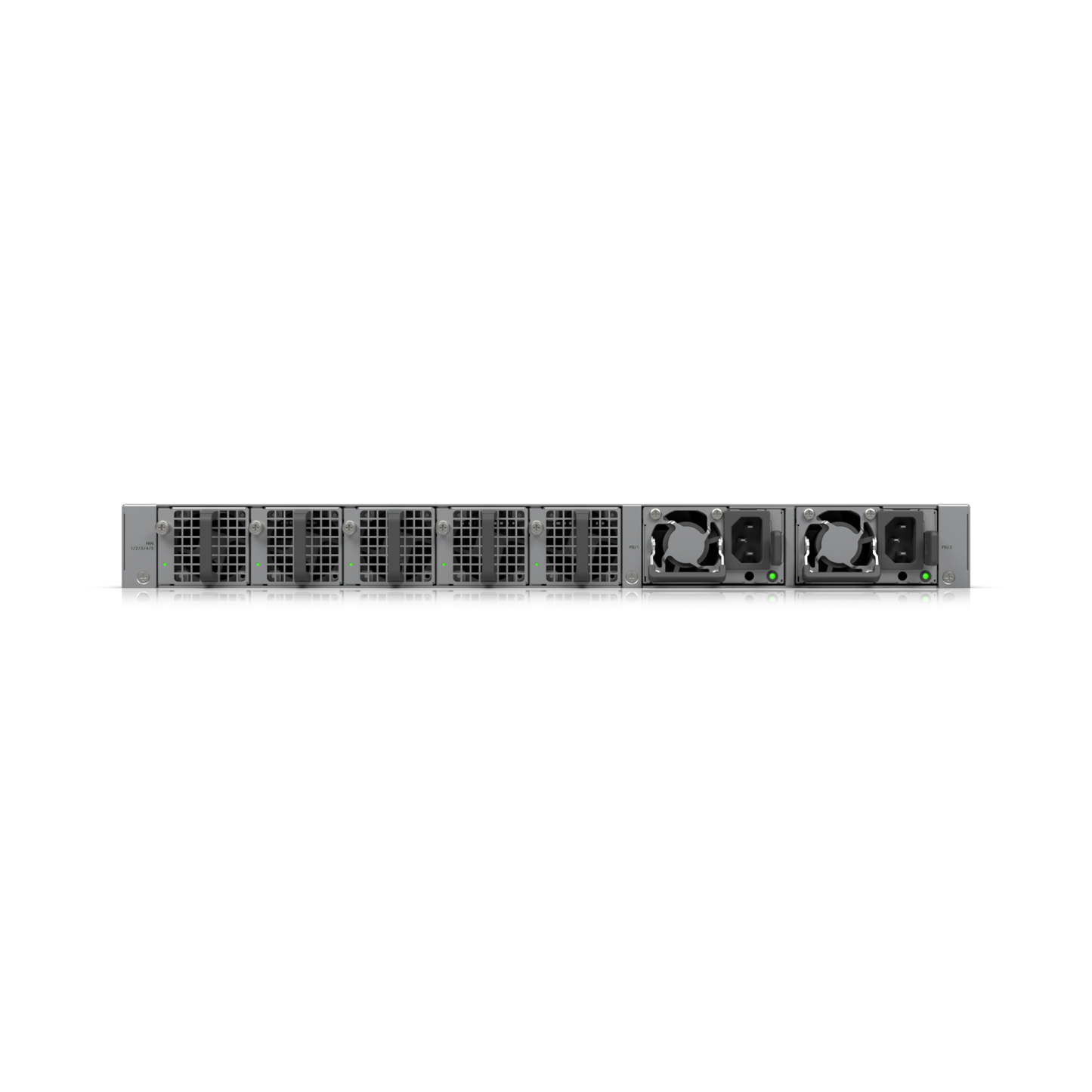

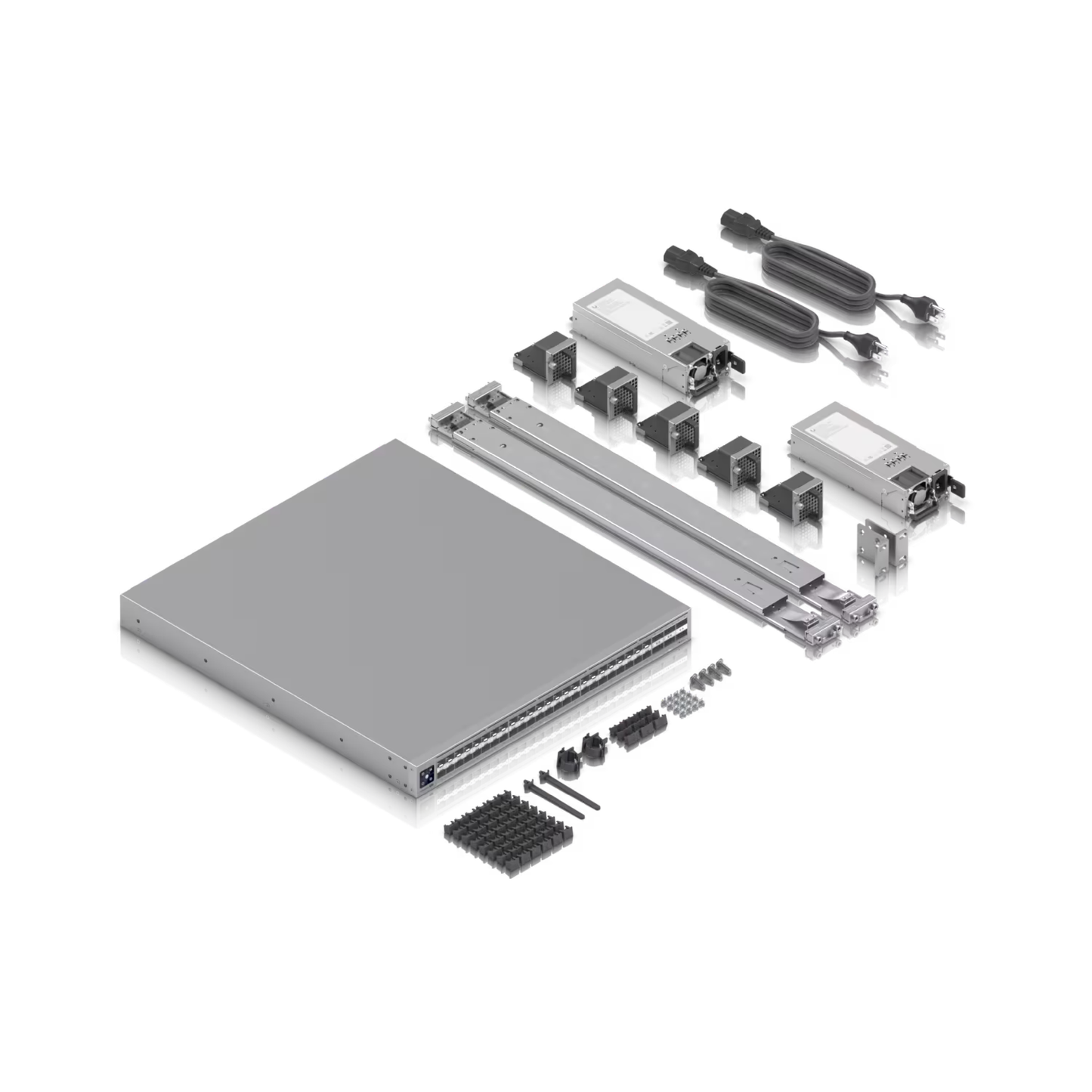

(2) included hot-swappable power modules, with 1+1 redundancy^****.
(5) included hot-swappable fan modules, with 4+1 redundancy.

Note:

^* Must be paired with another Enterprise Campus Aggregation.
^** Scheduled for the next UniFi Network Application release.
^*** OSPF support is scheduled for an upcoming UniFi Network Application release.
^**** The second module is not pre-installed and ships in separate packaging.

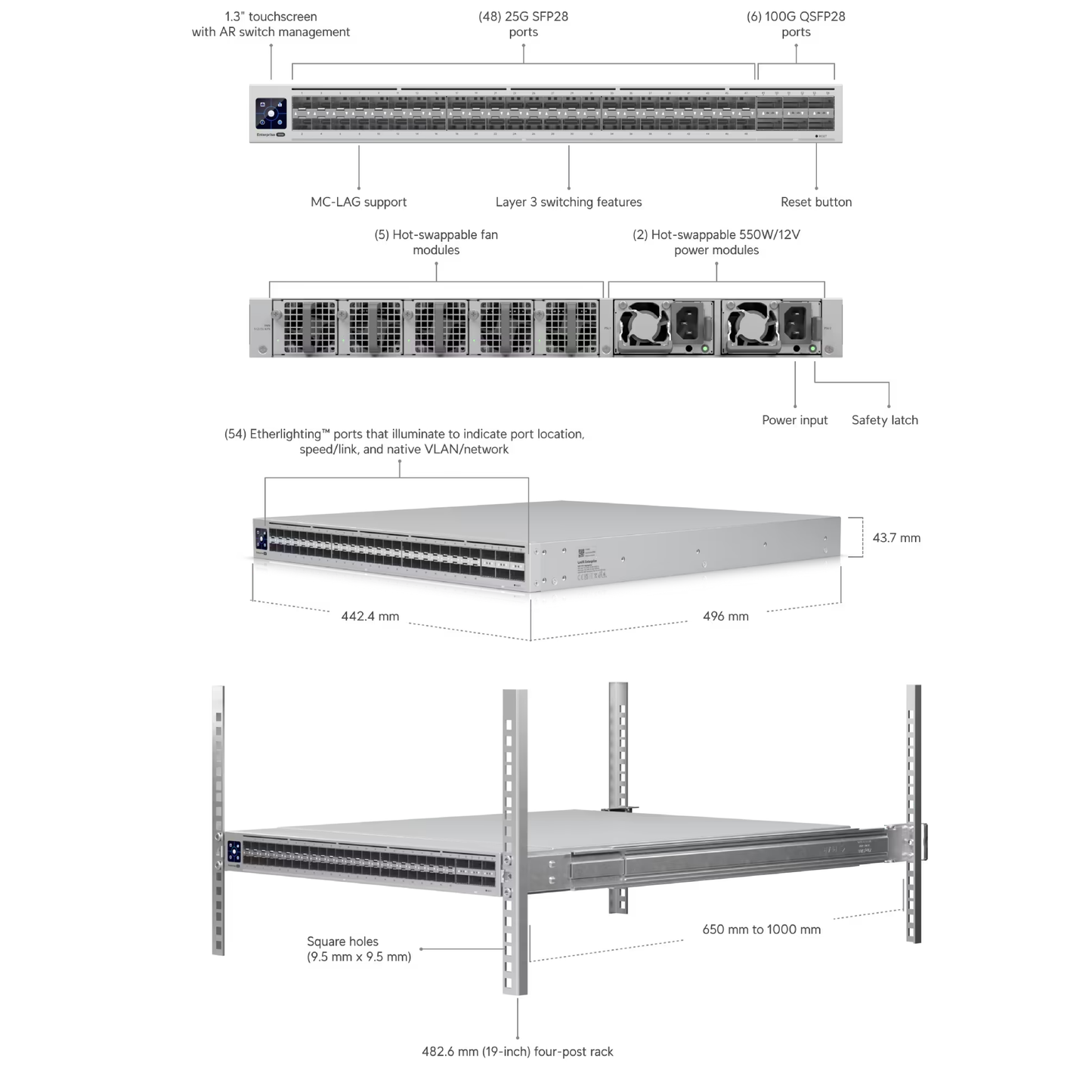

Mechanical
Dimensions	442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
Weight	9.9 kg (21.8 lb)
Enclosure material	SGCC steel

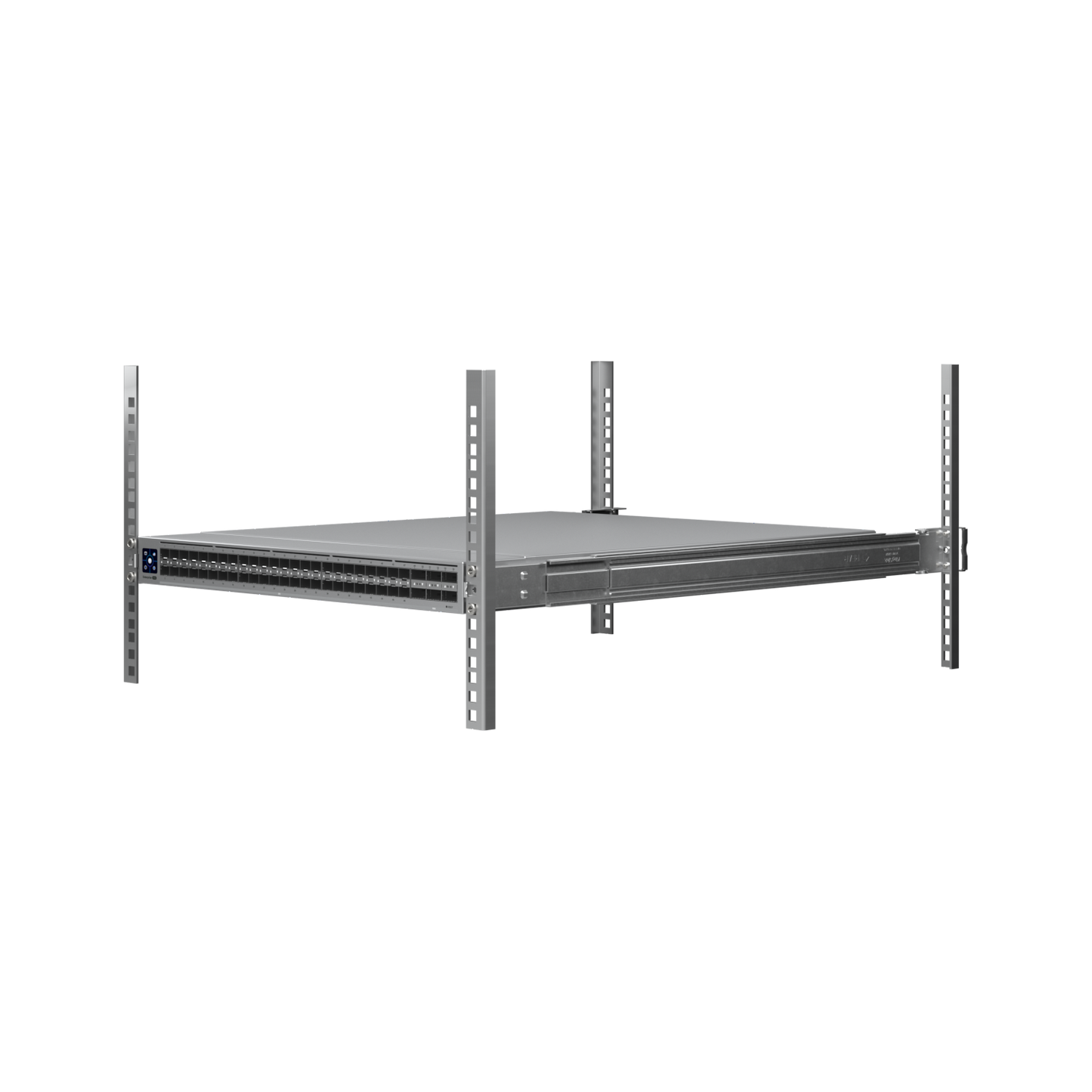

Slide rails support	The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Hardware
Management interface	Ethernet In-Band
Networking interface	(6) 100/40G QSFP28 ports (48) 25/10G SFP28 ports* 1 Gbps port speed is not supported.
Total non-blocking throughput	1.8 Tbps
Switching capacity	3.6 Tbps
Forwarding rate	2.3 Bpps
Power method	(2) Universal input, 100—240V AC
Power supply	(2) Hot-swappable AC/DC 550W power modules
Supported voltage range	100—240V AC
Max. power consumption	340W
ESD/EMP protection	Air: ± 12kV, contact: ± 8kV
Services	SMB Layer3 100G/25G Fiber Switch
LCM display	(1) 1.3" touchscreen
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs MC-LAG support
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Automatic failover (VRRP)* *Support is scheduled for the next UniFi Network Application release.
Etherlighting™
SFP28/QSFP28	Locating Speed/link Native VLAN/network
LEDs
System	Status
Application Requirements
UniFi Network	Version 8.5.6 and later

Visit Ubiquiti for more information.
