Ubiquiti

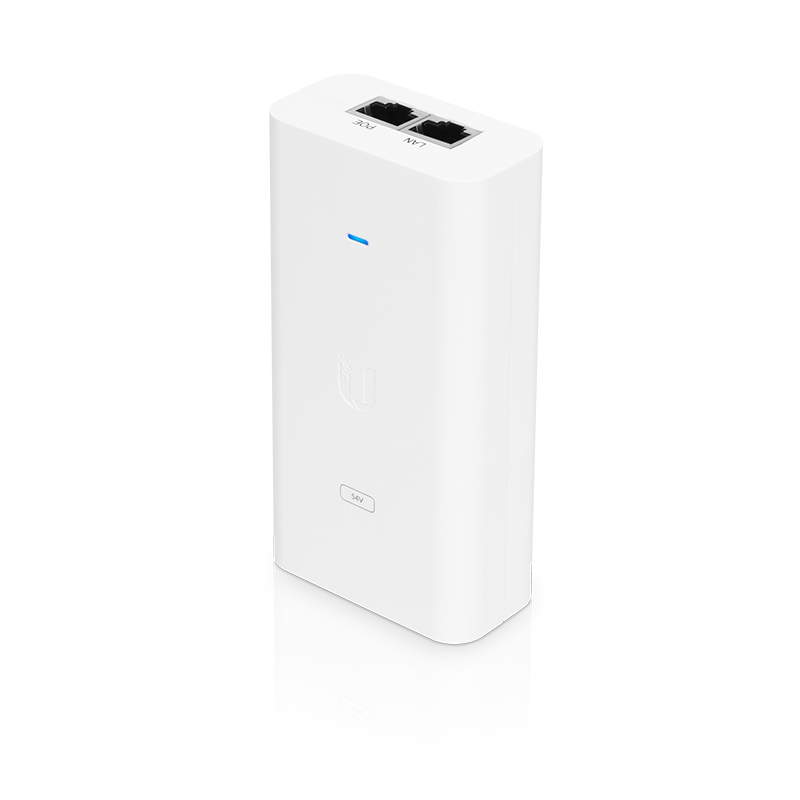

EdgePoint PoE Injector, 54VDC, 80W — UISP Accessory

EdgePoint PoE Injector, 54VDC, 80W — UISP Accessory

Regular price $64.00
Regular price $74.00 Sale price $64.00
13% Off | Save $10.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:POE-54V-80W

In stock

View full details

Ubiquiti PoE Injectors offer a range of features to safeguard your Power over Ethernet devices. Ideal for Australian networking solutions, these injectors are a reliable choice for ensuring stable and secure connections.

  • Advanced surge and clamping protection to shield devices from electrical spikes
  • Robust maximum surge discharge for enhanced safety
  • Optimised peak pulse current handling capabilities
  • Included AC cable with earth grounding for additional security
Specifications
Model POE-54V-80W
Dimensions 123 x 65 x 34 mm (4.84 _ 2.56 _ 1.34”)
Weight 299 g (10.55 oz)
Output Voltage 54VDC @ 1.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current <80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 87+%
Output Ripple 1% Max.
Switching Frequency 100 kHz Max.
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing

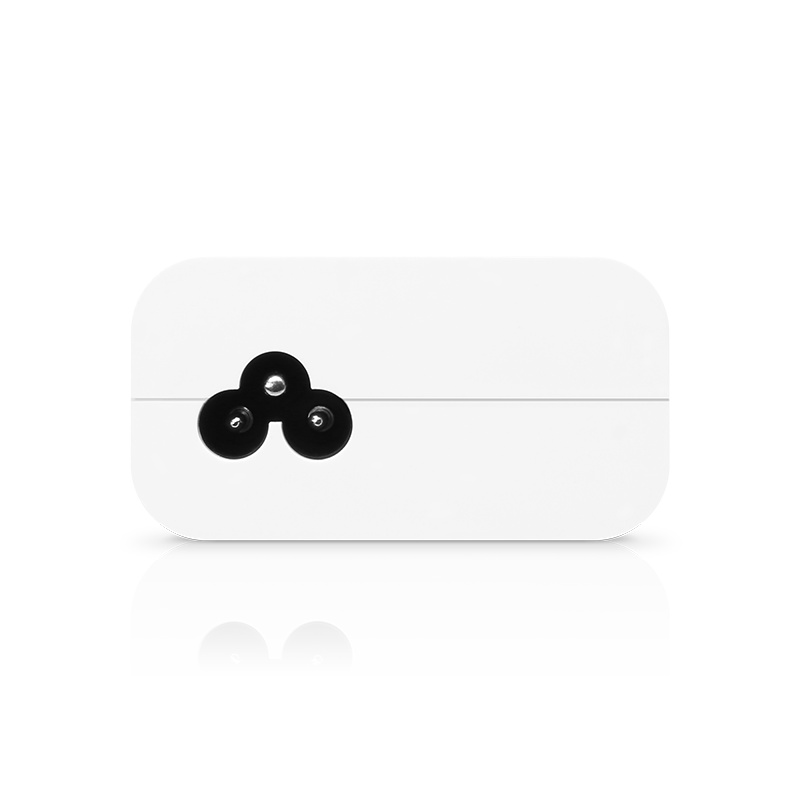

AC Connector IEC-320 C6

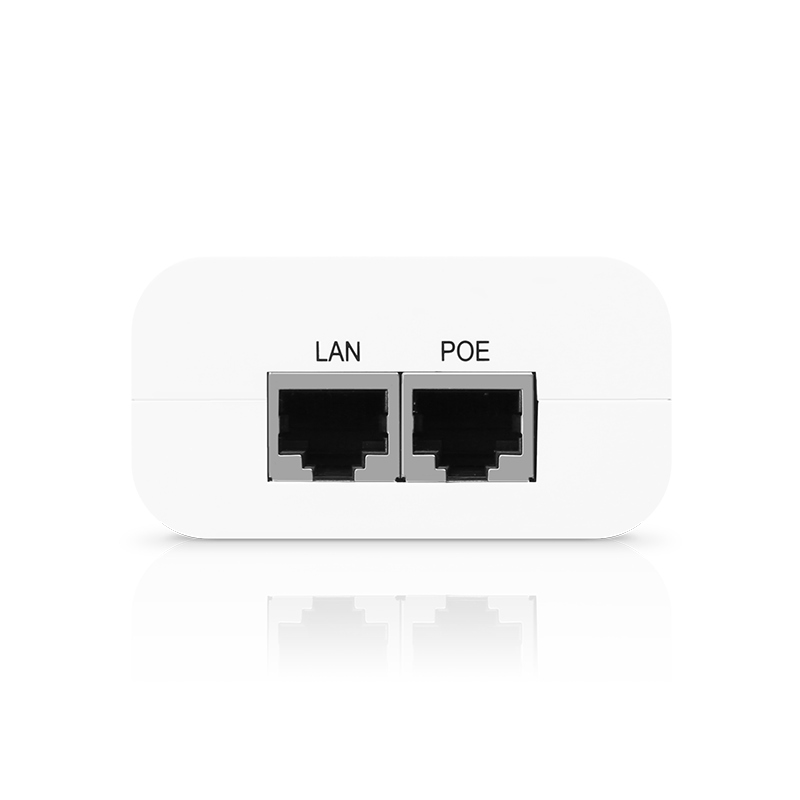

Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 _s) Power
Peak Pulse Current 36A (10/1000 _s) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
