Ubiquiti

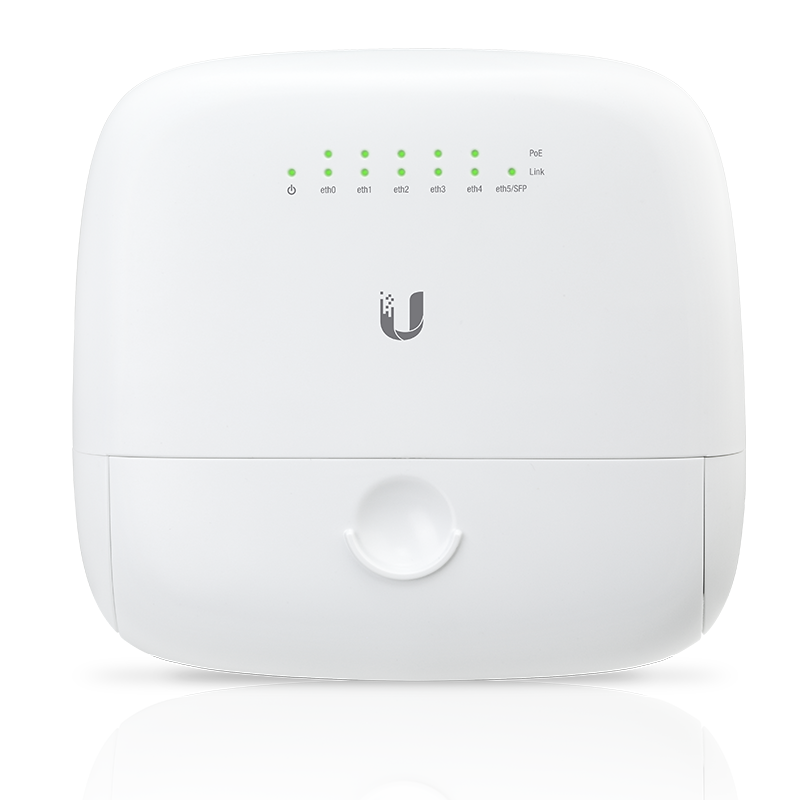

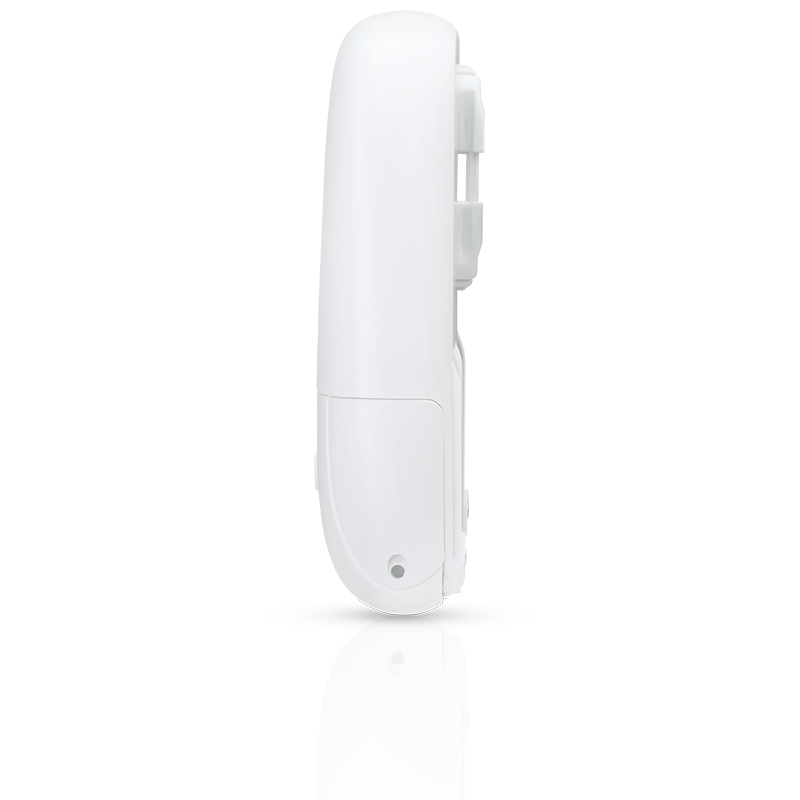

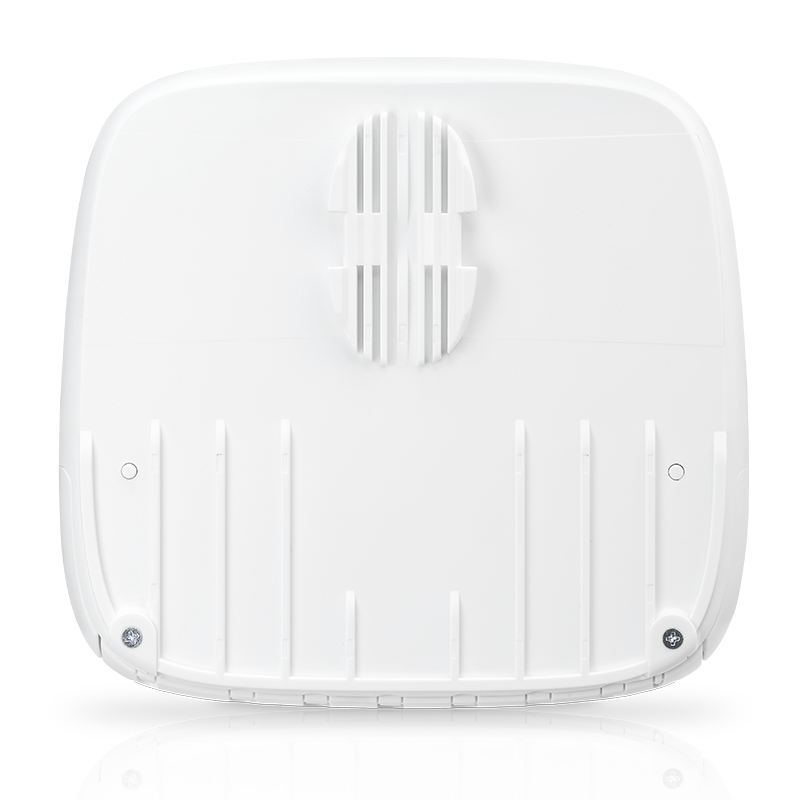

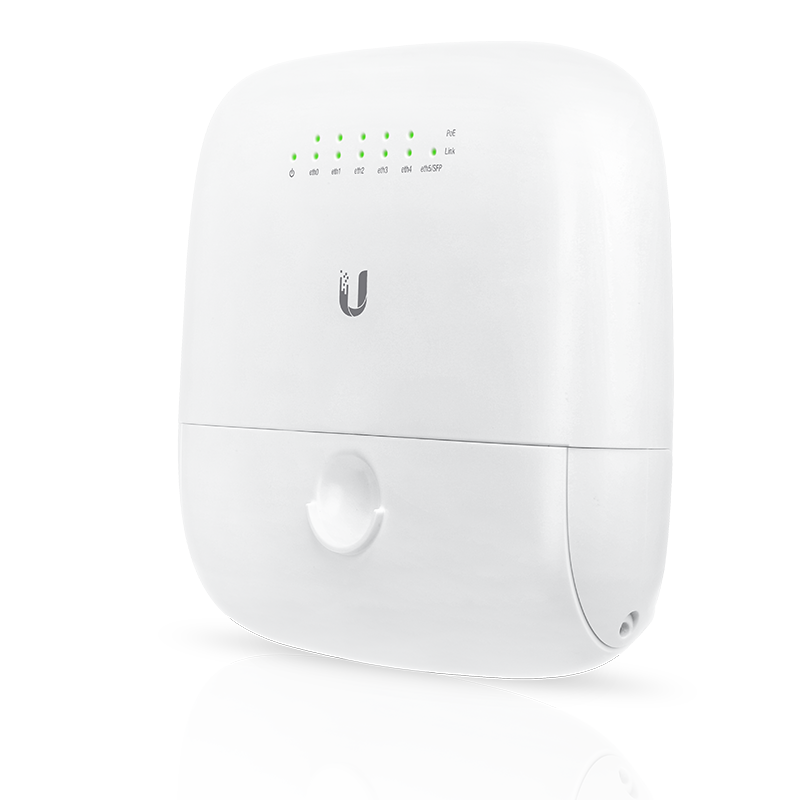

EdgePoint R6 — Wired UISP EdgeMAX Routing

EdgePoint R6 — Wired UISP EdgeMAX Routing

Regular price $210.00
Regular price $210.00 Sale price $210.00
0% Off | Save $0.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:EP-R6

Out of stock

View full details

Discover the Ubiquiti EdgePoint R6, a top-tier WISP (Wireless Internet Service Provider) control point, featuring five Gigabit RJ45 ports and a singular SFP port for enhanced connectivity. Perfectly suited for Australian ISPs.

  • Advanced Layer-3 router technology
  • Five Gigabit Ethernet RJ45 ports for high-speed connections
  • One 1G SFP port for flexible fibre connectivity
  • Durable, weatherproof casing, ideal for Australian outdoor conditions
Mechanical
Dimensions 188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96")
Weight 605 g (1.33 lb)
Enclosure Characteristics UV-Resistant Polycarbonate
Mount Pole Mount
Wind Loading 46 N at 200 km/h (10.34 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Max. Power Consumption 7W (Excludes PoE Output)
Power Input* (1) DC Terminal Block
(1) RJ45 (eth0)
*Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs
Power Supply Min. 24V / 0.3A (Excludes PoE Output Power)
VDC Input 24V, 3A
Passive PoE Input* (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
*Do NOT Configure eth0 in PoE Output Mode if You Are Using a PoE Input Power Source.
Passive PoE Output (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
Power Monitoring (1) DC Terminal Block, Input Power
(1) RJ45, eth0, Input Power
Supported Voltage Range 26 to 16VDC
Button Reset
LEDs
System
eth0 to eth4
eth5/SFP

Power
Speed/Link/Activity, PoE
Speed/Link/Activity

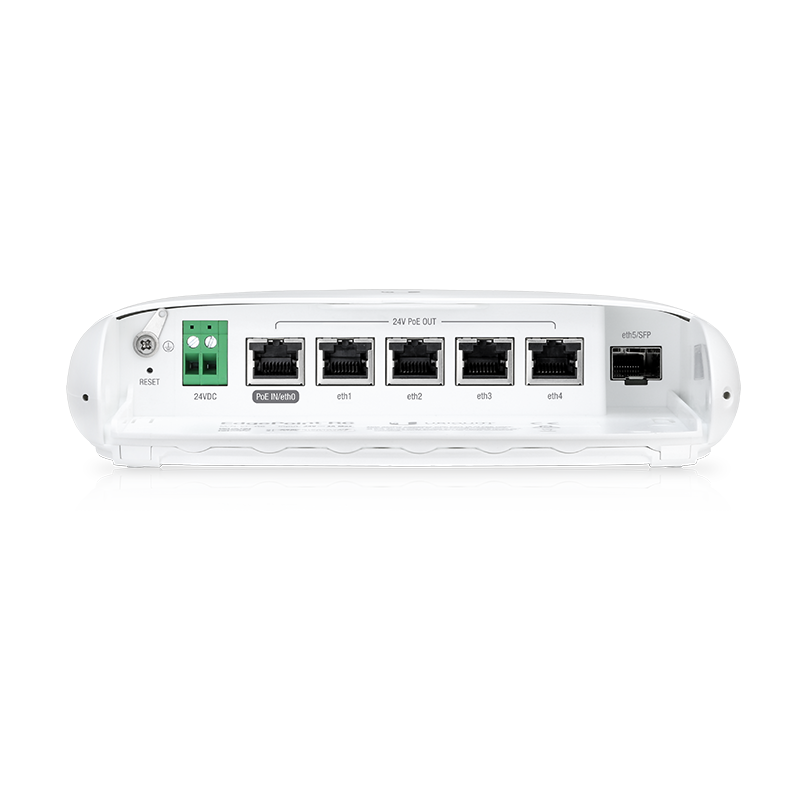

Ports
Data Ports

(5) 10/100/1000 RJ45 Ports
(1) 1 Gbps SFP Port
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 256 MB DDR3-1600 RAM
Code Storage 256 MB NAND
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
