Introducing the Ubiquiti EdgePoint R8, a specialised WISP (Wireless Internet Service Provider) control point, featuring (6) high-speed Gigabit RJ45 ports and (2) versatile RJ45/SFP combo ports, ideal for Australian conditions.

  • Advanced Layer-3 router functionality
  • (6) Gigabit Ethernet RJ45 ports for high-speed connectivity
  • (2) Dual-purpose 1G RJ45/SFP combination ports for flexible network integration
  • Durable, weatherproof enclosure, perfect for outdoor installation in Australia's diverse climates
Mechanical
Dimensions Without Wall-Mount: 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
With Wall-Mount: 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight Without Wall-Mount: 3.4 kg (7.50 lb)
With Wall-Mount: 3.8 kg (8.38 lb)
Enclosure Characteristics Diecast Aluminum Alloy, UV-Resistant Polycarbonate
Mount Pole/Wall Mount
Wind Loading 153 N at 200 km/h (34 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Max. Power Consumption 40W (Excludes PoE Output)
Power Input* (1) DC Terminal Block
(2) RJ45 (PoE In and eth0)
*Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54VDC, 6A
Passive PoE Input* (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In
*PoE In is DC Only, No Data
Passive PoE Output (2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2
(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, PoE In and eth0, Input Power
Supported Voltage Range 56 to 42VDC
Button Reset
LEDs
System
eth0
eth1 to eth7
SFP

Power
Speed/Link/Activity
Speed/Link/Activity, PoE
Speed/Link/Activity

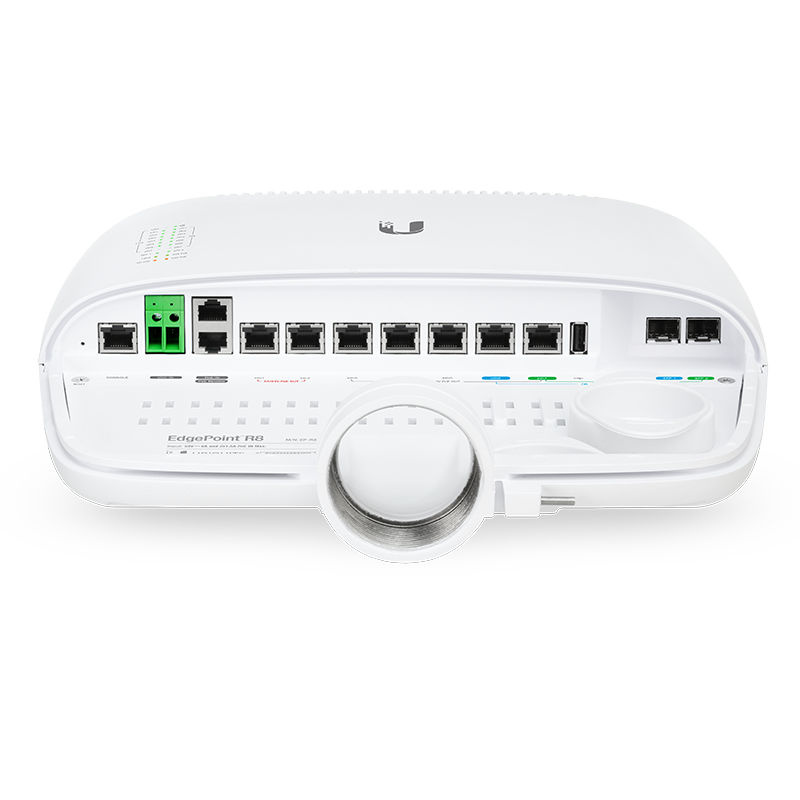

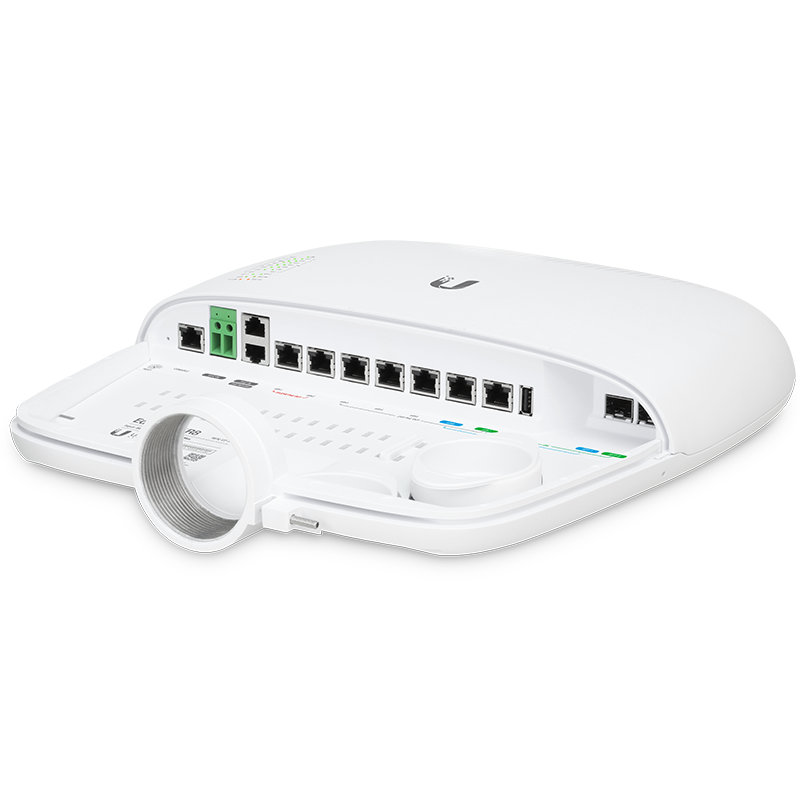

Ports
Serial Console Port
PoE In Port
Data Ports

(1) RJ45 Serial Port
(1) RJ45 Port
(6) 10/100/1000 RJ45 Ports
(2) 10/100/1000 RJ45/SFP Combination Ports
Processor Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory 2 GB DDR3-1600 RAM
Code Storage 4 GB
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
