Ubiquiti

EdgePoint S16 — Wired UISP EdgeMAX Routing and Switching

EdgePoint S16 — Wired UISP EdgeMAX Routing and Switching

Regular price $846.00
Regular price $846.00 Sale price $846.00
0% Off | Save $0.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:EP-S16

Out of stock

View full details

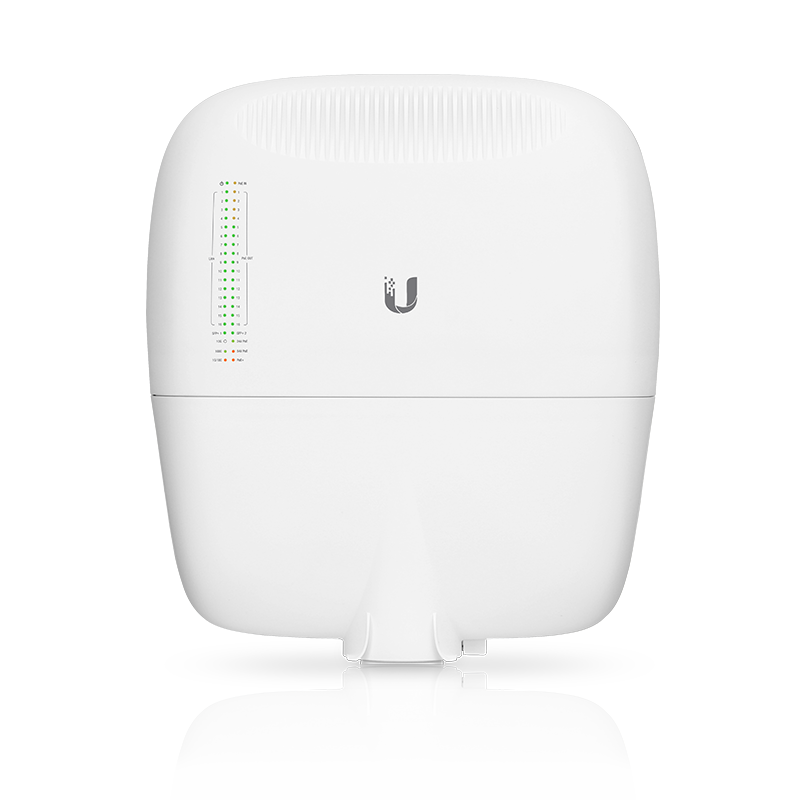

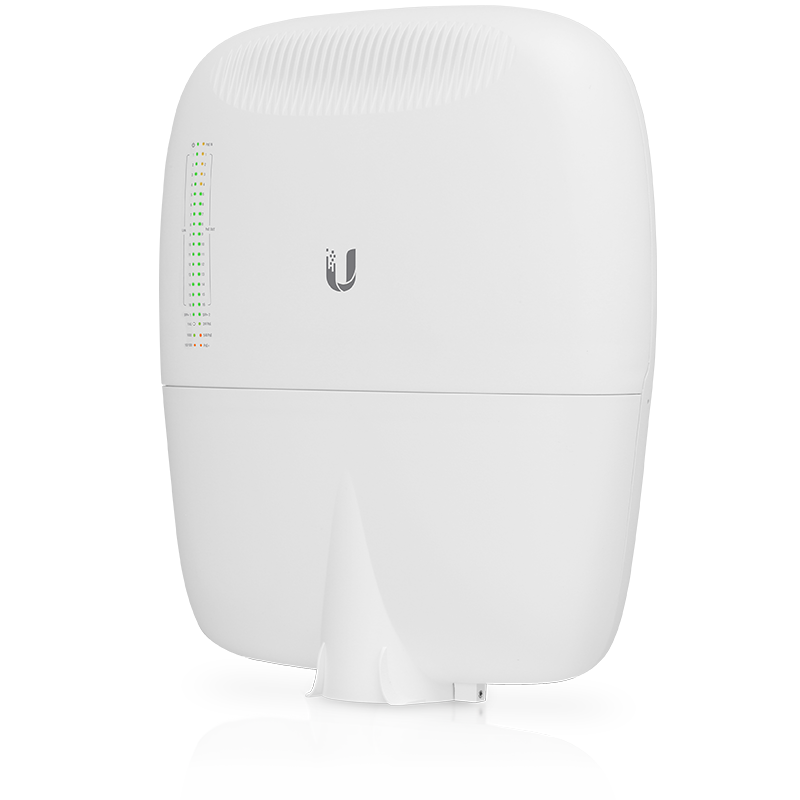

Discover the specialised WISP control point, the Ubiquiti EdgePoint S16, featuring (16) Gigabit RJ45 ports and (2) SFP ports, tailored for Australian networks.

  • Advanced Layer-2 switch with enhanced Layer-3 features
  • (16) High-speed GbE RJ45 ports for reliable connectivity
  • (2) Versatile 1/10G SFP+ ports for high-bandwidth networks
  • Durable, weatherproof casing designed for Australian outdoor conditions
Mechanical
Dimensions Without Wall-Mount: 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
With Wall-Mount: 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight Without Wall-Mount: 3.4 kg (7.50 lb)
With Wall-Mount: 3.8 kg (8.38 lb)
Enclosure Characteristics Diecast Aluminum Alloy, UV-Resistant Polycarbonate

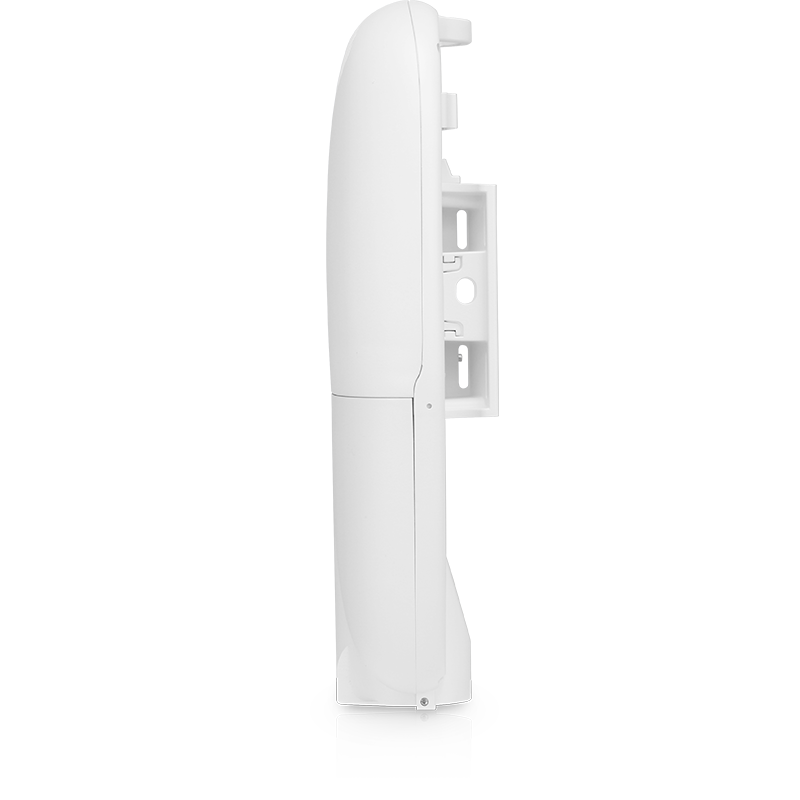

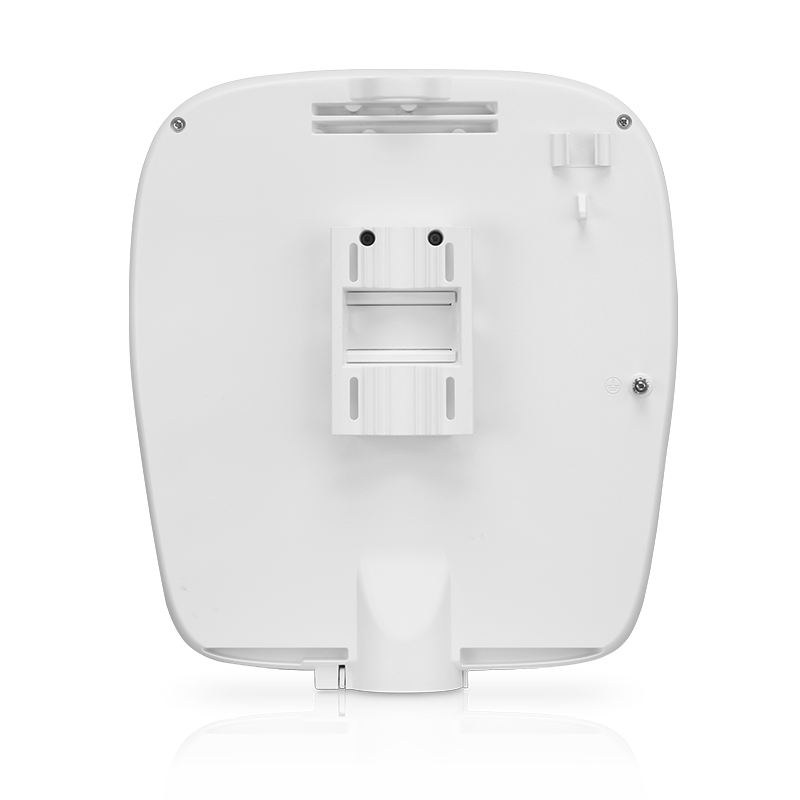

Mount Pole/Wall Mount
Wind Loading 153 N at 200 km/h (34 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Max. Power Consumption 40W (Excludes PoE Output)
Power Input* (1) DC Terminal Block
(2) RJ45 (Ports 1 and 2)
*Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs.
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54V / 6A
Passive PoE Input* (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2
*Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.
Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 to 4
(12) PoE/PoE+ or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE, Ports 5 to 16
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, Ports 1 and 2, PoE Input or Output Power
(14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range +42 to +56VDC (-48V is NOT Supported)
Button Reset
LEDs
System
PoE In 1 to 16
SFP

Power
PoE
Speed/Link/Activity, PoE
Speed/Link/Activity

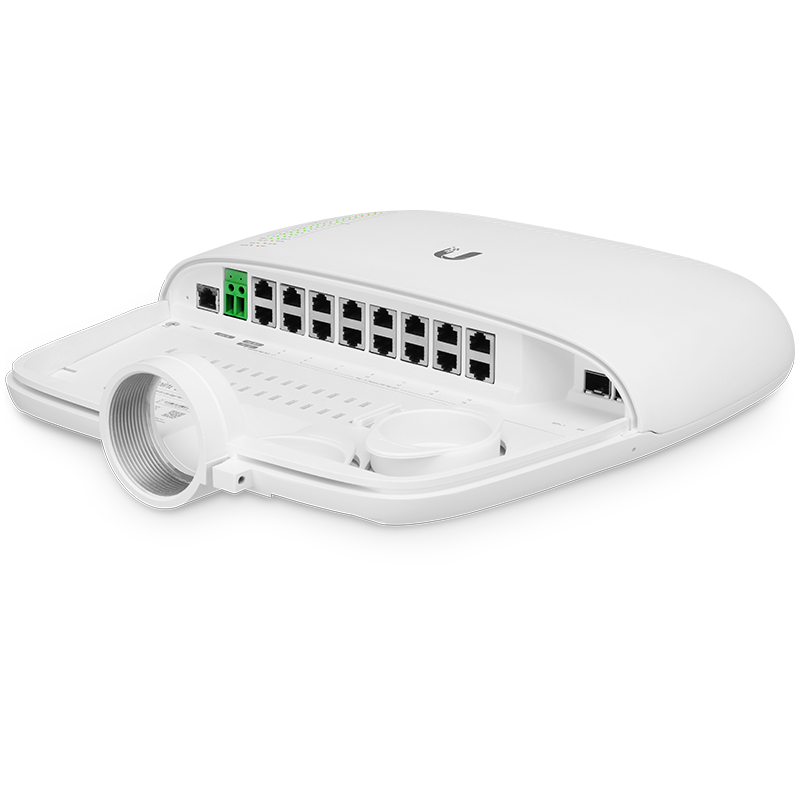

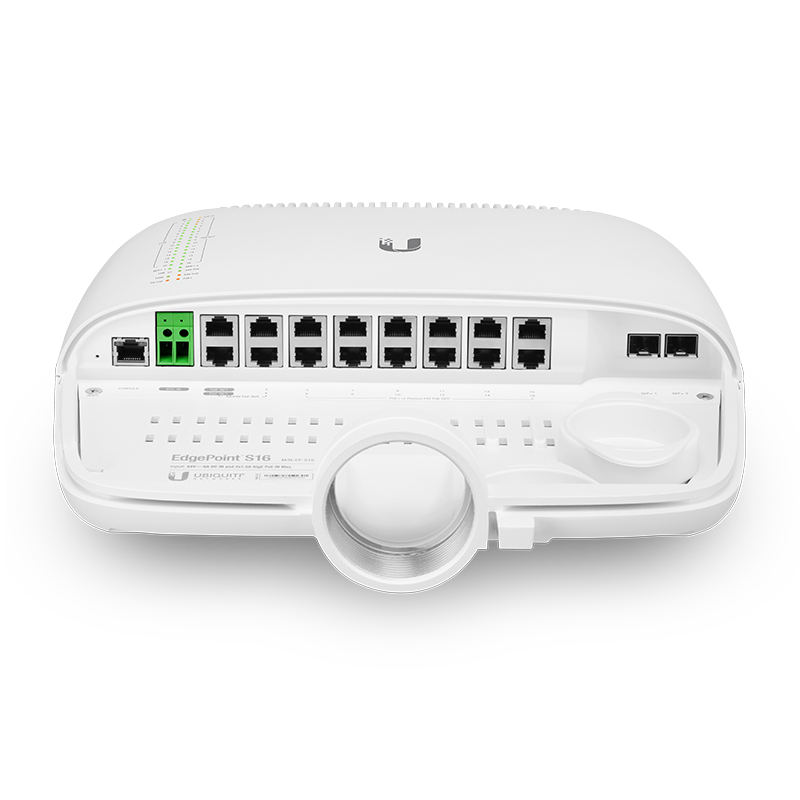

Ports
Serial Console Port
Data Ports

(1) RJ45 Serial Port
(16) 10/100/1000 RJ45 Ports
(2) 1/10 Gbps SFP+ Ports
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
