EP-Supply UISP EdgePower Supply UPS
Ubiquiti EP-Supply UISP EdgePower Supply UPS
SKU:EP-54V-72W
Regular price
$276.00
Regular price
$313.00
Sale price
$276.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
EdgeMAX uninterruptible power supply.
- Reliable and convenient UPS for WISPs.
- UISP remote management.
- Automatic alerts for power outages.
Connect to a lead-acid battery only. Using another battery type could be hazardous.

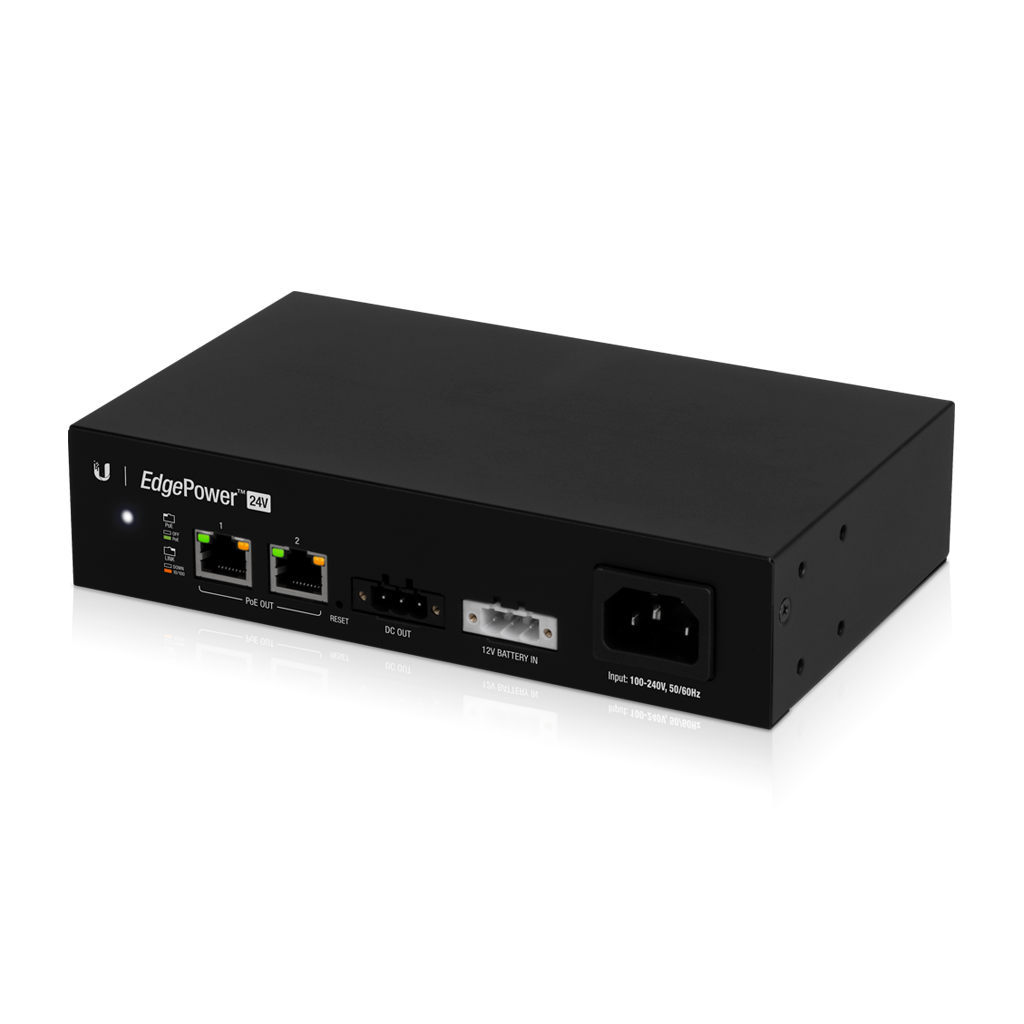

| EP-24V-72W | |
|---|---|
| Model | EP-24V-72W |
| Dimensions | 192 x 43.7 x 115 mm (7.56 x 1.72 x 4.53") |
| Weight | 650 g (1.43 lb) |
|
Interfaces Networking Management |
(2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 24V, 3A |
| AC Input | 100-240VAC, 50-60 Hz, Universal Input |
| Battery Input | DC Terminal Block |
| AC Input | AC/DC 72W |
| Battery Input |
12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| System | 2W |
| Output | 72W |
| System | Status |
| RJ45 Data Ports | PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |

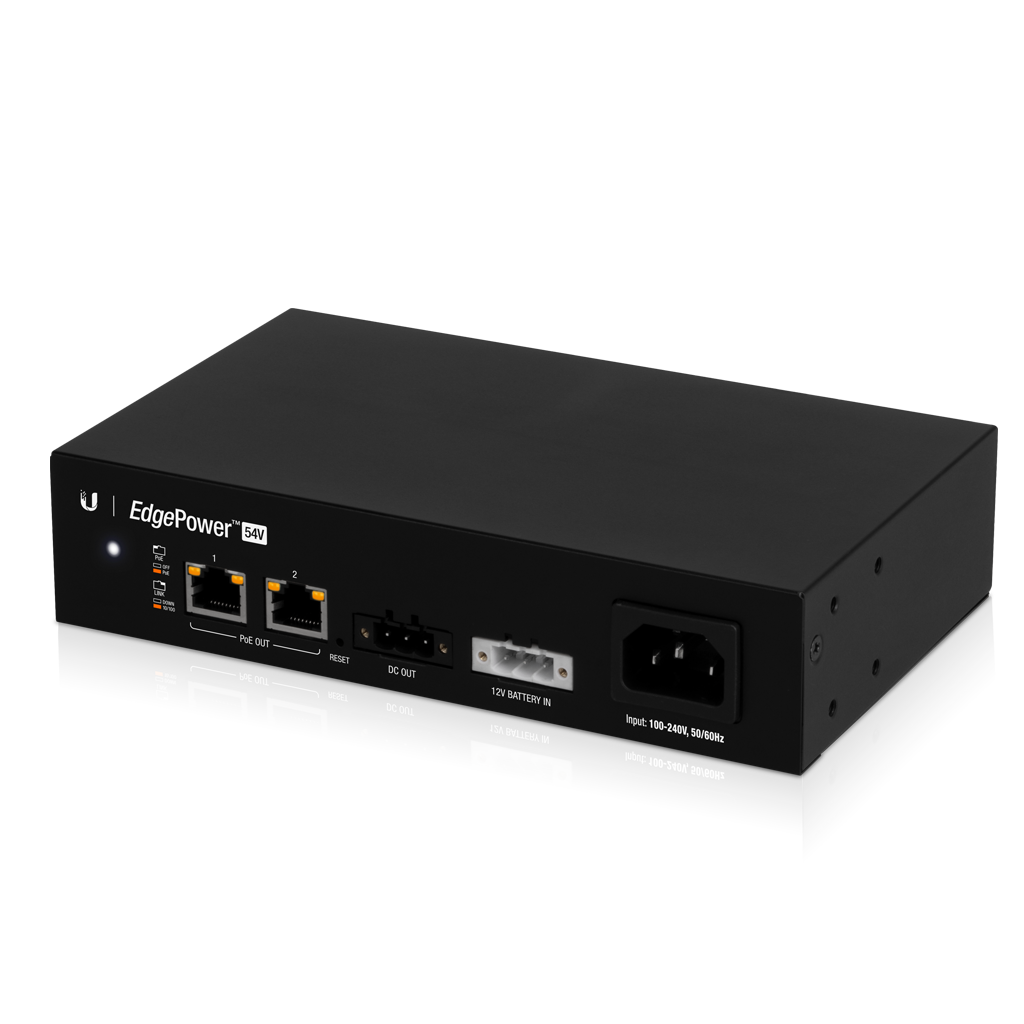

| EP-54V-72W | |
| Model | EP-54V-72W |
| Dimensions | 115 x 192 x 43.7 mm (4.53 x 7.56 x 1.72") |
| Weight | 650 g (1.43 lb) |
|
Interfaces Networking Management |
(2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 54V, 1.3A |
|
Power Method AC Input Battery Input |
100-240VAC, 50-60 Hz, Universal Input DC Terminal Block |
|
Power Supply AC Input Battery Input |
AC/DC 72W 12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
|
Max. Power Consumption System Output |
2W 72W |
|
LEDs System RJ45 Data Ports |
Status PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |

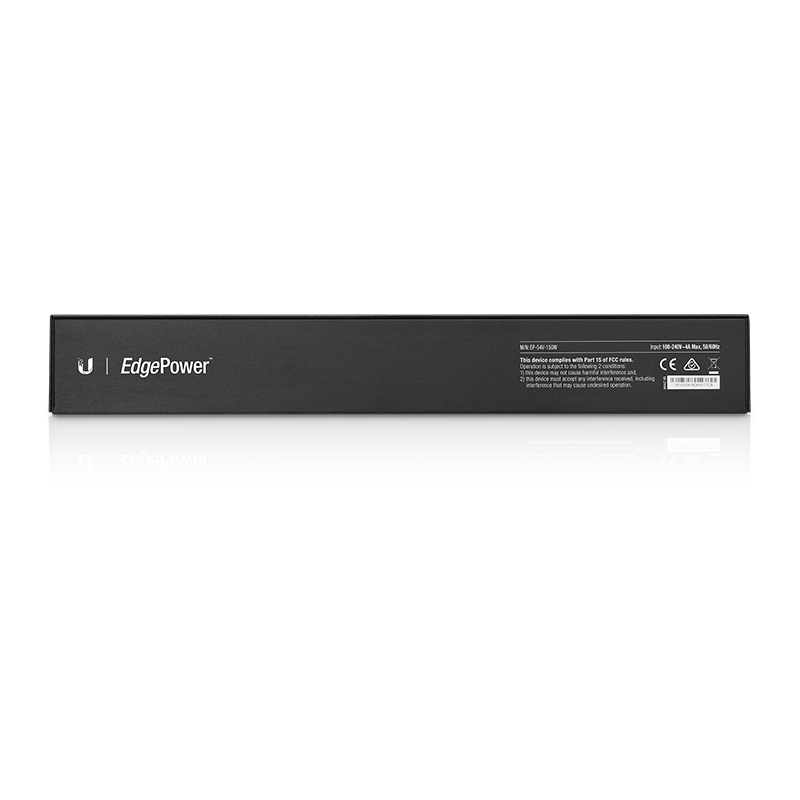

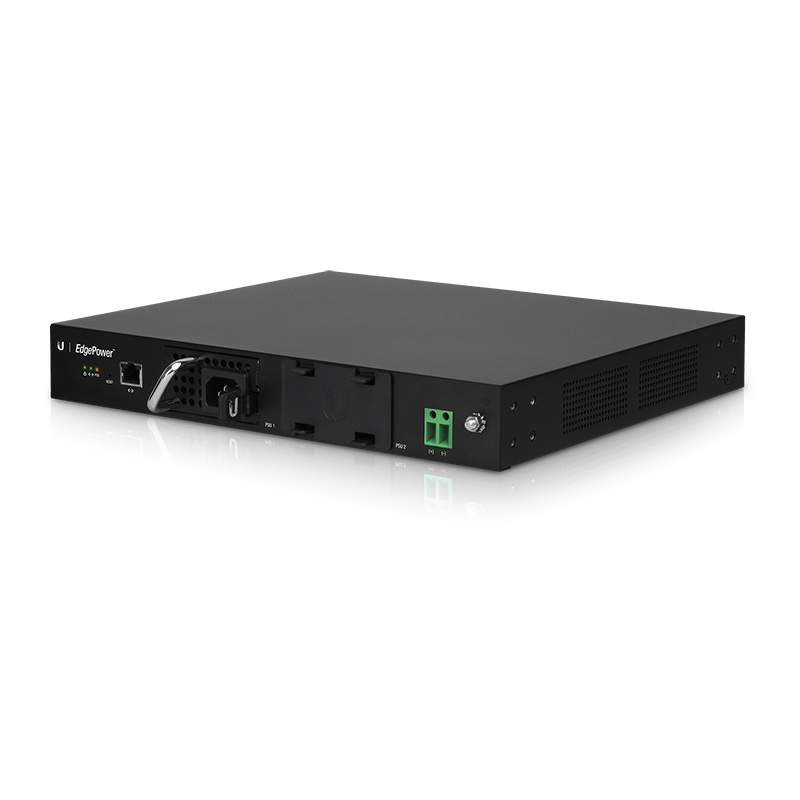

| EP-54V-150W | |
| Model | EP-54V-150W |
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.68") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module |
54V, 150W AC/DC Model EP-54V-150W-AC Installed in PSU 1 |
| Maximum Power Output PSU |
150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
|
LEDs Power Ethernet PSU |
System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
Visit Ubiquiti for more information.
