Ubiquiti

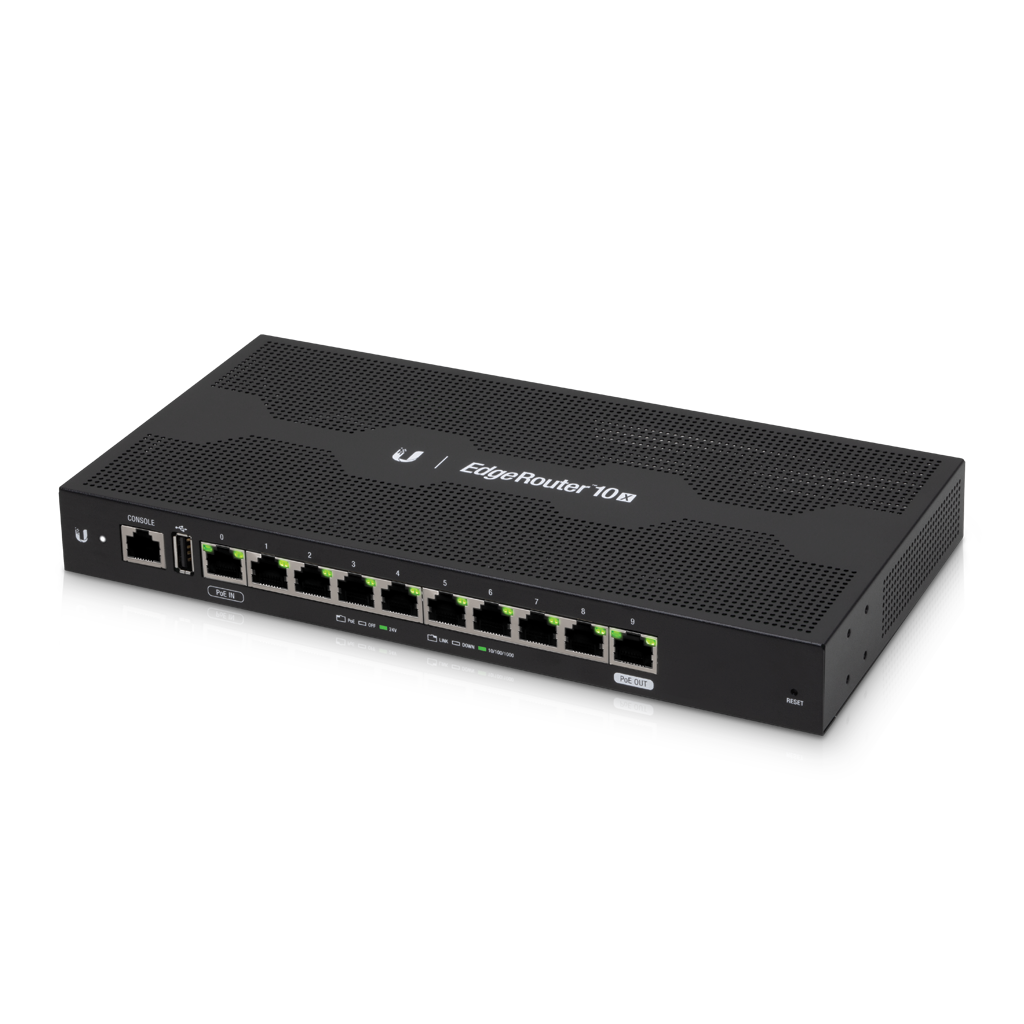

EdgeRouter 10X — Wired UISP EdgeMAX Routing

EdgeRouter 10X — Wired UISP EdgeMAX Routing

Regular price $204.00
Regular price $204.00 Sale price $204.00
0% Off | Save $0.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:ER-10X

Out of stock

View full details

Discover the advanced Ubiquiti EdgeRouter 10X, a high-performance gigabit router featuring an integrated Layer 2 switch. This robust unit offers ten Gigabit RJ45 ports, a dedicated PoE input, and a convenient PoE passthrough port for versatile networking solutions.

  • Ten GbE RJ45 ports for extensive connectivity
  • Efficient 24V passive PoE passthrough for streamlined power distribution
  • Versatile mounting options: wall-mount or rack-mount*

* Rack-mount sold separately.

Mechanical
Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight 600 g (1.32 lb)
Hardware
Management Interface (1) RJ45 Serial Port
(10) Ethernet Ports (Default Port 0)
Networking Interface (10) 10/100/1000 RJ45 Ports
Processor Dual-Core 880 MHz, MIPS1004Kc
System Memory 512 MB DDR3 RAM
On-Board Flash Storage 512 MB NAND
Max. Power Consumption 8W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 24W (24V, 1A) (Included)
24V Passive PoE
Power Supply External AC/DC Adapter
Supported Voltage Range DC: 9 - 30VDC
24V Passive PoE: 20 - 30V
Button Reset
LEDs Data Ports: Link/Activity, PoE (Port 9 Only)
Layer 3 Forwarding Performance Packet Size: 64 Bytes - 260,000 pps
Packet Size: 1518 Bytes or Larger - 1 Gbps (Line Rate)
Mounting Wall, Rack (With optional Rack Mount Kit, model ER-RMKIT)
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
PoE
PoE Interfaces PoE In: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port 15W (24V, 0.63A)
Passive PoE Output DC/PoE Passthrough
