Ubiquiti

EdgeSwitch 10X — Wired UISP EdgeMAX Switching

EdgeSwitch 10X — Wired UISP EdgeMAX Switching

Regular price $198.00
Regular price $198.00 Sale price $198.00
0% Off | Save $0.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:ES-10X

Out of stock

View full details

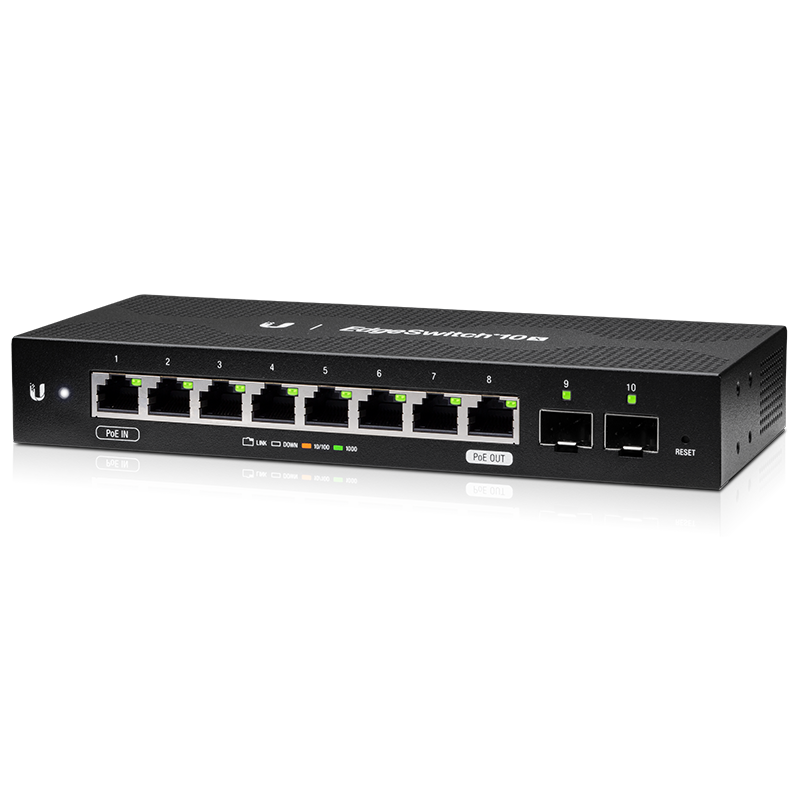

Discover the Ubiquiti EdgeSwitch 10X, a budget-friendly WISP switch ideal for Australian businesses. It features (8) Gigabit RJ45 ports, (2) SFP ports, and robust support for PoE passthrough.

  • (8) Gigabit Ethernet RJ45 ports for high-speed connectivity
  • (2) 1G SFP ports to ensure versatile network integration
  • 24V passive PoE passthrough for efficient power management
Mechanical
Dimensions 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Weight 500 g (1.10 lb)
Hardware
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface Ethernet In-Band
Total Non-Blocking Throughput 10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Max. Power Consumption
(Excluding PoE Output)
8W
Power Method 24VDC, 1A or 24V Passive PoE
Supported Voltage Range 9 -30VDC
Power Supply 24VDC, 1A Power Adapter (Included) or 24V Passive PoE
LEDs
System
RJ45 Data Ports
SFP Data Ports

Status
Link/Speed/Activity
Link/Activity
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
PoE
PoE Interface 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. Passive PoE Wattage per Port 15W
24V Passive PoE Voltage Range 24V
