EdgeSwitch 18X — Wired UISP EdgeMAX Switching
EdgeSwitch 18X — Wired UISP EdgeMAX Switching
Regular price
$314.00
Regular price
$314.00
Sale price
$314.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Business purchase? Contact us below for bulk discounts!
SKU:ES-18X
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

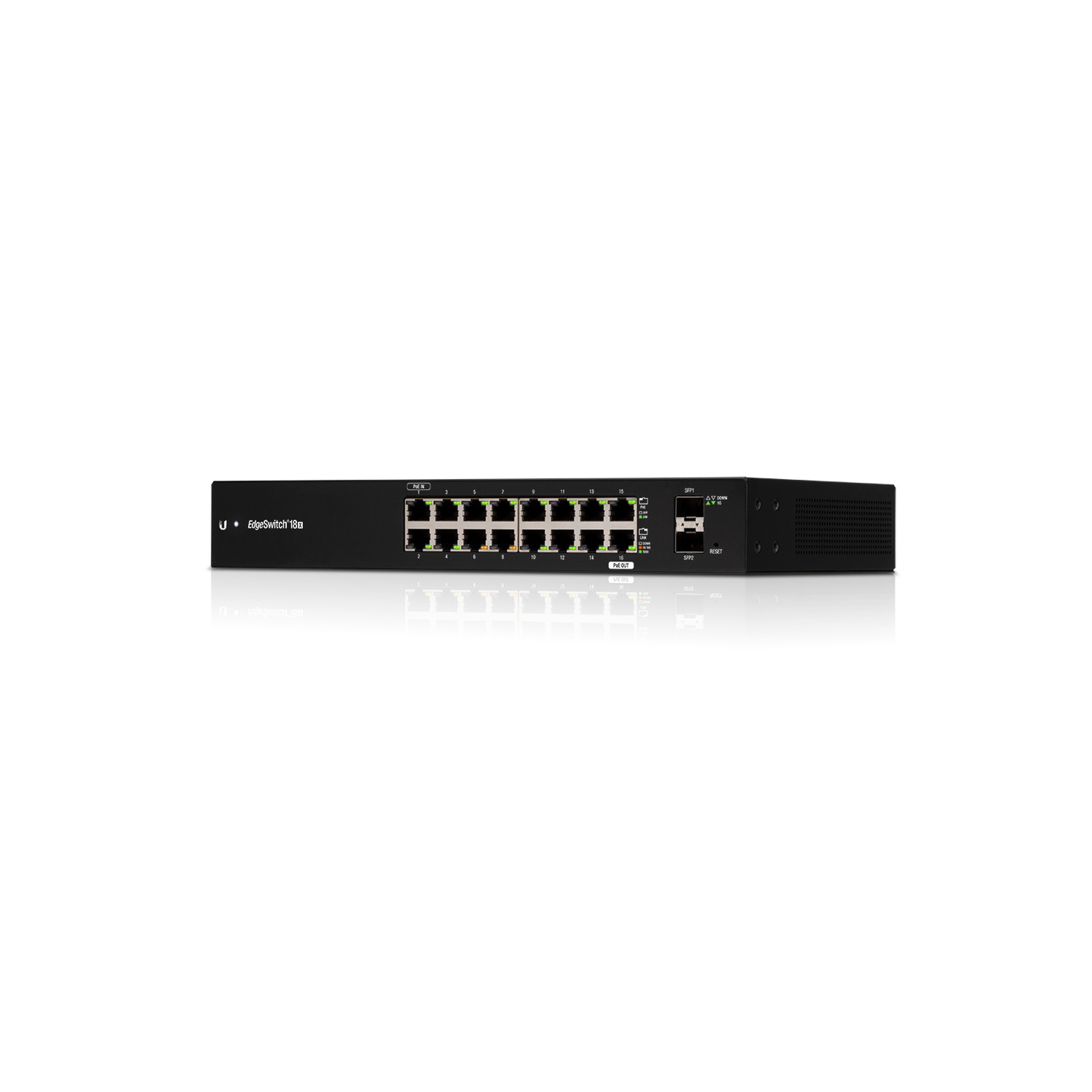

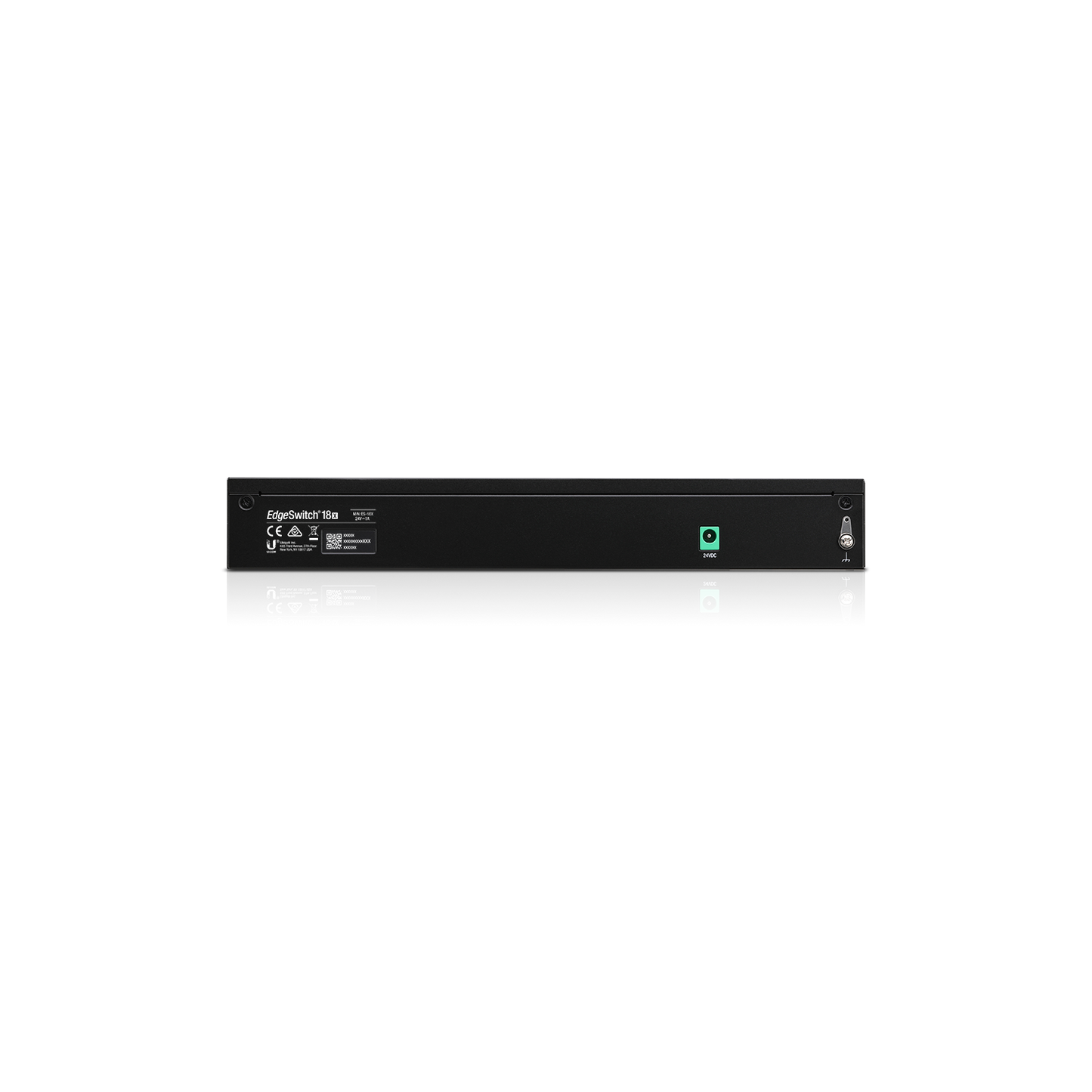

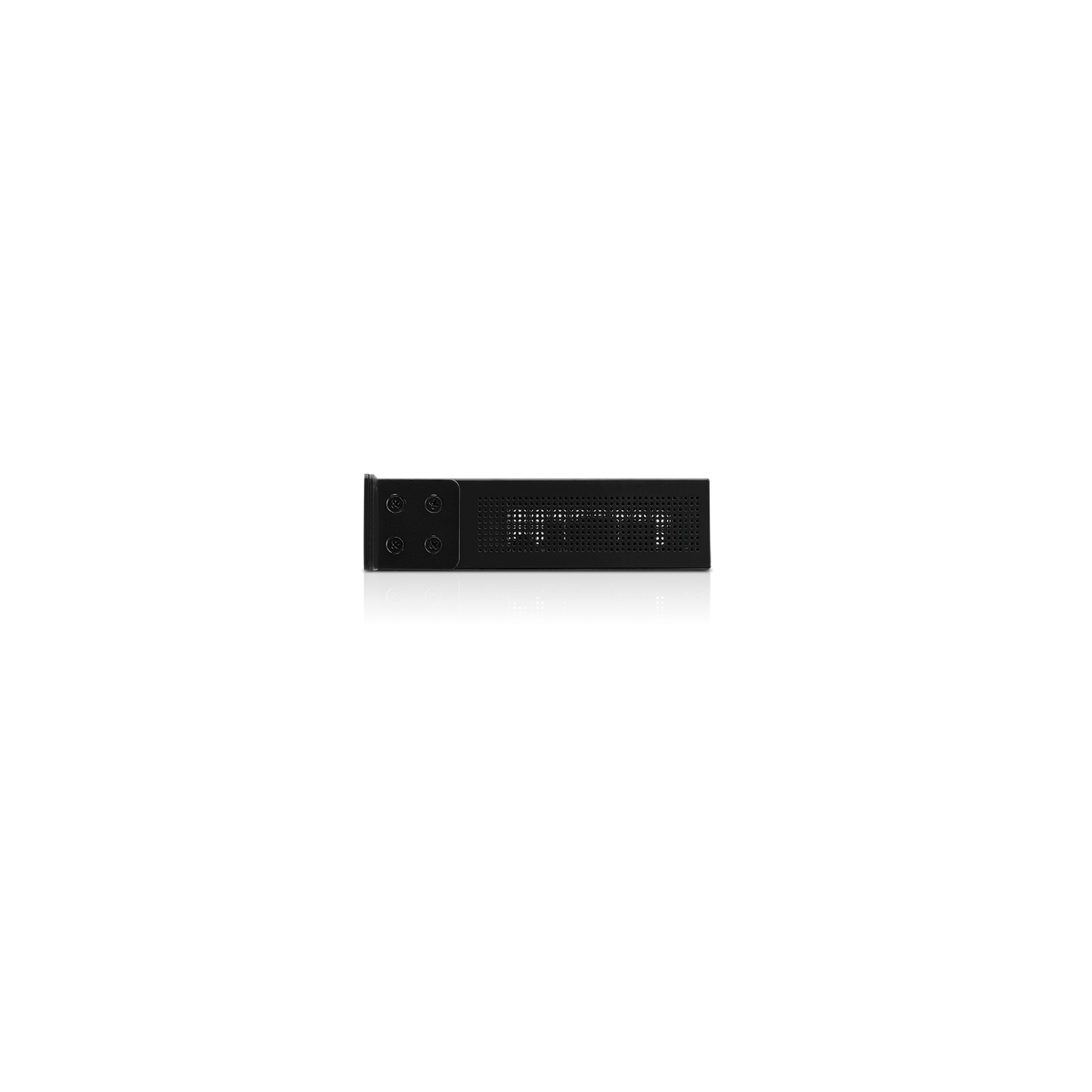

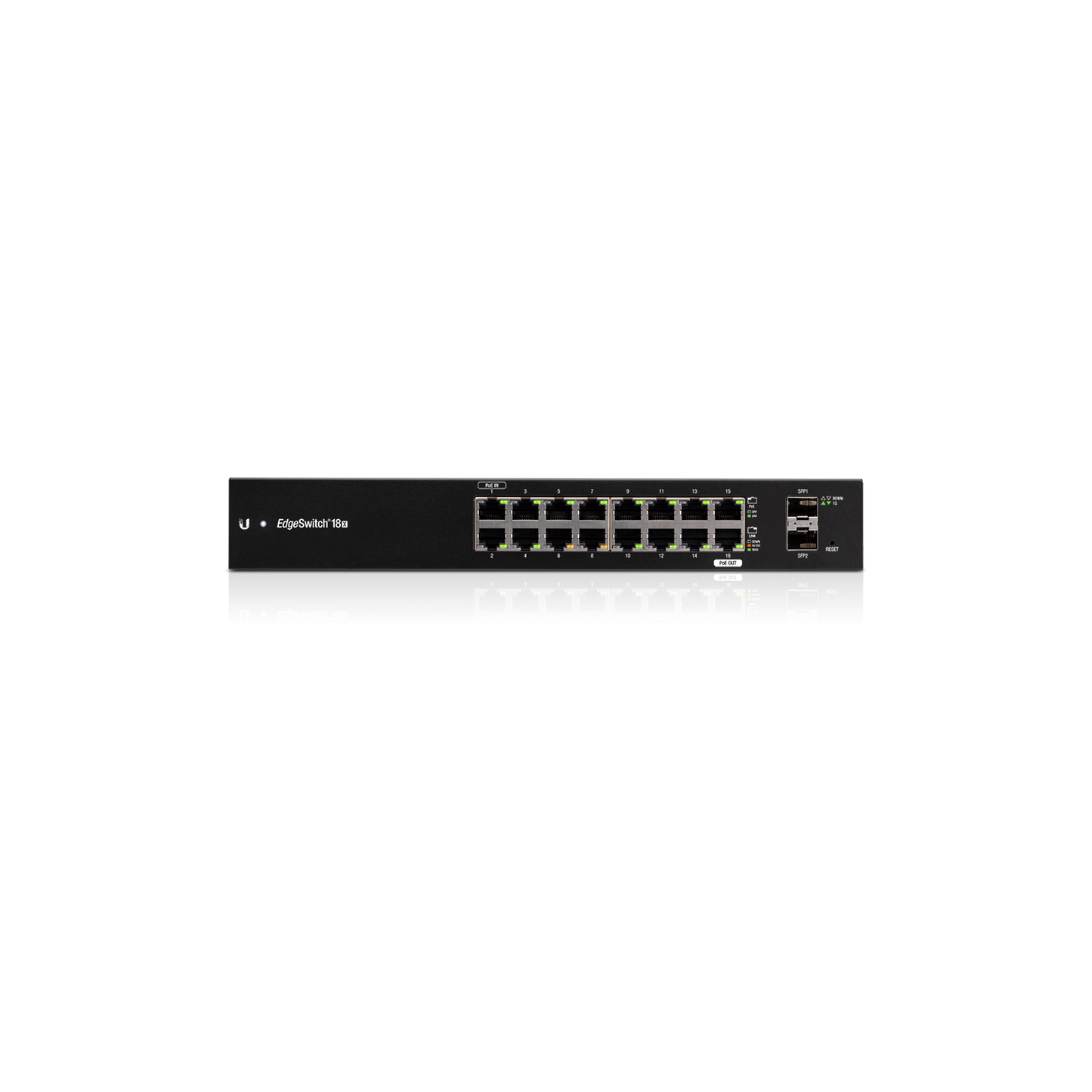

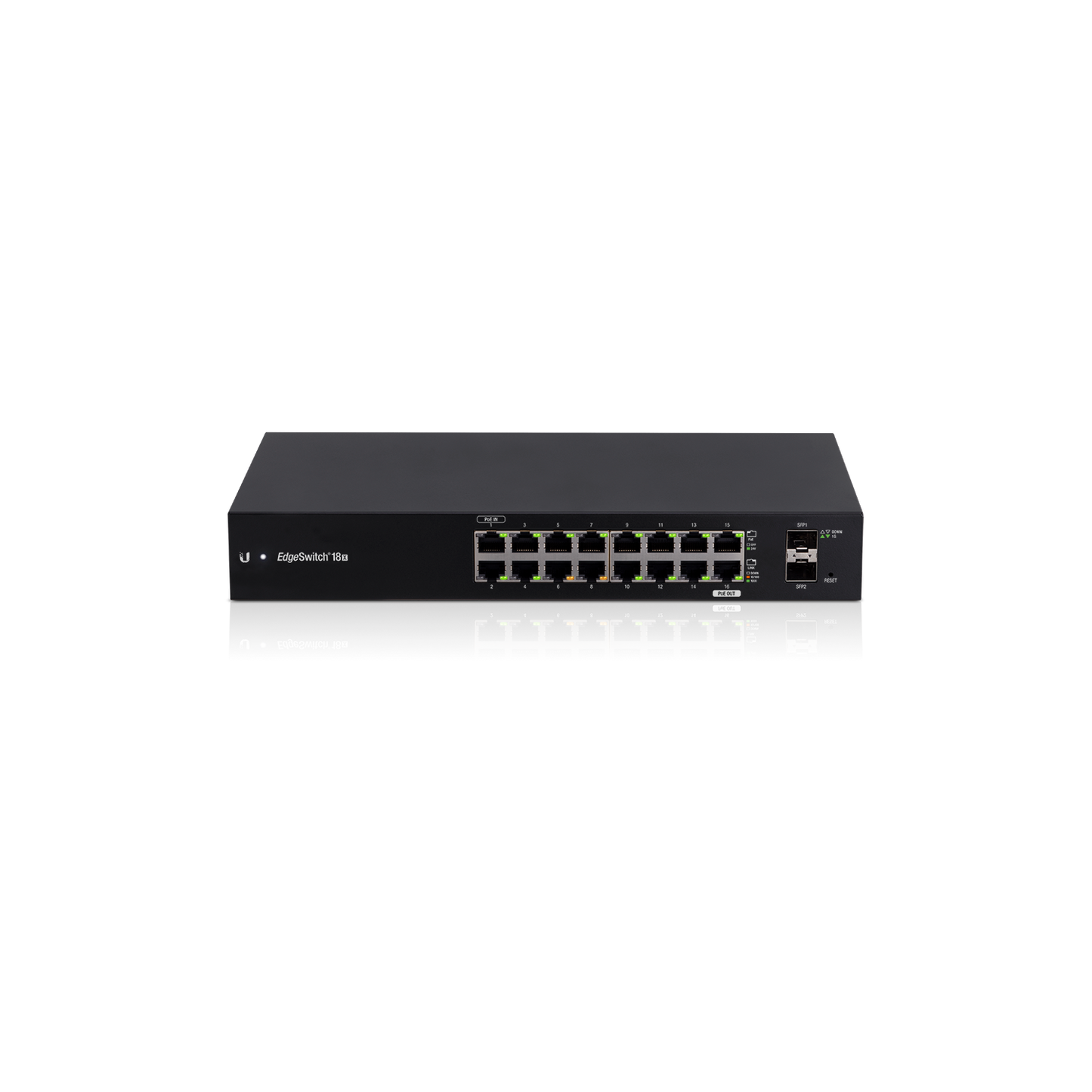

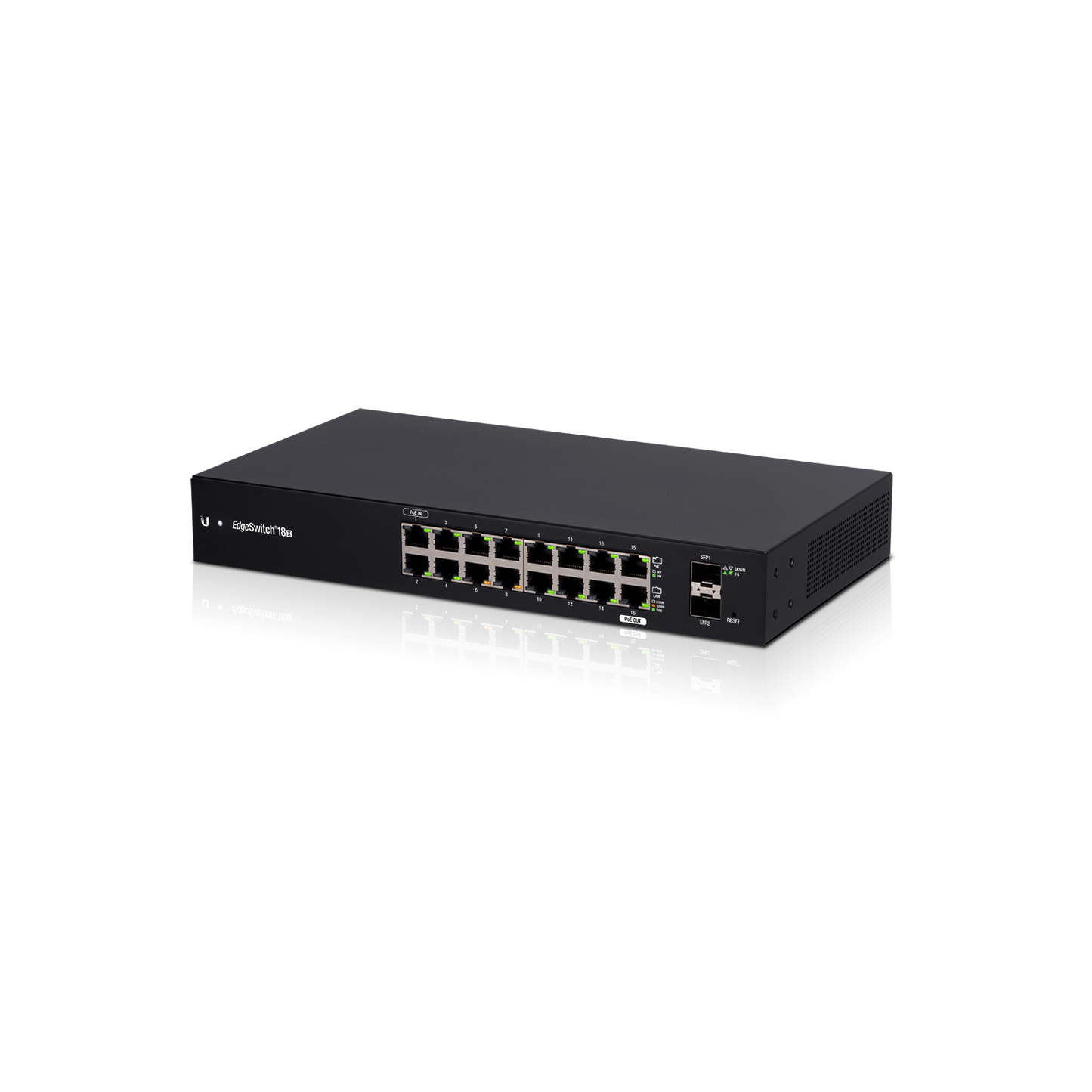

![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-1.png?v=1701829474&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-2.png?v=1701829474&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-3.png?v=1701829473&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-4.png?v=1701829473&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-5.png?v=1701829475&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-6.png?v=1701829473&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-7.png?v=1701829474&width=1445)

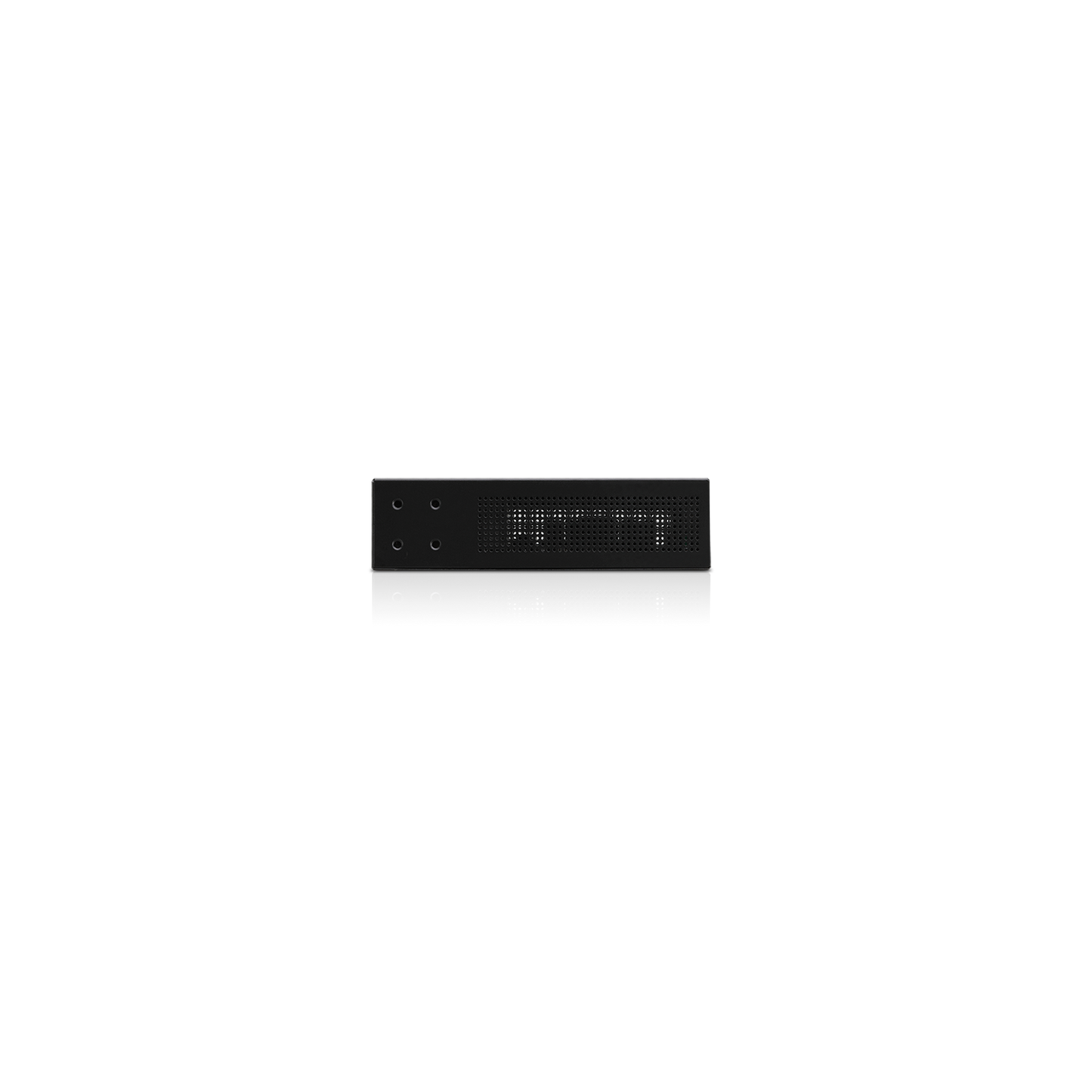

![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-8.png?v=1701829473&width=1445)
![Ubiquiti EdgeSwitch 18X](http://bits-mart.com/cdn/shop/files/ubiquiti-edgeswitch-18x-wired-uisp-edgemax-9.png?v=1701829474&width=1445)
Discover the cost-effective, silent Ubiquiti EdgeSwitch 18X, boasting (16) Gigabit RJ45 ports and (2) SFP ports, ideal for Australian wireless ISPs.
- (16) Gigabit Ethernet RJ45 ports for high-speed network connectivity
- (2) SFP ports for efficient fibre optic connections

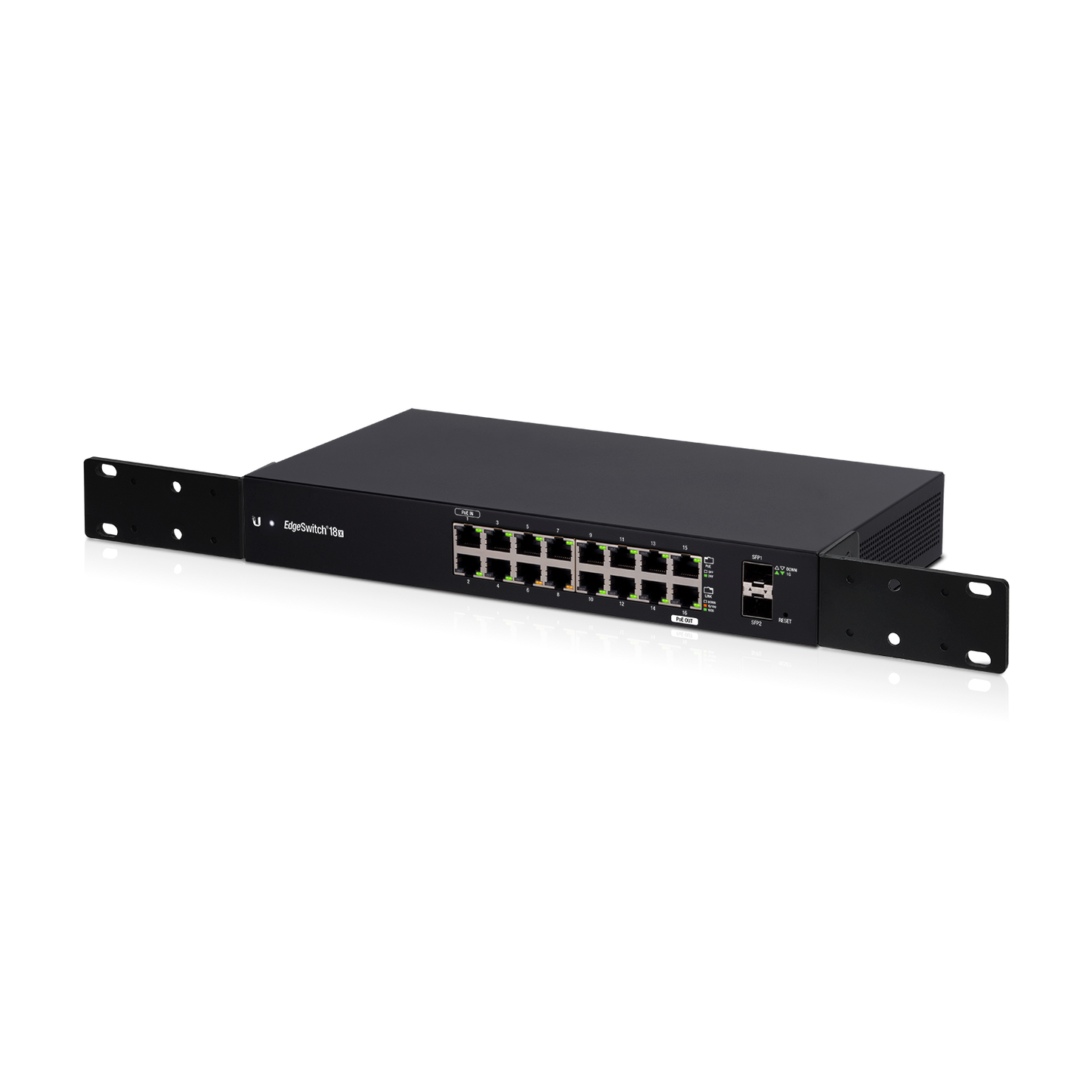

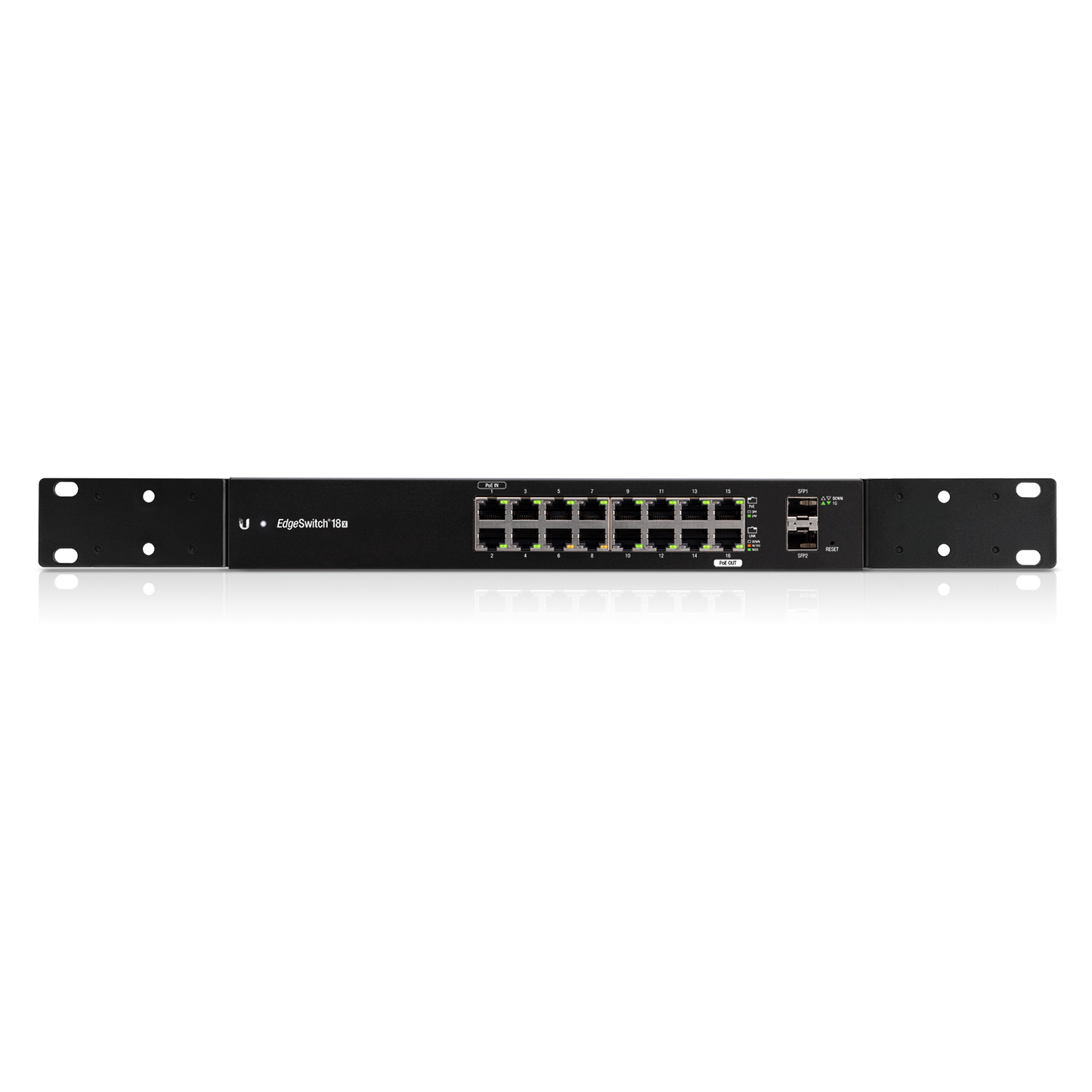

- Versatile installation options: wall or rack-mountable, 1U size for easy integration
Mechanical | |
---|---|
Dimensions | 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7") |
Weight | Without Mount: 1.15 kg (2.54 lb) With Mount: 1.43 kg (3.15 lb) |
Enclosure Material | Metal |
Mount Material Metal | Metal |
Hardware | |
Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 Ports (2) 1 Gbps SFP Ports |
Management Interface | Ethernet In-Band |
Processor | MIPS 4Kc, 500 MHz |
System Memory | 128 MB DDR3 |
On-Board Flash Storage | SPI 16 MB |
Total Non-Blocking Throughput | 18 Gbps |
Switching Capacity | 36 Gbps |
Forwarding Rate | 26.78 Mpps |
Max. Power Consumption | 14W (Excludes PoE Output) |
ESD/EMP Protection | Air: ± 16 kV, Contact: ± 8 kV |
Power Method External |
AC/DC Adapter 24V Passive PoE |
Power Supply | 24VDC, 1.0A Power Adapter (Included) 24V Passive PoE |
Supported Voltage Range | 9 - 30VDC |
PoE Interfaces | (1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-) |
Passive PoE Max Wattage per Port | 15W |
Passive PoE Voltage Range | 24V |
Operating Temperature | -10 to 50° C (14 to 122° F) |
Operating Humidity | 10- 90% Noncondensing |
Certifications | CE, FCC, IC |
LEDs | |
System | (1) White/Blue |
Ethernet Green | 1G, Amber: 10/100 Mbps |
SFP Green | 1G |
Software | |
Mode | Layer 2 Ethernet Switch |
VLAN | 4K VLANs |
QoS | (16) Priority Queues per User Port and Traffic Classification |
Jumbo Frame | 10 KB |
PoE | Enable/Disable Passive PoE |
Ubiquiti Specific Features | Features Ubiquiti Discovery |
Other | TFTP Recovery |
Minimum Software Requirements | Web Browser (Chrome Recommended) |
