Ubiquiti

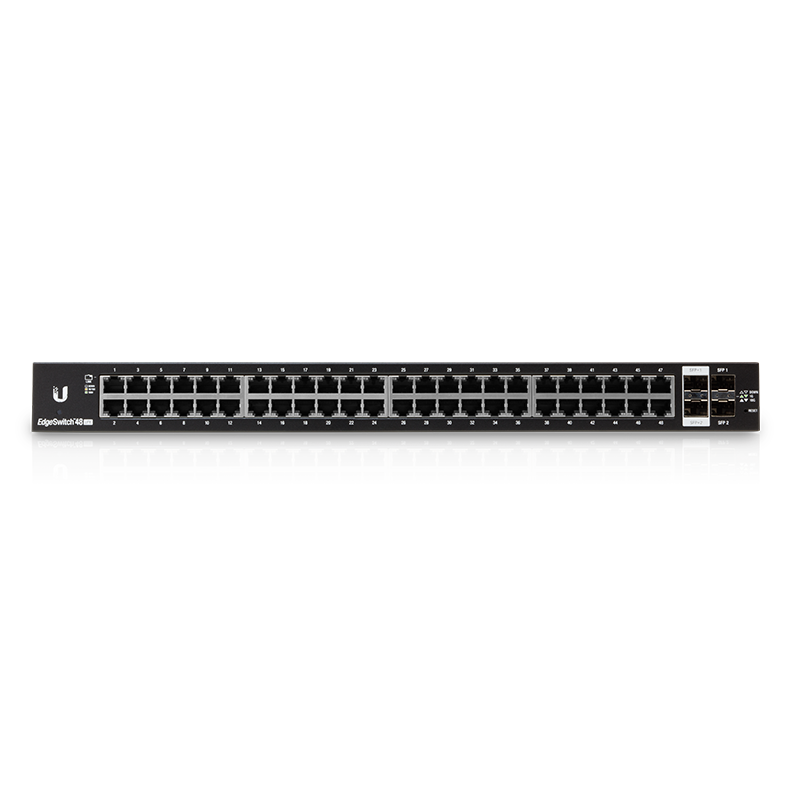

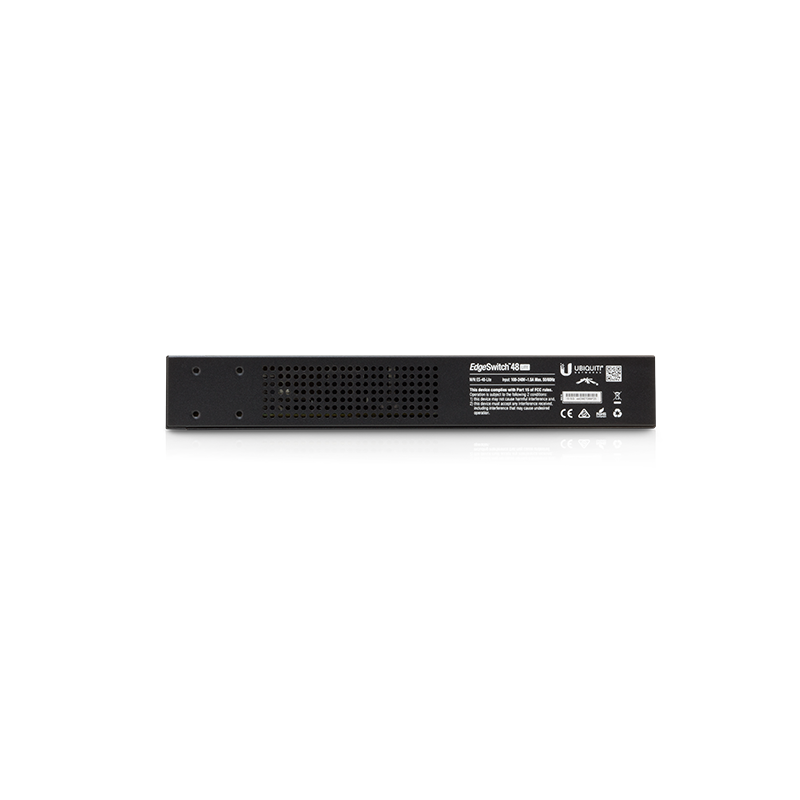

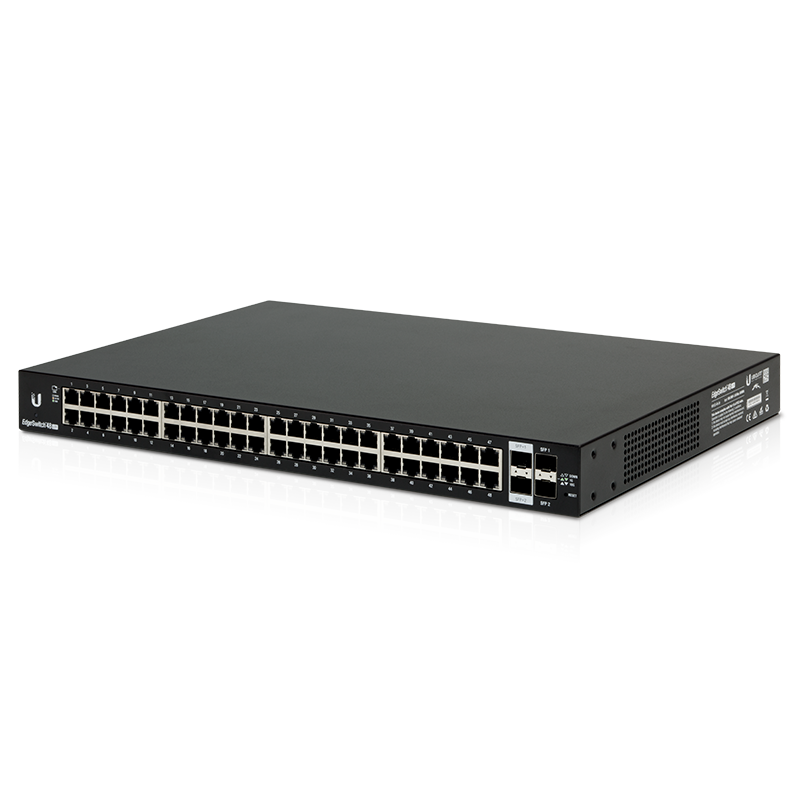

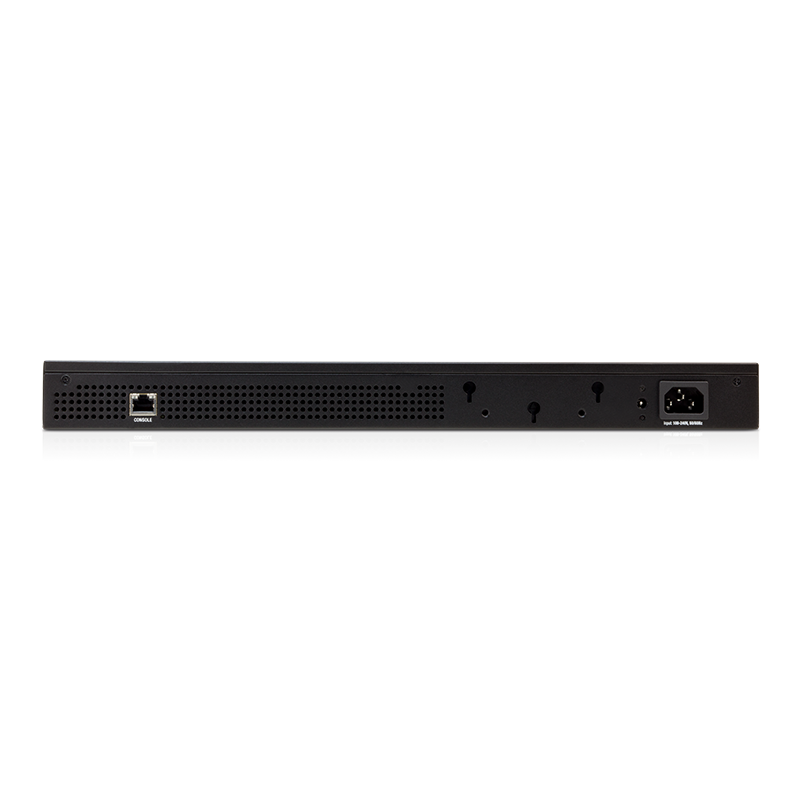

EdgeSwitch 48 Lite — Wired UISP EdgeMAX Switching

EdgeSwitch 48 Lite — Wired UISP EdgeMAX Switching

Regular price $718.00
Regular price $718.00 Sale price $718.00
0% Off | Save $0.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:ES-48-Lite

Out of stock

View full details

Discover the EdgeSwitch 48 Lite, a robust Layer 2/3 switch featuring forty-eight Gigabit RJ45 ports, two SFP+ ports, two SFP ports, and a 56-watt power supply. Ideal for high-speed networking in Australia.

  • Forty-eight GbE RJ45 ports for extensive connectivity
  • Includes two SFP and two SFP+ ports for uplinking
  • Versatile installation: wall or rack-mountable design
Mechanical
Dimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
Weight Without Rack-Mount Brackets: 3.56 kg (7.85 lb)
With Rack-Mount Brackets: 3.65 kg (8.05 lb)
Mechanical
Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Max. AC Power Consumption 56W
Power Method
AC
DC

100-240VAC/50-60 Hz, Universal Input
DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply AC/DC, Internal, 56W DC
LEDs Per Port
Serial Console Port
RJ45 Data Ports
SFP+/SFP Data Ports

N/A
Speed/Link/Activity
Speed/Link/Activity
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
