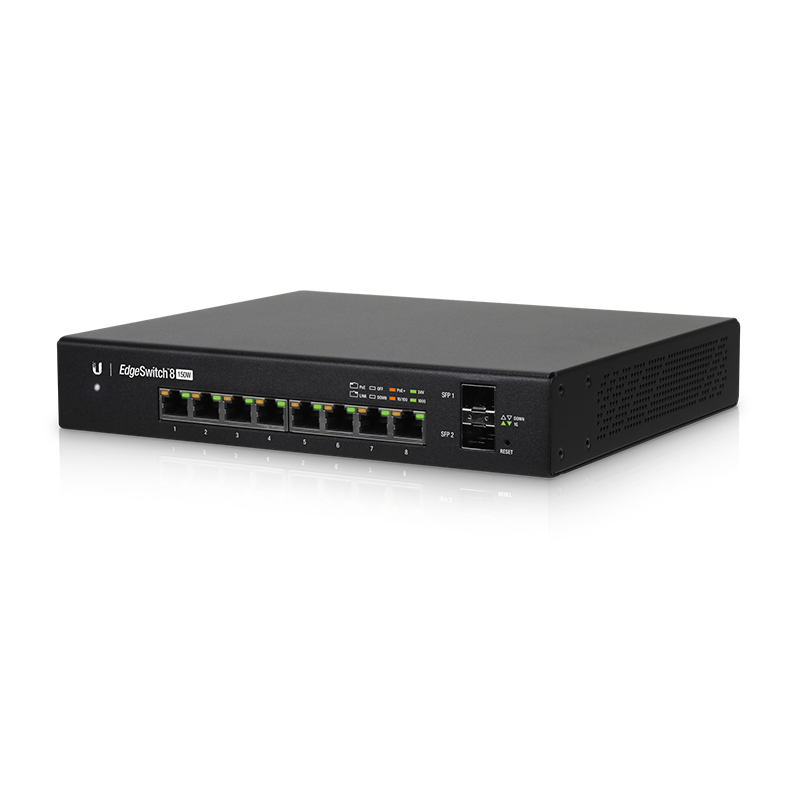

UISP EdgeSwitch 8 PoE Gigabit Switch
Ubiquiti ES-8-150W UISP EdgeSwitch 8 PoE Gigabit Switch
SKU:ES-8-150W
Regular price
$372.00
Regular price
$440.00
Sale price
$372.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

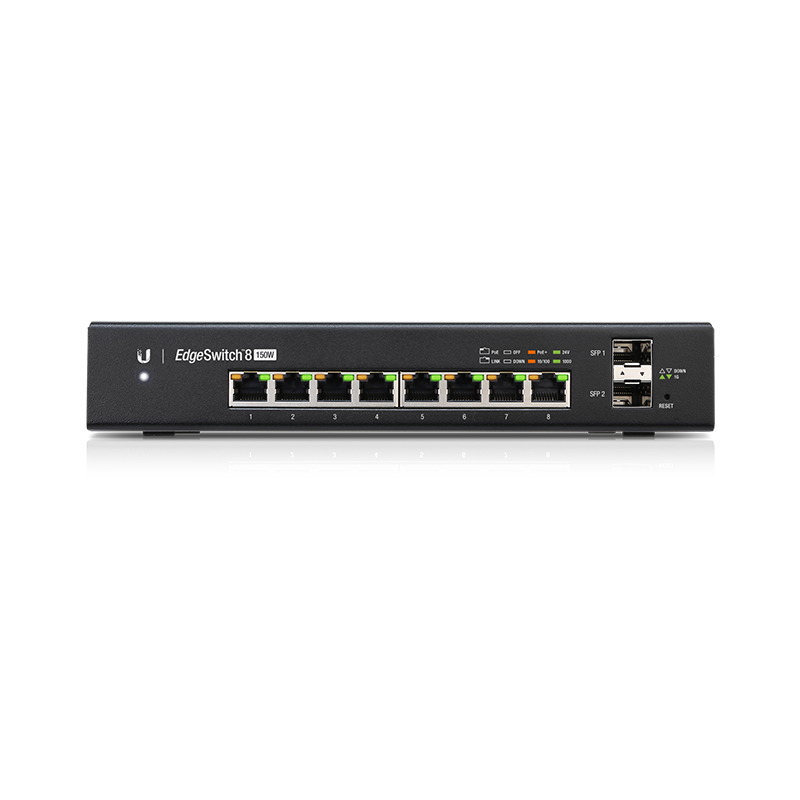

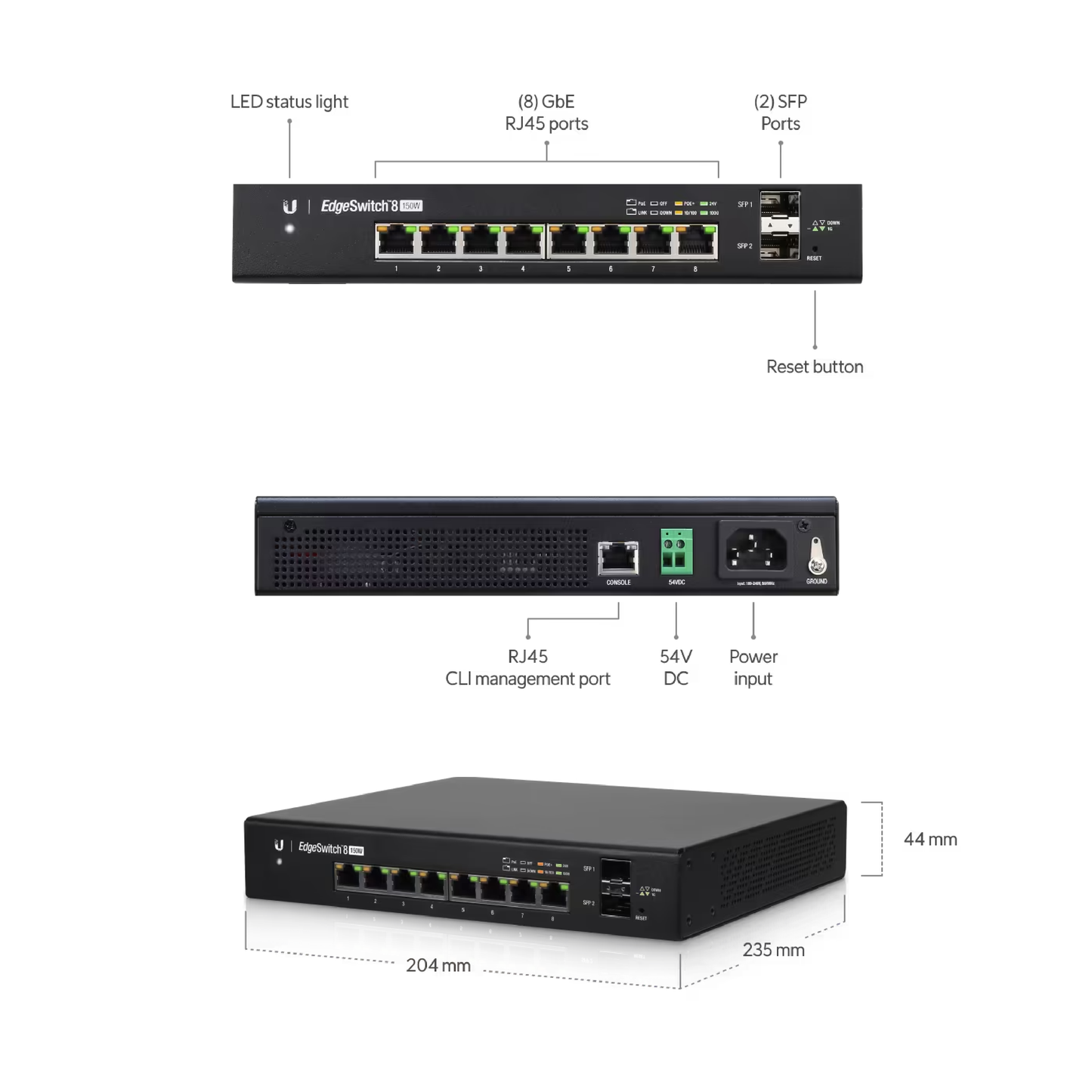

Gigabit switch with (8) RJ45 ports, (2) SFP ports, and a 150W power supply.
- (8) GbE RJ45 ports with 24V passive PoE.
- (2) SFP ports.
- 150W total PoE availability.
- Desktop-mountable.
| Mechanical | |
|---|---|
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") |
| Weight |
Without Wall Mount: 1.72 kg (3.79 lb) With Wall Mount: 1.8 kg (3.96 lb) |
| Hardware | |
| Networking Interface |
(8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band, UART Console Out-of-Band |
| PoE Interface |
(8) PoE/PoE+ 2-Pair (+1, 2; -3, 6) (8) 24V/0.7A 2-Pair (+4, 5; -7, 8) |
| Total Non-Blocking Line Rate | 10 Gbps |
| Max. Power Consumption | 20W (Excludes PoE Output) |
|
Power Method AC DC |

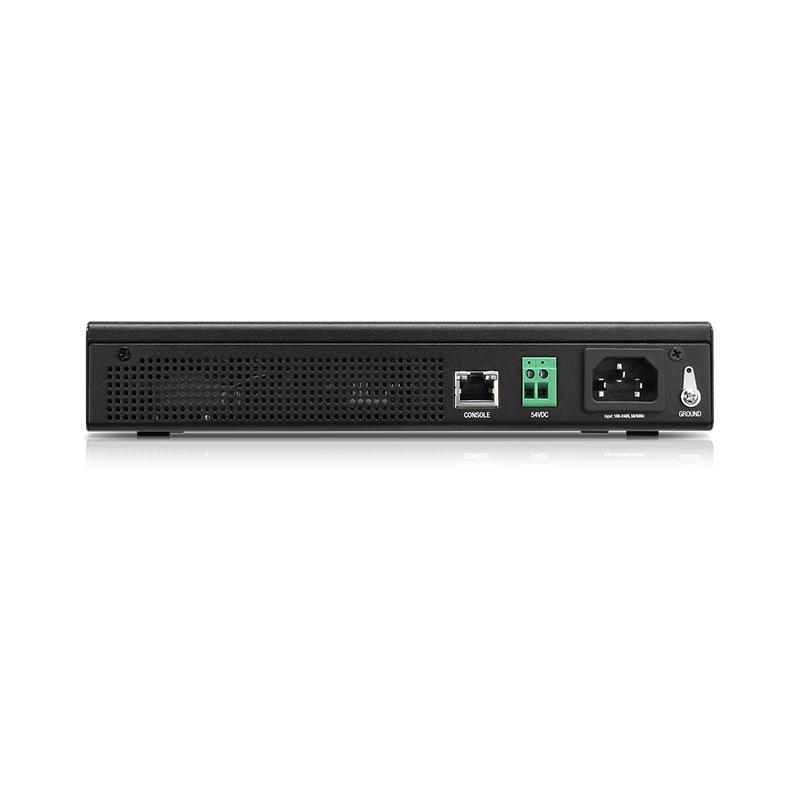

AC/DC Integrated PSU, Universal Input DC External, (Self-Correcting Polarity Protection) Terminal Block Input |
| Power Supply | Internal AC/DC 150W |
|
Operating Voltage AC DC |
100 to 240VAC, 50-60 Hz 42 to 56VDC |
|
LEDs System RJ45 Data Ports SFP Data Ports |
Status PoE; Link/Speed/Activity Link/Speed/Activity |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
|
Operating Temperature Internal AC/DC at 150W Internal AC/DC at 100W External DC |
-25 to 45° C (-13 to 113° F) -25 to 55° C (-13 to 131° F) -25 to 60° C (-13 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Visit Ubiquiti for more information.
